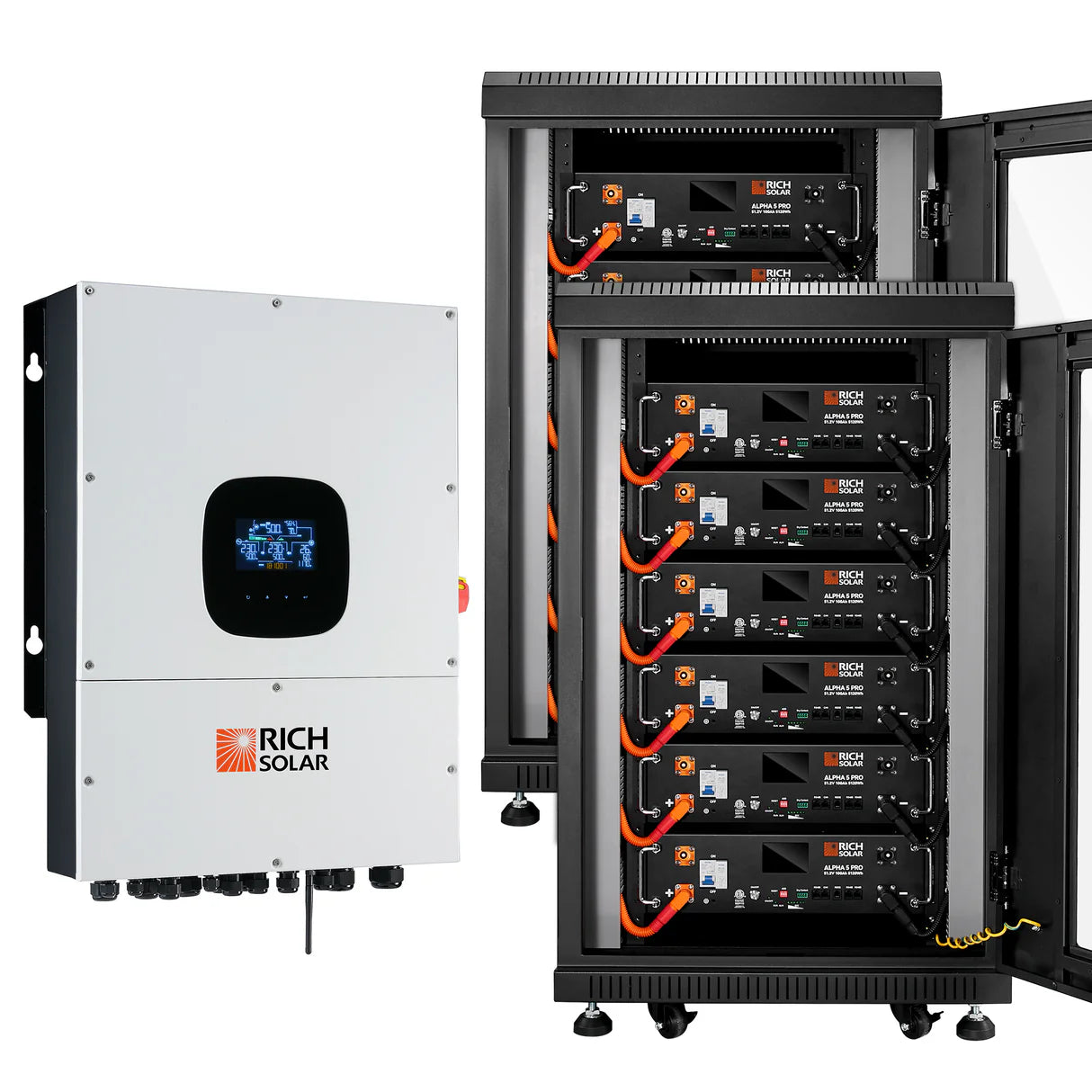

Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]

Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]

$20,799.99 USD
$25,999.99 USD $20,799.99 USD
Sale Sold out
California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.
View full details

Product details

Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]

Specs

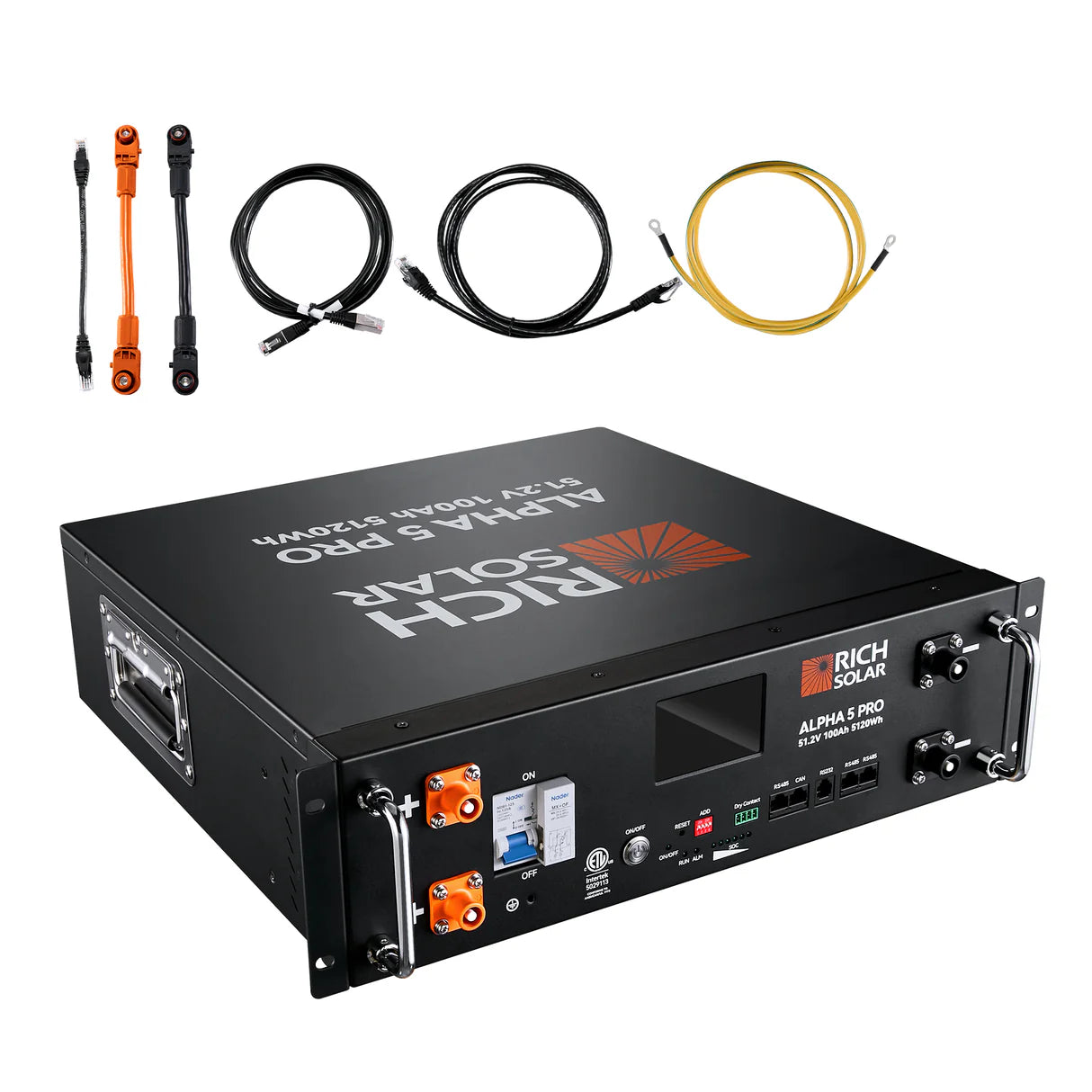

ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery

Features:

  • Certification: UL1973, UL9540A, FCC
  • 7,000 Deep Cycles Life
  • 5120 Watt Hours Energy
  • 100A Continuous Charge Current
  • Compatible with multiple brands of inverters
  • Low maintenance
  • Over charging or discharging protection
  • Overcurrent & short circuit protection
  • Parallel up to 15 Batteries
  • Connect in Parallel for Larger Capacity
  • With Sophisticated Battery Management System (BMS)
  • 10 Years Lifespan

Warranty:

  • *10-Year Warranty

Specifications:

Electrical Specifications

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Minimum Capacity: 99.5Ah
  • Nominal Capacity: 5120Wh

Operating Specifications

  • Charging Voltage: 56V
  • Discharging Cutoff Voltage: 44.8V
  • Maximum Charging Current: 100A
  • Continuous Charge Current: 100A
  • Maximum Discharge Current: 100A

Physical Specifications

  • Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
  • Battery Weight: 99.2 lb

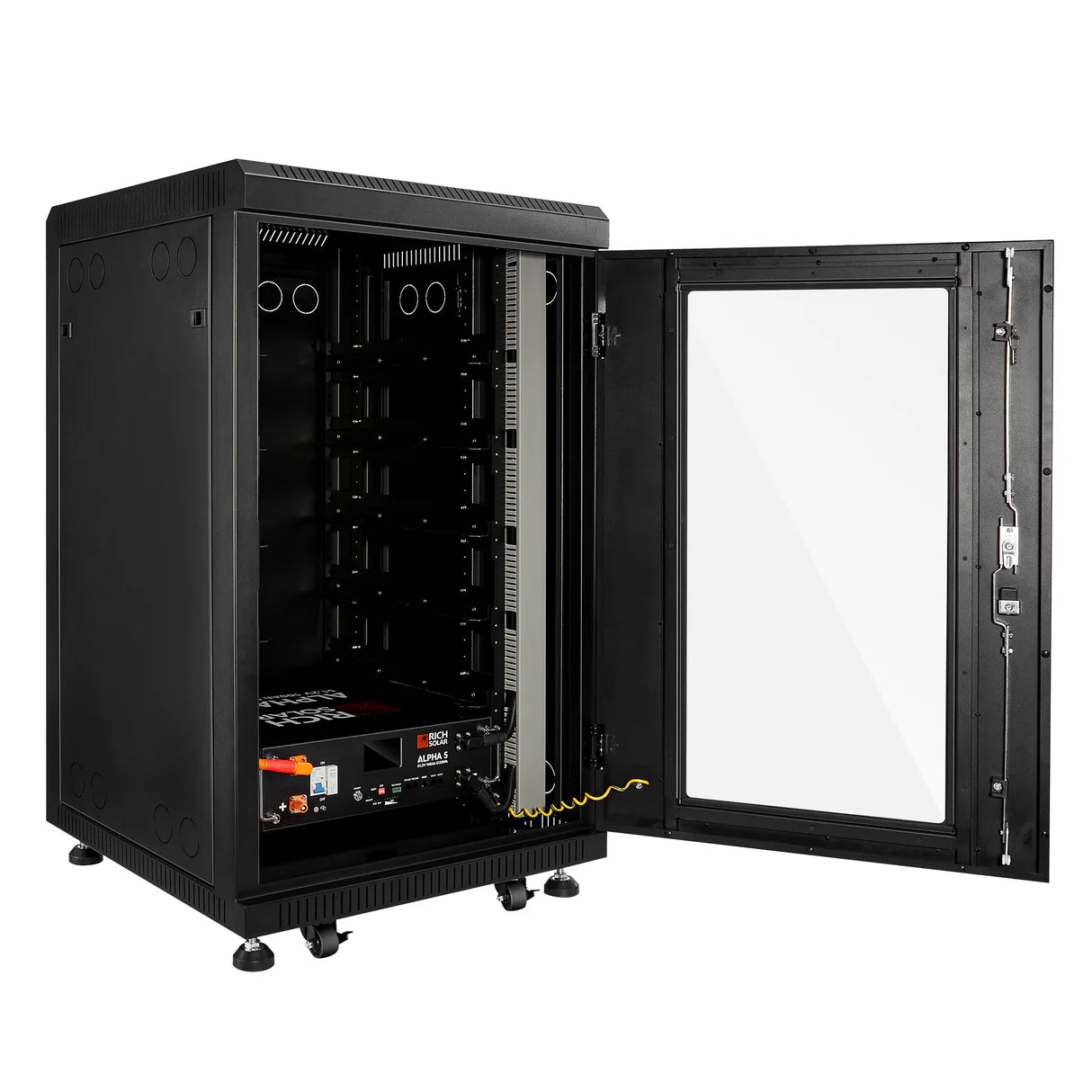

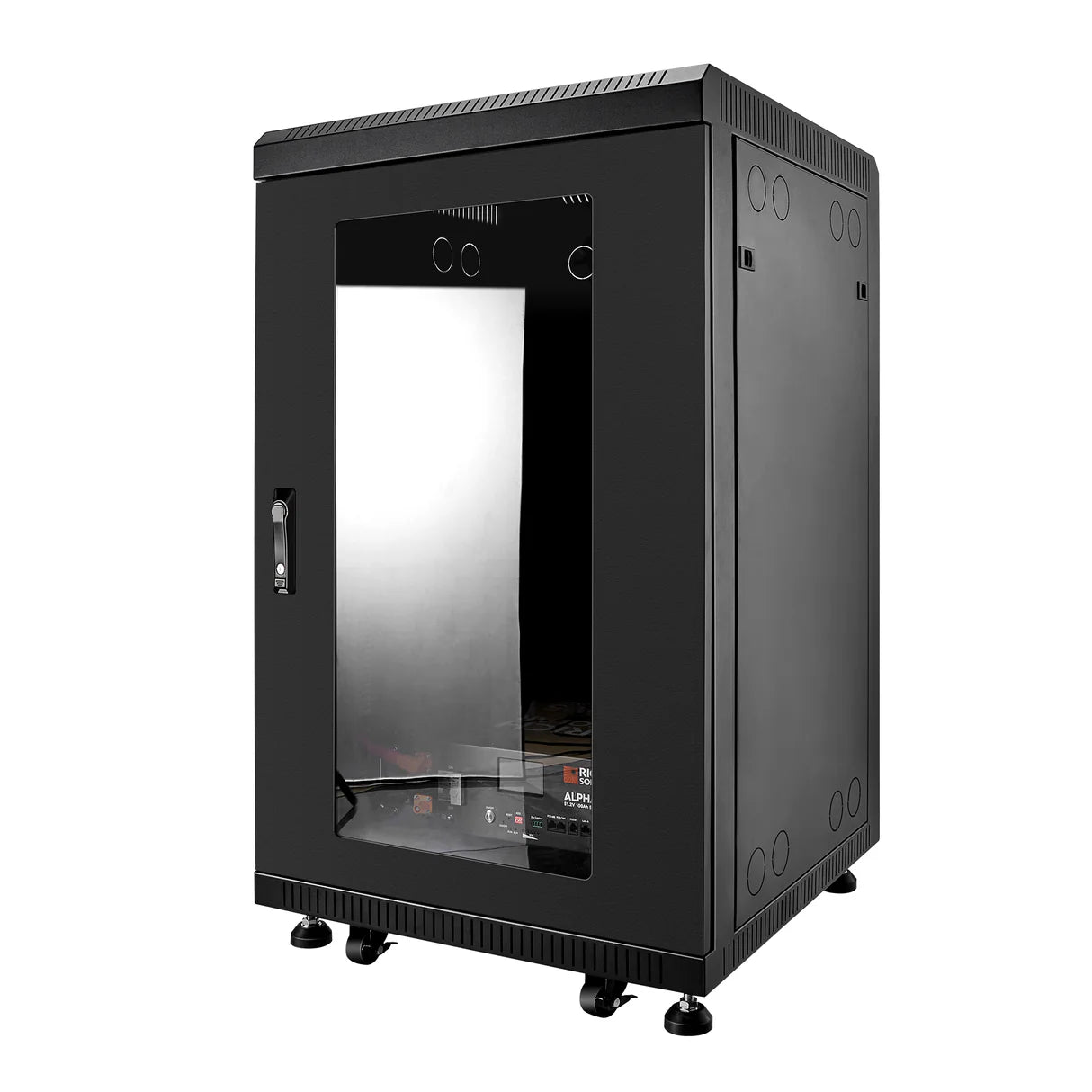

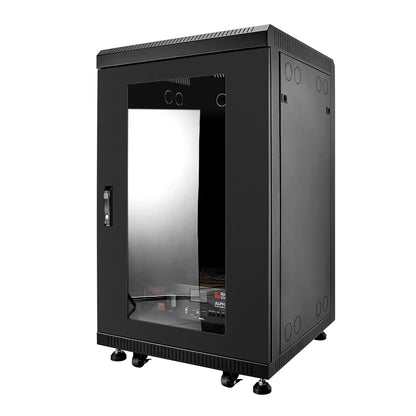

  • Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
  • Server Rack Weight: 196.2 lb

BMS Operation

  • Operation Voltage: 43.2~58.4V
  • Maximum Charging Current: 100A
  • Maximum Discharging Current: 100A
  • Maximum Charge Voltage (CC/CV): 57.6V
  • Overcharge Protection Voltage (Battery): 58.4V
  • Overcharge Protection Release Voltage (Battery): 54V
  • Over Discharge Protection Voltage (Battery): 43.2V
  • Over Discharge Protection Release Voltage (Battery): 47.2V
  • Over Discharge Primary Charge Overcurrent Protection Value: 110A
  • First Stage Charge Over Current Delay: 1s
  • Primary Discharge Overcurrent Protection Value: 110A
  • Primary Discharge Overcurrent Protection Delay: 1s
  • Secondary Discharge Overcurrent Protection Value: 150A
  • Secondary Discharge Overcurrent Protection Delay: 500ms

Temperature Performance

  • Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
  • Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
  • Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
  • Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

  • Certification: UL1973, UL9540A, FCC
  • Max. Expansion: 15 pcs in parallel
  • Communication Ports: RS485/RS232/CAN
  • Warranty: 10 Years Manufacturer Defect

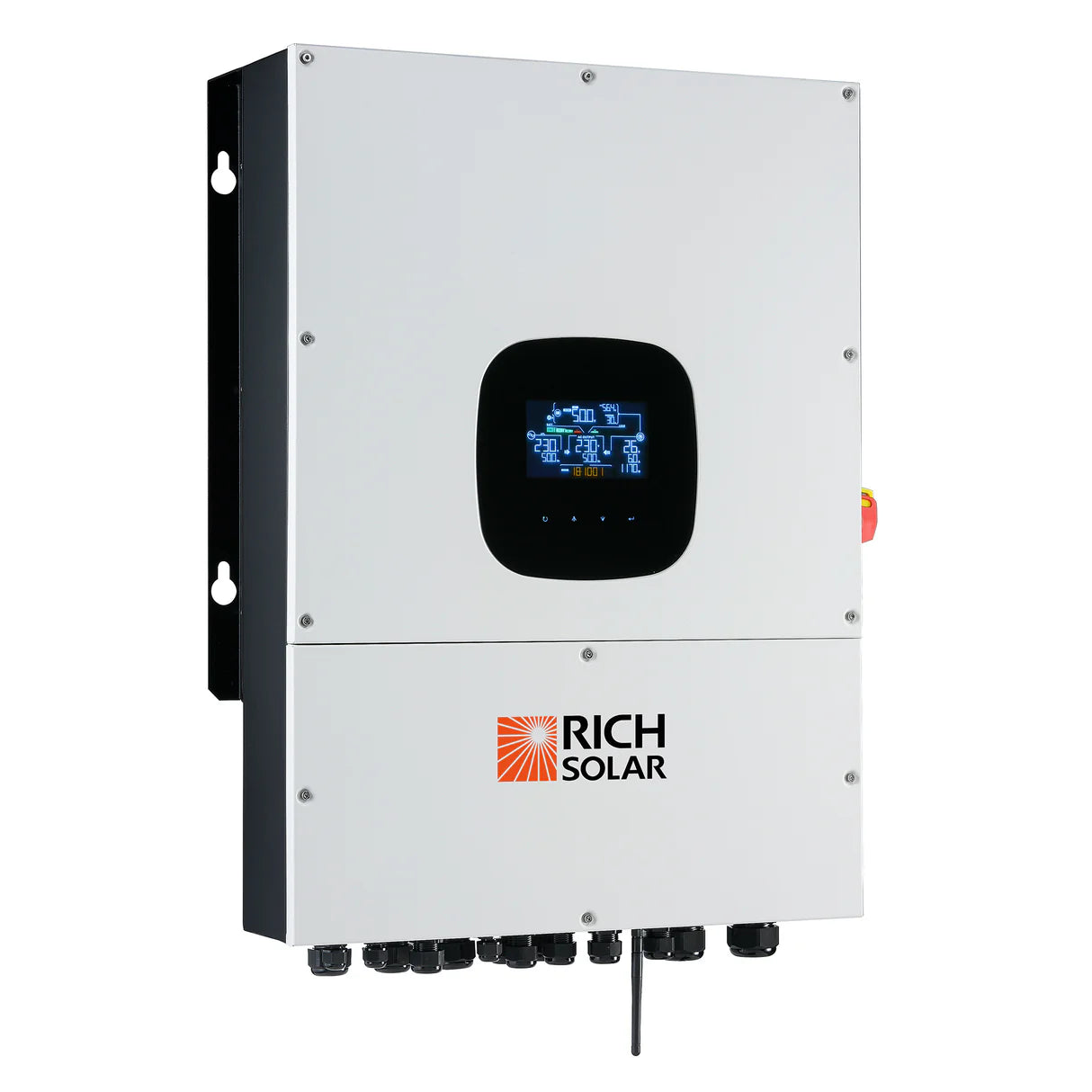

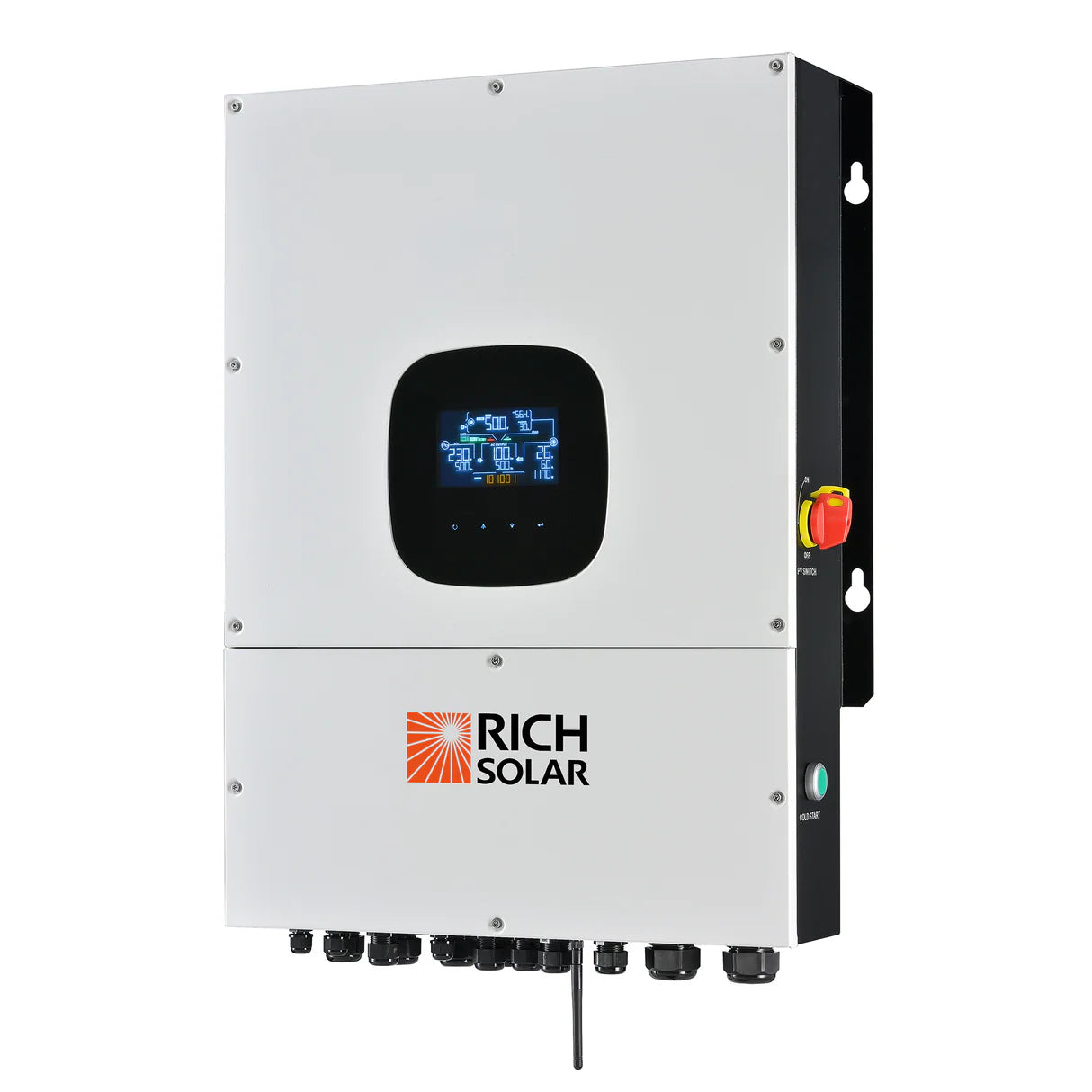

NOVA 12K PV Hybrid Inverter 12000W PV Input

Features:

  • Support multiple input & output - Split phase 120/240VAC Split phase, 120V/208V Split phase
  • Door-type cable compartment.
  • Built-in 300A DC breaker and 60A AC breaker.
  • Built-in AC coupled function.
  • Built-in Wi-Fi for mobile monitoring (APP is available).
  • Accepts second input power source, generator input compatible.
  • Built-in arc fault detection (AFD) and rapid shutdown (RSD).
  • External CT sensor to guarantee 100% self-consumption.
  • Built-in communication port for BMS (RS485).
  • User-adjustable charging current and voltage.
  • Parallel operation up to 6 units.
  • Idle Consumption: -150W (±10%)

Specifications:

Input

  • Maximum PV Input Power:12000W
  • Maximum DC Voltage:600VDC
  • Start-up Voltage/Initial Feeding Voltage:125VDC/160VDC
  • MPPT Voltage Range:120VDC-550VDC
  • Number of MPPT Trackers/Maximum Input Current:2/18A

Input

  • Rated Output Power:10000VA/10000W
  • Nominal Output Voltage:120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
  • Output Voltage Range:105.5–132VAC per phase
  • Nominal Output Current:41.5A per phase

  • Battery

  • Battery DC Voltage Range:40–62VDC/48VDC
  • Maximum Solar Charging Current:200A
  • Maximum AC Charging Current:200A
  • Maximum Charging Current:200A

Operating Environment

  • Operating Temperature Range:-13°F to 140°F(>113°F derating)
  • Protection Degree:IP65
  • Communication Port:RS232, RS485, Wi-Fi, USB

Physical

  • Dimension (LxWxH):8.5x20.3x28.1in/215.5x515x715mm
  • Net Weight:99.2lb/45kg

Certificate

  • Certificate:UL1741SA, UL1741SB, CSA 22.2.107.1, CEC
