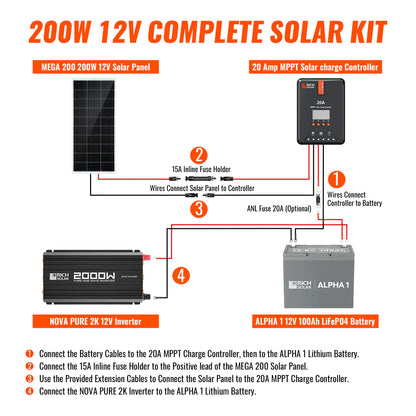

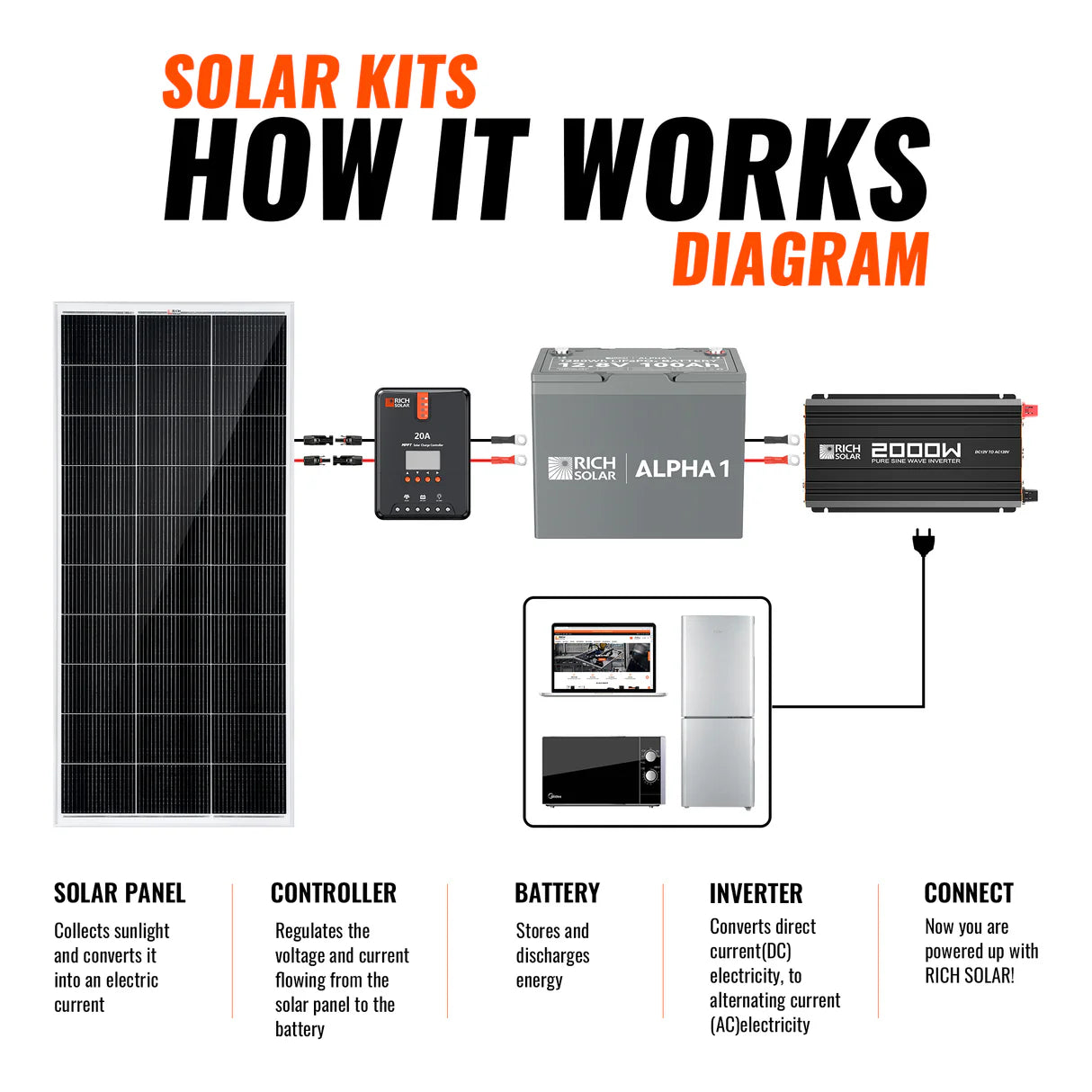

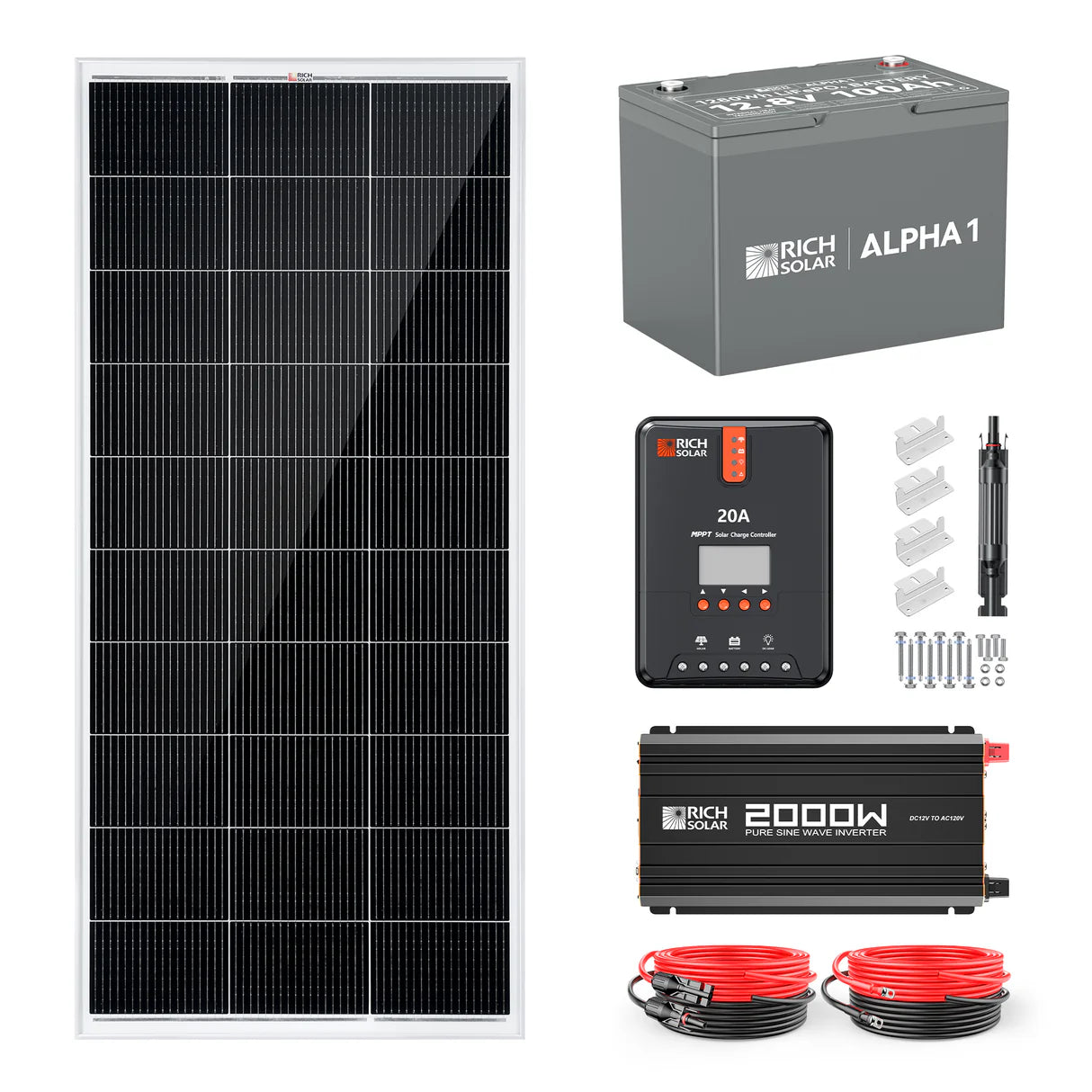

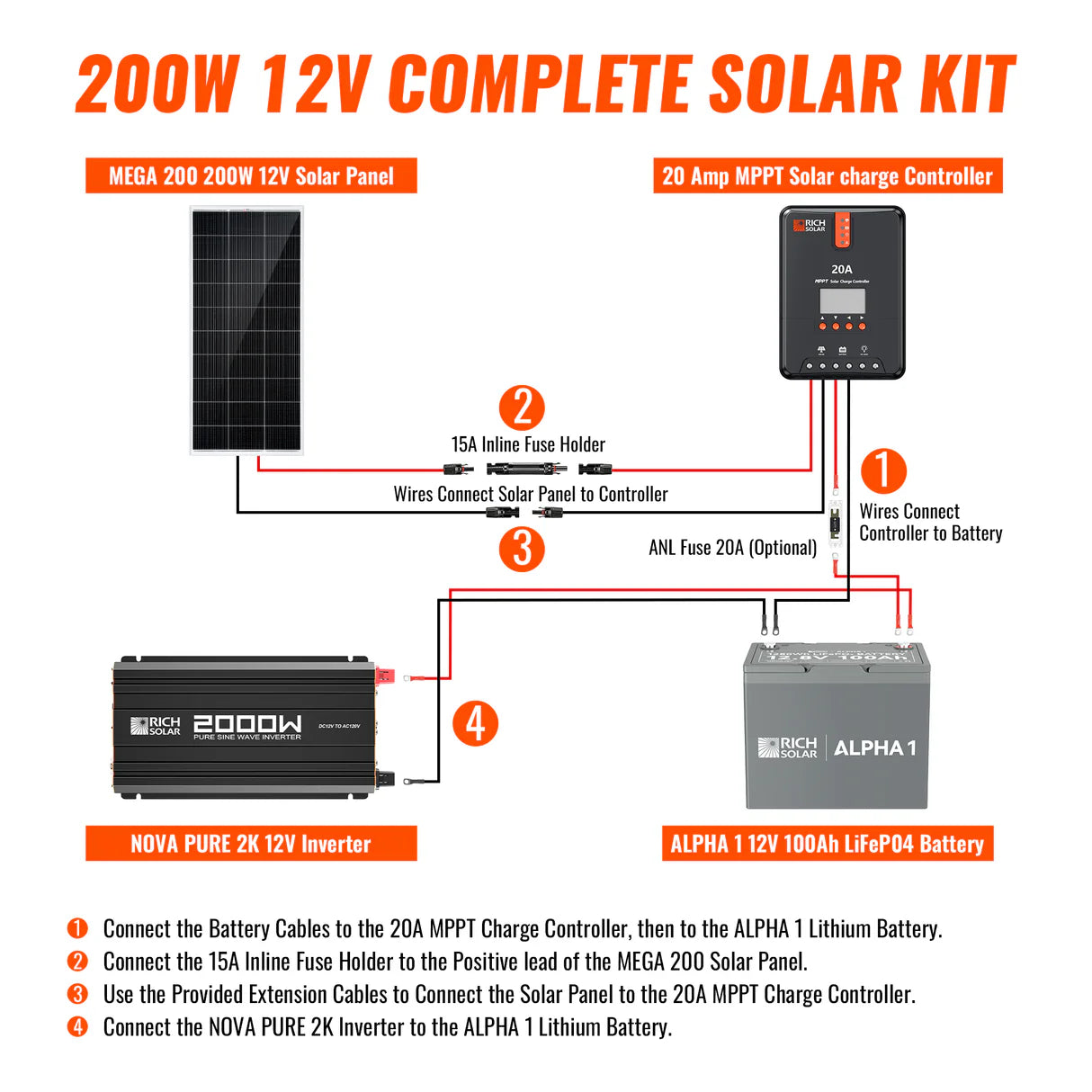

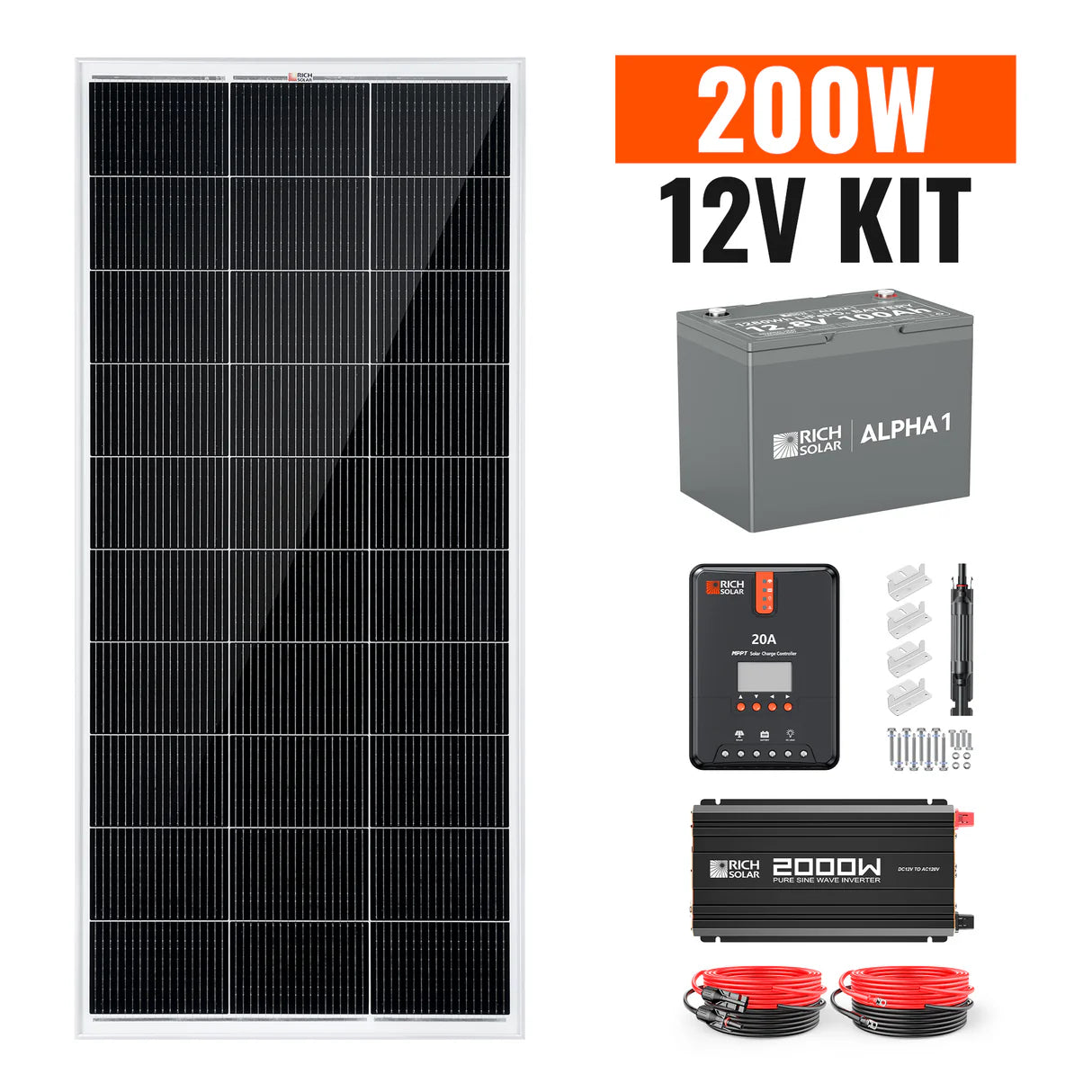

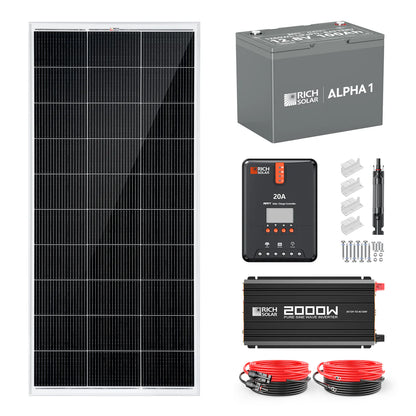

Rich Solar 200 Watt Complete Off-Grid Solar Kit

MEGA 200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

• Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
• Excellent low-light performance even on early mornings, evenings, and cloudy days.
• Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
• Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty:

• 25-year limited power output warranty
• 10-year workmanship warranty

Specifications:

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 18.4V
• Maximum Power Current(Imp): 10.9A
• Open Circuit Voltage(Voc): 21.8V
• Short Circuit Current(Isc): 11.6A
• Temperature Range: -40 ~ +185°F
• Maximum Series Fuse Rating: 15A
• Weight: 24 lb
• Dimensions: 58.7 x 26.8 x 1.2 in

ALPHA 1 12V 100Ah LiFePO4 Battery

Features:

• Stay powered in low temps with advanced internal heating tech
• Track battery health in real time from your phone
• Over 5,000 cycles with UL94 V-0 flame-retardant protection
• IP65 waterproof, dustproof, and tested for extreme safety
• Free of toxic metals—safe for you and the planet
• Lightweight design, heavy-duty performance
• ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

Warranty:

• *5-Year Warranty

Specifications:

Battery

• Cell Type: LiFePO4 Battery
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Nominal Energy: 1280Wh
• Cycle Life: 5000 cycles

BMS

• BMS: 100A
• Maximum Charging Current: 100A
• Maximum Continuous Discharge Current: 100A
• Maximum Discharge Current 10 Seconds: 110A

Charge

• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommend Charge Current: 50A (0.5C)

Temperature

• Charge Temperature: 32°F to 131°F (0°C to 55°C)
• Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
• Storage Temperature: 14°F to 113°F (-10°C to 45°C)

Self-heating

• External Power Draw: 100W
• Internal Heating Starts: < 41°F (5°C)
• Internal Heating Stops: > 50°F (10°C)

Others

• Net Battery Weight: 24.0lb
• Size(LxWxH): 10.2x6.6x8.3in (Group 24 size)
• Housing Material: ABS (Flame Retardant Plastic)
• Protection Class: IP65
• Warranty: 5 Years

NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter

Features:

• Optimized for 12V DC system voltage, great addition to any off-grid solar power system.
•  Offers high-quality waveform with little harmonic distortion.
•  Overload protection for both DC input and AC output to prevent damage to the components and the unit.
•  Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
•  High-speed ventilation fans to help keep the inverter running at a low temperature.
•  120V AC outlets allow for the operation of more than one appliance simultaneously.
• Quiet, no static or humming noises.

Warranty:

• 2-Year Warranty

Specifications:

• Model: RS-V2P12
• Rated Voltage: 12V DC
• Continuous Power: 2000W
• Peak Surge: 4000W
• Waveform: Pure Sine Wave
• Input Voltage: 12V DC
• Output Voltage: 120V AC
• Output Frequency: 60 Hz
• Output Efficiency: ＞88%
• AC Output Sockets: 3
• USB Power Port: 5V / 2.1A
• Power Output Control: AC On/Off Switch
• Operating Temperature: 14°F to 122°F
• Dimensions: 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
• Weight: 10.1 (lb) / 4.6 (kg)

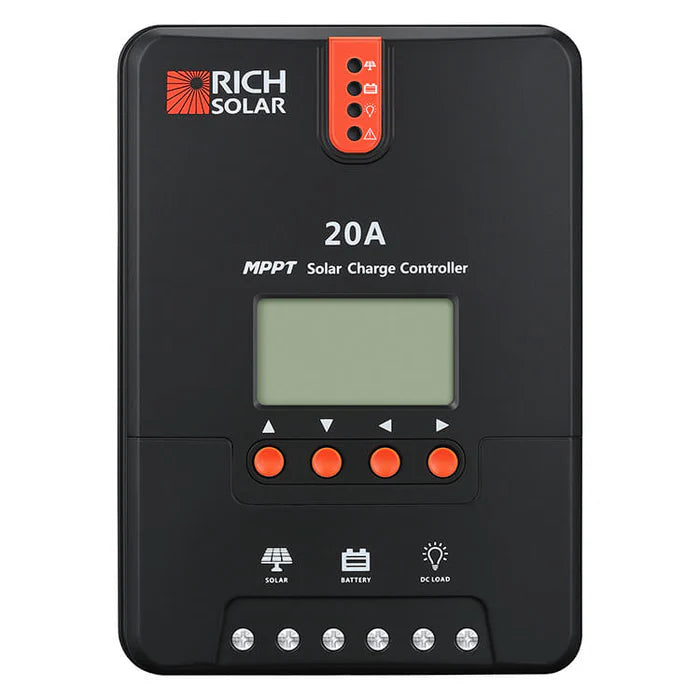

• 20 Amp MPPT Solar Charge Controller

  Features:

• Automatically detects 12V or 24V DC system voltages
• Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
• Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
• LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
• Features diverse load control; also capable of charging over-discharged lithium batteries
• Die-cast aluminum design allows for efficient heat dissipation
• RS232 port to communicate with BT-1 Bluetooth module

• Warranty:

• 2-Year Warranty

• Specifications:

• Nominal System Voltage: 12V/24V Auto Recognition
• Rated Battery Current: 20A
• Rated Load Current: 20A
• Max. PV Input Short Current: 25A
• Max. Battery Voltage: 32V
• Max Solar Input Voltage: 100 VDC
• Net Weight: 3.08 lb
• Discharge Circuit Voltage Drop: ≤0.15V
• Overall Dimensions: 8.27 x 5.94 x 2.34 in
