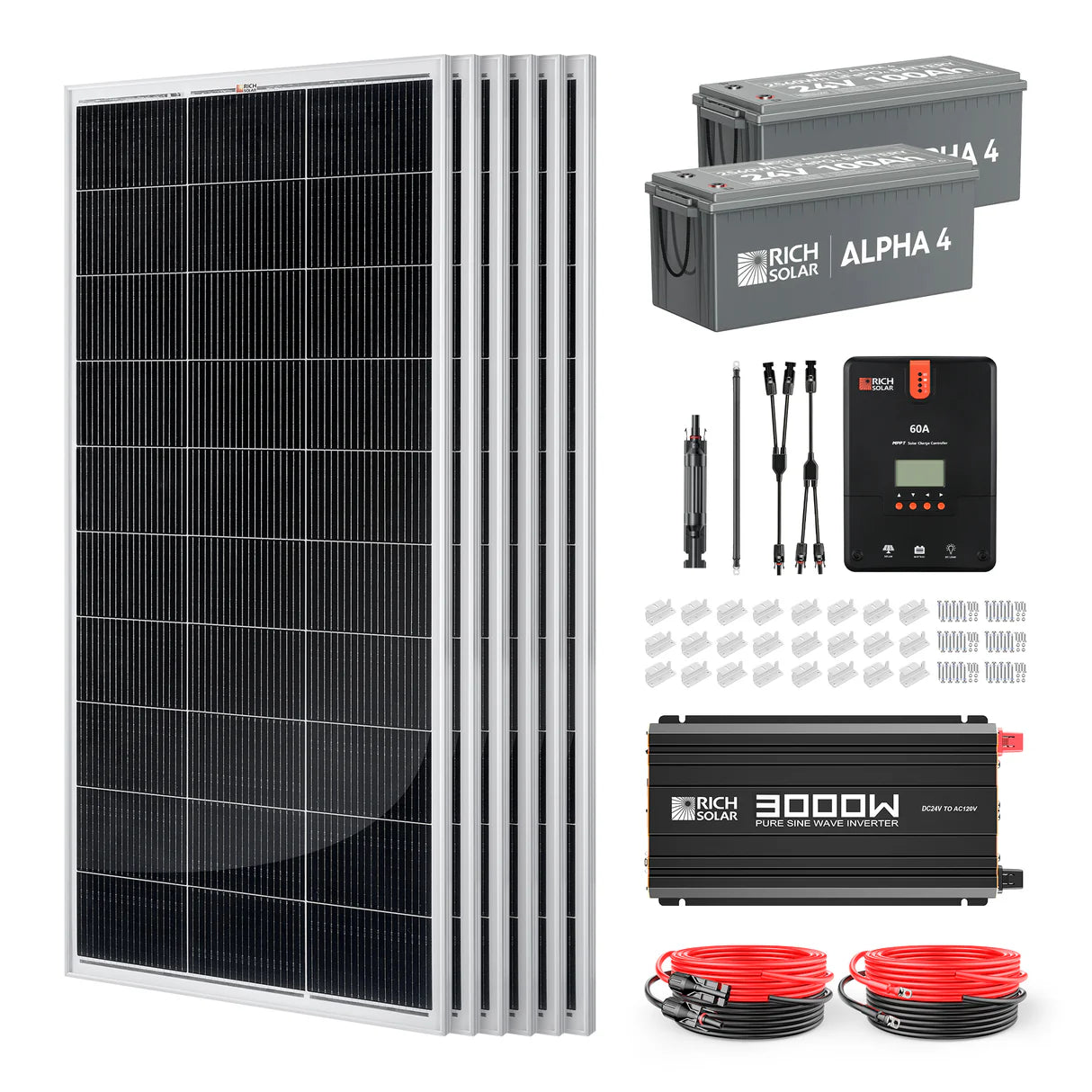

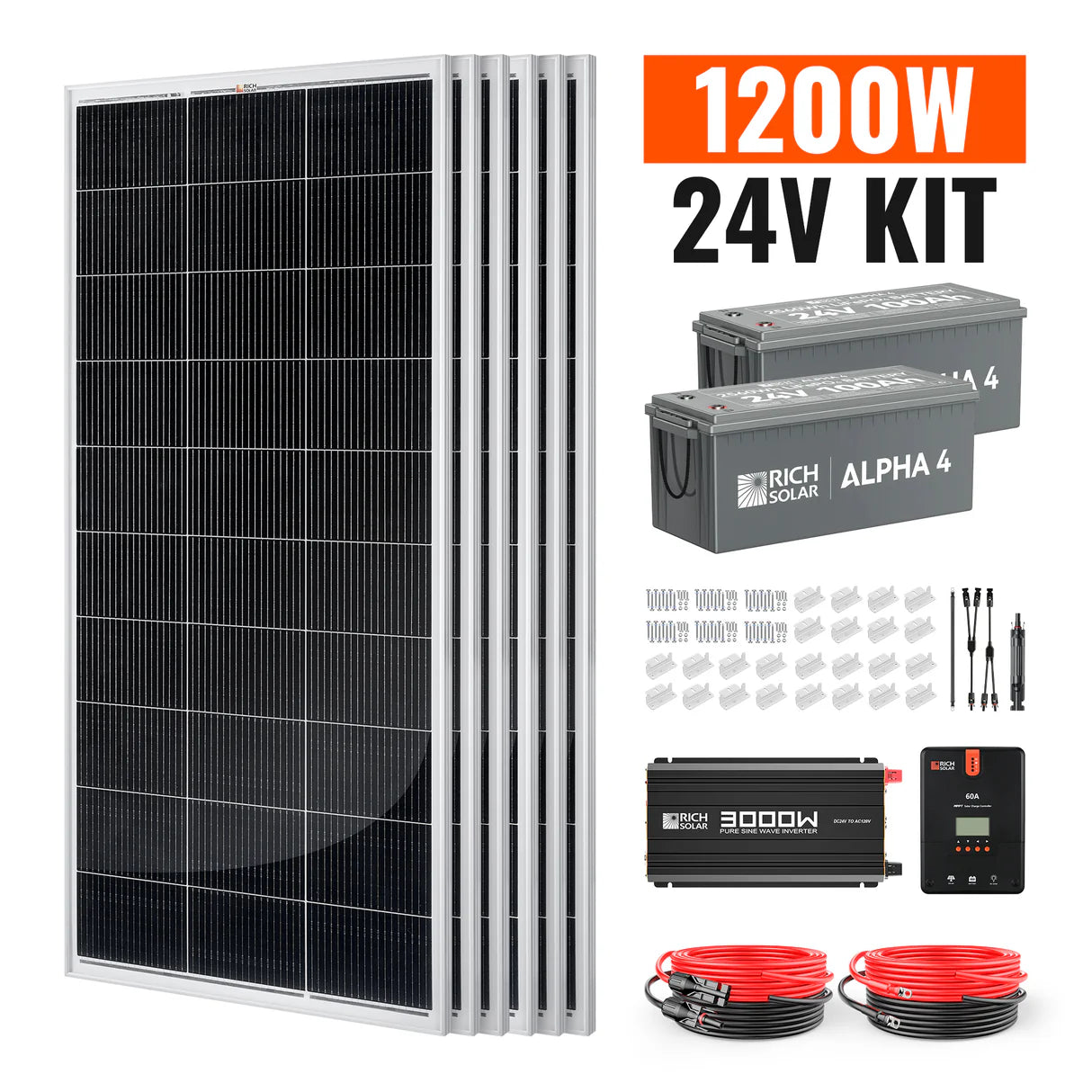

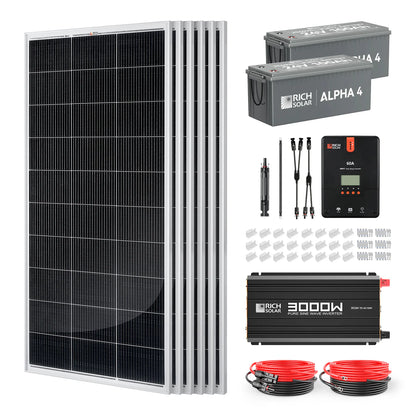

Rich Solar 1200 Watt 24V Complete Solar Kit

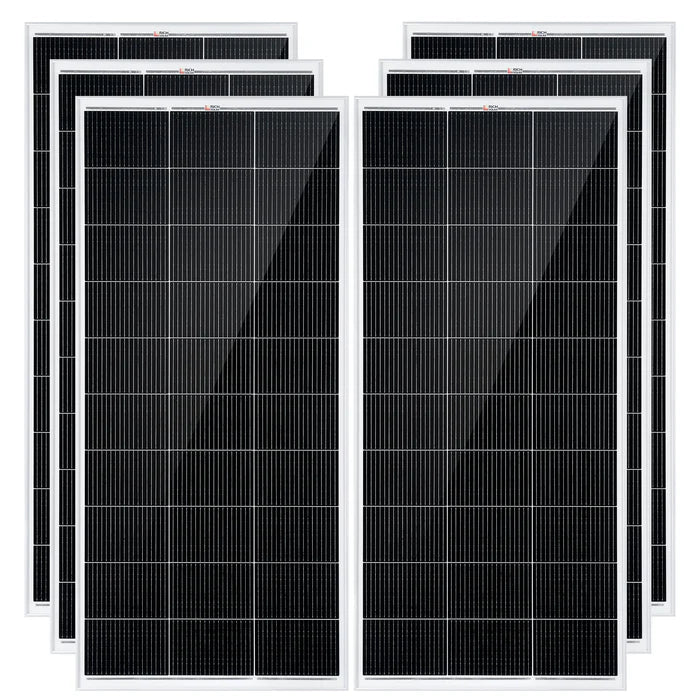

MEGA 200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

• No. of Panels: 4 x MEGA 200 Watt Solar Panels
• Wattage Per Panel: 200W
• Total Wattage of Panels: 800W

Features:

• Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
• Excellent low-light performance even on early mornings, evenings, and cloudy days.
• Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
• Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty:

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 18.4V
• Maximum Power Current(Imp): 10.9A
• Open Circuit Voltage(Voc): 21.8V
• Short Circuit Current(Isc): 11.6A
• Temperature Range: -40 ~ +185°F
• Maximum Series Fuse Rating: 15A
• Weight: 24 lb
• Dimensions: 58.7 x 26.8 x 1.2 in

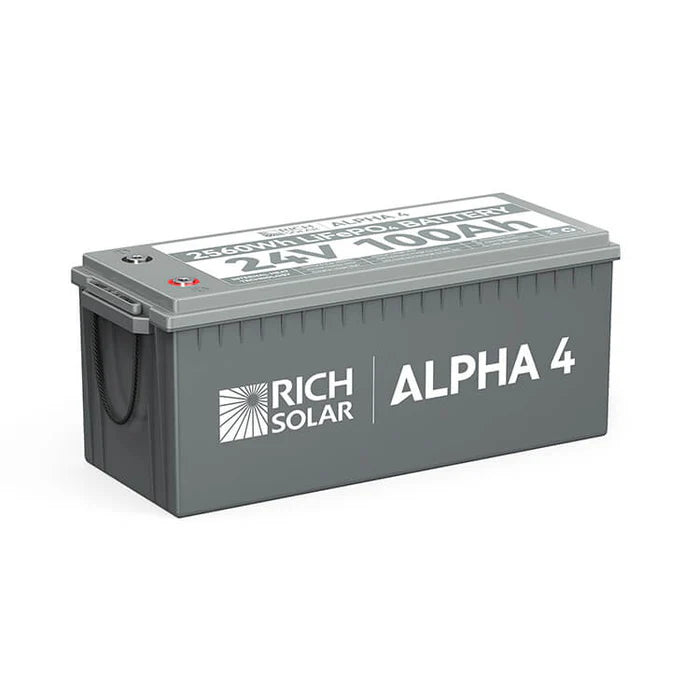

Alpha 4 24V 100Ah LiFePO4 Battery

Features:

• Stay powered in low temps with advanced internal heating tech
• Track battery health in real time from your phone
• Over 5,000 cycles with UL94 V-0 flame-retardant protection
• IP65 waterproof, dustproof, and tested for extreme safety
• Free of toxic metals—safe for you and the planet
• Lightweight design, heavy-duty performance
• ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

Warranty:

• *5-Year Warranty

Specifications:

4°F to 140°F (-20°C to 60°C)

Battery

• Cell Type: Lifepo4 Battery
• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Nominal Energy: 2560Wh
• Cycle Life: 5000 Cycles

BMS

• BMS: 100A
• Maximum Charging Current: 100A
• Maximum Continuous Discharge Current: 100A
• Maximum Discharge Current 10 Seconds: 110A

Charge

• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommend Charge Current: 50A (0.5C)

Temperature

• Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
• Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
• Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)

Self-heating

• External Power Draw: 100W
• Internal Heating Starts: < 41°F (5°C)
• Internal Heating Stops: > 50°F (10°C)

Others

• Net Battery Weight: 48.5lb
• Size(LxWxH): 20.9x8.1x8.5in
• Housing Material: ABS (Flame Retardant Plastic)
• Protection Class: IP65
• Warranty: 5 Years

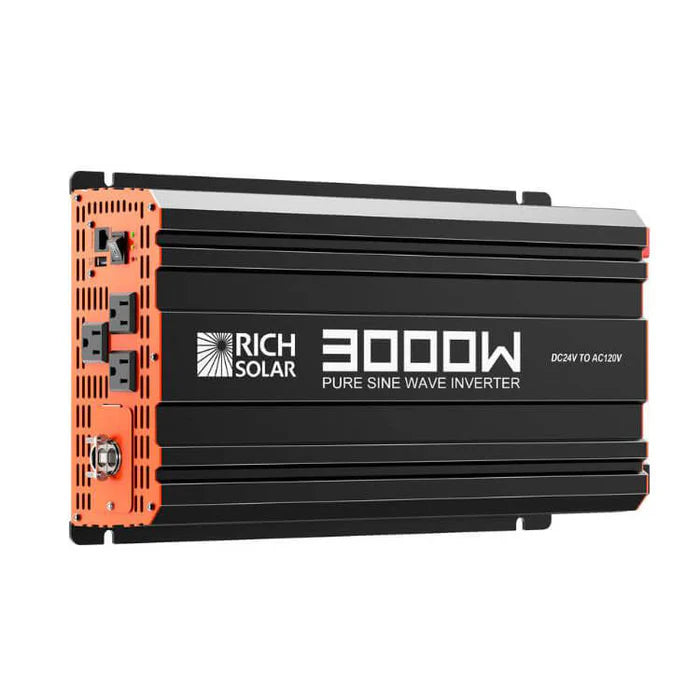

NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter

Features:

• Electronic overload protection with automatic shutdown.
•  Built-in internal backup DC fuse provides added safety.
• Low battery voltage protection with automatic shutdown.
• Over-temperature protection with automatic shutdown.
• Output short-circuit protection.

Warranty:

• 2-Year Warranty

Specifications:

• Model: RS-V3P24
• Rated Voltage: 24V DC
• Continuous Power: 3000W
• Peak Surge: 6000W
• Waveform: Pure Sine Wave
• Input Voltage: 24V DC
• Output Voltage: 120V AC
• Output Frequency: 60 Hz
• Output Efficiency: ＞88%
• AC Output Sockets: 3
• USB Power Port: 5V / 2.1A
• Power Output Control: AC On/Off Switch
• Operating Temperature: 14°F to 122°F
• Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
• Weight: 12.1 (lb) / 5.5 (kg)

60 Amp MPPT Solar Charge Controller

Features:

• Automatically detects 12V/24V/36V/48V DC system voltages.
• Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
• LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
• Features diverse load control; also capable of charging over-discharged lithium batteries.
• Die-cast aluminum design allows for efficient heat dissipation.
• RS232 port for communicating with BT-1 Bluetooth module.

Warranty:

• 2-Year Warranty

Specifications:

• Rated Battery Current: 60A
• Rated Load Current: 20A
• Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
• Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
• Charge Circuit Voltage Drop: ≤0.26V
• Discharge Circuit Voltage Drop: ≤0.15V
• Operating Temperature: -31°F to 113°F
• Max Terminal Size: <11mm
• Overall Dimensions: 11.2 x 8.1 x 3.7 in
• Net Weight: 7.94 lb
