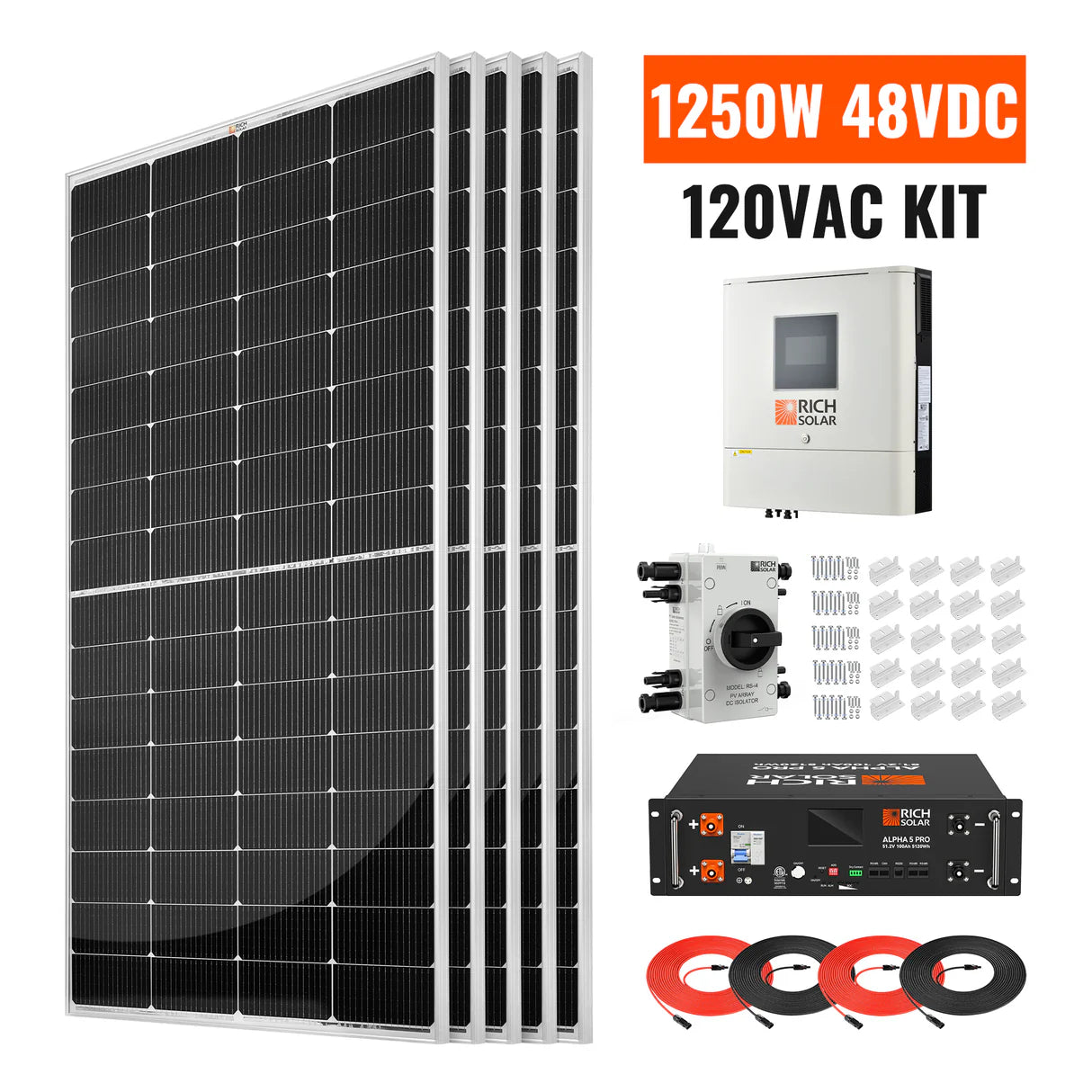

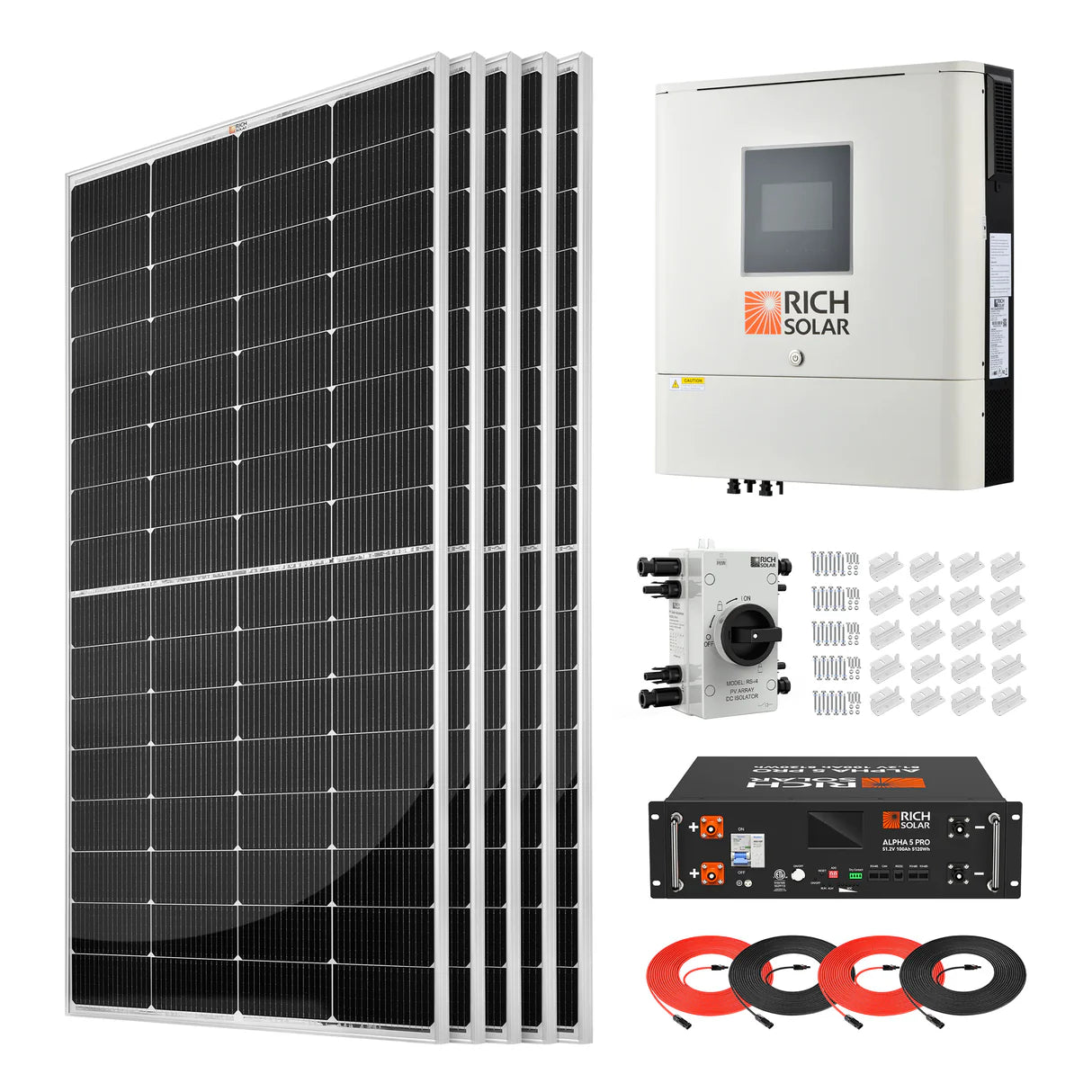

Rich Solar 1250W 48VDC-120VAC Solar Kit

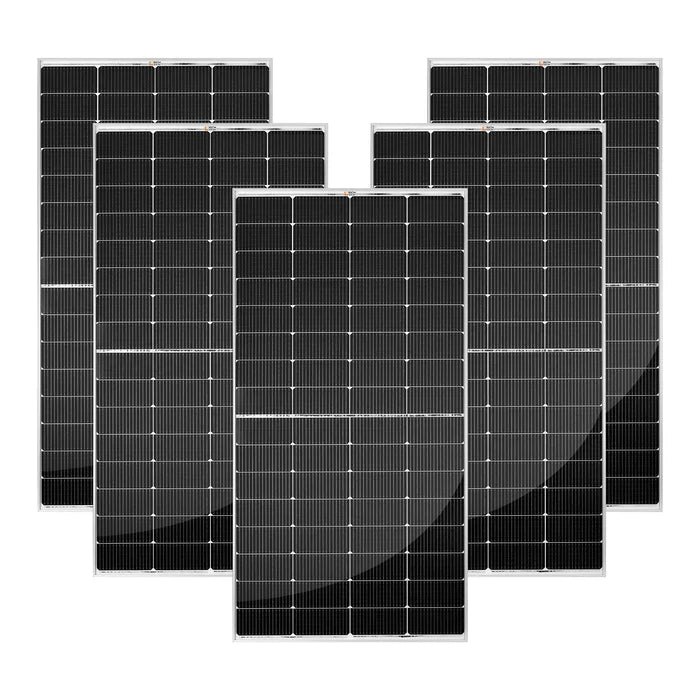

MEGA 250 Watt Solar Panel

• No. of Panels: 5 x MEGA 250Watt Solar Panels
• Wattage Per Panel: 250W
• Total Wattage of Panels: 1250W

Features:

• 16-busbar solar cell configuration
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box
• Industry standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings and evenings

Warranty:

• 25-year output warranty
• 10-year workmanship warranty

Specifications:

• Model: RS-M250
• Maximum Power (Pmax): 250W
• Maximum Power Voltage (Vmp): 18.9V
• Maximum Power Current (Imp): 13.2A
• Open Circuit Voltage (Voc): 22.8V
• Short Circuit Current (Isc): 13.7A
• Maximum System Voltage (Vmax): 1500VDC
• Temperature Range: -40 ~ +185℉
• Weight: 26.9 lb
• Dimensions: 60.6 x 29.9 x 1.2 in

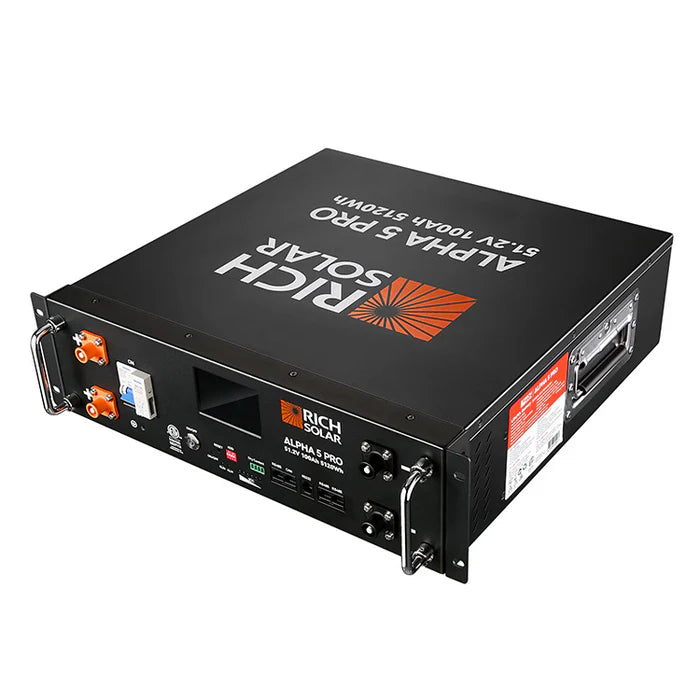

ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery

Features:

• Certification: UL1973, UL9540A, FCC
• 7,000 Deep Cycles Life
• 5120 Watt Hours Energy
• 100A Continuous Charge Current
• Compatible with multiple brands of inverters
• Low maintenance
• Over charging or discharging protection
• Overcurrent & short circuit protection
• Parallel up to 15 Batteries
• Connect in Parallel for Larger Capacity
• With Sophisticated Battery Management System (BMS)
• 10 Years Lifespan

Warranty:

• *10-Year Warranty

Specifications:

Electrical Specifications

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Minimum Capacity: 99.5Ah
• Nominal Capacity: 5120Wh

Operating Specifications

• Charging Voltage: 56V
• Discharging Cutoff Voltage: 44.8V
• Maximum Charging Current: 100A
• Continuous Charge Current: 100A
• Maximum Discharge Current: 100A

Physical Specifications

• Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
• Battery Weight: 99.2 lb
• Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
• Server Rack Weight: 196.2 lb

BMS Operation

• Operation Voltage: 43.2~58.4V
• Maximum Charging Current: 100A
• Maximum Discharging Current: 100A
• Maximum Charge Voltage (CC/CV): 57.6V
• Overcharge Protection Voltage (Battery): 58.4V
• Overcharge Protection Release Voltage (Battery): 54V
• Over Discharge Protection Voltage (Battery): 43.2V
• Over Discharge Protection Release Voltage (Battery): 47.2V
• Over Discharge Primary Charge Overcurrent Protection Value: 110A
• First Stage Charge Over Current Delay: 1s
• Primary Discharge Overcurrent Protection Value: 110A
• Primary Discharge Overcurrent Protection Delay: 1s
• Secondary Discharge Overcurrent Protection Value: 150A
• Secondary Discharge Overcurrent Protection Delay: 500ms

Temperature Performance

• Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
• Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
• Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
• Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

• Certification: UL1973, UL9540A, FCC
• Max. Expansion: 15 pcs in parallel
• Communication Ports: RS485/RS232/CAN
• Warranty: 10 Years Manufacturer Defect

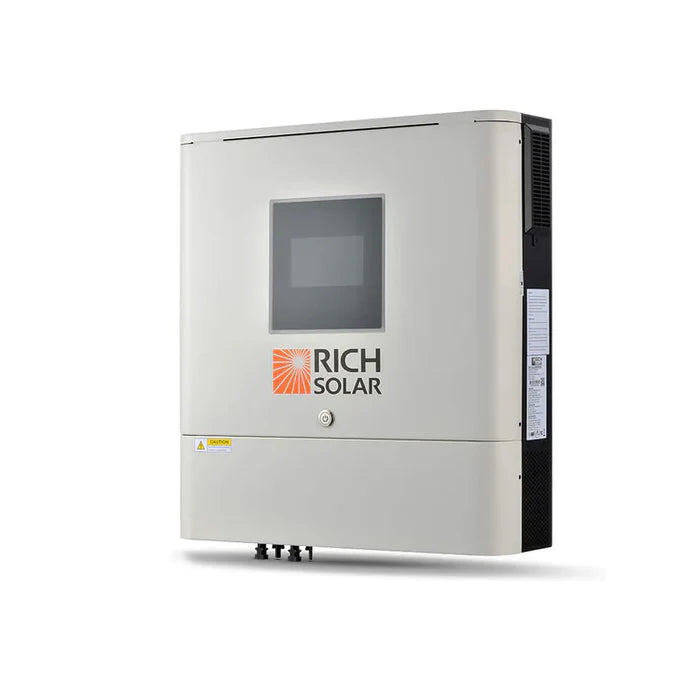

NOVA 6500S 48V Off-grid Solar Inverter

Features:

• UL Certification
• Status indication with RGB lights
• Built-in Wi-Fi for mobile monitoring (Android/iOS)
• Supports USB on-the-go function
• Data log events stored in the inverter
• Reserved communication port for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable AC/PV output usage timer and prioritization
• Adjustable high-power charging current
• Adjustable input voltage range for home appliances and personal computers
• Compatible with Utility Mains or generator input
• Built-in anti-dust kit
• Optional DC output for DC fan, LED bulb, router, etc.
• 6-unit parallel operation capabilities



Warranty:

• 3-Year Warranty

Specifications:

Model: RS-H6548S
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Voltage: 120 VAC
• Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
• Surge Power: 13000VA
• Efficiency (Peak): 91%
• Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure Sine Wave
• No Load Power Consumption: <75W
• DC Voltage: 12 VDC ± 5%, 100W

BATTERY

• Battery Voltage: 48 VDC
• Float Charging Voltage: 54 VDC
• Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 120A

PHYSICAL

• Dimension (D x W x H): 6.2 x 19.8 x 20.9 in
• Net Weight: 44 lb
• Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

OPERATING ENVIRONMENT

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: 14°F to 104°F
• Storage Temperature: 5°F to 140°F

STANDARD

• Compliance Safety: UL
