RICH SOLAR

Rich Solar 400W Solar Kit with Battery | Solar + Energy Storage Kit for RVs, Vans & Off-Grid Applications

Rich Solar 400W Solar Kit with Battery | Solar + Energy Storage Kit for RVs, Vans & Off-Grid Applications

$1,299.99 USD
$1,299.99 USD
Sale Sold out
California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

View full details

Product details

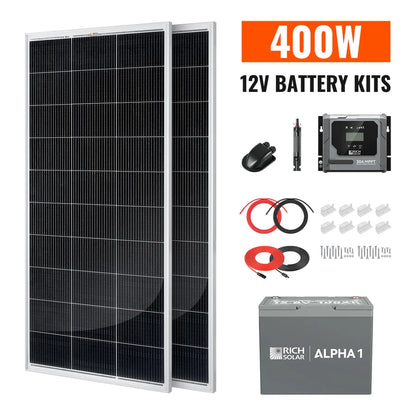

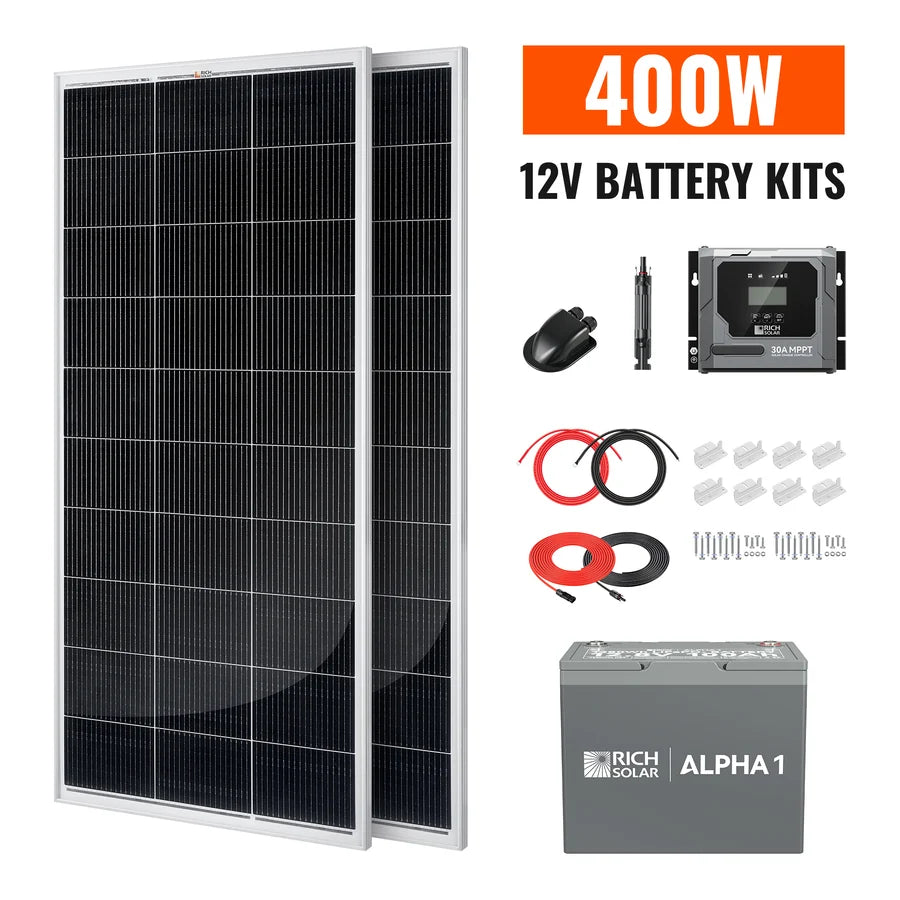

Rich Solar 400W Solar Kit with Battery | Solar + Energy Storage Kit for RVs, Vans & Off-Grid Applications

Features

  • 400W Solar Array: Includes two 200W monocrystalline solar panels, producing approximately 1.4kWh of energy per day under 4 peak sun hours.
  • 12V DC System: Designed as a 12V off-grid solar power system for compatible equipment and future system expansion.
  • 1.28 kWh LiFePO₄ Battery: Includes one 12.8V 100 Ah ALPHA 1 battery for dependable energy storage and backup power.
  • 30A MPPT Charge Controller: Maximizes solar harvest with up to 99.5% MPPT tracking efficiency and 98% peak conversion efficiency.
  • Solar & Battery Kit: Includes professionally matched solar panels, an MPPT charge controller, a LiFePO₄ battery, and installation accessories for reliable off-grid power.
  • Versatile Applications: Ideal for RVs, campers, trailers, boats, cabins, and other off-grid applications.

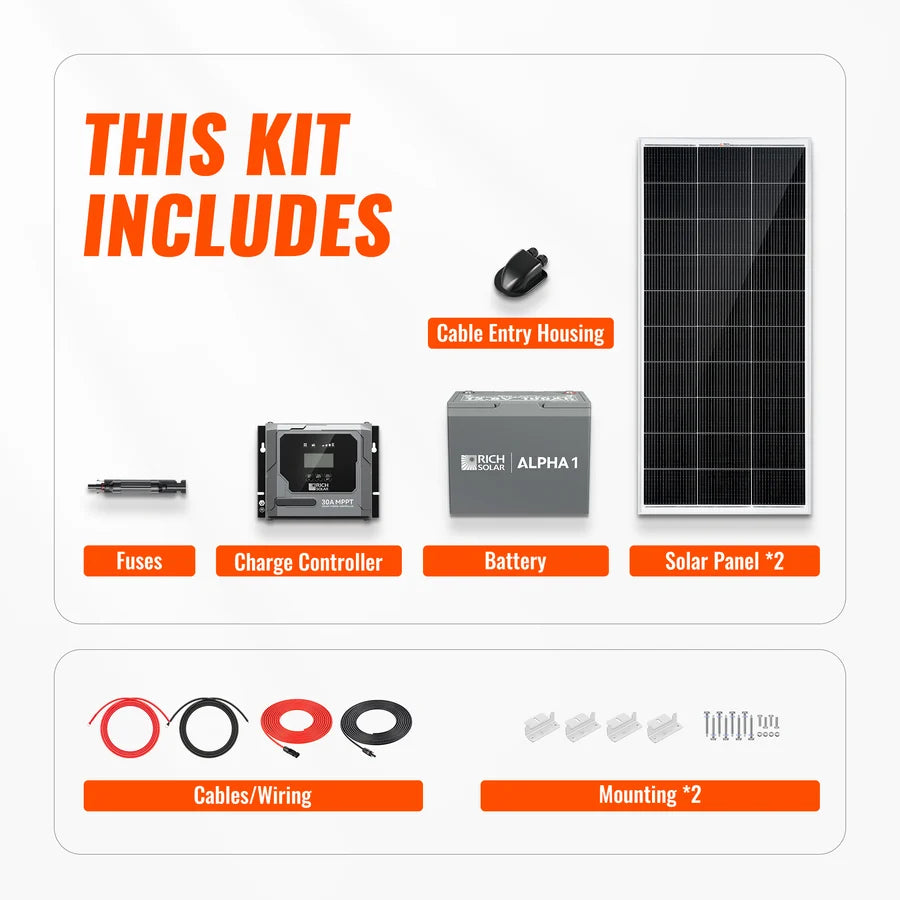

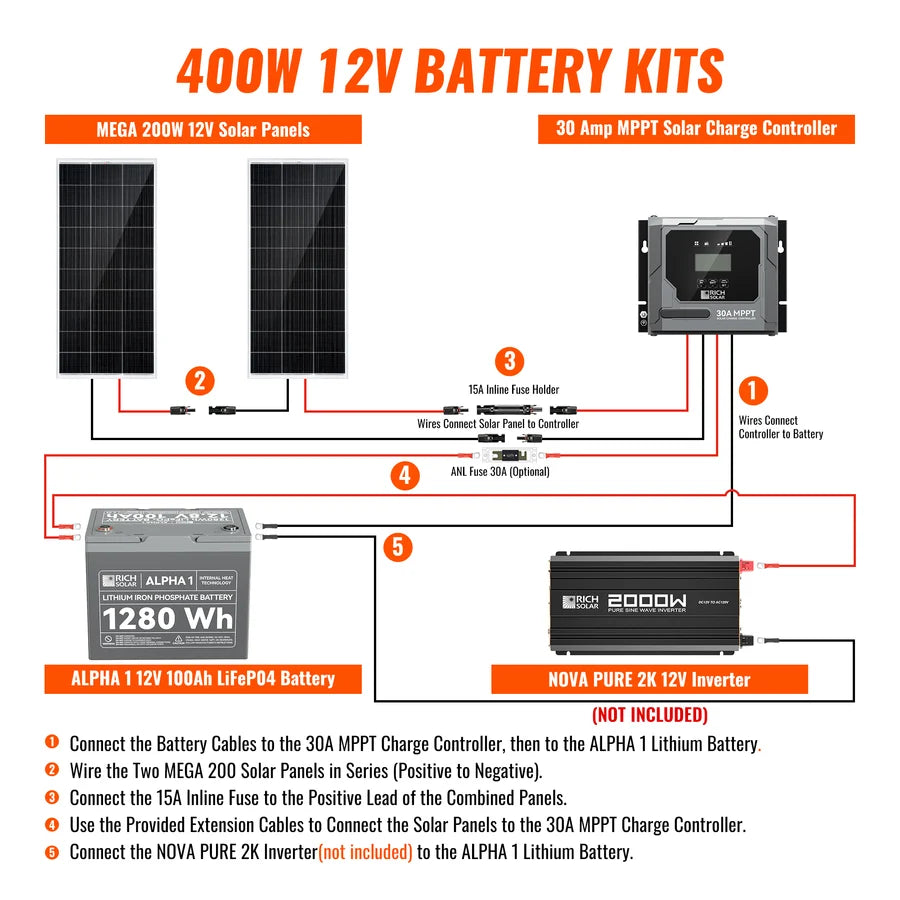

Kit Includes

  • 2 x MEGA 200W 12V Panels (RS-M200)
  • 1 x Bravo 30 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x ALPHA 1 12V 100Ah Lithium Battery (RS-B121S)
  • 2 x Z Bracket Sets (RS-ZB4C)
  • 1 x Cable Entry Housing (RS-C2B)
  • 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)

MEGA 200 | 200 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for RVs Cabins, Boats | 25-Year Output Warranty | UL Certified - RICH SOLAR

MEGA 200

12V 200W Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

  • Maximum Power(Pmax): 200W
  • Maximum Power Voltage(Vmp): 18.4V
  • Maximum Power Current(Imp): 10.9A
  • Open Circuit Voltage(Voc): 21.8V
  • Short Circuit Current(Isc): 11.6A
  • Temperature Range: -40 ~ +185°F
  • Maximum Series Fuse Rating: 15A
  • Weight: 24 lb
  • Dimensions: 58.7 x 26.8 x 1.2 in



  BRAVO 30 | 30 Amp MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Awarded #1 Solar Controller 2025 - RICH SOLAR

Bravo 30A

30 Amp MPPT Solar Charge Controller

Features:

1. Advanced MPPT Technology

  • Advanced MPPT algorithm with up to 99.5% tracking efficiency
  • 98% conversion efficiency for maximum solar energy utilization
  • Stable operation under low-light or partial shading conditions

2. Flexible Battery Compatibility

  • Auto-detects 12V/24V systems for seamless integration
  • Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
  • Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

3. Advanced Protection System

  • Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
  • Weather-resistant build with IP43-rated PCBA and IP22 connectors
  • Certified to ETL, FCC, CE, ROHS

4. Intelligent Monitoring System

  • LCD + LED display: Real-time solar input, battery status, and customizable parameters
  • Built-in Bluetooth for App monitoring (Rich Solar App)
  • Optional remote meter and temperature sensor for enhanced control

Specifications:

  • Maximum Solar Input Current: 30A
  • Maximum Charging Current: 30A
  • Recommended Solar Power:  500W (12V) / 1000W (24V)
  • Nominal System Voltage: 12V/24V Auto-Detect
  • Solar Input Voltage Range: 8V-100V
  • MPPT Voltage Range: 15V-72V
  • Maximum Conversion Efficiency: 98%
  • Maximum MPPT Tracking Efficiency: 99.5%
  • Battery Compatibility: GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
  • Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
  • Protection Rating: IP43 PCBA, IP22 Connection
  • Net Weight: 1.8 lb
  • Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in



ALPHA 1 | 12V 100Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology - RICH SOLAR

ALPHA 1

12V 100Ah LiFePO4 Battery

Features:

  • Stay powered in low temps with advanced internal heating tech
  • Track battery health in real time from your phone
  • Over 5,000 cycles with UL94 V-0 flame-retardant protection
  • IP65 waterproof, dustproof, and tested for extreme safety
  • Free of toxic metals—safe for you and the planet
  • Lightweight design, heavy-duty performance
  • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

Warranty:

  • *5-Year Warranty

Specifications:

Battery

  • Cell Type: LiFePO4 Battery
  • Nominal Voltage: 12.8V
  • Nominal Capacity: 100Ah
  • Nominal Energy: 1280Wh
  • Cycle Life: 5000 cycles

BMS

  • BMS: 100A
  • Maximum Charging Current: 100A
  • Maximum Continuous Discharge Current: 100A
  • Maximum Discharge Current 10 Seconds: 110A

Charge

  • Charge Method: CC/CV
  • Charge Voltage: 14.4V ± 0.2V
  • Recommend Charge Current: 50A (0.5C)

Temperature

  • Charge Temperature: 32°F to 131°F (0°C to 55°C)
  • Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
  • Storage Temperature: 14°F to 113°F (-10°C to 45°C)

Self-heating

  • External Power Draw: 100W
  • Internal Heating Starts: < 41°F (5°C)
  • Internal Heating Stops: > 50°F (10°C)

Others

  • Net Battery Weight: 24.0lb
  • Size(LxWxH): 10.2x6.6x8.3in (Group 24 size)
  • Housing Material: ABS (Flame Retardant Plastic)
  • Protection Class: IP65
  • Warranty: 5 Years
