Rich Solar 800W Solar Kit with Battery | Solar + Energy Storage Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Power

Rich Solar 800W Solar Kit with Battery | Solar + Energy Storage Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Power

$2,399.99 USD
$2,399.99 USD
Sale Sold out
California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

View full details

Product details

Rich Solar 800W Solar Kit with Battery | Solar + Energy Storage Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Power

Features

      • 800W Solar Array: Includes four 200W monocrystalline solar panels, producing approximately 2.9kWh of energy per day under 4 peak sun hours.
      • 12V Solar Charging System: Designed around a 12V solar charging system for compatible battery banks.
      • 60A MPPT Charge Controller: Maximizes solar harvest with up to 99.5% MPPT tracking efficiency and 98% peak conversion efficiency.
      • Solar & Battery Kit: Includes professionally matched solar panels, an MPPT charge controller, a LiFePO₄ battery, and installation accessories for reliable off-grid power.
      • Expandable System: Easily add compatible RICH SOLAR batteries or solar panels as your energy needs grow.
      • Versatile Applications: Ideal for RVs, trailers, boats, cabins, and other off-grid solar charging systems

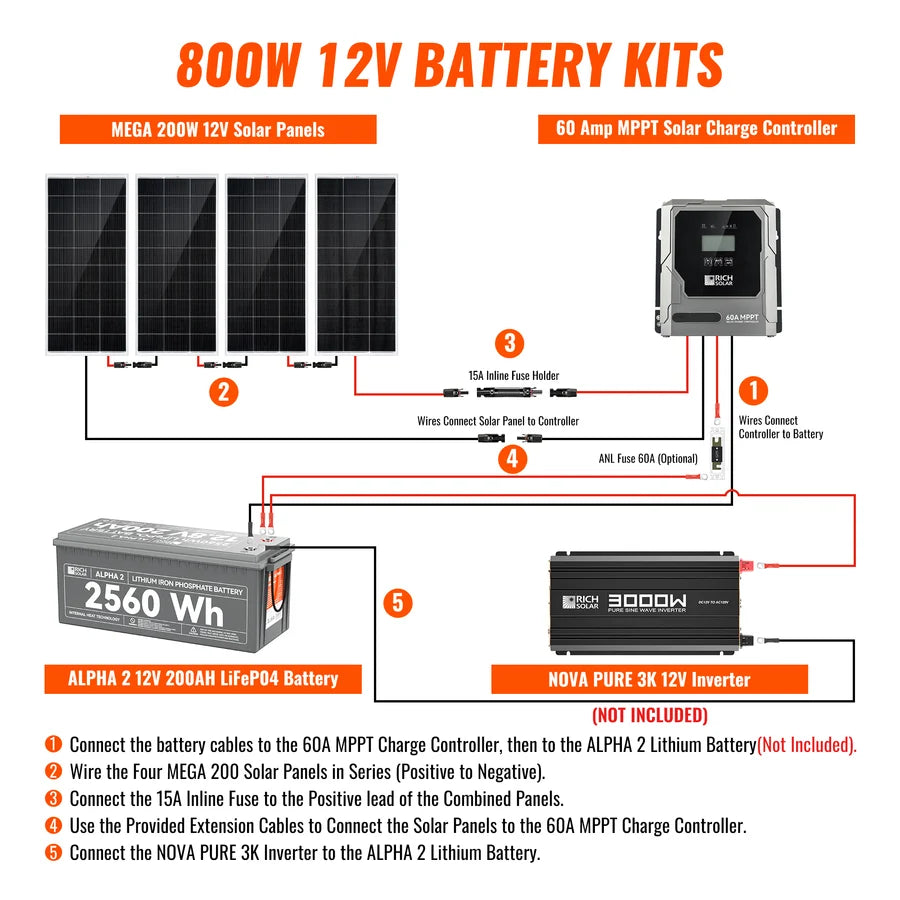

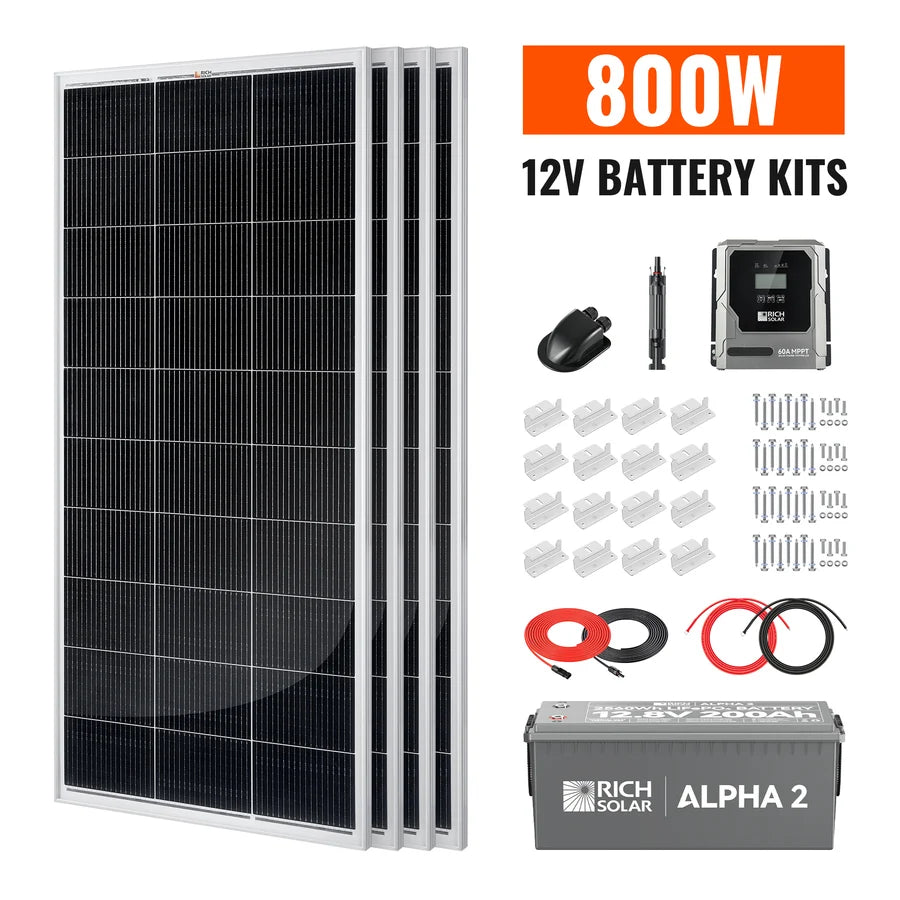

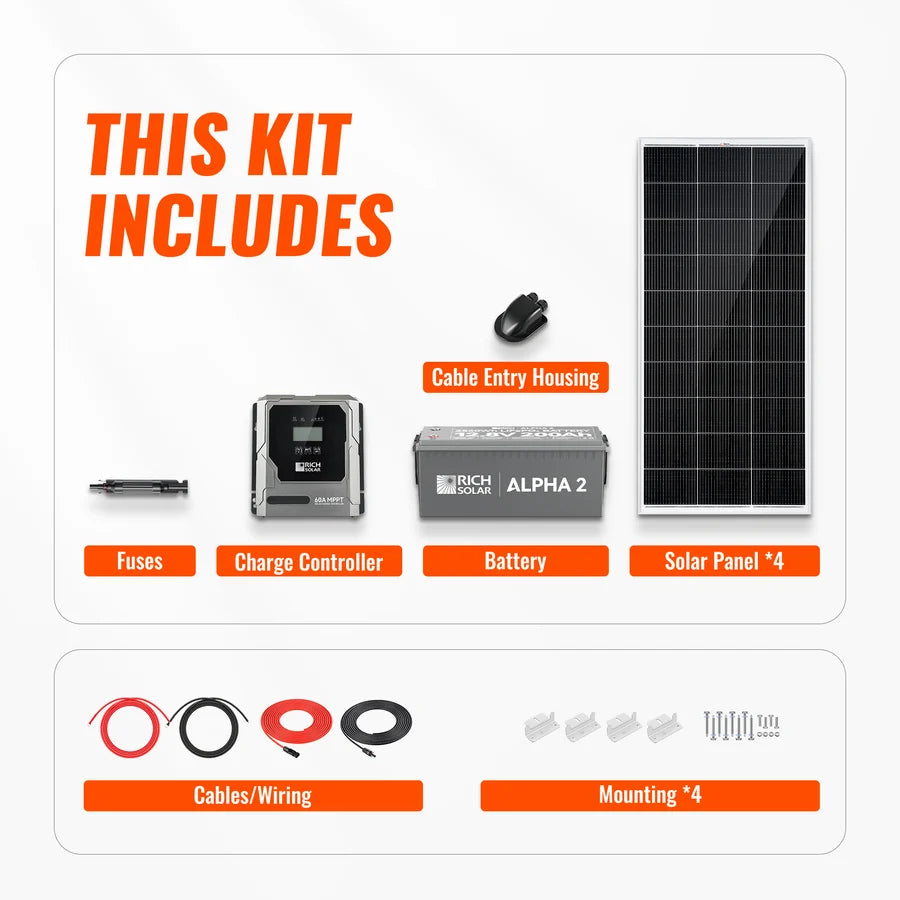

      Kit Includes

      • 4 x MEGA 200 12V 200W Solar Panel (RS-M200)
      • 1 x Bravo 60 60A MPPT Charge Controller (RS-MPPT60PB)
      • 1 x ALPHA 2 12V 200Ah Lithium Battery (RS-B122S)
      • 4 x Z Bracket Sets (one set of 4) (RS-ZB4C)
      • 1 x Cable Entry Housing (RS-C2B)
      • 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
      • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
      • 1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)


      MEGA 200 | 200 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for RVs Cabins, Boats | 25-Year Output Warranty | UL Certified - RICH SOLAR

      MEGA 200

      12V 200W Watt Solar Panel

      The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.


      Features:

      • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
      • Excellent low-light performance even on early mornings, evenings, and cloudy days.
      • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
      • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
      • 25-year limited warranty for power output; 10-year workmanship warranty.

      Installation:

      • Easy installation and handling for various applications (high-end off-grid and mobile applications)
      • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
      • Compatible with on-grid and off-grid inverters

      Warranty:

      • 25-year limited power output warranty
      • 10-year workmanship warranty

      Specifications:

      • Maximum Power(Pmax): 200W
      • Maximum Power Voltage(Vmp): 18.4V
      • Maximum Power Current(Imp): 10.9A
      • Open Circuit Voltage(Voc): 21.8V
      • Short Circuit Current(Isc): 11.6A
      • Temperature Range: -40 ~ +185°F
      • Maximum Series Fuse Rating: 15A
      • Weight: 24 lb
      • Dimensions: 58.7 x 26.8 x 1.2 in



      BRAVO 40

      40 Amp MPPT Solar Charge Controller

      Features:

      • MPPT
      • Tracking Efficiency Above 99.5%
      • Charge Conversion Efficiency as high as 98%
      • 12V/24V DC System Self-Adaptation
      • Reverse Discharge Protection
      • Targeted for Accuracy
      • Overvoltage Protection
      • Common Negative Connection
      • Charging Data Storage
      • Conformal Coating For Inside Board
      • Designed According to UL1741, EN/IEC 62109 1
      • In-house Design And Manufacture
      • Extensive Internal Electronics In-Circuit Protections And Safety Protections
      • Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
      • Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

      Warranty:

      • 2-Year Warranty

      Specifications:

      • System Nominal Voltage: 12/24V Auto
      • Max. PV Open Circuit Voltage: 100VDC
      • Charging Technology: MPPT
      • Max PV Charging Current: 40A
      • Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
      • Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
      • Housing Case Color: Black / Grey
      • IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
      • Net Weight: 1.17kg / 2.58lb
      • Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in



      ALPHA 2 | 12V 200Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology - RICH SOLAR

      ALPHA 2

      12V 200Ah LiFePO4 Battery

      Features:

      • Stay powered in low temps with advanced internal heating tech
      • Track battery health in real time from your phone
      • Over 5,000 cycles with UL94 V-0 flame-retardant protection
      • IP65 waterproof, dustproof, and tested for extreme safety
      • Free of toxic metals—safe for you and the planet
      • Lightweight design, heavy-duty performance
      • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

      Warranty:

      • *5-Year Warranty

      Specifications:

      Battery

      • Cell Type: Lifepo4 Battery
      • Nominal Voltage: 12.8V
      • Nominal Capacity: 200Ah
      • Nominal Energy: 2560Wh
      • Cycle Life: 5000 Cycles

      BMS

      • BMS: 100A
      • Maximum Charging Current: 100A
      • Maximum Continuous Discharge Current: 100A
      • Maximum Discharge Current 10 Seconds: 110A

      Charge

      • Charge Method: CC/CV
      • Charge Voltage: 14.4V ± 0.2V
      • Recommend Charge Current: 50A (0.2C)

      Temperature

      • Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
      • Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
      • Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

      Self-heating

      • External Power Draw: 100W
      • Internal Heating Starts: < 41℉ (5℃)
      • Internal Heating Stops: > 50℉ (10℃)

      Others

      • Net Battery Weight: 48.5lb
      • Size(LxWxH): 20.9x8.1x8.5in (Group 31 Size)
      • Housing Material: ABS (Flame Retardant Plastic)
      • Protection Class: IP65
