Product details

Rich Solar Complete 600W Solar Kit with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power | Complete Energy Solution

Features

600W Solar Array: Includes three 200W monocrystalline solar panels, producing approximately 2.2kWh of energy per day under 4 peak sun hours.
12V DC System: Designed as a 12V off-grid solar power system compatible with existing equipment and future system expansion.
2.56kWh LiFePO₄ Battery: Includes one 12.8V 200Ah ALPHA 2 battery for dependable energy storage and backup power.
3000W Pure Sine Wave Inverter: Delivers 3,000W continuous (6,000W surge) pure sine wave output for reliable AC power.
40A MPPT Charge Controller: Maximizes solar harvest with up to 99.5% MPPT tracking efficiency for efficient battery charging.
Complete Solar Power Kit: Includes professionally matched components for faster system planning and installation.
Versatile Applications: Ideal for RVs, vans, cabins, tiny homes, and emergency backup power.

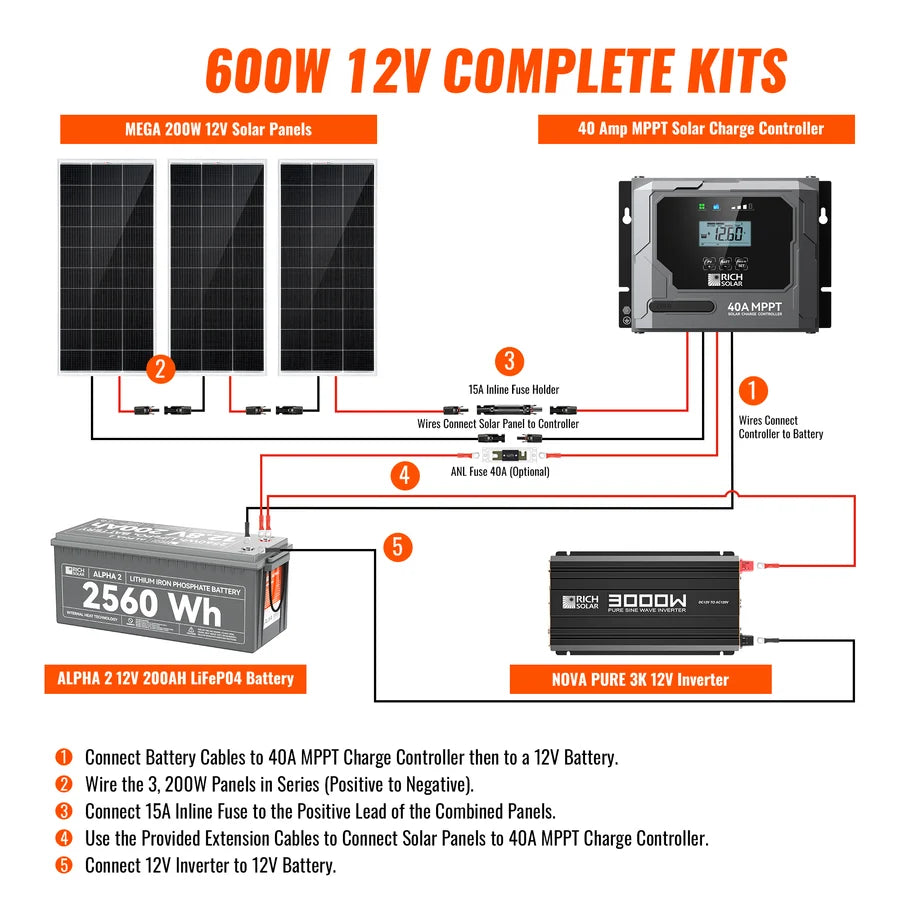

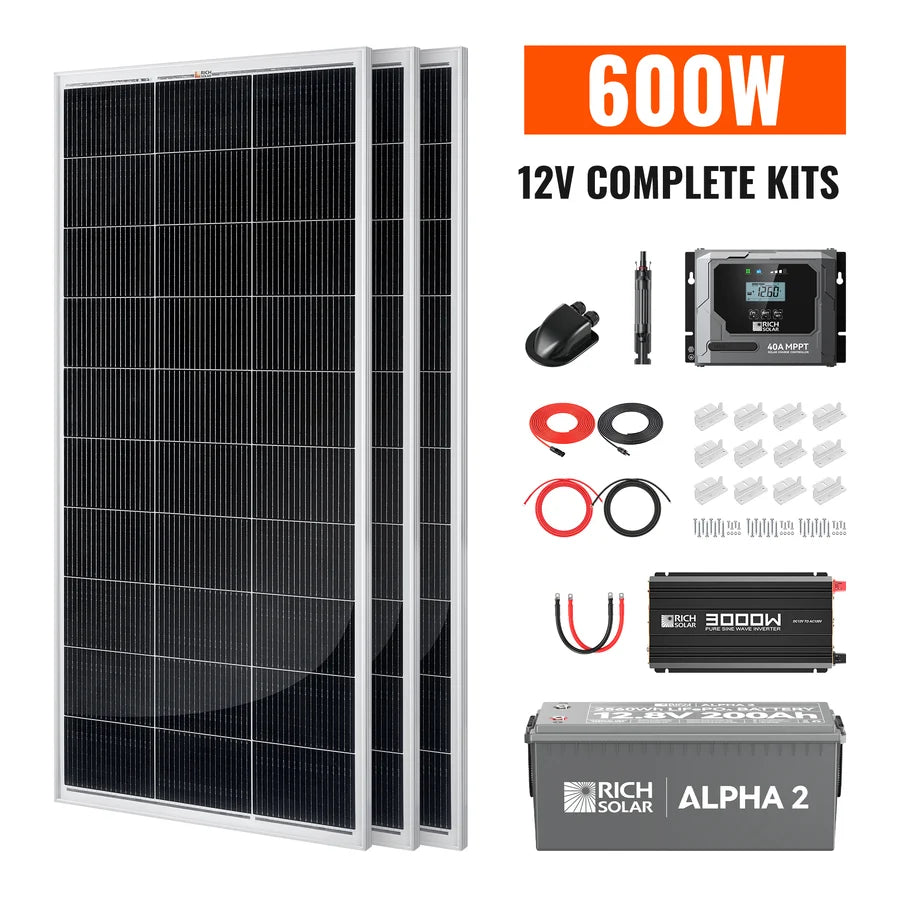

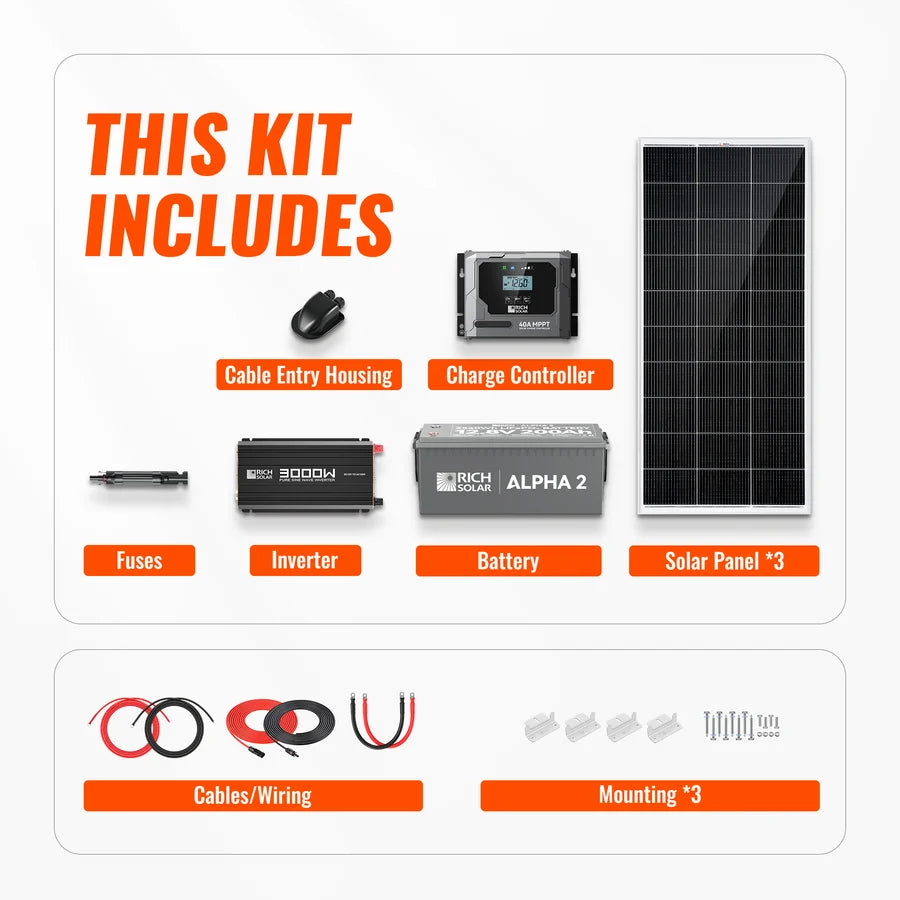

Kit Includes

3 x MEGA 200 12V 200W Panels (RS-M200)
1 x Bravo 40 40A MPPT Charge Controller (RS-MPPT40PB)
1 x ALPHA 2 12V 200Ah Lithium Battery (RS-B122S)
1 x NOVA PURE 3K 3000W 12V Inverter (RS-V3P12)
3 x Z Bracket sets (one set of 4) (RS-ZB4C)
1 x Cable Entry Housing (RS-C2B)
1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
1 x 4/0 AWG 3/8" Battery Cables 3 ft Cable Set (Inverter to Battery) (RS-4/0A3F3)

MEGA 200

12V 200W Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
Excellent low-light performance even on early mornings, evenings, and cloudy days.
Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
Compatible with on-grid and off-grid inverters

Warranty:

25-year limited power output warranty
10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in

BRAVO 40

40 Amp MPPT Solar Charge Controller

Features:

MPPT
Tracking Efficiency Above 99.5%
Charge Conversion Efficiency as high as 98%
12V/24V DC System Self-Adaptation
Reverse Discharge Protection
Targeted for Accuracy
Overvoltage Protection
Common Negative Connection
Charging Data Storage
Conformal Coating For Inside Board
Designed According to UL1741, EN/IEC 62109 1
In-house Design And Manufacture
Extensive Internal Electronics In-Circuit Protections And Safety Protections
Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

Warranty:

2-Year Warranty

Specifications:

System Nominal Voltage: 12/24V Auto
Max. PV Open Circuit Voltage: 100VDC
Charging Technology: MPPT
Max PV Charging Current: 40A
Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
Net Weight: 1.17kg / 2.58lb
Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in

ALPHA 2

12V 200Ah LiFePO4 Battery

Features:

Stay powered in low temps with advanced internal heating tech
Track battery health in real time from your phone
Over 5,000 cycles with UL94 V-0 flame-retardant protection
IP65 waterproof, dustproof, and tested for extreme safety
Free of toxic metals—safe for you and the planet
Lightweight design, heavy-duty performance
ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

Warranty:

*5-Year Warranty

Specifications:

Battery

Cell Type: Lifepo4 Battery
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Nominal Energy: 2560Wh
Cycle Life: 5000 Cycles

BMS

BMS: 100A
Maximum Charging Current: 100A
Maximum Continuous Discharge Current: 100A
Maximum Discharge Current 10 Seconds: 110A

Charge

Charge Method: CC/CV
Charge Voltage: 14.4V ± 0.2V
Recommend Charge Current: 50A (0.2C)

Temperature

Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

Self-heating

External Power Draw: 100W
Internal Heating Starts: < 41℉ (5℃)
Internal Heating Stops: > 50℉ (10℃)

Others

Net Battery Weight: 48.5lb
Size(LxWxH): 20.9x8.1x8.5in (Group 31 Size)
Housing Material: ABS (Flame Retardant Plastic)
Protection Class: IP65

NOVA PURE 3K

12V 3000W Pure Sine Wave Inverter

This is a compact and highly portable power inverter that has an excellent track record in the field of high-frequency inverters. From the 12V DC outlet in your applications e.g., vehicle or boat, or directly from a dedicated 12V DC battery, this inverter can efficiently and reliably power a wide variety of household AC products, such as TV, Computers, Air-conditioning units, etc.

Features:

Optimized for 12 VDC system voltage; a great addition to any off-grid solar power system.
Offers a high-quality waveform with minimal harmonic distortion.
Overload protection for both DC input and AC output to prevent damage to the components and the unit.
Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short-circuit indication.
High-speed ventilation fans to help keep the inverter running at a low temperature.
120 Volt AC outlets allow for the operation of more than one appliance simultaneously.
Quiet, no static or humming noises.
