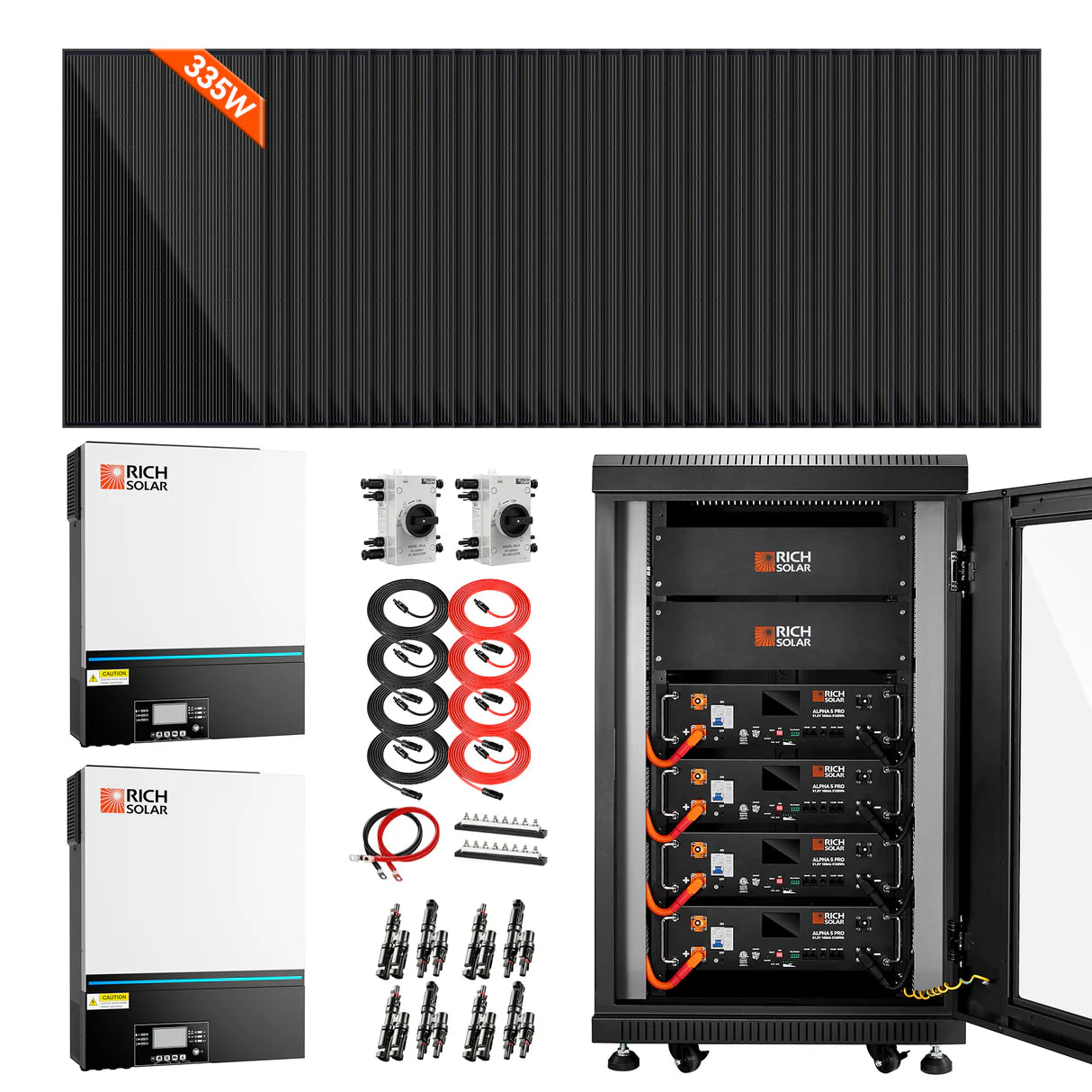

Rich Solar Complete Off-Grid Solar Kit | 38 x MEGA 335 Solar Panels | 13,000W 120/240V Output | 48VDC

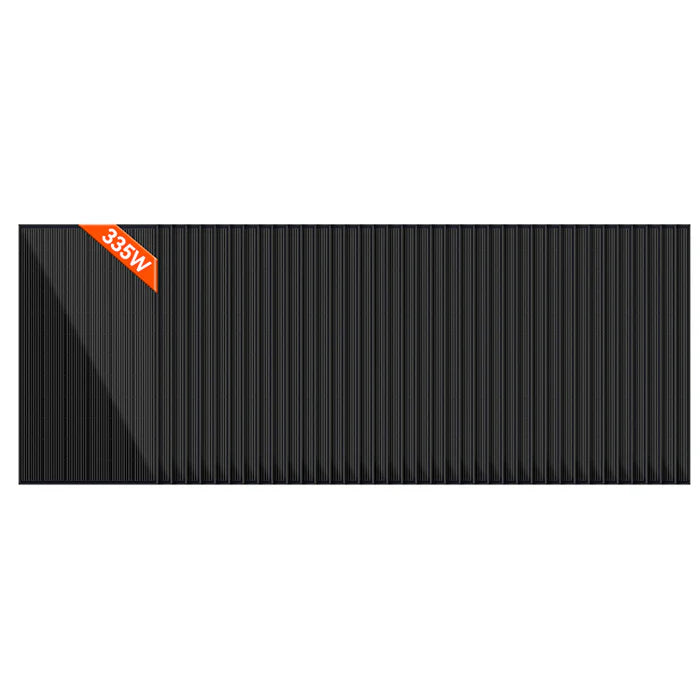

MEGA 335 Watt Solar Panels

• No. of Panels: 38 x MEGA 335 Solar Panels
• Wattage Per Panel: 335W
• Total Wattage of Panels: 12.7KW

Features:

• Generates 11.5 amps of power, charges 24-volt batteries, 4' quick connect cables with connectors, and works in series or parallel.
• Excellent low-light performance even on early mornings, evenings, and cloudy days.
• Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.

Installation:

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty:

• 25-year limited power output warranty
• 10-year workmanship warranty

Specifications:

• Maximum Power(Pmax): 335W
• Maximum Power Voltage(Vmp): 29.2V
• Maximum Power Current(Imp): 11.5A
• Open Circuit Voltage(Voc): 36.9V
• Short Circuit Current(Isc): 11.8A
• Maximum System Voltage(Vmax): 1500VDC
• Temperature Range: -40°F ~ 185°F
• Max Series Fuse Rating: 20A
• Dimensions: 69.3 x 34.7 x 1.2 in
• Weight: 35.2 lb

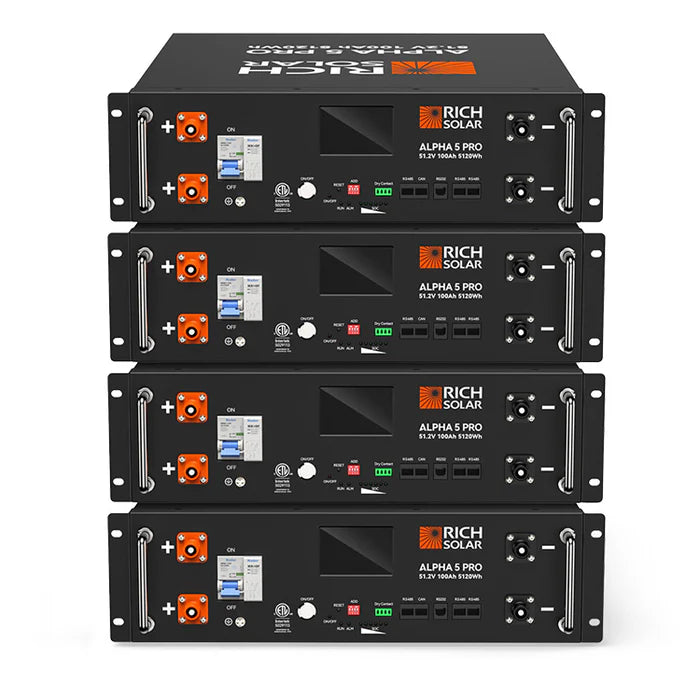

ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Battery

• No. of Batteries: 4 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries

Features:

• Certification: UL1973, UL9540A, FCC
• 7,000 Deep Cycles Life
• 5120 Watt Hours Energy
• 100A Continuous Charge Current
• Compatible with multiple brands of inverters
• Low maintenance
• Over charging or discharging protection
• Overcurrent & short circuit protection
• Parallel up to 15 Batteries
• Connect in Parallel for Larger Capacity
• With Sophisticated Battery Management System (BMS)
• 10 Years Lifespan

Warranty:

• *10-Year Warranty

Specifications:

Electrical Specifications

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Minimum Capacity: 99.5Ah
• Nominal Capacity: 5120Wh

Operating Specifications

• Charging Voltage: 56V
• Discharging Cutoff Voltage: 44.8V
• Maximum Charging Current: 100A
• Continuous Charge Current: 100A
• Maximum Discharge Current: 100A

Physical Specifications

• Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
• Battery Weight: 99.2 lb
• Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
• Server Rack Weight: 196.2 lb

BMS Operation

• Operation Voltage: 43.2~58.4V
• Maximum Charging Current: 100A
• Maximum Discharging Current: 100A
• Maximum Charge Voltage (CC/CV): 57.6V
• Overcharge Protection Voltage (Battery): 58.4V
• Overcharge Protection Release Voltage (Battery): 54V
• Over Discharge Protection Voltage (Battery): 43.2V
• Over Discharge Protection Release Voltage (Battery): 47.2V
• Over Discharge Primary Charge Overcurrent Protection Value: 110A
• First Stage Charge Over Current Delay: 1s
• Primary Discharge Overcurrent Protection Value: 110A
• Primary Discharge Overcurrent Protection Delay: 1s
• Secondary Discharge Overcurrent Protection Value: 150A
• Secondary Discharge Overcurrent Protection Delay: 500ms

Temperature Performance

• Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
• Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
• Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
• Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

• Certification: UL1973, UL9540A, FCC
• Max. Expansion: 15 pcs in parallel
• Communication Ports: RS485/RS232/CAN
• Warranty: 10 Years Manufacturer Defect

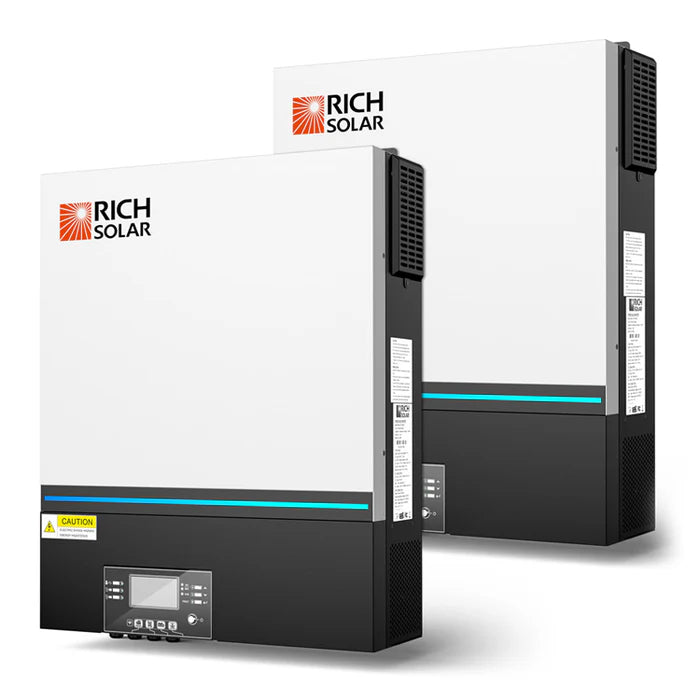

NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverter

• No. of Hybrid Solar Inverters: 2 x NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverters

Features:

• Pure Sine Wave Inverter
• Configurable color with the built-in RGB LED bar
• Built-in Wi-Fi for mobile monitoring (APP is required)
• Supports USB On-the-Go function
• Built-in anti-dusk kit
• Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
• Configurable input voltage ranges for home appliances and personal computers via LCD control panel
• Configurable AC/PV output usage timer and prioritization
• Configurable AC/Solar charger priority via LCD control panel
• Configurable battery charging current based on applications via LCD control panel
• Compatible with utility mains or generator power
• Auto restart while AC is recovering
• Overload/over temperature/short circuit protection
• Parallel operation with 6 units
• Smart battery charger design for optimized battery performance
• Cold start function

Warranty:

• 3-Year Warranty

Specifications:

Model: RS-H6548
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Voltage: 120 VAC
• Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
• Surge Power: 2* rated power for 5 seconds
• Efficiency (Peak): 91%
• Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure Sine Wave
• Optional DC Voltage: 12 VDC ± 7%, 100W


BATTERY

• Battery Voltage: 48 VDC
• Float Charging Voltage: 54 VDC
• Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 450 VDC
• Maximum PV Array Open Circuit Voltage: 550 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 120A

PHYSICAL

• Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in
• Net Weight: 40.6 lb
• Communication Interface: USB/RS232/RS485/WiFi/Dry-contact

OPERATING ENVIRONMENT

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -14°F to 104°F
• Storage Temperature: 5°F to 140°F

STANDARD

• Compliance Safety: UL 1741 by TUV
