Product details

Rich Solar MPPT Solar Charge Controller

60 Amp

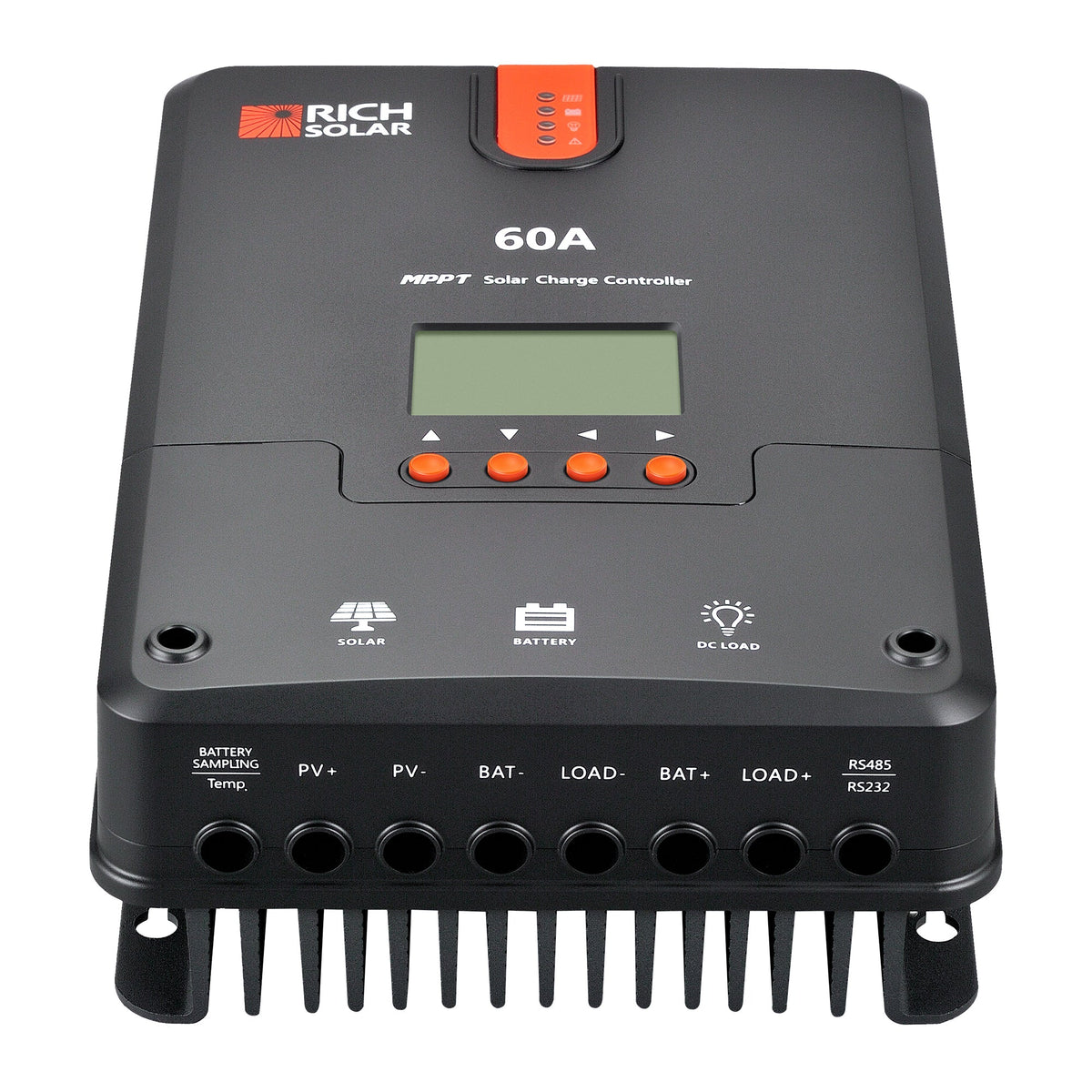

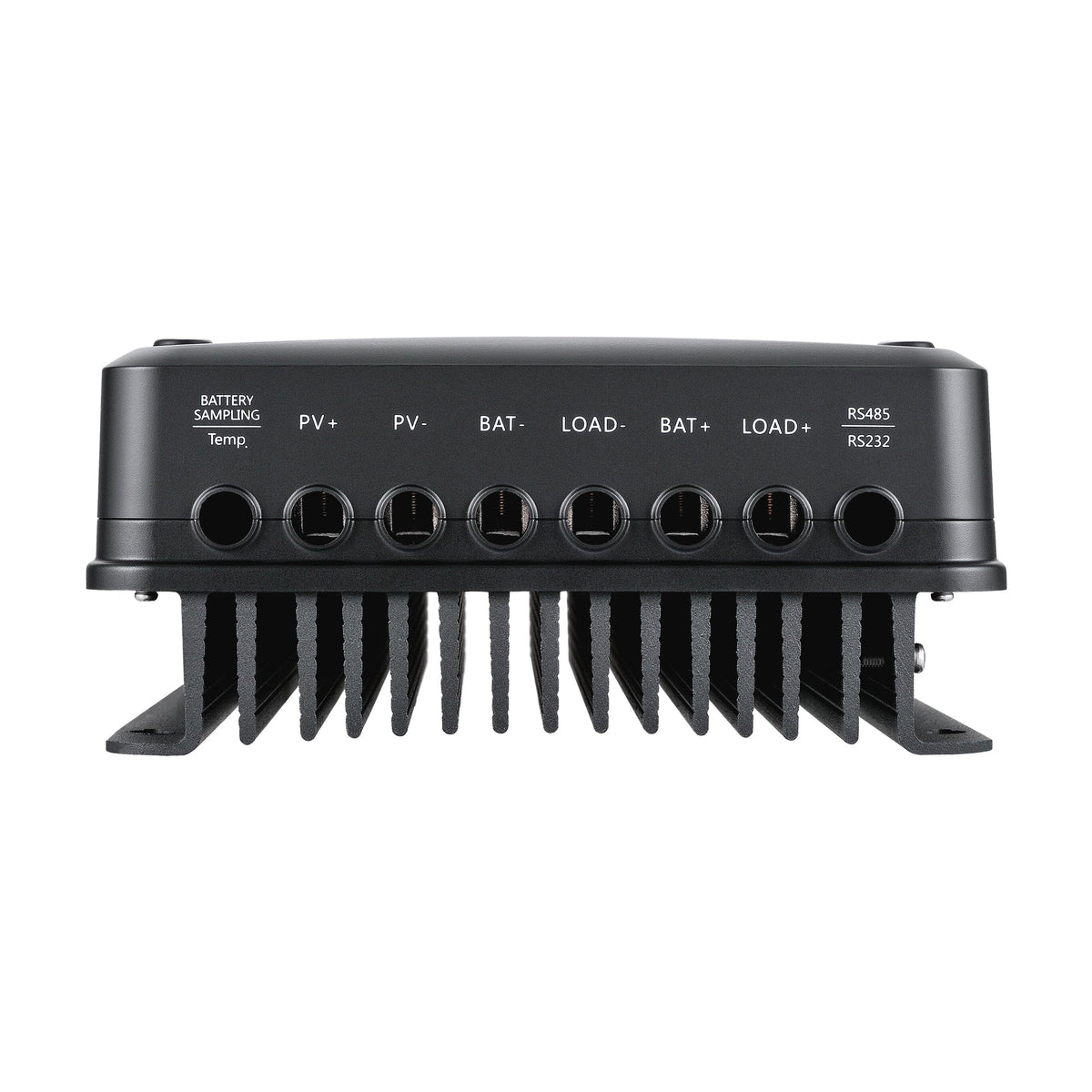

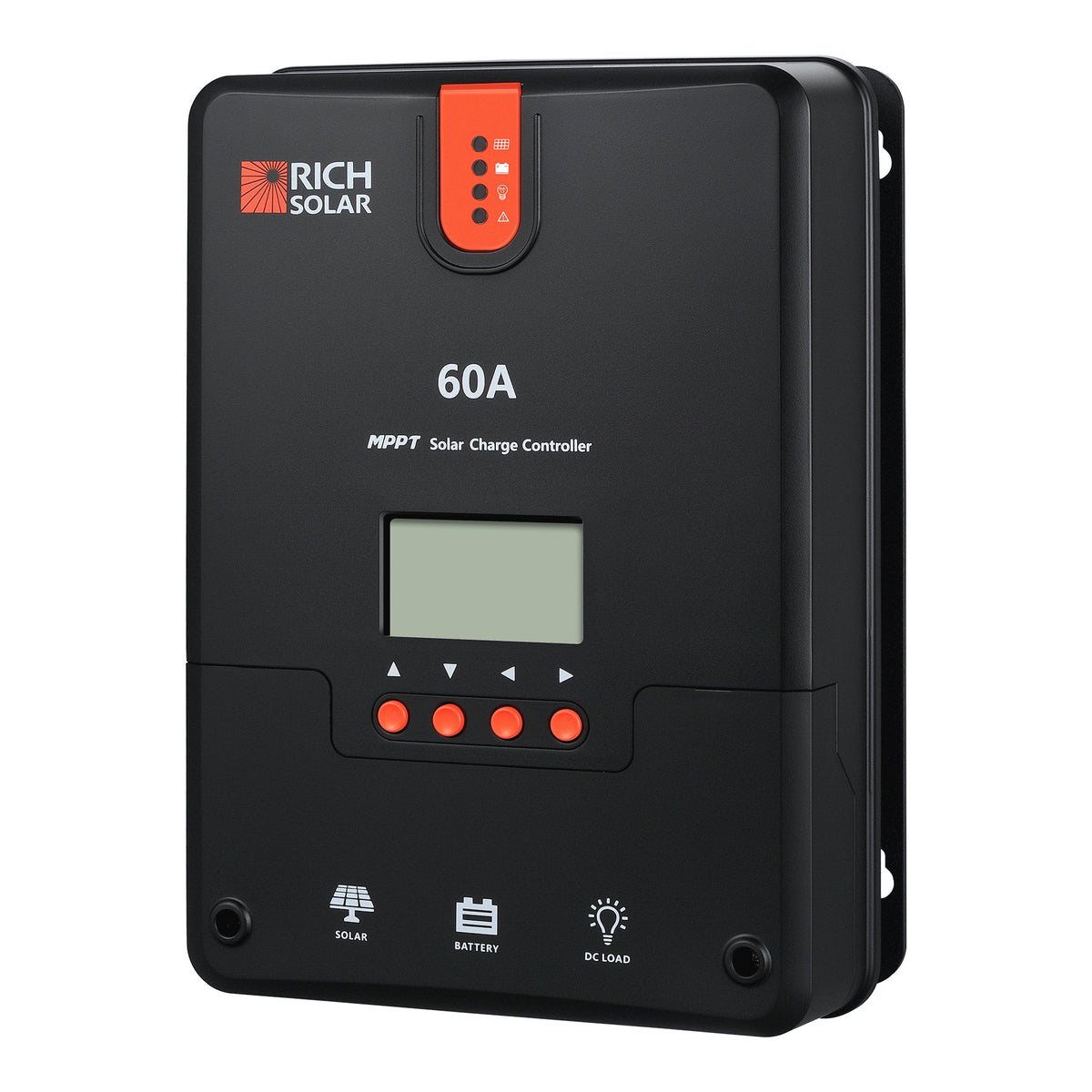

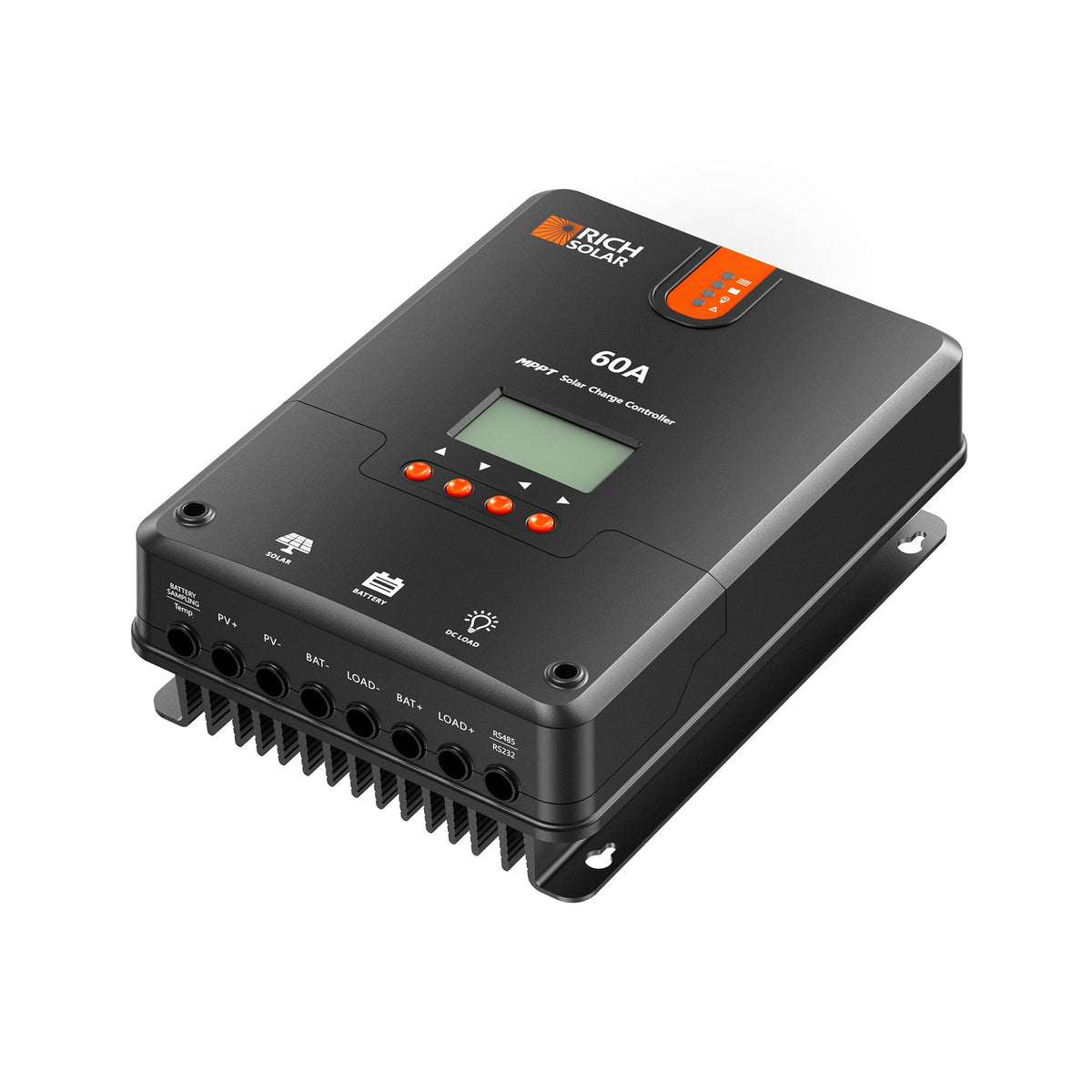

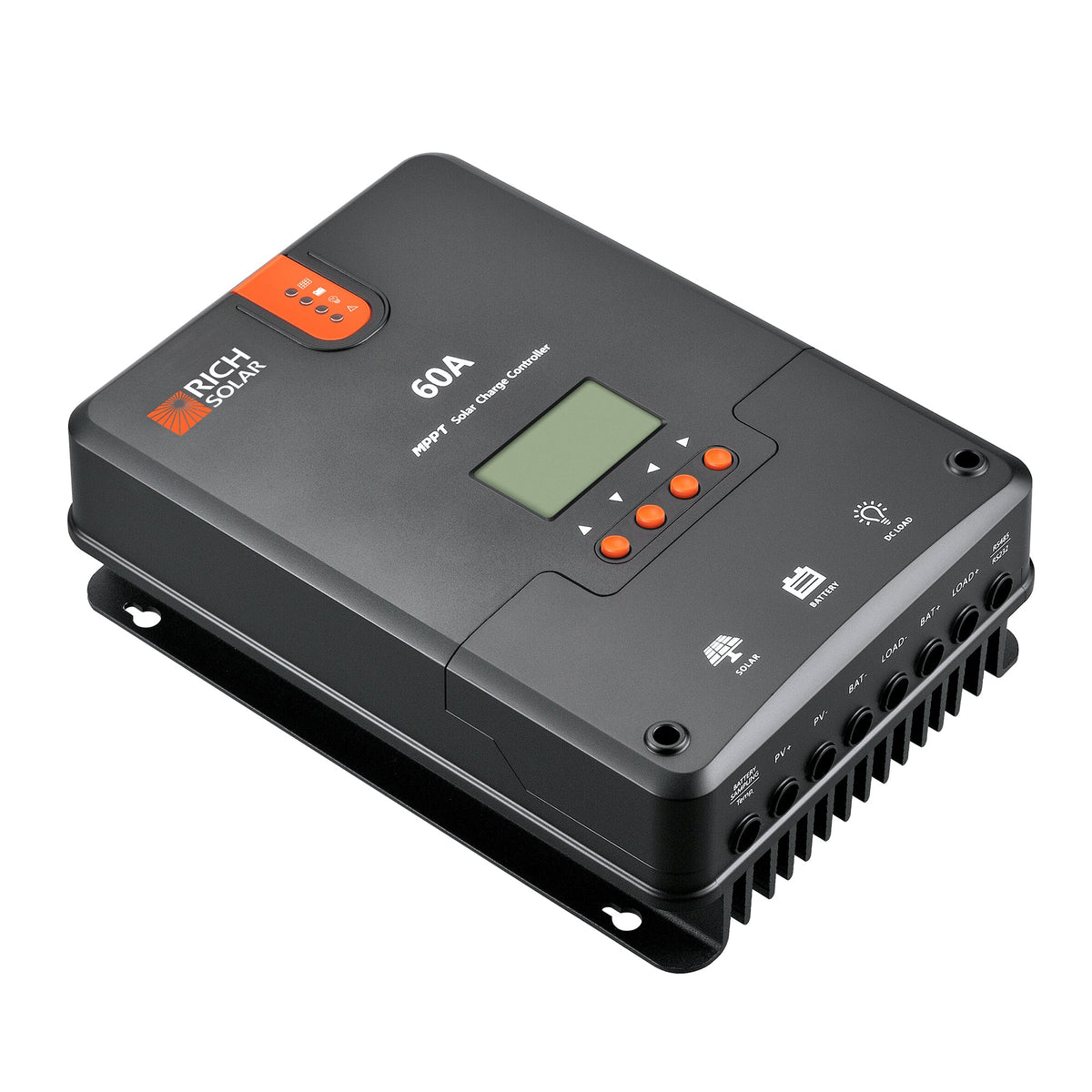

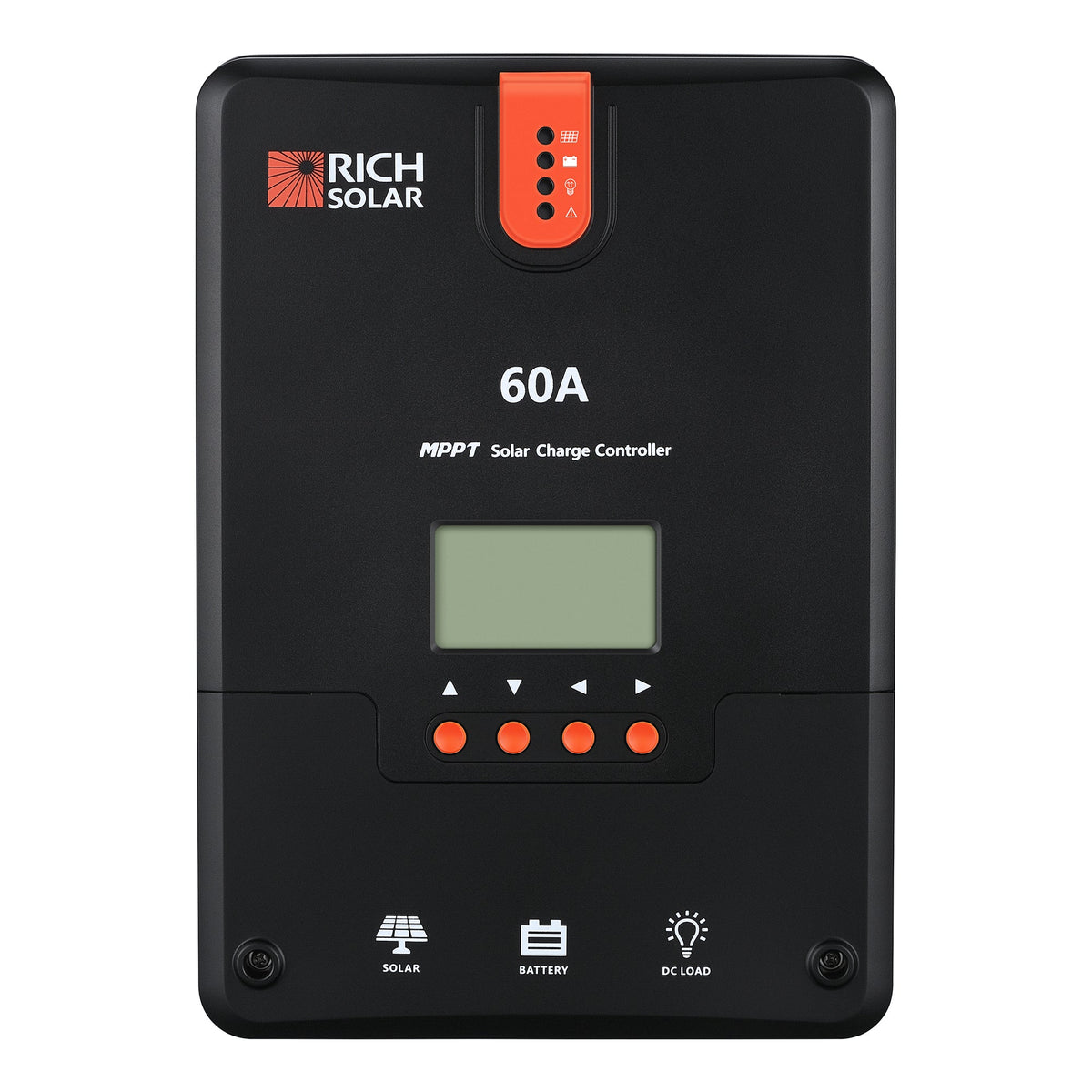

60 Amp MPPT Solar Charge Controller

Features

Efficient MPPT Solar Charging

Up to 99% MPPT Tracking Efficiency: Maximizes solar energy harvest under changing sunlight conditions.
Up to 98% Conversion Efficiency: Converts more solar power into usable battery charging energy.
Supports up to 3200W PV Input: Recommended for solar arrays up to 800W (12V), 1600W (24V), 2400W (36V), or 3200W (48V).

Flexible System Compatibility

12V/24V/36V/48V Auto Detection: Automatically identifies the system voltage during installation.
150V Max Solar Input Voltage: Supports flexible solar panel configurations.
Supports Multiple Battery Types: Compatible with Sealed, Gel, Flooded, and Lithium batteries.

User-Friendly Operation

LCD Display with LED Indicators: Displays charging status, battery information, operating parameters, and fault codes.
Bluetooth Ready: Supports the optional BT-1 Bluetooth module via the RS232
communication port for wireless monitoring.

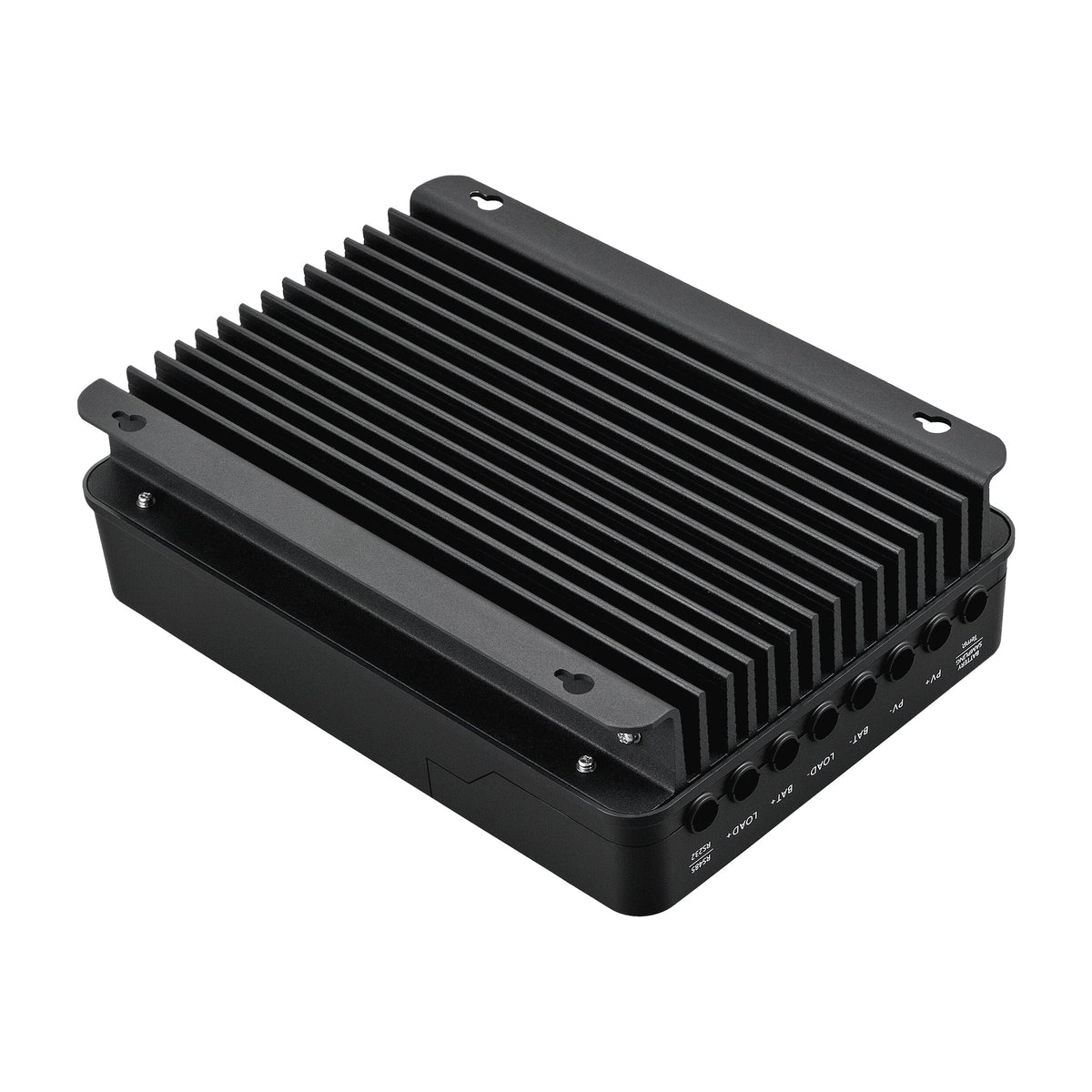

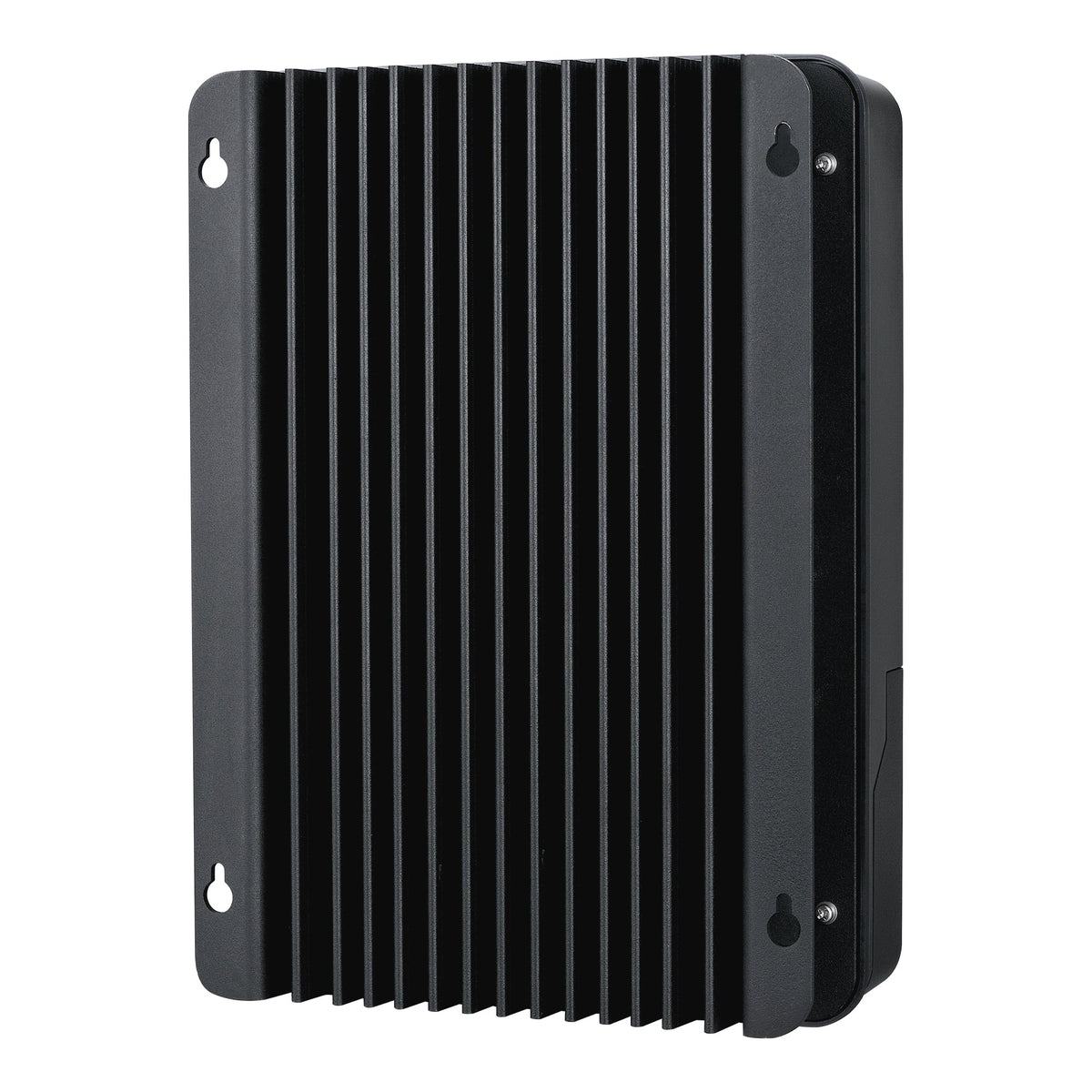

Die-Cast Aluminum Housing: Provides efficient heat dissipation for reliable operation.

Comprehensive Reliability

Advanced Electronic Protection: Protects against reverse polarity, overcharging, overload, and short circuit.
Lithium Battery Recovery: Capable of charging over-discharged lithium batteries.
Designed for Long-Term Reliability: Durable construction for demanding off-grid applications.

Specifications

Nominal System Voltage: 12V/24V/36V/48V Auto
Rated Battery Current: 60A
Rated Load Current: 20A
Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop: ≤0.26V
Discharge Circuit Voltage Drop: ≤0.15V
Operating Temperature: -31°F to 113°F
Max Terminal Size: <11mm
Overall Dimensions: 11.2 x 8.1 x 3.7 in
Net Weight: 7.94 lb

Manual

Download

40 Amp

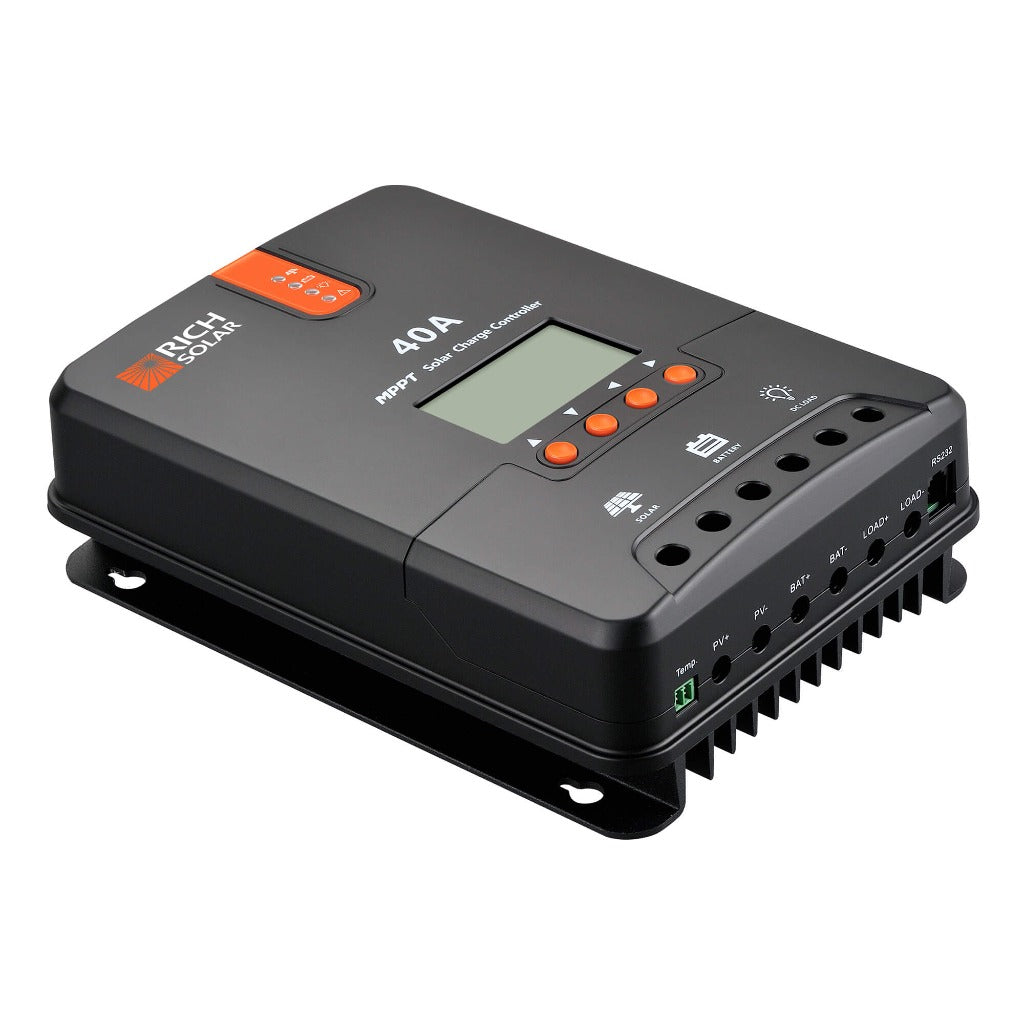

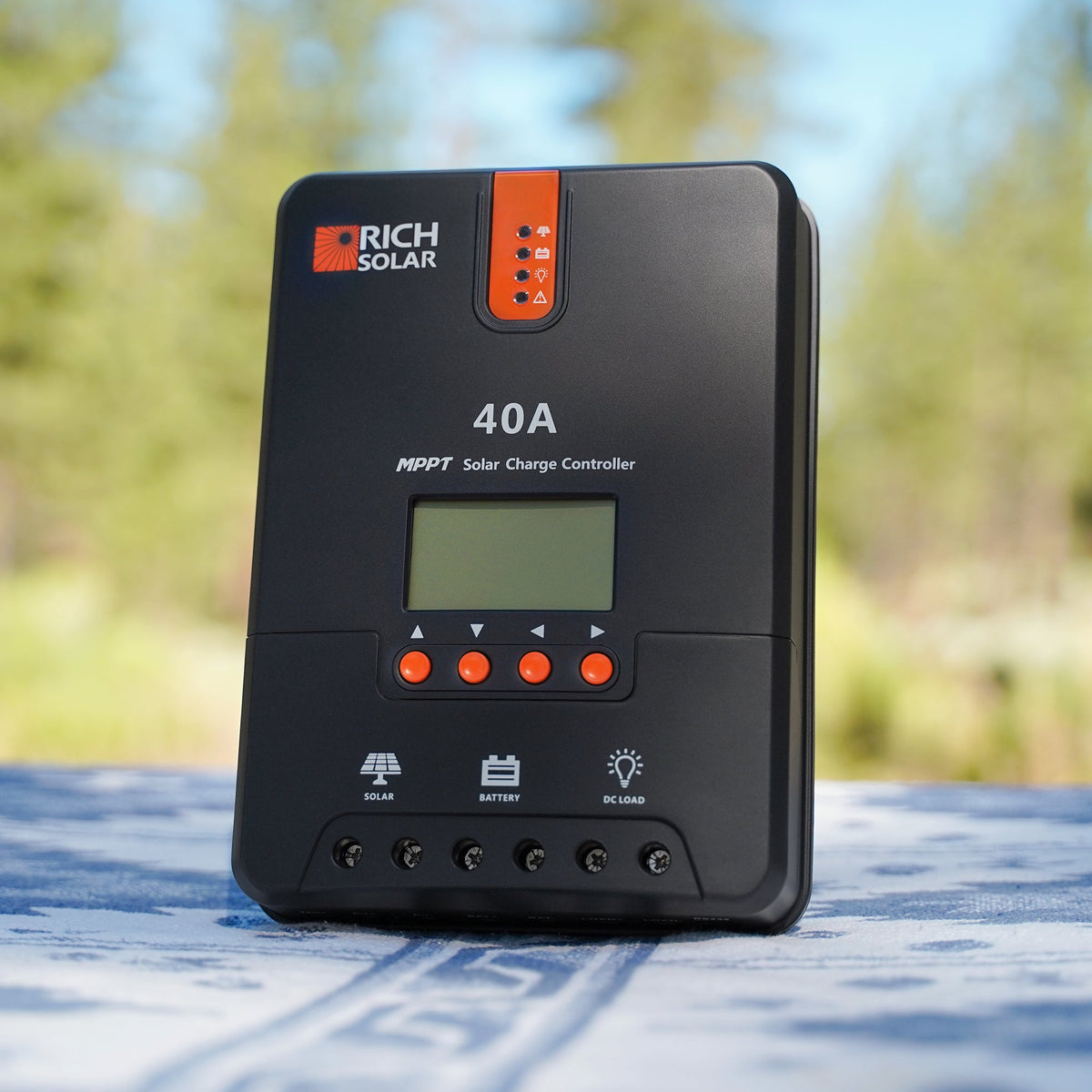

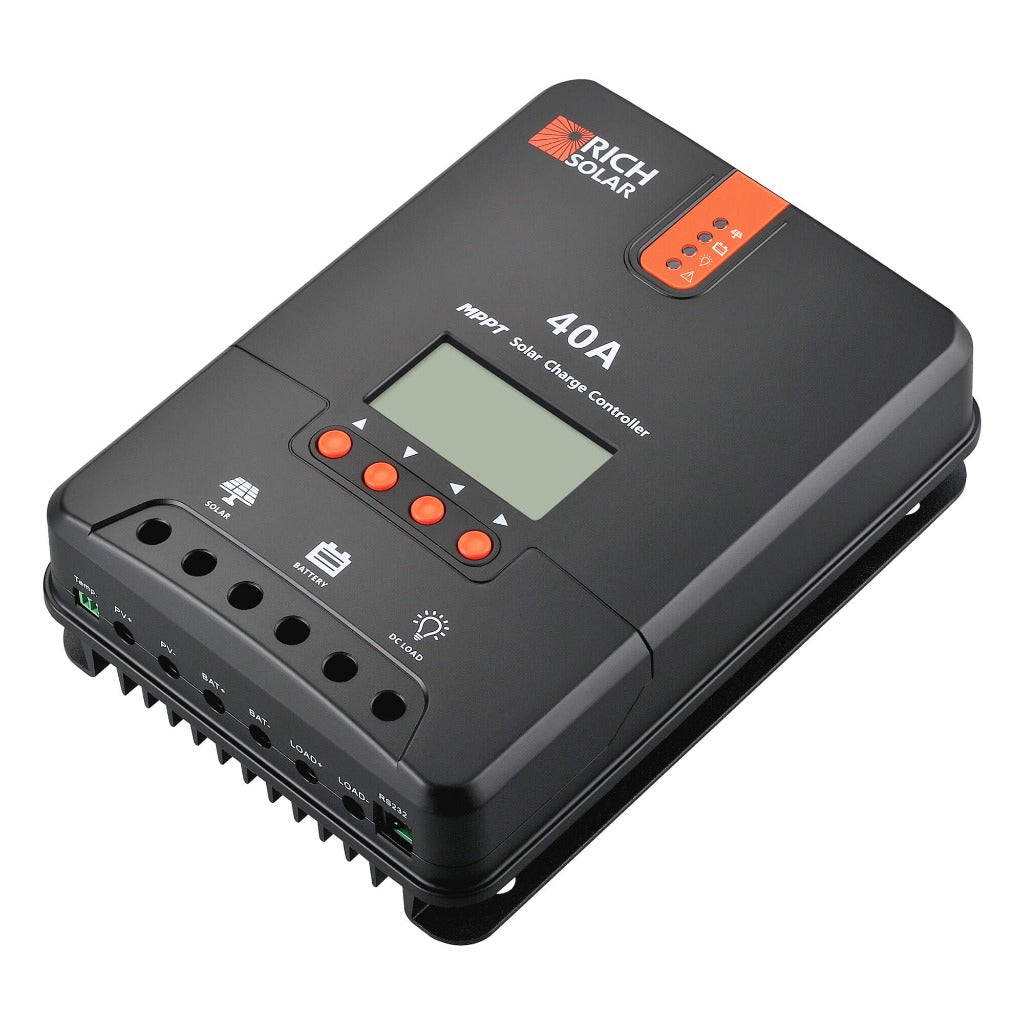

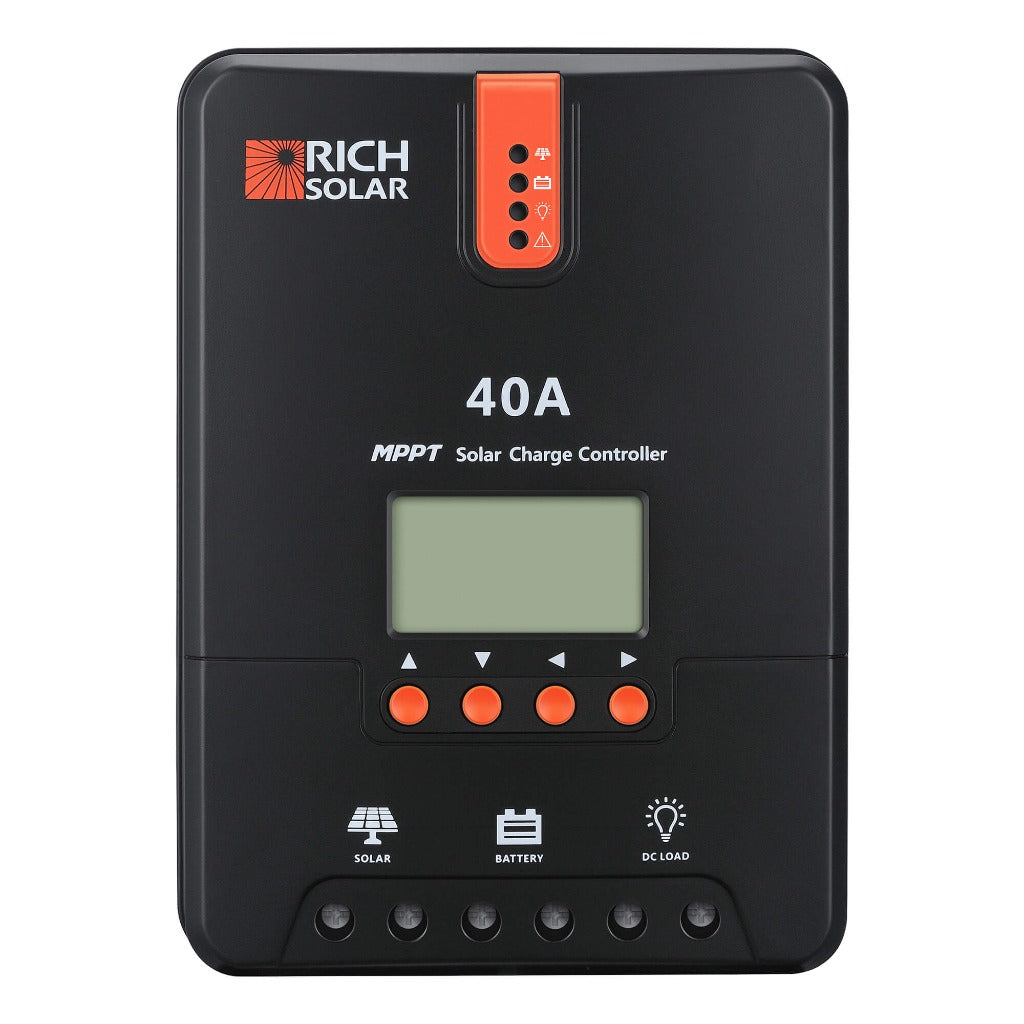

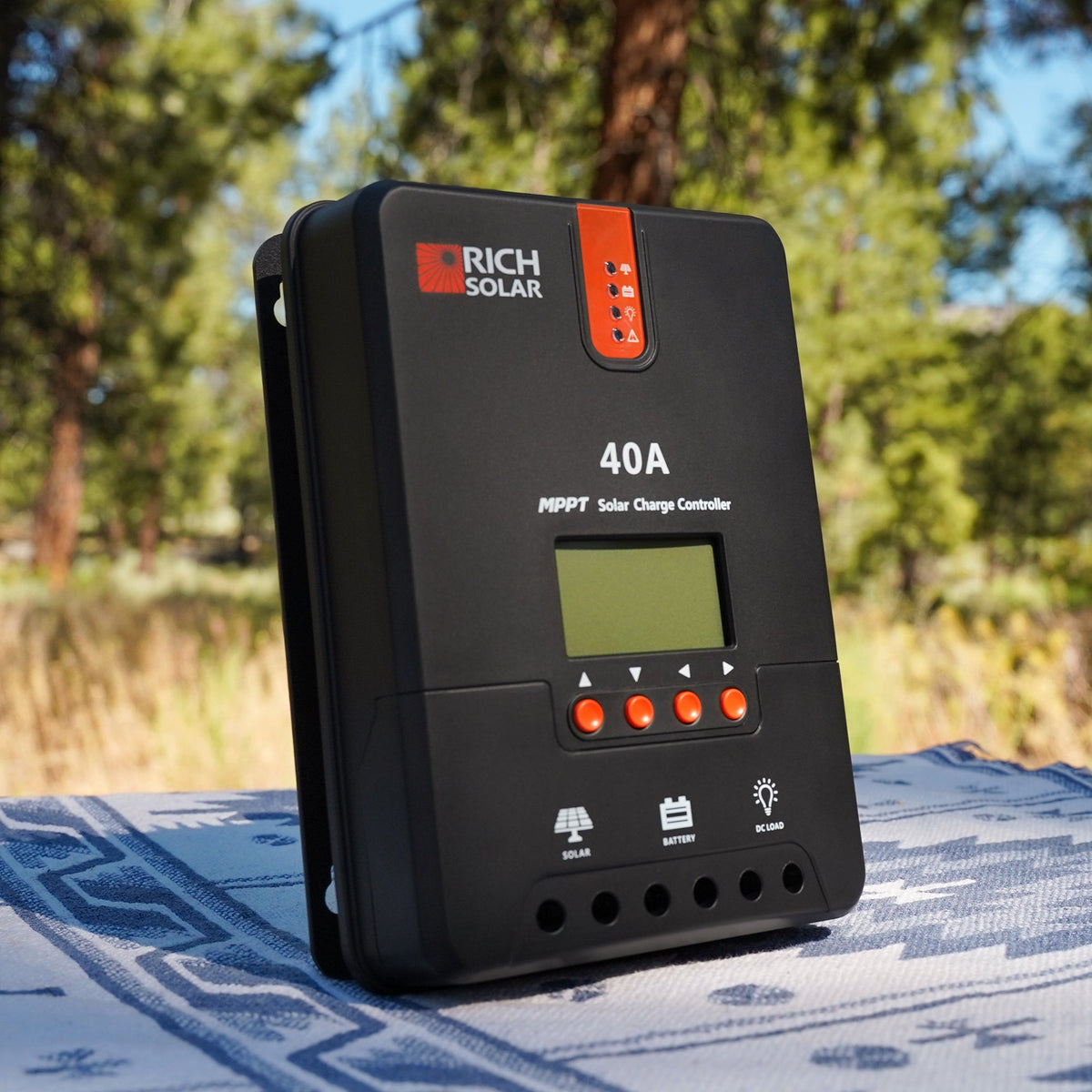

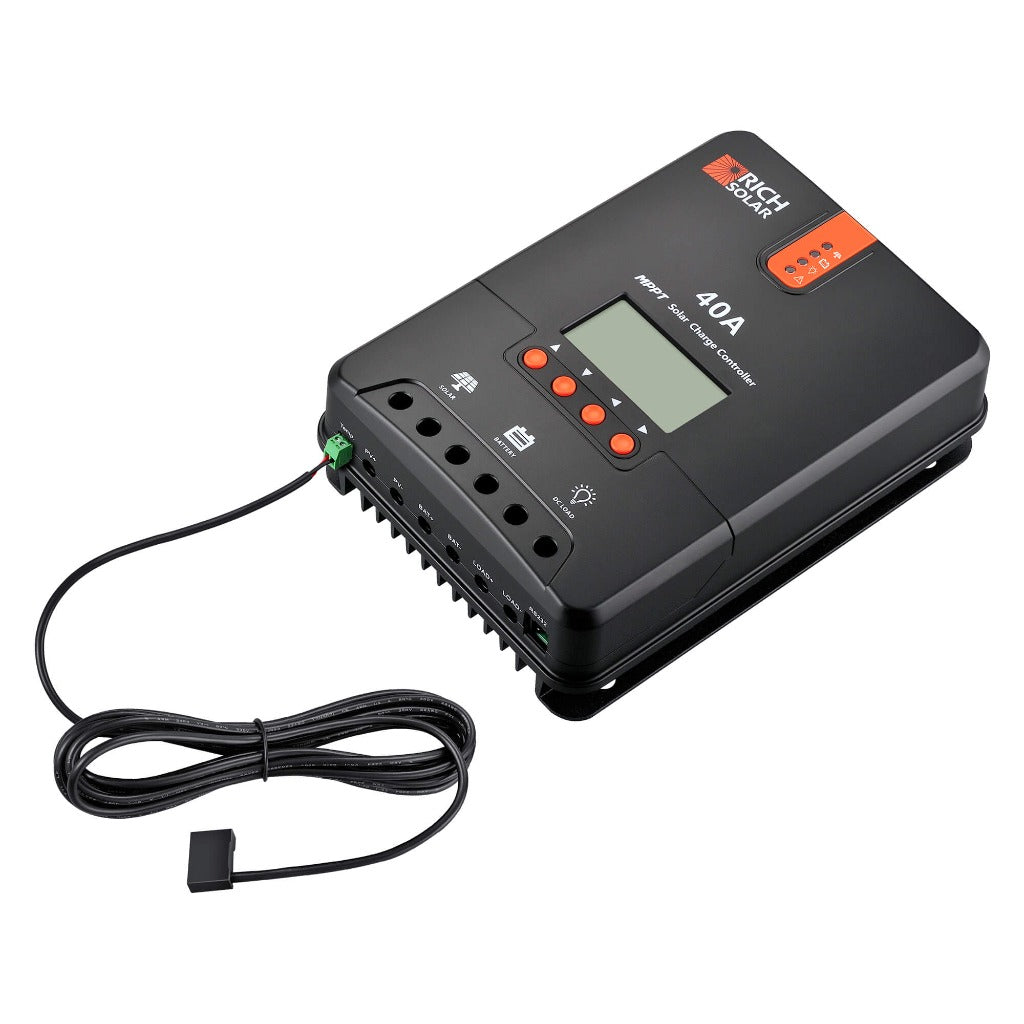

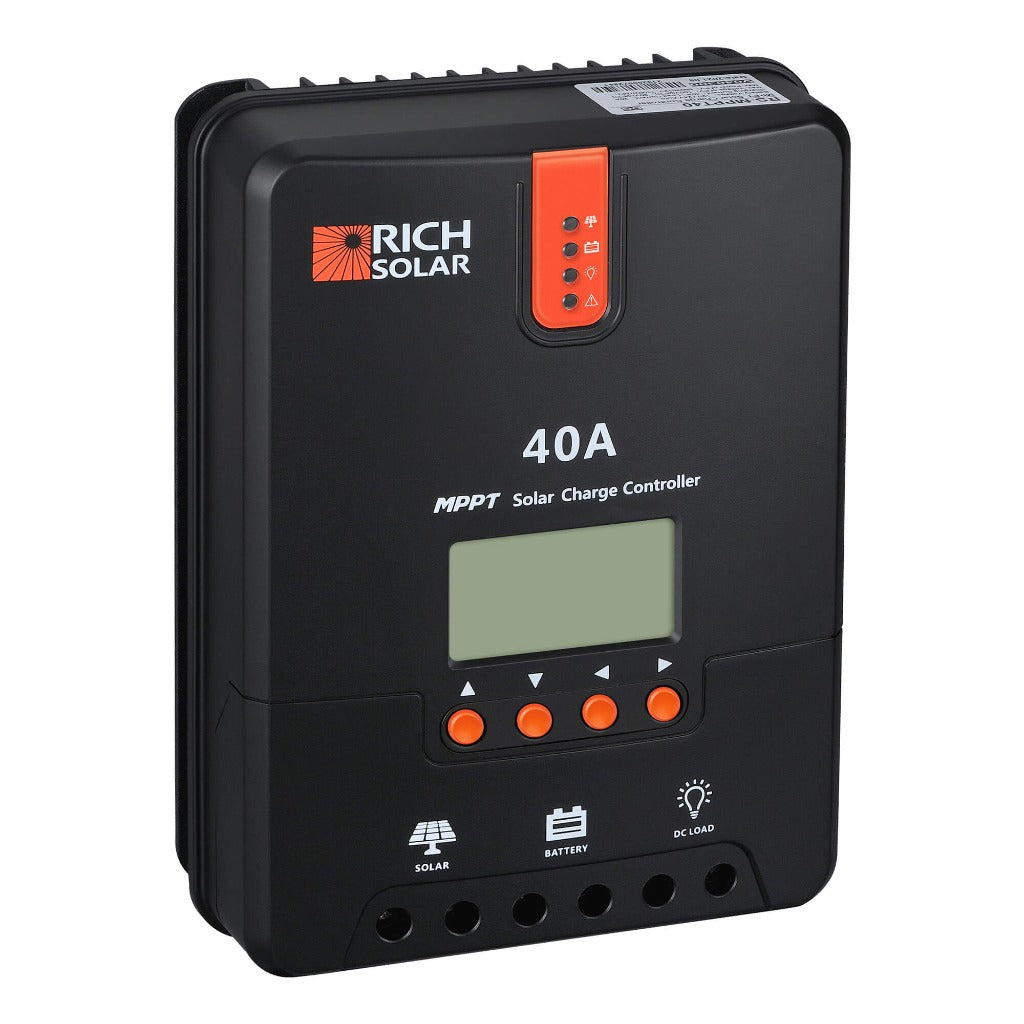

40 Amp MPPT Solar Charge Controller

Features

Efficient MPPT Solar Charging

Up to 99% MPPT Tracking Efficiency: Maximizes solar energy harvest under changing sunlight conditions.
Up to 98% Conversion Efficiency: Converts more solar power into usable battery charging energy.
Supports up to 1100W PV Input: Recommended for solar arrays up to 550W (12V) or 1100W (24V).

Flexible System Compatibility

12V/24V Auto Detection: Automatically identifies the system voltage during installation.
100V Max Solar Input Voltage: Supports flexible solar panel configurations.
Supports Multiple Battery Types: Compatible with Sealed, Gel, Flooded, and Lithium batteries.

User-Friendly Operation

LCD Display with LED Indicators: Displays charging status, battery information, operating parameters, and fault codes.

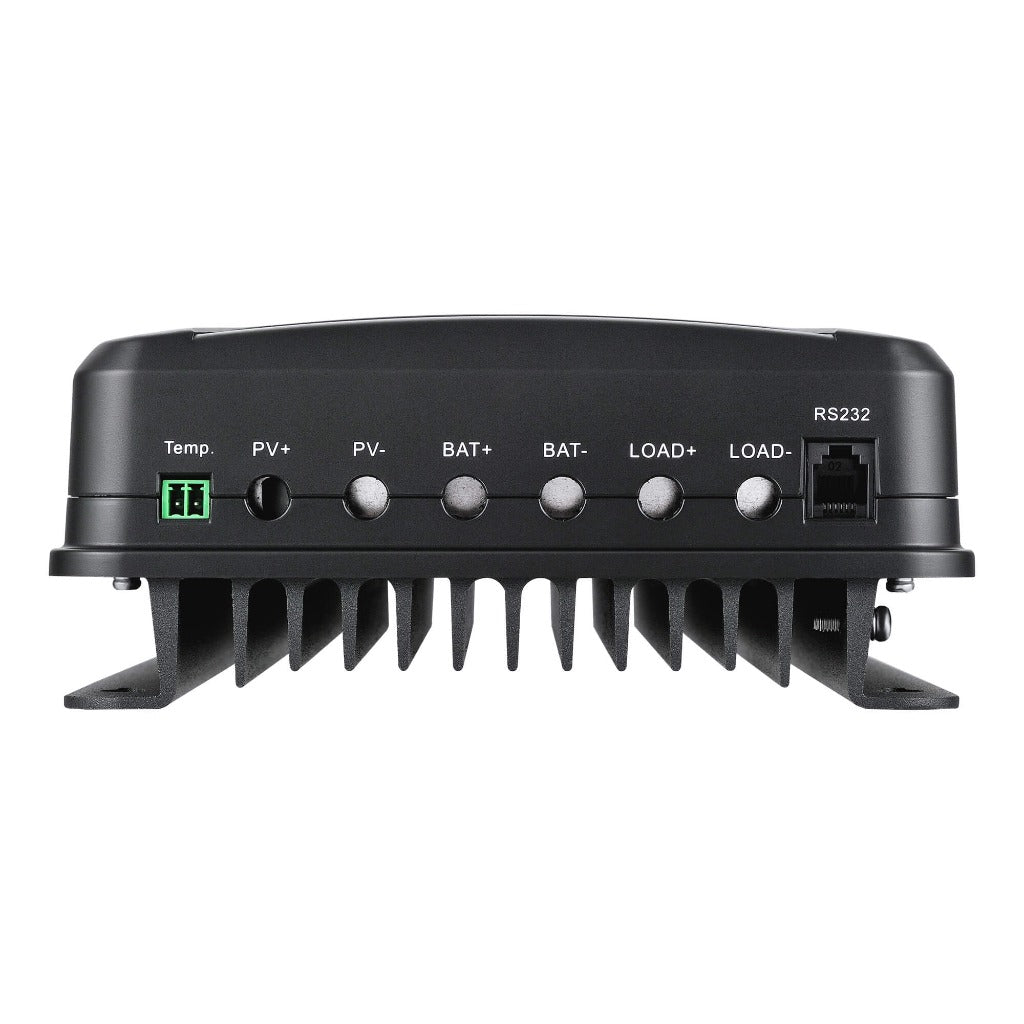

Bluetooth Ready: Supports the optional BT-1 Bluetooth module via the RS232 communication port for wireless monitoring.

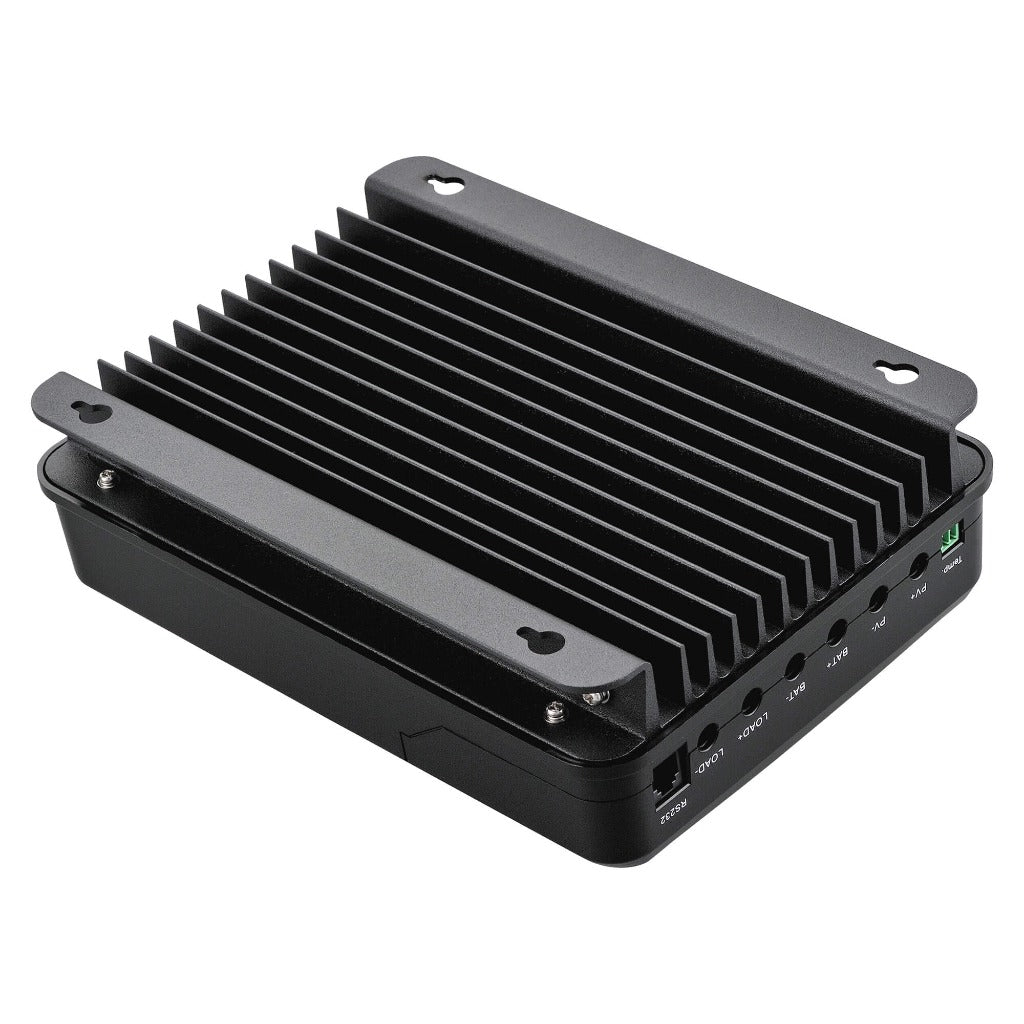

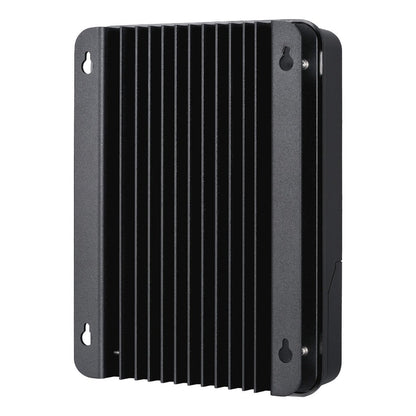

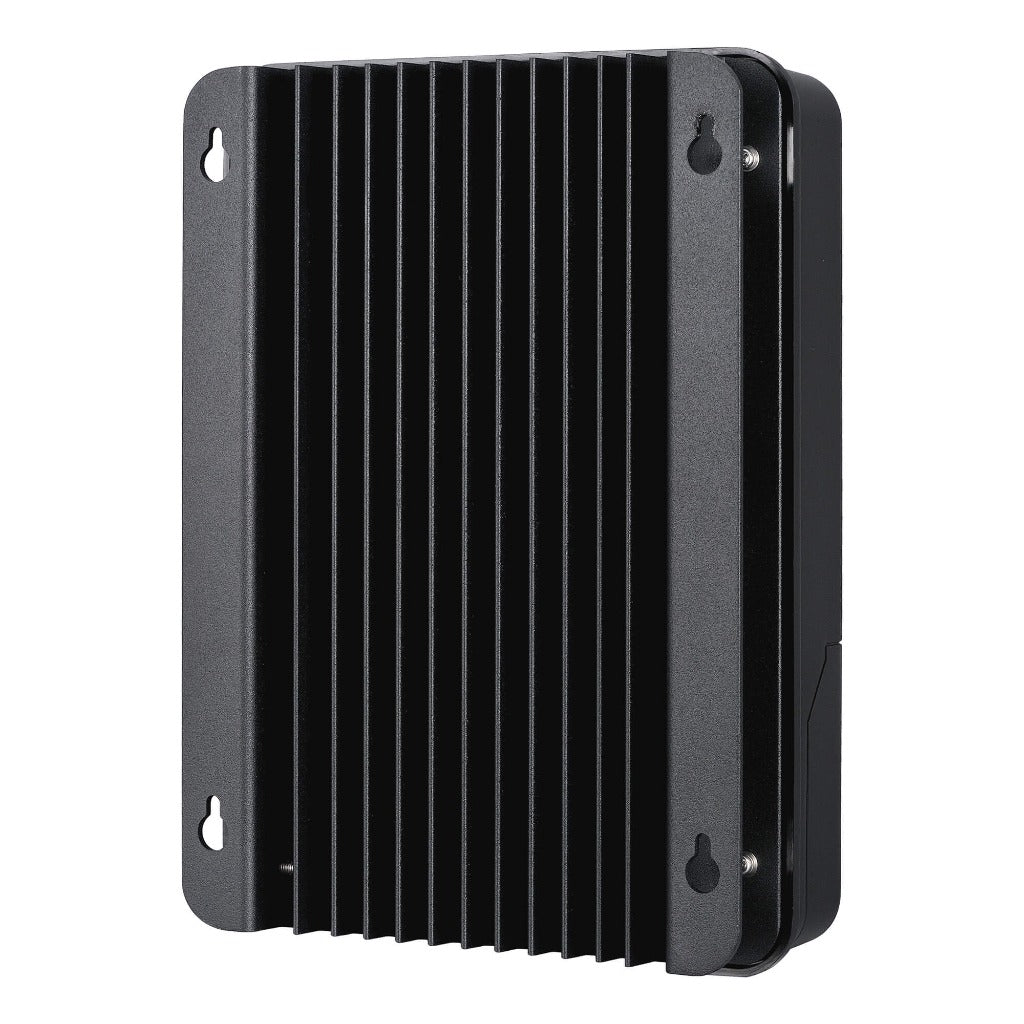

Die-Cast Aluminum Housing: Provides efficient heat dissipation for reliable operation.

Comprehensive Reliability

Electronic Protection: Protects against reverse polarity, overcharging, overload, short circuit, and reverse current.
Lithium Battery Recovery: Capable of charging over-discharged lithium batteries.
Designed for Long-Term Reliability: Durable construction for reliable performance in demanding off-grid applications

Specifications

Nominal System Voltage: 12V/24V Auto
Maximum Charging Current: 40A
Rated Load Current: 20A
Maximum Recommended PV Input Power: 550W (12V) / 1100W (24V)
Maximum Solar Input Voltage: 100V (25°C), 90V (-25°C)
Maximum PV Input Short Current: 50A
Maximum Battery Voltage: 32V
Battery Voltage Range: 9V to 35V
MPPT Tracking Efficiency: >99%
Conversion Efficiency: ≤98%
Battery Compatibility: Sealed, Gel, Flooded, Lithium
Communication: RS232 (Optional BT-1 Bluetooth Module)
Protection Rating: IP32
Maximum Terminal Size: 8 AWG
Net Weight: 4.41 lb
Dimensions (L × W × H): 9.37 × 6.81 × 2.85 in
Package Dimensions: 12 × 9 × 6 in
Gross Weight: 6 lb

Manual

Downloa

20 Amp

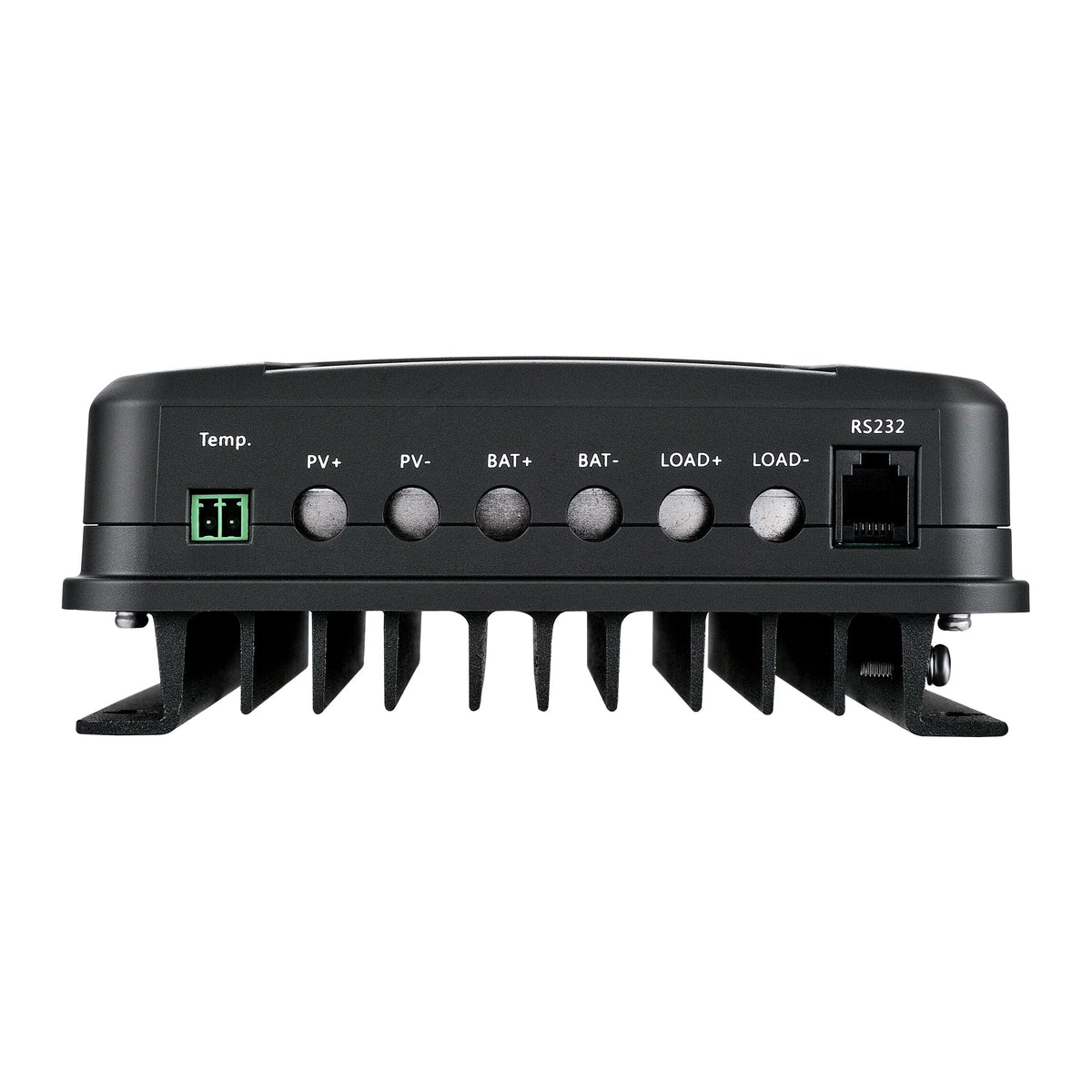

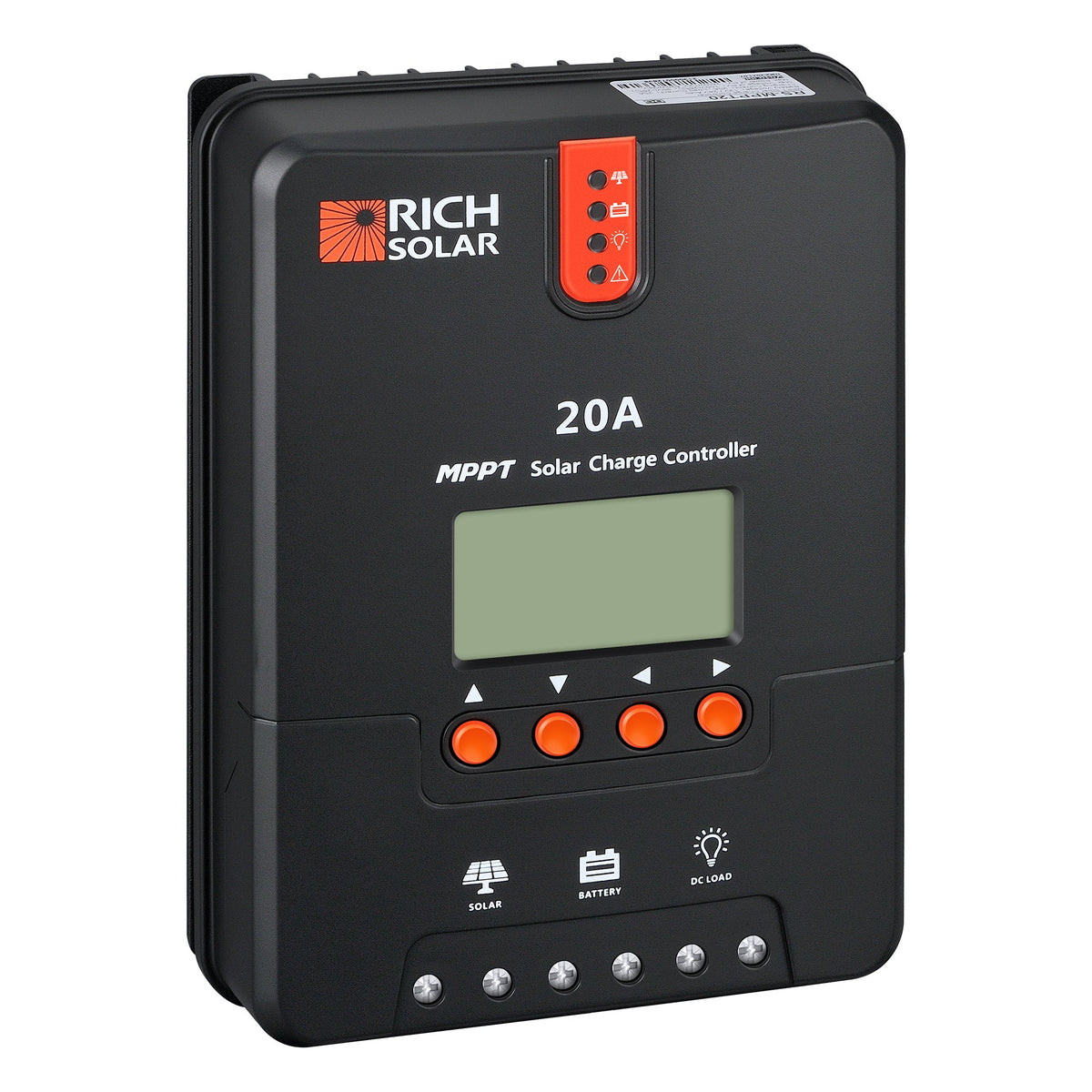

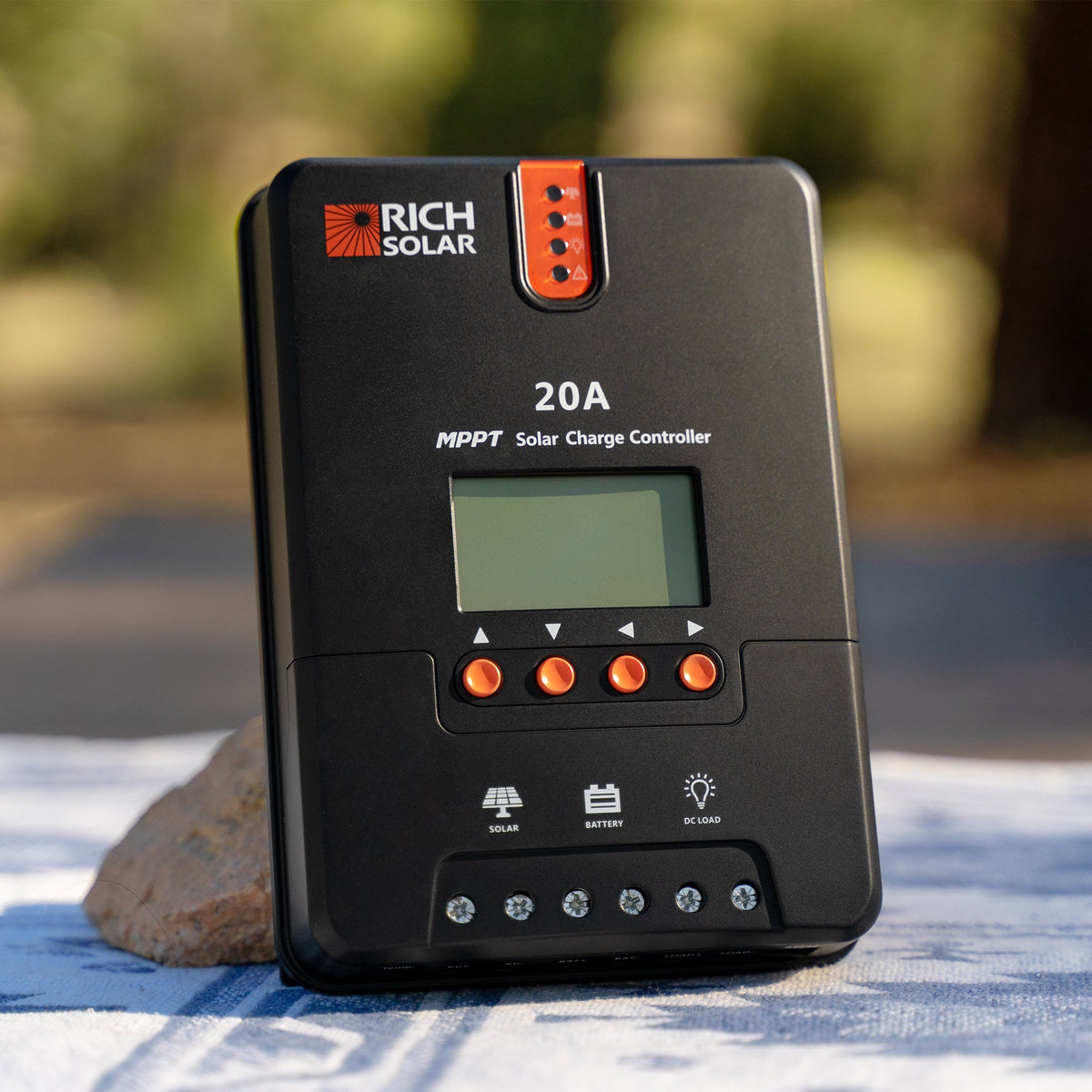

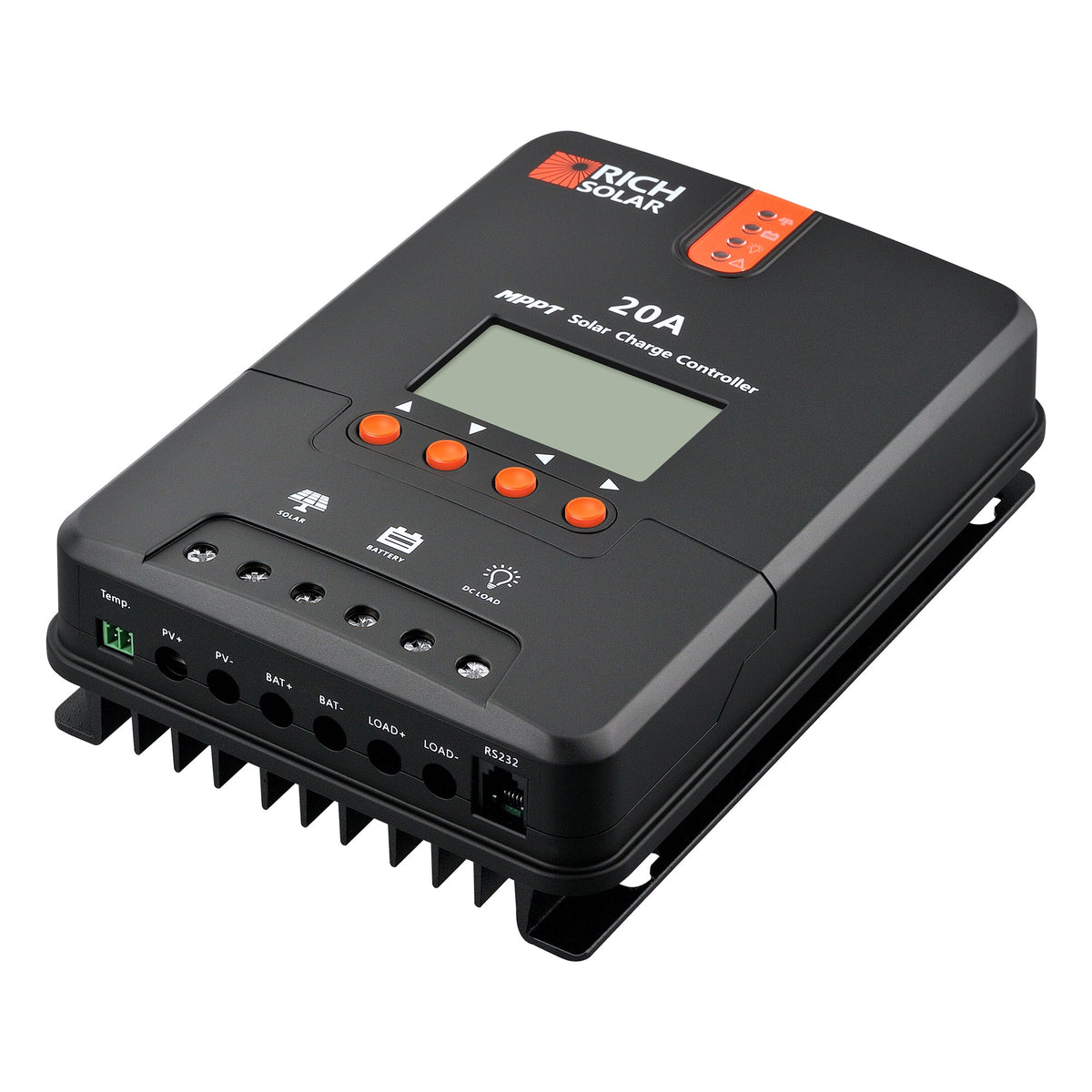

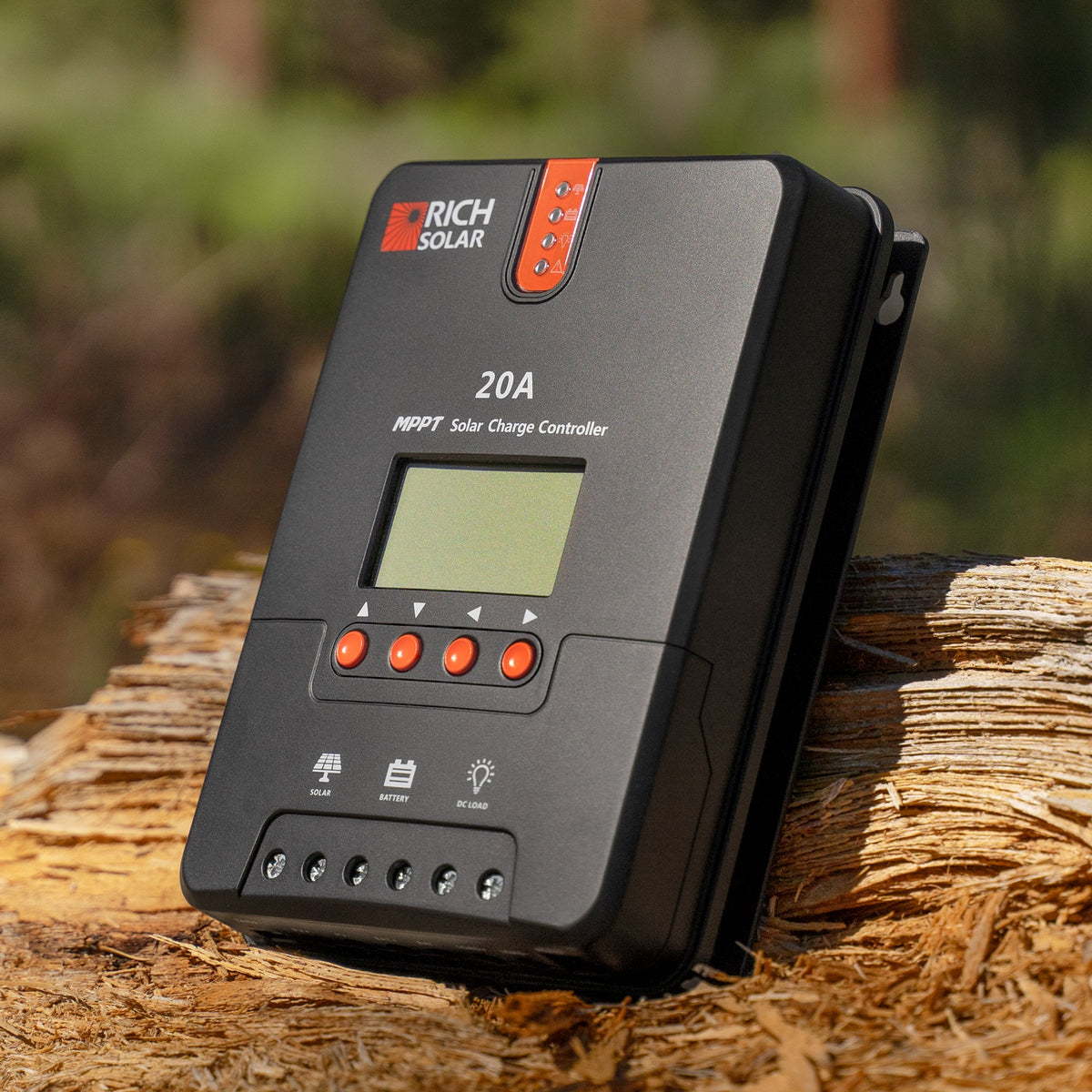

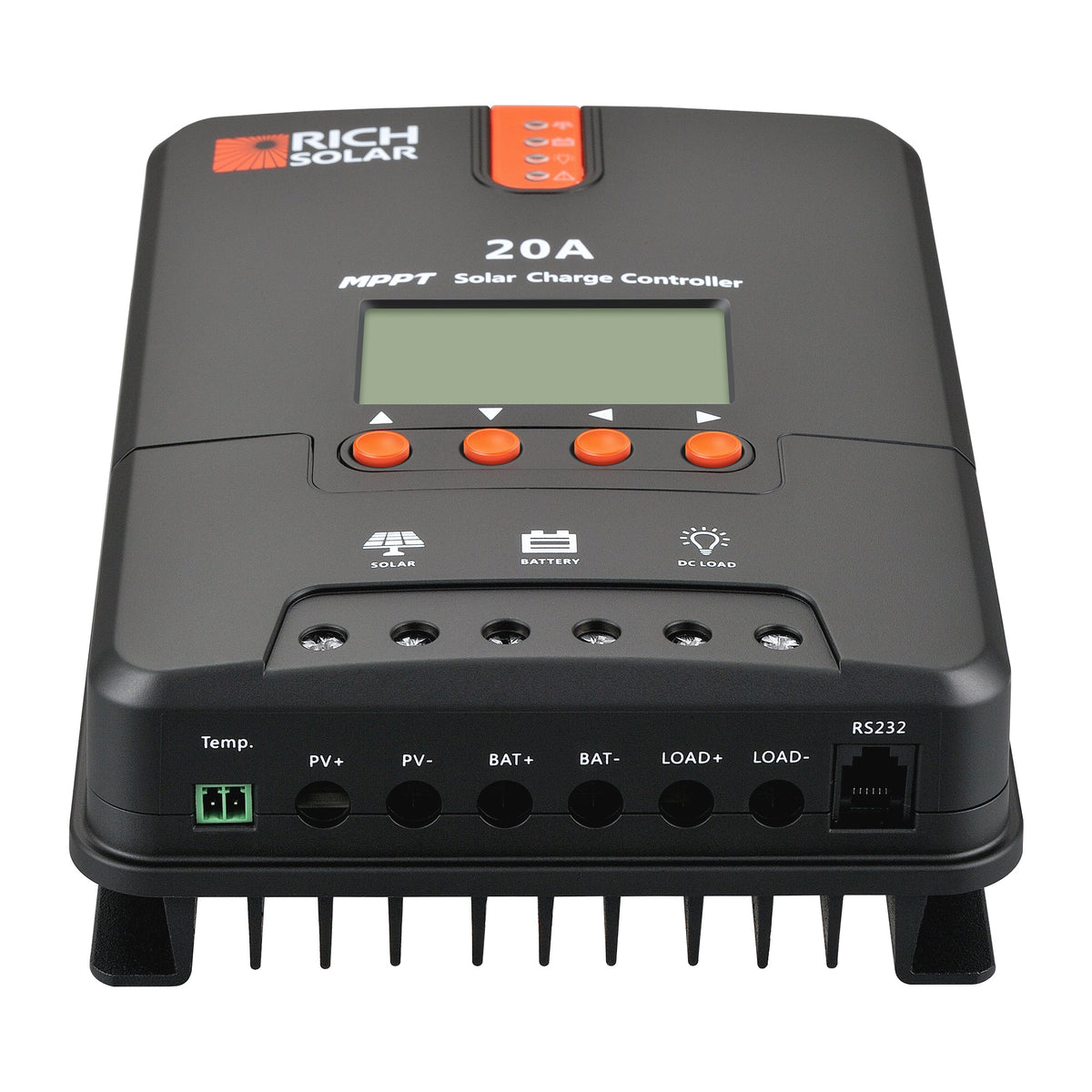

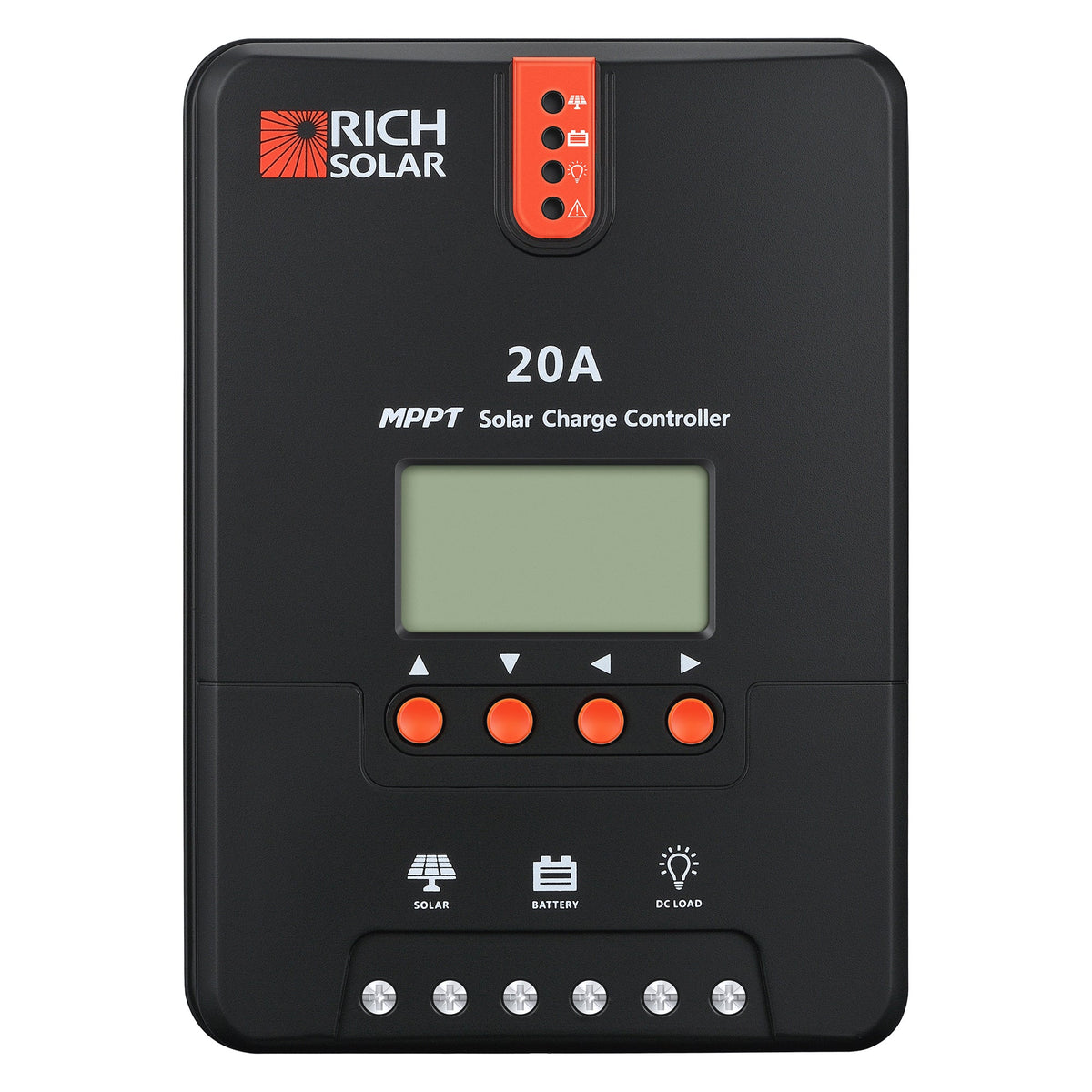

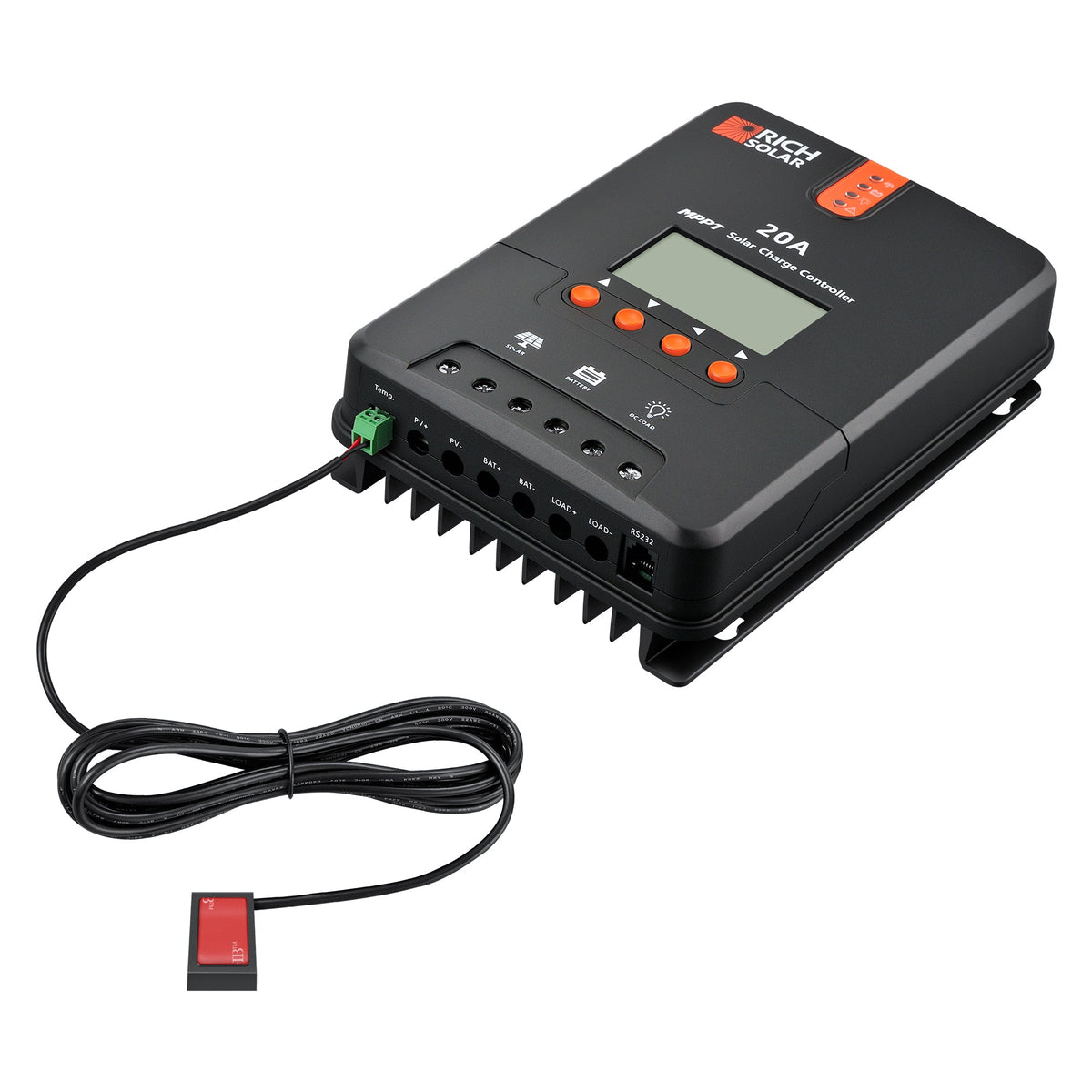

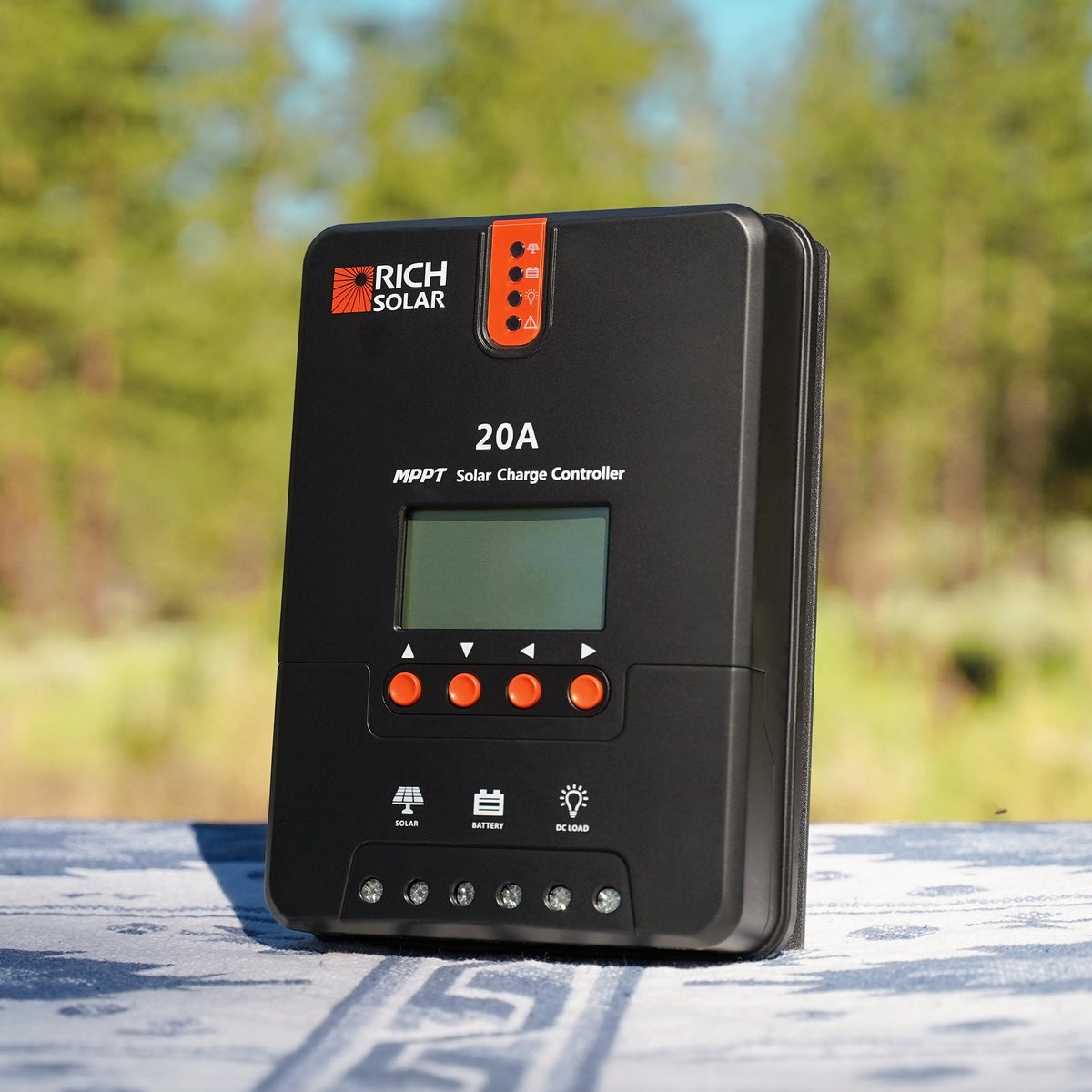

20 Amp MPPT Solar Charge Controller

Features

Efficient MPPT Solar Charging

Up to 99% MPPT Tracking Efficiency: Maximizes solar energy harvest under changing sunlight conditions.
Up to 98% Conversion Efficiency: Converts more solar power into usable battery charging energy.
Supports up to 520W PV Input: Recommended for solar arrays up to 260W (12V) or 520W (24V).

Flexible System Compatibility

12V/24V Auto Detection: Automatically identifies the system voltage during installation.
100V Max Solar Input Voltage: Supports flexible solar panel configurations.
Supports Multiple Battery Types: Compatible with Sealed, Gel, Flooded, and Lithium batteries.

User-Friendly Operation

LCD Display with LED Indicators: Displays charging status, battery information, operating parameters, and fault codes.
Bluetooth Ready: Supports the optional BT-1 Bluetooth module via the RS232 communication port for wireless monitoring.

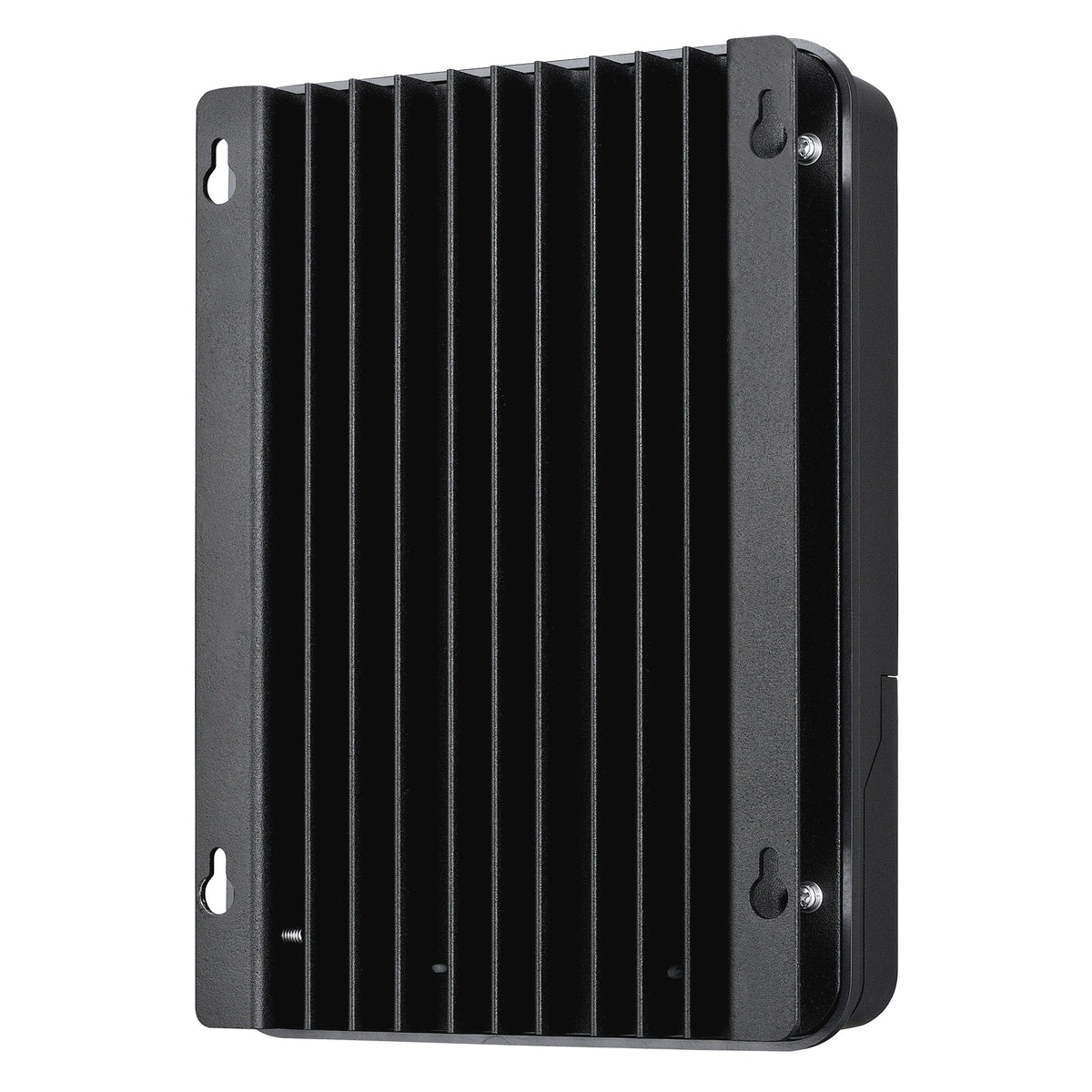

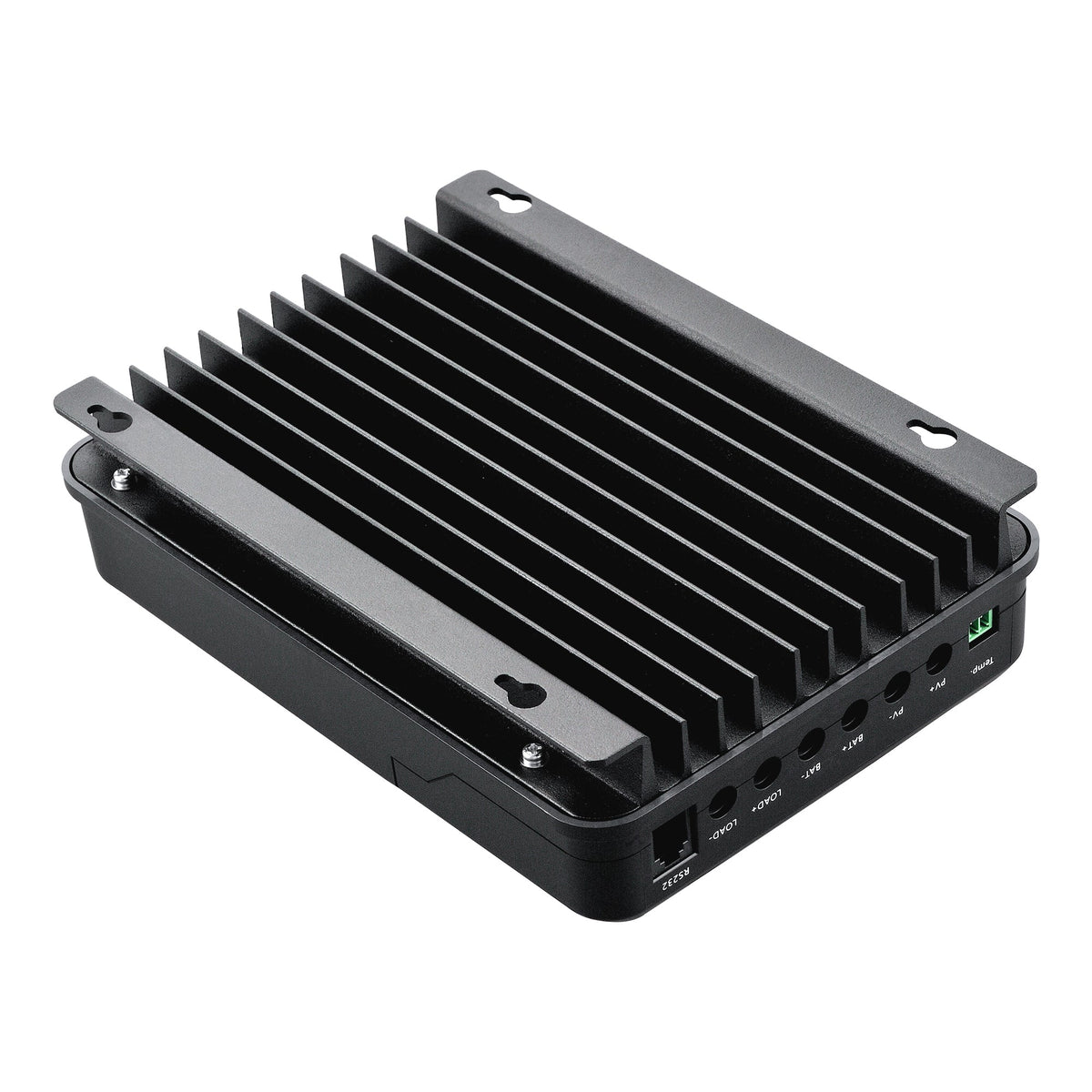

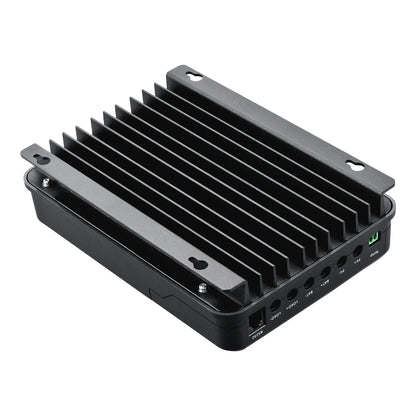

Die-Cast Aluminum Housing: Provides efficient heat dissipation for reliable operation.

Comprehensive Reliability

Advanced Electronic Protection: Protects against reverse polarity, overcharging, overload, and short circuit.
Lithium Battery Recovery: Capable of charging over-discharged lithium batteries.
Designed for Long-Term Reliability: Durable construction for demanding off-grid applications.
