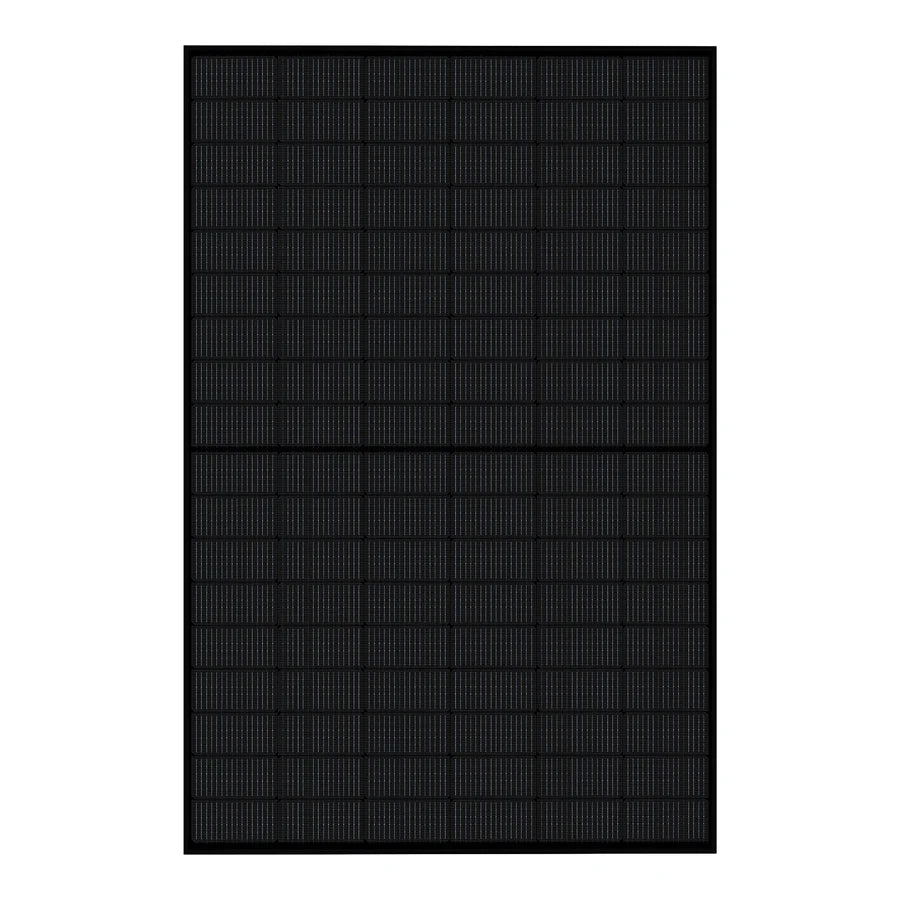

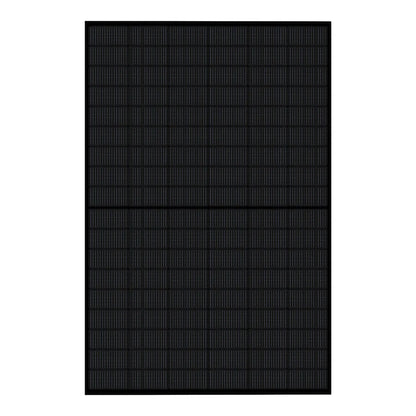

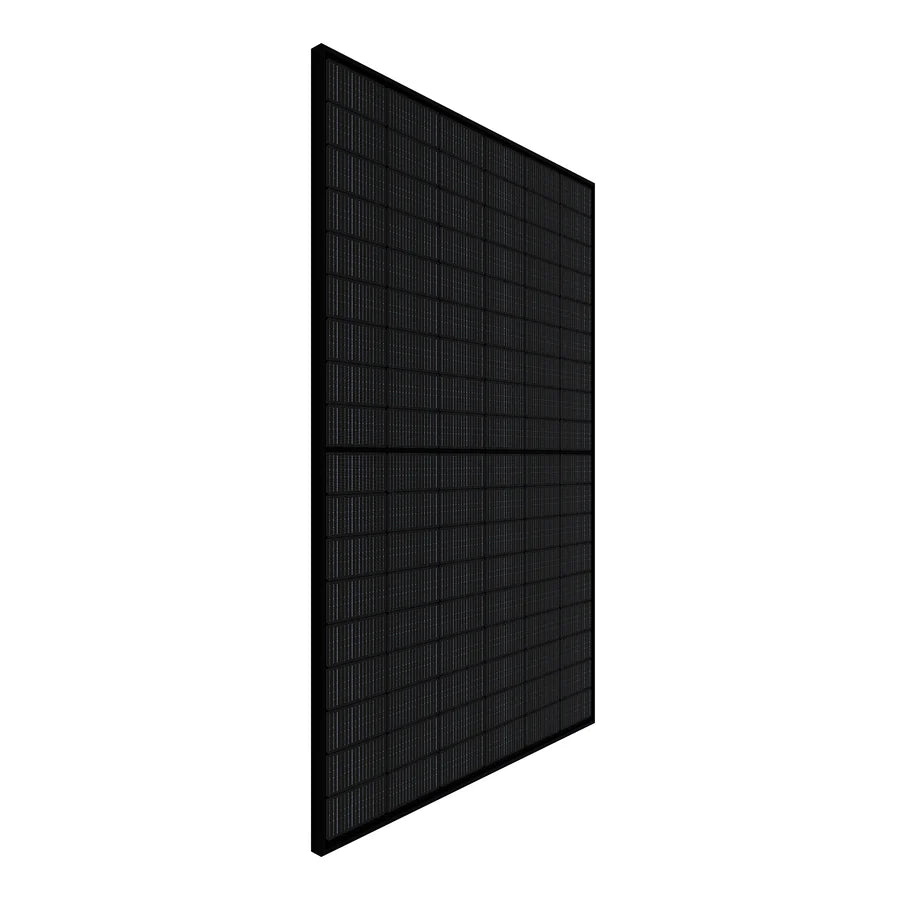

MEGA 430 BIFACIAL | 430W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty
MEGA 430 BIFACIAL | 430W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty
Couldn't load pickup availability
MEGA 430 BIFACIAL | 430W Bifacial N-Type Solar Panel | Premium 24V Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty
Features
Unmatched Performance
- 22.0% Module Efficiency: Industry-leading conversion with +5W positive tolerance
- 430W Maximum Output: High power density reduces BOS (Balance of System) costs
- -0.30%/°C Pmax Coefficient: Superior heat resistance (up to 185℉) for stable desert performance
Breakthrough Cell Technology
- N-TOPCon Cells: 10–30% higher yield than conventional P-type modules
- Zero LID: Minimal 1% first-year degradation for lasting output
- Passivated contact design minimizes power degradation
Advanced Bifacial Design
- 80%+ Bifaciality Factor: Maximizes rear-side energy harvest
- 15–25% Additional Yield: In standard ground-mounted systems
- Dual-Glass Construction: 94% light transmittance for maximum albedo utilization
Military-Grade Durability
- 5400Pa Front Load: Certified for heavy snow regions
- 2400Pa Wind Load: Withstands hurricane-force winds
- IP68 Protection: Fully submersible junction box
Versatile Applications
- BIPV (Building-Integrated Photovoltaics)
- Vertical Mounting Systems
- Extreme Environments: Coastal / Desert / Arctic (up to -40℉)
Intelligent Integration
- 1500V System Voltage Ready: Reduces wiring costs
- MC4-Compatible Connectors for plug-and-play installation
- 30A Fuse Rating: Meets global safety standards
Warranty
12-year product warranty + 30-year linear power output guarantee (≤0.4% annual degradation)
WHAT IS A BASIC SOLAR SYSTEM?
Understanding the basics of an off-grid solar system.
Specifications & Downloads
Specifications
Model: RS-M430BF
Peak Power: 430W
Module Efficiency: 22.0%
Max Power Voltage (Vmp): 31.9V
Max Power Current (Imp): 13.5A
Open Circuit Voltage (Voc): 37.4V
Short Circuit Current (Isc): 14.7A
Max Series Fuse Rating: 30A
Maximum System Voltage: 1500VDC
Number of Cells: 108 cells
Front Glass: 2.0 mm Tempered Glass
Frame Material: Anodized Aluminum Alloy
Operating Temperature: -40°F to 185°F (-40℃ to +85℃)
Dimensions (L × W × H): 67.8" × 44.7" × 1.2" (1722 × 1134 × 30 mm)
Weight: 50.9 lb
-
Panel Cable Length: ≈ 47 in
-
Material: Tempered Glass, Aluminum, Monocrystalline Silicon
-
Dimensions: 67.8 × 44.7 × 1.2 in
-
Weight: 50.9 lb
-
Maximum Power (PMAX): 430W
-
Maximum Power Voltage (VMP): 31.9 V
-
Maximum Power Current (IMP): 13.5 A
-
Open Circuit Voltage (VOC): 37.4 V
-
Short Circuit Current (ISC):14.7 A
-
Maximum System Voltage (VMAX): 1500VDC
