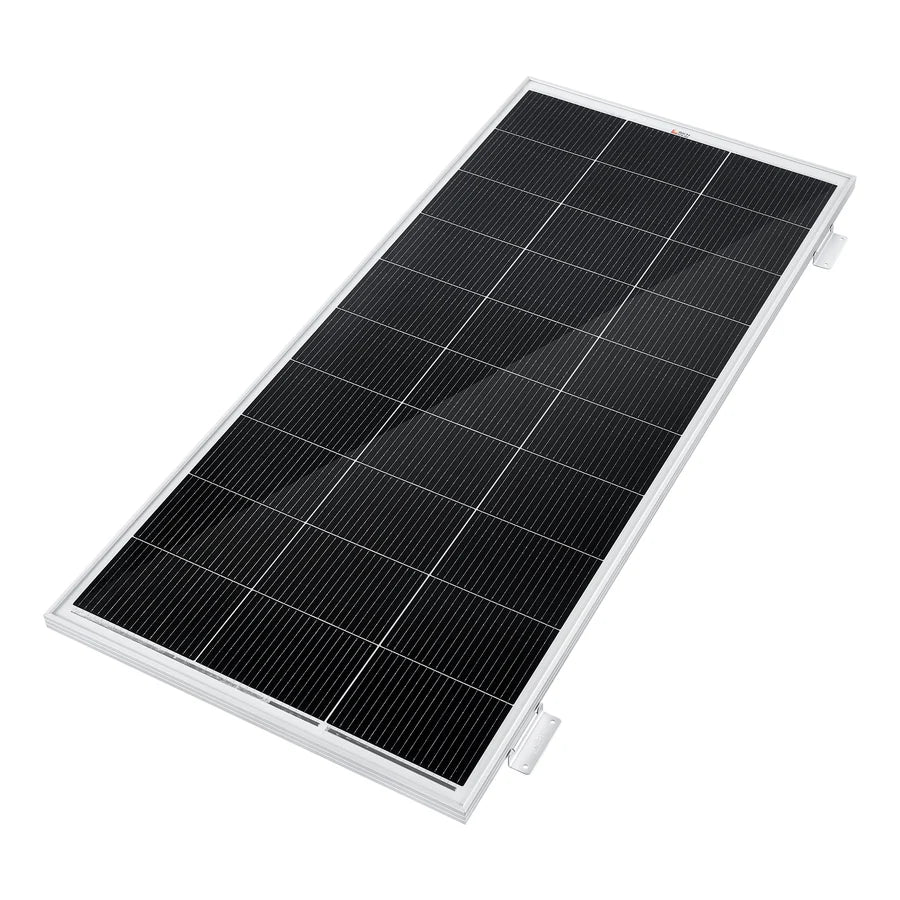

Rich Solar MEGA 200 WITH 3/4" Z BRACKETS | 12V 200W Solar Panel for RV, Boat, Cabins | 25.3% Efficiency, 25-Year Warranty | UL Certified

Rich Solar MEGA 200 WITH 3/4" Z BRACKETS | 12V 200W Solar Panel for RV, Boat, Cabins | 25.3% Efficiency, 25-Year Warranty | UL Certified

$259.99 USD
$259.99 USD
Sale Sold out
California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.
Panels Quantity

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

View full details

Product details

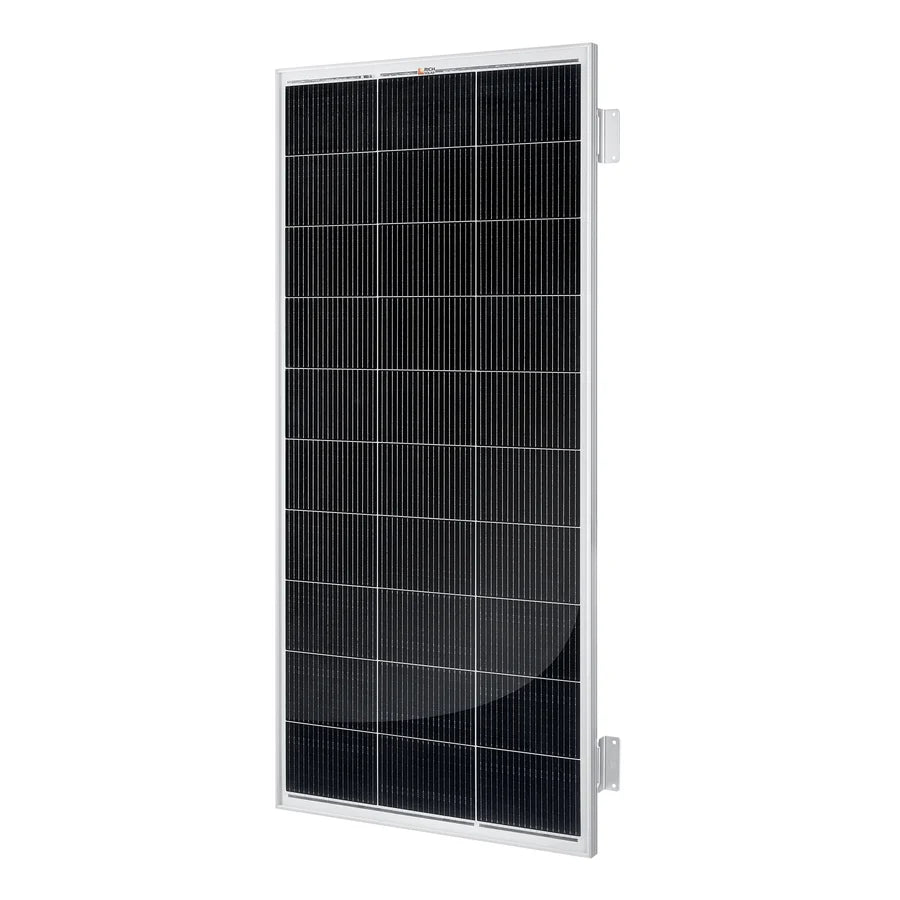

Rich Solar MEGA 200 WITH 3/4" Z BRACKETS | 12V 200W Solar Panel for RV, Boat, Cabins | 25.3% Efficiency, 25-Year Warranty | UL Certified

Features

    • 12V off-grid solar panel.
    • 18-busbar N-Type TOPCon cells with up to 25.3% efficiency.
    • 30-cell configuration delivers a reliable 200W output.
    • 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability.
    • Power tolerance 0 to +5W ensures at least the rated output.
    • Excellent low-light performance on cloudy days and at dawn/dusk.
    • Rigorously tested for UV, thermal cycling, humidity freeze, and more.
    • PID-resistant and double EL-inspected to prevent microcracks.
    • Rated for 5400 Pa snow loads and 2400 Pa wind loads.
    • Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
    • Ideal for RVs, boats, cabins, and off-grid power systems.

    Installation

    • Anodized aluminum frame – lightweight, strong, and corrosion-resistant

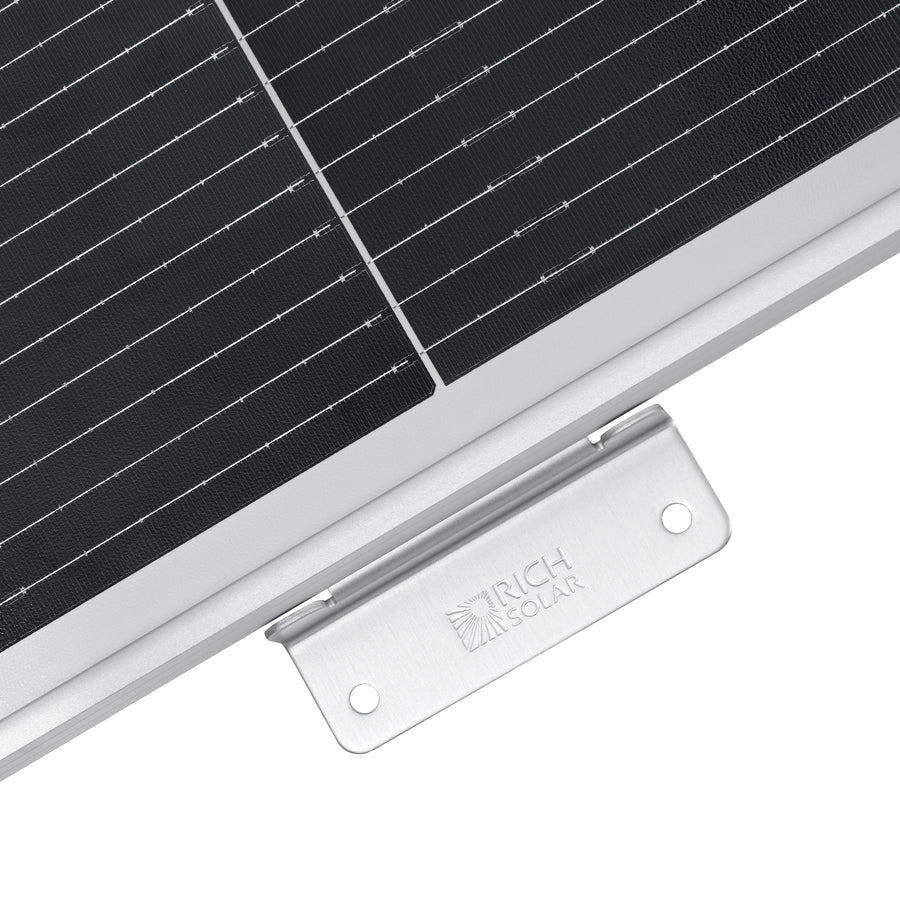

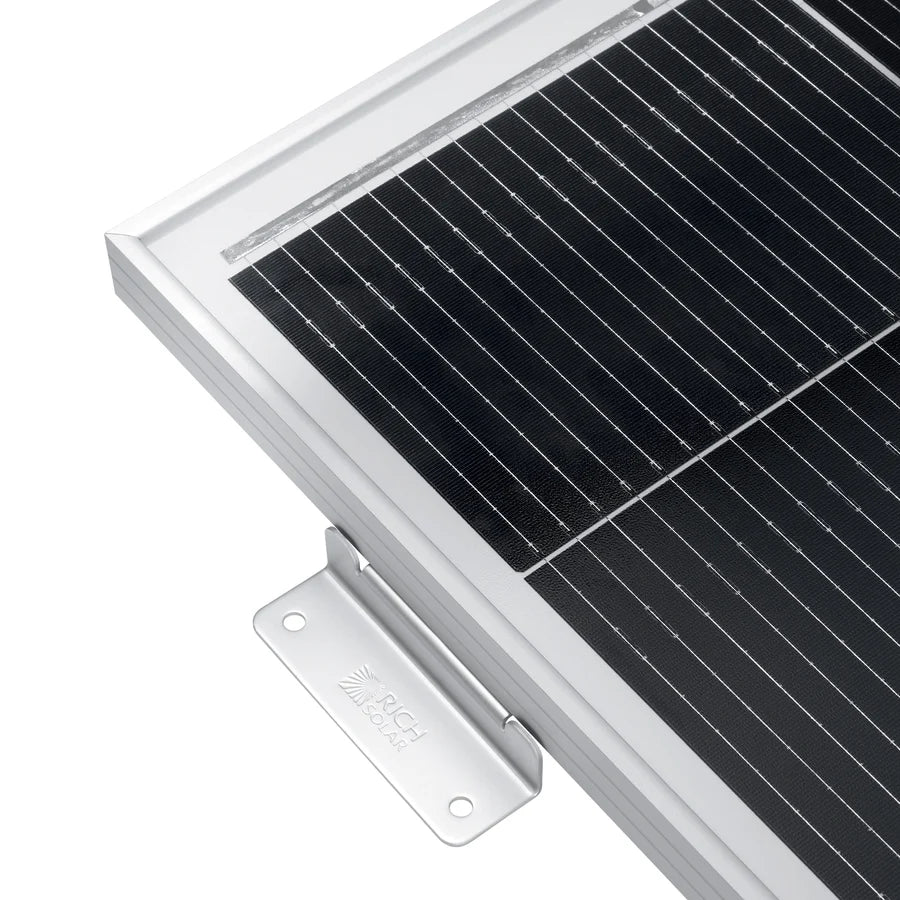

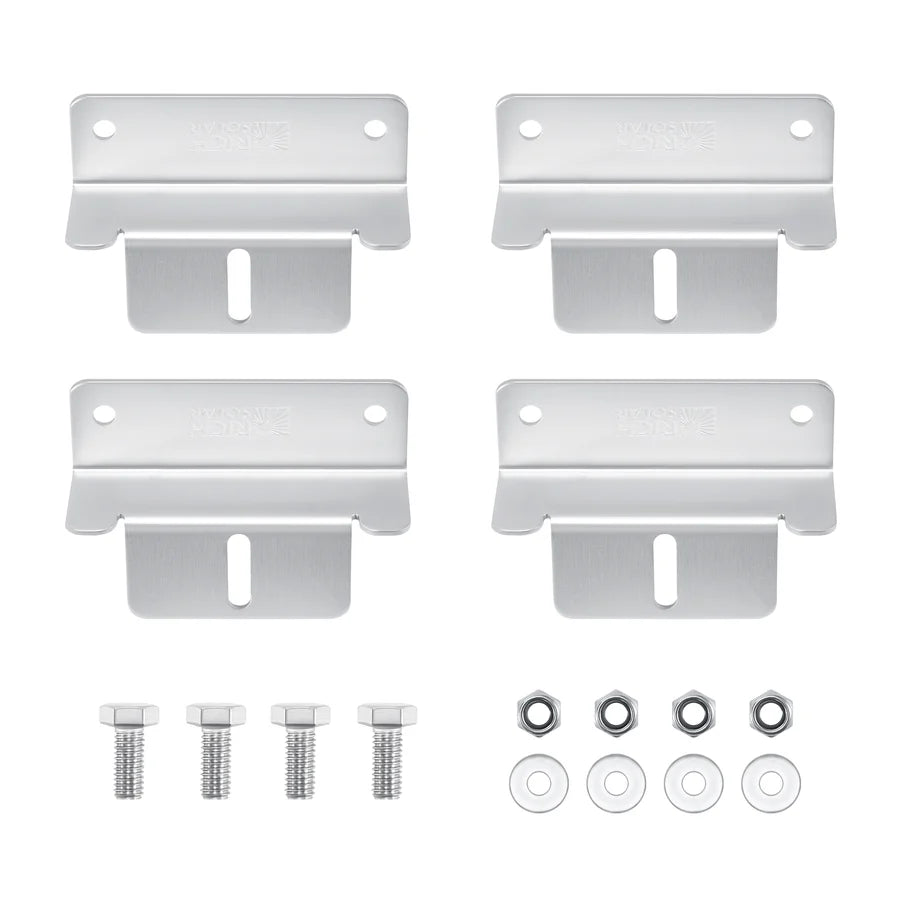

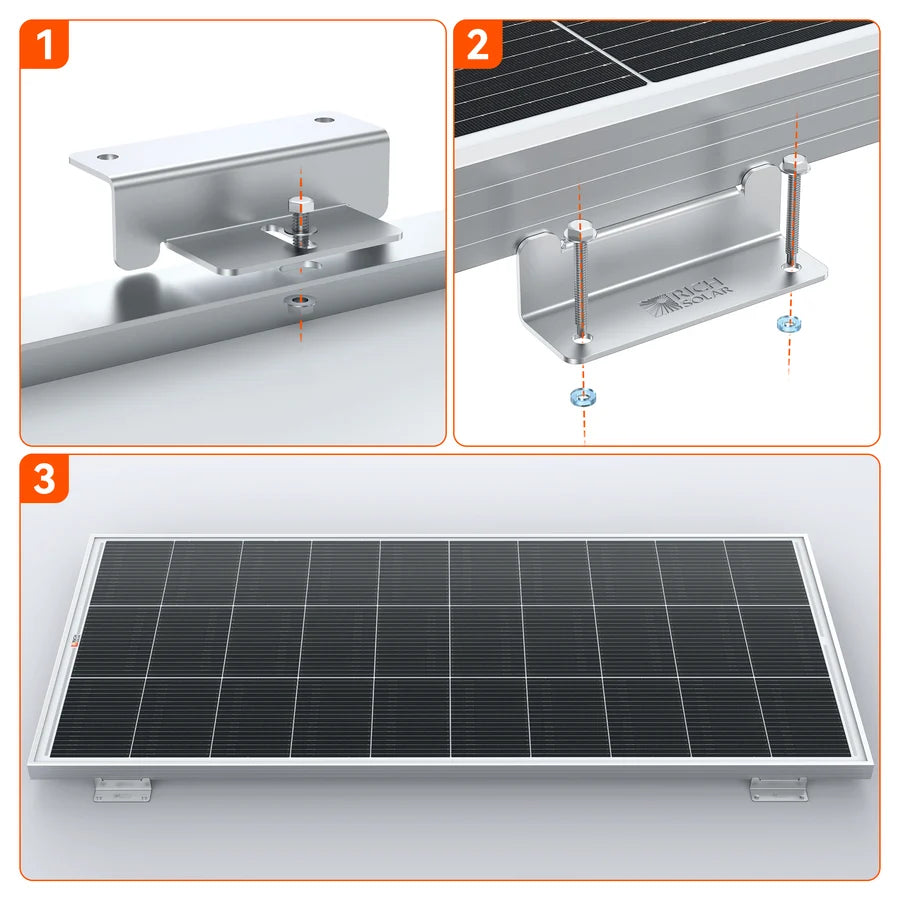

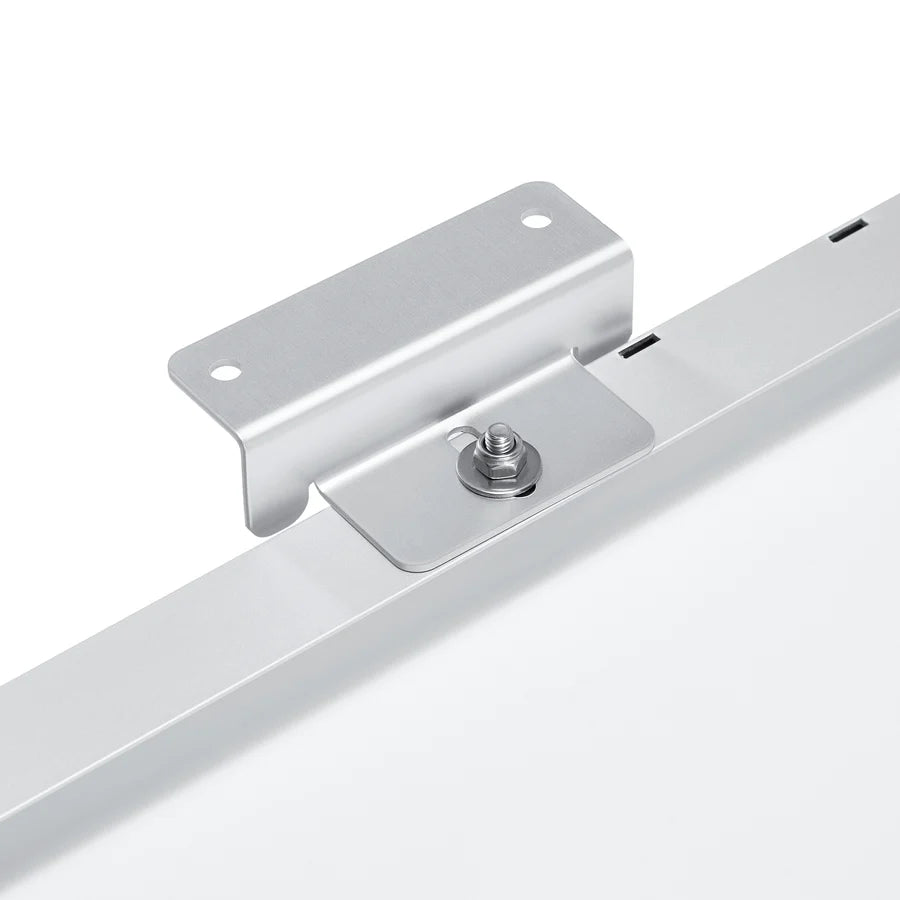

    • 3/4 in. anodized aluminum Z-brackets for quick and secure installation.
    • MC4 connectors with 3 ft pre-attached cables for quick and easy installation
    • Compatible with both on-grid and off-grid inverters

    Warranty

    • 25-year output warranty.
    • 10-year workmanship warranty.

    Built-in Components

    • Panel Leads (Pair): 12AWG, 3 ft each

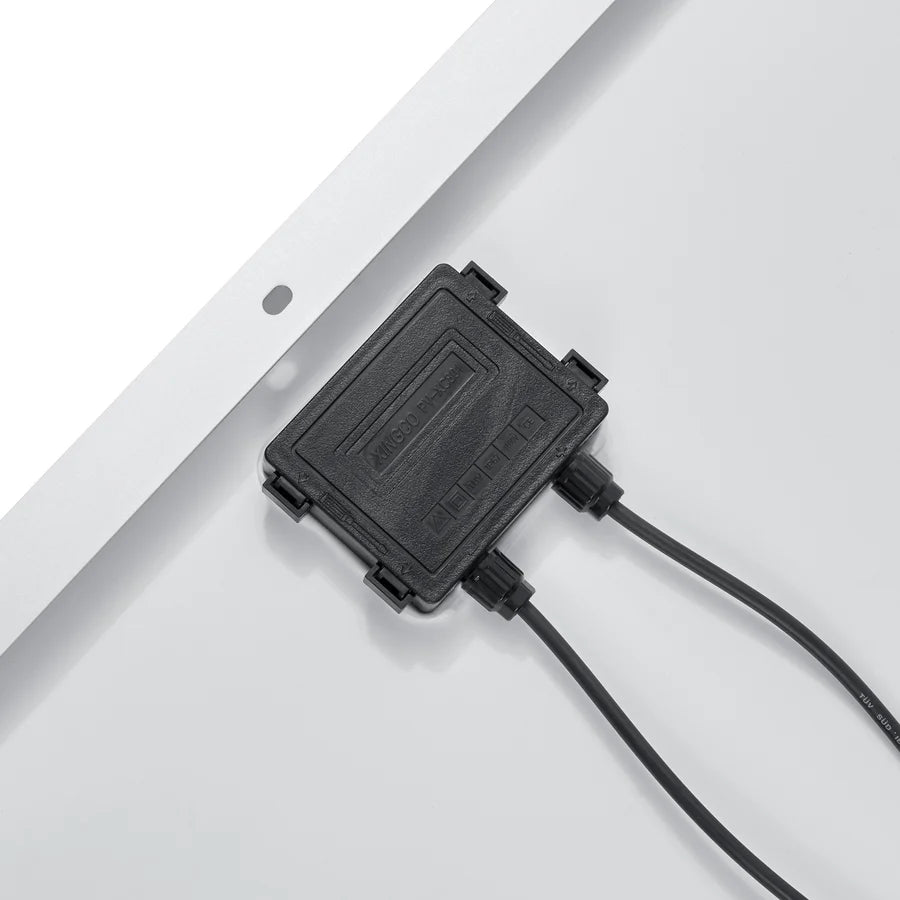

    • IP67-rated waterproof junction box
    • IP67-rated waterproof solar connectors

    WHAT IS A BASIC SOLAR SYSTEM?

    Understanding the basics of an off-grid solar system.




    Specifications & Downloads
    • Peak Power: 200W
    • Max Power Voltage (Vmp): 18.4V
    • Max Power Current (Imp): 10.9A
    • Open Circuit Voltage (Voc): 21.8V
    • Short Circuit Current (Isc): 11.6A
    • Max Series Fuse Rating: 15A
    • Cell Type: Monocrystalline
    • Number of Cells: 3 x 10 (30 cells total)
    • Front Glass: 3.2 mm Tempered Glass
    • Frame Material: Anodized Aluminium Alloy
    • Operating Temperature Range:  -40°F to 185°F

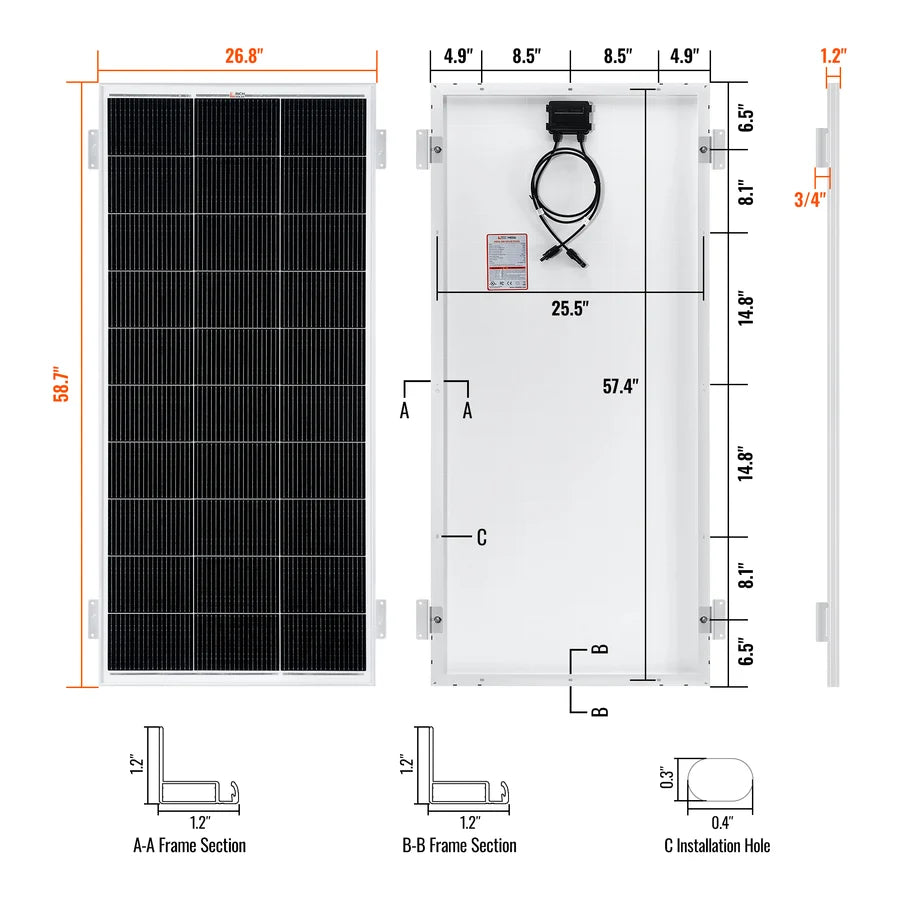

    • Dimensions: 58.7" L × 26.8" W × 1.2" H
    • Weight: 24 lb
    • Z-Bracket Height: 3/4 in

     Specifications

    Download

     UL Certification

    Download
    • Peak Power
      200W
    • Max Power Voltage (Vmp)
      18.4V
    • Max Power Current (Imp)
      10.9A
    • Open Circuit Voltage (Voc)
      21.8V
    • Short Circuit Current (Isc)
      11.6A
    • Max Series Fuse Rating
      15A
    • Cell Type
      Monocrystalline
    • Number of Cells
      3 x 10 (30 cells total)
    • Front Glass
      3.2 mm Tempered Glass
    • Frame Material
      Anodized Aluminium Alloy
    • Operating Temperature Range
       -40°F to 185°F
    • Dimensions
      58.7" L × 26.8" W × 1.2" H
    • Weight
      24 lb (10.9 kg)
    • Z-Bracket Height
      3/4 in
