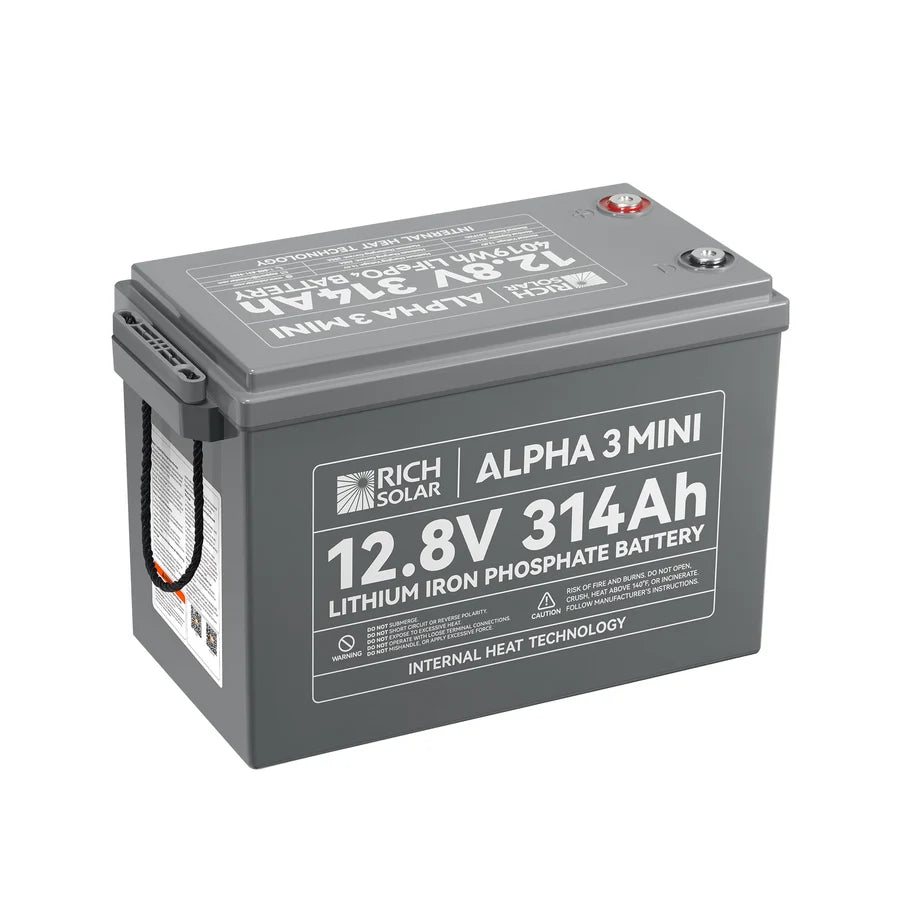

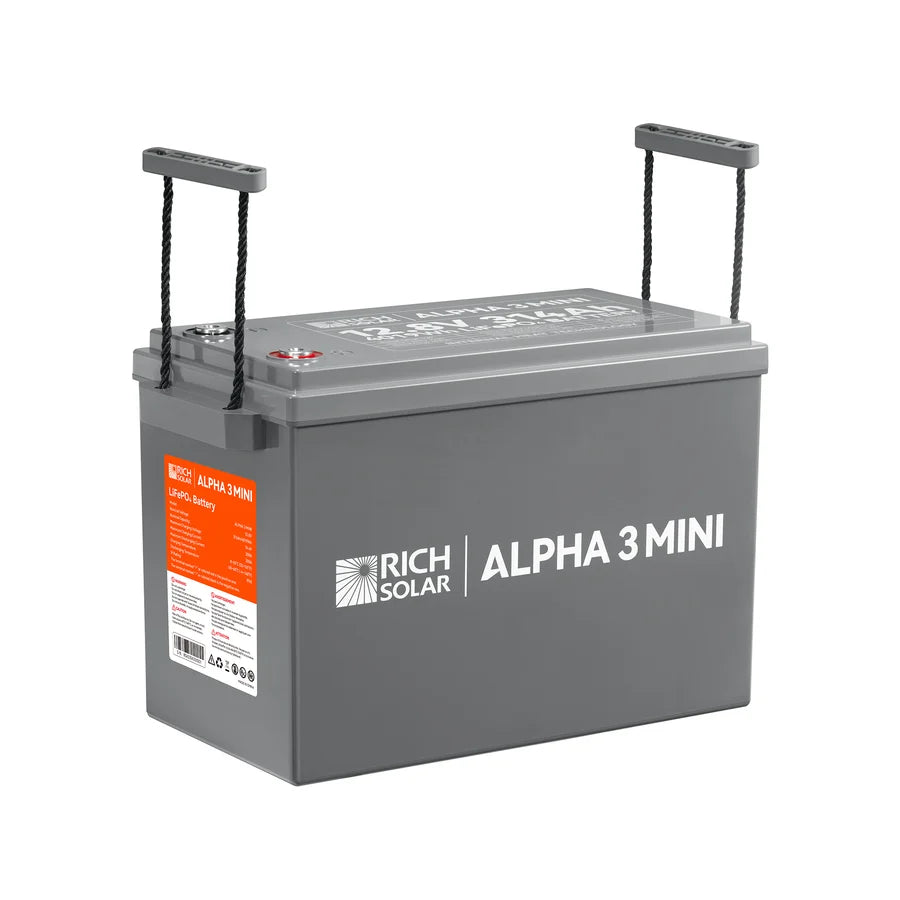

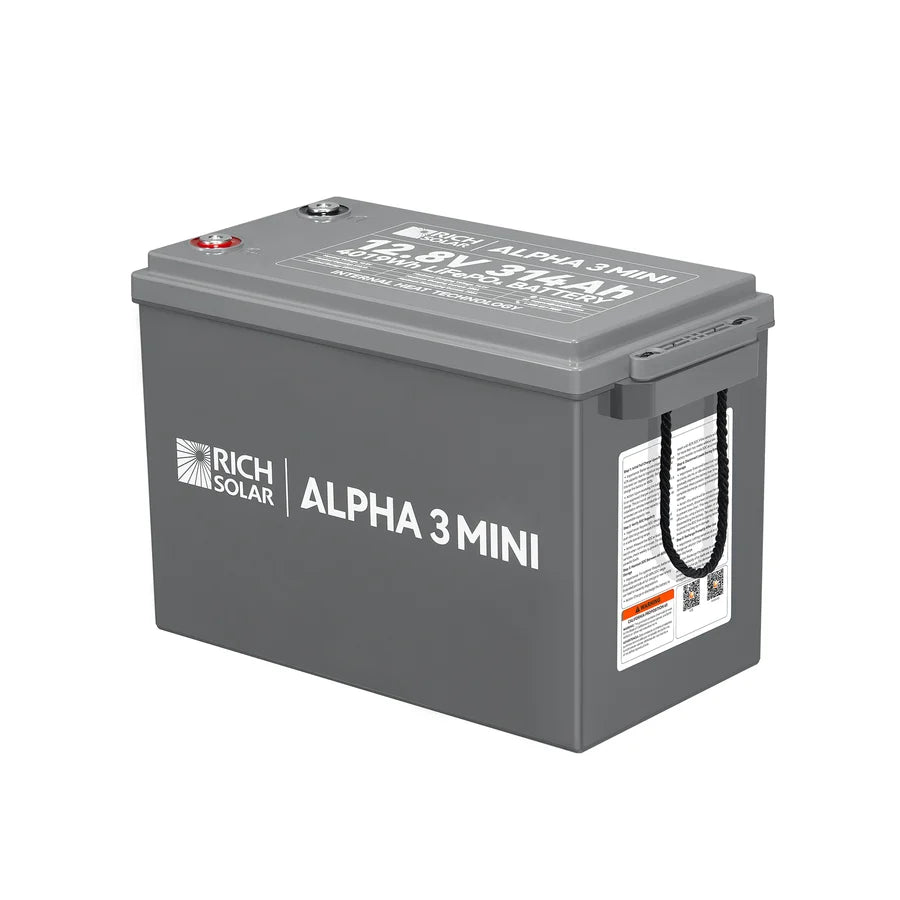

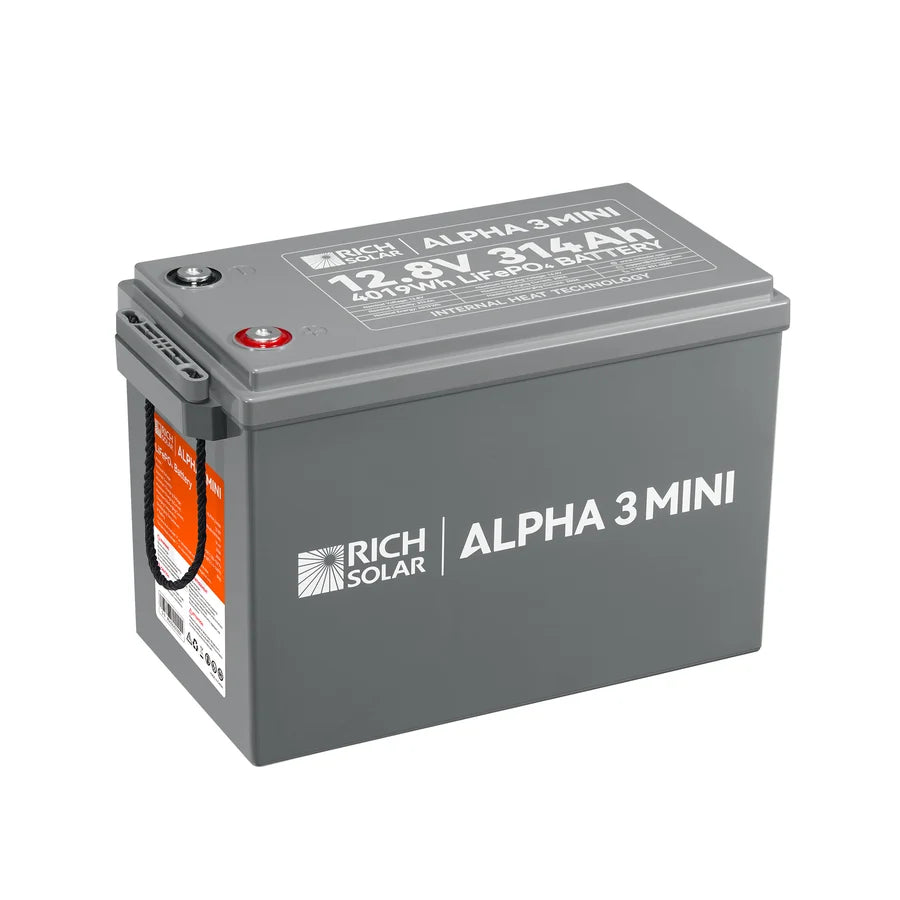

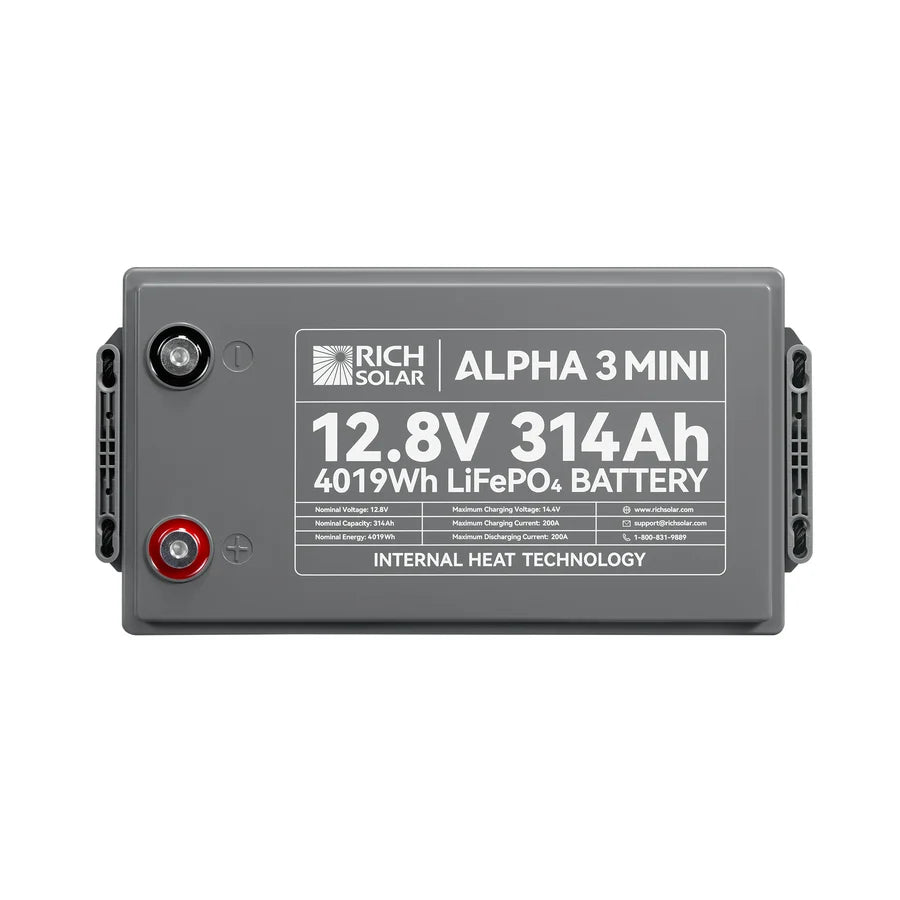

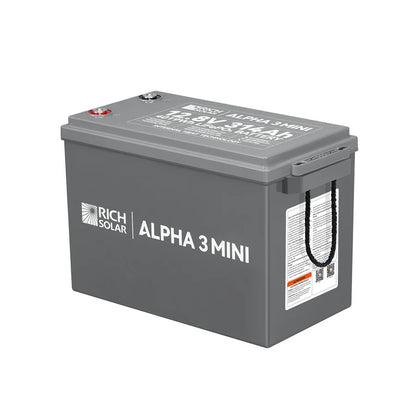

Rich Solar ALPHA 3 MINI | 12V 314Ah LiFePO₄ Battery | 40% More Compact, Built-in Heater & Bluetooth | Lithium Battery for RV, Solar, Off-Grid & Home Backup

Rich Solar ALPHA 3 MINI | 12V 314Ah LiFePO₄ Battery | 40% More Compact, Built-in Heater & Bluetooth | Lithium Battery for RV, Solar, Off-Grid & Home Backup

Features

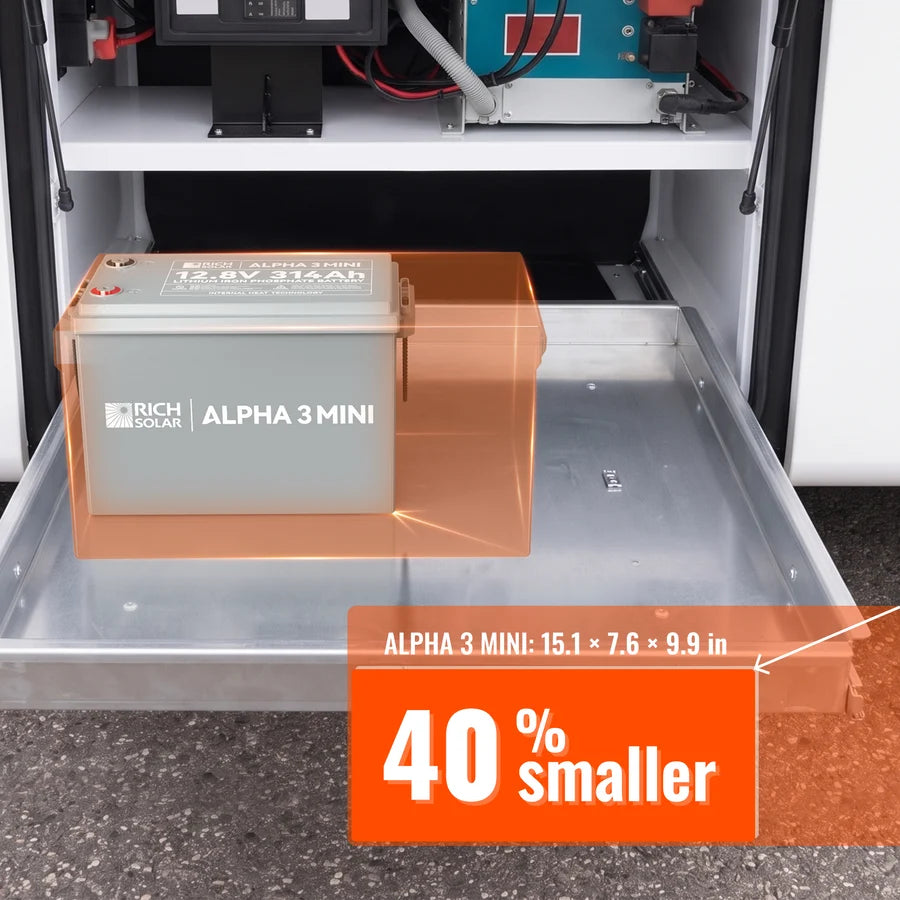

Compact MINI Design

• Approximately 40% smaller in volume than standard 12V 314Ah batteries.

• The compact MINI design enables easier installation and greater system flexibility.


Long Lifespan & Efficient Power

• 4,019Wh high-capacity energy storage for reliable, long-lasting power.

• 5,000+ cycle LiFePO₄ cells help reduce replacement costs over time.

• Maintenance-free design with a low monthly self-discharge rate.


Advanced Safety & All-Weather Performance

• Smart BMS provides comprehensive electrical and thermal protection.

• Internal Heating Technology enables safe charging in low-temperature conditions.

• IP65 waterproof and UL94 V-0 flame-retardant housing for outdoor durability.


Smart Monitoring & Expandability

• Bluetooth monitoring for real-time battery status through the RICH SOLAR App.

• Supports up to four batteries in parallel (4P) for higher system capacity.

• Ideal for RV, marine, off-grid, and backup power applications.

WHAT IS A BASIC SOLAR SYSTEM?

Understanding the basics of an off-grid solar system.

Specifications & Downloads

Specifications

• Nominal Voltage: 12.8V

• Rated Capacity: 314Ah

• Nominal Energy: 4,019Wh

• Cycle Life: 5,000+ Cycles

• Charging Voltage: 14.4V

• Max Charge Current: 200A

• Max Continuous Discharge Current: 200A

• Bluetooth: Yes

• Internal Heating: Yes (100W)

• Parallel Expansion: Up to 4 Units

• Ingress Protection: IP65

• Housing Material: UL94 V-0 Flame-Retardant Plastic

• Charge Temperature: 32–131°F

• Discharge Temperature: -4–140°F

• Dimensions (L × W × H): 15.1 × 7.6 × 9.9 in

• Net Weight: 61.7 lbs

• Certifications: UN38.3, MSDS

• Warranty: 5 Years

 Specifications

Download

 Manual

Download

• Nominal Voltage
  12.8V
• Rated Capacity
  314Ah
• Nominal Energy
  4,019Wh
• Cycle Life
  5,000+ Cycles
• Charging Voltage
  14.4V
• Max Charge Current
  200A
• Max Continuous Discharge Current
  200A
• Bluetooth
  Yes
• Internal Heating
  Yes (100W)
• Parallel Expansion
  Up to 4 Units
• Ingress Protection
  IP65
• Housing Material
  UL94 V-0 Flame-Retardant Plastic
• Charge Temperature
  32–131°F
• Discharge Temperature
  -4–140°F
• Dimensions (L × W × H)
  15.1 × 7.6 × 9.9 in
• Net Weight
  61.7 lbs
• Certifications
  UN38.3, MSDS
