Product details
Rich Solar 400 Watt Solar Kit for Solar Generators Portable Power Stations
Features
-
400W Solar Array:Â Includes four 100W monocrystalline solar panels, producing approximately 0.7kWh of energy per day under 4 peak sun hours.
-
High-Efficiency Solar Panels:Â 9-busbar monocrystalline cells with up to 22.6% efficiency for reliable energy production.
-
Certified Reliability:Â Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
-
Built for Outdoor Durability:Â Rated for 2400Pa wind loads and 5400Pa snow loads.
-
Easy Installation:Â Includes pre-assembled cables and connection accessories for quick setup.
- Versatile Applications:Â Ideal for portable power stations, camping, RVs, overlanding, and outdoor adventures.

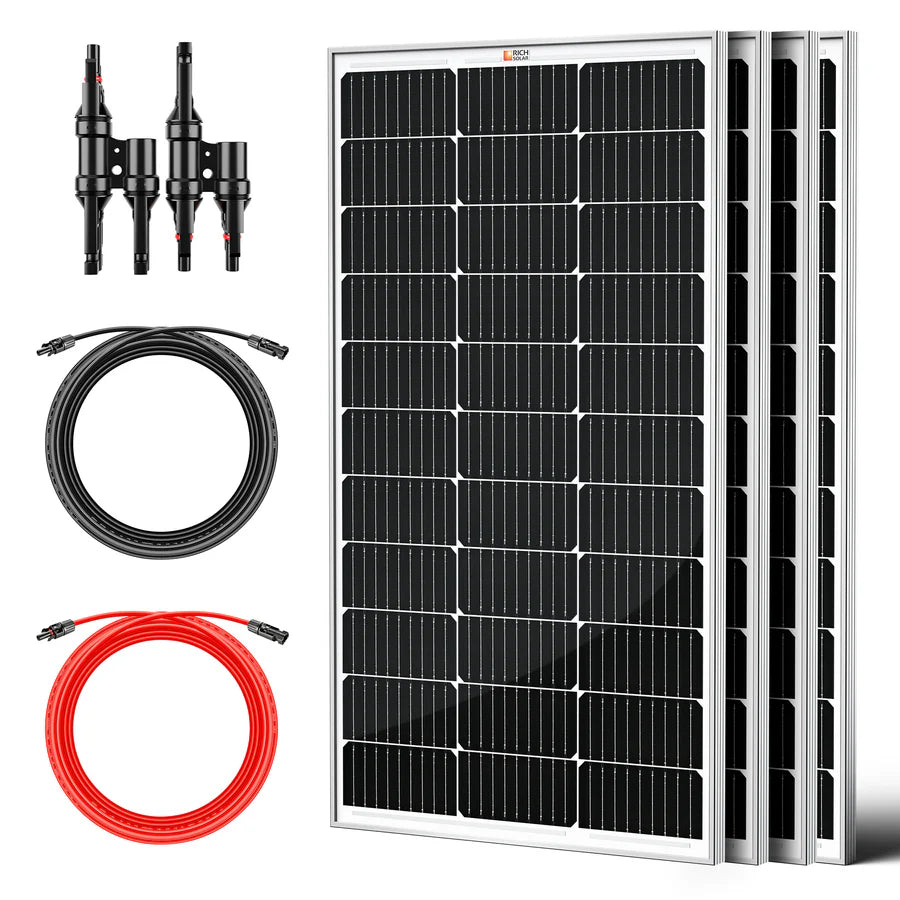

Kit Includes
- 4 x MEGA 100 12V 100W Solar Panels (RS-M100)
- 1 x 30 ft 10 AWG Solar Extension Cable (Red), Pre-assembled Female and Male Connector
- 1 x 30 ft 10 AWG Solar Extension Cable (Black), Pre-assembled Male Connector and Female Connector
- 1 x Parallel Connectors (one pair 2 to 1)
Specifications & Downloads
100 Watt Solar Panel
- Maximum Power (Pmax):Â 100W
- Maximum Power Voltage (Vmp):Â 18.6V
- Maximum Power Current (Imp):Â 5.38A
- Open Circuit Voltage (Voc):Â 22.8V
- Short Circuit Current (Isc):Â 5.78A
- Maximum Series Fuse Rating:Â 10A
- Weight:Â 13.2 lb
- Dimensions (L × W × H): 39.0 × 21.3 × 1.2 in
- Warranty:Â 25 years output warranty
Full Specification:
 MEGA 100 Solar Panel
