Product details

Rich Solar Basic 400 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging

Features

400W Solar Array: Includes two 200W monocrystalline solar panels, producing approximately 1.4kWh of energy per day under 4 peak sun hours.
12V Solar Charging System: Designed around a 12V solar charging system for compatible battery banks.
30A MPPT Charge Controller: Maximizes solar harvest with up to 99.5% MPPT tracking efficiency and 98% peak conversion efficiency.
Solar Charging Kit: Includes professionally matched solar panels, an MPPT charge controller, and installation accessories for efficient battery charging.
Expandable System: Easily add compatible RICH SOLAR panels as your energy needs grow.
Versatile Applications: Ideal for RVs, trailers, boats, cabins, and other off-grid solar charging systems.

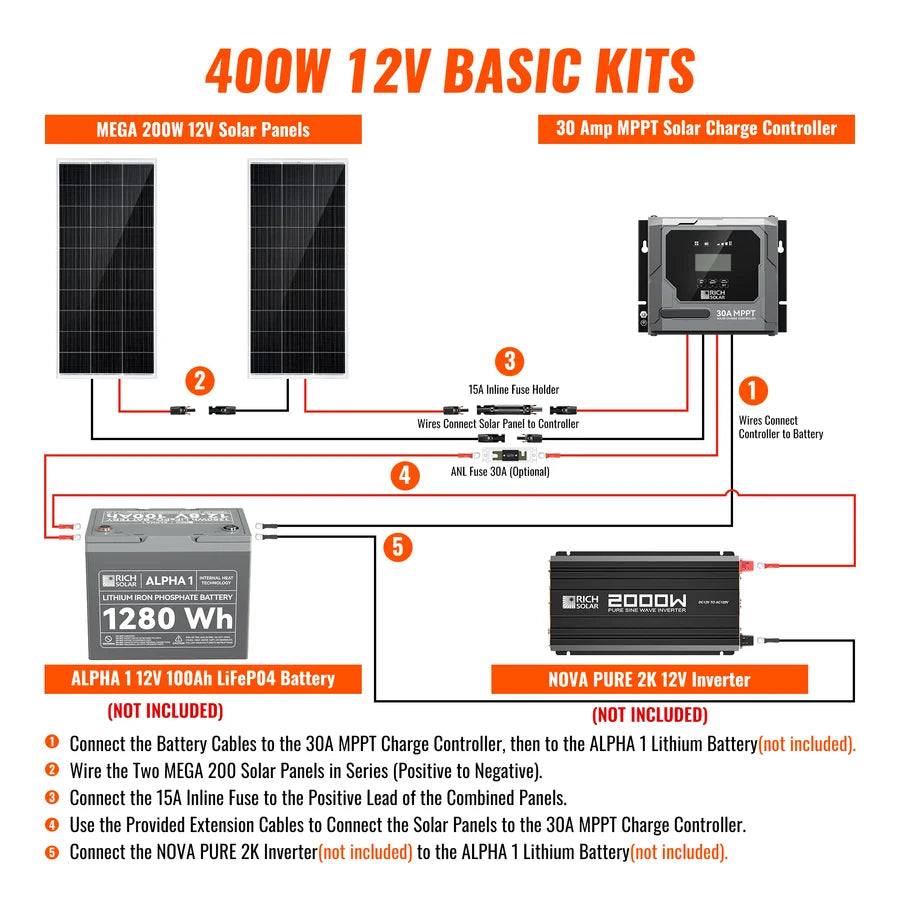

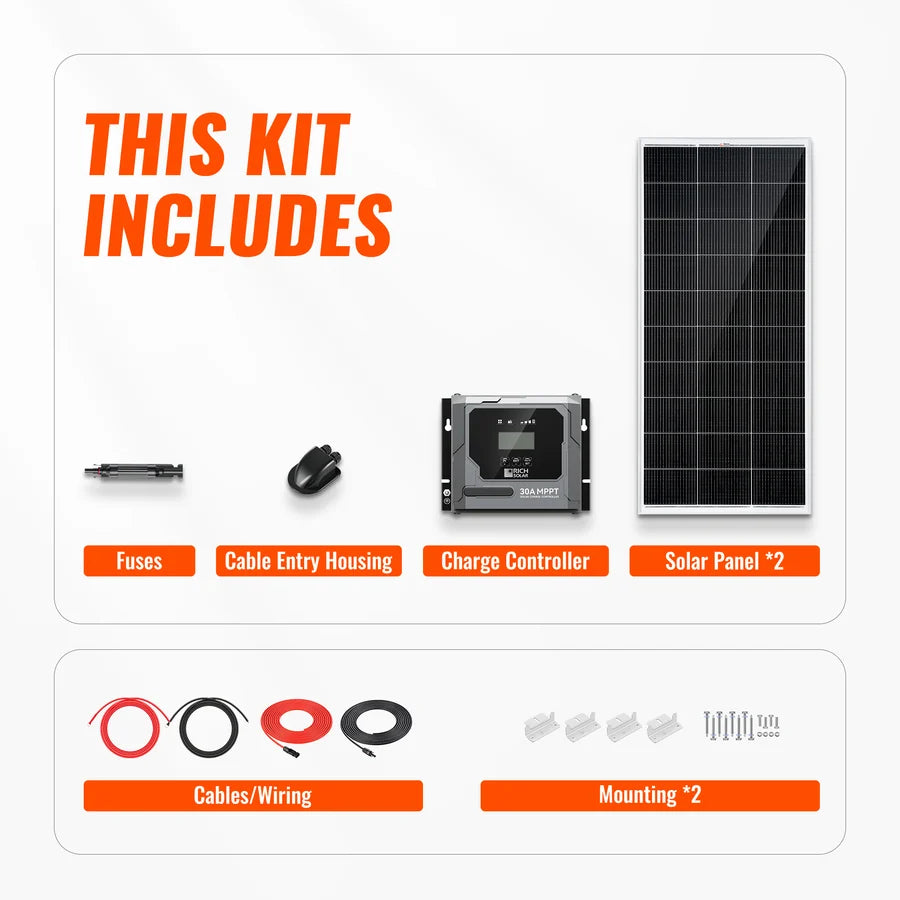

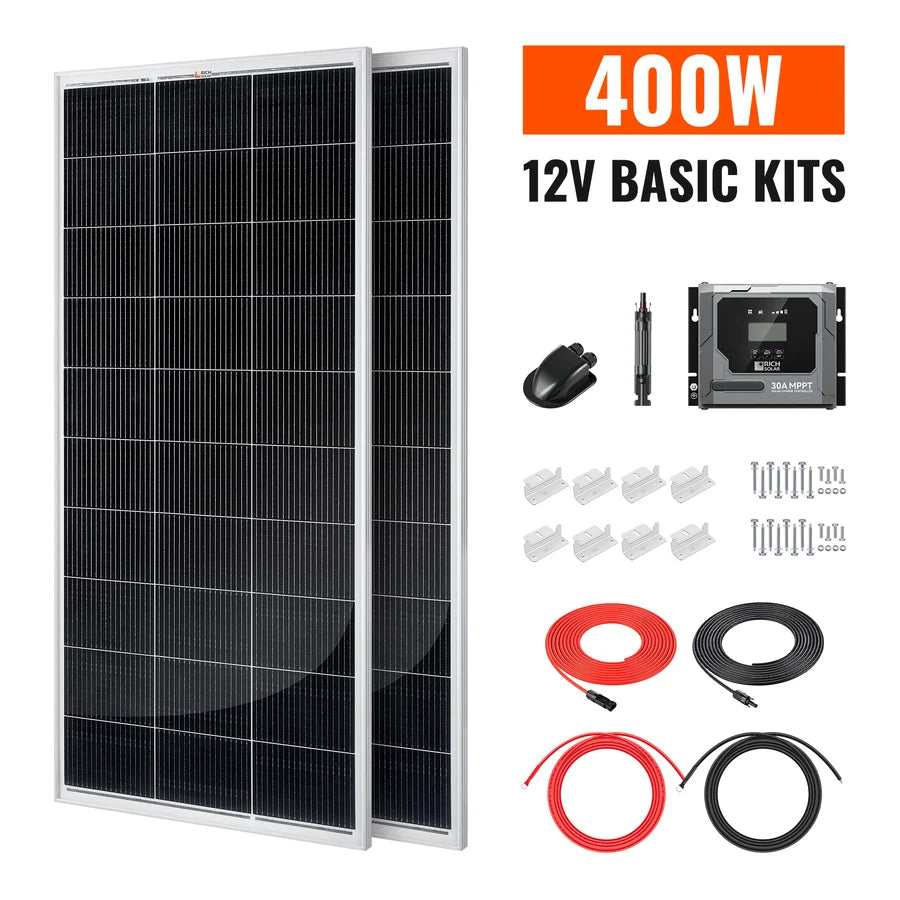

Kit Includes

2 x MEGA 200 12V 200W Solar Panels (RS-M200)
1 x Bravo 30 30A MPPT Charge Controller (RS-MPPT30PB)
2 x Mounting Z Bracket sets (one set of 4) (RS-ZB4C)
1 x Cable Entry Housing (RS-C2B)
1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
1 x 10 ft 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)

MEGA 200

12V 200W Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
Excellent low-light performance even on early mornings, evenings, and cloudy days.
Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
Compatible with on-grid and off-grid inverters

Warranty:

25-year limited power output warranty
10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in

Bravo 30A

30 Amp MPPT Solar Charge Controller

Features:

1. Advanced MPPT Technology

Advanced MPPT algorithm with up to 99.5% tracking efficiency
98% conversion efficiency for maximum solar energy utilization
Stable operation under low-light or partial shading conditions

2. Flexible Battery Compatibility

Auto-detects 12V/24V systems for seamless integration
Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

3. Advanced Protection System

Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
Weather-resistant build with IP43-rated PCBA and IP22 connectors
Certified to ETL, FCC, CE, ROHS

4. Intelligent Monitoring System

LCD + LED display: Real-time solar input, battery status, and customizable parameters
Built-in Bluetooth for App monitoring (Rich Solar App)
Optional remote meter and temperature sensor for enhanced control

Specifications:

Maximum Solar Input Current: 30A
Maximum Charging Current: 30A
Recommended Solar Power: 500W (12V) / 1000W (24V)
Nominal System Voltage: 12V/24V Auto-Detect
Solar Input Voltage Range: 8V-100V
MPPT Voltage Range: 15V-72V
Maximum Conversion Efficiency: 98%
Maximum MPPT Tracking Efficiency: 99.5%
Battery Compatibility: GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
Protection Rating: IP43 PCBA, IP22 Connection
Net Weight: 1.8 lb
Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in
