Rich Solar 400 Watt RV & Camping Solar Kit

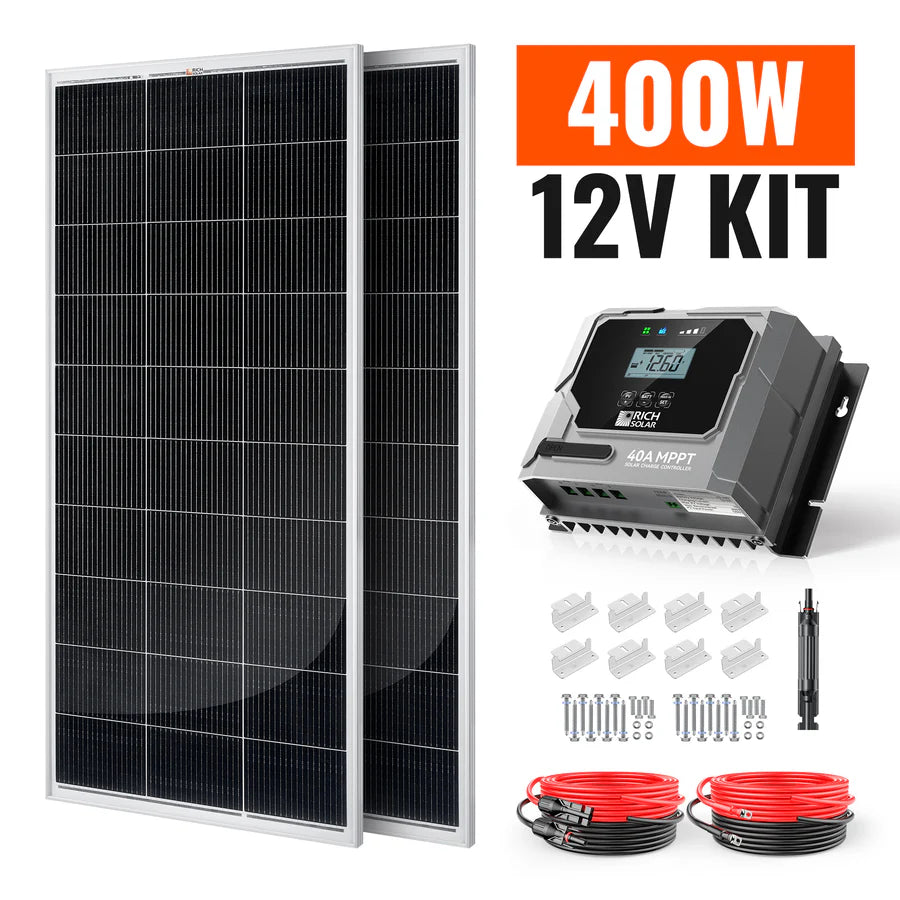

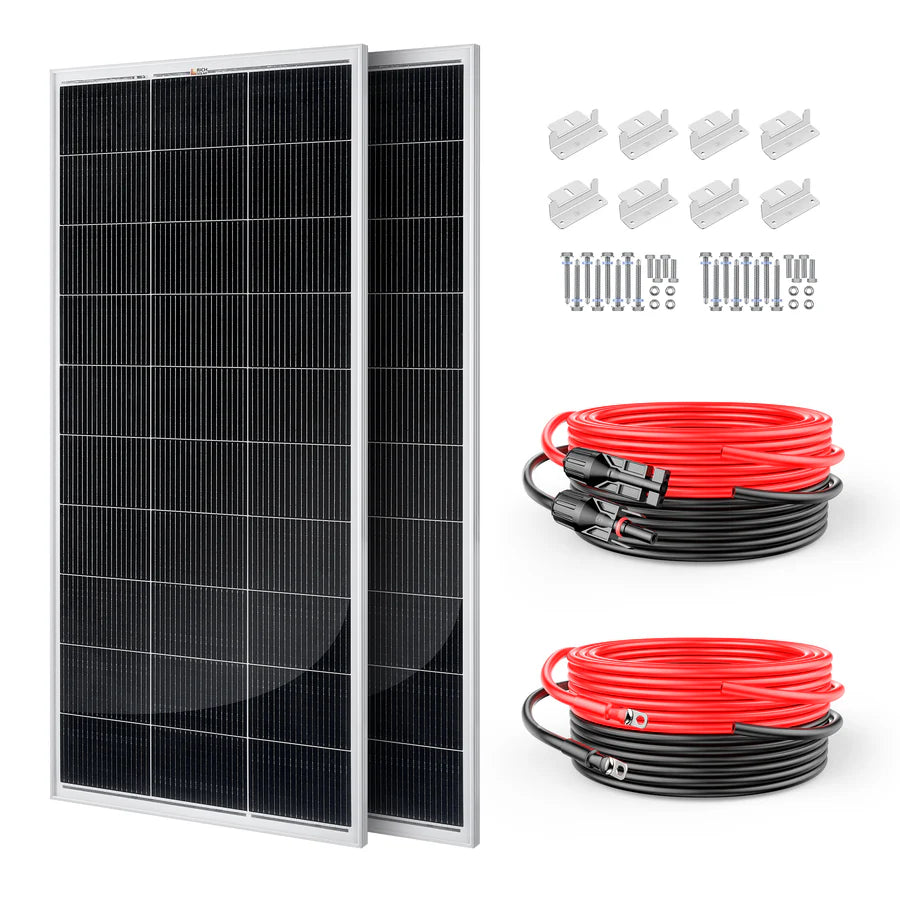

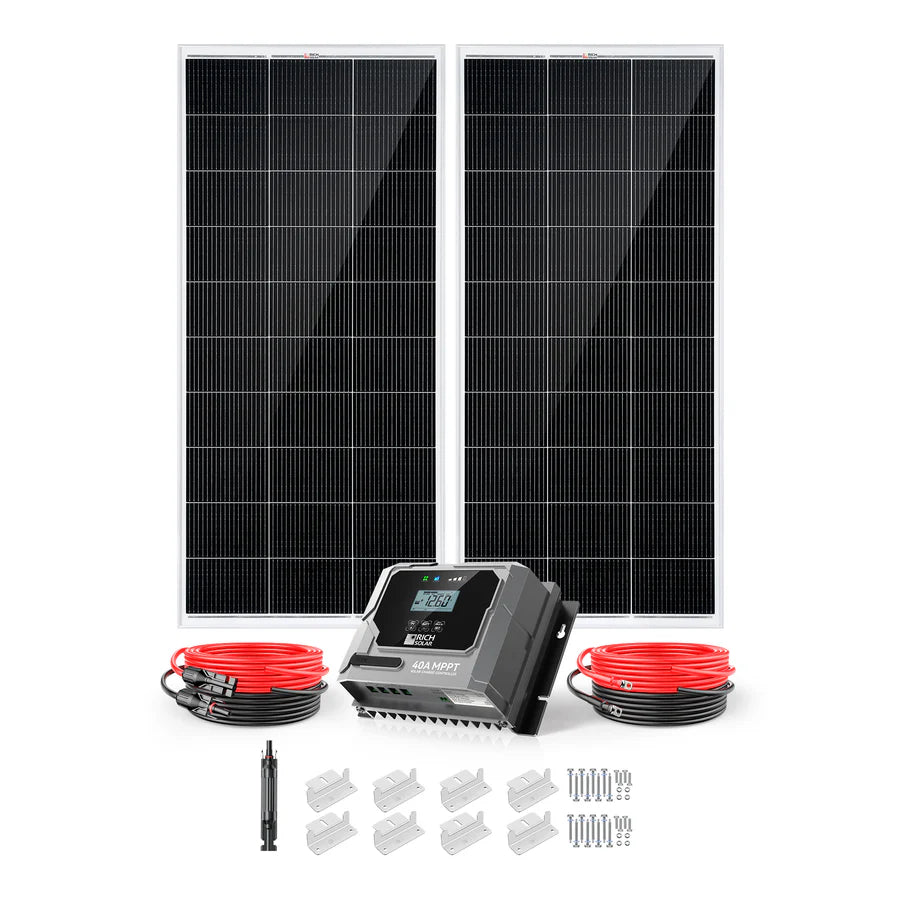

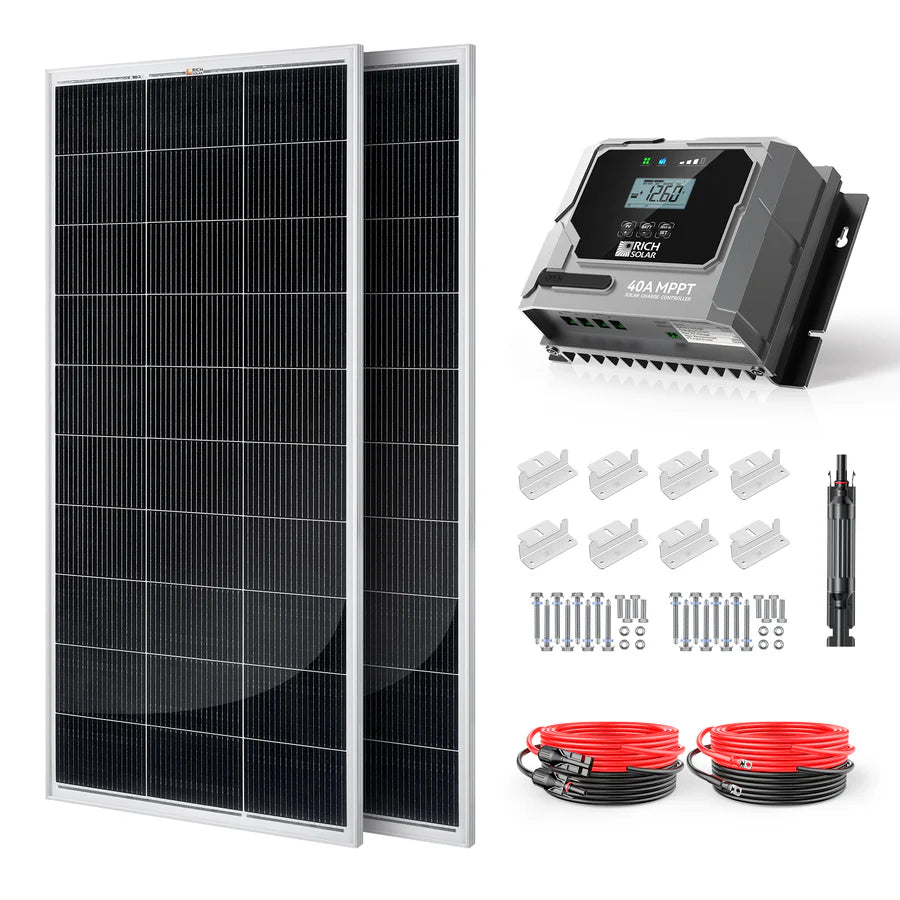

Our most popular 12V kit! This 400W kit contains 2 of our high-efficiency 200W Monocrystalline panels with 18 busbars and our 40A MPPT controller that can be expanded to 600W on a 12V system. This kit can be paired with our 200AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, this kit is the perfect add-on to your off-grid solar trailer, RV, or boat!
Specs

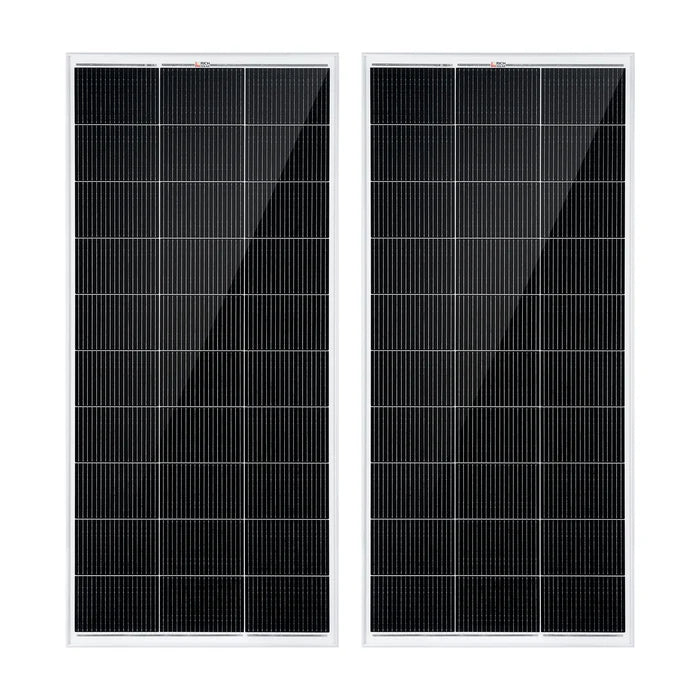

MEGA 200 Watt Solar Panel
The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.
- No. of Panels: 2 x MEGA 200 Watt Solar Panels
- Wattage Per Panel: 200W
- Total Wattage of Panels: 400W
Features:
- Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.
Installation:
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty:
- 25-year limited power output warranty
- 10-year workmanship warranty
Specifications:
- Maximum Power(Pmax): 200W
- Maximum Power Voltage(Vmp): 18.4V
- Maximum Power Current(Imp): 10.9A
- Open Circuit Voltage(Voc): 21.8V
- Short Circuit Current(Isc): 11.6A
- Temperature Range: -40 ~ +185°F
- Maximum Series Fuse Rating: 15A
- Weight: 24 lb
- Dimensions: 58.7 x 26.8 x 1.2 in
BRAVO 40 Amp MPPT Solar Charge Controller
Features:
- MPPT
- Tracking Efficiency Above 99.5%
- Charge Conversion Efficiency as high as 98%
- 12V/24V DC System Self-Adaptation
- Reverse Discharge Protection
- Targeted for Accuracy
- Overvoltage Protection
- Common Negative Connection
- Charging Data Storage
- Conformal Coating For Inside Board
- Designed According to UL1741, EN/IEC 62109 1
- In-house Design And Manufacture
- Extensive Internal Electronics In-Circuit Protections And Safety Protections
- Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
- Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections
Warranty:
- 2-Year Warranty
Specifications:
- System Nominal Voltage: 12/24V Auto
- Max. PV Open Circuit Voltage: 100VDC
- Charging Technology: MPPT
- Max PV Charging Current: 40A
- Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
- Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
- Housing Case Color: Black / Grey
- IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
- Net Weight: 1.17kg / 2.58lb
- Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
