Rich Solar 200 Watt RV & Camping Solar Kit

Rich Solar 200 Watt RV & Camping Solar Kit

$389.99 USD
$399.99 USD $389.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Specifications & Downloads

Full Specification:

 MEGA 200 Solar Panel

Download

 20 Amp MPPT Solar Charge Controller

Download

User Manual:

 20 Amp MPPT Solar Charge Controller

Download

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Rich Solar 200 Watt RV & Camping Solar Kit

Our 200W kit includes a high-efficiency 200W Monocrystalline panel with 18 busbars and a 20A MPPT controller. One of the best 200W solar panel kits in the market, this can be paired with our 100AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, go solar now and start powering your travel trailer solar system!

Specs

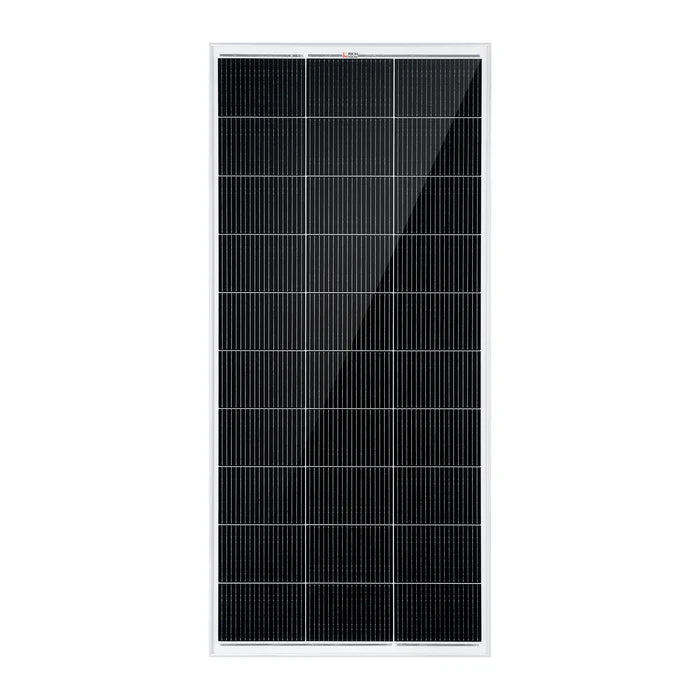

MEGA 200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

  • Maximum Power(Pmax): 200W
  • Maximum Power Voltage(Vmp): 18.4V
  • Maximum Power Current(Imp): 10.9A
  • Open Circuit Voltage(Voc): 21.8V
  • Short Circuit Current(Isc): 11.6A
  • Temperature Range: -40 ~ +185°F
  • Maximum Series Fuse Rating: 15A
  • Weight: 24 lb
  • Dimensions: 58.7 x 26.8 x 1.2 in

20 Amp MPPT Solar Charge Controller

Features:

  • Automatically detects 12V or 24V DC system voltages
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
  • Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
  • Features diverse load control; also capable of charging over-discharged lithium batteries
  • Die-cast aluminum design allows for efficient heat dissipation
  • RS232 port to communicate with BT-1 Bluetooth module

Warranty:

  • 2-Year Warranty

Specifications:

  • Nominal System Voltage: 12V/24V Auto Recognition
  • Rated Battery Current: 20A
  • Rated Load Current: 20A
  • Max. PV Input Short Current: 25A
  • Max. Battery Voltage: 32V
  • Max Solar Input Voltage: 100 VDC
  • Net Weight: 3.08 lb
  • Discharge Circuit Voltage Drop: ≤0.15V
  • Overall Dimensions: 8.27 x 5.94 x 2.34 in
      View full details

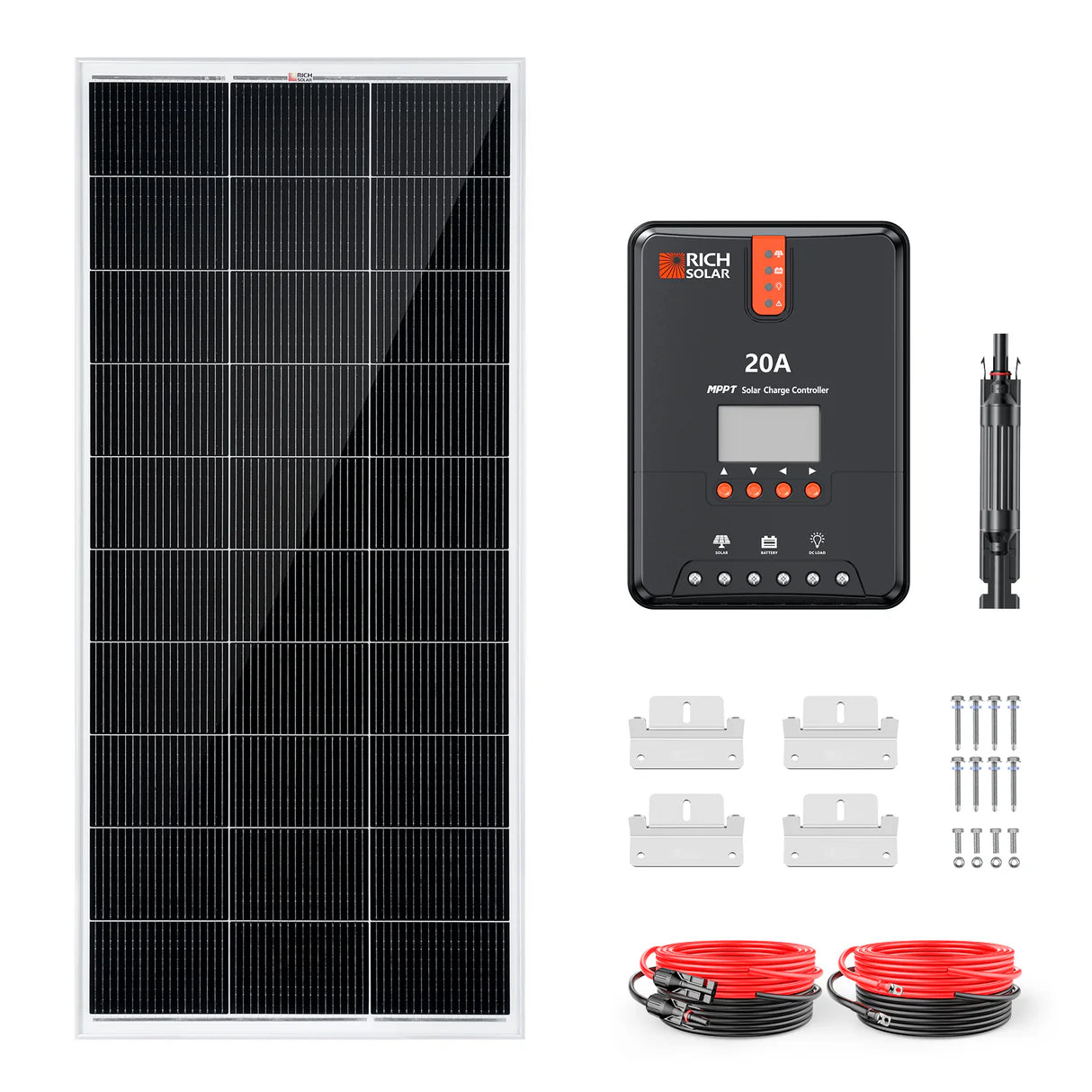

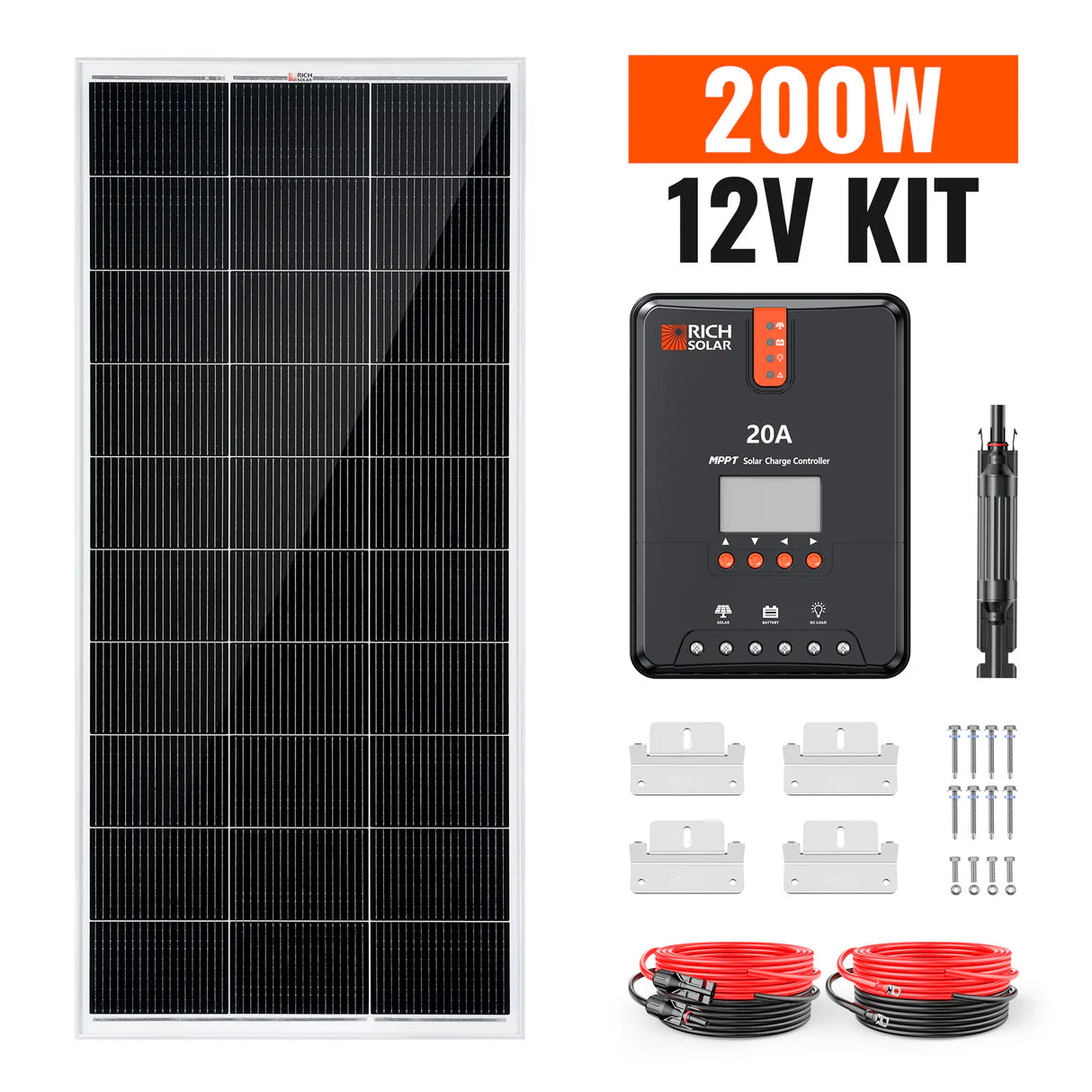

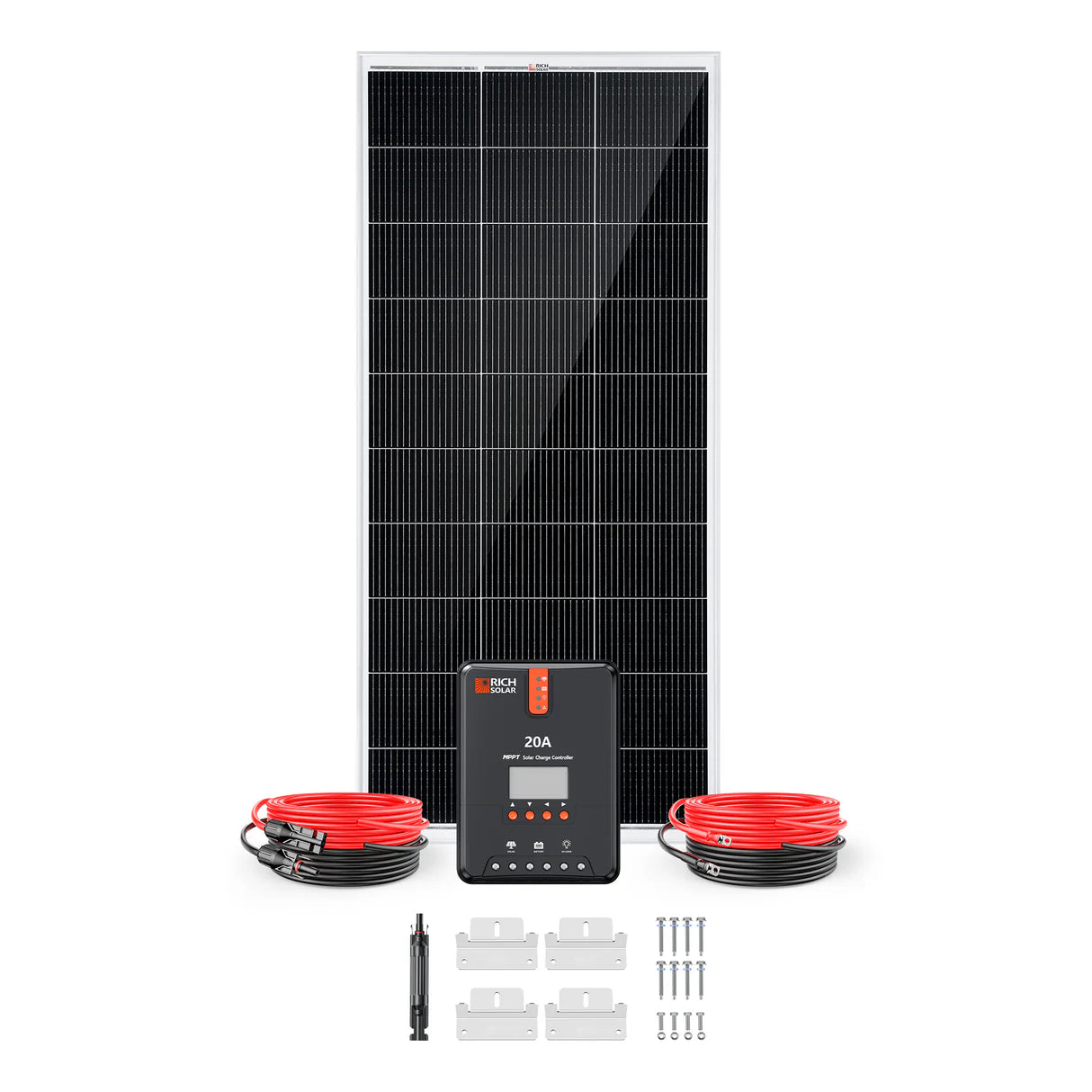

      Kit Includes:

      • 1 x 200 Watt Monocrystalline Solar Panel(RS-M200)
      • 1 x 20A MPPT Solar Charge Controller(RS-MPPT20)

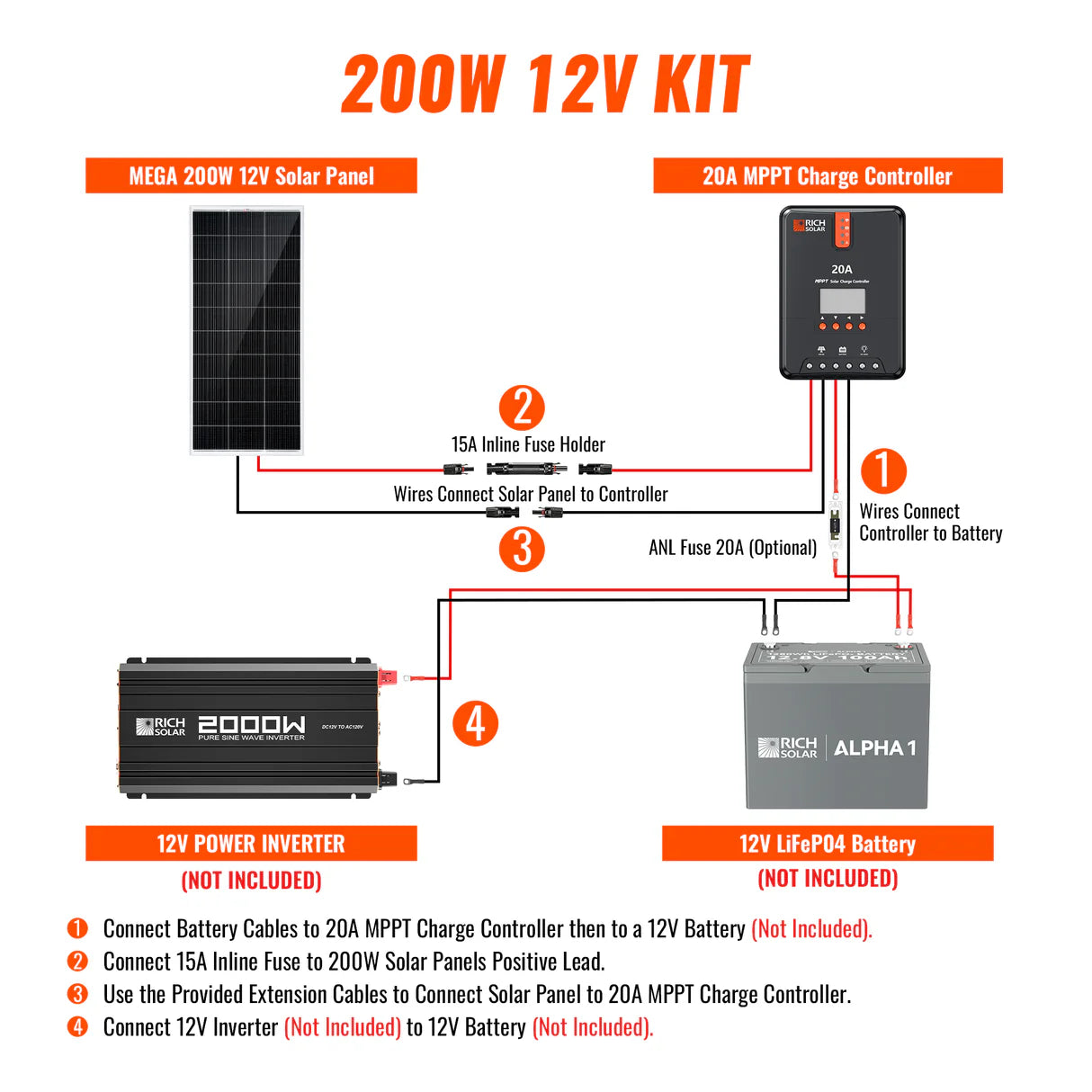

      • 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
      • 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
      • 1 x 10' #10 Gauge Battery Cable (Red), connects the controller to the battery(RS-1010)
      • 1 x 10' #10 Gauge Battery Cable (Black), connects the controller to the battery(RS-1010)
      • 1 x Mounting Z Brackets (one set)(RS-ZB4C)
      • 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)

      • MEGA 200 Watt Solar Panel

        The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

        Features:

        • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
        • Excellent low-light performance even on early mornings, evenings, and cloudy days.
        • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
        • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
        • 25-year limited warranty for power output; 10-year workmanship warranty.

        Installation:

        • Easy installation and handling for various applications (high-end off-grid and mobile applications)
        • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
        • Compatible with on-grid and off-grid inverters

        Warranty:

        • 25-year limited power output warranty
        • 10-year workmanship warranty

        Specifications:

        • Maximum Power(Pmax): 200W
        • Maximum Power Voltage(Vmp): 18.4V
        • Maximum Power Current(Imp): 10.9A
        • Open Circuit Voltage(Voc): 21.8V
        • Short Circuit Current(Isc): 11.6A
        • Temperature Range: -40 ~ +185°F
        • Maximum Series Fuse Rating: 15A
        • Weight: 24 lb
        • Dimensions: 58.7 x 26.8 x 1.2 in

      • 20 Amp MPPT Solar Charge Controller

        Features:

        • Automatically detects 12V or 24V DC system voltages
        • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
        • Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
        • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
        • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
        • Features diverse load control; also capable of charging over-discharged lithium batteries
        • Die-cast aluminum design allows for efficient heat dissipation
        • RS232 port to communicate with BT-1 Bluetooth module

        Warranty:

        • 2-Year Warranty

        Specifications:

        • Nominal System Voltage: 12V/24V Auto Recognition
        • Rated Battery Current: 20A
        • Rated Load Current: 20A
        • Max. PV Input Short Current: 25A
        • Max. Battery Voltage: 32V
        • Max Solar Input Voltage: 100 VDC
        • Net Weight: 3.08 lb
        • Discharge Circuit Voltage Drop: ≤0.15V
        • Overall Dimensions: 8.27 x 5.94 x 2.34 in
