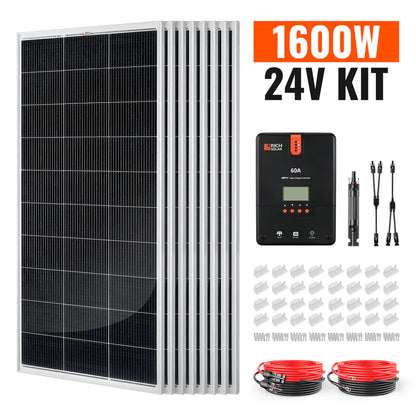

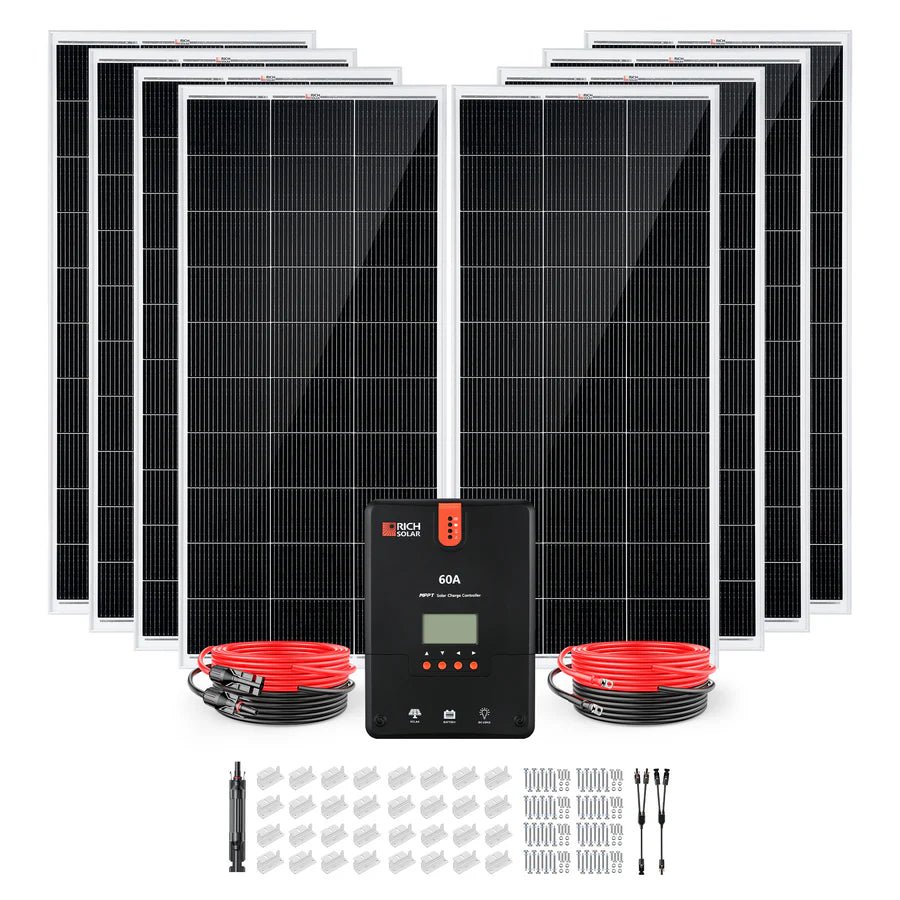

Rich Solar 1600 Watt RV & Camping Solar Kit

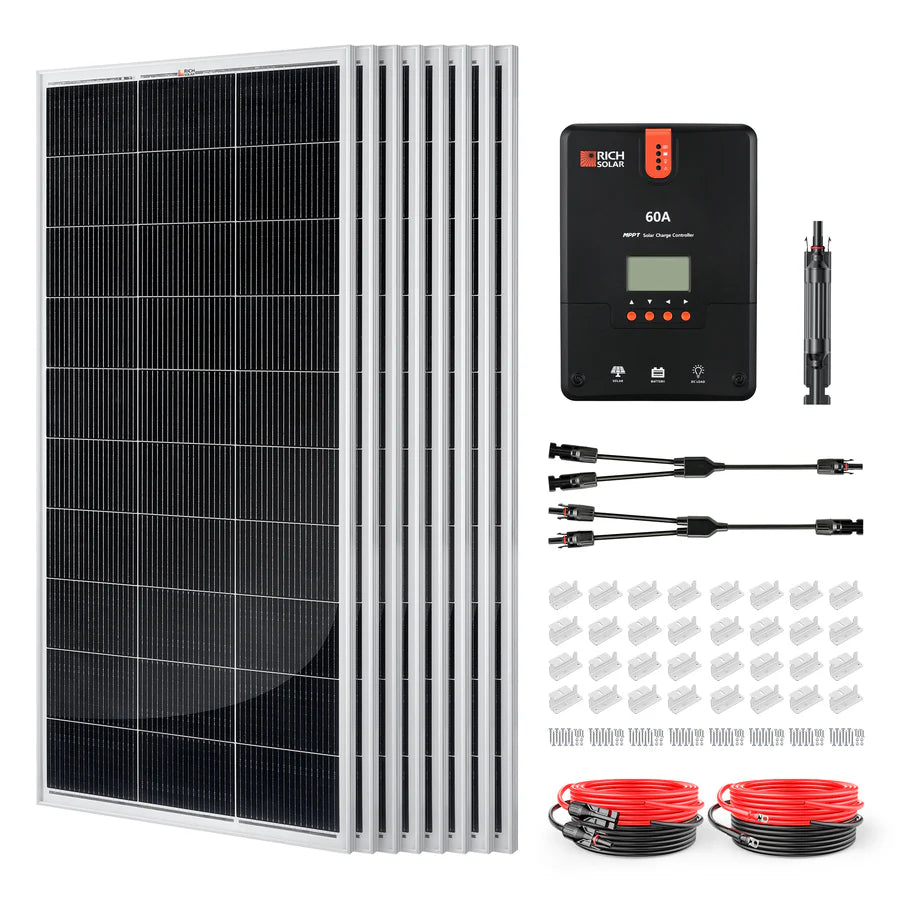

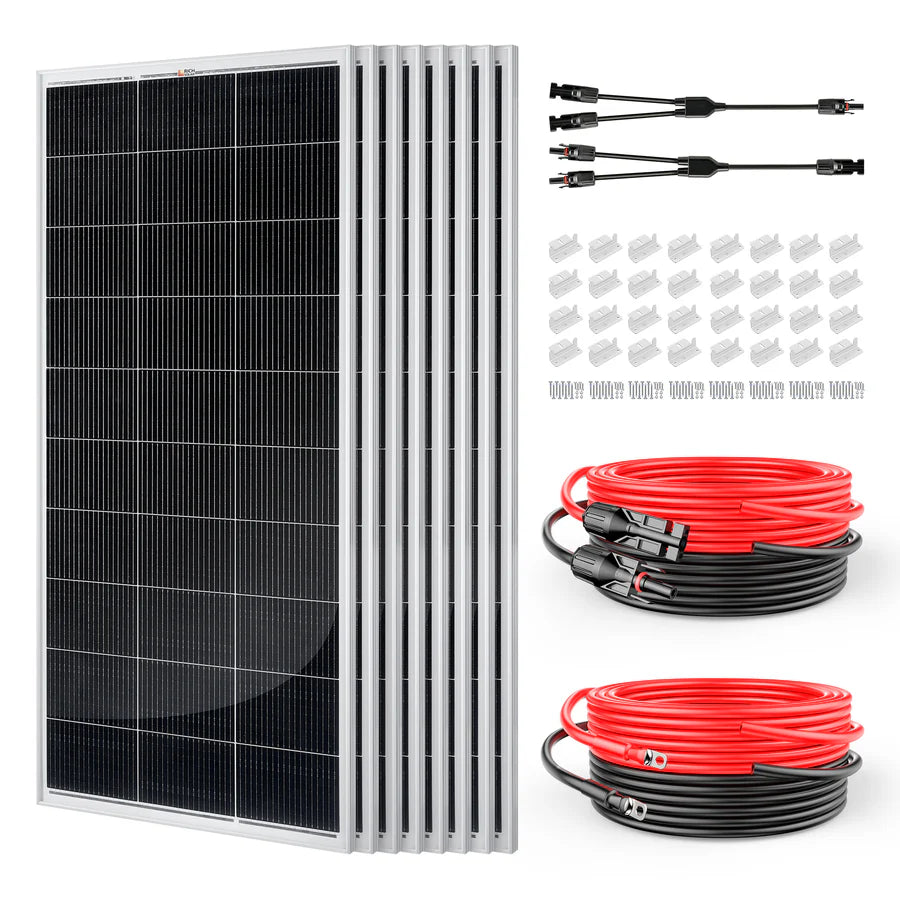

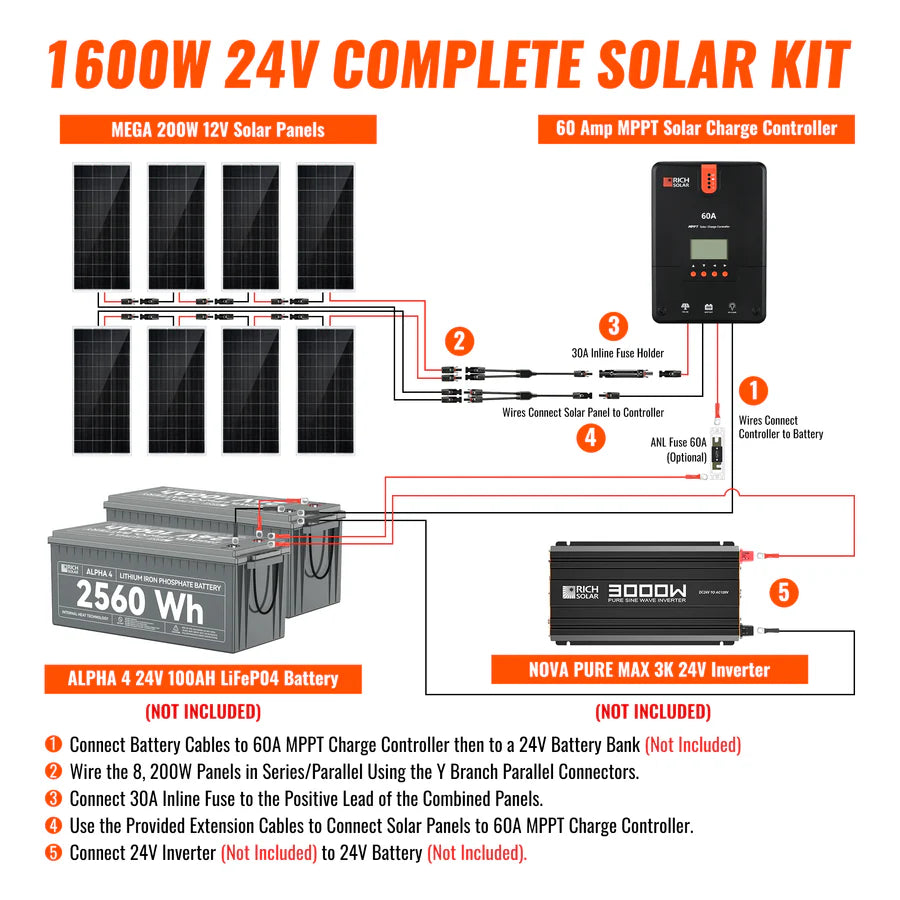

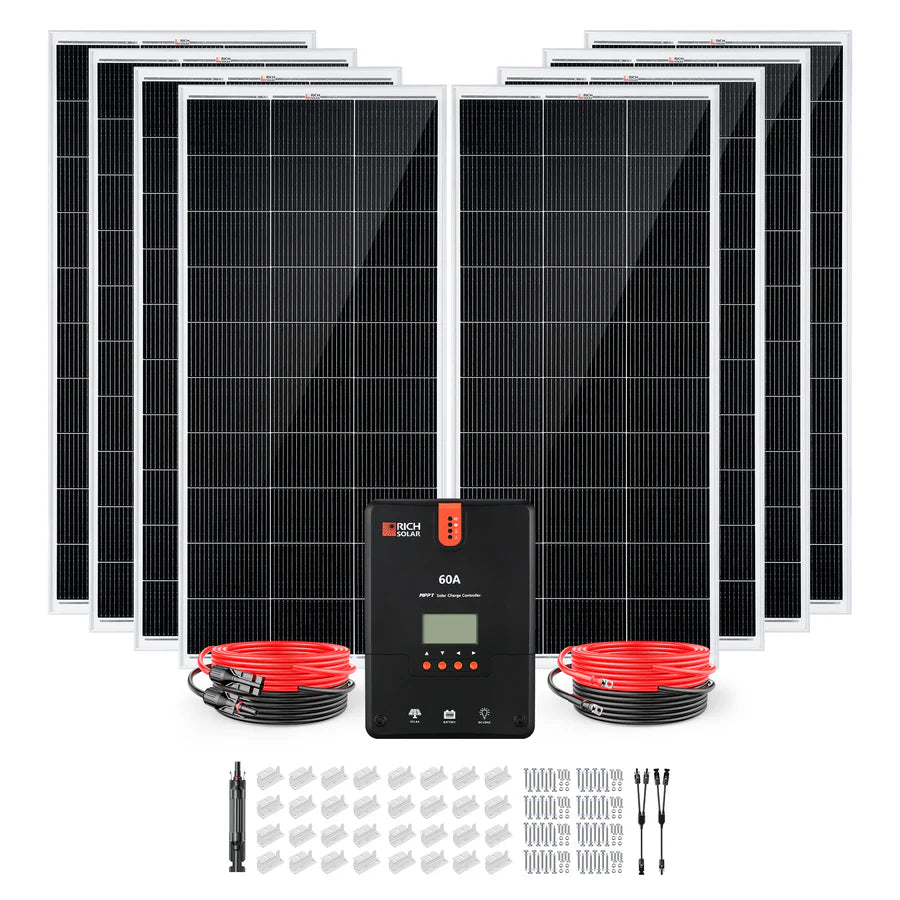

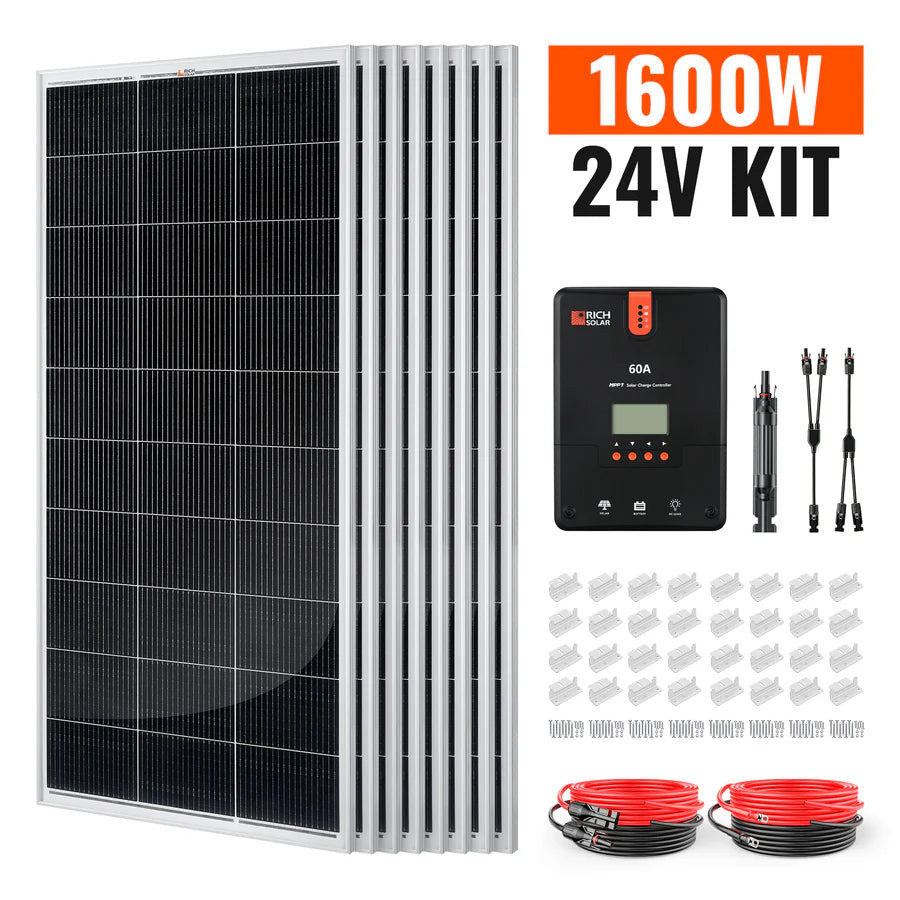

Our largest 24V kit contains 8 high-efficiency 200W Monocrystalline panels with 18 busbars and our 60A MPPT controller. This kit can be paired with a 400AH 24V battery bank and can power most off-grid applications. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!
Specs

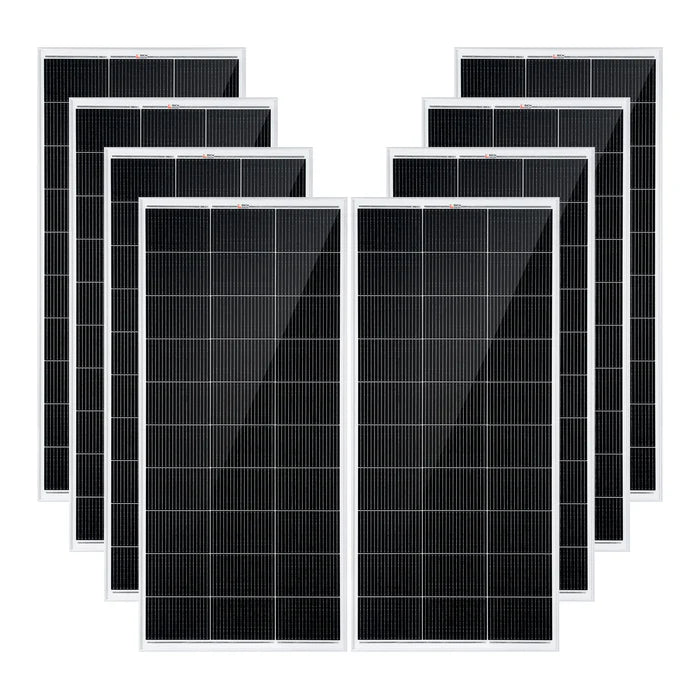

MEGA 200 Watt Solar Panel
The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.
- Wattage Per Panel: 200W
- Total Wattage of Panels: 400W
Features:
- Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.
Installation:
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty:
- 25-year limited power output warranty
- 10-year workmanship warranty
Specifications:
- Maximum Power(Pmax): 200W
- Maximum Power Voltage(Vmp): 18.4V
- Maximum Power Current(Imp): 10.9A
- Open Circuit Voltage(Voc): 21.8V
- Short Circuit Current(Isc): 11.6A
- Temperature Range: -40 ~ +185°F
- Maximum Series Fuse Rating: 15A
- Weight: 24 lb
- Dimensions: 58.7 x 26.8 x 1.2 in

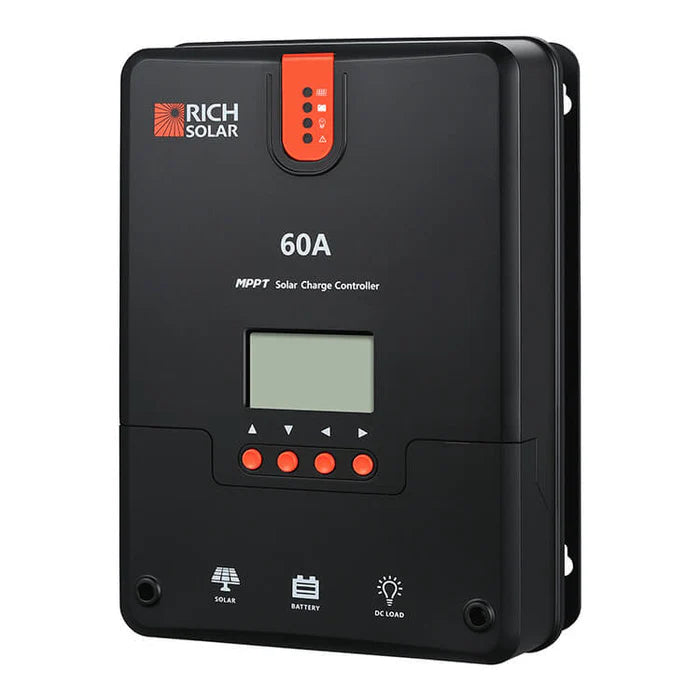

60 Amp MPPT Solar Charge Controller
Features:
- Automatically detects 12V/24V/36V/48V DC system voltages.
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port for communicating with BT-1 Bluetooth module.
Warranty:
- 2-Year Warranty
Specifications:
- Rated Battery Current: 60A
- Rated Load Current: 20A
- Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
- Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
- Charge Circuit Voltage Drop: ≤0.26V
- Discharge Circuit Voltage Drop: ≤0.15V
- Operating Temperature: -31°F to 113°F
- Max Terminal Size: <11mm
- Overall Dimensions: 11.2 x 8.1 x 3.7 in
- Net Weight: 7.94 lb
