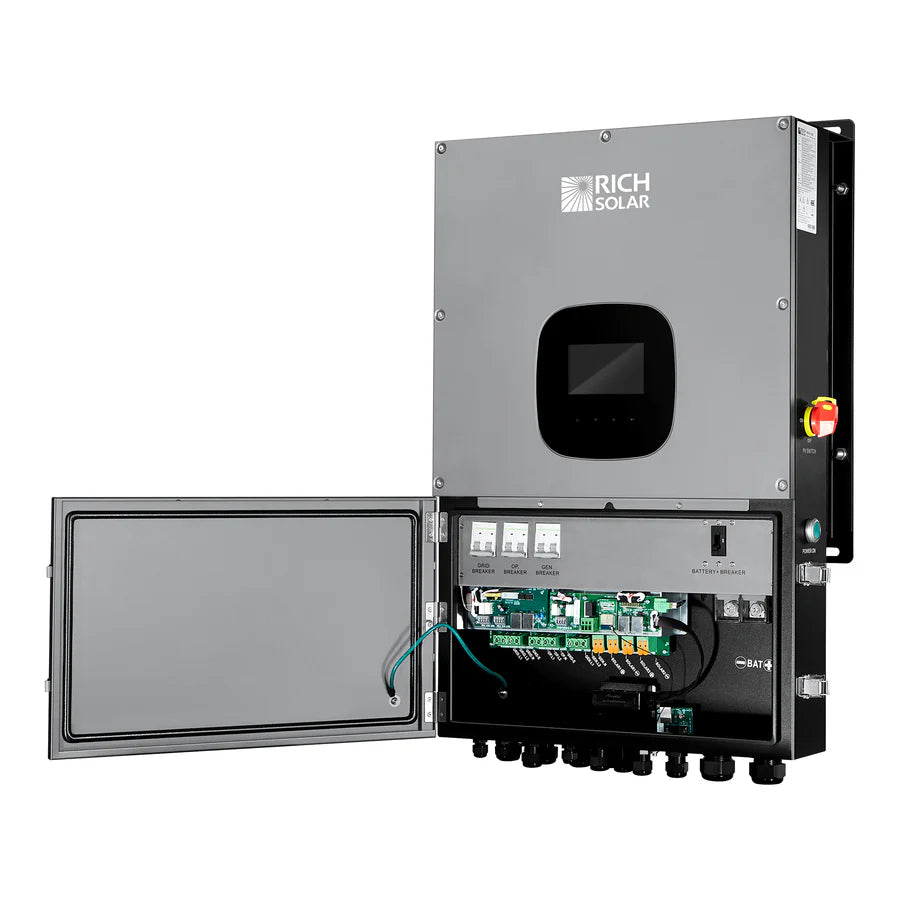

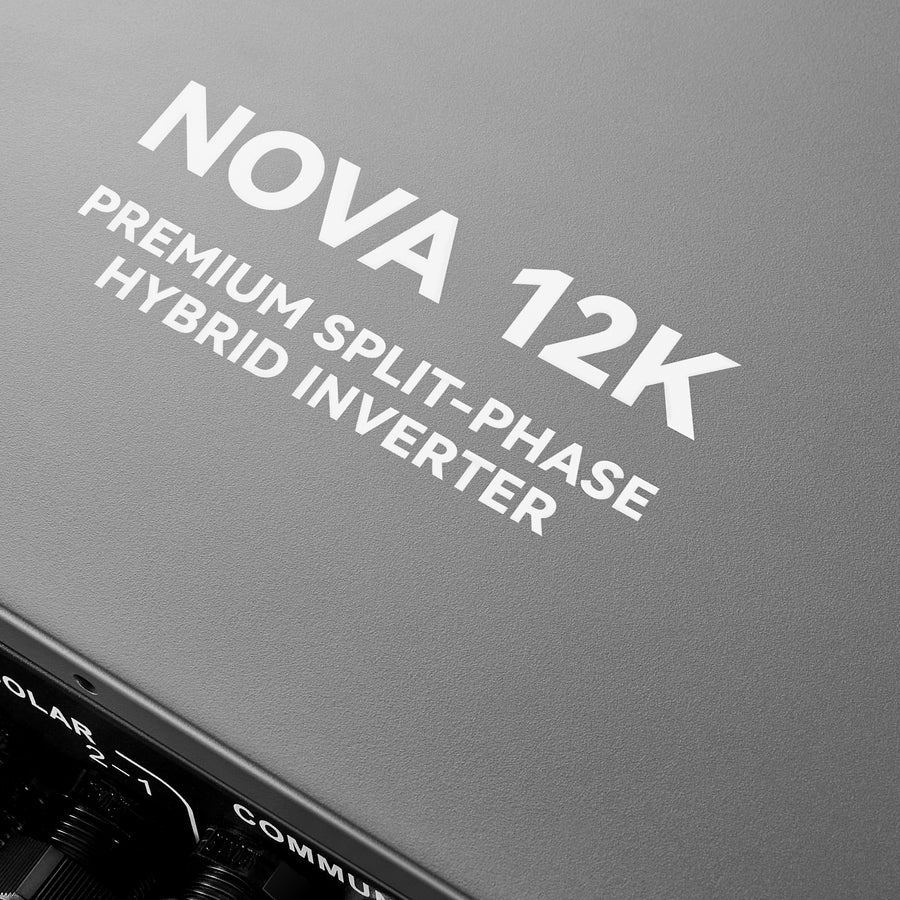

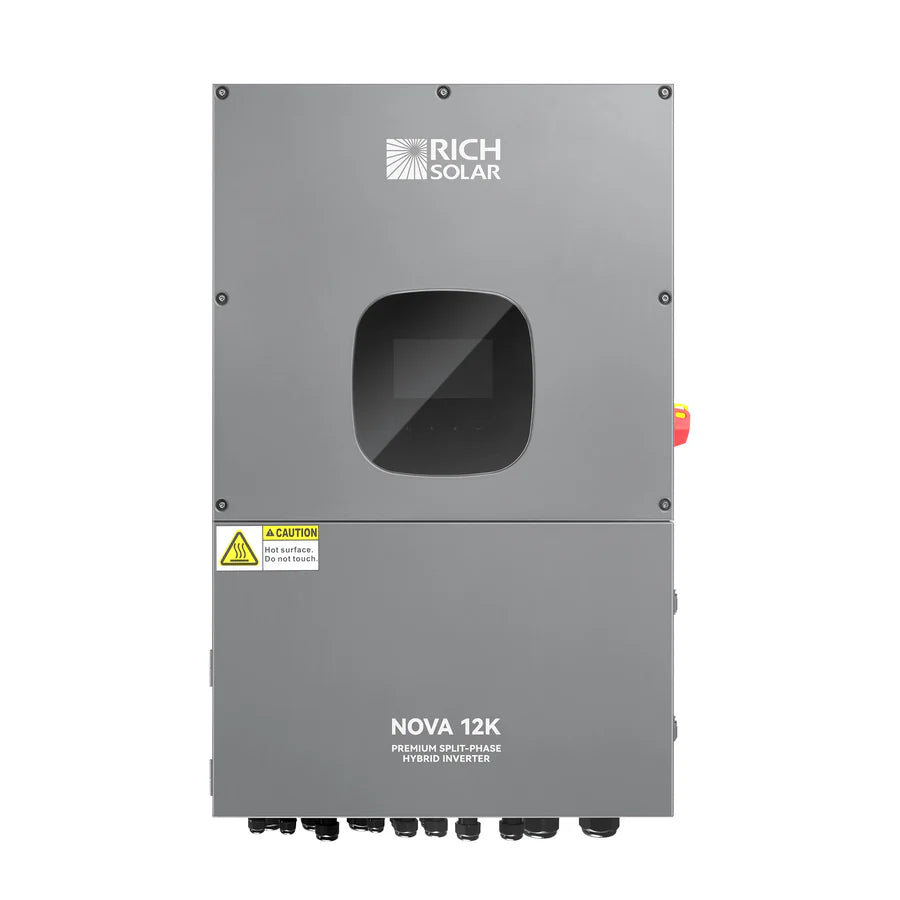

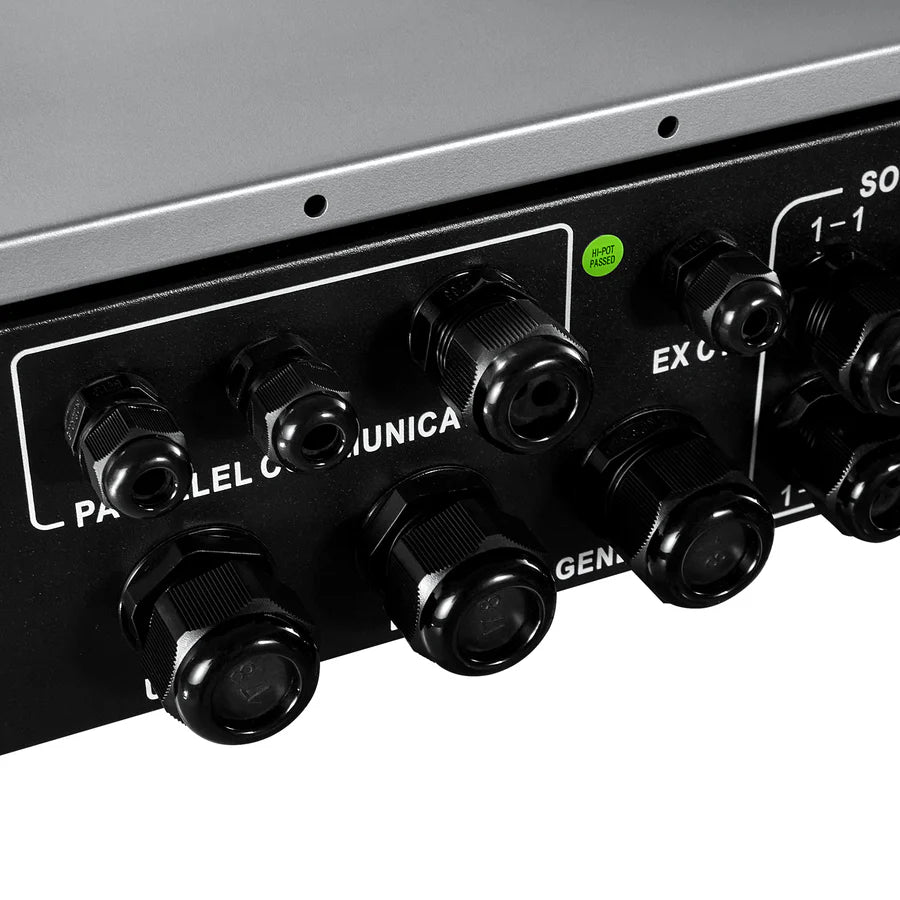

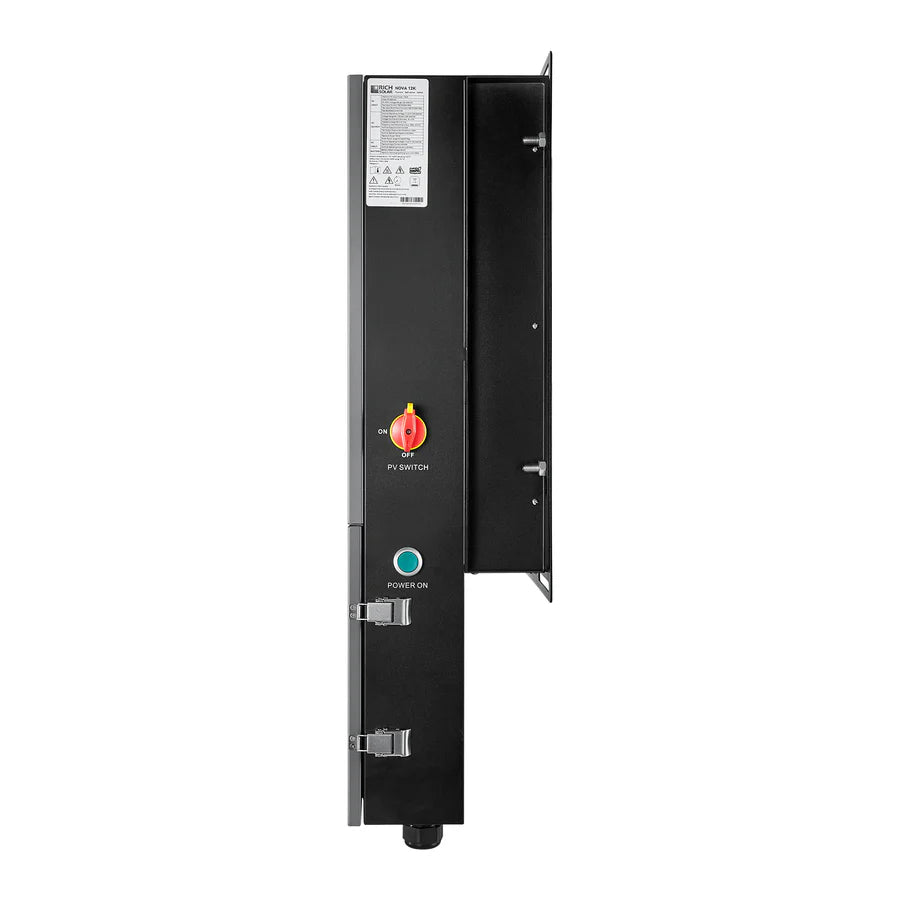

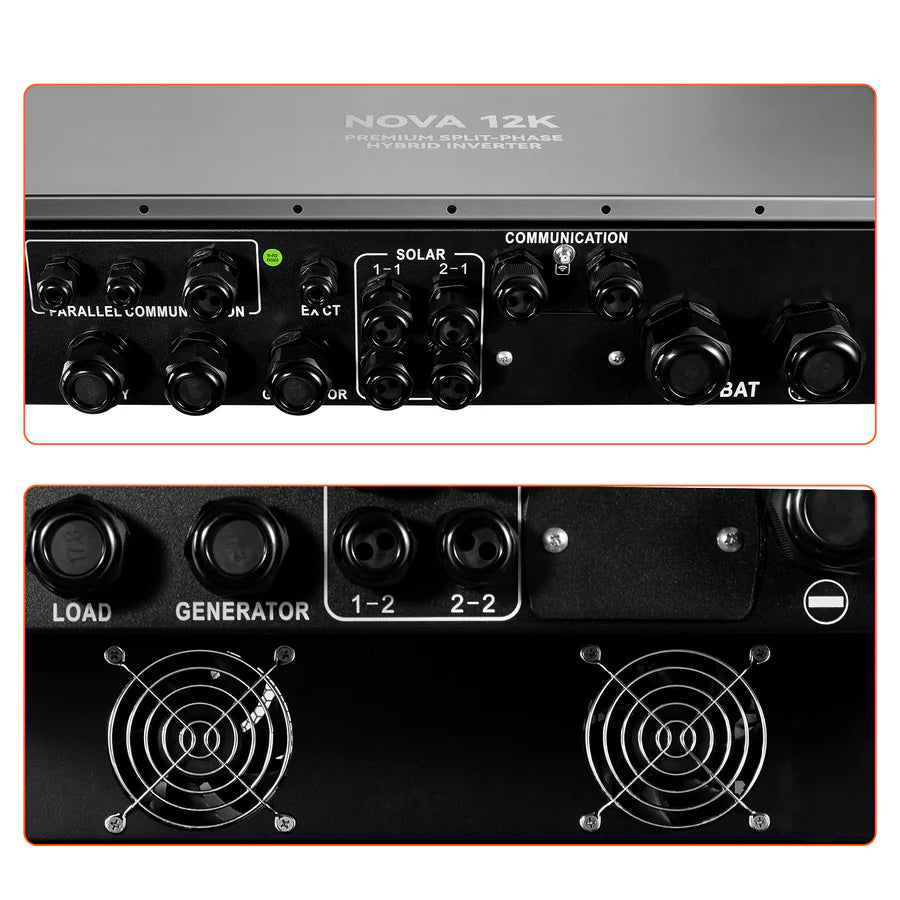

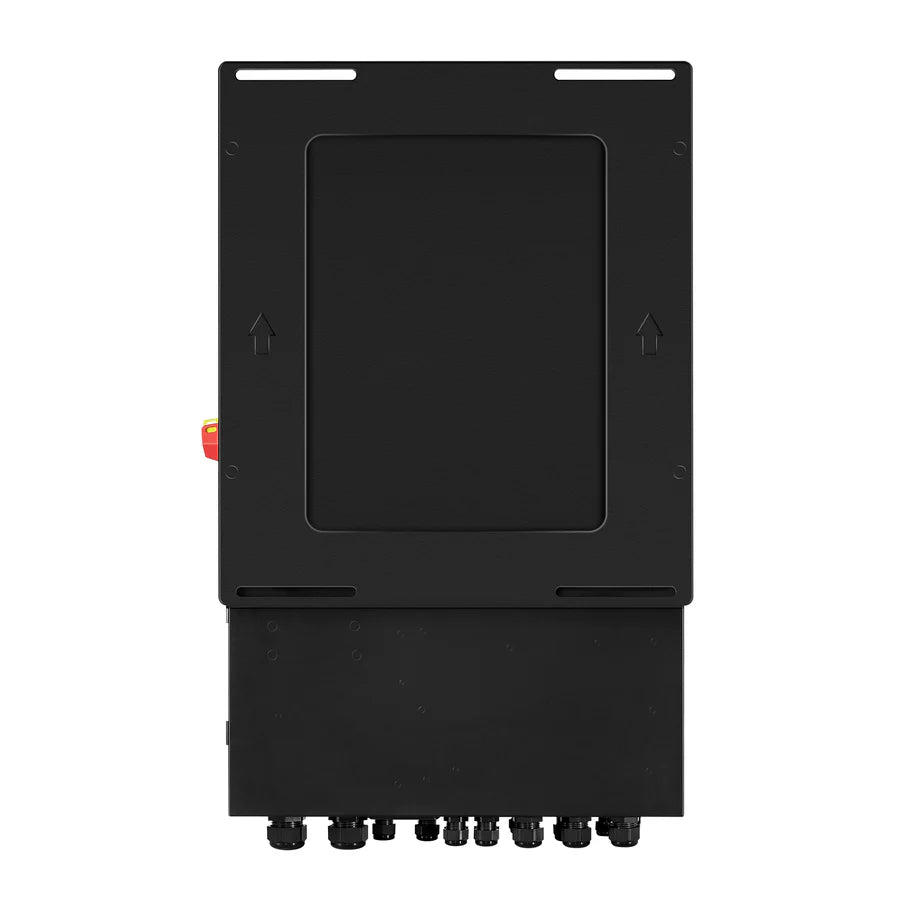

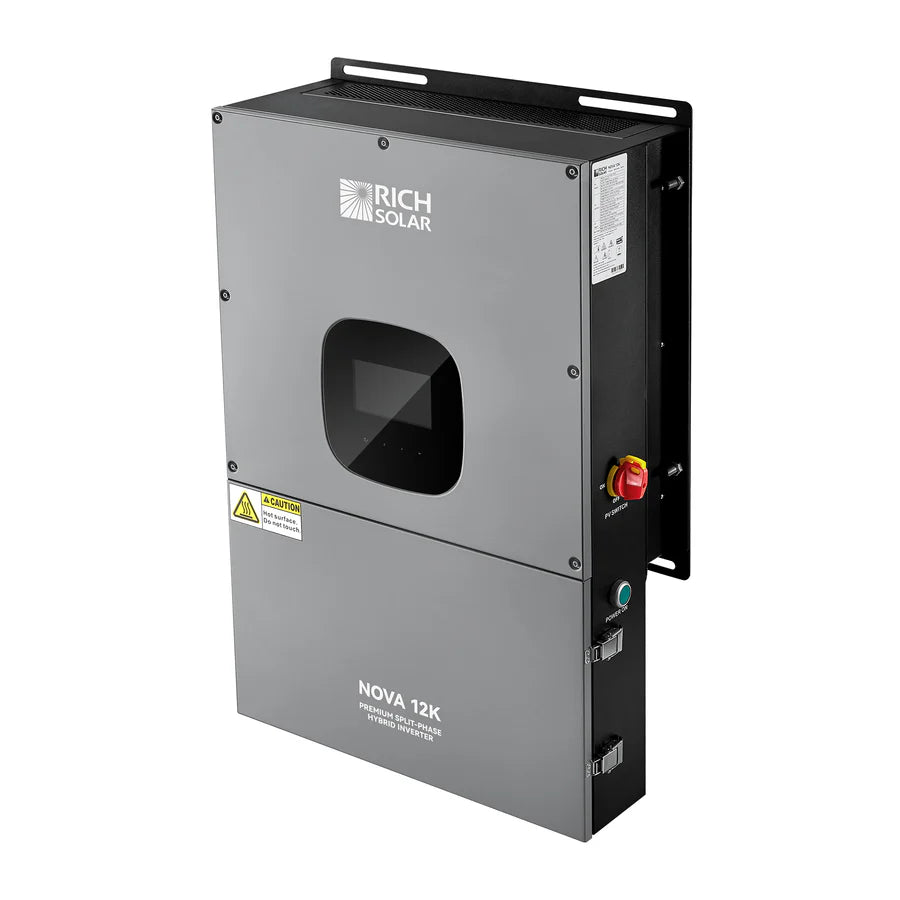

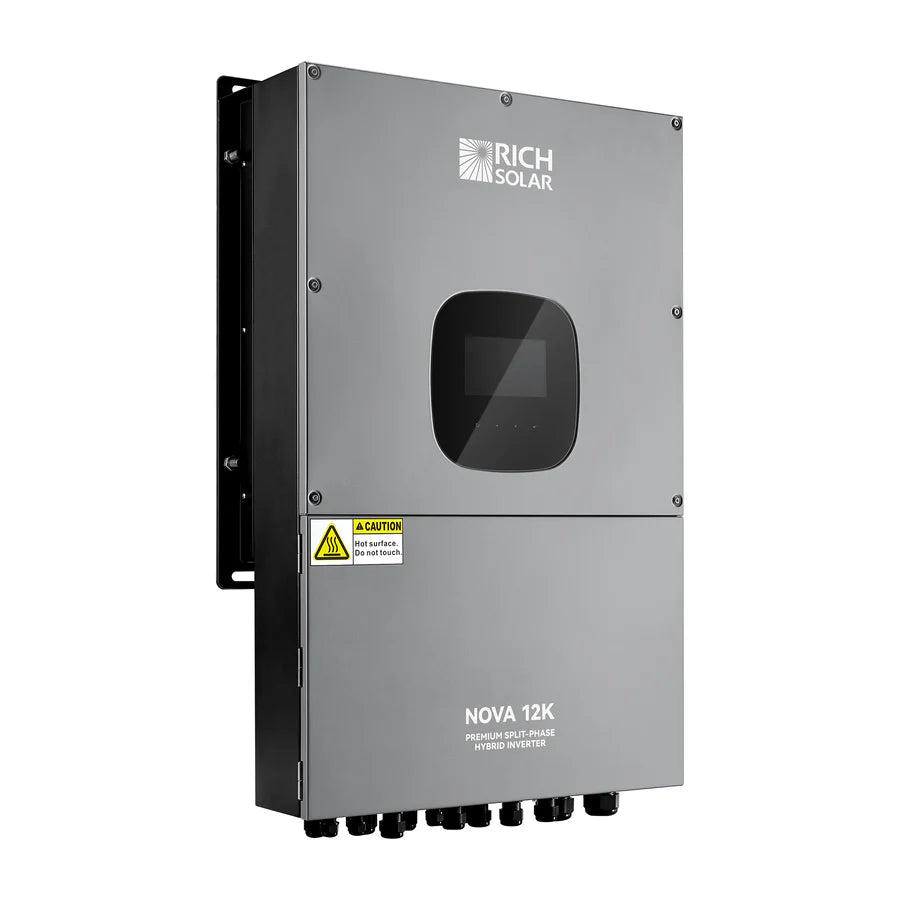

Rich Solar NOVA 12K | 12K Watt 48V Split Phase Hybrid Inverter| 12K W PV Input, 10K W Continuous Output 120/240V | Premium Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified

Name: Rich Solar NOVA 12K | 12K Watt 48V Split Phase Hybrid Inverter| 12K W PV Input, 10K W Continuous Output 120/240V | Premium Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified
Brand: RICH SOLAR
SKU: RS-H12K
Price: 2499.99 USD
Availability: InStock

$2,499.99 USD

~~$2,999.99 USD~~ $2,499.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Rich Solar NOVA 12K | 12K Watt 48V Split Phase Hybrid Inverter| 12K W PV Input, 10K W Continuous Output 120/240V | Premium Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified.

WHAT IS A BASIC SOLAR SYSTEM?

Understanding the basics of an off-grid solar system.

Rich Solar Panel System

Features

Power Flexibility

120/240V split-phase or 120/208V split-phase
Supports generator input & AC coupling
Scalable to 6 parallel units

Intelligent Control

Real-time monitoring via WiFi & mobile app
BMS integration through RS485 interface
External CT sensor for 100% self-consumption

Advanced Safety

300A DC + 60A AC Integrated breaker
AFD/RSD (NEC 690.11/690.12)
Ground fault detection (NEC 690.5)
PV input lightning protection

Premium Performance

91% DC-to-AC efficiency | Pure sine wave
Multi-mode operation: Grid-tie/Off-grid/Hybrid

Tax Free

Parallel Capability: "Scalable Solar" This unit can be paralleled up to 6 times (72kW).

Specifications & Downloads

Weight

112lb / 51kg
Dimensions

8.5x20.3x28.1in / 215x516x714mm
Maximum PV Input Power

12000W
Parallel capability

6 units

Specifications

Maximum PV input power: 12000W
Parallel capability: 6 units
Input
- Maximum PV input power: 12000W
- Voltage range: 120–550VDC
- Startup voltage: 125V
- Mppt: Dual inputs — 2 × 18A (30A peak)
Output
- Rated output power: 10000VA/10000W
- Nominal output voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
- Output voltage range: 105.5–132VAC per phase
- Nominal output current: 41.7A per phase
Battery
- Battery DC voltage range: 40–62VDC/48VDC
- Maximum solar charging current: 200A
- Maximum AC charging current: 200A
- Maximum charging current: 200A
Operating Environment
- Operating temperature range: -13°F to 140°F(>113°F derating)
- Protection degree: IP65
- Communication port: RS232, RS485, Wi-Fi, USB
Physical
- Dimension (LxWxH): 8.5x20.3x28.1in/215x516x714mm
- Net weight: 112lb/51kg
Certificate
- Ul 1741SA/SB, CSA C22.2 No.107.1, IEEE 1547
- Cec-listed, FCC Part 15 Class B
- Compliant with CA rule 21 and HECO rule 14H
