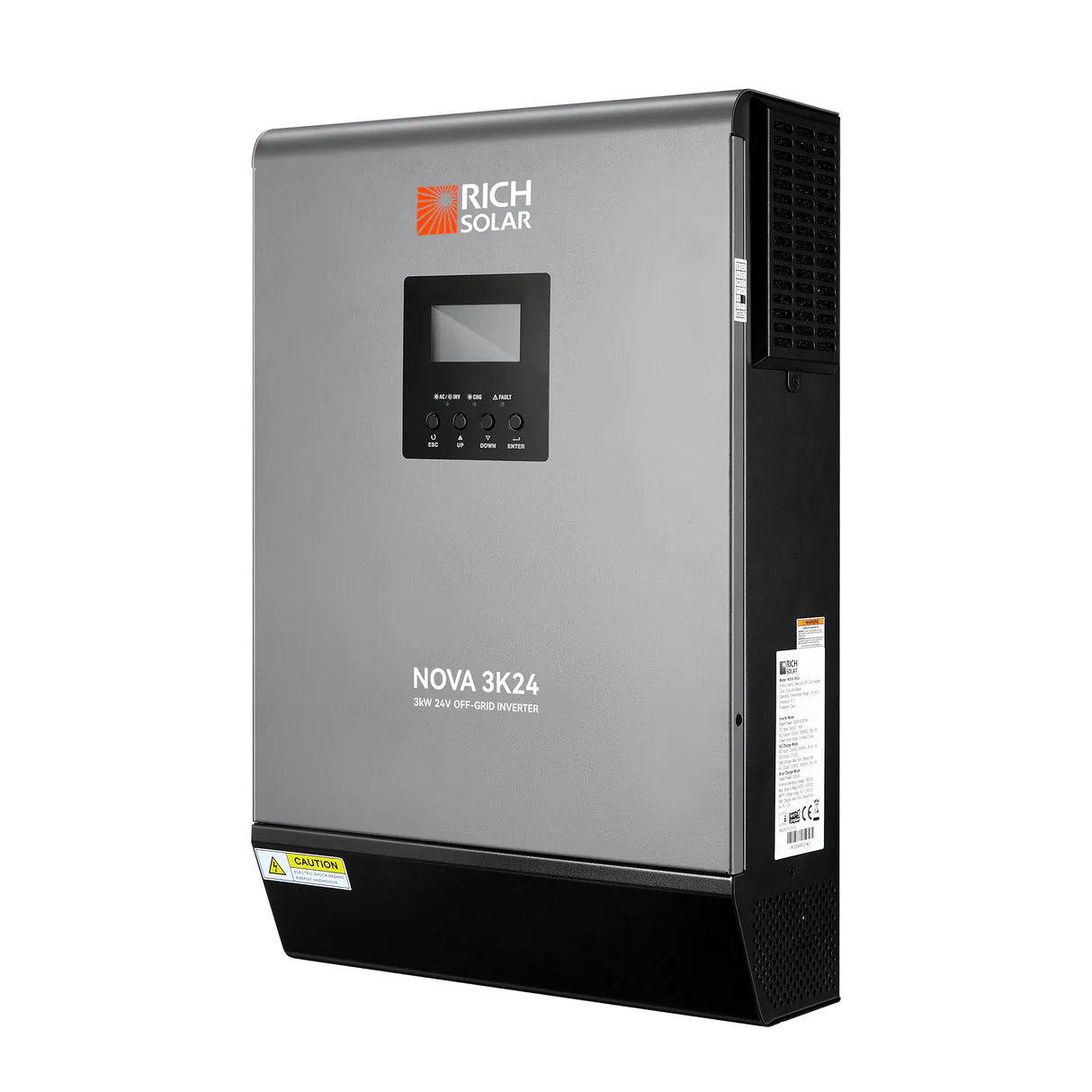

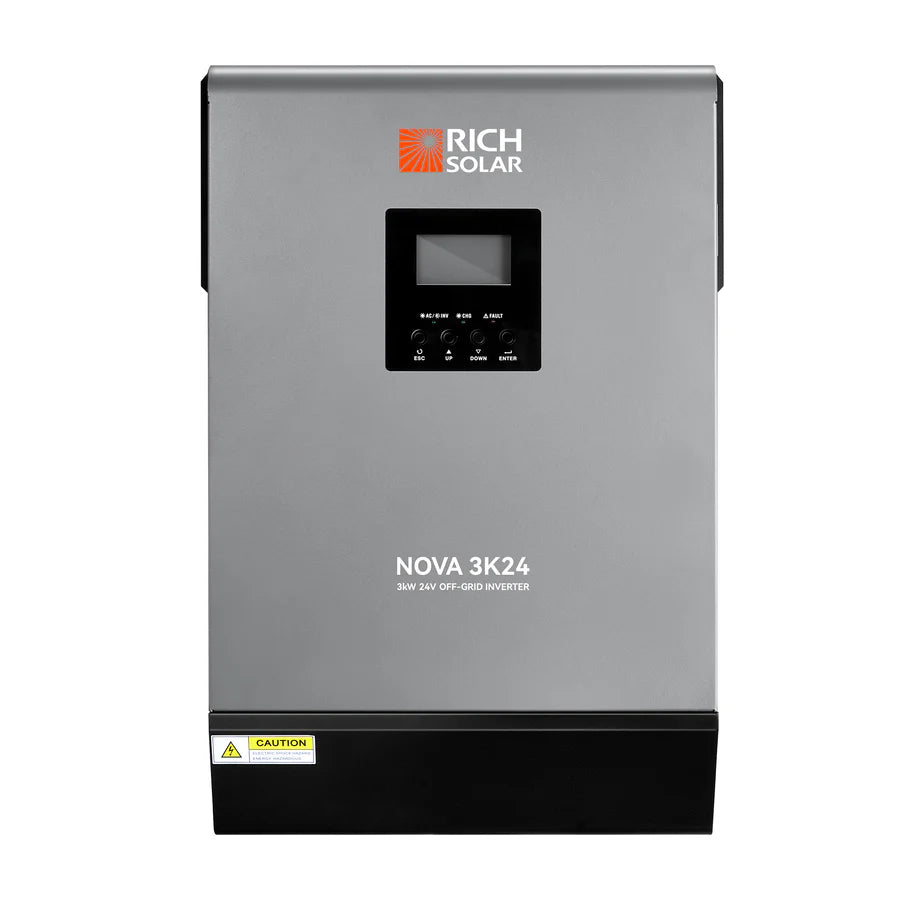

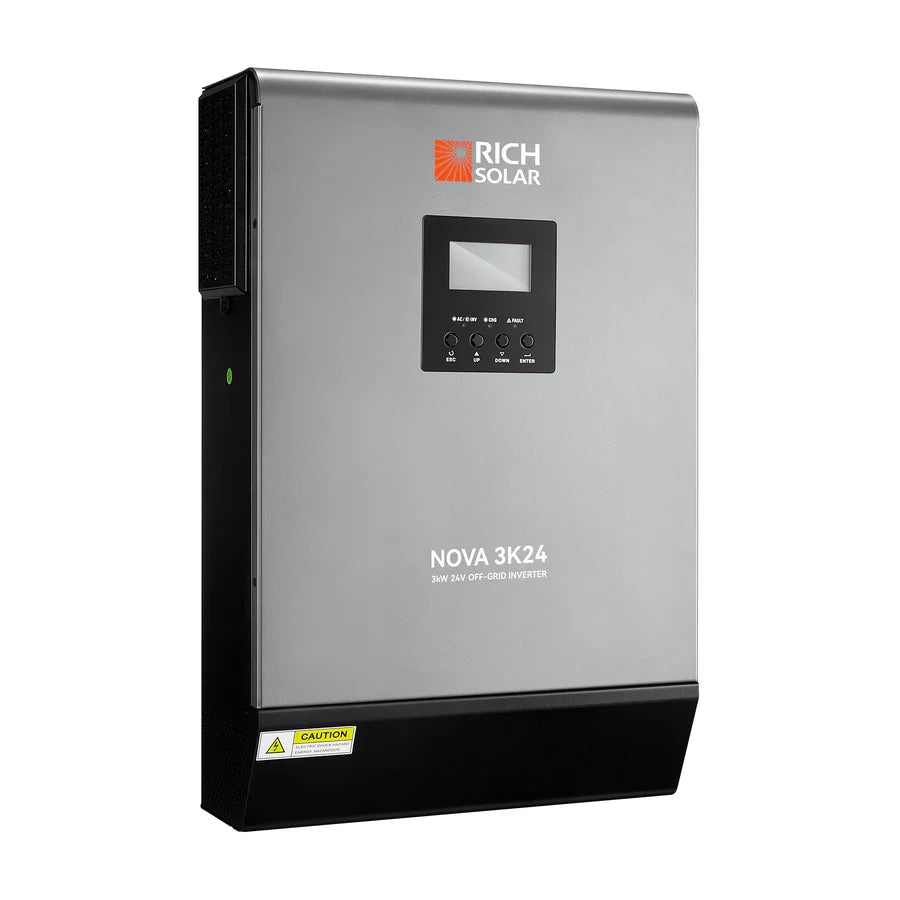

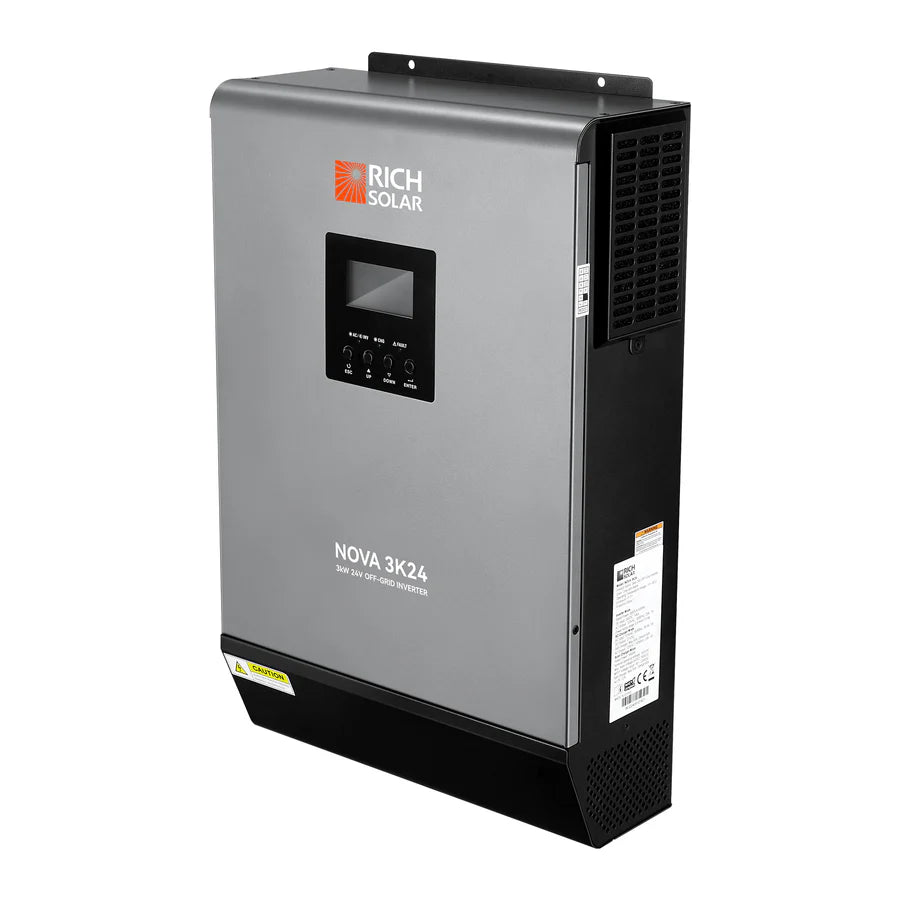

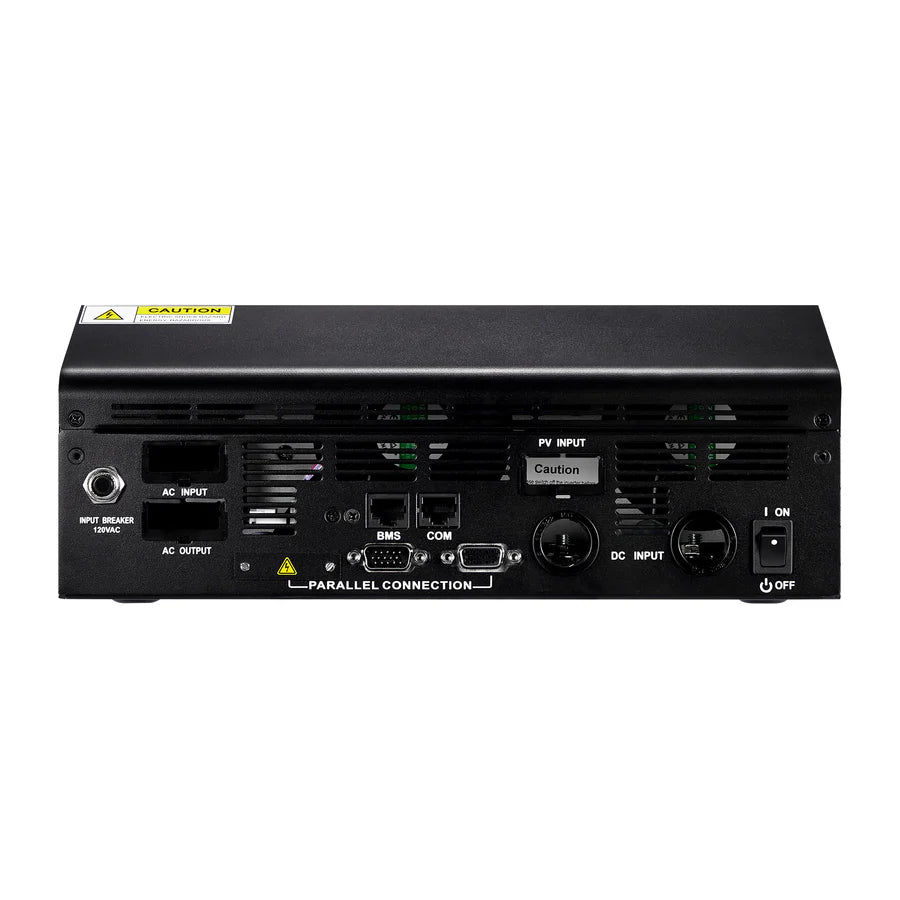

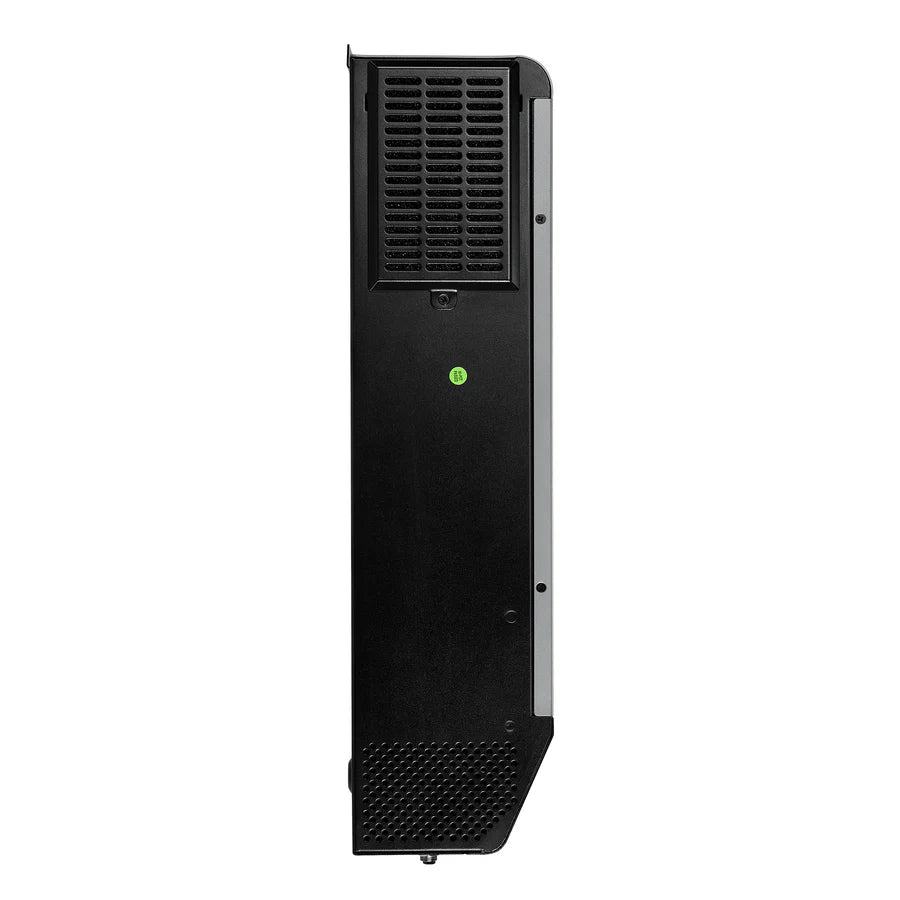

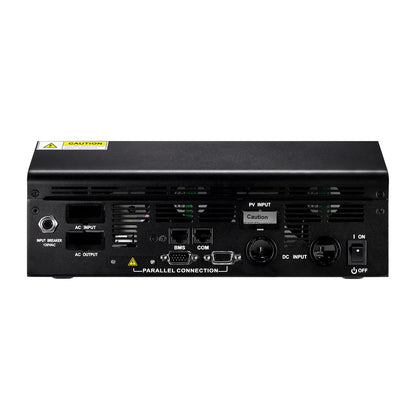

Rich Solar NOVA MAX 3K | 3kW 24 Volt Powerful Off-Grid Hybrid Solar Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid Inverter

Name: Rich Solar NOVA MAX 3K | 3kW 24 Volt Powerful Off-Grid Hybrid Solar Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid Inverter
Brand: RICH SOLAR
SKU: RS-H3024
Price: 759.99 USD
Availability: InStock

$759.99 USD

~~$899.99 USD~~ $759.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Rich Solar NOVA MAX 3K | 3kW 24 Volt Powerful Off-Grid Hybrid Solar Inverter for RVs, Trailers, Campers, Vans, Trucks, Overlanders, Boats | #1 Ranked 24V Hybrid Inverter

Features

Pure Sine Wave Inverter
Built-in MPPT solar charge controller

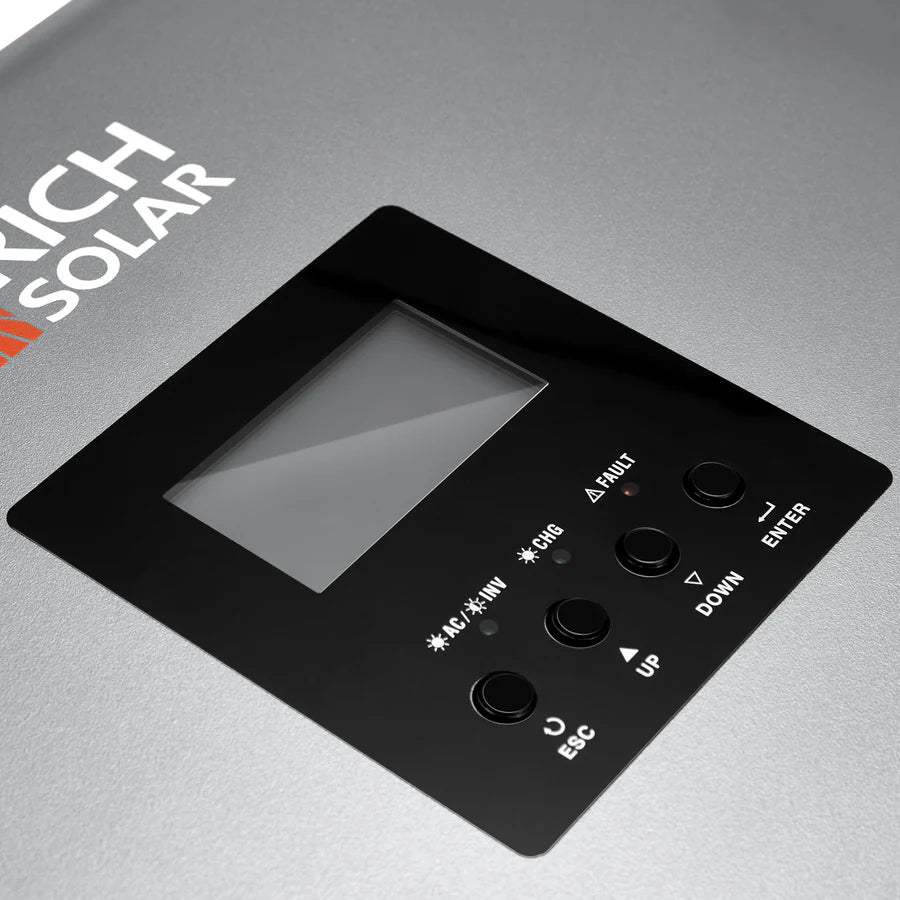

Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload / Over temperature / short circuit protection
Smart battery charger design for optimized battery performance
Cold start function

WHAT IS A BASIC SOLAR SYSTEM?

Understanding the basics of an off-grid solar system.

Rich Solar Panel System

Specifications & Downloads

Weight

26.5 lb
Dimensions

5.6 x 12.1 x 18.8 in
Maximum PV Array Open Circuit Voltage

250 VDC
MPPT Range @ Operating Voltage

90 VDC ~ 230 VDC
Number of MPP Tracker

1
Rated Output Power

3000W

Specifications

Inverter
- Model: NOVA 3K24
- Rated Output Power: 3KVA / 3KW
- Output Voltage Waveform: Pure Sine Wave
- Output Voltage Regulation: 120 VAC±5%
- Output Frequency: 60Hz / 50Hz
- Peak Efficiency: 91%
- Surge Capacity: 2* rated power for 5s
- Nominal DC Voltage: 24 VDC
Solar Input
- Max. PV Array Open Circuit Voltage: 250 VDC
- PV Array MPPT Voltage Range: 90 VDC~230 VDC
- Max. Input Current: 18A
Physical
- Operation Temperature Range: 14°F ~ 104°F
- Dimension (D*W*H): 5.6*12.1*18.8in (142.4*307.8*477.6mm)
- Net Weight: 26.5lb (12kg)
