Rich Solar 1250W 48VDC-120VAC Solar Kit

Rich Solar 1250W 48VDC-120VAC Solar Kit

$4,999.99 USD
$4,999.99 USD
Sale Sold out
California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

View full details

Product details

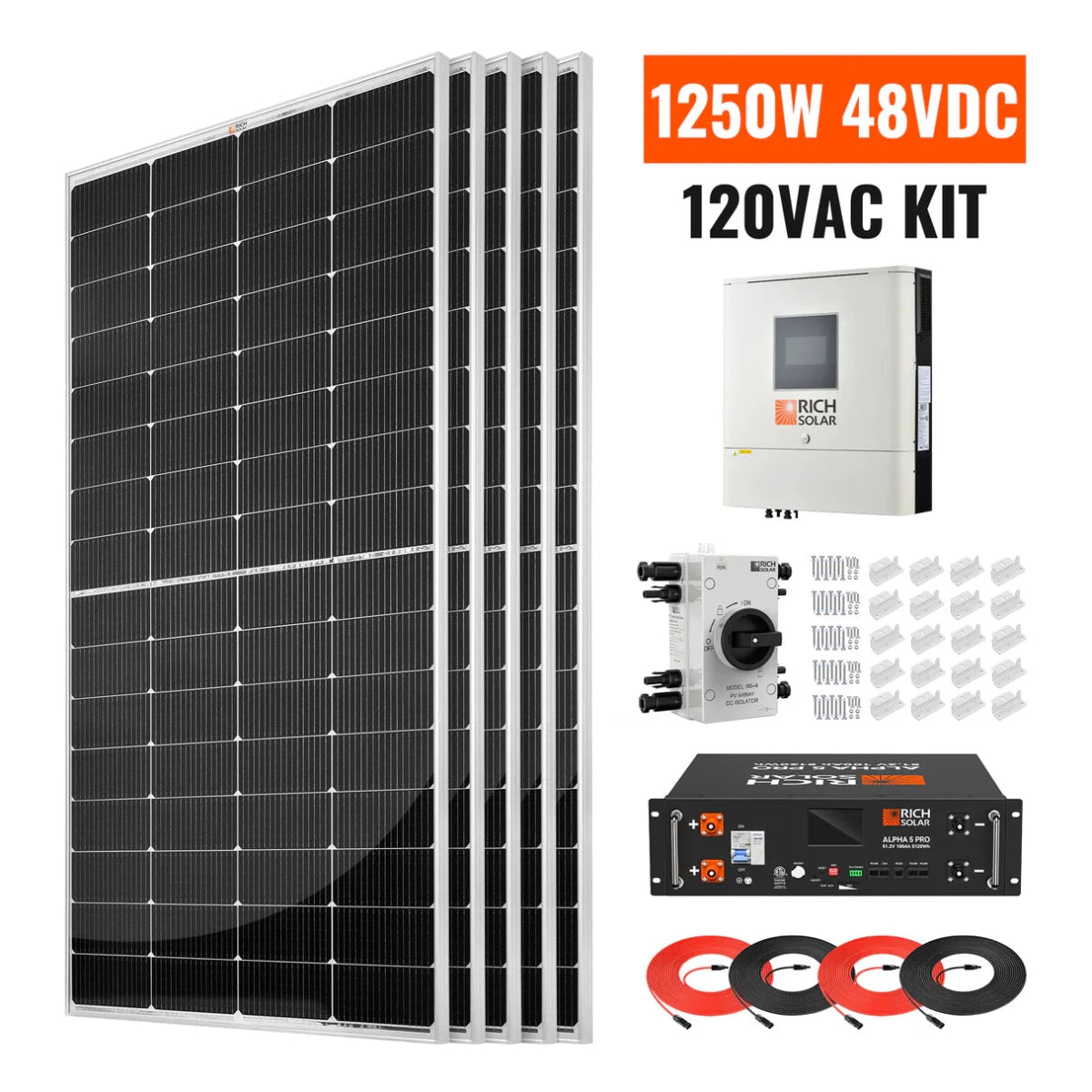

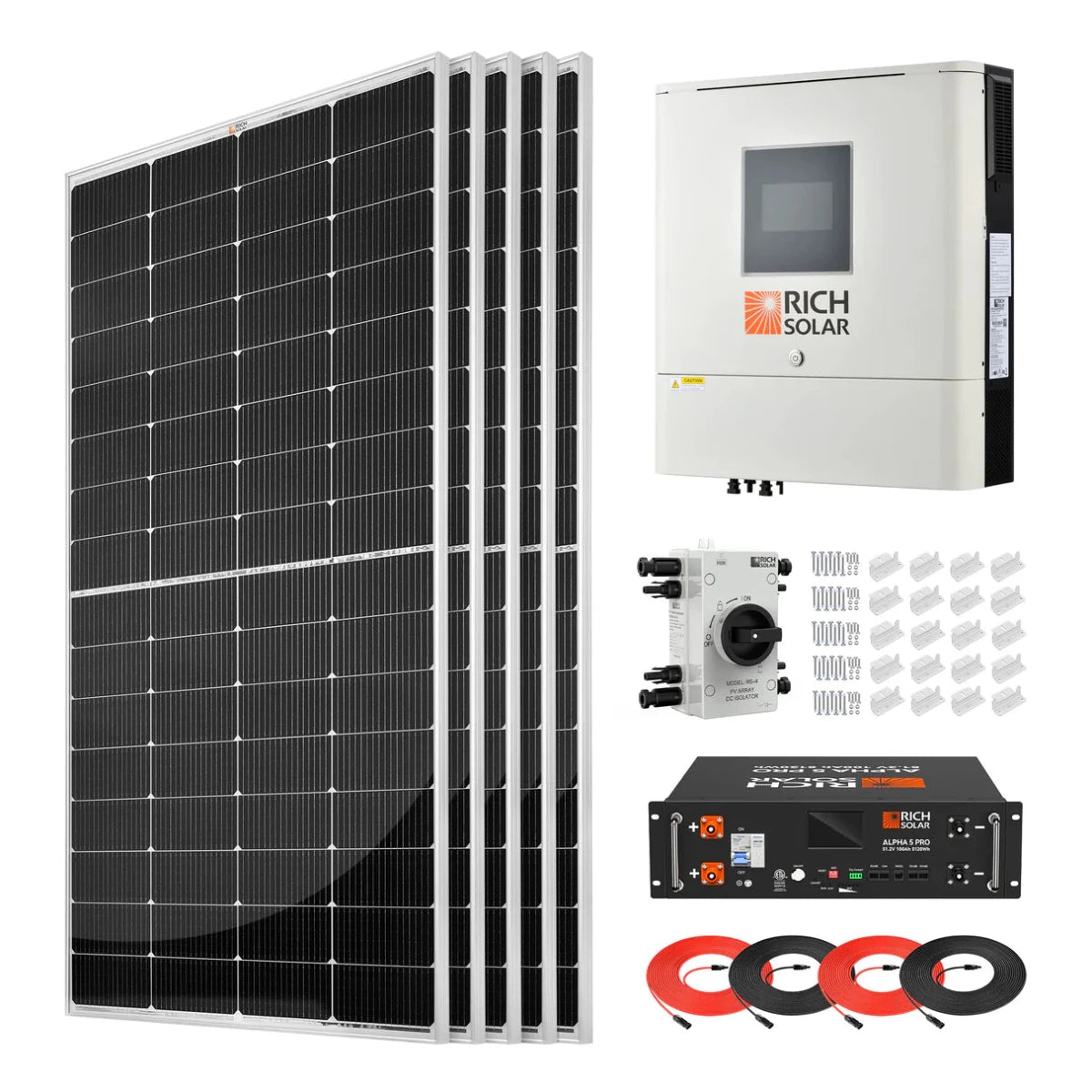

Rich Solar 1250W 48VDC-120VAC Solar Kit

Features

    • 1250W Solar Array: Includes five 250W monocrystalline solar panels, producing approximately 4.5kWh of energy per day under 4 peak sun hours.
    • 5.12kWh LiFePO₄ Battery: Provides 51.2V 100Ah (5120Wh) of reliable energy storage for day and night use.
    • 6500W Hybrid Inverter: Delivers 6,500W continuous (13,000W surge) pure sine wave power with a built-in 120A MPPT charge controller, supporting solar, battery, utility, and generator inputs.
    • Complete System Kit: Professionally matched components simplify system design and installation while ensuring reliable system performance.
    • Versatile Applications: Ideal for cabins, tiny homes, workshops, barns, remote properties, and backup power.

    Kit Includes

    • 1 x 6500W 48V Off-grid Solar Inverter (RS-H6548S)
    • 5 x MEGA 250 12V 250W solar Panels (RS-M250)
    • 1 x ALPHA 5 PRO 51.2V 100Ah Server Rack Lithium Battery (RS-B5121P)
    • 1 x 10 AWG 30 ft Extension Cable (RS-30102)
    • 1 x 10 AWG 10 ft Extension Cable (RS-10102)
    • 8 x Z-Bracket Sets (one set of 4) (RS-ZB4C)
    • 1 x PV DC Quick Disconnect (RS-i4)



      MEGA 250

      250 Watt Solar Panel

      • No. of Panels: 5 x MEGA 250Watt Solar Panels
      • Wattage Per Panel: 250W
      • Total Wattage of Panels: 1250W

      Features:

      • 16-busbar solar cell configuration
      • Lightweight anodized aluminum frame
      • High Transmission, AR (anti-reflective) Coated Tempered Glass
      • Plug and play junction box
      • Industry standard quick-connect cables work in series or parallel
      • Certified to withstand challenging environmental conditions
      • Excellent low-light performance on cloudy days, mornings and evenings

      Warranty:

      • 25-year output warranty
      • 10-year workmanship warranty

      Specifications:

      • Model: RS-M250
      • Maximum Power (Pmax): 250W
      • Maximum Power Voltage (Vmp): 18.9V
      • Maximum Power Current (Imp): 13.2A
      • Open Circuit Voltage (Voc): 22.8V
      • Short Circuit Current (Isc): 13.7A
      • Maximum System Voltage (Vmax): 1500VDC
      • Temperature Range: -40 ~ +185℉
      • Weight: 26.9 lb
      • Dimensions: 60.6 x 29.9 x 1.2 in



      ALPHA 5 PRO

      51.2V 100Ah LiFePO4 Battery

      Features:

      • Certification: UL1973, UL9540A, FCC
      • 7,000 Deep Cycles Life
      • 5120 Watt Hours Energy
      • 100A Continuous Charge Current
      • Compatible with multiple brands of inverters
      • Low maintenance
      • Over charging or discharging protection
      • Overcurrent & short circuit protection
      • Parallel up to 15 Batteries
      • Connect in Parallel for Larger Capacity
      • With Sophisticated Battery Management System (BMS)
      • 10 Years Lifespan

      Warranty:

      • *10-Year Warranty

      Specifications:

      Electrical Specifications

      • Nominal Voltage: 51.2V
      • Nominal Capacity: 100Ah
      • Minimum Capacity: 99.5Ah
      • Nominal Capacity: 5120Wh

      Operating Specifications

      • Charging Voltage: 56V
      • Discharging Cutoff Voltage: 44.8V
      • Maximum Charging Current: 100A
      • Continuous Charge Current: 100A
      • Maximum Discharge Current: 100A

      Physical Specifications

      • Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
      • Battery Weight: 99.2 lb
      • Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
      • Server Rack Weight: 196.2 lb

      BMS Operation

      • Operation Voltage: 43.2~58.4V
      • Maximum Charging Current: 100A
      • Maximum Discharging Current: 100A
      • Maximum Charge Voltage (CC/CV): 57.6V
      • Overcharge Protection Voltage (Battery): 58.4V
      • Overcharge Protection Release Voltage (Battery): 54V
      • Over Discharge Protection Voltage (Battery): 43.2V
      • Over Discharge Protection Release Voltage (Battery): 47.2V
      • Over Discharge Primary Charge Overcurrent Protection Value: 110A
      • First Stage Charge Over Current Delay: 1s
      • Primary Discharge Overcurrent Protection Value: 110A
      • Primary Discharge Overcurrent Protection Delay: 1s
      • Secondary Discharge Overcurrent Protection Value: 150A
      • Secondary Discharge Overcurrent Protection Delay: 500ms

      Temperature Performance

      • Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
      • Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
      • Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
      • Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

      Others

      • Certification: UL1973, UL9540A, FCC
      • Max. Expansion: 15 pcs in parallel
      • Communication Ports: RS485/RS232/CAN
      • Warranty: 10 Years Manufacturer Defect



      NOVA 6500S

      6500 Watt 48 Volt Off-Grid Hybrid Solar Inverter

      Features:

      • UL Certification
      • Status indication with RGB lights
      • Built-in Wi-Fi for mobile monitoring (Android/iOS)
      • Supports USB on-the-go function
      • Data log events stored in the inverter
      • Reserved communication port for BMS (RS485, CAN-BUS or RS232)
      • Replaceable fan design for ease of maintenance
      • Battery independent design
      • Configurable AC/PV output usage timer and prioritization
      • Adjustable high-power charging current
      • Adjustable input voltage range for home appliances and personal computers
      • Compatible with Utility Mains or generator input
      • Built-in anti-dust kit
      • Optional DC output for DC fan, LED bulb, router, etc.
      • 6-unit parallel operation capabilities

      Warranty:

      • 3-Year Warranty

      Specifications:

      Model: RS-H6548S
      Rated Inverter Power: 6500VA/6500W
      PARALLEL CAPABILITY: Yes, 6 units


      INPUT

      • Voltage: 120 VAC
      • Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)
      • Frequency Range: 50 Hz/60 Hz (Auto Sensing)


      OUTPUT

      • AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
      • Surge Power: 13000VA
      • Efficiency (Peak): 91%
      • Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
      • Waveform: Pure Sine Wave
      • No Load Power Consumption: <75W
      • DC Voltage: 12 VDC ± 5%, 100W


      BATTERY

      • Battery Voltage: 48 VDC
      • Float Charging Voltage: 54 VDC
      • Overcharge Protection: 66 VDC


      SOLAR CHARGER & AC CHARGER

      • Solar Charger Type: MPPT
      • Maximum PV Array Power: 8000W (4000W x 2)
      • MPPT Operating Voltage Range: 90 ~ 230 VDC
      • Maximum PV Array Open Circuit Voltage: 250 VDC
      • Maximum Solar Charge Current: 120A
      • Maximum AC Charge Current: 120A
      • Maximum Charge Current: 120A


      PHYSICAL

      • Dimension (D x W x H): 6.2 x 19.8 x 20.9 in
      • Net Weight: 44 lb
      • Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact


      OPERATING ENVIRONMENT

      • Humidity: 5% to 95% Relative Humidity (Non-condensing)
      • Operating Temperature: 14°F to 104°F
      • Storage Temperature: 5°F to 140°F


      STANDARD

      • Compliance Safety: UL
