RICH SOLAR

Rich Solar 1200 Watt 24V Complete Solar Kit

Rich Solar 1200 Watt 24V Complete Solar Kit

$4,499.99 USD
$4,499.99 USD $4,499.99 USD
Sale Sold out
California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

View full details

Product details

Rich Solar 1200 Watt 24V Complete Solar Kit

Features

  • 1200W Solar Array: Includes six 200W monocrystalline solar panels, producing approximately 4.3kWh of energy per day under 4 peak sun hours.
  • 24V System: Designed as a 24V DC off-grid solar power system for compatible equipment and system expansion.
  • 5.12kWh LiFePO₄ Battery Bank: Includes two 24V 100Ah (2560Wh) ALPHA 4 batteries for dependable energy storage and backup power.
  • 3000W Pure Sine Wave Inverter: Delivers 3,000W continuous (6,000W surge) pure sine wave output for reliable AC power.
  • 60A MPPT Charge Controller: Maximizes solar harvest with up to 99% MPPT tracking efficiency for efficient battery charging.
  • Complete Solar Power Kit: Includes professionally matched components for faster system planning and installation.
  • Versatile Applications: Ideal for RVs, cabins, tiny homes, trailers, and off-grid backup power

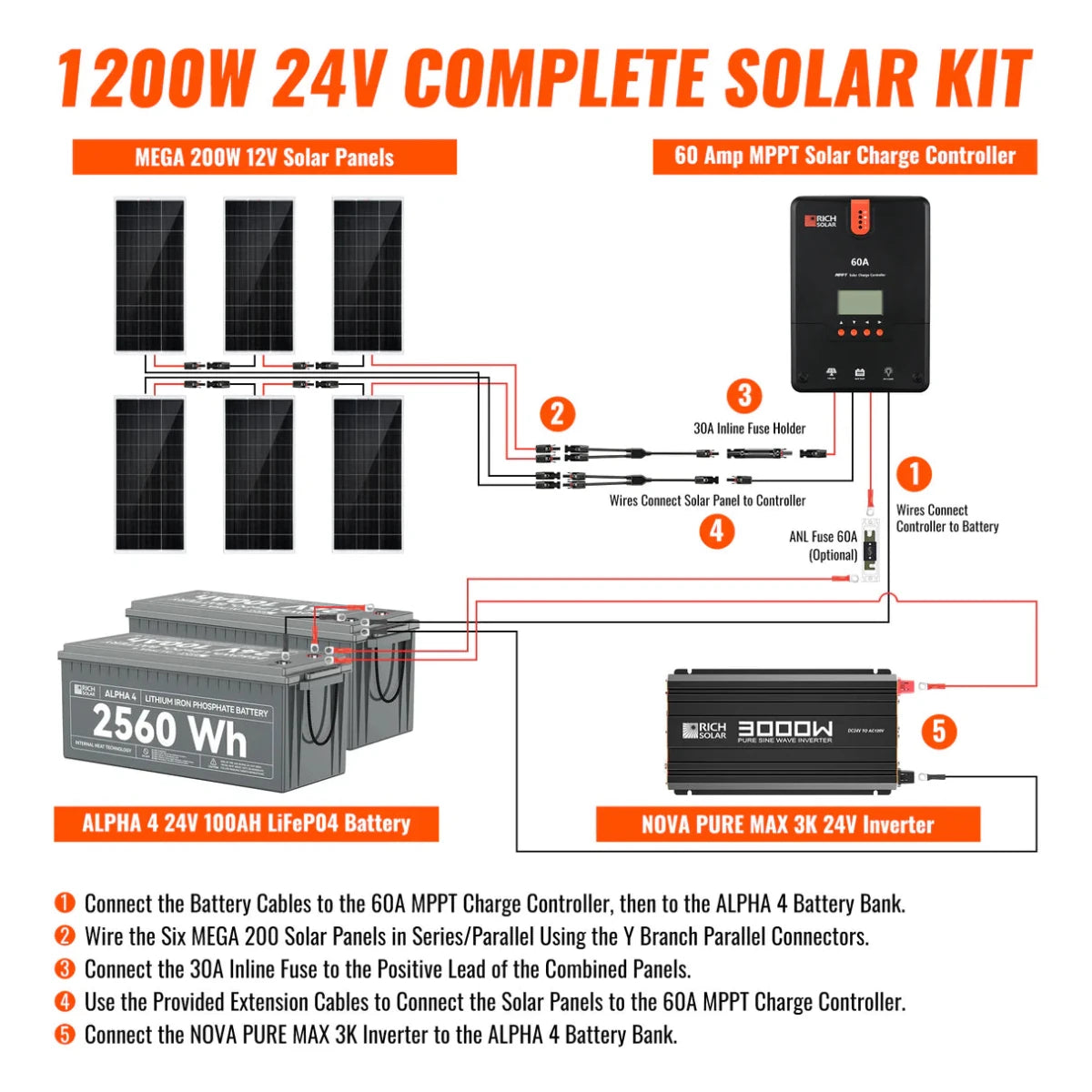

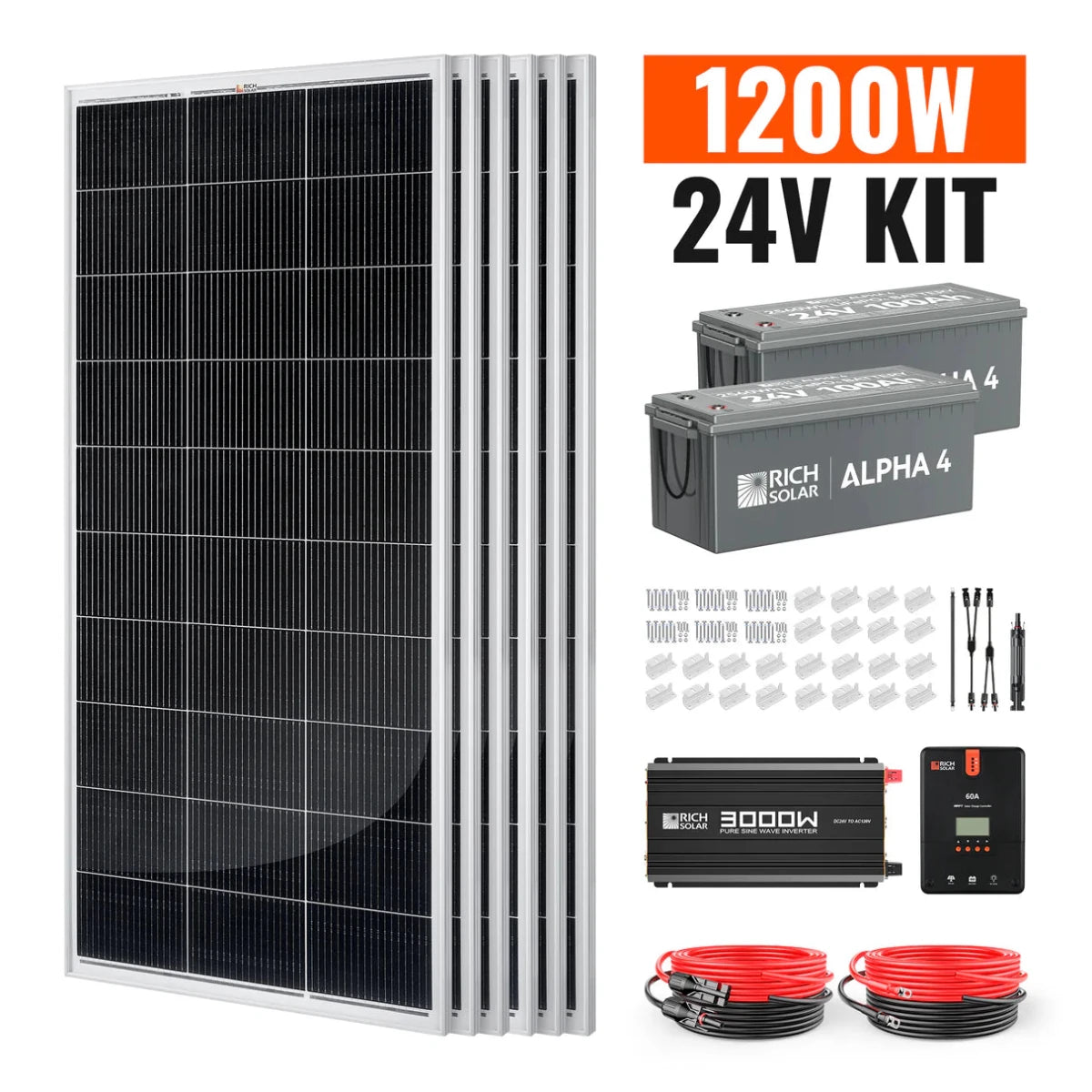

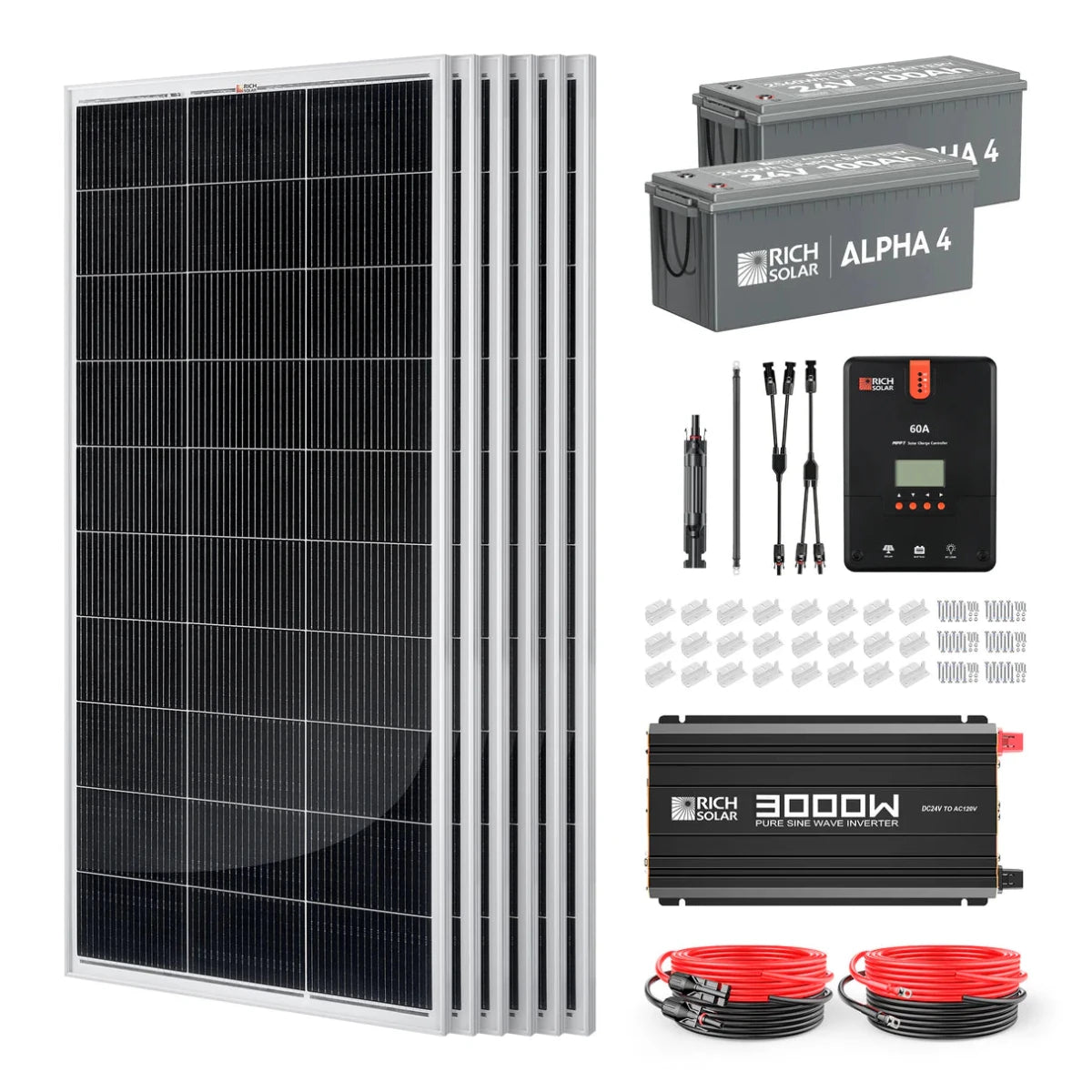

Kit Includes

  • 6 x MEGA 200 12V 200W Solar Panels (RS-M200)
  • 2 x ALPHA 4 Lithium Batteries (RS-B241S)
  • 1 x  3000W 24V Inverter (RS-V3P24)
  • 1 x 60A MPPT Charge Controller (RS-MPPT60)
  • 6 x Z Bracket sets (one set of 4) (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder (RS-SC30F)
  • 1 x Y Branch Parallel Adapter (RS-Y2)
  • 1 x 2 AWG 1 ft Inverter Battery Cable Red (RS-C21R)
  • 1 x 2 AWG 1 ft Inverter Battery Cable Black (RS-C21B)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
  • 1 x 8 ft 4 AWG  Battery Cable Set (RS-C48B & RS-C248R)






MEGA 200

200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

  • No. of Panels: 6 x MEGA 200 Watt Solar Panels
  • Wattage Per Panel: 200W
  • Total Wattage of Panels: 1200W

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

  • Maximum Power(Pmax): 200W
  • Maximum Power Voltage(Vmp): 18.4V
  • Maximum Power Current(Imp): 10.9A
  • Open Circuit Voltage(Voc): 21.8V
  • Short Circuit Current(Isc): 11.6A
  • Temperature Range: -40 ~ +185°F
  • Maximum Series Fuse Rating: 15A
  • Weight: 24 lb
  • Dimensions: 58.7 x 26.8 x 1.2 in





Alpha 4

24V 100Ah LiFePO4 Battery

Features:

  • Stay powered in low temps with advanced internal heating tech
  • Track battery health in real time from your phone
  • Over 5,000 cycles with UL94 V-0 flame-retardant protection
  • IP65 waterproof, dustproof, and tested for extreme safety
  • Free of toxic metals—safe for you and the planet
  • Lightweight design, heavy-duty performance
  • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

Warranty:

  • *5-Year Warranty

Specifications:

4°F to 140°F (-20°C to 60°C)

Battery

  • Cell Type: Lifepo4 Battery
  • Nominal Voltage: 25.6V
  • Nominal Capacity: 100Ah
  • Nominal Energy: 2560Wh
  • Cycle Life: 5000 Cycles

BMS

  • BMS: 100A
  • Maximum Charging Current: 100A
  • Maximum Continuous Discharge Current: 100A
  • Maximum Discharge Current 10 Seconds: 110A

Charge

  • Charge Method: CC/CV
  • Charge Voltage: 14.4V ± 0.2V
  • Recommend Charge Current: 50A (0.5C)

Temperature

  • Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
  • Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
  • Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)

Self-heating

  • External Power Draw: 100W
  • Internal Heating Starts: < 41°F (5°C)
  • Internal Heating Stops: > 50°F (10°C)

Others

  • Net Battery Weight: 48.5lb
  • Size(LxWxH): 20.9x8.1x8.5in
  • Housing Material: ABS (Flame Retardant Plastic)
  • Protection Class: IP65
  • Warranty: 5 Years





NOVA PURE MAX 2K

3000W 24V Pure Sine Wave Inverter

Features:

  • Electronic overload protection with automatic shutdown.
  •  Built-in internal backup DC fuse provides added safety.
  • Low battery voltage protection with automatic shutdown.
  • Over-temperature protection with automatic shutdown.
  • Output short-circuit protection.

Warranty:

  • 2-Year Warranty

Specifications:

  • Model: RS-V3P24
  • Rated Voltage: 24V DC
  • Continuous Power: 3000W
  • Peak Surge: 6000W
  • Waveform: Pure Sine Wave
  • Input Voltage: 24V DC
  • Output Voltage: 120V AC
  • Output Frequency: 60 Hz
  • Output Efficiency: ＞88%
  • AC Output Sockets: 3
  • USB Power Port: 5V / 2.1A
  • Power Output Control: AC On/Off Switch
  • Operating Temperature: 14°F to 122°F
  • Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
  • Weight: 12.1 (lb) / 5.5 (kg)





60 Amp MPPT Solar Charge Controller

Features:

  • Automatically detects 12V/24V/36V/48V DC system voltages.
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
  • Features diverse load control; also capable of charging over-discharged lithium batteries.
  • Die-cast aluminum design allows for efficient heat dissipation.
  • RS232 port for communicating with BT-1 Bluetooth module.

Warranty:

  • 2-Year Warranty

Specifications:

  • Rated Battery Current: 60A
  • Rated Load Current: 20A
  • Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
  • Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
  • Charge Circuit Voltage Drop: ≤0.26V
  • Discharge Circuit Voltage Drop: ≤0.15V
  • Operating Temperature: -31°F to 113°F
  • Max Terminal Size: <11mm
  • Overall Dimensions: 11.2 x 8.1 x 3.7 in
  • Net Weight: 7.94 lb
