Rich Solar MEGA PRO FLEX 24V Flexible Solar Panel | Bendable, IP68 Waterproof, for RV Roofs, Marine, Off-Grid, and Overland Systems

Rich Solar MEGA PRO FLEX 24V Flexible Solar Panel | Bendable, IP68 Waterproof, for RV Roofs, Marine, Off-Grid, and Overland Systems

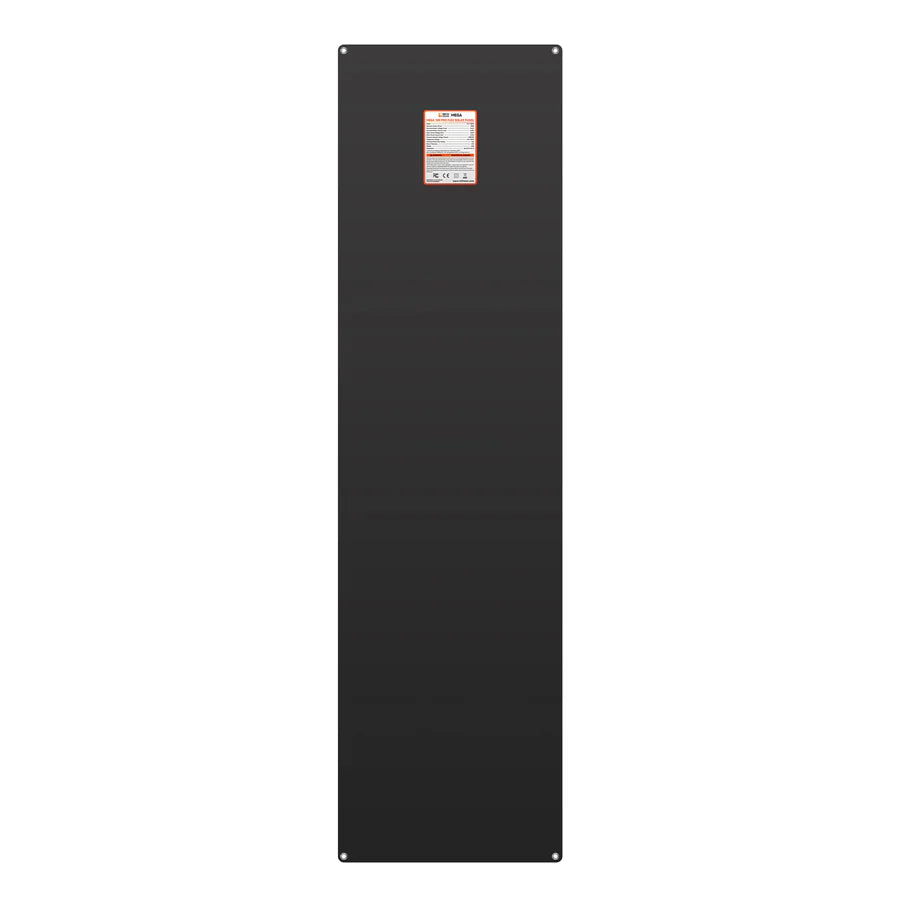

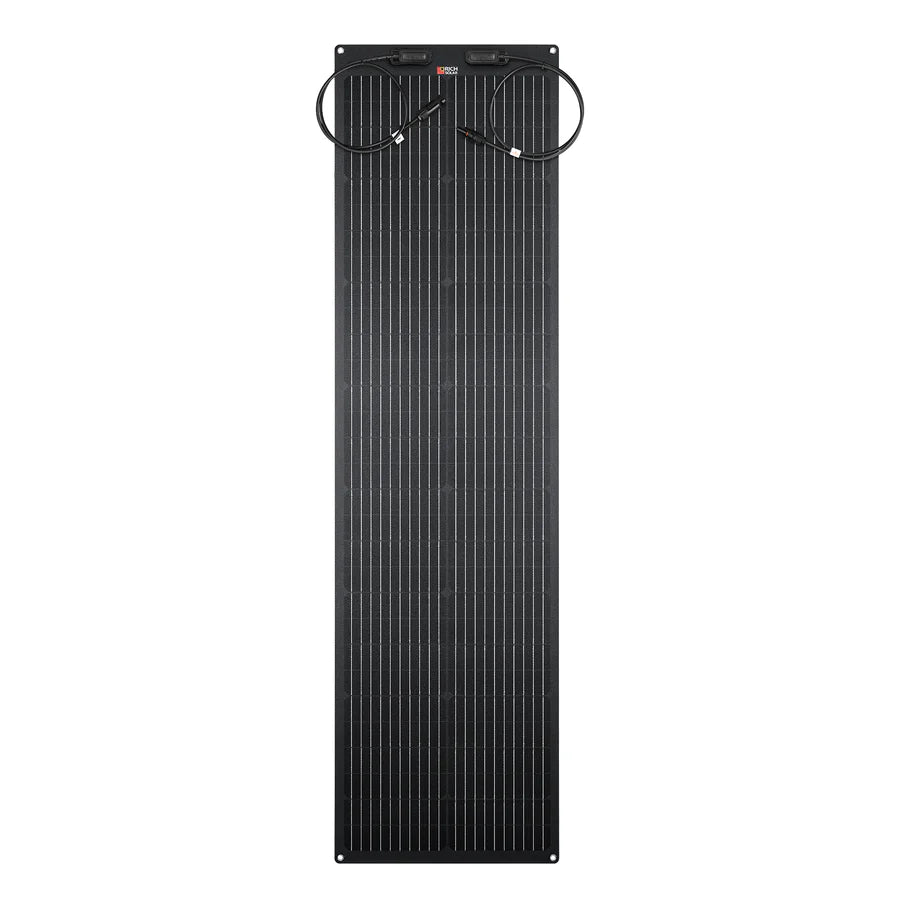

MEGA 100 PRO FLEX

MEGA 100 PRO FLEX | 100W 24V Flexible Solar Panel | Ultra-Lightweight for RV, Marine, Off-Grid & Overland

Features

Flexible Design & Portability

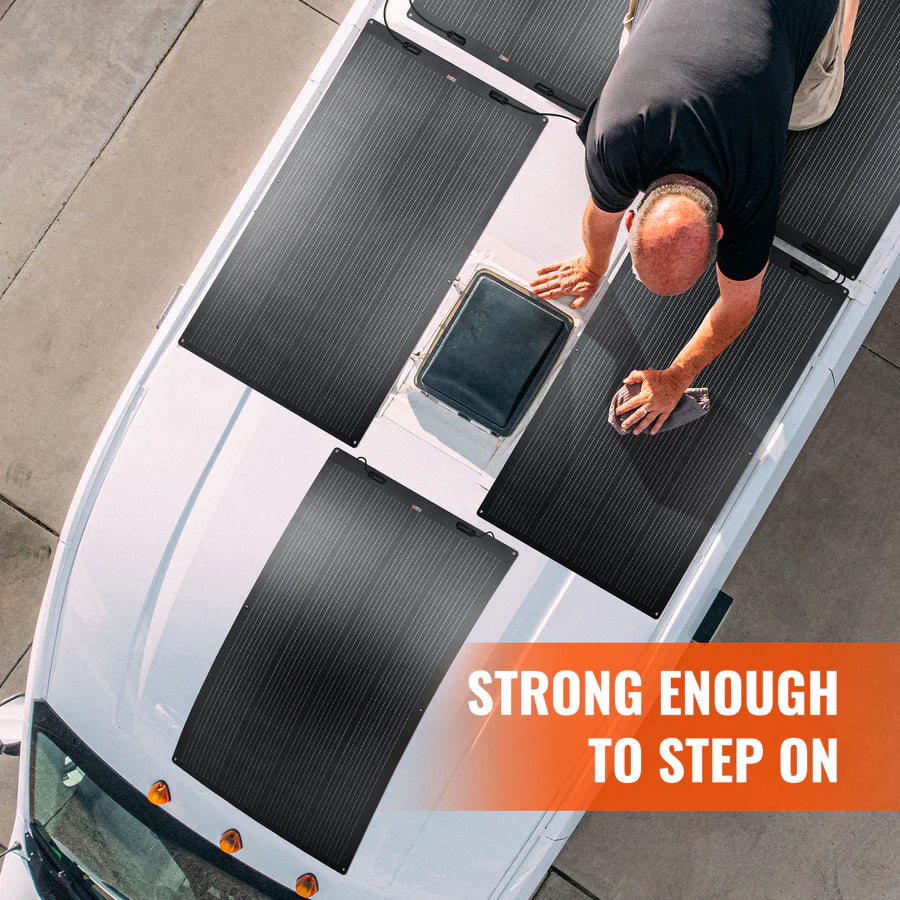

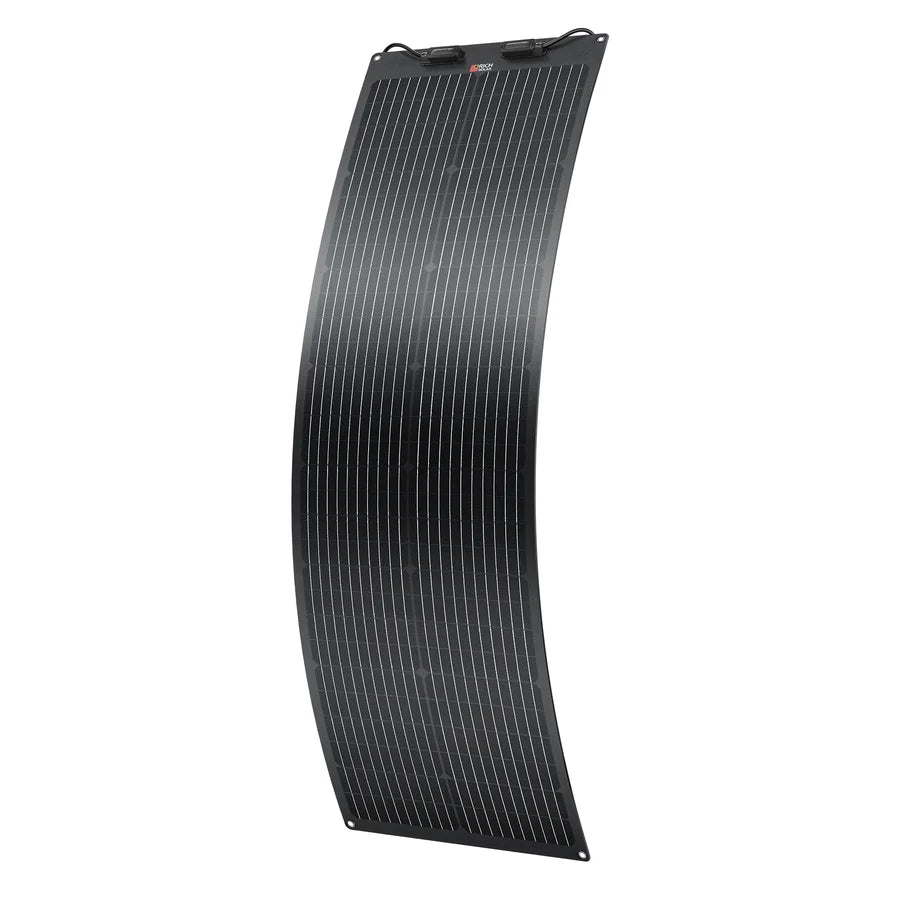

• Bendable panel conforms to curved surfaces such as RV roofs or boats.
• Ultra-thin 0.1 in profile delivers a sleek, space-saving appearance.
• Ultra-lightweight at just 4.8 lb for easy handling and transport.

Technology & Performance

• 10-busbar cell technology enhances light capture, reduces resistance, and improves power output.
• Excellent low-light performance ensures reliable power in cloudy conditions, at dawn, and at dusk.
• A low temperature coefficient of power ensures stable performance in high-temperature environments.
• Non-destructive cell cutting technology minimizes micro-cracks for long-term durability.
• Advanced manufacturing processes and premium materials enhance PID resistance.

Outdoor Durability

• IP68-rated junction box provides protection against water and dust in outdoor environments.
• Engineered to withstand up to 5,400 Pa front load (snow) and 2,400 Pa back load (wind).
• Wide temperature range from -40°F to +185°F for extreme environments.

Easy Installation

• MC4-compatible connectors enable easy series or parallel connections.
• Pre-drilled mounting holes and adhesive backing for flexible and hassle-free installation.

Specifications and Download

• Maximum Power (Pmax)
  100W
• Maximum Power Voltage (Vmp)
  34.2V
• Maximum Power Current (Imp)
  2.92A
• Open Circuit Voltage (Voc)
  40.8V
• Short Circuit Current (Isc)
  3.15A
• Maximum System Voltage (Vmax)
  1500V DC
• Maximum Series Fuse Rating
  15A
• Temperature Range
  -40~+185°F
• Weight
  4.8 lb

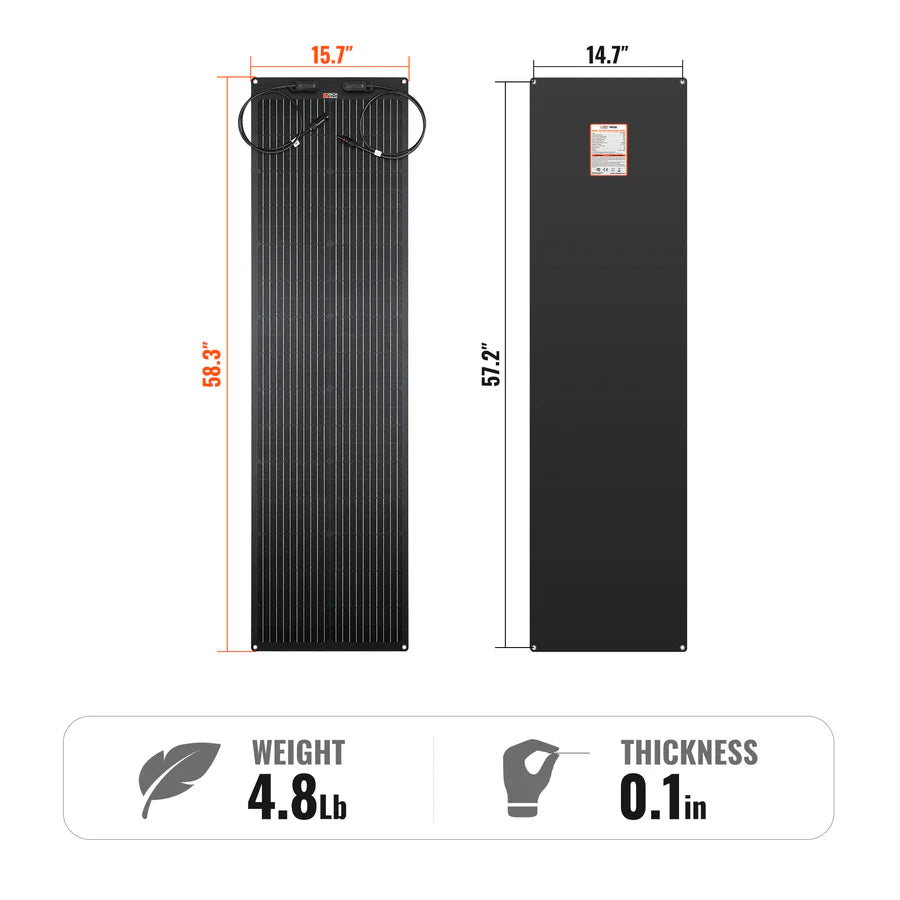

• Dimensions
  58.3 x 15.7 x 0.1 in

SpecificationsDownload

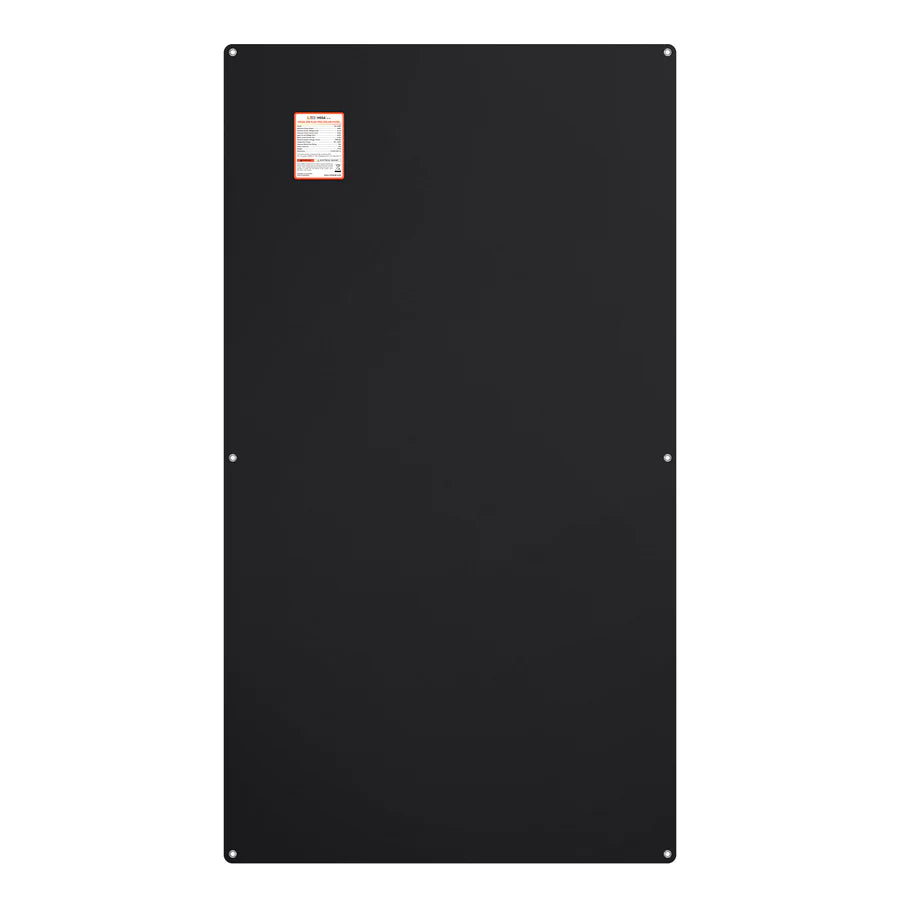

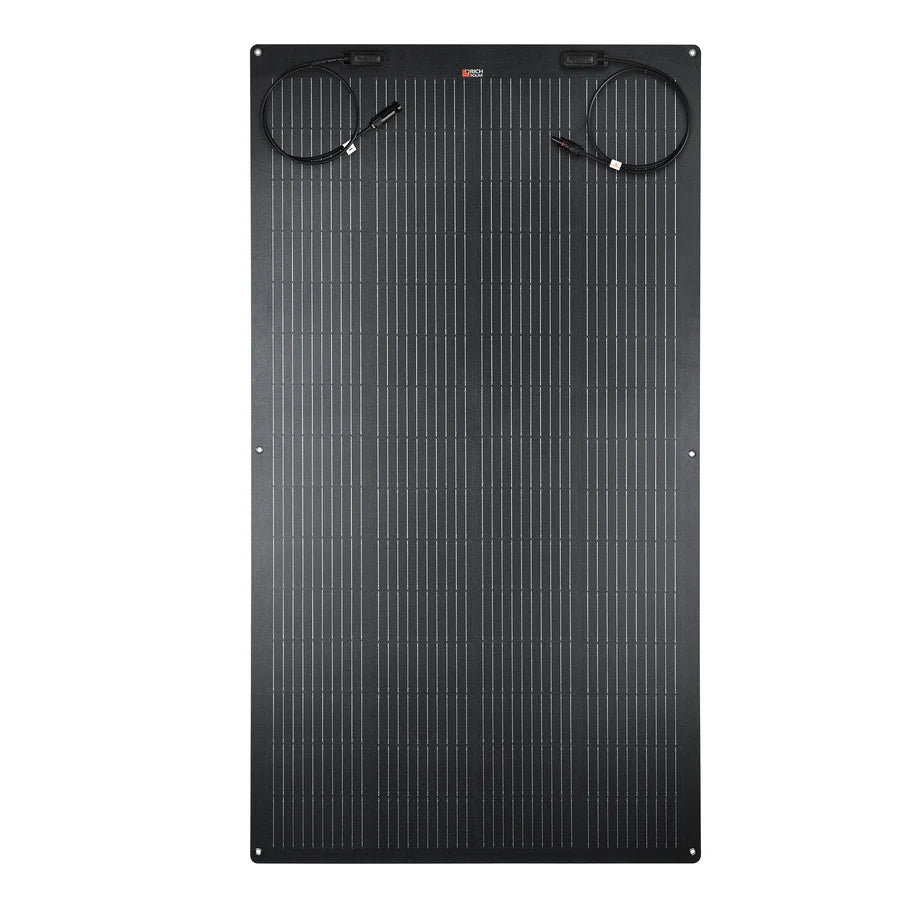

MEGA 200 PRO FLEX

Specifications & Downloads

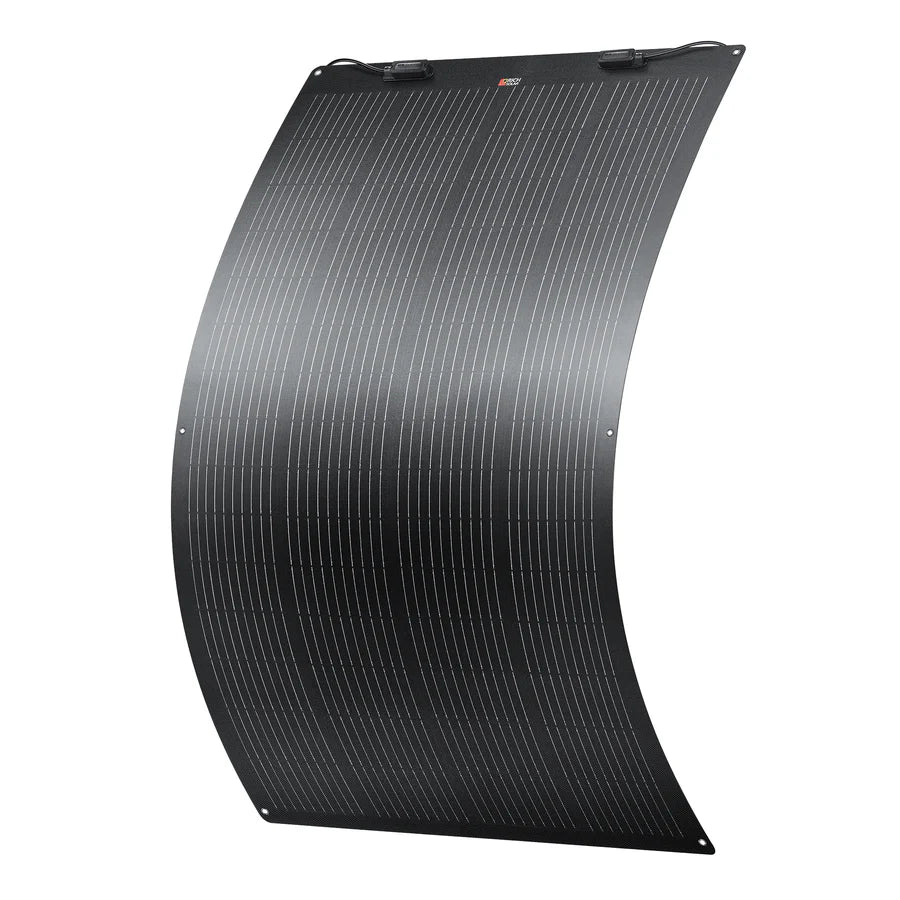

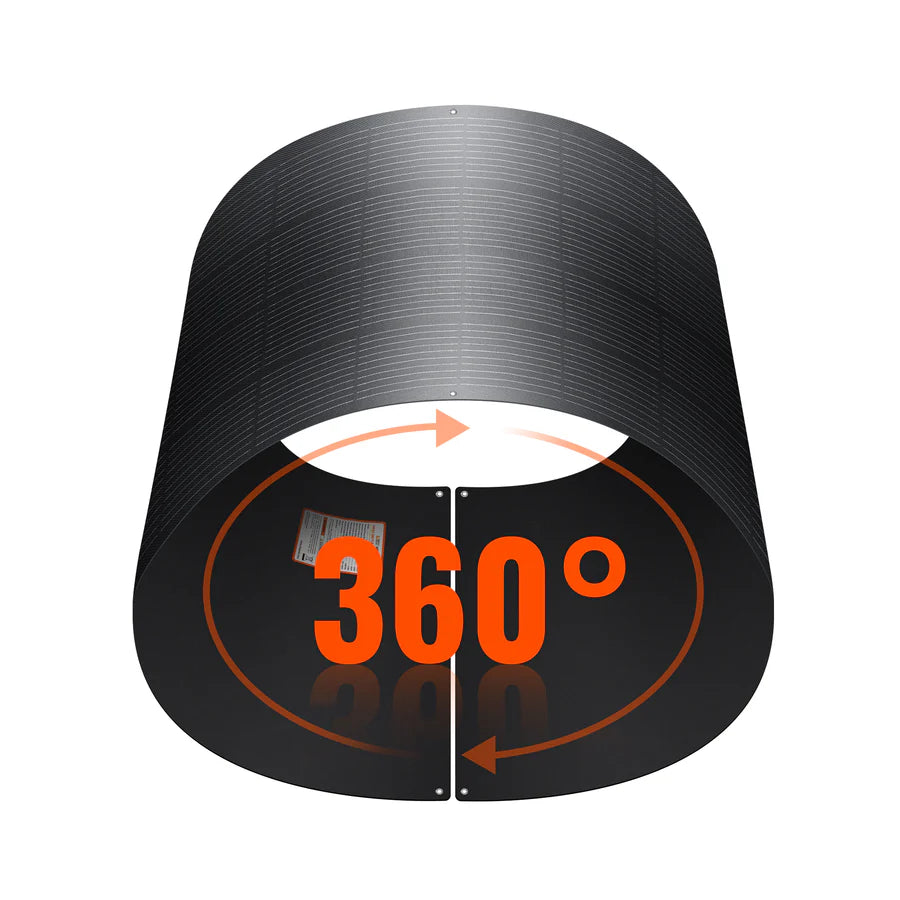

MEGA 200 PRO FLEX | 200W 24V Flexible Solar Panel | 360° Bendable, IP68 Waterproof, for RV Roofs, Marine, Off-Grid, and Overland Systems

• Maximum Power (Pmax)
  200W
• Maximum Power Voltage (Vmp)
  34.2V
• Maximum Power Current (Imp)
  5.85A
• Open Circuit Voltage (Voc)
  40.8V
• Short Circuit Current (Isc)
  6.23A
• Maximum System Voltage (Vmax)
   1500VDC
• Maximum Series Fuse Rating
  15A
• Temperature Range
  -40~+185°F
• Weight
  8.6 lb

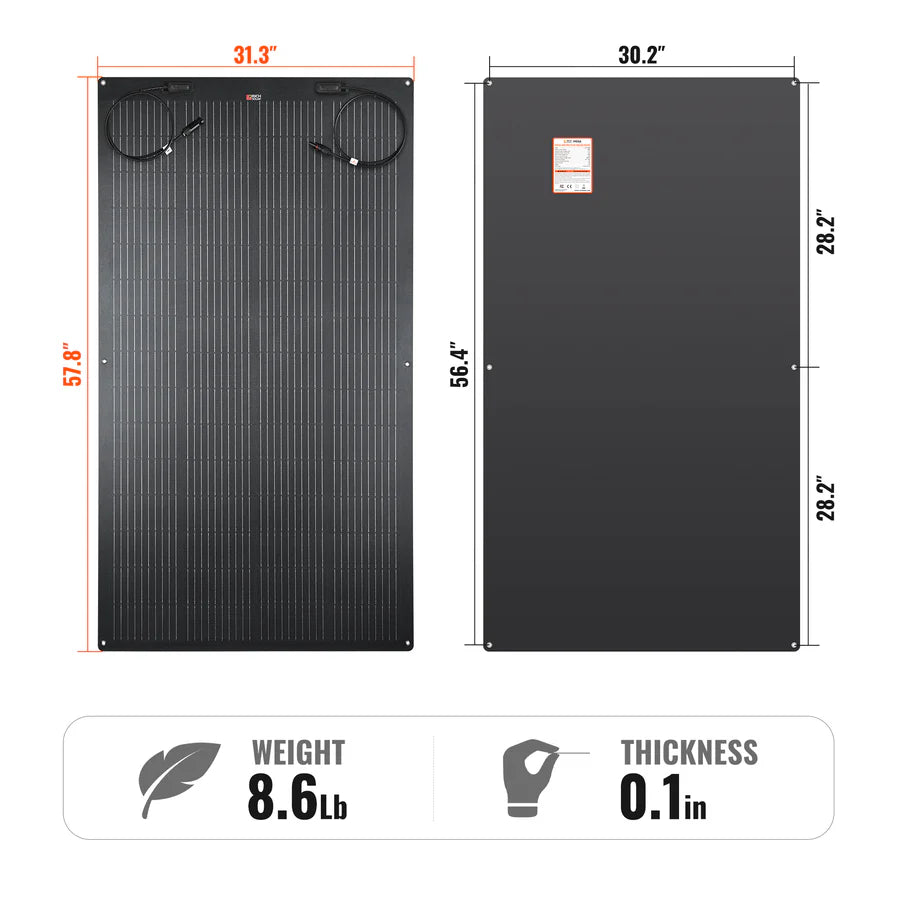

• Dimensions
  57.8 x 31.3 x 0.1 in

 SpecificationsDownload
