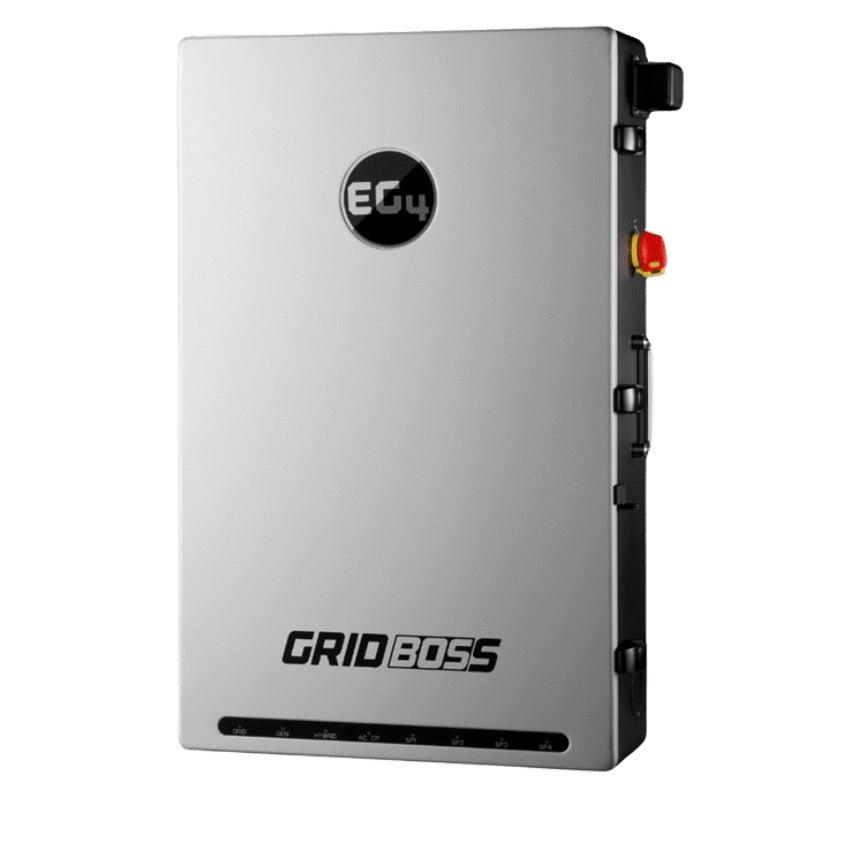

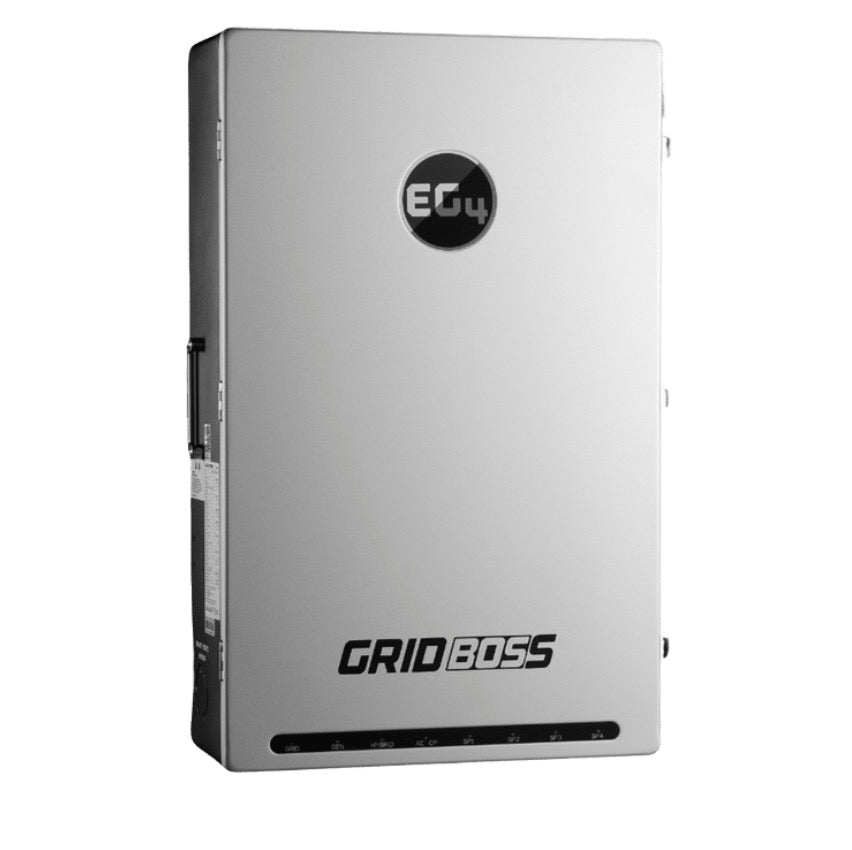

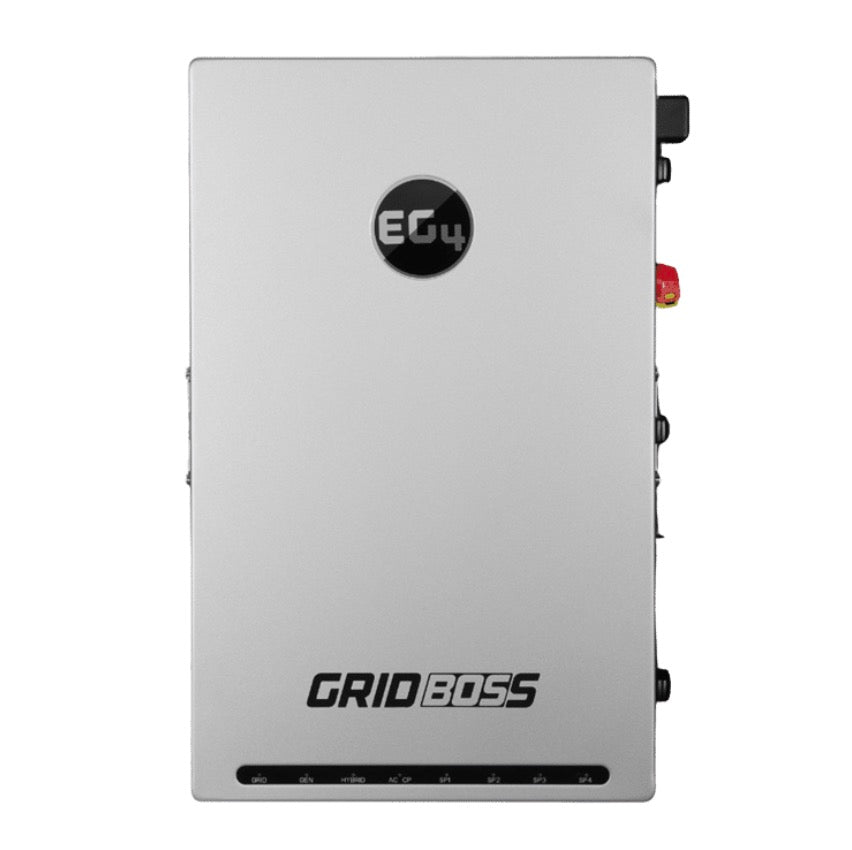

EG4| GridBOSS 200A MID

EG4| GridBOSS 200A MID

Regular price $1,999.00 USD
Regular price $2,399.95 USD Sale price $1,999.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buying Options

The EG4 GridBOSS MID is a revolutionary power gateway designed to simplify and optimize modern energy storage systems. By consolidating up to ten components into a single, centralized unit, the GridBOSS offers unrivaled capabilities, reducing the complexity and cost of system installations while providing seamless control of utilities, inverters, generators, and loads. Engineered to outperform traditional Micro-Grid Interconnect Devices (MIDs), the GridBOSS provides a 200A service entrance rating, cutting-edge smart load management, and flexible port configurations, making it the perfect solution for whole-home backup power, micro-grid setups, solar ESS, commercial systems, and a wide range of energy optimization applications.

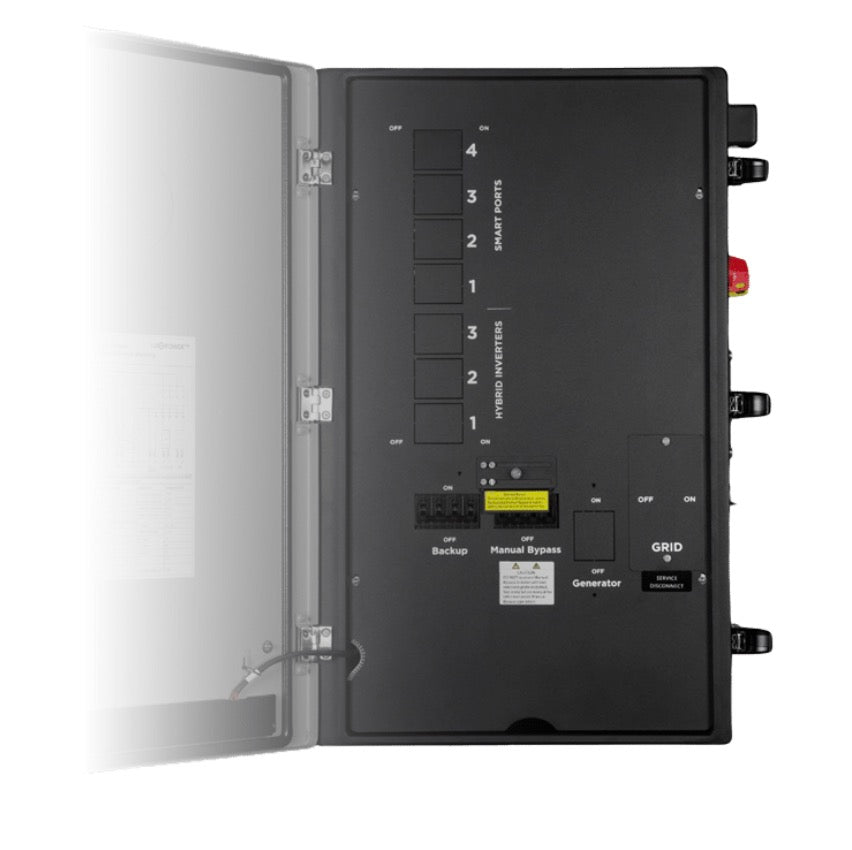

The GridBOSS MID all about simple, effective integration, combining your utility power connection, up to three 90A inverters, and four programmable smart ports capable of AC coupling and managing high-demand loads, all into a single device, eliminating the need for additional breakers, transfer switches, or complex wiring setups. Plus, when it comes to your power, visibility is essential and the GridBOSS was designed with that in mind, featuring real-time remote monitoring and management capabilities through EG4’s updated monitoring software, which tracks energy flow across eight different circuits for optimal system performance. The GridBOSS not only organizes your system while enhancing efficiency, but this state-of-the-art hub simplifies the installation process, reducing hardware and labor requirements, and saving you thousands in install costs.

Features

Suitable For

Tech Specs

Tech Specs | GridBOSS MID

GRID

Nominal Voltage:   120V AC / 240V AC
Frequency: 60 Hz
Max. Continuous Current: 200A
Service Entrance Rating: 200A

GENERATOR

Nominal Voltage:   120V AC / 240V AC
Frequency: 60 Hz
Max. Continuous Current: 125A

BACKUP / NON-BACKUP

Nominal Voltage:   120V AC / 240V AC
Frequency: 60 Hz
Max. Continuous Current: 200A

HYBRID

Number of Ports:   3
Nominal Voltage: 120V AC / 240V AC
Frequency: 60 Hz
Max. Continuous Current (per port): 70A
Supported Inverters: EG4 12kPV, EG4 18kPV, & EG4 FlexBOSS21

SMART PORTS

Number of Ports:   4
Nominal Voltage: 120V AC / 240V AC
Frequency: 60 Hz
Max. Continuous Current (per port): 125A / 80A / 60A / 60A

GENERAL

Internal Busbar Rating:   350A
Internal Fuse Rating: 315A
Operating Temperature Range: -40ºF – 140ºF (-40ºC – 60ºC)
Relative Humidity: 0 – 100%
Altitude: <6,561 ft (2000 m)
Protection Rating: IP14 / NEMA 3R
Communications: RS485 / CANBus / WiFi

DIMENSIONS

Weight:   55 lbs (25 kg)
Depth: 7 in (178 mm)
Width: 19.7 in (501 mm)
Height: 31.5 in (800 mm)
Downloads

GridBOSS MID Downloads

Specs Sheet
User Manual
System Wiring Diagrams
