The EG4 6000XP provides up to 6,000W split-phase output with support for up to 8,000W PV input, enabling seamless integration of solar, battery, and generator power. Paired with the All-Weather battery – featuring 200A continuous output, 8,000+ cycle life, advanced BMS with active cell balancing, and integrated self-heating – this system ensures long-lasting performance in demanding environments.
Built for indoor and outdoor installations, the battery includes a weather-resistant enclosure, internal fire suppression, and full CANBus/RS485 communication for reliable, safe operation. Designed with closed-loop communication, smart energy controls, and U.S.-supported engineering, this ESS delivers efficient, maintenance-free performance year-round.
Ships From: Texas, USA
Warranty: 10 Years (Battery), 5 Years (Inverter)
Support: Lifetime USA-Based Tech Support
Compatibility
Integrated & Optimized System:

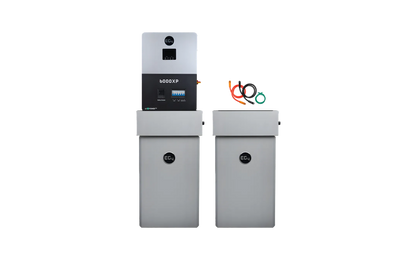

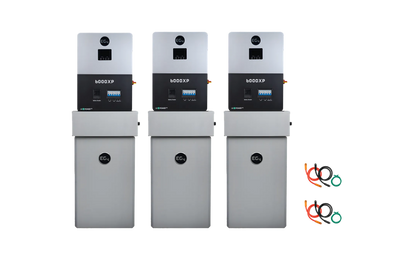

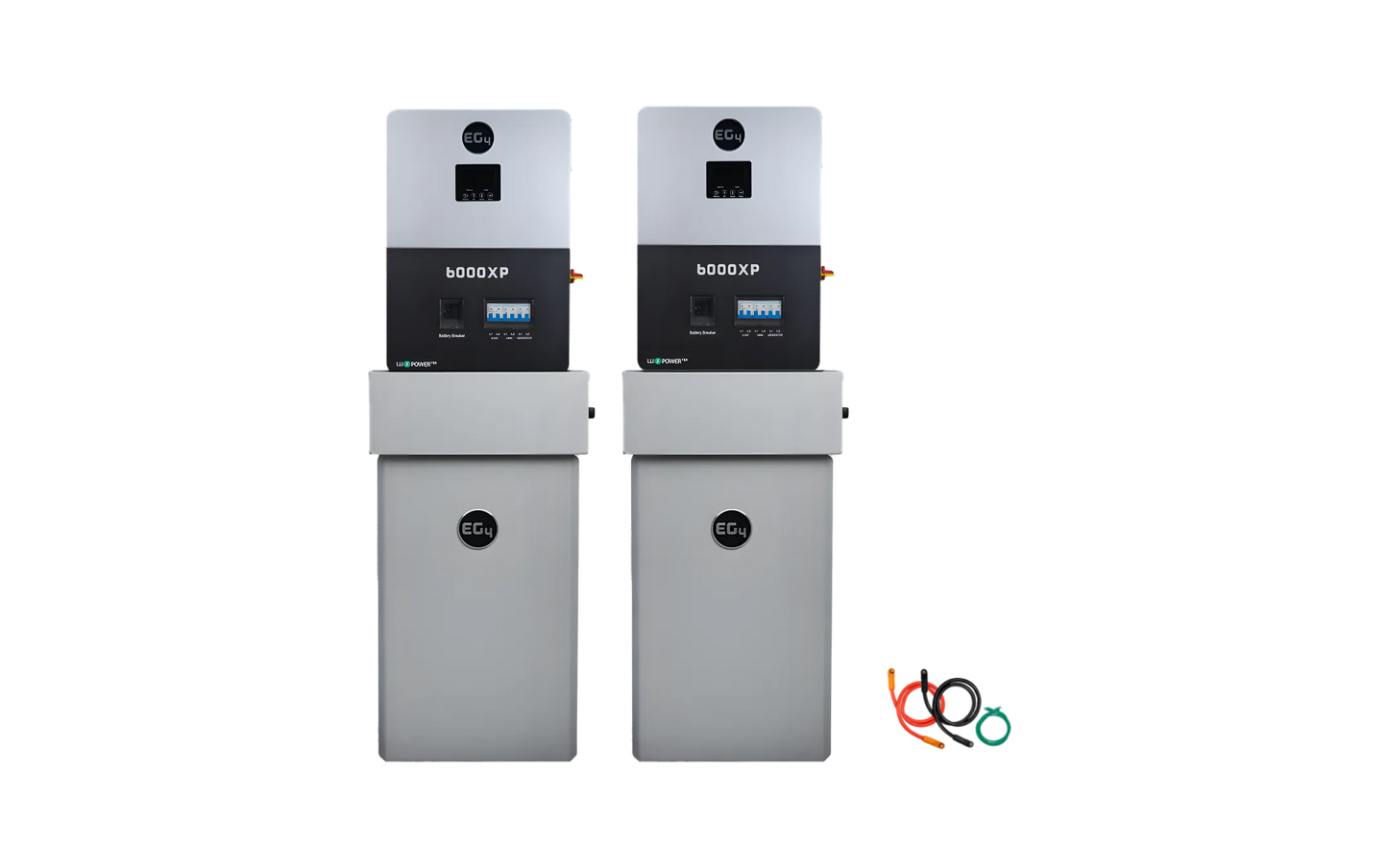

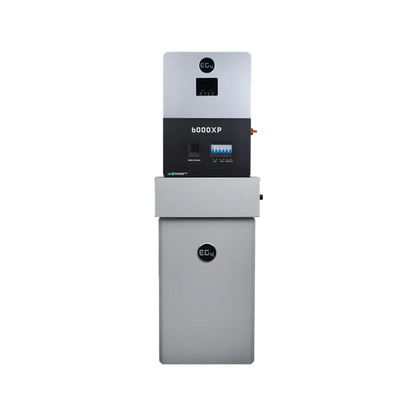

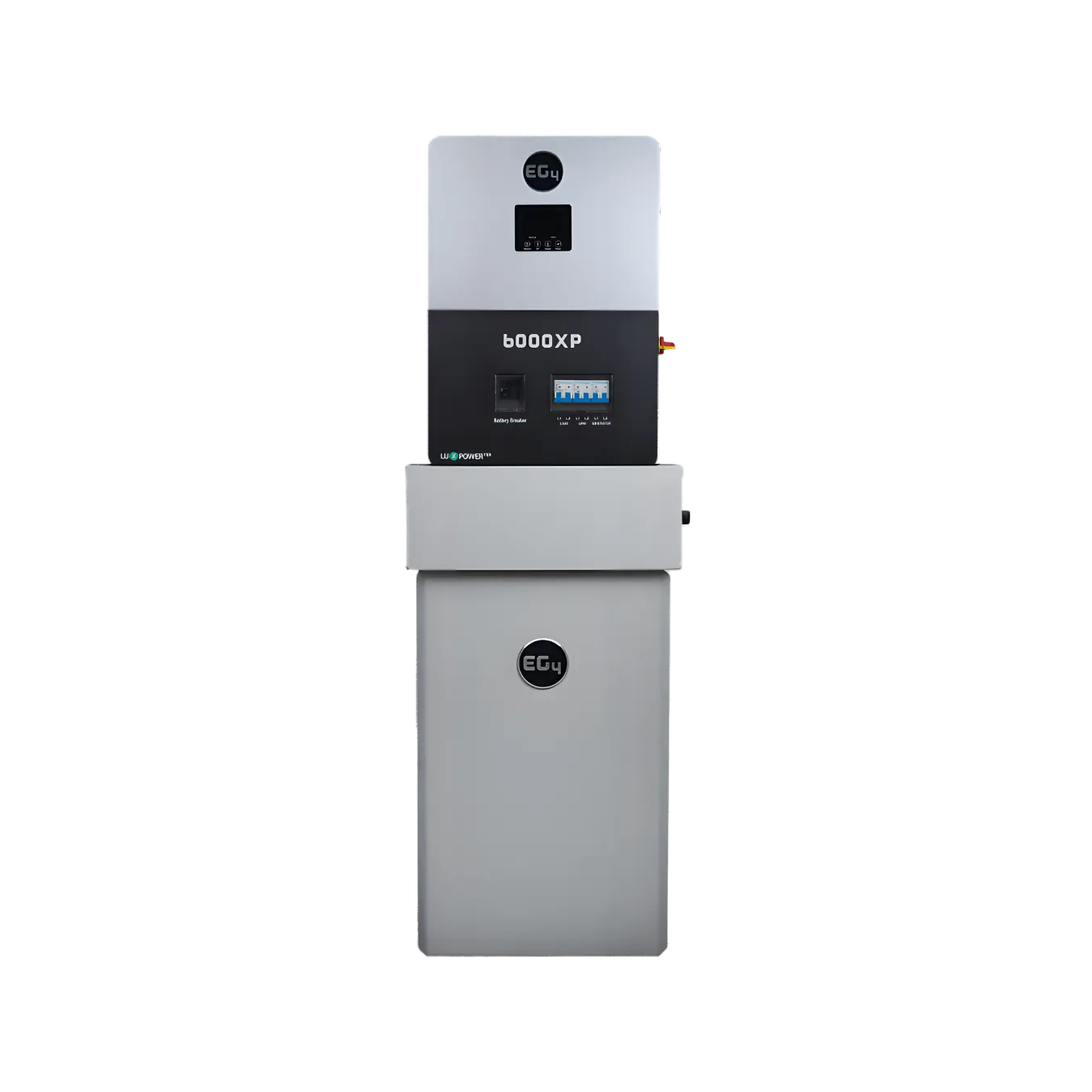

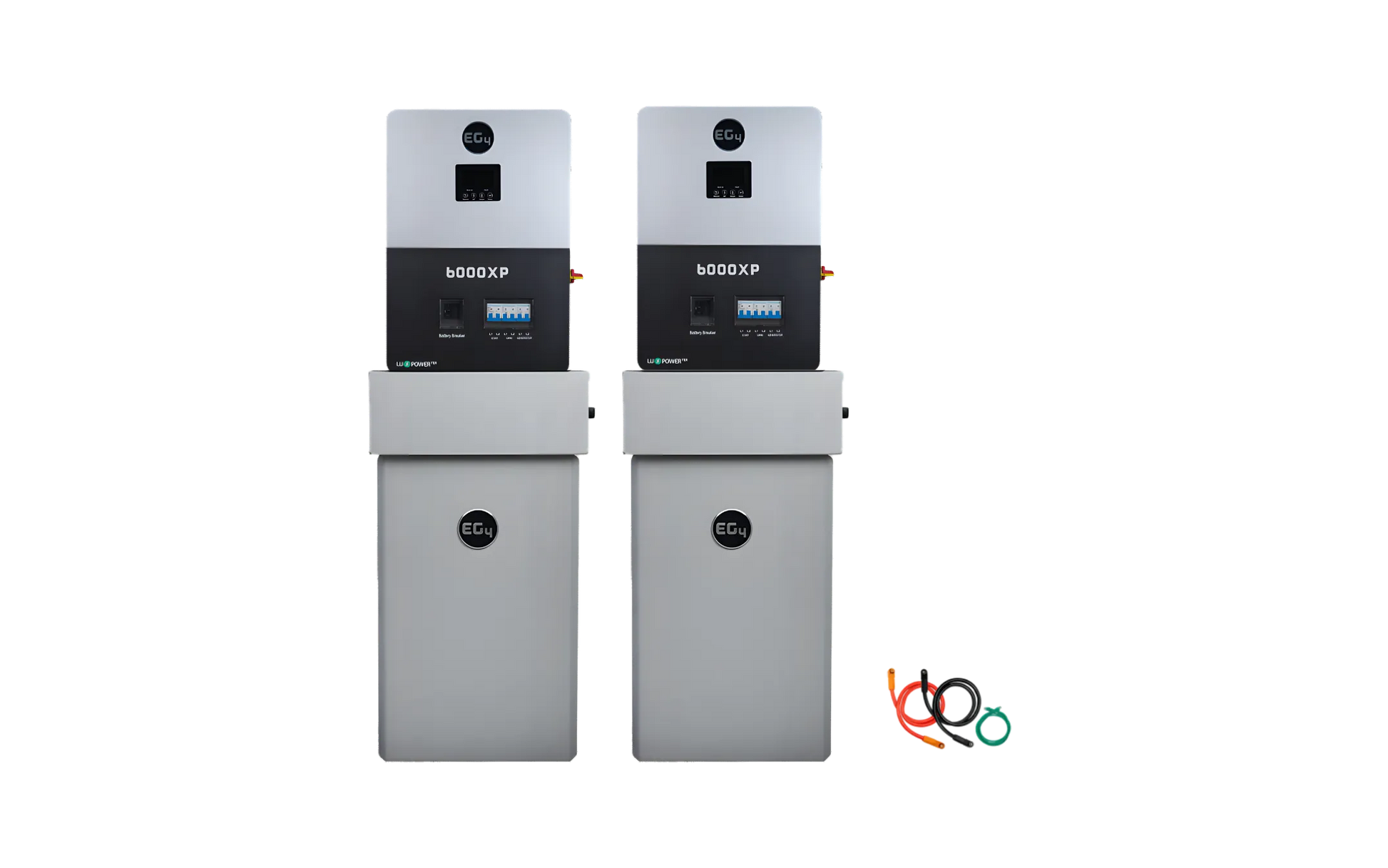

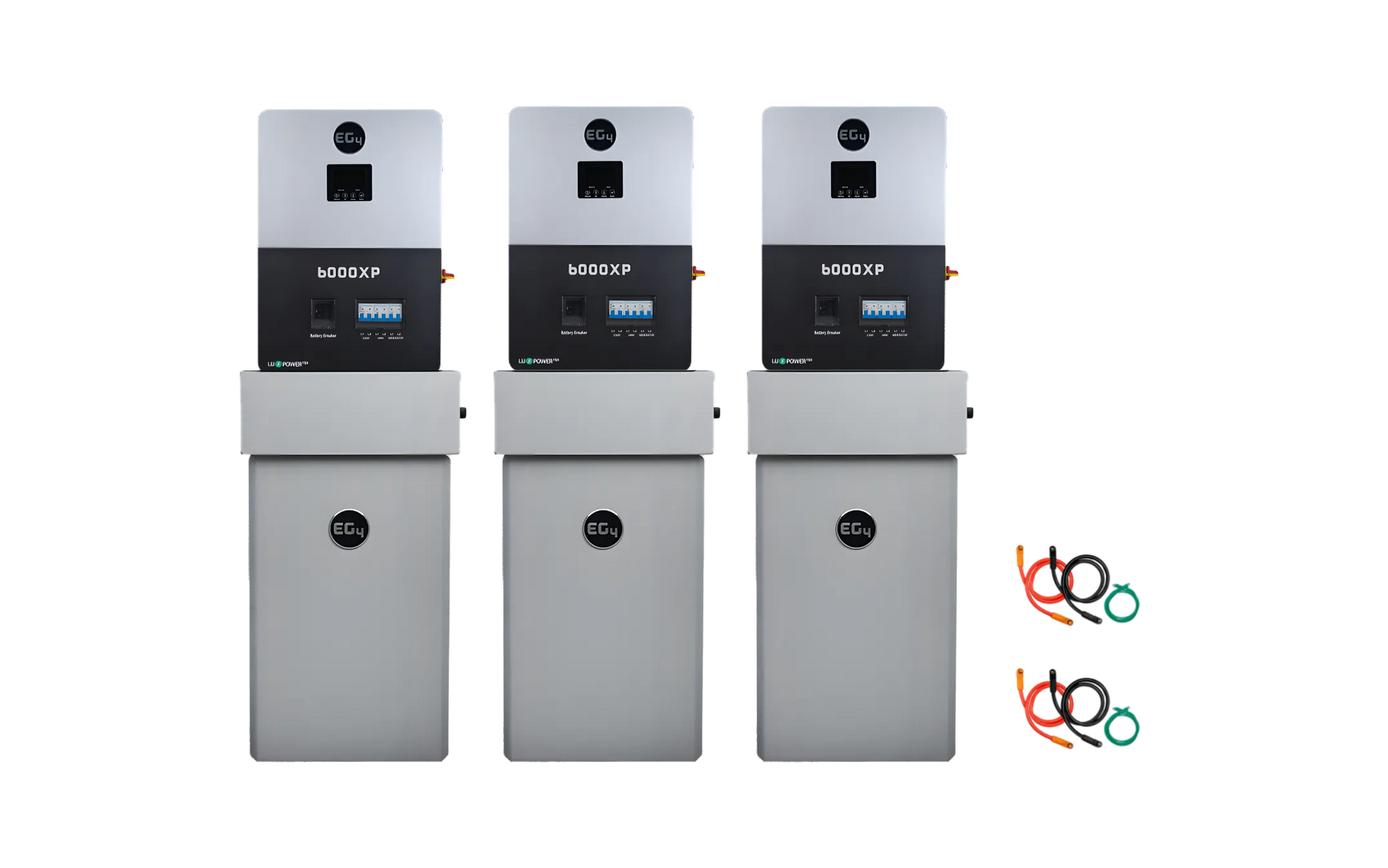

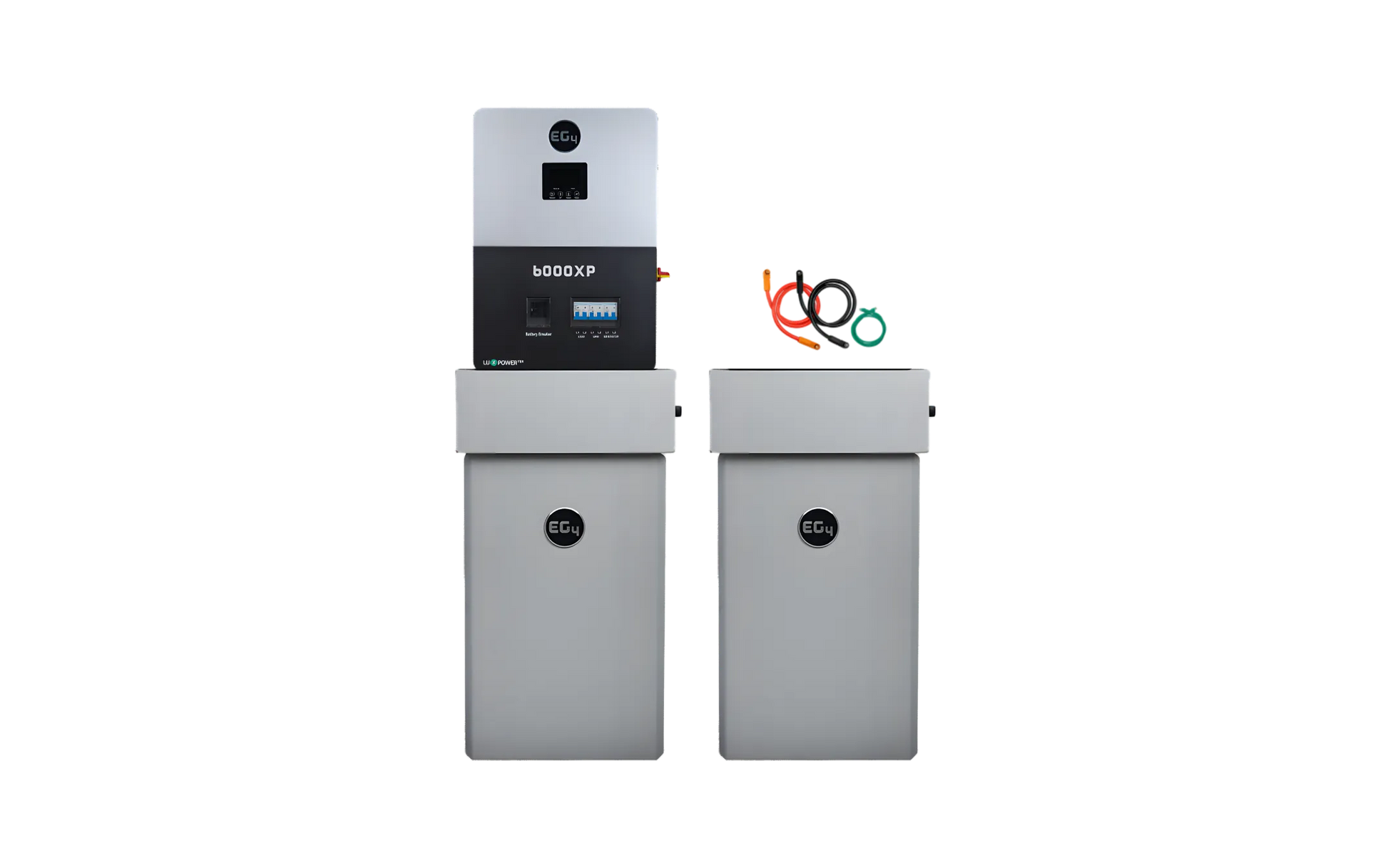

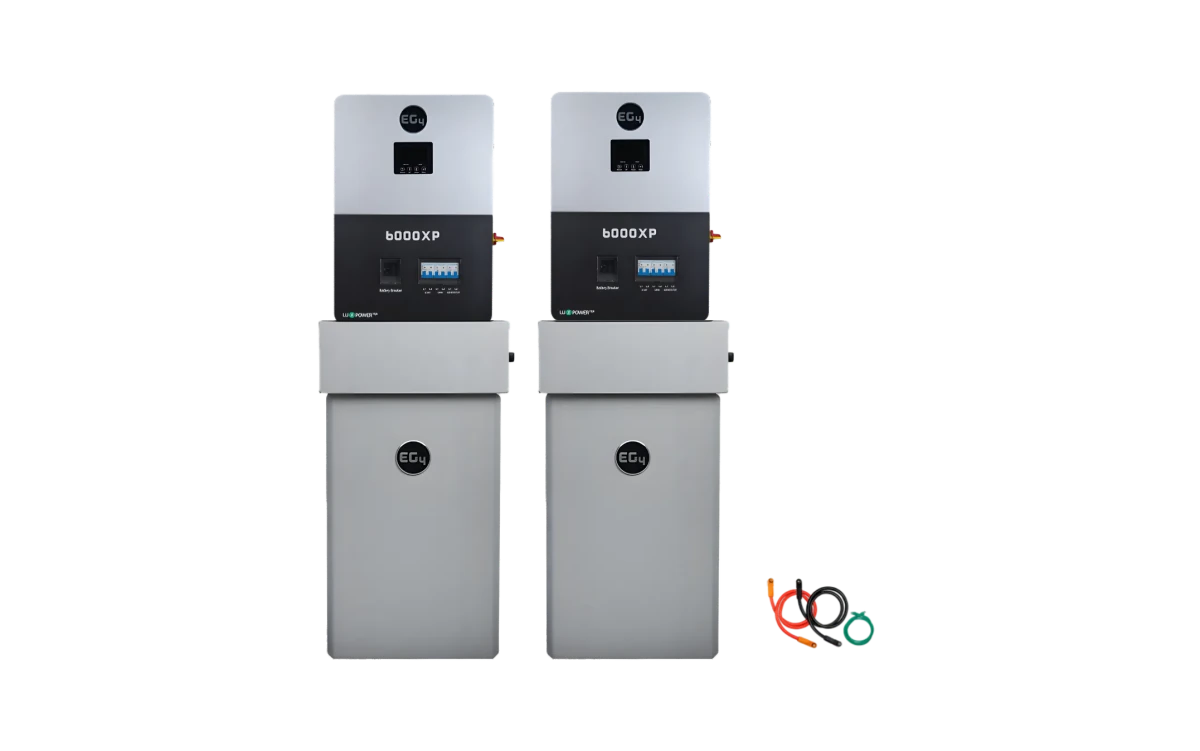

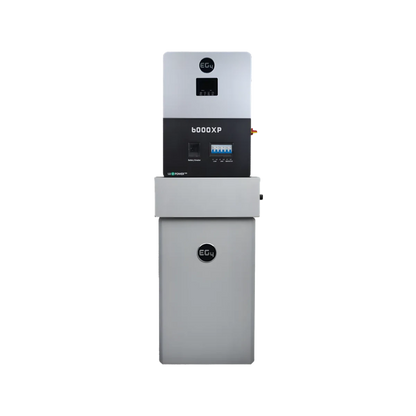

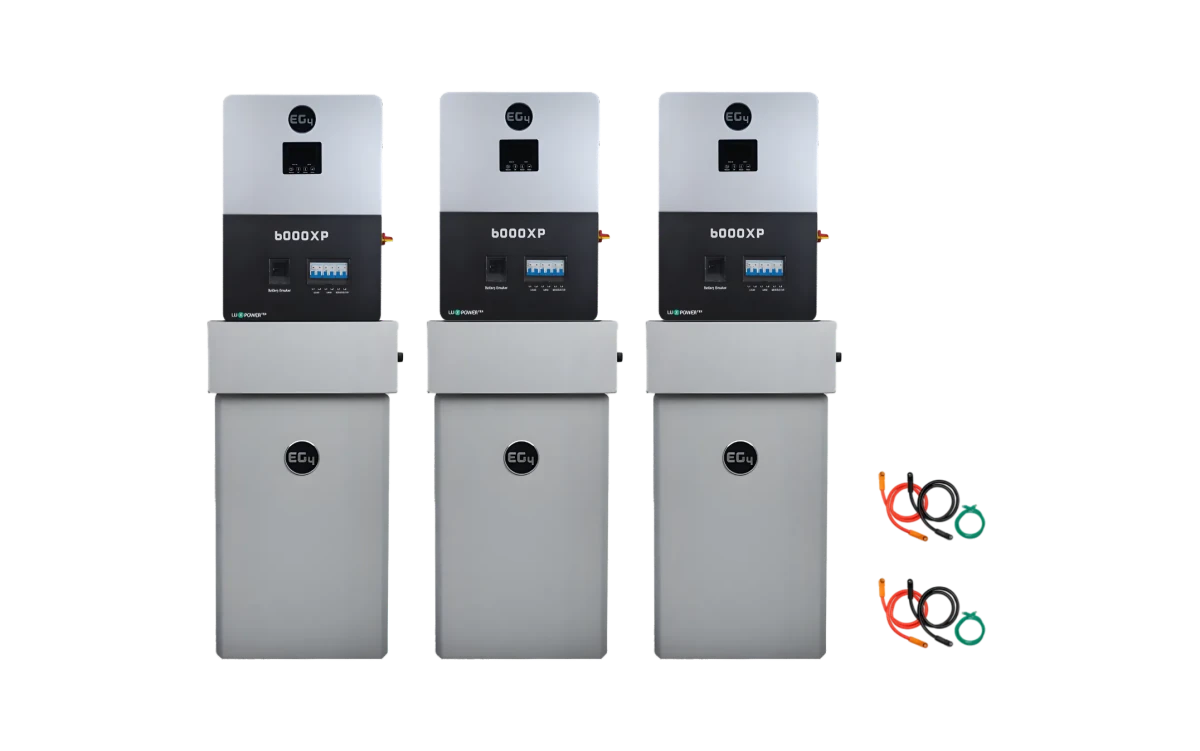

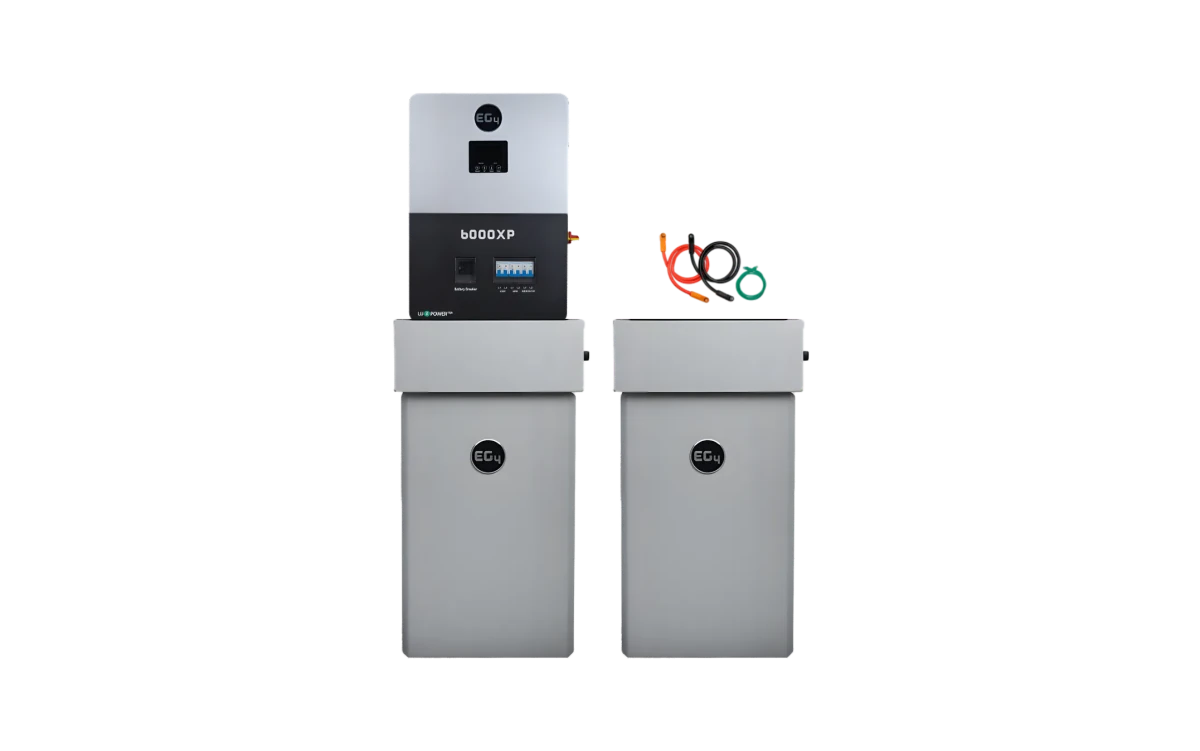

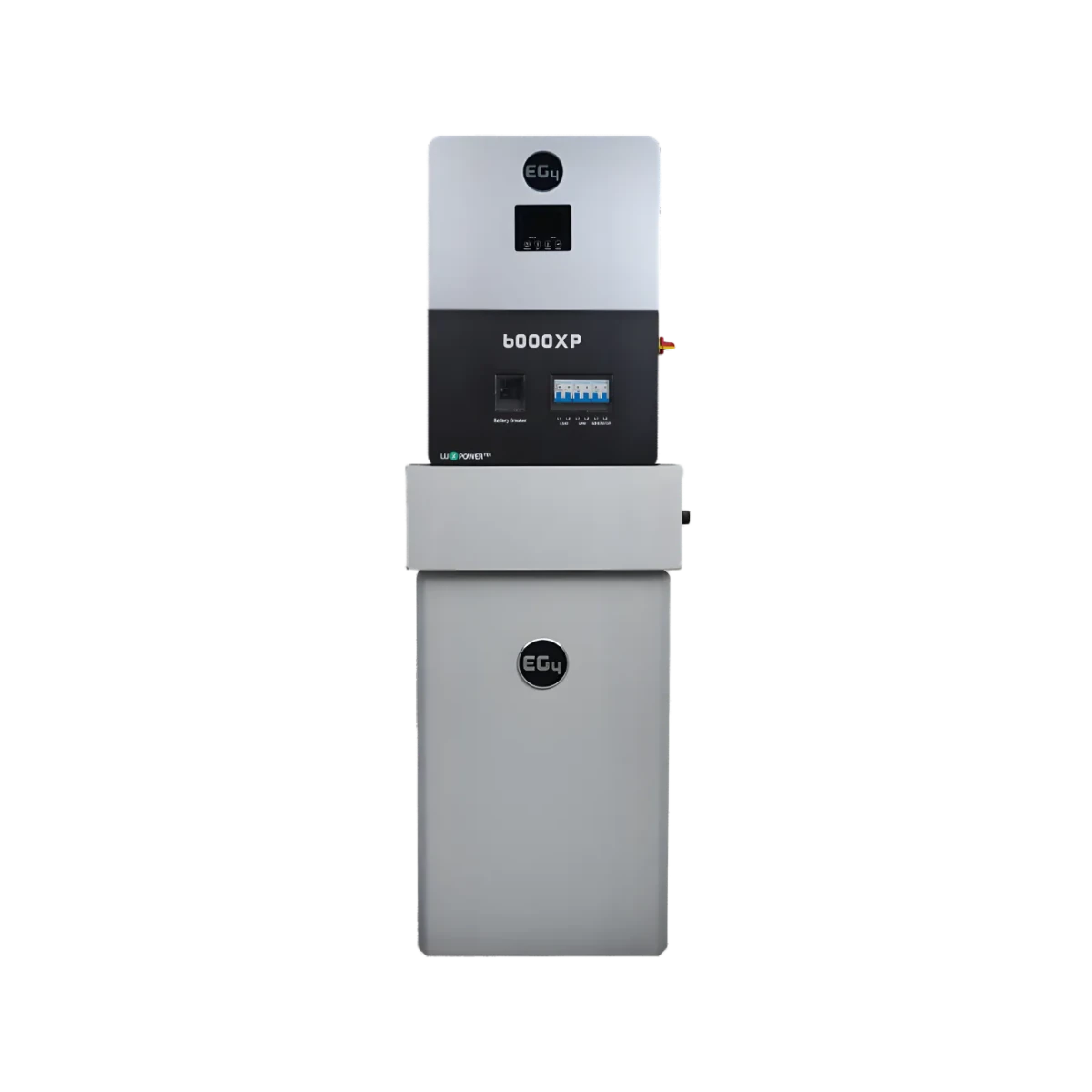

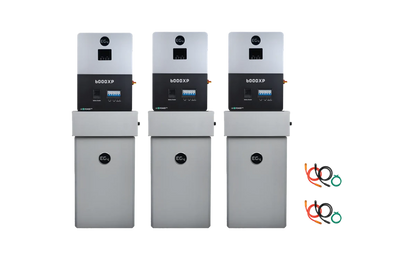

EG4 280Ah All-Weather Battery + EG4 6000XP Inverter-Charger
Expandable & Flexible:

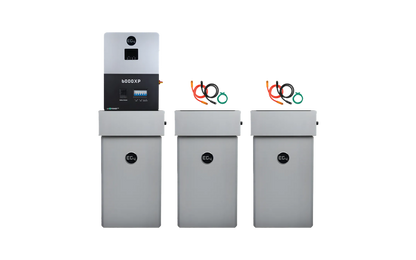

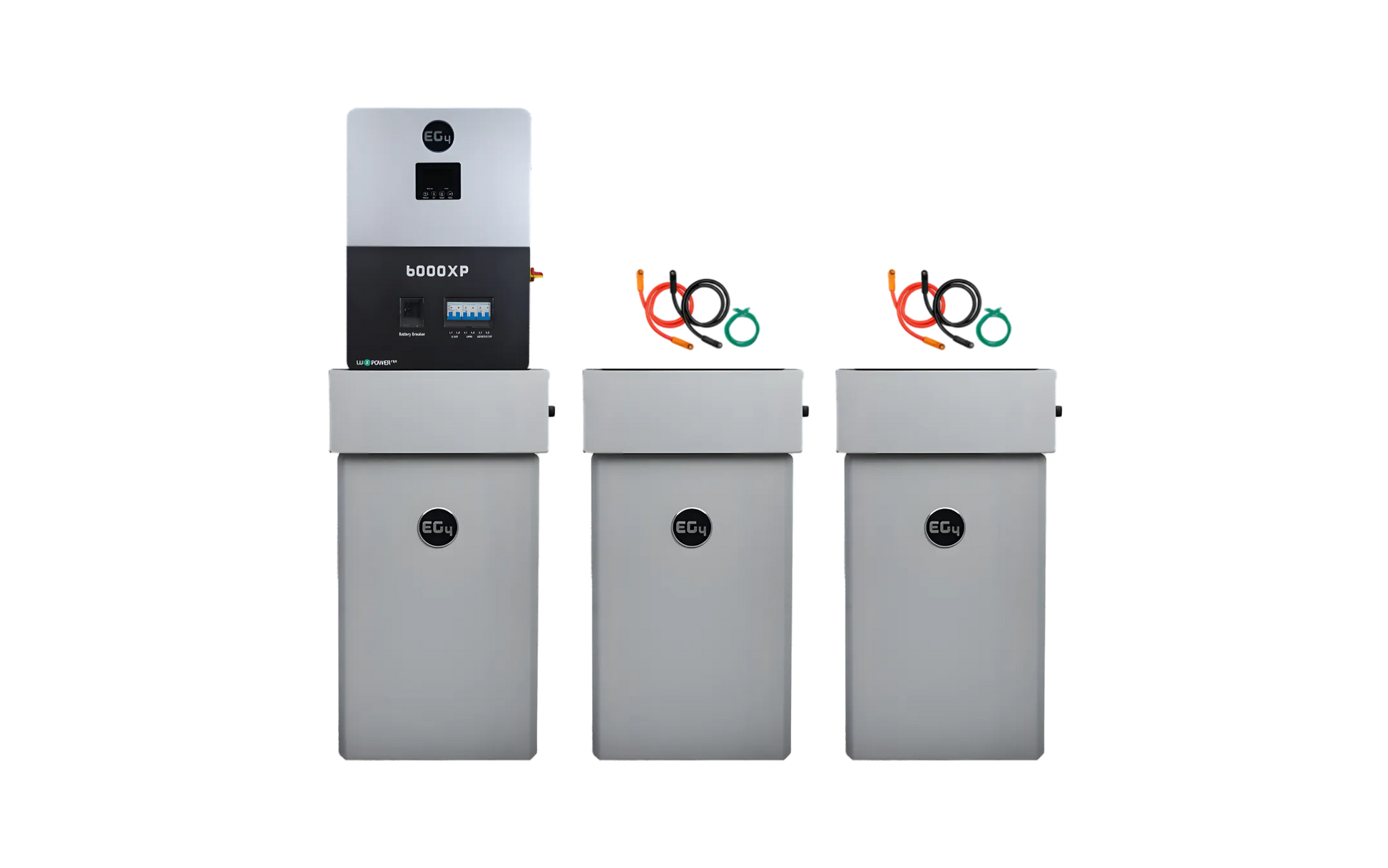

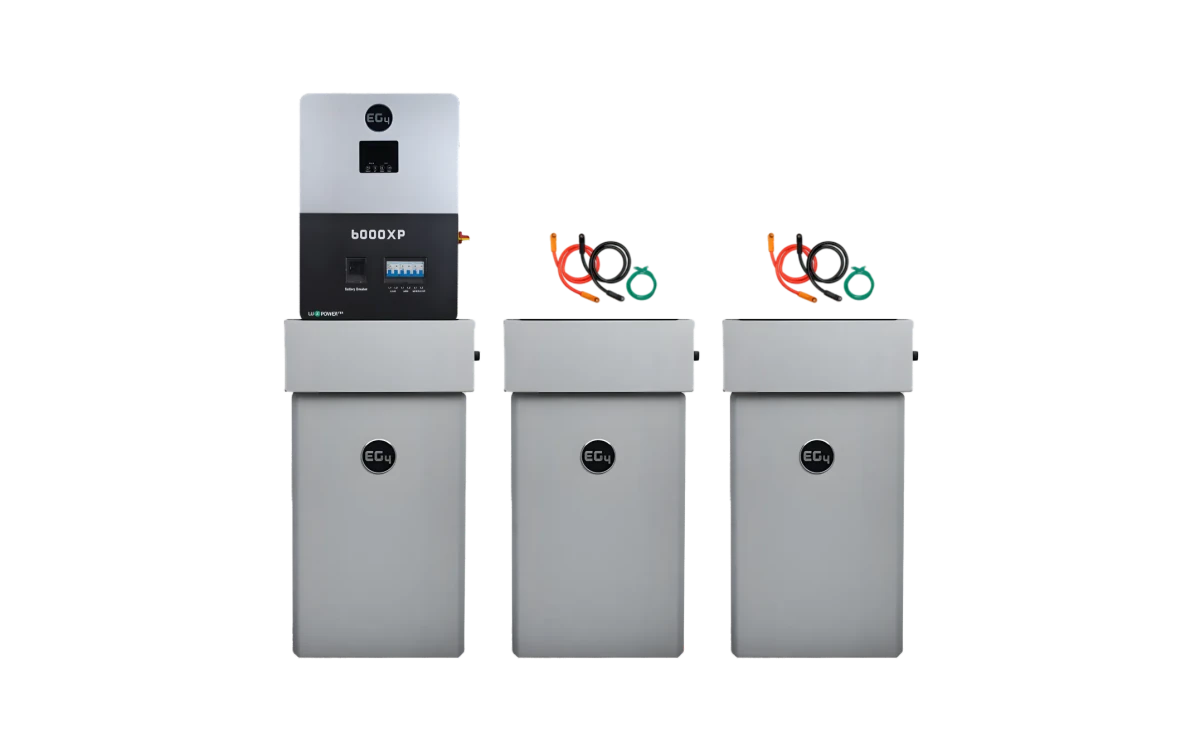

Expand battery capacity from 14.3kWh up to 42.9kWh
Supports solar + generator input configurations
Designed for off-grid, hybrid, and backup power applications
Key Features
-
Complete ESS Solution – Battery + inverter system designed to work seamlessly together
-
6,000W Split-Phase Output – Reliable power for homes, cabins, and backup systems
-
Up to 8,000W PV Input – Efficient solar integration with flexible system design
-
14.3kWh LiFePO₄ Battery – Durable, high-capacity energy storage
-
200A Continuous Output (~9.6kW) – Supports high-demand loads and appliances
-
8,000+ Cycle Life – Long-lasting performance at 80% DoD
-
All-Weather Design – Built for reliable indoor and outdoor operation
-
Integrated Self-Heating – Reliable performance in cold climates
-
Advanced BMS & Safety Features – Includes active balancing and internal fire suppression
-
Closed-Loop Communication – Seamless coordination between battery and inverter
-
Smart Energy Management – Supports load control, AC coupling, and peak shaving
-
Maintenance-Free Operation – No routine servicing required
A durable, all-weather energy storage system built for reliability, flexibility, and long-term off-grid independence.
Downloads & Specifications
Nominal Voltage:51.2V
Chemistry:Lithium Iron Phosphate (LiFePO4)
kWh Capacity:14.3kWh
Ah Capacity:280Ah
BMS Charging Voltage (Bulk/Absorb):56.0V (±0.8V)
Rec. Charging Voltage (Bulk/Absorb):56.2V (±0.2V)
Rec. Float Setting:54V (±0.2V)
Rec. SoC Cutoff Setting:20%
Max. Continuous Charge Current:140A
Max. Continuous Discharge Current:140A (200A Max. Continuous for 30 min)
Rec. Charge Current:60 – 140A
Rec. Discharge Current:60 – 140A
Max Continuous Discharge Rate:10,240W
Voltage:56V
Power Consumption:224W
Internal Temperature Cutoffs:≤32ºF (On) | ≥41ºF (Off)
Charging Temperature Range:32ºF – 122ºF (0ºC – 50ºC)
Discharging Temperature Range:-4ºF – 131ºF (-20ºC – 55ºC)
Storage Temperature Range:32ºF – 113ºF (0ºC – 45ºC)
Operating Altitude:<16,404 ft (<5,000 m)
Protection Rating:IP65
Communications:RS485 | CANBus
Weight:308.6 lbs (140 kg)
Depth:9.1 in (232 mm)
Width:22.3 in (566 mm)
Height:36.1 in (916 mm)
AC Voltage:120V AC / 240V AC
AC Frequency:50 Hz / 60 Hz
Max. Continuous AC Current:37.5A @ 240V
Max. AC Input Power:9000W
AC Bypass:50A
Output Voltage:120V AC / 240V AC
Output Frequency:50 Hz / 60 Hz
Max. Continuous Output Current:25A @ 240V
Output Power:6000W
Surge Capacity:12000W (3.5 sec) / 11000W (5 sec)
Power Factor:0.99 (Full Load)
Reactive Power Adjustment Range:-0.8 – 0.8 Leading Adjustable
Total Harmonic Distortion:<3%
Switching Time:<15 ms (Single) / <30 ms (Parallel)
No. of MPPTs (Inputs per MPPT):2 (1)
Max. Input Current:17A / 17A
Max. Short Circuit Input Current:25A / 25A
DC Input Voltage Range:100 – 480V DC
Start Up Voltage:100V DC ± 10V DC
MPPT Operating Voltage Range:120 – 385V DC
MPPT Voltage:320V DC
Max. PV Array Power:8000W (4000W per MPPT)
MPPT Efficiency:99%
Nominal Battery Voltage:48V DC
Battery Voltage Range:46.4 – 60V DC
Max. Discharge Current:140A
Max. Charge Current:125A
DC Cut-Off Voltage:59V DC
Operating Temperature:32°F – 113°F (0°C – 45°C)
Storage Temperature:5°F – 140°F (-15°C – 60°C)
Altitude:<6,561 ft (2000 m)
Relative Humidity:5 – 95%
Typical Noise Emission:<58 dB
Protection Rating:IP20
Max. Parallel Connections:16
Weight:52.9 lbs (24 kg)
Depth:5.25 in (132 mm)
Width:18 in (457 mm)
Height:25.5 in (648 mm)
SKU#:K0765, K0145, K0146, K0147, K0148
SKU#:K0765, K0145, K0146, K0147, K0148
Monitoring Adapter Installation Guide:
DOWNLOAD
Warranty
EG4 All Weather Battery: 10-Year EG4 Manufacturer Warranty
EG4 6000xp Inverter: 5-Year EG4 Manufacturer Warranty
