BLUETTI

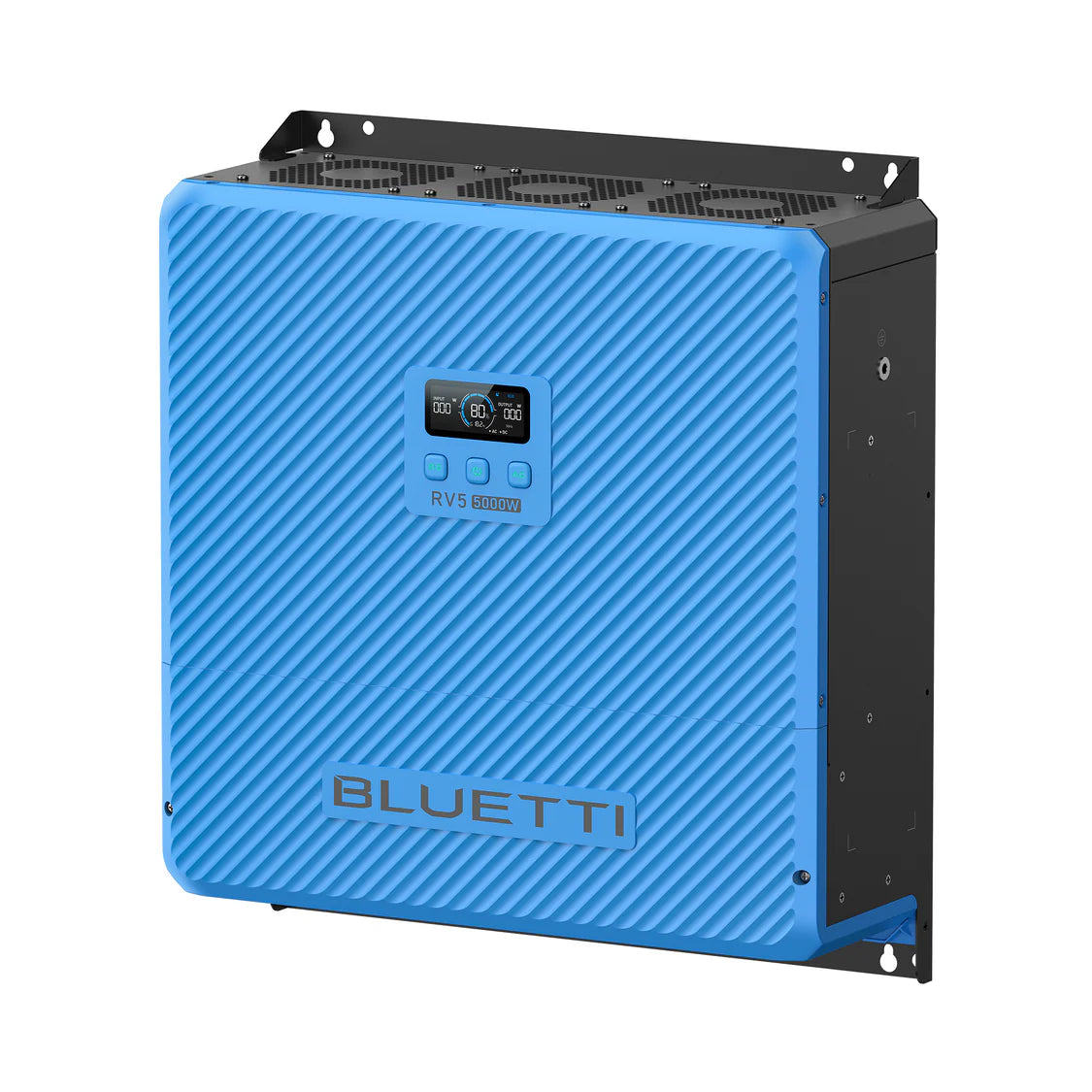

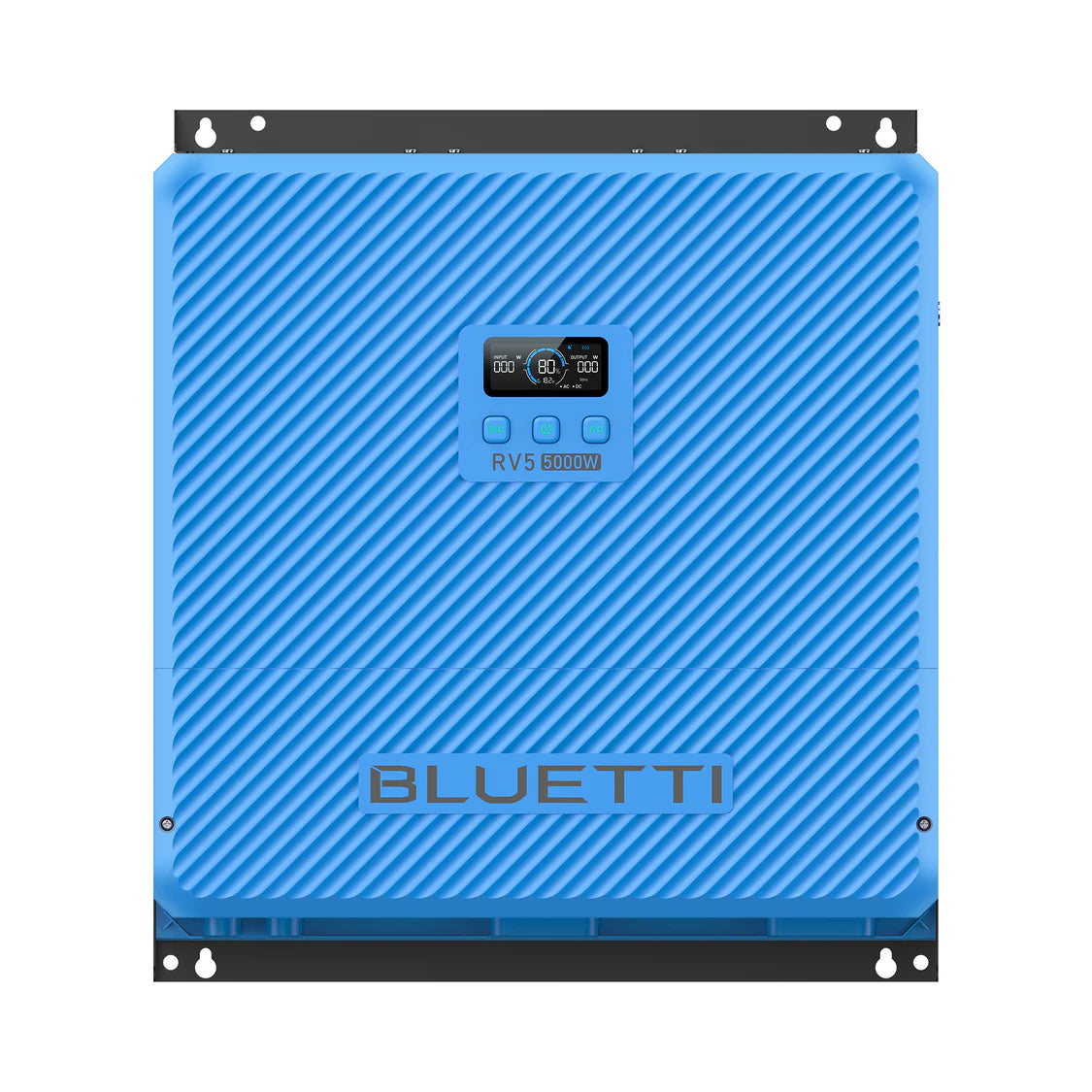

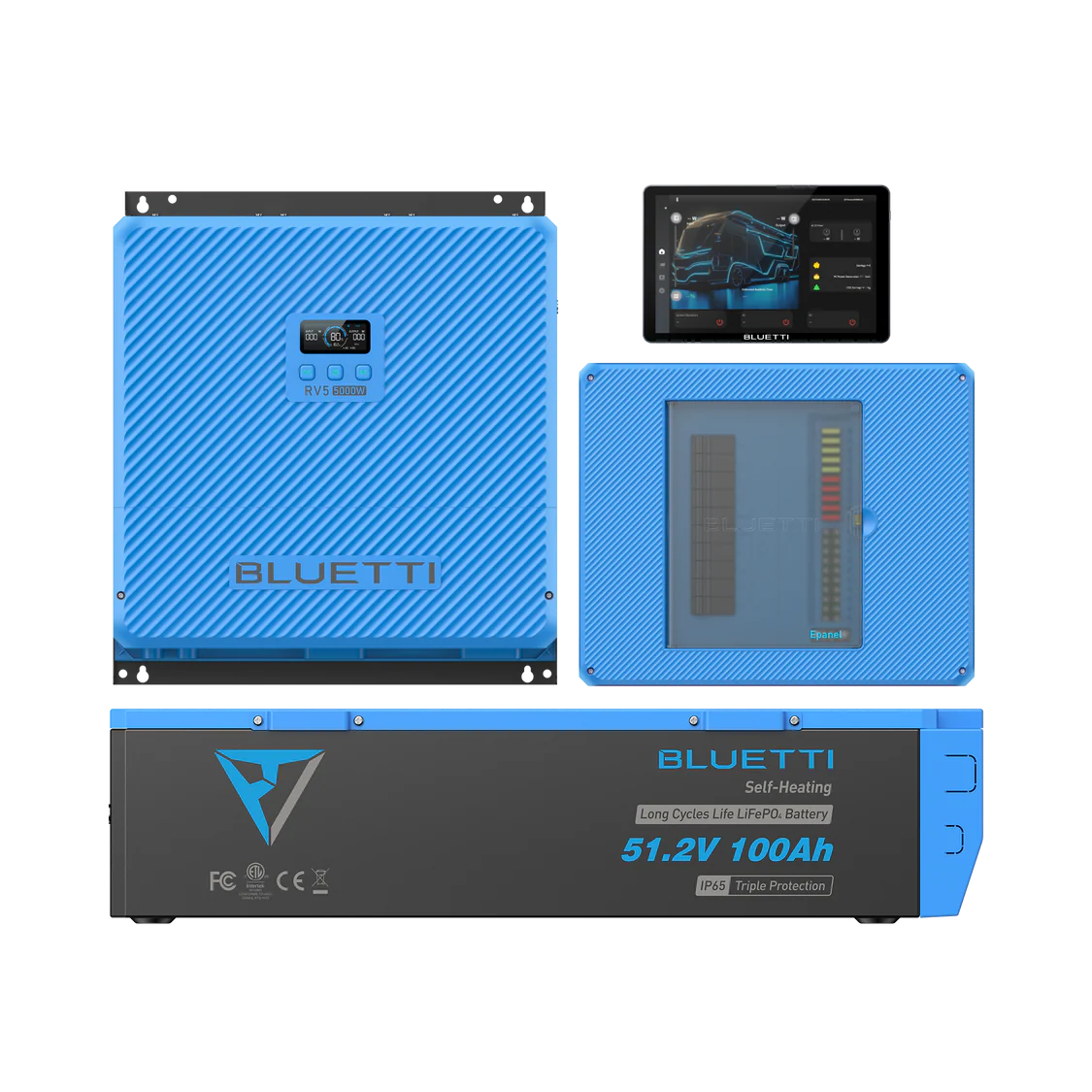

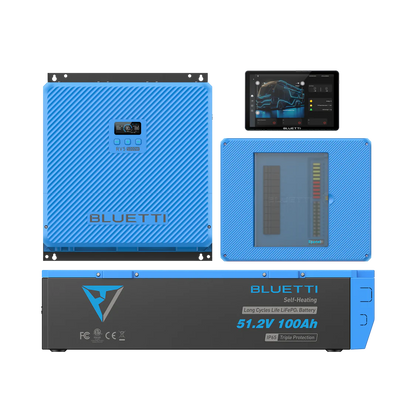

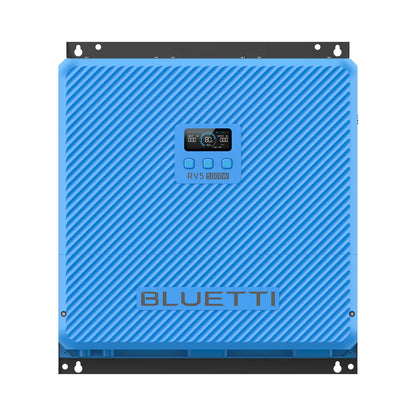

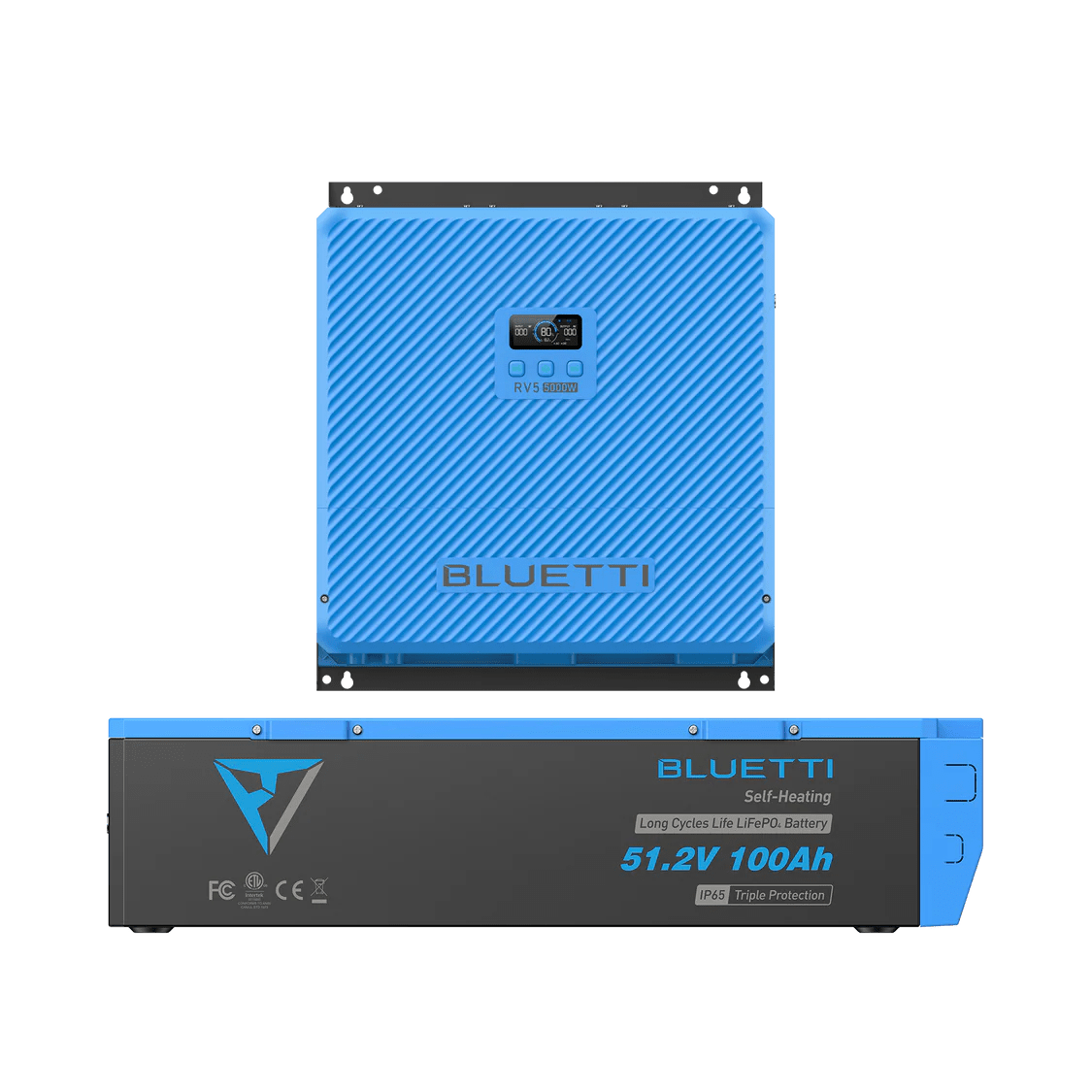

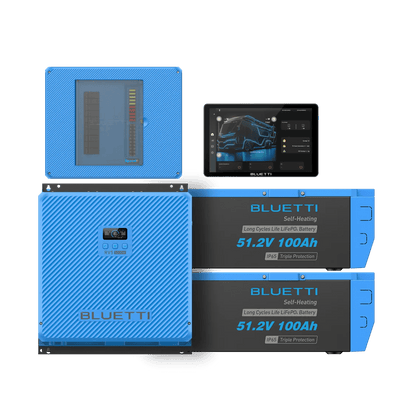

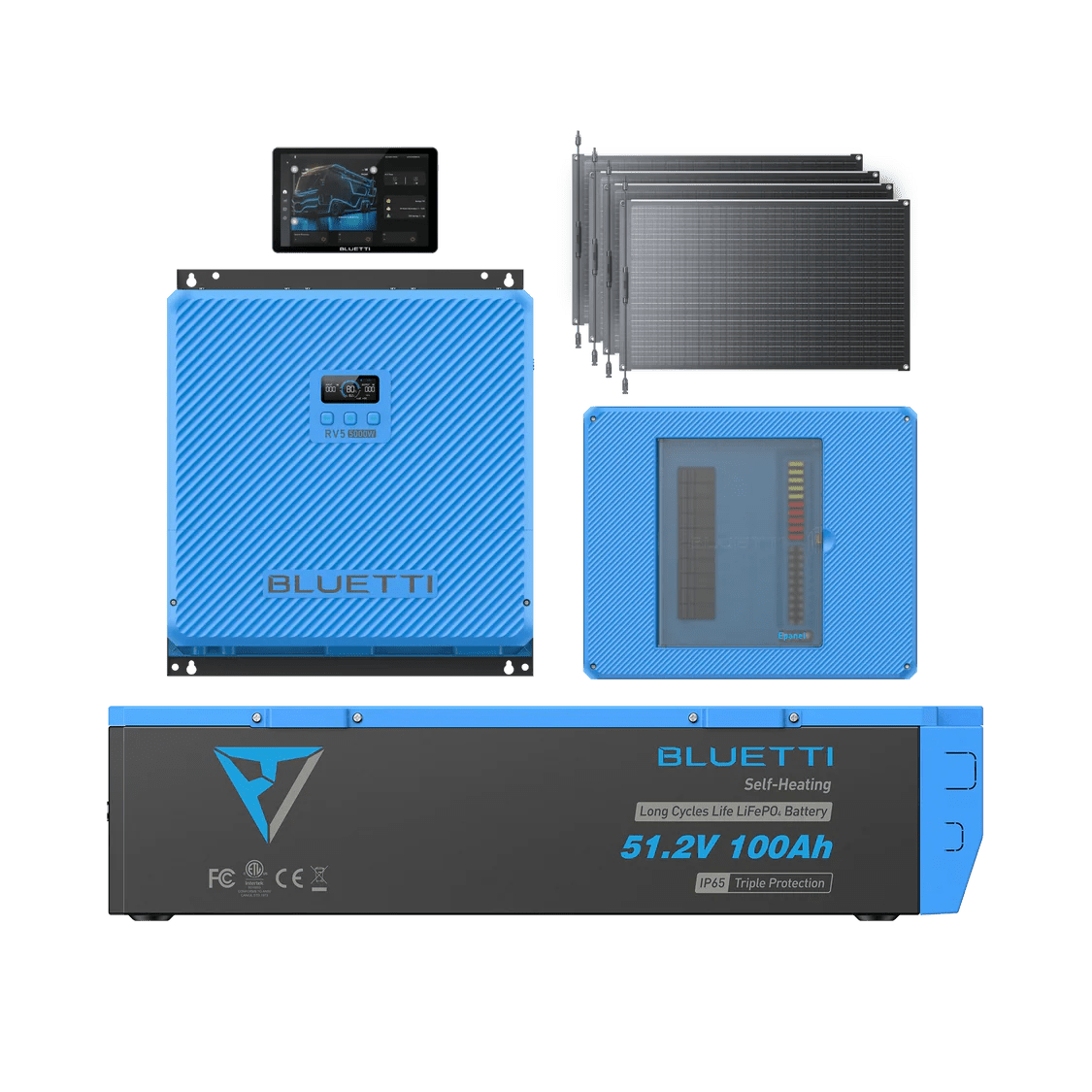

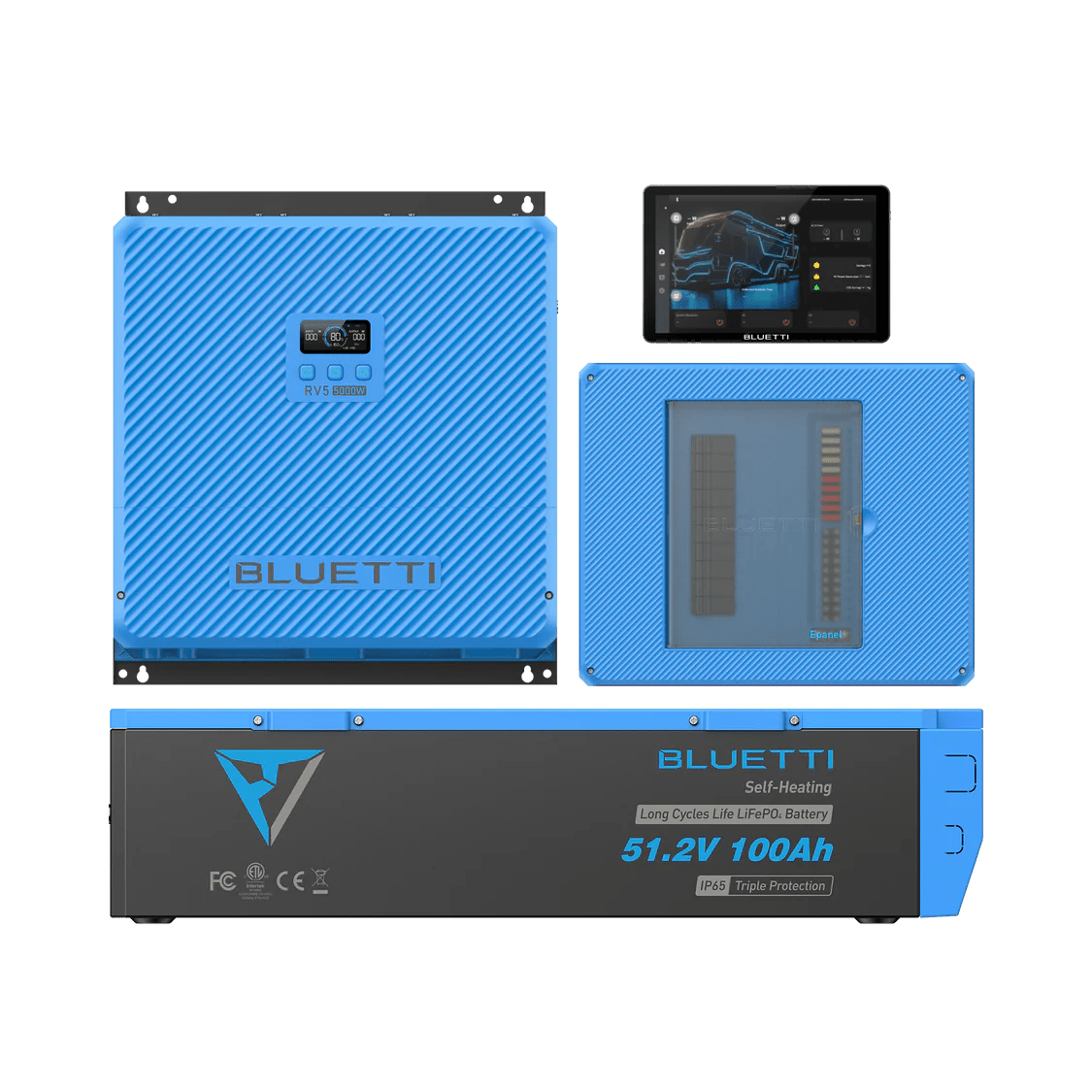

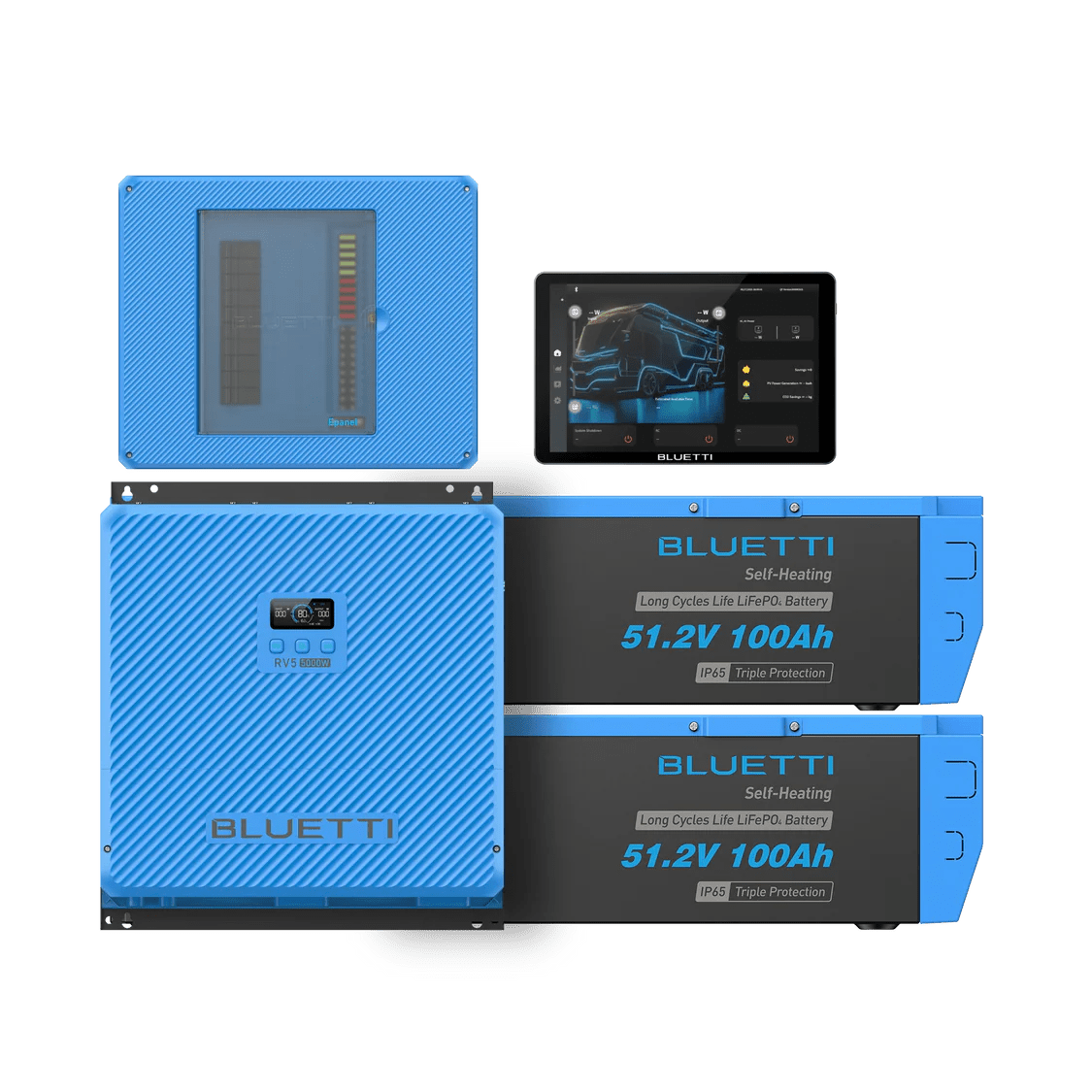

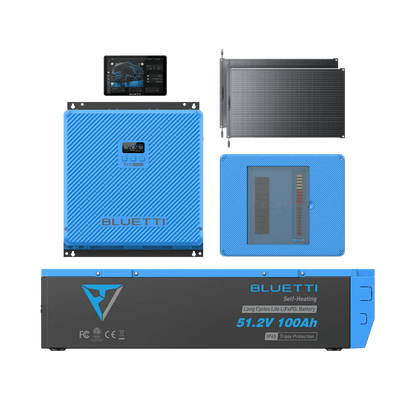

BLUETTI RV5 Power Hub

BLUETTI RV5 Power Hub

$5,499.00 USD
$6,799.00 USD $5,499.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buying Options

BLUETTI RV5 Power Hub

  • No More "One-at-a-Time": With 5,000W, run your A/C, microwave, coffee maker, and more all at once.
  • 10+ Years of Reliable Power: Advanced LiFePO4 battery with 6,000+ cycles, built for the long road ahead.
  • Charge Anywhere: Up to 1,800 W solar, 1,200 W from your vehicle's alternator, or a fast 5,000 W from shore power. Never run out of juice.
  • Easy Setup for All: Plug-and-play design that's easy for everyone, even first-time RVers.
  • Generator-Free Peace: No noise, fumes, or maintenance—just quiet, natural surroundings.
  • Travel with Confidence: UL-certified and IP65 water-resistant, designed to tackle road bumps and spills with ease.
  • Easy Control in Your Hands: Monitor and manage via Epad or the BLUETTI app.
Specs

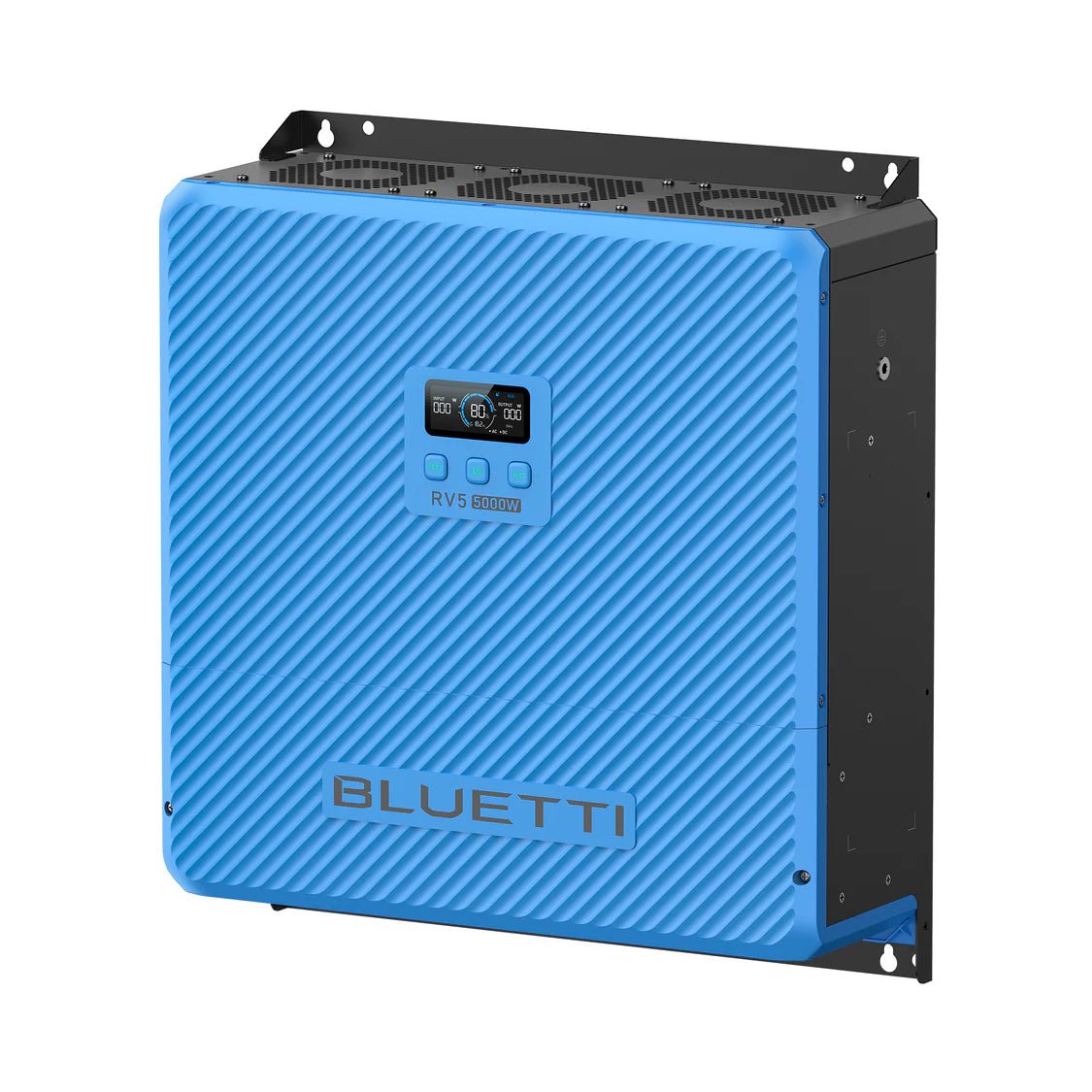

RV5 Power Hub

AC Input

Rated Input Voltage: Standard AC Input (N/L1/G) - 120 V EV Input (L1/L2/G) - 208V
UPS: Switchover time ≤20ms
Charging Power: 5,000W Max. (limited by the battery terminal's maximum current)

AC Output

Rated Output Voltage: 120V
Rated Output Current: 42A
Rated Output Power: 5,000W

Solar Charging(PV1/PV2)

Max. Input Power: 1,800W
Input Voltage: 12V to 50V
Max. Input Current: 50A

Vehicle Charging(PV2)

Max. Input Power: 600W (12V) / 1,200W (24V)
Input Voltage:
12V to 14.4V (12V battery)
24V to 28.8V (24V battery)
Max. Input Current: 50A

DC Output

Rated Output Voltage: 12V/24V
Rated Output Current: 100A (12V) 60A (24V)
Rated Output Power: 1,360W (12V) 1,620W (24V)
Total Load Power: 6,000W Max. (varies based on battery type and quantity)
AC+DC Input Power: 6,000W Max.

GENERAL

Weight Approx.: 30.86lbs (14kg)
Dimensions: 17.72 × 19.69 × 6.30in (450 × 500 × 159.9mm)
Operating Temperature: -4°F to 131°F (-20°C to 55°C)
Storage Temperature: -4°F to 104°F (-20°C to 70°C)
Operating Humidity: 95% Max.
Certification: UL458
Warranty: 5Y

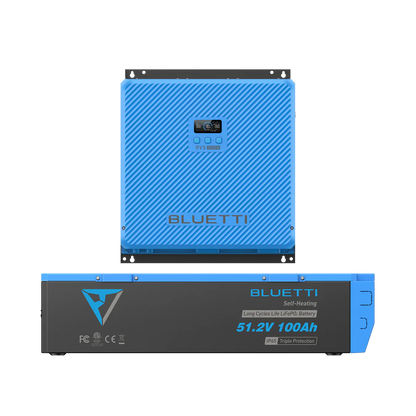

B4810

BATTERY INFO

Model: B4810
Battery Capacity: 5,120Wh (51.2V, 100Ah)
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Cycle Life: 6,000 cycles @ 70% capacity

Charging & Discharging

Charge Current: 50A (Recommended) 100 A Max.
Discharge Current: 100A Max.
Peak Discharge Current: 200A @ 30 s
Cell Temperature Protection: Charging: <-1°C or >61°C (<30°F or >142°F), Discharging: <-21°C or >61°C (<-5.8°F or >142°F),

GENERAL

Weight: Approx. 101.4lbs (46kg)
IP Rating: IP65
Operating Temperature: Charging: -20°C to 55°C (-4°F to 131°F) Discharging: -20°C to 55°C (-4°F to 131°F)
Storage Temperature: Up to 1 month: -20°C to 40°C (-4°F to 104°F) Up to 6 months: -20°C to 25°C (-4°F to 77°F)
Dimensions (L × W × H): 23.94 × 14.96 × 5.71in (608 × 380 × 145mm)
Max. Expansion (Parallel & Series): 122.88kWh (24P) 51.2V, 2,400Ah
Certifications: MSDS, UN38.3, FCC, CE, RoHS, UL
Warranty: 5 Years

IN THE BOX

View full details

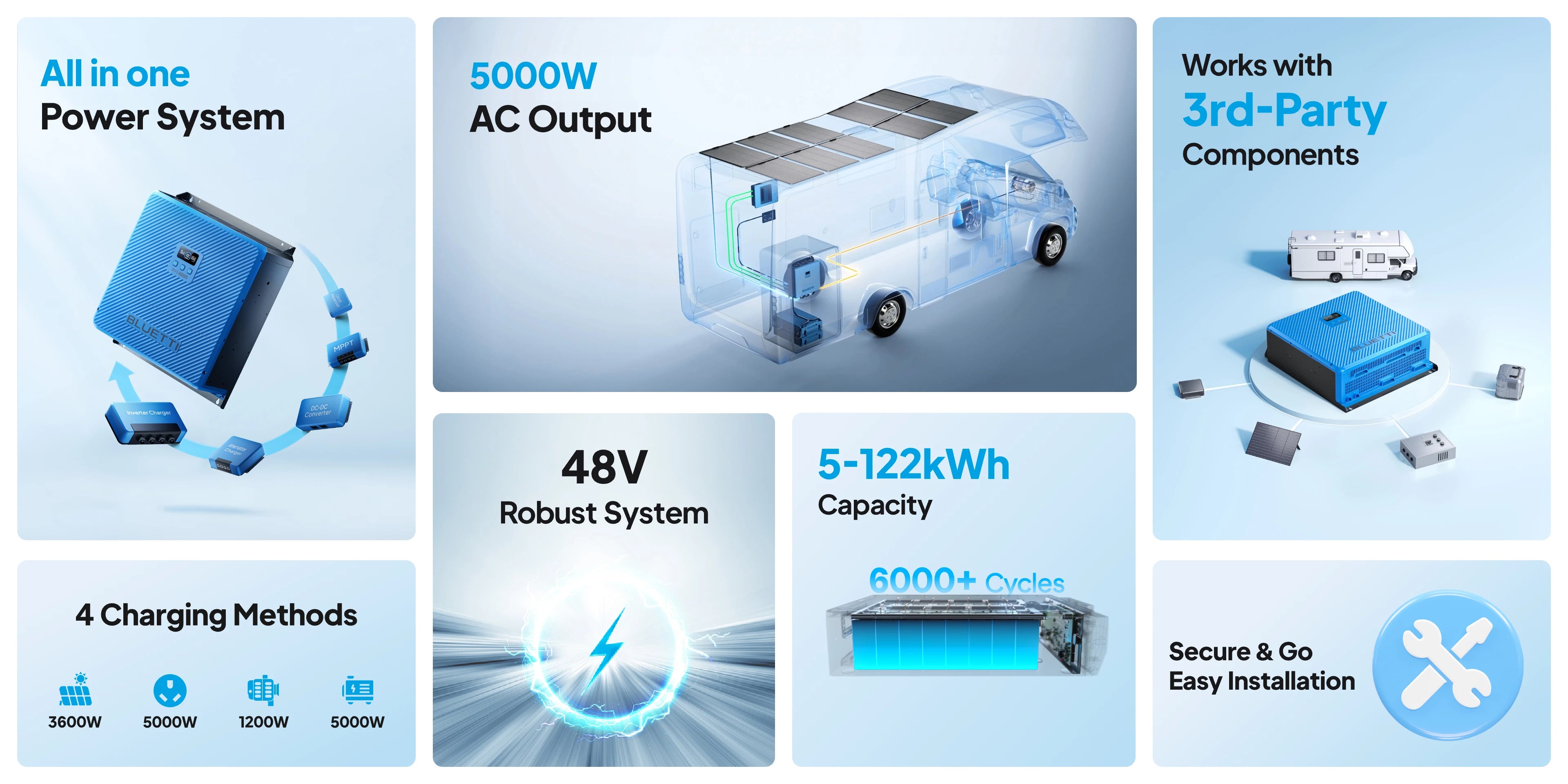

All the Power, Half the Hassle

Stop Rationing Power. Goodbye Power Anxiety.

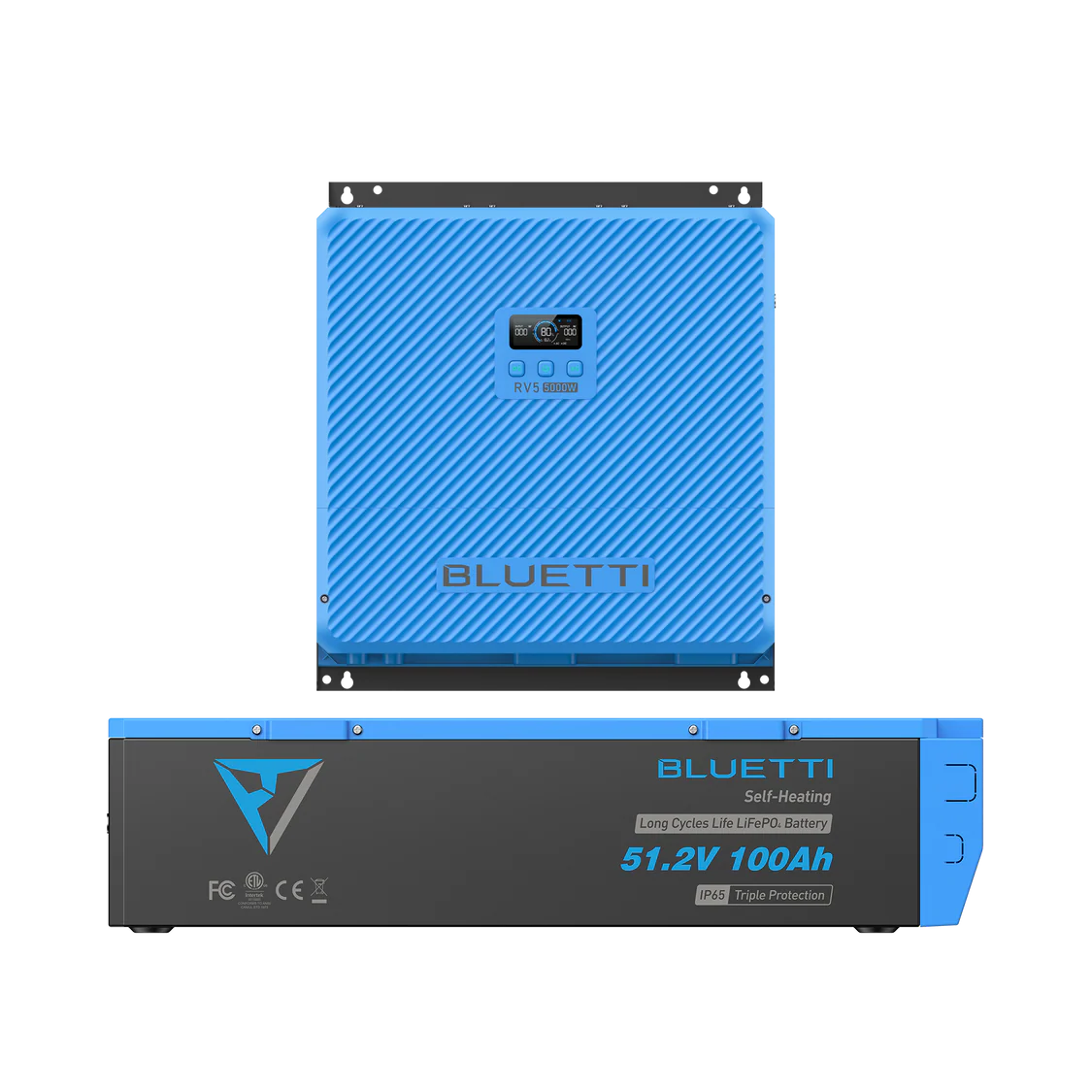

With 5,000 W of continuous power, the RV5 lets you run your A/C, microwave, coffee maker, and more all at once, just like at home. Powered by B4810 LiFePO₄ batteries, it gives you over 6,000 charge cycles for years of reliable energy. Even in the cold, the self-heating feature keeps things running smoothly. At only 7 W of standby power, each charge goes further. The RV5 lets you live fully, with peace of mind, and enjoy every moment of your journey without worrying about power.

Fast, Flexible Charging for Non-Stop Adventure.

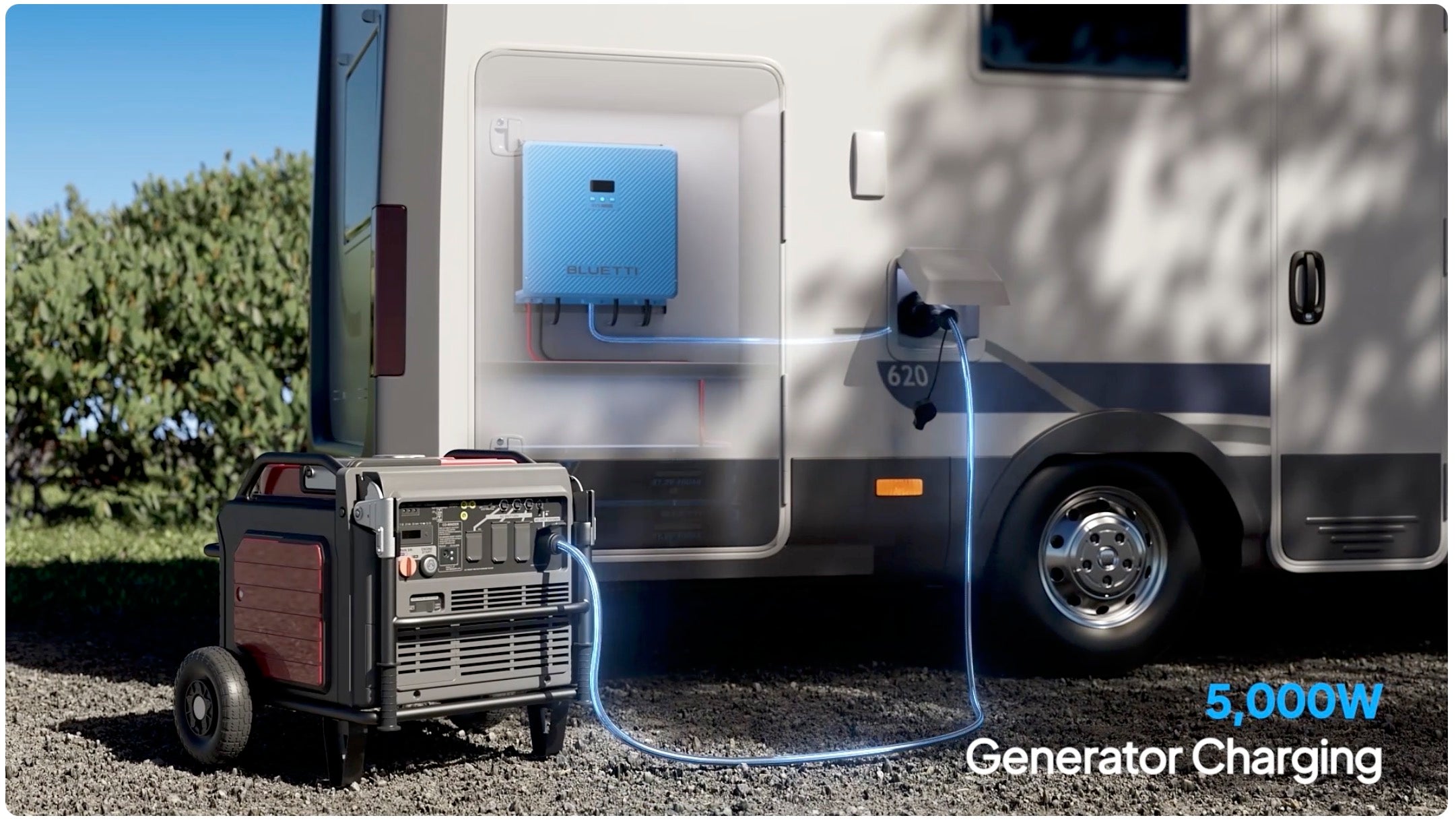

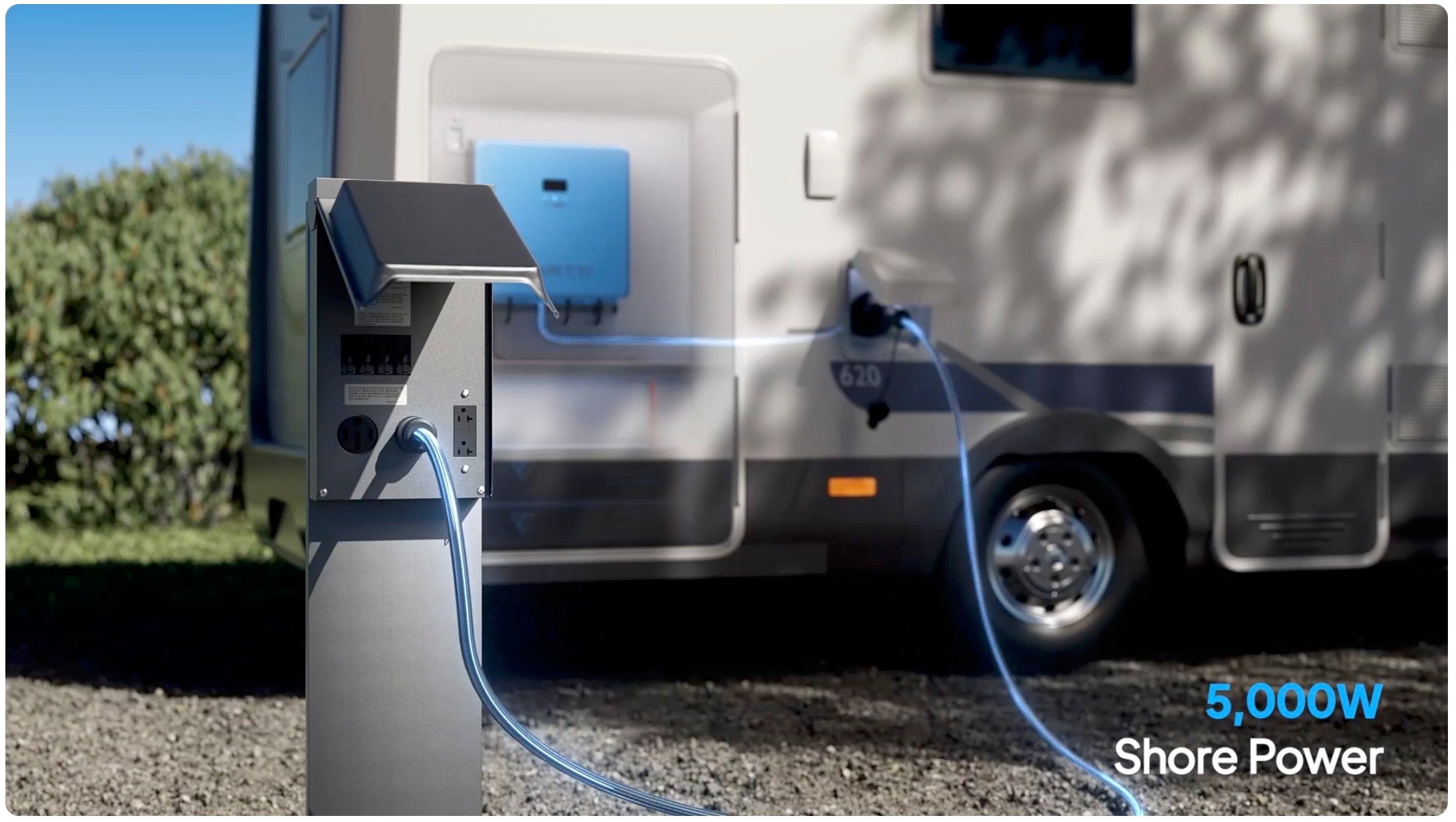

Adventure doesn't stop for charging, and now you don't have to either. The RV5 keeps you powered with fast, versatile charging options. Recharge quickly with up to 5,000 W of shore power at the campsite, capture up to 1,800 W from the sun while boondocking, or harness up to 1,200 W from your vehicle's alternator while on the road. Focus on the journey, not the charge.

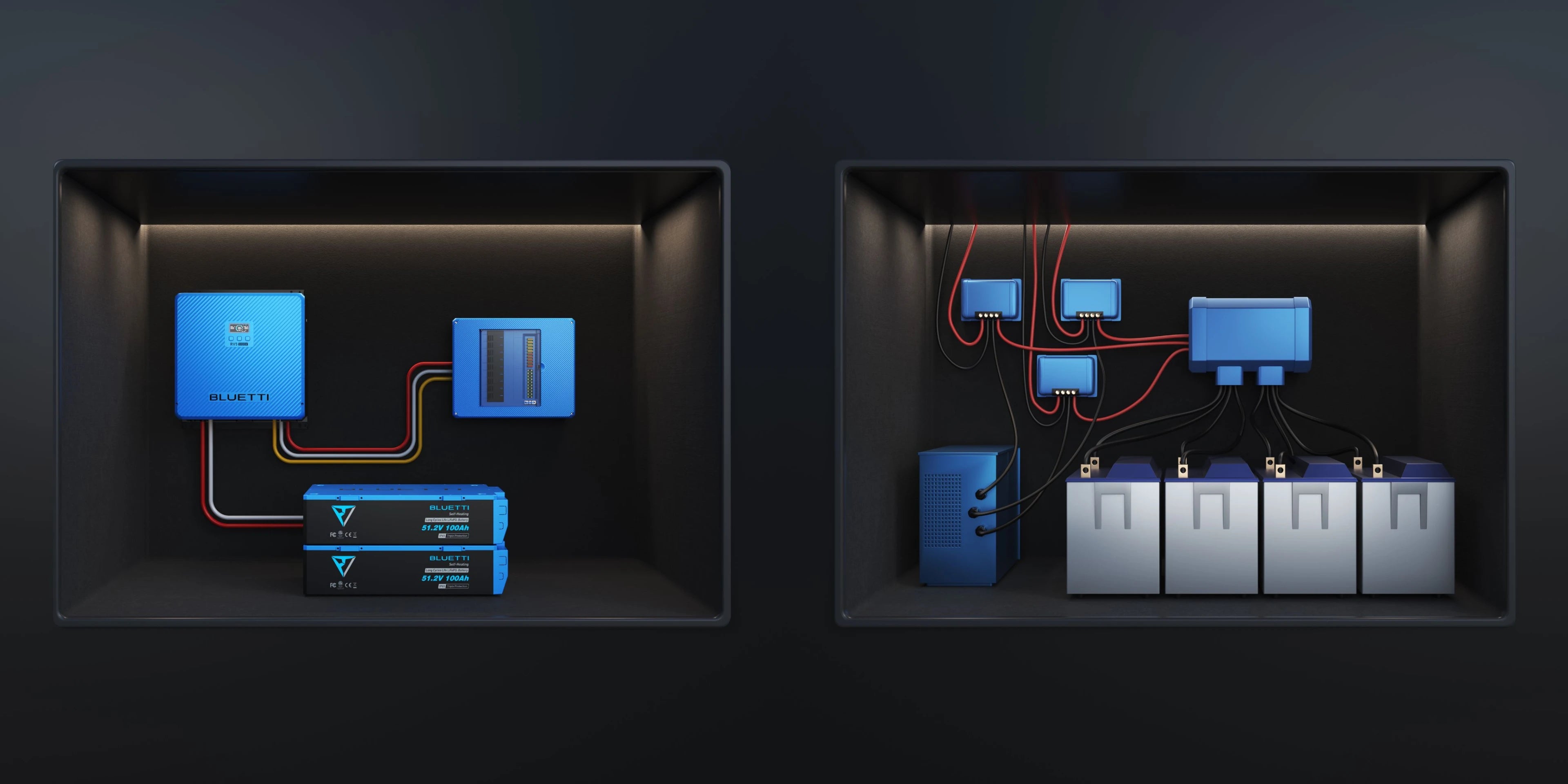

The 1-Day RV Upgrade. No Electrical Degree Required.

Transform your RV's power in just one weekend. Our plug-and-play system eliminates compatibility hassles and the guesswork of traditional builds. Simplicity doesn't mean you're on your own. From planning to final connections, our team of experts is here to guide you every step of the way, making your DIY upgrade a breeze.

True Tranquility, Powered by Safety.

Escape the noise of traditional generators and embrace the peace of nature. True tranquility isn't just about silence; it's about knowing you're safe. With advanced LiFePO4 battery technology and UL certification, the RV5 ensures your family, pets, and home on wheels are always protected. Enjoy worry-free, uninterrupted power, backed by the highest standards of safety and reliability.

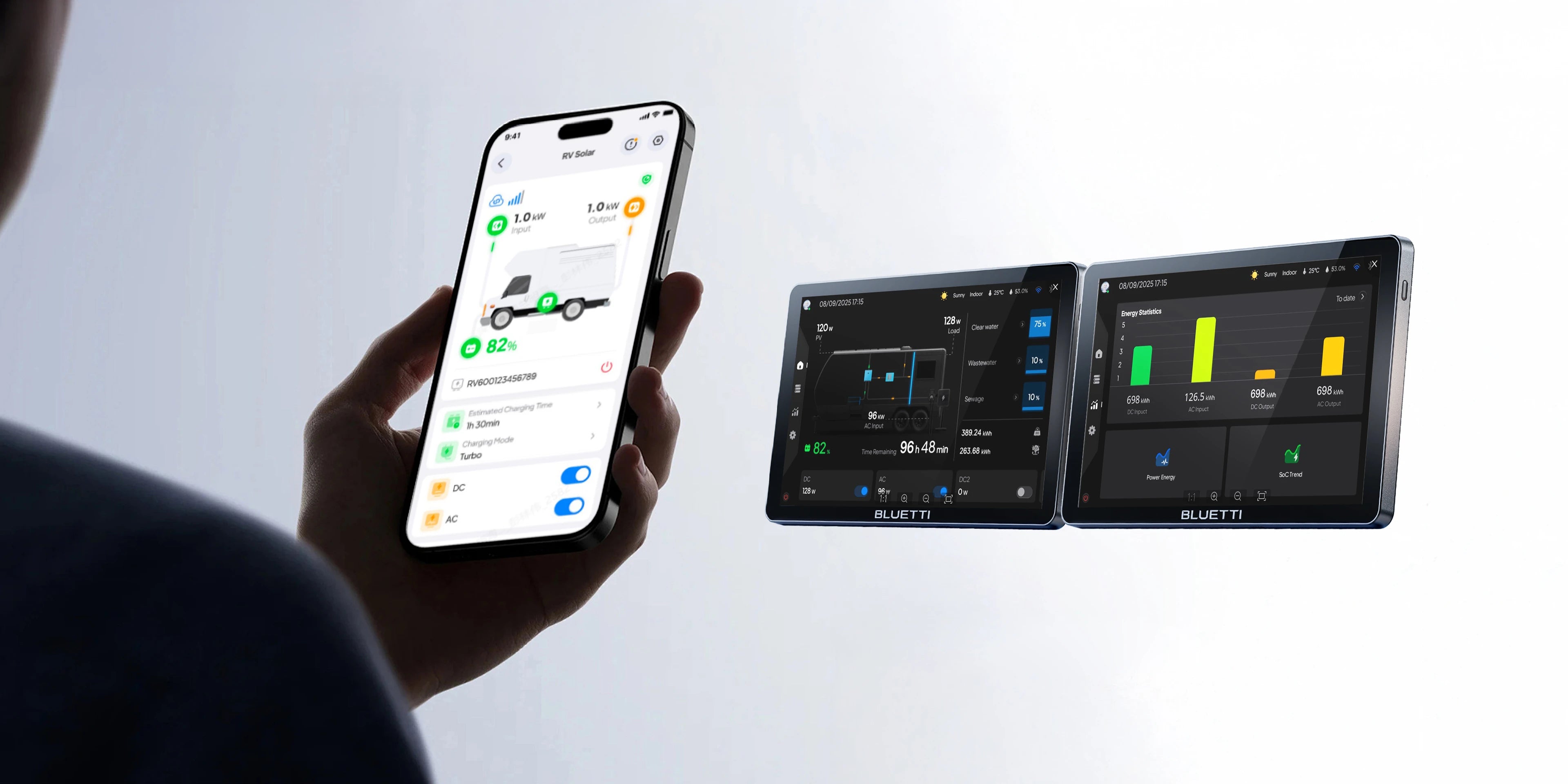

Smart Home Tech for the Open Road.

Manage your entire electrical system from one intuitive HD touchscreen. The Epad gives you a complete overview of your power consumption, battery status, and charging inputs in real-time. With the BLUETTI app, this power is also in your pocket, wherever you are.

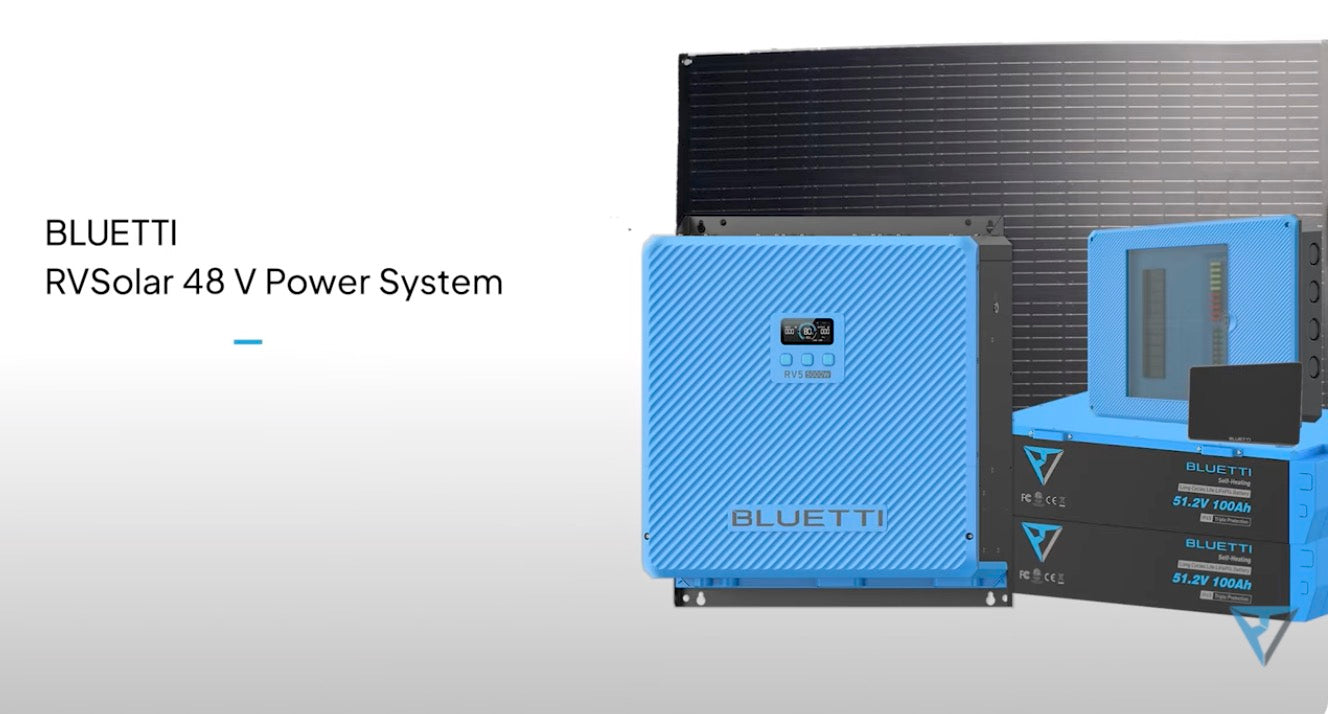

Video

RV5 Operation Guide

RV5 Quick Start Guide

RV5 Quick Start Guide

RV5 User Manual

RV5 User Manual

B4810 User Manual

B4810 User Manual

B1232 User Manual

B1232 User Manual

B1210 User Manual

B1210 User Manual

PV100 FX （Flexible Solar Panel）- Manual

PV100 FX （Flexible Solar Panel）- Manual

Epad User Manual

Epad User Manual

Epanel User Manual

Epanel User Manual

FAQ

Q1: How "plug-and-play" is the RV5 system? Do I need an electrician to install it?

A: The RV5 is designed for quick, beginner-friendly setup. With pre-labeled wiring and a simplified design, most RV owners can install it with basic DIY skills — no electrician required.

Q2: What tools are needed for installation?

A: To complete a standard installation, you will need an Allen wrench, a Phillips head screwdriver, a wire stripper, a drill, an open-end wrench or spanner, protective gloves, a multimeter, and silicone-based adhesive.

Q3: What accessories are included with the RV5? Do I need to buy extra accessories?

A: The RVSolar package includes all necessary cables. If you purchase items separately, you'll need to buy the cables separately or get them with the corresponding accessories.

Q4: Can I integrate the RV5 system with my RV's existing wiring and breaker panel?

A:Yes.

Q5: How does the RV5 system work with my 12 V system?

A: The RV5 is a core 48 V system, which requires a 48V battery bank to operate. For seamless integration with your RV, it features a dedicated DC output that can be configured to either 12 V or 24 V. You can connect this output directly to your existing 12 V load circuits or DC distribution panel to power your standard vehicle electronics.

Q6: Can I use third-party solar panels with the RV5 system?

A: Yes, the RV5 is compatible with third-party solar panels, providing flexible energy options for your RV.

Q7: Can I use lead-acid or AGM batteries with the RV5?

A: Yes, the RV5 works with lead-acid and AGM batteries. However, using non-BLUETTI batteries may result in uneven power distribution and faster consumption.

Q8: How do I charge the RV5 from my truck or van while driving?

A: The RV5 connects to your vehicle's starter battery using dedicated cables and a circuit breaker, enabling charging directly from the alternator.

Q9: How do I wire solar panels with the RV5 system?

A: Connect solar panels directly to the RV5 Power Hub's PV input. For easy installation, refer to the detailed wiring diagram in the Quick Start Guide.

Q10: How do I know if they will fit in my RV's storage bay?

A: The RV5 Power Hub measures 17.72 × 19.69 × 6.30 in (450 × 500 × 160 mm). In addition to the unit's physical size, you must ensure there is enough clearance for proper ventilation. A minimum space of 7.87 in (200 mm) is required on all sides—top, bottom, left, and right. Please measure your available space to confirm it meets these total requirements.

Q11: Can the B4810 battery be installed vertically next to the RV5 Power Hub?

A: Yes, the B4810 battery can be mounted vertically to save space, as long as it's securely installed with a mounting bracket and the connectors face upward.

Q12:Do I need to configure the system after installation?

A: No, the RV5 system automatically detects and configures connected components for you. No manual configuration is necessary.

Q13:Do I need to manually configure multiple batteries?

A: If using BLUETTI batteries, no manual configuration is required. For third-party lithium or lead-acid batteries, manual configuration may be necessary.

Q14:How do I troubleshoot electrical issues with the RV5 system?

A: The Epad provides AI-powered diagnostics to detect issues. The BLUETTI app also lets you monitor the system and troubleshoot in real-time.

Q15:How many B4810 batteries do I need to run a 15,000 BTU air conditioner overnight?

A: While a single 5 kWh B4810 battery might have enough energy to run a 15,000 BTU AC for a few hours, the main challenge is the power required for startup. A single battery setup is limited to 4320W, which may not handle the AC's initial surge. For reliable operation, we recommend using two B4810 batteries. This provides ample power for startup and enough energy (10 kWh) to run it overnight. If using only one battery, you will need to install a soft start device on the air conditioner.

Q16:How long does it take to recharge the batteries?

A: Charging time is flexible and depends on the power source. With a single 5.1 kWh B4810 battery, a full charge (0-100%) using a 3600W shore power connection takes approximately 1.6 hours. If you need to charge even faster, the system can blend shore power with available solar power, reducing the time to as little as 1.1 hours. You can also charge using your vehicle's alternator or solar alone, giving you plenty of options on the go.

Q17: Does the RV5 support generator auto-start/off?

A: Yes, the Epad includes a port (Generator Start Signal) to support generator auto-start/off.

Q18: What is an Uninterruptible Power Supply (UPS) and why is it important for an RV power system?

A: The RV5's UPS function automatically switches to battery power within 20 ms if shore or generator power is lost, ensuring your appliances continue running without interruption.

Q19: Why choose a 48 V battery system for my RV?

A: A 48 V system is more efficient, with up to 30% less energy loss compared to 12 V systems. It also supports thinner cables and cooler, safer operation.

Q20: Can I start with one B4810 battery and add more later?

A: Yes, the RV5 is modular and expandable. You can add up to 24 B4810 batteries for a total of 122 kWh of storage.

Q21: How much shore power can the RV5 handle?

A: The RV5 supports up to 6,000 W of load through a 50 A bypass when connected to shore power.

Q22: Will the RV5 drain my vehicle’s starter battery?

A: The RV5 automatically stops drawing power from your vehicle's starter battery once the engine is off, preventing any risk of draining your battery.

Q23: What is the advantage of the Epad touchscreen compared to just using the mobile app?

A: The Epad is your central control hub, providing advanced diagnostics, AI-powered insights, and circuit-level management. It also connects third-party components for full system integration.

Q24: Can the BLUETTI app control individual circuits in my RV through the Epanel?

A: Yes, the app lets you monitor and control up to 4 AC circuits and 6 DC circuits remotely, offering complete oversight of your RV's power system.

Q25: Will the RV5 impact my RV's weight or balance?

A: The RV5 Power Hub weighs 30.86 lbs (14 kg), and the B4810 battery weighs 103 lbs (47 kg). Please consider your RV's weight and balance when choosing installation locations.

Q26: What safety certifications does the RV5 system have?

A: The RV5 Power Hub is UL458 certified, meeting rigorous North American safety standards for mobile power systems.

Q27: How can I prevent battery over-discharge?

A: The B4810 battery includes a smart Battery Management System (BMS) that protects against over-discharge, overcharging, and other potential issues.

Q28: What kind of warranty and support does the RV5 include?

A: The RV5 comes with a 5-year warranty, and dedicated technical support is available for any service needs.

Q29: Can I use the RV5 for off-grid living or home backup?

A: Yes, the RV5 is a versatile solution, perfect for off-grid cabins, RVs, and home backup power needs.
