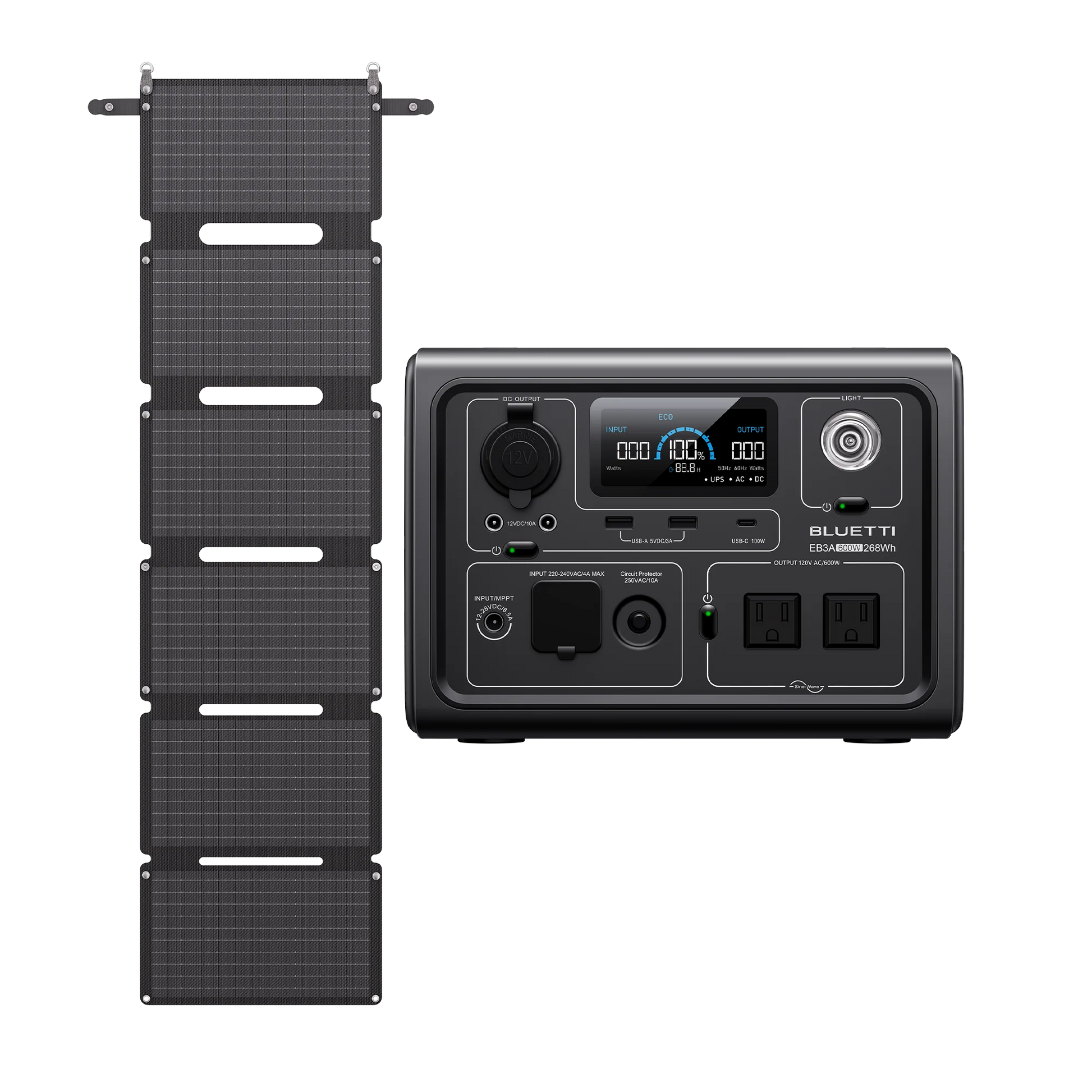

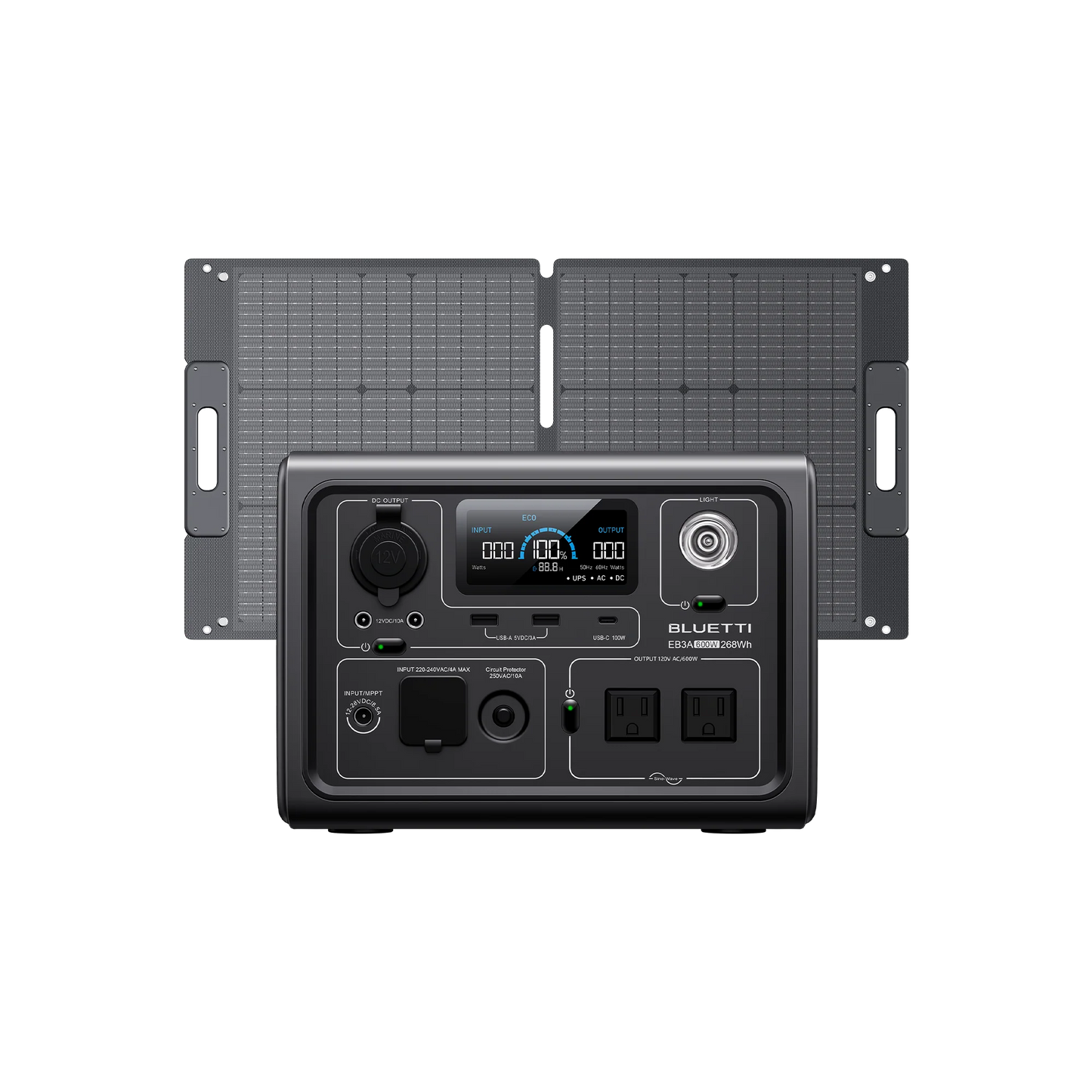

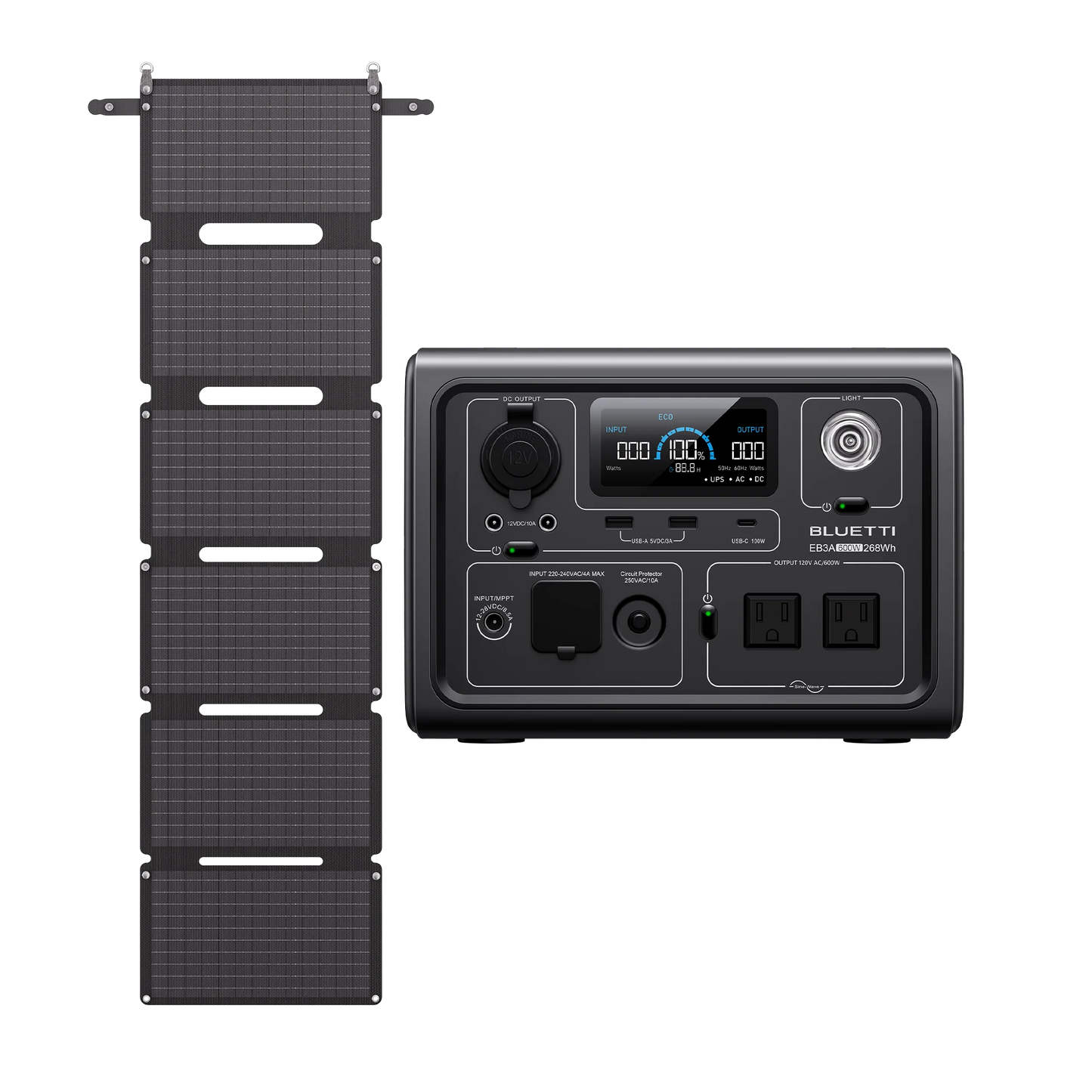

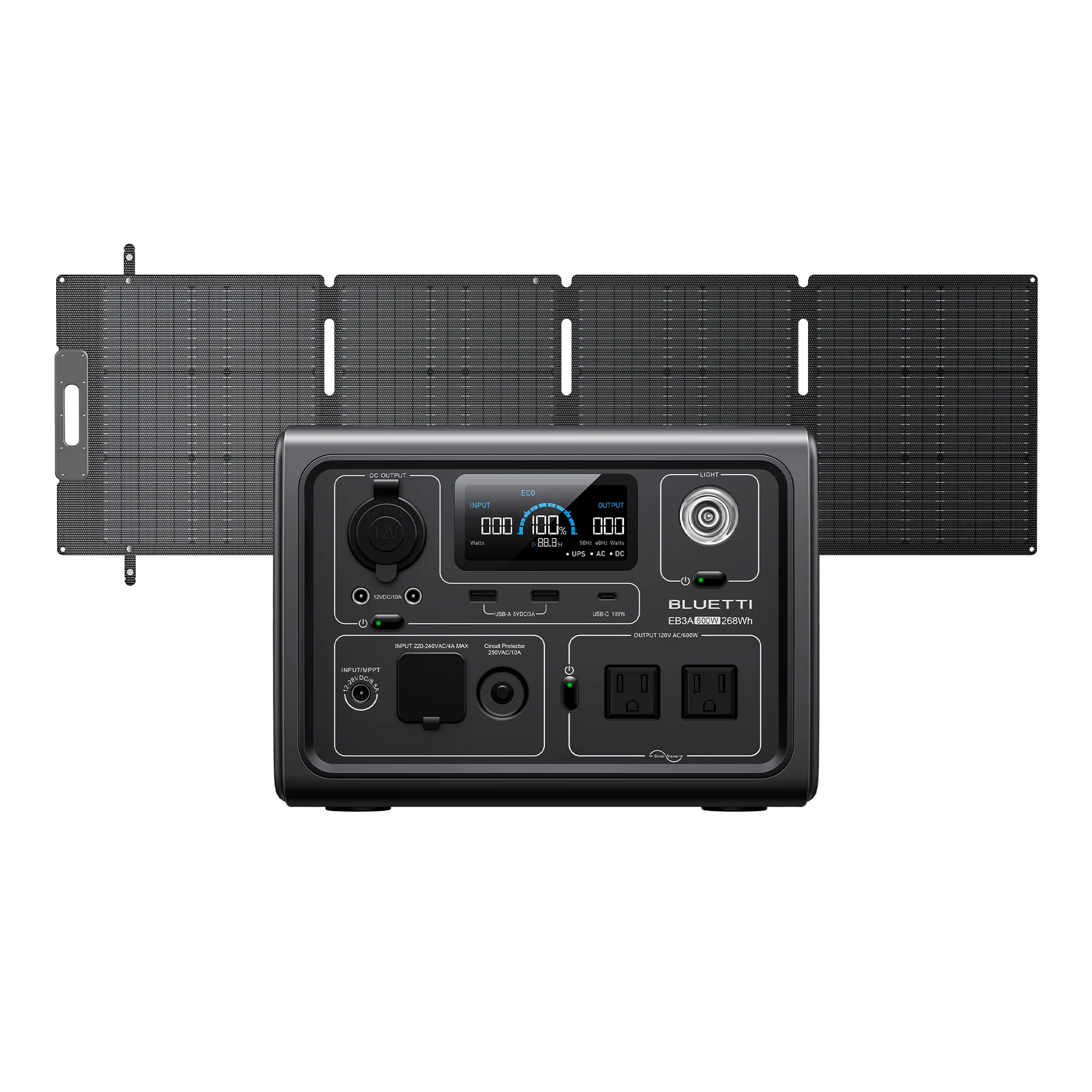

BLUETTI| EB3A Portable Power Station | 600W 268Wh
Features:
600W AC Pure Sine Wave Inverter (1,200W surge)；
268Wh Capacity；
430W Max. Fast Dual Charging (Solar+AC)；
LiFePO4 Battery with 2,500+ Life Cycles to 80%;
6 Ways to Recharge (AC/Solar/Car/Generator/AC+Solar/AC+Adapter)；
9 Outputs for Charging Multiple Devices at once；
Smart Control & Monitor in BLUETTI App；
200W Max. Solar Input；
Easy to Carry/ Fast Charging/ Safe & Reliable/ Cost-effective
24/7 UPS
AC300 Support Four UPS functions as
Standard UPS(back up)
Time Control UPS(peak load shifting)
PV Priority(money-saving)
Customized UPS(advanced mode)
Learn More about Bluetti Solar Panels
*Please NOTE: This item is only applicable to orders in the US (except Alaska and the Virgin Islands).
Portable Power for A Sustainable Lifestyle
Designed to be more energy-efficient than traditional generators, BLUETTI EB3A is so light in terms of weight, doing its part to help you reduce carbon emissions to the environment.
Small but in Charge
80% Charge in 30 Minutes
6 Ways to Recharge
Safety Is in Detail
9 Outlets for Every Need
Stay Connected with BLUETTI APP
Key Features
Battery Health and Longevity
The EB3A uses a LiFePO4 (Lithium Iron Phosphate) battery, which is known for its long cycle life (over 2,500 cycles to 80% capacity). To get the most out of it:
- Avoid Extreme Discharges and Charges: While the battery is designed to handle a full discharge, it's generally recommended to avoid consistently draining the battery to 0% and charging it to 100%. Maintaining the battery in a "mid-state-of-charge" can extend its longevity.
- Long-Term Storage: If you're not using the EB3A for an extended period (more than 3 months), charge it to 40-60% capacity before turning it off and storing it in a cool, dry place.
- Periodic Full Cycles: To keep the battery meter calibrated, it's recommended to perform a full discharge and recharge cycle every 6 months.
Charging Optimization
The EB3A offers multiple charging options, and you can optimize each one for your needs.
- Fast Charging: The BLUETTI App allows you to activate "Turbo Charging" mode, which can significantly reduce the time it takes to fully charge the unit from an AC wall outlet.
- Solar Charging: To get the most out of solar charging:
- Keep panels clean and unobstructed: Dust, dirt, and shade can dramatically reduce efficiency.
- Angle panels correctly: Adjust the angle of your solar panels to face the sun directly throughout the day.
- Use the right cables: Ensure you are using the correct gauge and length of cables to minimize power loss. The EB3A uses an MPPT (Maximum Power Point Tracking) charge controller, which helps maximize the power harvested from solar panels.
Usage and Power Management
How you use the EB3A can also impact its efficiency.
- Use the BLUETTI App: The app is a powerful tool for monitoring and controlling your EB3A. You can:
- Remotely turn AC/DC outputs on or off.
- Monitor energy usage and track patterns.
- Update firmware to improve performance and add new features.
- Eco Mode: The EB3A has an "Eco Mode" that you can activate via the app or on the device itself. This feature automatically turns off the AC/DC outputs after 4 hours of low (≤10W for AC, ≤1W for DC) or no load, which helps save power and prevents the battery from being slowly drained on standby.
- Turn off outputs when not in use: The inverter and DC outputs draw a small amount of power even when no device is connected. To prevent this "idle drain," be sure to turn off the AC and DC outputs when they are not in use.
- Be Mindful of UPS Mode: While the EB3A has a UPS (Uninterruptible Power Supply) function, using it continuously can lead to small charge/discharge cycles as the battery tops off from 99% to 100% repeatedly. If your goal is to maximize battery cycle life, consider if this mode is essential for your application.
General Care
- Ventilation: Keep the EB3A in a well-ventilated area, especially while charging or under heavy load, to prevent overheating.
- Storage Conditions: Store the unit in a cool, dry place within the recommended temperature range (14−113∘F/−10−45∘C). Avoid exposing it to extreme heat, cold, or moisture.
- Use Compatible Accessories: Always use approved BLUETTI cables and accessories to avoid any risk of damage to the unit or fire.
Specs
BATTERY INFO
|
Capacity: |
268.8Wh (12Ah) |
|
Type: |
LiFePO4 (Lithium Iron Phosphate) |
|
Life Cycles: |
2,500+ Cycles to 80% Original Capacity |
|
Shelf-life: |
Recharge to 80% Every 3-6 Months |
|
Management System: |
MPPT Controller, BMS, etc. |
OUTPUT
|
AC Outlets: |
2 x 120V/5A Outlets |
| 600W In Total | |
|
Inverter Type: |
Pure Sine Wave |
|
Surge Power: |
1,200W |
|
USB-C Port: |
1 x 100W Max. |
|
USB-A Port: |
2 x 5V/3A USB-A |
|
DC Outlets: |
1 x 12V/10A (Car Outlet) |
| 2 x 12V/10A DC 5521 (5.5mm Outlets) | |
| *All Regulated. | |
|
Wireless Charging Pad: |
1 x 15W Max. |
INPUT
|
AC Charging Cable Input: |
268W Max. |
|
AC Charging Cable (Turbo Mode): |
350W Max |
|
Solar Input: |
200W Max., VOC 12-28VDC/ 8.5A |
|
Car Input: |
12/24V from Cigarette Lighter Port |
|
Maximum Input: |
430W, with AC and Solar Input Simultaneously |
RECHARGE TIMES
|
AC Charging Cable (Turbo Mode 350W): |
≈1.3-1.8 Hours |
|
AC Charging Cable (Standard Mode 268W): |
≈1.5-2.0 Hours |
|
Solar (200W): |
≈1.8-2.0 Hours (With prime sunshine, ideal orientation and low temperature) |
|
12V/24V Car Outlet (100W/200W): |
≈3.2-3.7 or 1.9-2.4 Hours |
|
AC + Solar (430W): |
≈1.2~1.7 Hours (With prime sunshine, ideal orientation and low temperature) |
|
Dual AC (430W): |
≈1.2~1.7 Hours (With optional BLUETTTI T200 Adapter) |
GENERAL
|
Pass-through Charging: |
Yes |
|
Weight: |
10.14lbs/4.6kg |
|
Dimensions (LxWxD): |
10.04*7.09*7.20in/255*180*183mm |
|
Operating Temperature: |
-4-104℉ (-20-40℃) |
|
Storage Temperature: |
32-104°F (0-40°C) |
|
Certifications: |
UL Standard, CEC, DOE, FCC, CA Prop 65 |
|
Warranty: |
24 Months |

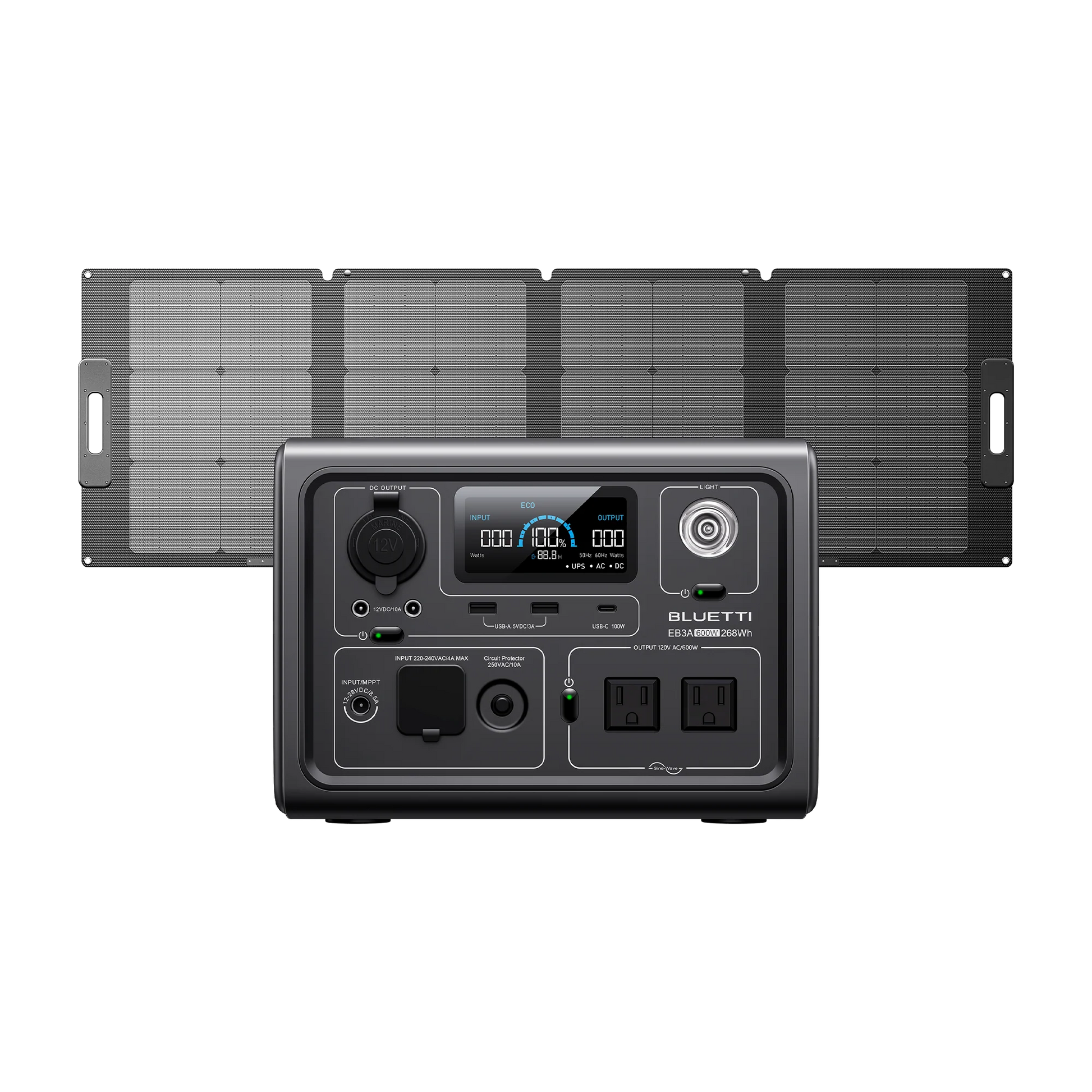

BLUETTI PV120 120W Solar Panel
POWER
|
Power: |
120W |
|
Lamination: |
ETFE (Ethylene tetrafluoroethylene) |
|
Cell Type: |
Monocrystalline Silicon |
|
Cell Efficiency: |
Up to 23.4% |
|
Voltage at Max Power(Vmp): |
19.6V |
|
Current at Max Power(Imp): |
6.1A |
|
Open Circuit Voltage(OCV): |
24.4V |
|
Short Circuit Current(Isc): |
6.43A |
GENERAL
|
Connector: |
Standard MC4 Connector |
|
Weight: |
12.57lbs (5.7kg) |
|
Dimensions (Unfolded): |
21 × 65in (53.3 × 165.2cm) |
|
Dimensions (Folded): |
21 × 18.5in (53.3 × 47cm) |
|
Operating Temperature: |
14-149℉ (-10-65℃) |
|
Best Working Temperature: |
77℉ (25℃) |
|
Cable Length: |
118in (3m) |
|
Certifications: |
FCC, CE, ROHS |
|
Warranty: |
12 Months (Enter to learn more about BLUETTI warranty policy) |
What's in the Box
Why Choose BLUETTI AC500?
Charge Your Power, Your Way
Power in Hand - App Control

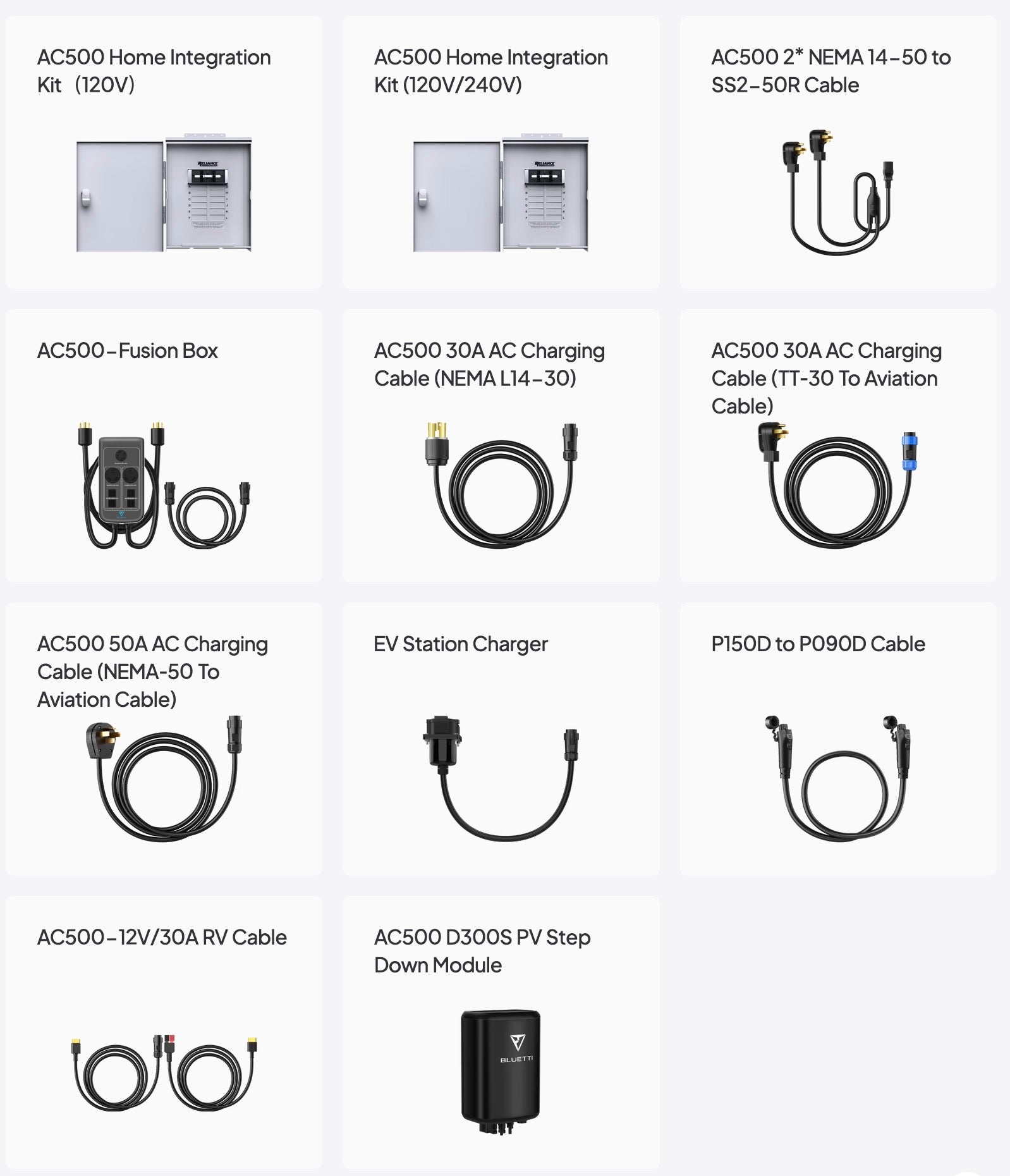

Recommended Accessories
