BLUETTI| AC300+2*B300 6144Wh+3*PV200-USP Mode Solar Generator Kit

Regular price
Price: $6,804.00 USD
Regular price
List Price: $7,104.00 USD
Sale price
Price: $6,804.00 USD
You save: $300.00 USD (4%)
Tax included. Shipping calculated at checkout.
2% off, Free Shipping & Tax Free| Coupon Code: BLUETTI | Ends:
View Cart

Shipping Information

Free Shipping to Contiguous United States| We do not ship to Alaska, Hawaii, American Samoa, Guam, Northern Mariana Islands, Puerto Rico, U.S. Virgin Islands

30 Days Price Match Guarantee

ecopowerit will refund you the difference if you find a lower price from us within 30 days of your purchase, shop with confidence.

This Deal Ends In:

00 Days
00 Hours
00 Minutes
00 Seconds

BLUETTI| AC300+2*B300 6144Wh+3*PV200-USP Mode Solar Generator Kit

BLUETTI| AC300 Inverter Module Generator | 3,000W (Must Work With B300)

Features:

  • 3,000W AC Pure Sine Wave Inverter (6,000W Surge);

  • Expandable Up To 12,288Wh with 4×B300"s;

  • 7 Ways to Recharge (AC/Solar/Car/Generator/Lead battery/Dual AC/AC+Solar);

  • 2400W Max. Solar Input

  • 5400W Max. Fast Dual Charging (Solar + AC Adapter Simultaneously);

  • Smart App Control & Monitor;

  • 240V Connection Available;

  • 24/7 UPS Home Backup;

AC300 Support Four UPS functions as

1- Standard UPS(back up)

2- Time Control UPS(peak load shifting)

3- PV Priority(money-saving)

4- Customized UPS(advanced mode)

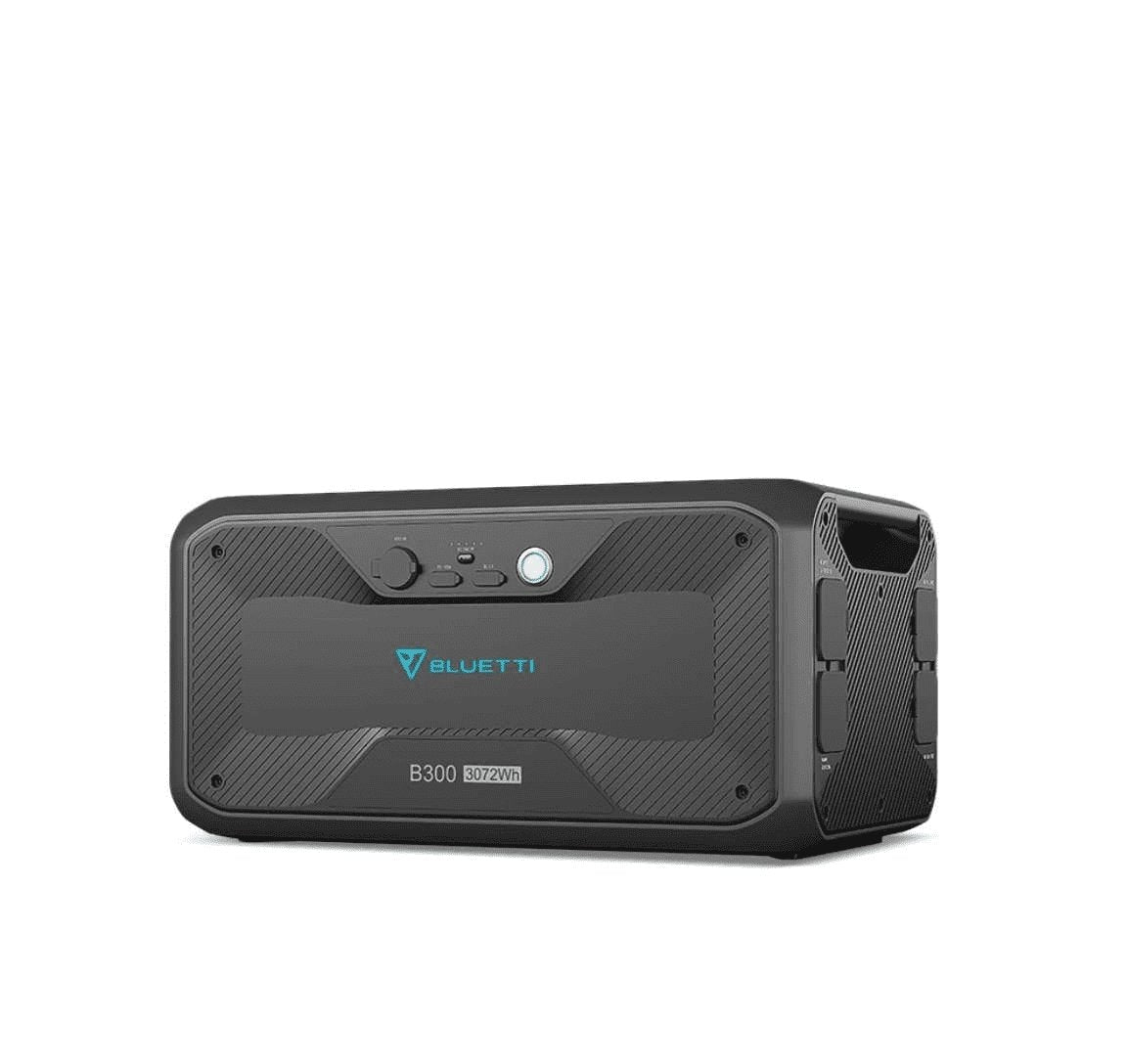

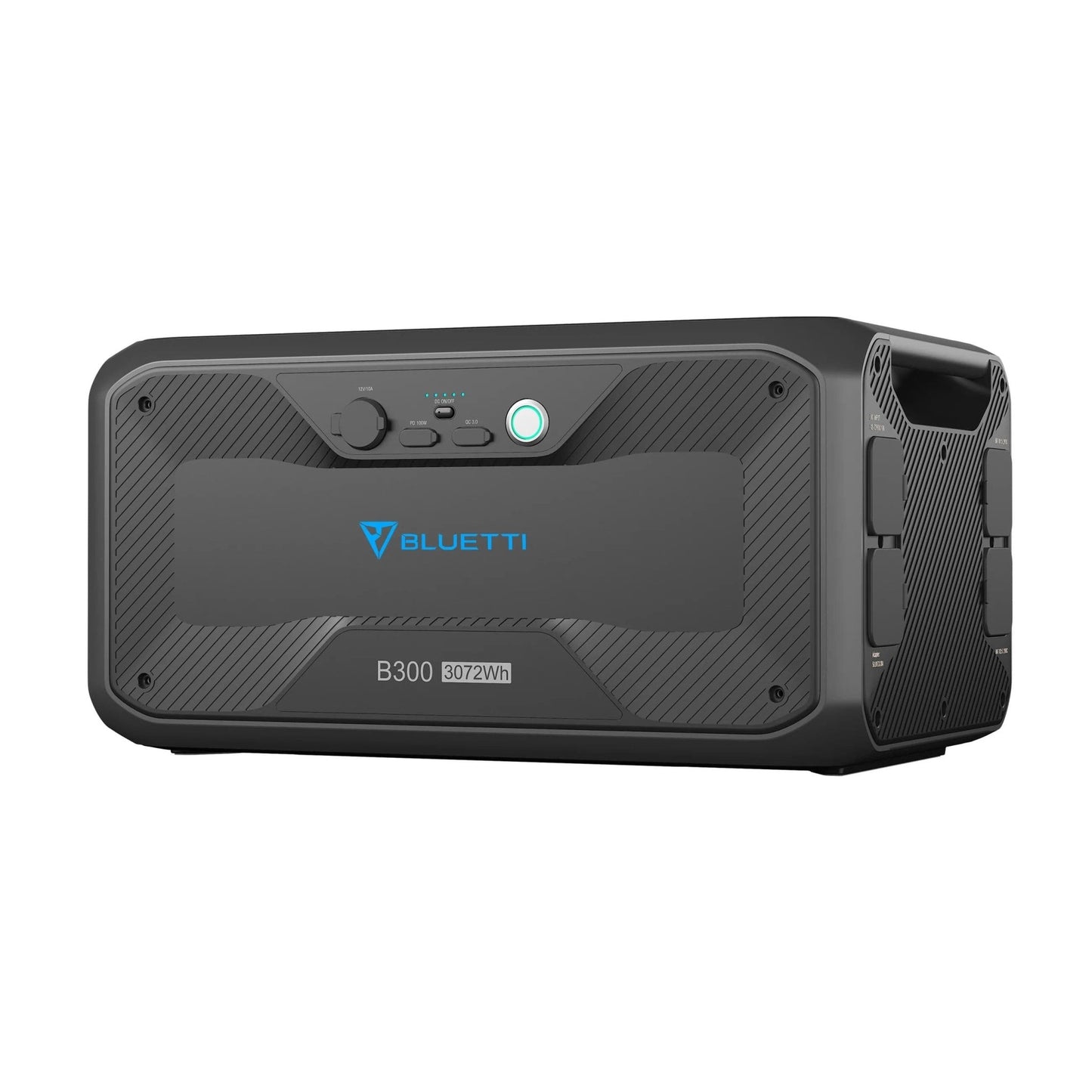

BLUETTI| B300 Expansion Battery 3072Wh

Features:

  • Features with a 100W USB-C, a 12V/10A car output and a USB-A ports, you can use the B300 as a portable power station.

  • The smart MPPT inside of the B300 enables it to recharge quickly through solar power at a 200W maximum loading scale.

  • You can also recharge it by wall socket, car charging or lead-acid battery.

  • Car charging and lead-acid battery charging need to be realized through D050S

    Learn More about B300 Expansion Battery

    BLUETTI PV200 Solar Panel | 200W

    Features:

    • Monocrystalline Solar Cells with Up to 23.4% Efficiency
    • Long-lasting ETFE Coating
    • Foldable & Portable
    • Compatible With Most Solar Generators with MC4 Connectors
    • 12-month Warranty

    Learn More about Bluetti Solar Panels

    *Please NOTE: This item is only applicable to orders in the US (except Alaska and the Virgin Islands).

    Expand Your Power At Will

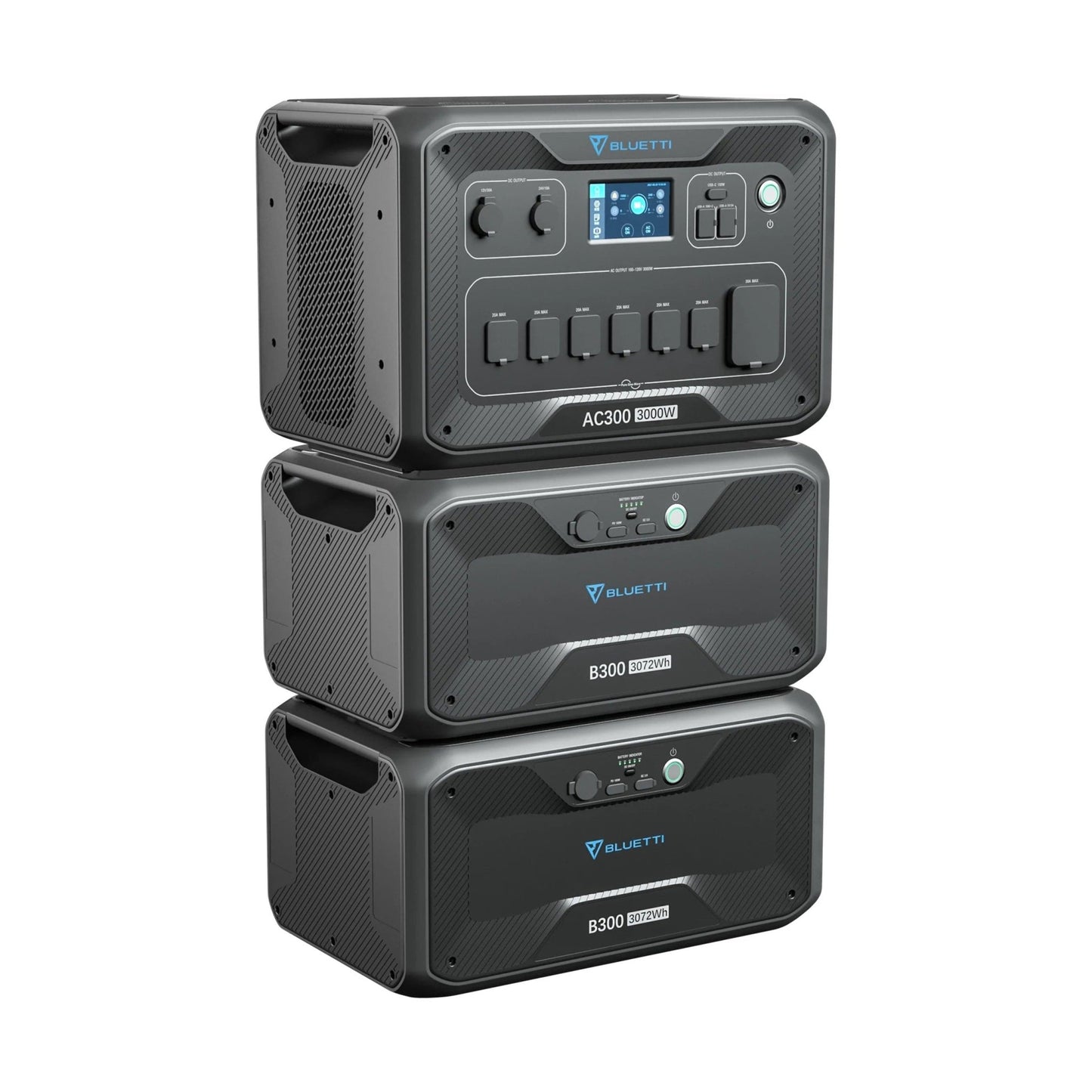

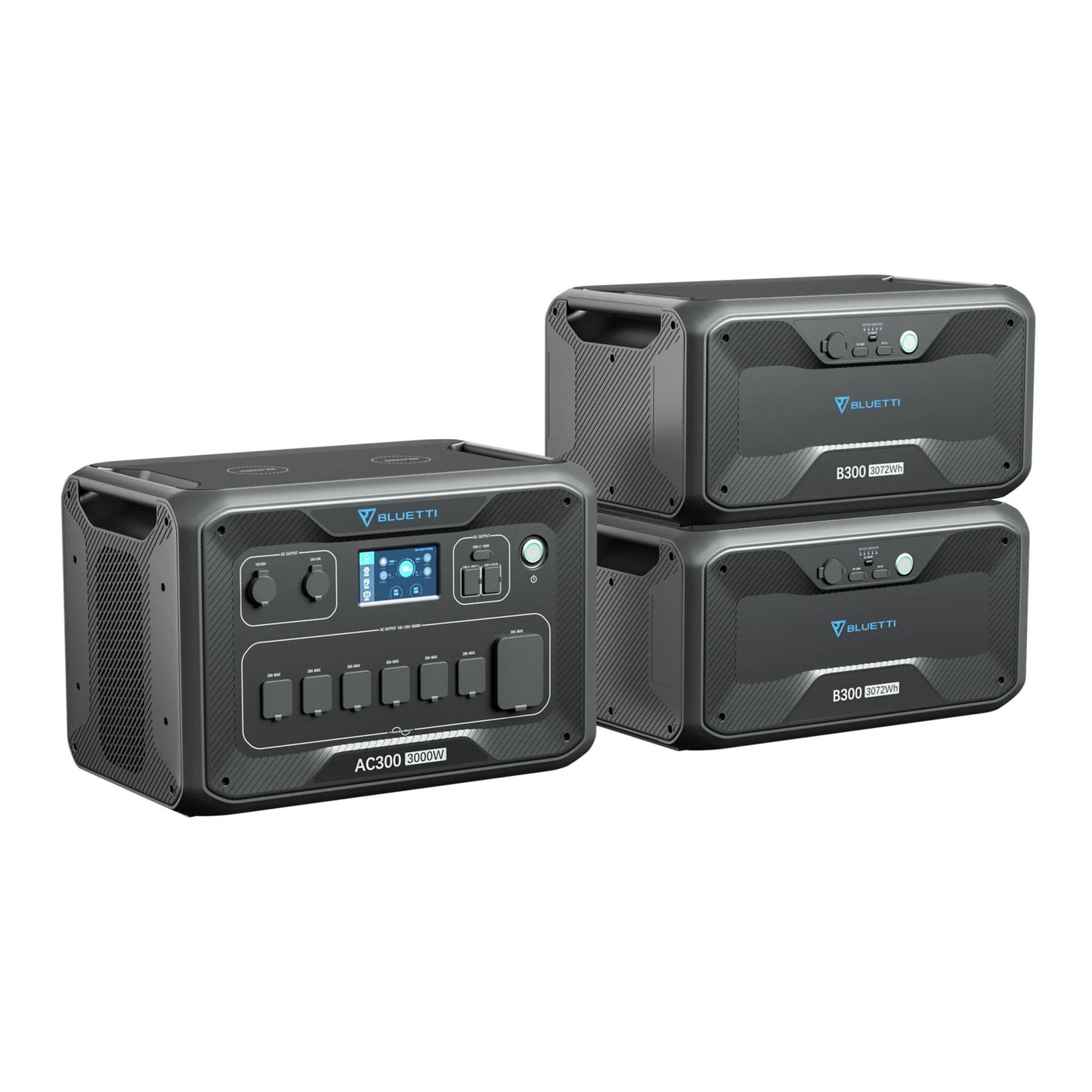

    BLUETTI AC300 is 100% modular, supporting up to 4×B300 (3,072Wh per pack) battery modules for a groundbreaking capacity of 12,288Wh! Power your basic family needs for DAYS during emergencies or power outages!
    BLUETTI| AC300+2*B300 6144Wh+3*PV200-USP Mode Solar Generator Kit

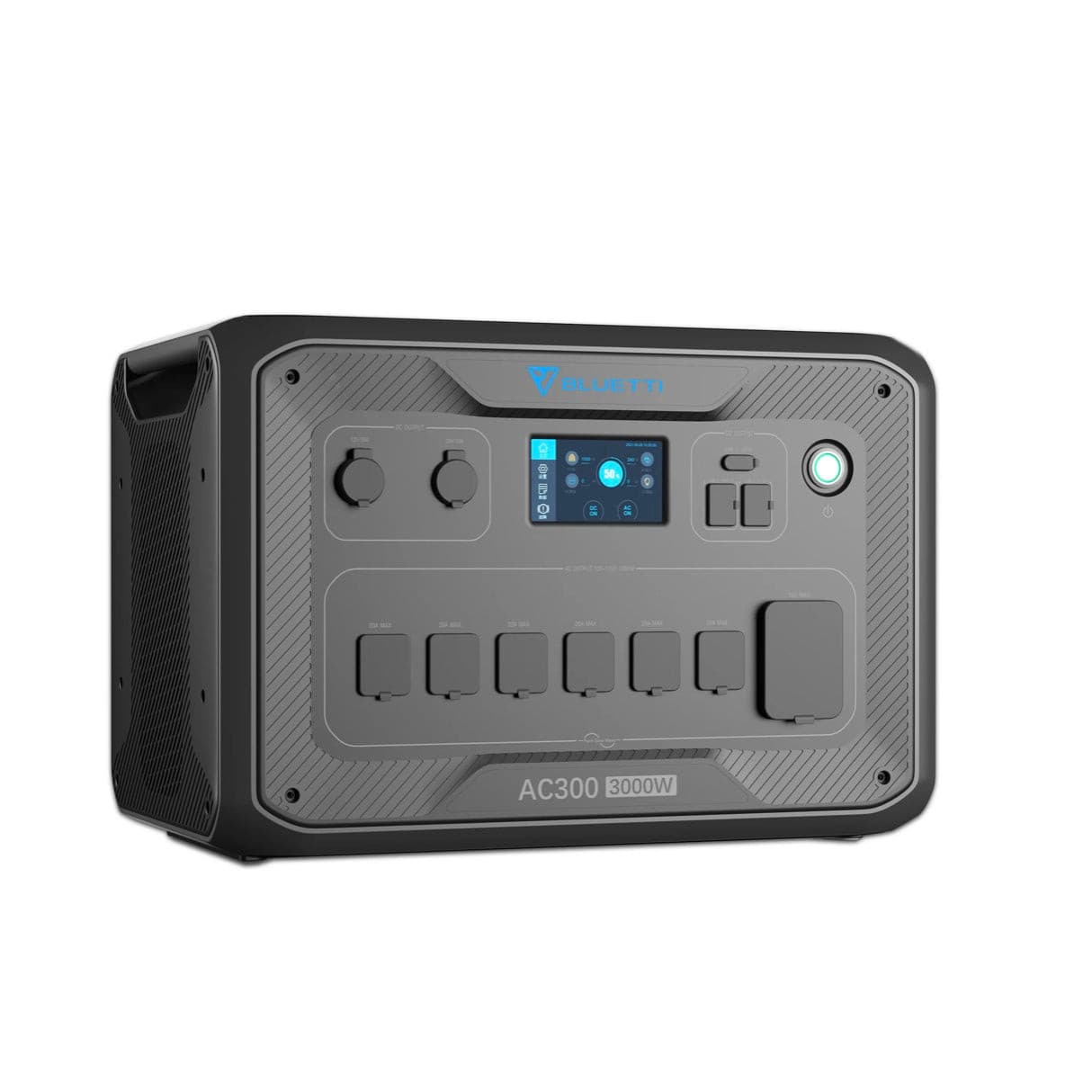

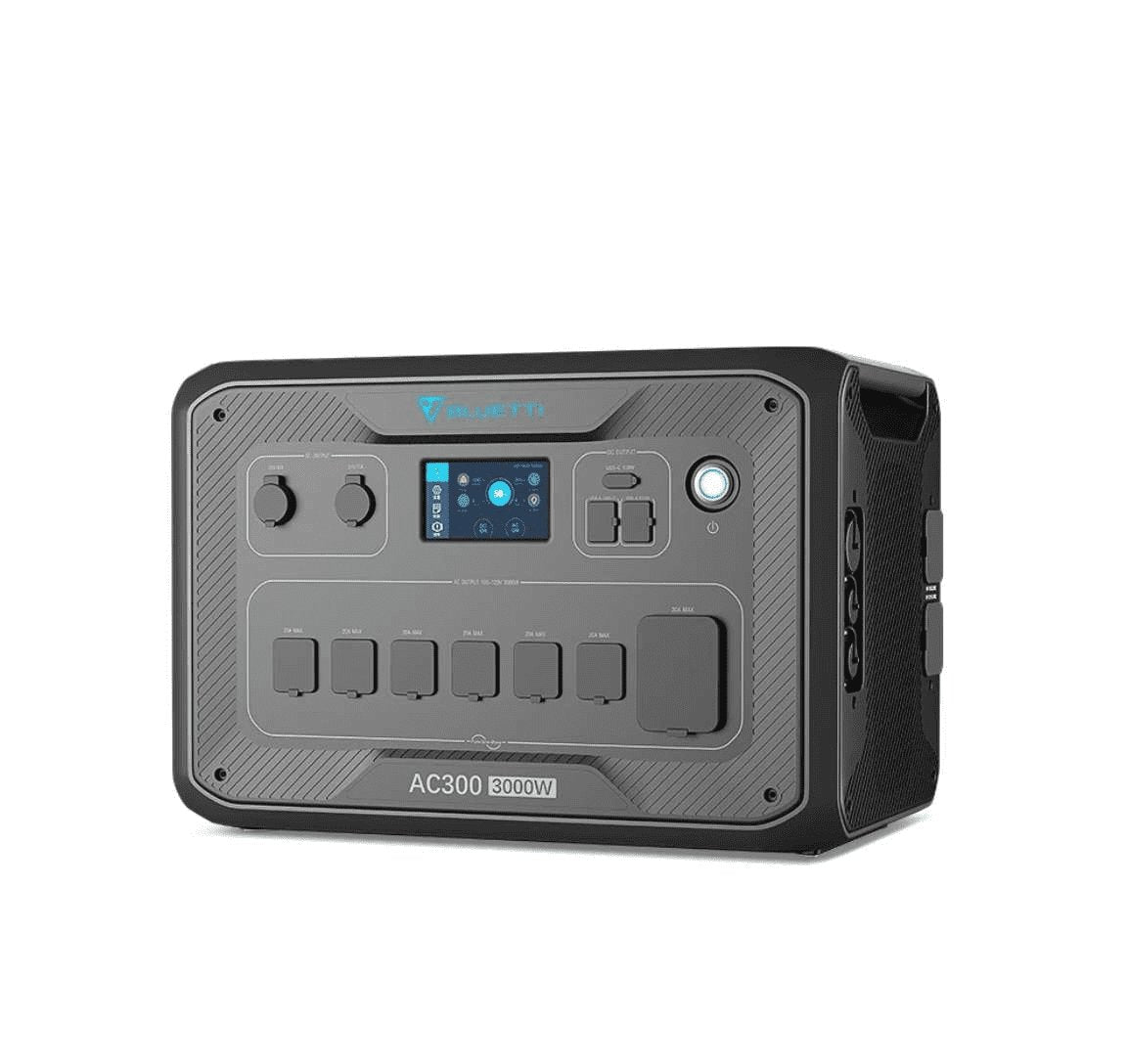

    3000W Pure Sine Wave Inverter

    The inverter can adjust the charging rate from 1800W to 3000W via wall outlets according to your needs.
    * The AC input is 1800W by default, which can boost to 3000W with the 30A charging cable(Sold separately on BLUETTI).

    BLUETTI| AC300 + 1*B300 3072Wh-USP Mode Home Battery Backup

    Expandable Power Supply

    As BLUETTI"s first 100% modular station, the AC300 can accept external battery packs and boost its capacity to a Max. 12,288Wh. From emergency backup to off-grid power source, this generator for home backup is sure to handle all your electricity needs.
    expandable 3000w generator

    5400W Blazing Input Rate

    Plug in the wall outlet and solar panels, you can fast charge the AC300 much faster at a 5,400W Max rate, saving you a lot of charging time.
    *The 5,400W input rate combines 2,400W solar and 3,000W AC, which requires two B300 batteries. Or the rate would be limited to 3,000W with only one B300.

    BLUETTI| AC300 + 1*B300 3072Wh-USP Mode Home Battery Backup

    5 Ways to Charge

    Flexible to charge your AC300 via wall outlet, solar panels, car, generator and lead-acid battery, etc. Stay connected anytime, anywhere.

    24/7 UPS Home Backup

    Using BLUETTI Smart Home Panel, you can tie the AC300 power system to your home grid. Always get you prepared for power outages.
    One System For All Power Needs
    Power your home whenever power outages occur. Easy setup, Just Power On.

    backup generator for home

    240V Connection Available

    With the Fusion Box Pro(P030A), you can connect two AC300s in series for 240V/6,000W output and a total capacity of 24,576Wh(4 B300s for each AC300).
    240v connection available

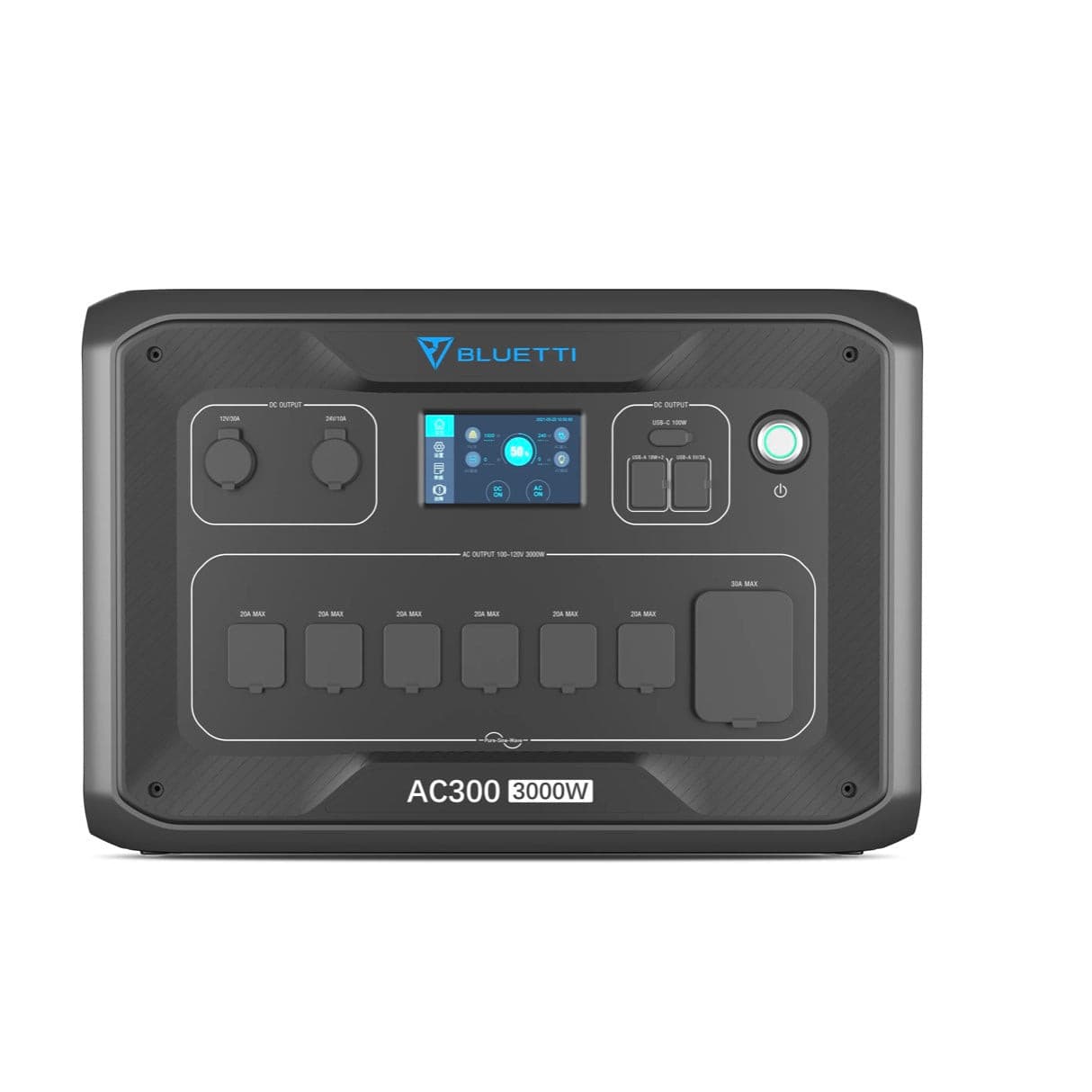

    Multiple Outlets for Every Need

    The NEMA TT-30 and 12V/30A DC port are perfect for RVers. Meanwhile, the wireless chargers enable you to charge compatible smart phones, earphones and so on.
    multiple outlets for every need


    Tech Specs

    BLUETTI AC300 Inverter Module Generator | 3,000W ( Must Work With B300 )

    OUTPUT

    AC Outlets:

    6 x 120V/20A Outlets

    1 x 120V/30A TT-30
    3,000W In Total

    Inverter Type:

    Pure Sine Wave

    Surge Power:

    6000W

    USB-C Port:

    1 x 100W Max.

    USB-A Port:

    2 x 5V/3A USB-A

    2 x 18W USB-A

    12V* DC Outlets:

    1 x 12V/30A (RV Outlet)

    1 x 24V/10A (Car Outlet)
    *All Regulated.

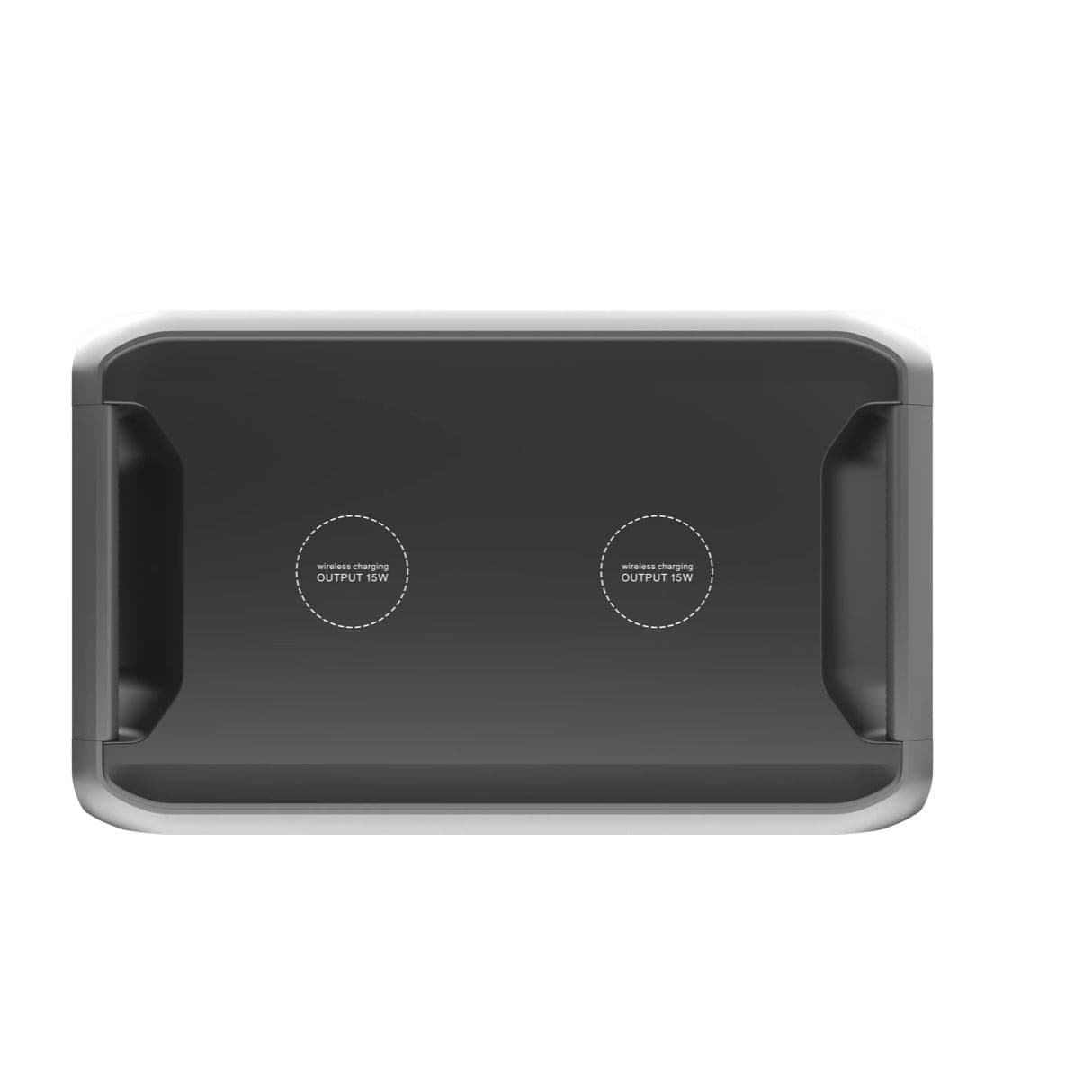

    Wireless Charging Pad:

    2 x 15W Max. (For Each)



    INPUT

    AC Charging Cable Input:

    3,000W Max.

    Solar Input:

    2,400W Max., VOC 12-150VDC, 12A

    Car Input:

    12/24V from Cigarette Lighter Port

    Maximum Input:

    5,400W, with AC and Solar Input Simultaneously



    GENERAL

    240V Split Phase Bonding:

    Yes

    App Control:

    Yes, Wifi&Bluetooth

    Scalability:

    Expandable W/Up to 4 x B300

    Simultaneous Recharge & Discharge:

    Yes

    Weight:

    47.6lbs (21.6kg)

    Dimensions (LxWxD):

    20.5 x 12.5 x 14.1in ( 52 x 32 x 35.80cm)

    Operating Temperature:

    -4-104℉ (-20-40℃)

    Storage Temperature:

    -4-104℉ (-20-40℃)

    Certification:

    UL Standard, PSE, FCC, CE, UN38.3, msds, SAA and ROHS

    Warranty:

    48 Months (Enter to learn more about our warranty policy)



    BLUETTI| B300 Expansion Battery 3072Wh

    BLUETTI| B300 Expansion Battery 3072Wh

    BATTERY INFO

    Capacity:

    3,072Wh (51.2V, 60Ah)

    Type:

    LiFePO4 (Lithium Iron Phosphate)

    Life Cycles:

    3500+ Cycles to 80% Original Capacity

    Shelf-life:

    Recharge to 80% Every 3-6 Months

    Management System:

    MPPT Controller, BMS, etc.



    OUTPUT

    USB-C Port:

    1 x 100W Max.

    USB-A Port:

    1 x 18W USB-A

    12V DC Outlet*:

    1 x 12V/10A (Car Outlet)

    *All Regulated.



    INPUT

    AC Input:

    500W Max.

    Solar Input:

    200W Max., VOC 12-60VDC, 10A

    Car Input:

    12/24V from Cigarette Lighter Port

    Max Input:

    700W, With AC Adatper + Solar Input Simultaneously



    RECHARGE TIME

    AC:

    ≈ 6.5~7 Hours at 500W

    Solar:

    ≈ 15.5~16 Hours at 200W (With prime sunshine, ideal orientation and low temperature)

    12V/24V Car Outlet (100W/200W:

    ≈ 30 or 15 Hours

    AC + Solar:

    ≈ 5 Hours at 700W (With prime sunshine, ideal orientation and low temperature)

    Solar + Solar:

    ≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED)

    Dual AC:

    ≈ 5 Hours at 700W (Extra adapter REQUIRED)



    GENERAL

    240V Split Phase Bonding:

    Yes, work with AC300

    Pass-through Charge:

    Yes

    Weight:

    79.6lbs (36.1kg)

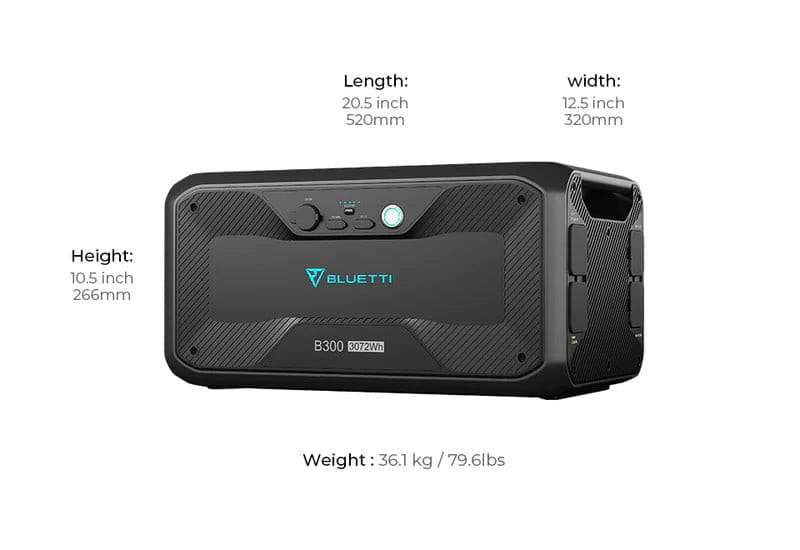

    Dimensions (LxWxD):

    20.5 x 12.5 x 10.5in ( 52 x 32 x 26.6cm)

    Operating Temperature:

    -4-104℉ (-20-40℃)

    Storage Temperature:

    -4-104℉ (-20-40℃)

    Certifications:

    UL Standard, CEC, DOE, FCC, CA Prop 65

    Warranty:

    48 Months (Enter to learn more about BLUETTI warranty policy)


    BLUETTI| AC300+2*B300 6144Wh+3*PV200-USP Mode Solar Generator Kit

    BLUETTI PV200 Solar Panel | 200W



    POWER

    Power:

    200W

    Lamination:

    ETFE (Ethylene tetrafluoroethylene)

    Cell Type:

    Monocrystalline Silicon

    Cell Efficiency:

    Up to 23.4%

    Voltage at Max Power(Vmp):

    20.5V

    Current at Max Power(Imp):

    9.7A

    Open Circuit Voltage(OCV):

    26.1V

    Short Circuit Current(Isc):

    10.3A



    GENERAL

    Connector:

    Standard MC4 Connector

    Weight:

    16.1lbs (7.3kg)

    Dimensions (Unfolded):

    23.2 × 89.2in (59 × 226.5cm)

    Dimensions (Folded) :

    23.2 × 24.8inch (59 × 60cm)

    Operating Temperature:

    14-149℉ (-10-65℃)

    Best Working Temperature:

    77℉ (25℃)

    Cable Length:

    118in (3m)

    Certifications:

    FCC, CE, ROHS

    Warranty:

    12 Months (Enter to learn more about BLUETTI warranty policy)


    What’s in the box

    BLUETTI AC300 Inverter Module Generator | 3,000W (Must Work With B300)



    BLUETTI| AC300+2*B300 6144Wh+3*PV200-USP Mode Solar Generator KitBLUETTI| AC300+2*B300 6144Wh+3*PV200-USP Mode Solar Generator Kit

    User Manual

    BLUETTI AC300 Inverter Module Generator | 3,000W ( Requires The B300 To Work ) User Manual

    BLUETTI B300 Expansion Battery | 3,072Wh User Manual

    BLUETTI PV200 Solar Panel | 200W User Manual

    Warranty, Return & Registration

    Click to learn about Bluetti Warranty, Return & Registration

    Shipping

    Thank you for visiting and shopping at ecopowerit.com. aims to offer you the best shipping options.

    Shipment processing time

    All orders are processed within 3-5 business days. Orders are not shipped or delivered on weekends or holidays.

    If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in the shipment of your order, we will contact you via email.

    Shipment to P.O. boxes or APO/FPO addresses

    ecopowerit.com ships to addresses within the U.S., some of U.S. Territories (Please consult Sales@ecopowerit.com before ordering) and does not ship to P.O. Box and APO/FPO/DPO addresses.

    Shipment confirmation & Order tracking

    You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.

    Damages

    ecopowerit.com is not liable for any products damaged or lost during shipping. If you received your order damaged or lost your package, please contact us within 20 days at info@ecopowerit.com.

      After-sale Service Contact

      • 916-658-3961




      Customer Reviews

      Be the first to write a review
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)

      BLUETTI AC300 3000w Modular B300 LiFePO4 Battery Solar Generator

      Frequently Asked Questions

      How many B300 expansion batteries can I connect with AC300?

      A single AC300 can take up to 4 B300 batteries for a capacity of 12,288Wh. Friendly Note: Only B300 can be connected to AC300. B230 can not be connected to AC300.

      Does AC300 work with third-party expansion battery?

      No. AC300 ONLY accepts BLUETTI B300 expansion battery.

      Can I use AC300 alone?

      No. There's no battery inside AC300 and it must work with B300.

      Does AC300 support App Control?

      Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the AC300+B300 remotely, like switching the working mode and upgrading the firmware.

      Can I use it as an uninterruptible power supply (UPS)?

      Yes. It supports four UPS modes: 1. Standard UPS. 2. Time Control UPS (Pay less for higher electricity consumption). 3. PV Priority UPS (Recommended for regions with sufficient solar energy). 4. Customized UPS.

      How do I connect this to my home main panel?

      BLUETTI recommends a competent and trained licensed electrician undertake the task. Connect the wires of critical equipment from your house electric panel to BLUETTI Smart Home Panel*. Then connect AC300 to the Smart Home Panel.
      * Sold separately.

      Dose AC300 have UPS function?

      Yes. It supports 4 UPS modes:
      1.Standard UPS
      2.Time Control UPS(Pay less for higher electricity consumption)
      3.PV Priority UPS(Recommended for regions with sufficient solar energy)
      4.Customized UPS

      What is the UPS switching time?

      There are two types of working conditions of UPS for AC300 system.1) No delay for online UPS;2) 20ms from standby UPS.

      Can I use third-party solar panels to charge the AC300 system

      Yes, if the solar panels' specs fall in1) Total Voltage: 12-150V2) Total Power: 2,400W Max. (From the two PV input ports)3) Include MC4 connectors.

       Can I use my solar roof to charge the AC300 system?

      Yes, but please note your solar roof should have:1. NO micro-inverter2. an open-circuit voltage of 12-150V3. Include MC4 connectors. However, when the OCV falls in 150-550V, you should use BLUETTI D300S* to step down the voltage and achieve solar charging.* Sold separately.

      Can I connect two AC300 systems in series?

      Yes. With BLUETTI P030A fusion box*, you can connect two AC300 systems in series for 240V/6,000W output and a total capacity of 24,576Wh (4*B300 for each AC300).* Sold separately.

      Is the AC300 power station waterproof?

      No. Also, please do NOT store it in a humid environment for a long time.

      Can it charge and discharge at the same time?

      Yes.

      How do I know whether my appliance can work well with the AC300 and B300 combo?

      Calculate the total wattage of your devices. AC300 should work if the load doesn't exceed its rated 3,000W.

      How long can it run my device?

      Running time = Battery capacity × DoD × η ÷ Device rated power DoD refers to Depth of Discharge and η is local inverter efficiency. For AC300, both DoD and η are 90%. If you run a 1,000W microwave oven with AC300+B300 combo, the running time will be: 3,072Wh × 90% × 90% ÷ 1,000W ≈ 2.5hrsNote:1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.2) The above data is for reference ONLY.

      What is the maximum input charging power of the BLUETTI AC300?

      For AC300 with one B300: 3,000W Max. Via a 120V30A wall socket by a 30A AC charging cable (sold seperately). For AC300 with more than one B300: 5,400W Max. Via 3,000W wall socket and 2,400W solar panels simultaneously.

      Is the AC300 system hot-swappable?

      Yes. You can easily swap battery packs for continuous power use, and the system can hold 4 batteries at once.

      Is it possible to replace the built-in battery?

      No. If the battery inside your power station is faulty or even dead, please contact BLUETTI Customer Service.

      I'd like more tutorial videos on the AC300 system.

      Sure, please follow BLUETTI Support onYouTube..

       How to recharge AC300 rapidly?

      Recharge it with the wall outlet and solar panels at the same time, then you will get a maximum 5,400W input.
