PRODUCT DESCRIPTION

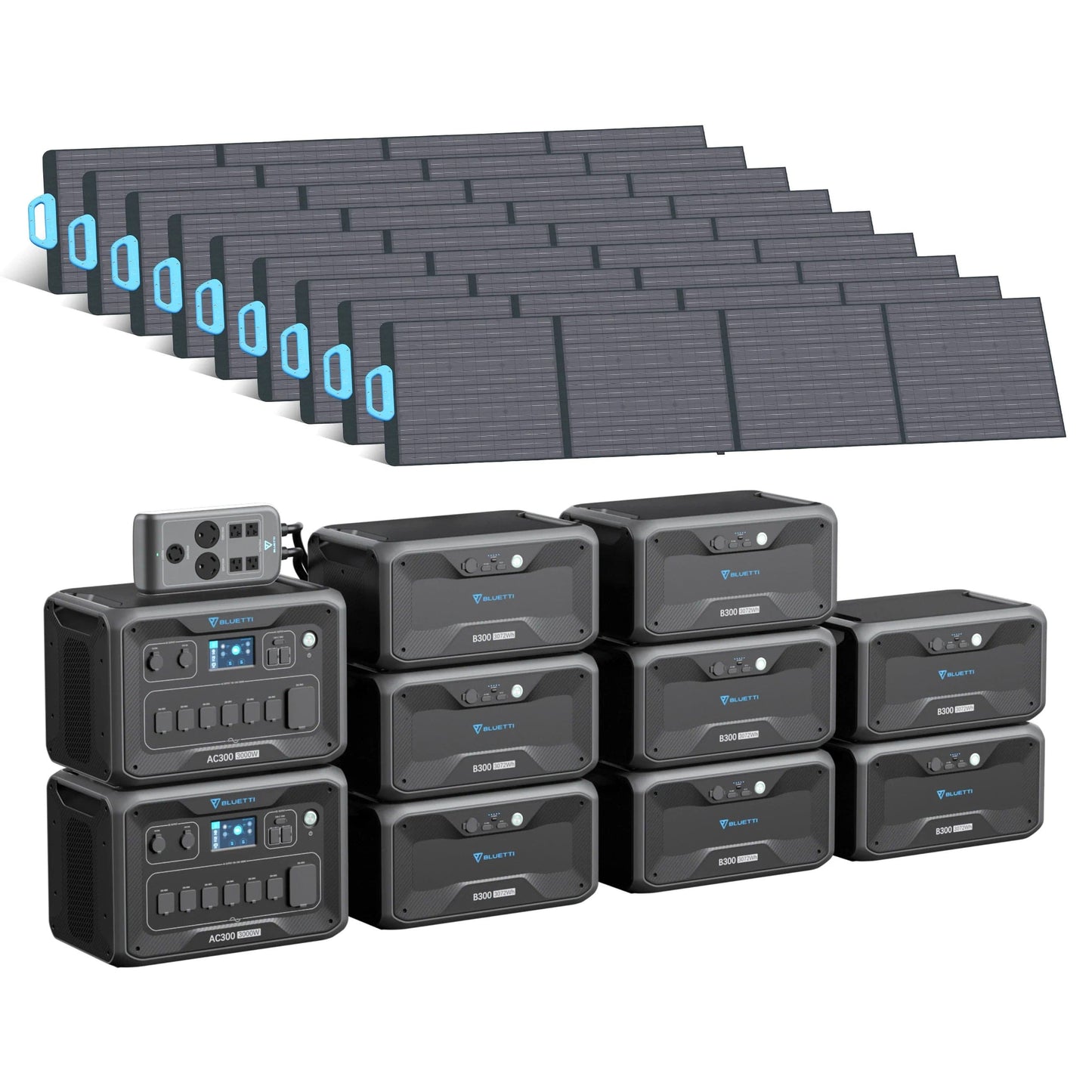

BLUETTI| 2*AC300+8*B300 24,576Wh+8*PV200+1*P030A-USP Mode Solar Generator Kit

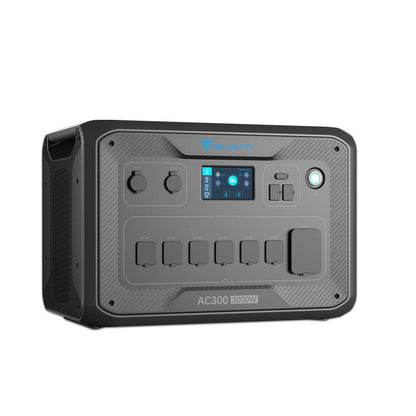

BLUETTI| AC300 Inverter Module Generator | 3,000W (Must Work With B300)
Features:
-
3,000W AC Pure Sine Wave Inverter (6,000W Surge)；
-
Expandable Up To 12,288Wh with 4×B300"s；
-
7 Ways to Recharge (AC/Solar/Car/Generator/Lead battery/Dual AC/AC+Solar)；
-
2400W Max. Solar Input
-
5400W Max. Fast Dual Charging (Solar + AC Adapter Simultaneously)；
-
Smart App Control & Monitor；
-
240V Connection Available；
-
24/7 UPS Home Backup；
AC300 Support Four UPS functions as
1- Standard UPS(back up)
2- Time Control UPS(peak load shifting)
3- PV Priority(money-saving)
4- Customized UPS(advanced mode)
BLUETTI| B300 Expansion Battery 3072Wh
Features:
-
Features with a 100W USB-C, a 12V/10A car output and a USB-A ports, you can use the B300 as a portable power station.
-
The smart MPPT inside of the B300 enables it to recharge quickly through solar power at a 200W maximum loading scale.
-
You can also recharge it by wall socket, car charging or lead-acid battery.
-
Car charging and lead-acid battery charging need to be realized through D050S
Learn More about B300 Expansion Battery

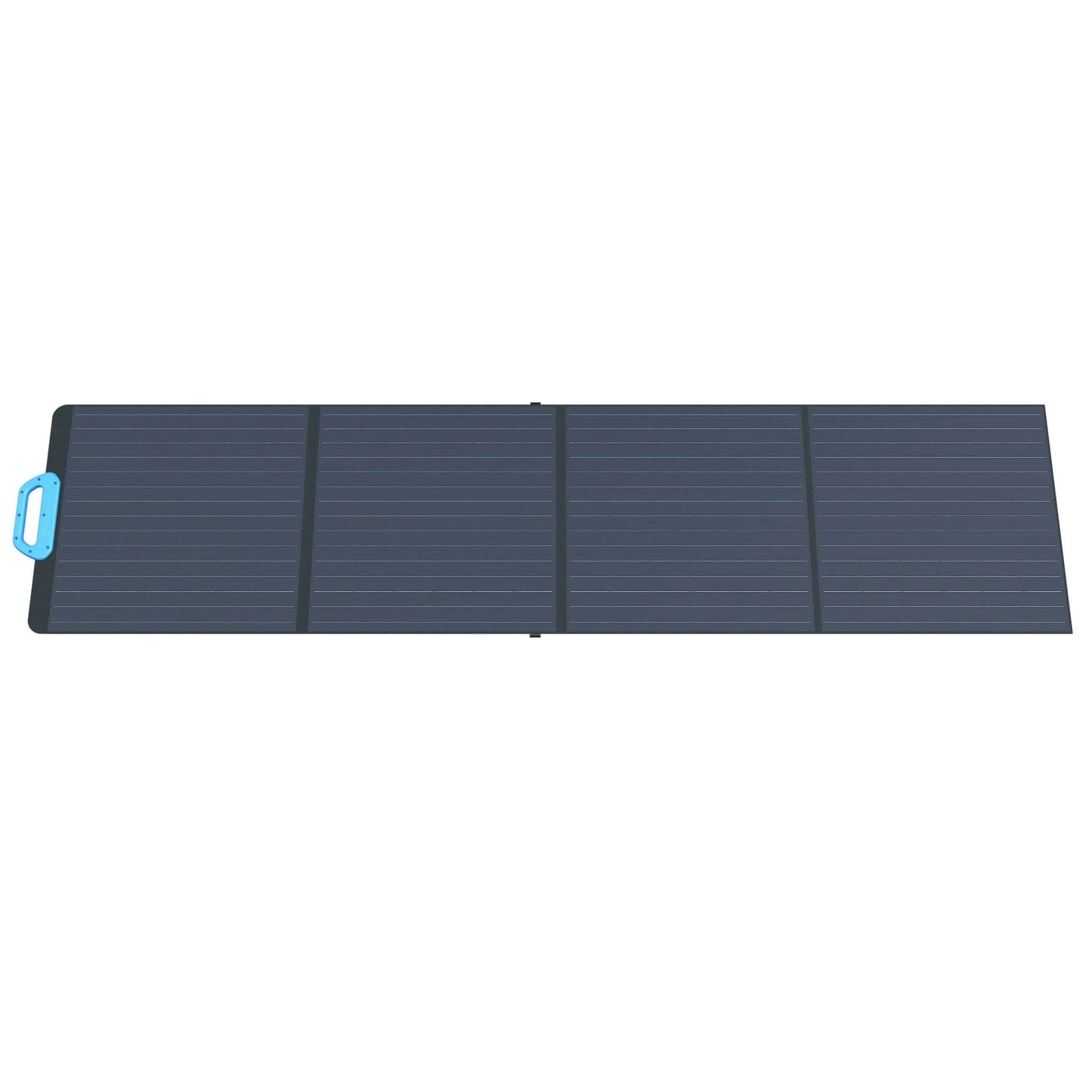

BLUETTI PV200 Solar Panel | 200W
Features:
- Monocrystalline Solar Cells with Up to 23.4% Efficiency
- Long-lasting ETFE Coating
- Foldable & Portable
- Compatible With Most Solar Generators with MC4 Connectors
- 12-month Warranty
Learn More about Bluetti Solar Panels
AC300 Fusion Box
Function:
Used to connect two BLUETTI power stations to double the rated power/voltage/capacity(Not for current)
*Please NOTE: This item is only applicable to orders in the US (except Alaska and the Virgin Islands).
Expand Your Power At Will
BLUETTI AC300 is 100% modular, supporting up to 4×B300 (3,072Wh per pack) battery modules for a groundbreaking capacity of 12,288Wh! Power your basic family needs for DAYS during emergencies or power outages!
3000W Pure Sine Wave Inverter
The inverter can adjust the charging rate from 1800W to 3000W via wall outlets according to your needs.
* The AC input is 1800W by default, which can boost to 3000W with the 30A charging cable(Sold separately on BLUETTI).
* The AC input is 1800W by default, which can boost to 3000W with the 30A charging cable(Sold separately on BLUETTI).
Expandable Power Supply
As BLUETTI"s first 100% modular station, the AC300 can accept external battery packs and boost its capacity to a Max. 12,288Wh. From emergency backup to off-grid power source, this generator for home backup is sure to handle all your electricity needs.
5400W Blazing Input Rate
Plug in the wall outlet and solar panels, you can fast charge the AC300 much faster at a 5,400W Max rate, saving you a lot of charging time.
*The 5,400W input rate combines 2,400W solar and 3,000W AC, which requires two B300 batteries. Or the rate would be limited to 3,000W with only one B300.
5 Ways to Charge
Flexible to charge your AC300 via wall outlet, solar panels, car, generator and lead-acid battery, etc. Stay connected anytime, anywhere.
24/7 UPS Home Backup
Using BLUETTI Smart Home Panel, you can tie the AC300 power system to your home grid. Always get you prepared for power outages.
One System For All Power Needs
Power your home whenever power outages occur. Easy setup, Just Power On.
One System For All Power Needs
Power your home whenever power outages occur. Easy setup, Just Power On.
240V Connection Available
With the Fusion Box Pro(P030A), you can connect two AC300s in series for 240V/6,000W output and a total capacity of 24,576Wh(4 B300s for each AC300).
Multiple Outlets for Every Need
The NEMA TT-30 and 12V/30A DC port are perfect for RVers. Meanwhile, the wireless chargers enable you to charge compatible smart phones, earphones and so on.
Tech Specs
OUTPUT
|
AC Outlets: |
6 x 120V/20A Outlets |
| 1 x 120V/30A TT-30 | |
| 3,000W In Total | |
|
Inverter Type: |
Pure Sine Wave |
|
Surge Power: |
6000W |
|
USB-C Port: |
1 x 100W Max. |
|
USB-A Port: |
2 x 5V/3A USB-A |
| 2 x 18W USB-A | |
|
12V* DC Outlets: |
1 x 12V/30A (RV Outlet) |
| 1 x 24V/10A (Car Outlet) | |
| *All Regulated. | |
|
Wireless Charging Pad: |
2 x 15W Max. (For Each) |
INPUT
|
AC Charging Cable Input: |
3,000W Max. |
|
Solar Input: |
2,400W Max., VOC 12-150VDC, 12A |
|
Car Input: |
12/24V from Cigarette Lighter Port |
|
Maximum Input: |
5,400W, with AC and Solar Input Simultaneously |
GENERAL
|
240V Split Phase Bonding: |
Yes |
|
App Control: |
Yes, Wifi&Bluetooth |
|
Scalability: |
Expandable W/Up to 4 x B300 |
|
Simultaneous Recharge & Discharge: |
Yes |
|
Weight: |
47.6lbs (21.6kg) |
|
Dimensions (LxWxD): |
20.5 x 12.5 x 14.1in ( 52 x 32 x 35.80cm) |
|
Operating Temperature: |
-4-104℉ (-20-40℃) |
|
Storage Temperature: |
-4-104℉ (-20-40℃) |
|
Certification: |
UL Standard, PSE, FCC, CE, UN38.3, msds, SAA and ROHS |
|
Warranty: |
48 Months (Enter to learn more about our warranty policy) |
BLUETTI| B300 Expansion Battery 3072Wh
BATTERY INFO
|
Capacity: |
3,072Wh (51.2V, 60Ah) |
|
Type: |
LiFePO4 (Lithium Iron Phosphate) |
|
Life Cycles: |
3500+ Cycles to 80% Original Capacity |
|
Shelf-life: |
Recharge to 80% Every 3-6 Months |
|
Management System: |
MPPT Controller, BMS, etc. |
OUTPUT
|
USB-C Port: |
1 x 100W Max. |
|
USB-A Port: |
1 x 18W USB-A |
|
12V DC Outlet*: |
1 x 12V/10A (Car Outlet) |
|
*All Regulated. |
INPUT
|
AC Input: |
500W Max. |
|
Solar Input: |
200W Max., VOC 12-60VDC, 10A |
|
Car Input: |
12/24V from Cigarette Lighter Port |
|
Max Input: |
700W, With AC Adatper + Solar Input Simultaneously |
RECHARGE TIME
|
AC: |
≈ 6.5~7 Hours at 500W |
|
Solar: |
≈ 15.5~16 Hours at 200W (With prime sunshine, ideal orientation and low temperature) |
|
12V/24V Car Outlet (100W/200W: |
≈ 30 or 15 Hours |
|
AC + Solar: |
≈ 5 Hours at 700W (With prime sunshine, ideal orientation and low temperature) |
|
Solar + Solar: |
≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED) |
|
Dual AC: |
≈ 5 Hours at 700W (Extra adapter REQUIRED) |
GENERAL
|
240V Split Phase Bonding: |
Yes, work with AC300 |
|
Pass-through Charge: |
Yes |
|
Weight: |
79.6lbs (36.1kg) |
|
Dimensions (LxWxD): |
20.5 x 12.5 x 10.5in ( 52 x 32 x 26.6cm) |
|
Operating Temperature: |
-4-104℉ (-20-40℃) |
|
Storage Temperature: |
-4-104℉ (-20-40℃) |
|
Certifications: |
UL Standard, CEC, DOE, FCC, CA Prop 65 |
|
Warranty: |
48 Months (Enter to learn more about BLUETTI warranty policy) |
BLUETTI PV200 Solar Panel | 200W
POWER
|
Power: |
200W |
|
Lamination: |
ETFE (Ethylene tetrafluoroethylene) |
|
Cell Type: |
Monocrystalline Silicon |
|
Cell Efficiency: |
Up to 23.4% |
|
Voltage at Max Power(Vmp): |
20.5V |
|
Current at Max Power(Imp): |
9.7A |
|
Open Circuit Voltage(OCV): |
26.1V |
|
Short Circuit Current(Isc): |
10.3A |
GENERAL
|
Connector: |
Standard MC4 Connector |
|
Weight: |
16.1lbs (7.3kg) |
|
Dimensions (Unfolded): |
23.2 × 89.2in (59 × 226.5cm) |
|
Dimensions (Folded) : |
23.2 × 24.8inch (59 × 60cm) |
|
Operating Temperature: |
14-149℉ (-10-65℃) |
|
Best Working Temperature: |
77℉ (25℃) |
|
Cable Length: |
118in (3m) |
|
Certifications: |
FCC, CE, ROHS |
|
Warranty: |
12 Months (Enter to learn more about BLUETTI warranty policy) |
What’s in the box
User Manual
BLUETTI AC300 Inverter Module Generator | 3,000W ( Requires The B300 To Work ) User Manual
BLUETTI B300 Expansion Battery | 3,072Wh User Manual
BLUETTI PV200 Solar Panel | 200W User Manual
EP500Pro/AC300 Fusion Box User Guide
Warranty, Return & Registration
Click to learn about Bluetti Warranty, Return & Registration
Shipping
Thank you for visiting and shopping at ecopowerit.com. aims to offer you the best shipping options.
Shipment processing time
All orders are processed within 3-5 business days. Orders are not shipped or delivered on weekends or holidays.
If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in the shipment of your order, we will contact you via email.
Shipment to P.O. boxes or APO/FPO addresses
ecopowerit.com ships to addresses within the U.S., some of U.S. Territories (Please consult Sales@ecopowerit.com before ordering) and does not ship to P.O. Box and APO/FPO/DPO addresses.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Damages
ecopowerit.com is not liable for any products damaged or lost during shipping. If you received your order damaged or lost your package, please contact us within 20 days at info@ecopowerit.com.
After-sale Service Contact
- 916-658-3961
BLUETTI AC300 3000w Modular B300 LiFePO4 Battery Solar Generator
A useful guide to making the most of it all.
-
AC300 Power Station Tutorial
-
How many B300 battery modules can AC300 be connected To Up To 6kW, 24.6kwh?
-
AC300 Power Station Tutorial
Frequently Asked Questions
How many B300 expansion batteries can I connect with AC300?
A single AC300 can take up to 4 B300 batteries for a capacity of 12,288Wh. Friendly Note: Only B300 can be connected to AC300. B230 can not be connected to AC300.
Does AC300 work with third-party expansion battery?
No. AC300 ONLY accepts BLUETTI B300 expansion battery.
Can I use AC300 alone?
No. There's no battery inside AC300 and it must work with B300.
Does AC300 support App Control?
Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the AC300+B300 remotely, like switching the working mode and upgrading the firmware.
Can I use it as an uninterruptible power supply (UPS)?
Yes. It supports four UPS modes: 1. Standard UPS. 2. Time Control UPS (Pay less for higher electricity consumption). 3. PV Priority UPS (Recommended for regions with sufficient solar energy). 4. Customized UPS.
How do I connect this to my home main panel?
BLUETTI recommends a competent and trained licensed electrician undertake the task. Connect the wires of critical equipment from your house electric panel to BLUETTI Smart Home Panel*. Then connect AC300 to the Smart Home Panel.
* Sold separately.
Dose AC300 have UPS function?
Yes. It supports 4 UPS modes:
1.Standard UPS
2.Time Control UPS(Pay less for higher electricity consumption)
3.PV Priority UPS(Recommended for regions with sufficient solar energy)
4.Customized UPS
What is the UPS switching time?
There are two types of working conditions of UPS for AC300 system.1) No delay for online UPS;2) 20ms from standby UPS.
Can I use third-party solar panels to charge the AC300 system
Yes, if the solar panels' specs fall in1) Total Voltage: 12-150V2) Total Power: 2,400W Max. (From the two PV input ports)3) Include MC4 connectors.
Can I use my solar roof to charge the AC300 system?
Yes, but please note your solar roof should have:1. NO micro-inverter2. an open-circuit voltage of 12-150V3. Include MC4 connectors. However, when the OCV falls in 150-550V, you should use BLUETTI D300S* to step down the voltage and achieve solar charging.* Sold separately.
Can I connect two AC300 systems in series?
Yes. With BLUETTI P030A fusion box*, you can connect two AC300 systems in series for 240V/6,000W output and a total capacity of 24,576Wh (4*B300 for each AC300).* Sold separately.
Is the AC300 power station waterproof?
No. Also, please do NOT store it in a humid environment for a long time.
Can it charge and discharge at the same time?
Yes.
How do I know whether my appliance can work well with the AC300 and B300 combo?
Calculate the total wattage of your devices. AC300 should work if the load doesn't exceed its rated 3,000W.
How long can it run my device?
Running time = Battery capacity × DoD × η ÷ Device rated power DoD refers to Depth of Discharge and η is local inverter efficiency. For AC300, both DoD and η are 90%. If you run a 1,000W microwave oven with AC300+B300 combo, the running time will be: 3,072Wh × 90% × 90% ÷ 1,000W ≈ 2.5hrsNote:1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.2) The above data is for reference ONLY.
What is the maximum input charging power of the BLUETTI AC300?
For AC300 with one B300: 3,000W Max. Via a 120V30A wall socket by a 30A AC charging cable (sold seperately). For AC300 with more than one B300: 5,400W Max. Via 3,000W wall socket and 2,400W solar panels simultaneously.
Is the AC300 system hot-swappable?
Yes. You can easily swap battery packs for continuous power use, and the system can hold 4 batteries at once.
Is it possible to replace the built-in battery?
No. If the battery inside your power station is faulty or even dead, please contact BLUETTI Customer Service.
I'd like more tutorial videos on the AC300 system.
Sure, please follow BLUETTI Support onYouTube..
How to recharge AC300 rapidly?
Recharge it with the wall outlet and solar panels at the same time, then you will get a maximum 5,400W input.
