2*24V EAGLE 2 Comms Scissor Lift Kit

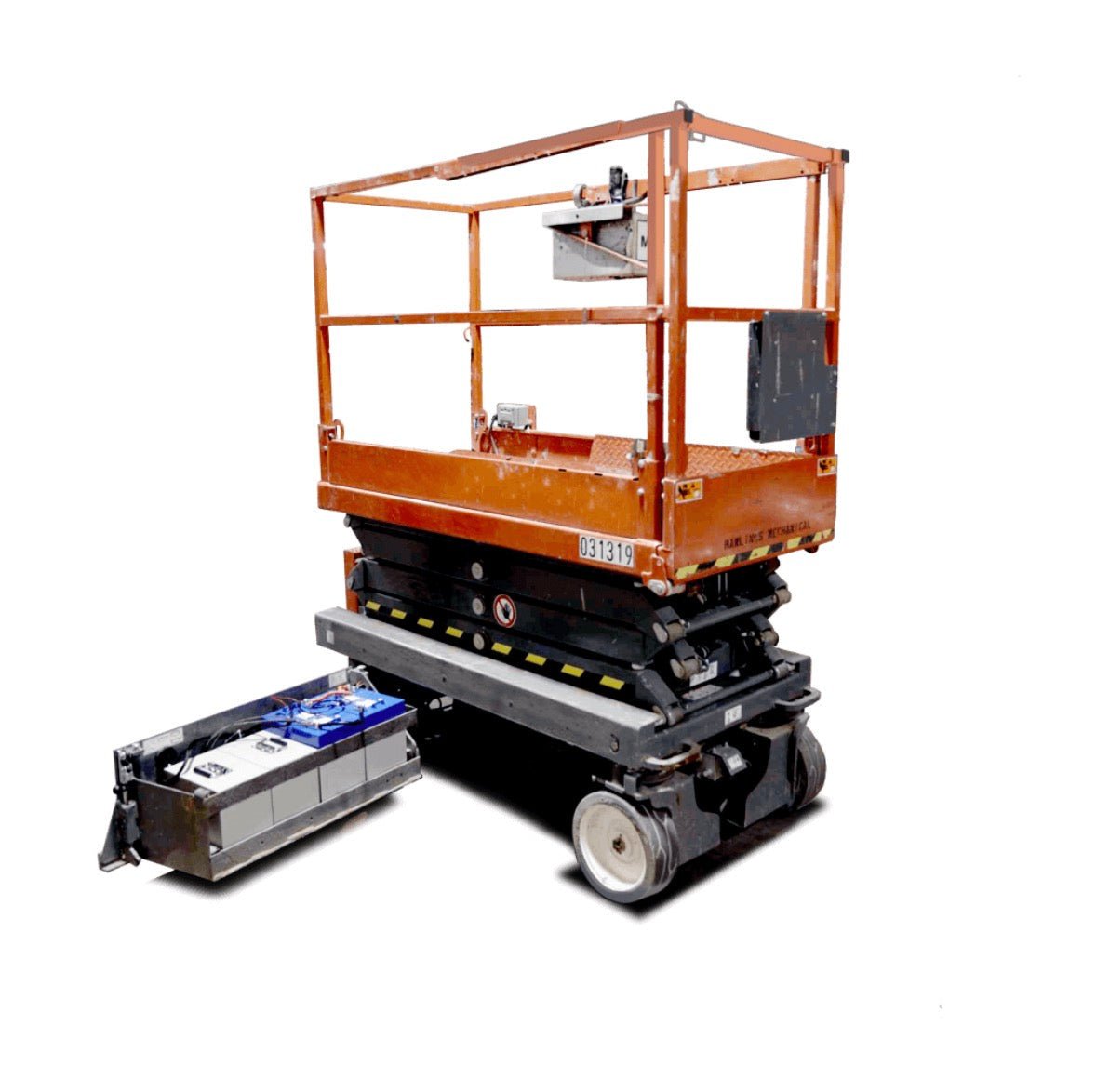

Elevate the performance and efficiency of your scissor lifts with our state-of-the-art GC2 form factor LFP (Lithium Iron Phosphate) Scissor Lift Upgrade Kit. Designed as a superior alternative to traditional lead-acid batteries, this kit not only promises enhanced power but also incorporates a meticulously engineered counterweight system, making it a seamless replacement solution for a wide range of scissor lifts.
High-Performance Batteries: Our LFP batteries offer a significant upgrade over lead-acid batteries, providing longer life cycles, no maintenance, more efficiency for power savings, and faster charging. This translates to increased operational uptime and reduced maintenance costs.
Counterweight: The kit includes a specially designed counterweight. Four Trojan T-104 batteries weight a total of 248 lbs (62lbs x 4). Each 24V EAGLE 2 battery weighs 33 lbs and each counterweight weights 91 lbs, for a minimum kit weight of 248lbs to match the lead-acid weight. This ensures that replacing your existing lead-acid batteries doesn’t affect the stability and safety of your scissor lifts. NOTE: Please refer to the minimum weight specs that should be stamped in your product’s battery bay and in your spec sheet. It is the owner’s responsibility to ensure you are above your minimum battery bay weight.
Eco-Friendly and Safe: LFP technology is known for its eco-friendliness, with no toxic lead or acid involved. It’s also inherently safer, with a reduced risk of overheating and no toxic battery vapors, making it ideal for indoor and outdoor use, and clean environments such as food handling.
Plug-and-Play Installation: Engineered for convenience, our kit is designed for easy installation. It’s a straightforward, plug-and-play solution that requires minimal downtime, allowing you to quickly upgrade and get back to work.
Cost-Effective: While offering superior performance, our LFP battery kit is also cost-effective in the long run due to its longevity and maintenance-free operation, ensuring a great return on investment.

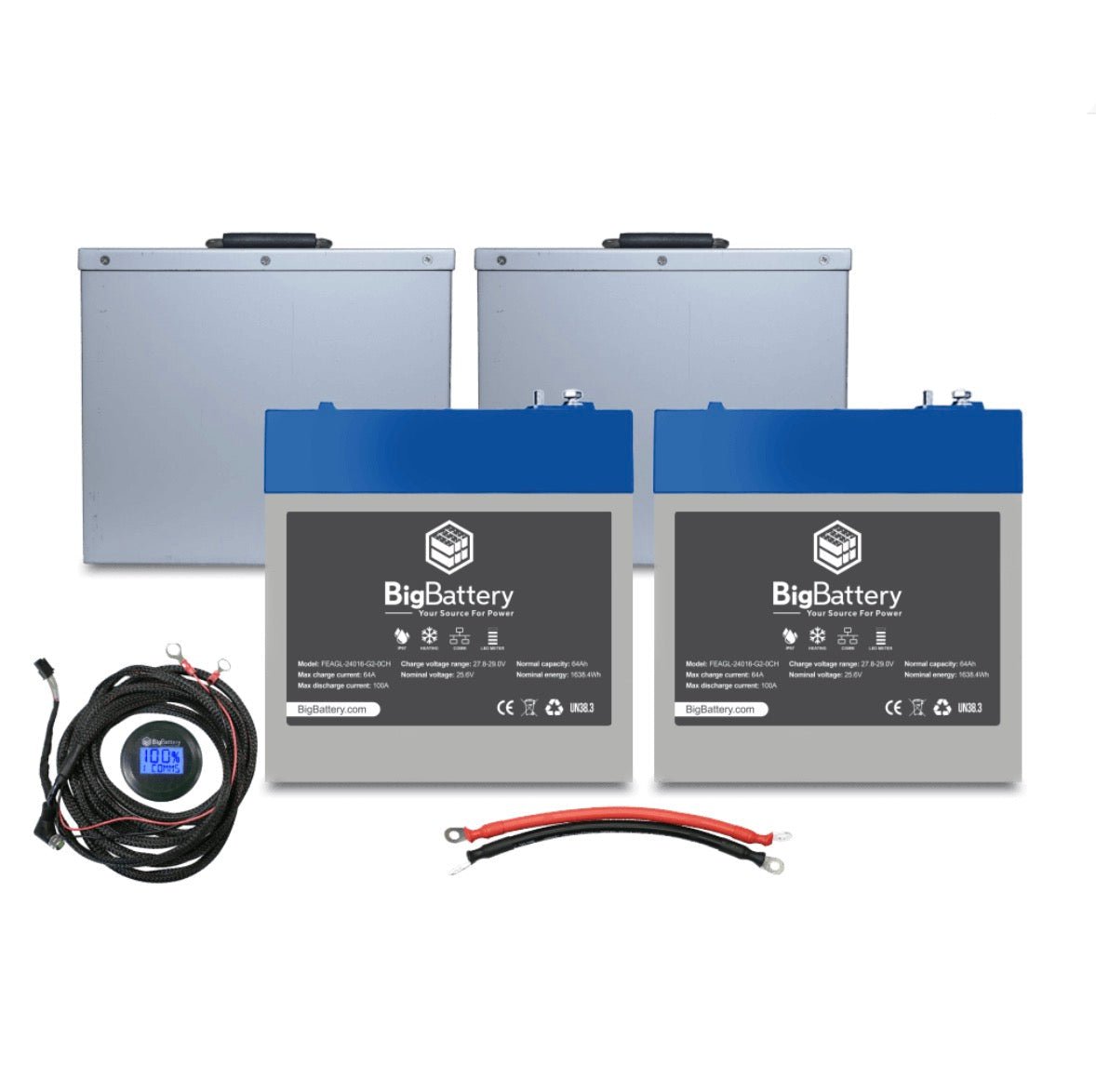

Kit Includes

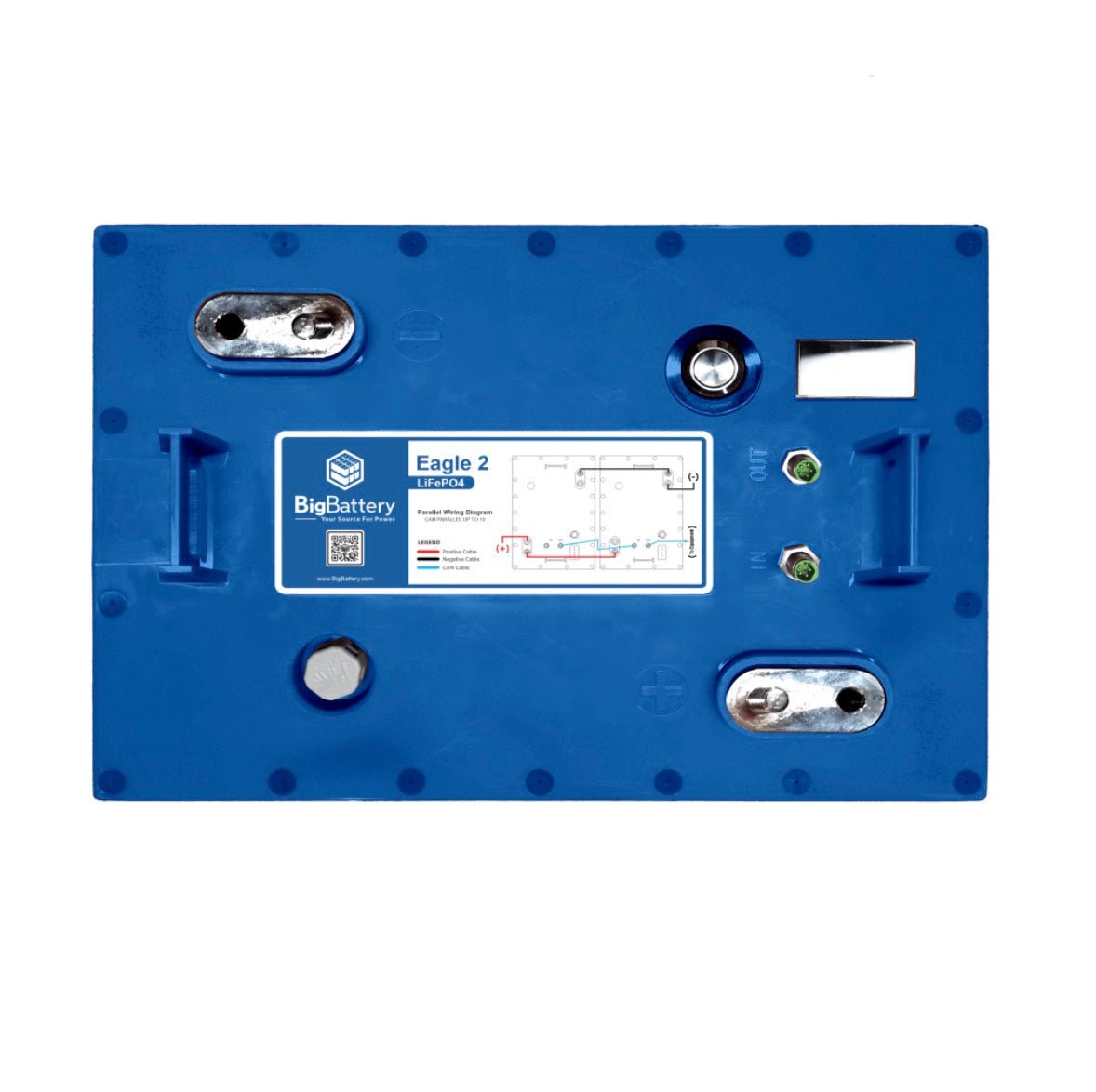

2 × 24V EAGLE 2 – LiFePO4 – 64Ah – 1.63kWh

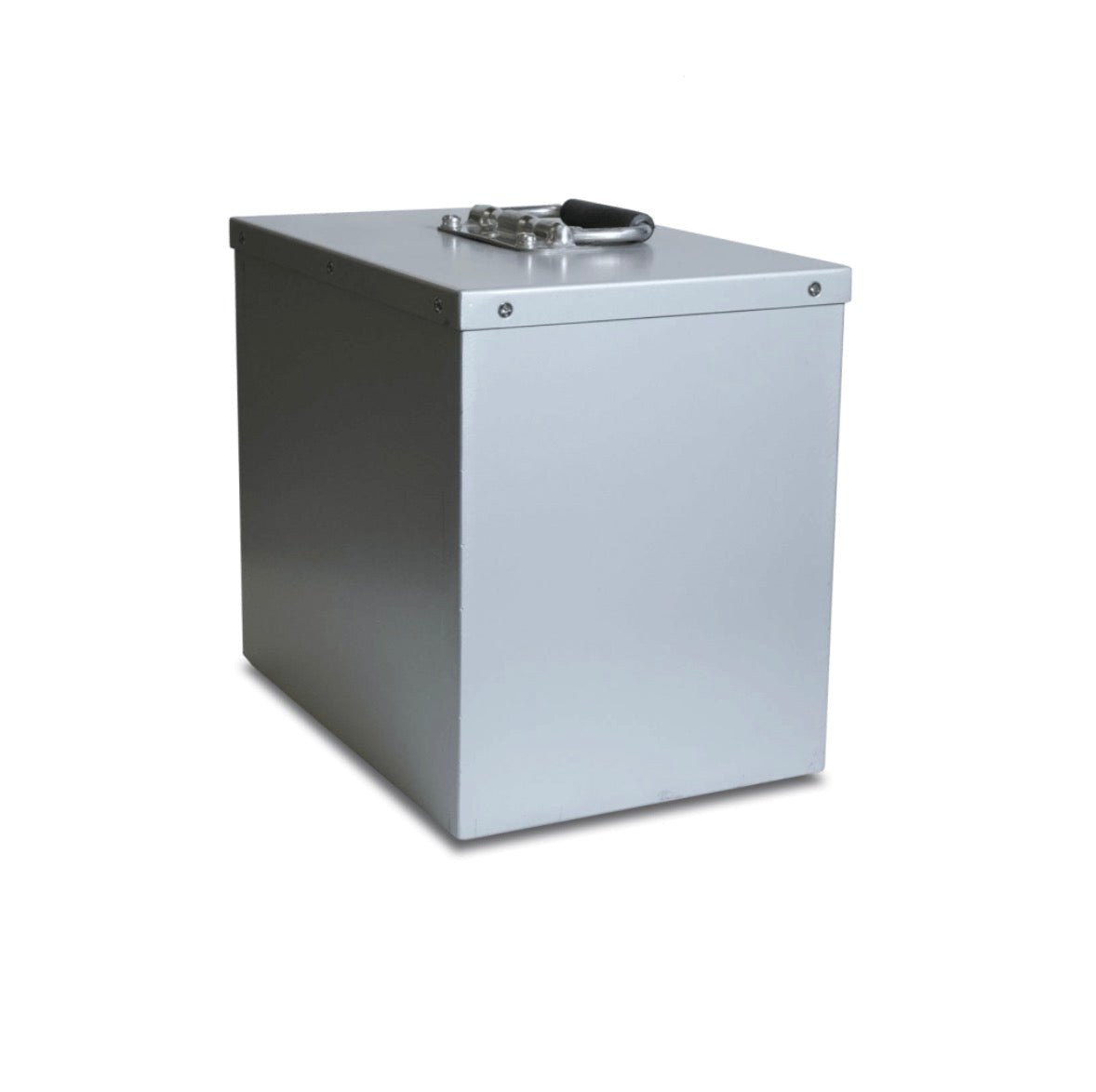

2 × EAGLE 86Lbs Counterweight

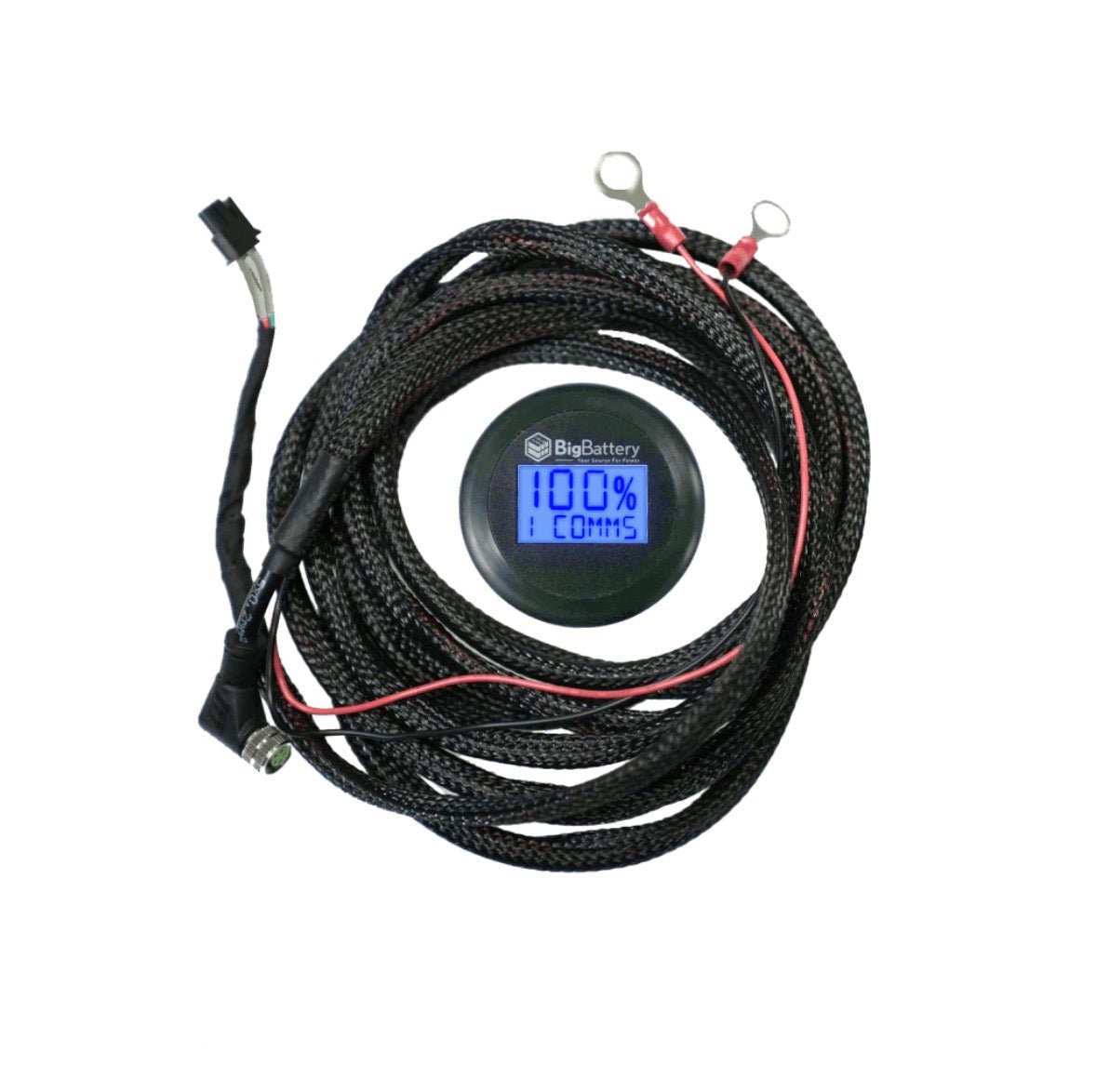

1 × EAGLE 2 COMM SOC Meter
1 × 4AWG Red Cable with 11 inches Ring to Ring Terminal
1 × 4AWG Black Cable with 11 inches Ring to Ring Terminal
Designed For 48V Applications
Tech Specs
Single Battery Tech Specs
| System Voltage: | 24V |
| Nominal Voltage: | 25.6V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 1.63kWh |
| Ah Capacity: | 64Ah |
| Charging Voltage Range: | 27.8 – 29V |
| Max Charge Voltage: | 29.2V |
| Operating Voltage Range: | 24 – 28.8V |
| Suggested Low Voltage Cutoff: | 24 – 25.4V |
| BMS Cutoff Range: | 21 – 23.5V |
| Cell Configuration: | 8S |
| Max Continuous Discharge Current: | 100A |
| Max Continuous Power: | 2560W |
| Max Discharge Peak Current: | 200A (Max 5 seconds) |
| Max Charge Current: | 64A |
| Charge Temperature Range: | -4°F – 131°F (-20°C – 55°C) |
| Discharge Temperature Range: | -4°F – 140°F (-20°C – 60°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range: | 23°F – 95°F (-5°C – 35°C) (Max 3 months) 32°F – 77°F (0°C – 25°C) (Max 12 months) |
| Weight: | 38 lb (17.2 kg) |
| Depth: | 7.1 in (180 mm) |
| Width: | 10.2 in (260 mm) |
| Height: | 10.8 in (274 mm) |
| Max Connections: | Up to (10) Parallel |
| Protection Rating: | IP67 / NEMA 6 |
| Communications: | CANBus |
| Self-Heating: | Yes |
