RUNHOOD| B3600 Expansion Battery

RUNHOOD| B3600 Expansion Battery

$2,699.00 USD
$2,899.00 USD $2,699.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buying Options

B3600 Expansion Battery

  • 3600 Wh capacity, 8 pcs B3600 max.28.8 KWh.
  • Smart home backup battery and mobile power supply for outdoor use.
  • Expandable capacity with more batteries (B3600)
  • Over 6000 charge cycles (80 %)
  • 10 year warranty

Power household needs with just one unit

With 3600W continuous output with a peak output of 7200W, RUNHOOD’s F3600 can power your homes basic needs without interruption if the power goes out. Each unit banks 3.6 kWh expanding to 57.6 kWh to easily meet the needs to any home.

Home energy storage made simple with easy installation and minimal intrusion

The F3600 can be installed quickly and easily by following just a few simple steps. We can help you find a consultant in your area to help you come up with the right plan based on your home’s wiring and electrical usage.

You won’t even notice the grid is down

When emergencies strike, F3600 is your trusted backup to keep essentials running until power is restored. Simply switch modes to use the battery supply to power critical appliances. Serves as a uninterruptible power supply (UPS) taking only 10 ms to switch to back-up power when the grid goes down or if you want to use banked power during peak rates.

Expandable Battery, Up to 57.6kWh

It’s expandable capabilities meets the energy needs of any home allowing you to choose anywhere from 3.6 kWh to 57.6 kWh of capacity. It’s modular design makes installation, expansion, and transportation extremely simple.

Dual use for indoor storage and mobile power

RUNHOOD F3600 can not only power the whole house but can also be taken outdoors easily giving you portable power wherever you want it

Manage the energy at any time from anywhere

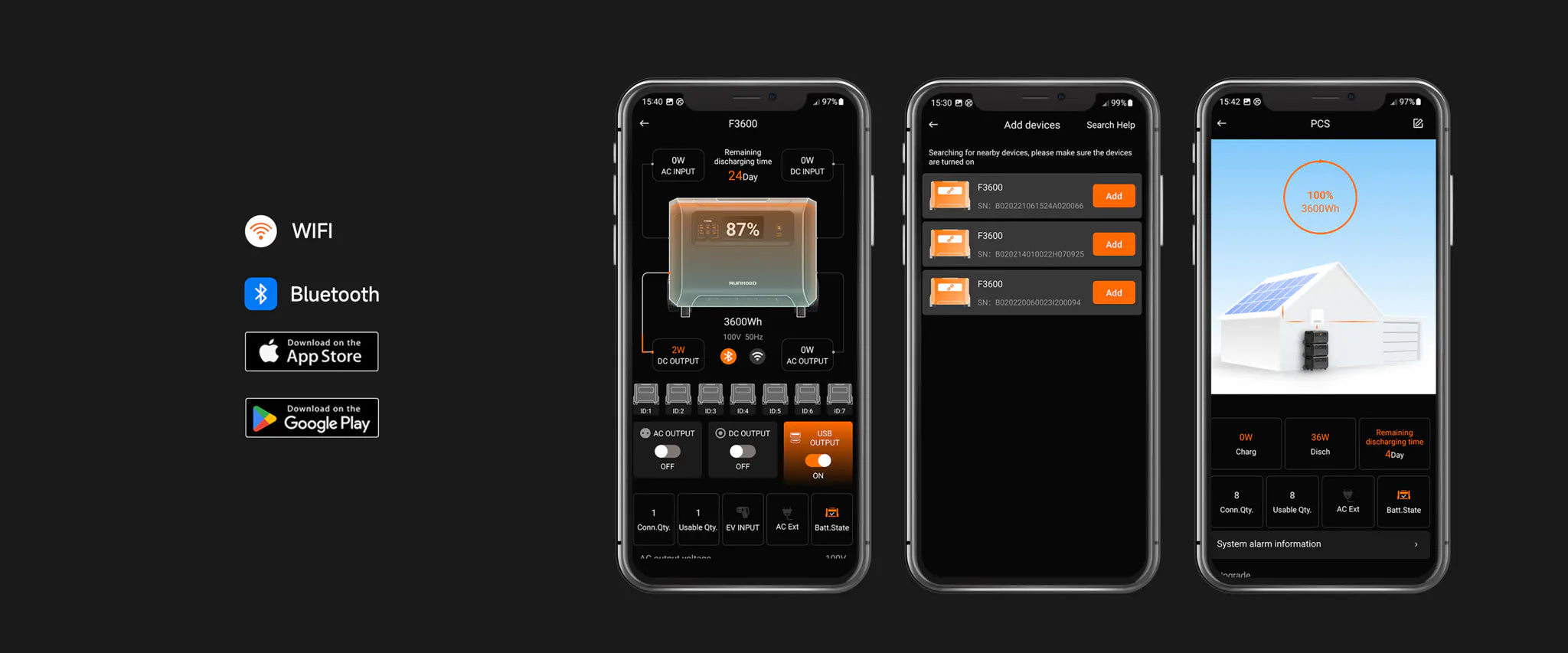

The Smart APP will monitor power generation and consumption in real-time. Customize preferences to optimize energy savings. Instant alerts to outages make sure critical loads stay powered. With remote access, you can control the Dual ESS anytime from anywhere.

Works with several inverters

The RUNHOOD works with several non-proprietary inverters on the market making it the easiest to install energy system on the market. For best results, we recommend using an inverter from Deye,Sinexcel,Megarova,Growatt.

Various charging method

What's in the Box

F 3 6 0 0 / B 3 6 0 0 TECHNICAL SPECIFICATION Sheet

Tech Specs

One F3600 Tech Specs

Battery Type

 LiFePO4

Capacity

3600Wh

Operating Voltage

38-53Vdc

Input Frequency

60Hz

Charging Current

55A Max.

Discharging Current

140A Max.

Operation Temperature

Charging 2°C~50°C

Discharging-28°C~50°C

Working Altitude

2000m

Communication

CAN/RS485

Battery Life Cycles

6000+ Cycles to 80% Original Capacity

Battery Scalability

1 F3600 + 7x Extra Batery B3600, max. 28.8 KWh
Connectivity

Wi-Fi, Bluetooth
Weight

48kg

Dimension (L × Wx H)

 588mm x 400mm x 424mm

Installation Method

Floor standing

Warranty

 10 Year

Compliance

IEC62619, IEC62477, IEC61000, IEC60730, CE, ROHS, UN38.3

Compatibility with hybrid inverter

Deye, Goodwe, Megarevo, SolaX, Solis, SMA, Growat
Application

On grid / Back Up / Portable

Input

DC input



Rated DC 12-60V, 25A, 1500W. 150V Max, 2400W Max. support MPPT

AC Input

1800W Max, 120V, 10A Max

EV Input

3400W Max, 120V, 16A Max

Output

AC Output Port



3600W Max (peak 7200W), 120V, 20A × 4 30A x 1

USB-A Output

2 × 12W Max. 2 × 28W Max.

USB-C Output

2 × 100W Max.

Anderson

DC 12V/24V 30A Max. Switchable

Cigarette Lighter

DC 12V 10A Max

B3600 Expansion Battery Specs

Battery Type

 LiFePO4

Capacity

3600Wh

Operating Voltage

38-53Vdc

Charging Current

55A Max.

Discharging Current

140A Max.

Operation Temperature

Charging 2°C~50°C

Discharging-28°C~50°C

Working Altitude

2000m

Communication

CAN/RS485

Battery Life Cycles

6000+ Cycles to 80% Original Capacity

Battery Scalability

8 pcs B3600, max. 28.8 KWh
Weight

40kg

Dimension (L × Wx H)

 588mm x 400mm x 424mm

Installation Method

Floor standing

Warranty

 10 Year

Compliance

IEC62619, IEC62477, IEC61000, IEC60730, CE, ROHS, UN38.3

Compatibility with hybrid inverter

Deye, Goodwe, Megarevo, SolaX, Solis, SMA, Growat
Application

Expansion / On grid



View full details

How to Choose your EcoFlow DELTA Portable Power Station

EcoFlow User Manuals

EcoFlow DELTA Pro-User Manual

Introduction of DELTA

FAQ

How long does it take to fully charge DELTA using an AC port?

DELTA can be recharged to 0%~80% in 1 hour, and be fully recharged within 1.6 hours.

How long does it take to fully charge DELTA using 110W Solar Panel?

Under perfect sunlight conditions, DELTA can be fully charged with the following solar panel setups: 1x 110W solar panel: 16h-32h 2x 110W solar panel (in series): 7.5h-15h 3x 110W solar panel (in series): 5h-10h 4x 110W solar panel: 4-8hrs

Can DELTA be charged using AC and DC at the same time?

Yes. During this situation, DELTA will prioritise AC charging, and default to DC charging when AC charging is not used.

Can DELTA be used as and uninterrupted power source?

It can be an emergency power source (EPS), which will have the same result as UPS for most electronics. Here's the difference. When your DELTA is plugged into the wall, anything plugged into it gets power from the grid, not its battery. If power from the grid stops, DELTA automatically switches to its battery supply mode within 30 milliseconds. That means anything connected will not have power for 30 milliseconds, which may mean sensitive electronics like desktop computers and data servers turn off. Test your devices individually to see if they need UPS to stay powered.

What devices can DELTA power?

DELTA can power essential devices whether you’re at home or outdoors. Devices include lights, microwave ovens, fridges, hairdryers, laptops, phones, electric frying pans, and more.
