RICH SOLAR

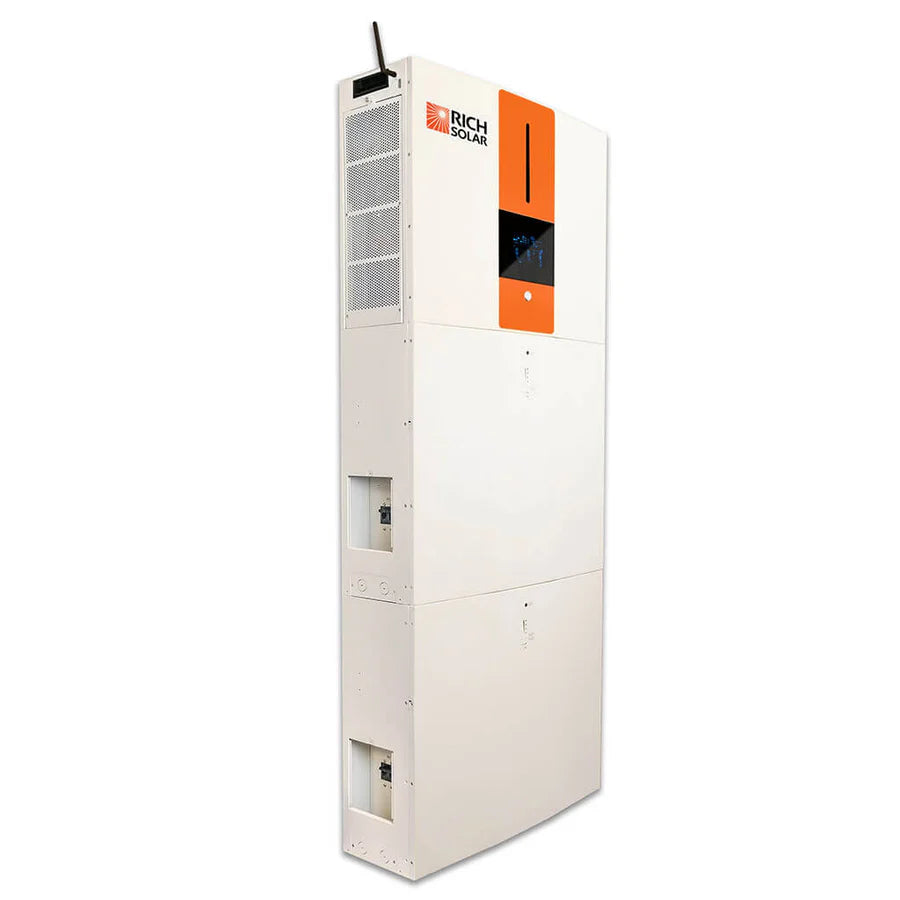

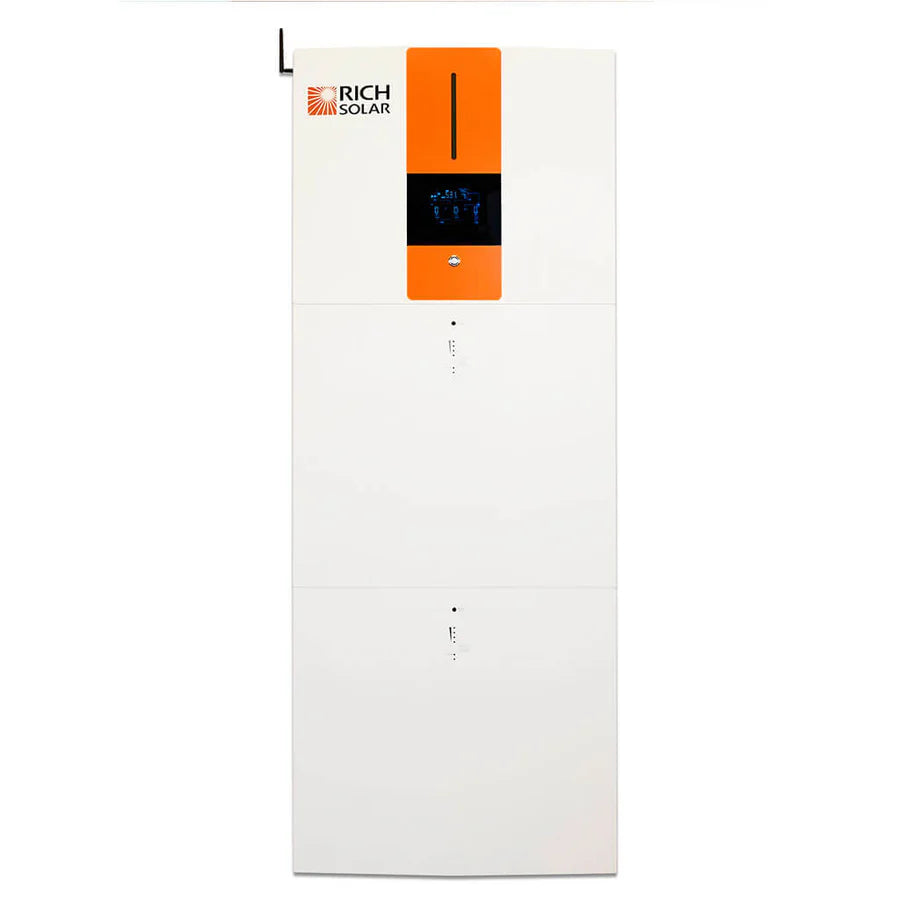

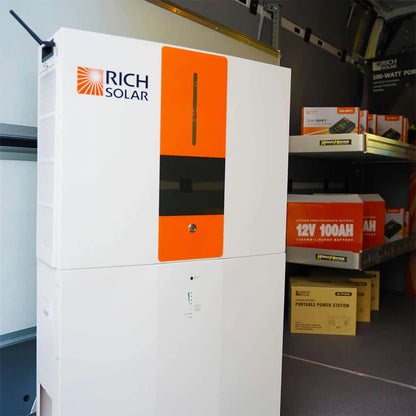

Rich Solar All-in-One Energy Storage System

Rich Solar All-in-One Energy Storage System

$5,599.99 USD
$6,999.99 USD $5,599.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Specifications & Downloads

Full Specification:

  Specifications

Download

 Manual

Download

  • Battery Info
  • ModelRS-A10
  • Maximum PV Input Power8000W
  • Rated Output Power6500W
  • Maximum Charging Power6500WPV Input (DC)
  • MPPT Range @ Operating Voltage90 ~ 230 VDC
  • Maximum PV Array Open Circuit Voltage250 VDC
  • Maximum Solar Charge Current120A
  • Number of MPP Trackers / Maximum Input Current2 / 2 x 18 AAC Input
  • Acceptable Input Voltage Range90-140 VAC (For Computers)80-140 VAC (For Home Appliances)
  • Maximum AC Input Current60ABattery Mode Output
  • Nominal Output Voltage120 VAC
  • Maximum Conversion Efficiency (DC/AC)93%Battery
  • Nominal DC Voltage48 VDC
  • Maximum Charging Current120 A
  • Dimension (D x W x H)8.4" x 24.4" x 19.7"
  • Net Weight99 lb
  • Capacity5120Wh
  • Nominal Voltage51.2VDC
  • Full Charge Voltage (FC)56V
  • Full Discharge Voltage (FD)42V
  • Typical Capacity100 Ah
  • Max Continuous Discharging Current120A
  • Max Discharging Current192A at 1 min
  • ProtectionBMS, Breaker
  • Float Charge Voltage52.5V
  • Charge Current20A (0.2C)
  • Maximum Charge Current50A (0.5C)
  • Standard Charge Method0.2C CC (Constant Current) charge to FC, CV (Constant Voltage FC) charge till charge current declines to <0.05C
  • Inner Resistance≤ 20m ohmAll In One System Physical
  • System Dimension (D x W x H)19.7" x 26" x 49.2"
  • Net Weight287 lbStandard
  • Compliance SafetyIEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Rich Solar All-in-One Energy Storage System

The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.

Specifications & Downloads

Battery Info

  • Model: RS-A10
  • Maximum PV Input Power: 8000W
  • Rated Output Power: 6500W
  • Maximum Charging Power: 6500W

PV Input (DC)

  • MPPT Range @ Operating Voltage: 90 ~ 230 VDC
  • Maximum PV Array Open Circuit Voltage: 250 VDC
  • Maximum Solar Charge Current: 120A
  • Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18A

AC Input

  • Acceptable Input Voltage Range:

    90–140 VAC (For Computers)

    80–140 VAC (For Home Appliances)
  • Maximum AC Input Current: 60A

Battery Mode Output

  • Nominal Output Voltage: 120 VAC
  • Maximum Conversion Efficiency (DC/AC): 93%

Battery

  • Nominal DC Voltage: 48 VDC
  • Maximum Charging Current: 120A
  • Dimension (D × W × H): 8.4" × 24.4" × 19.7"
  • Net Weight: 99 lb
  • Capacity: 5120Wh
  • Nominal Voltage: 51.2VDC
  • Full Charge Voltage (FC): 56V
  • Full Discharge Voltage (FD): 42V
  • Typical Capacity: 100Ah
  • Max Continuous Discharging Current: 120A
  • Max Discharging Current: 192A at 1 min
  • Protection: BMS, Breaker
  • Float Charge Voltage: 52.5V
  • Charge Current: 20A (0.2C)
  • Maximum Charge Current: 50A (0.5C)
  • Standard Charge Method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
  • Inner Resistance: ≤20mΩ

All In One System Physical

  • System Dimension (D × W × H): 19.7" × 26" × 49.2"
  • Net Weight: 287 lb

Standard

  • Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B

 Specifications Download


Manual Download

Videos
View full details

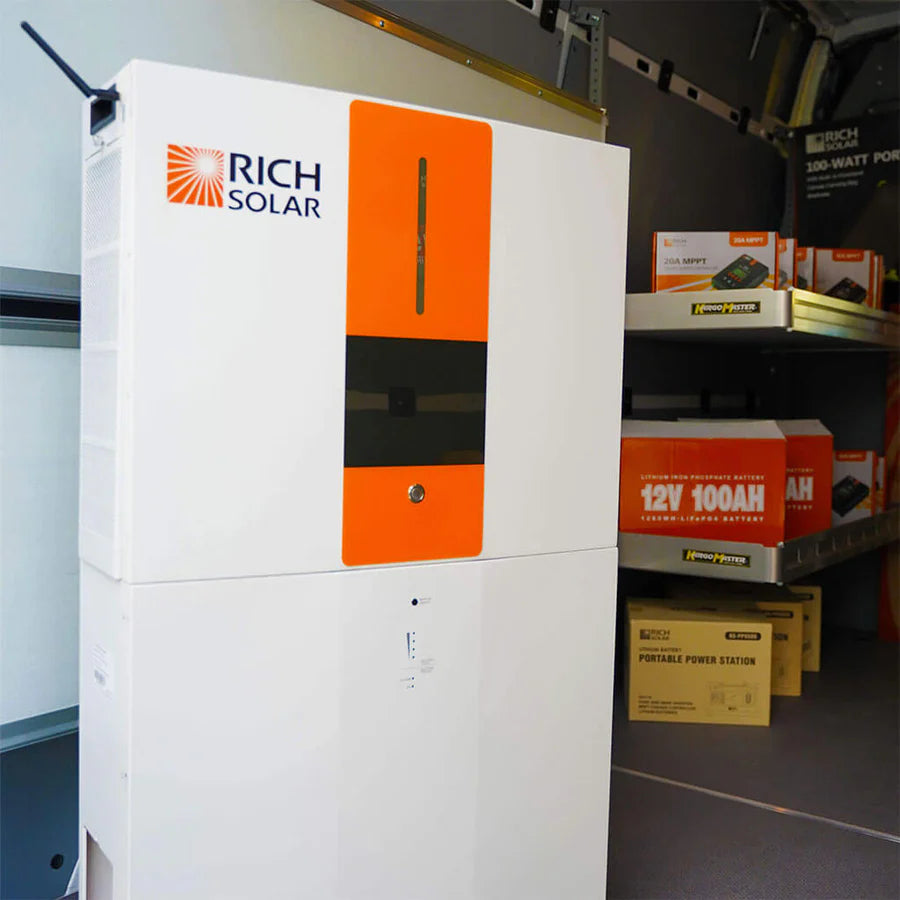

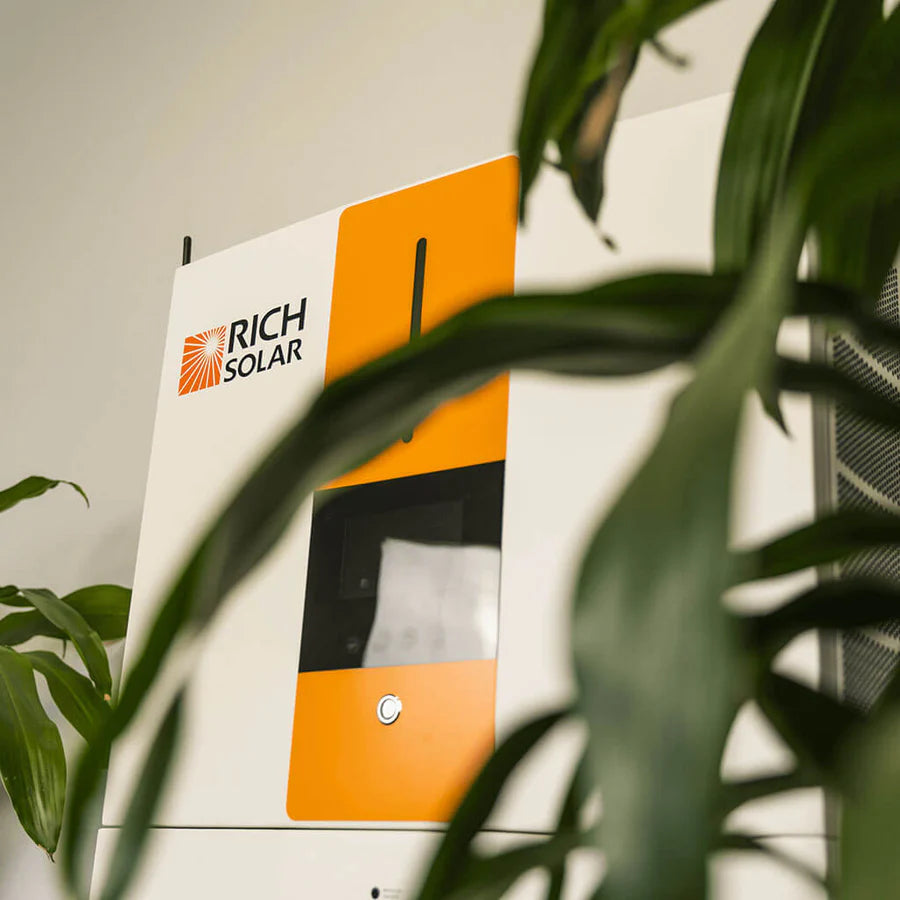

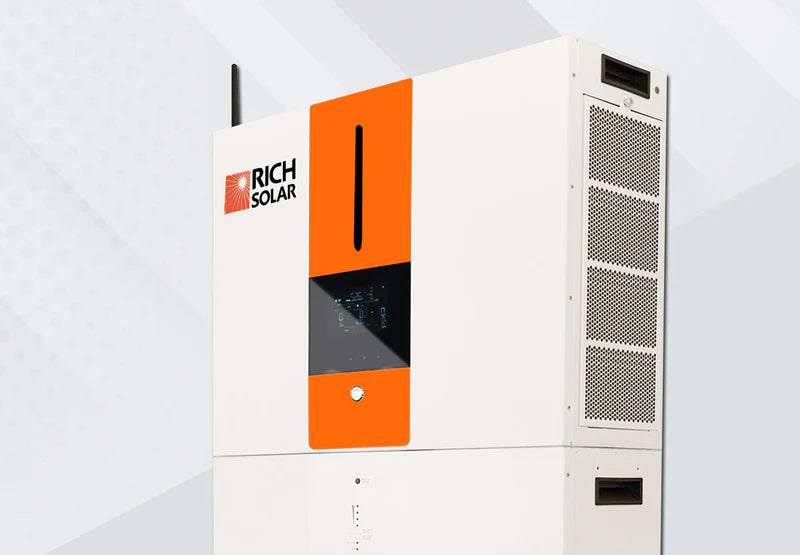

Introducing the RICH SOLAR All-in-One Energy Storage System

The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.

Power & Performance Features

  • Pure sine wave output
  • Off-Grid application

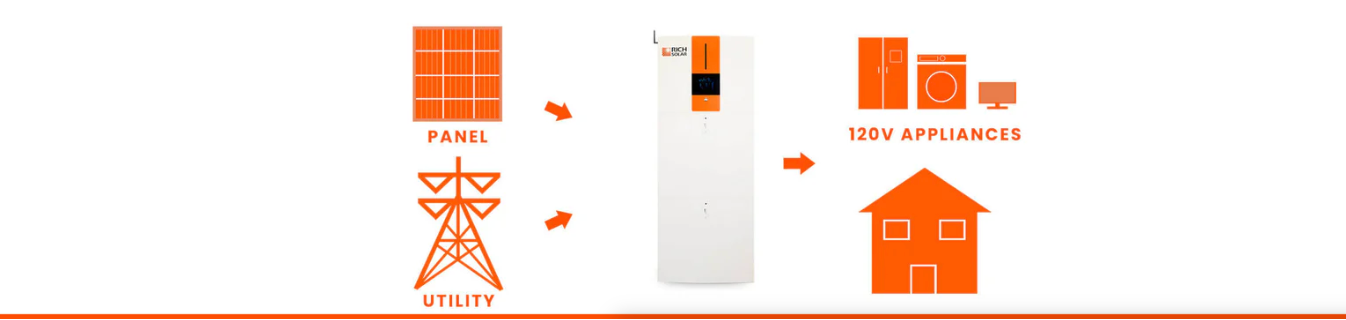

  • Programmable supply priority for PV, Battery, or Grid
  • User-adjustable battery charging current
  • Battery independent design

Smart Technology & Connectivity

  • Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi

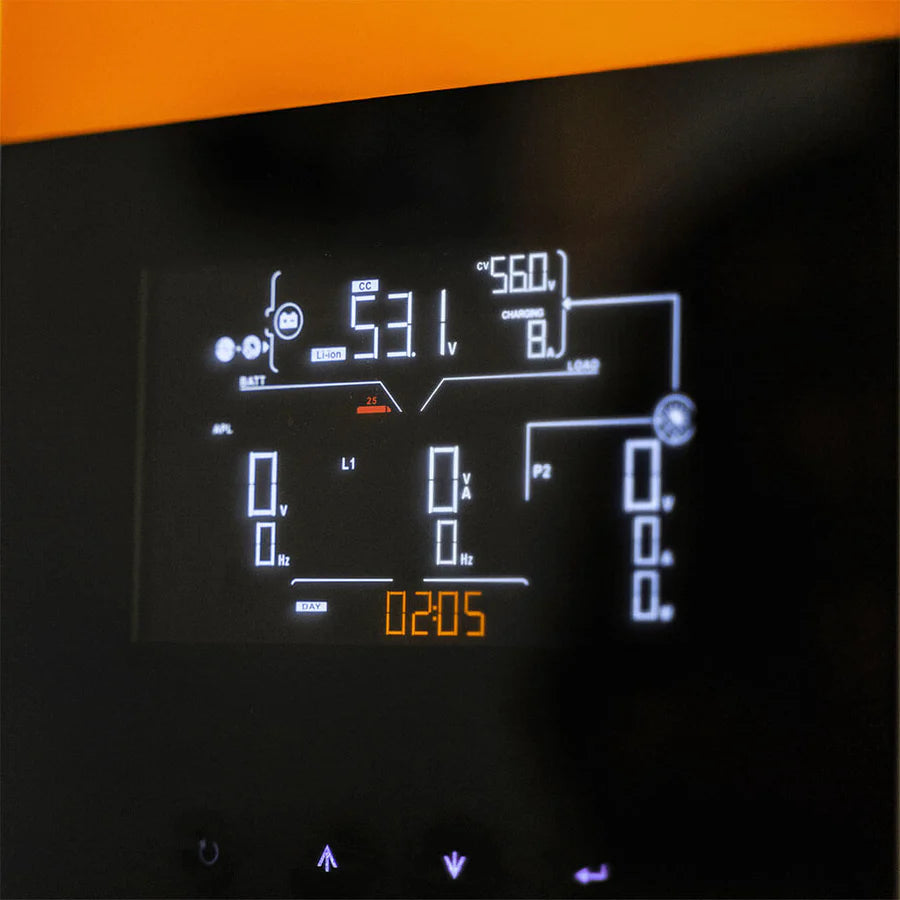

  • Monitoring APP (Android and iOS) for real-time status display and parameter control
  • Built-in 2 MPPT trackers and AC/Solar charger up to 120A
  • Compatible with utility and generator
  • Scalable Li-Ion battery expansion

The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.

  • CONTROLLER

    The system's intelligent charge controller ensures that the battery bank is charged and discharged in the most efficient way possible, prolonging the lifespan of the batteries and maximizing their overall performance.

  • INVERTER

    The system's advanced inverter technology ensures that the electricity generated by the solar panels is converted into a form that is compatible with your home or business's electrical system, allowing you to power your appliances and devices without interruption.

    View

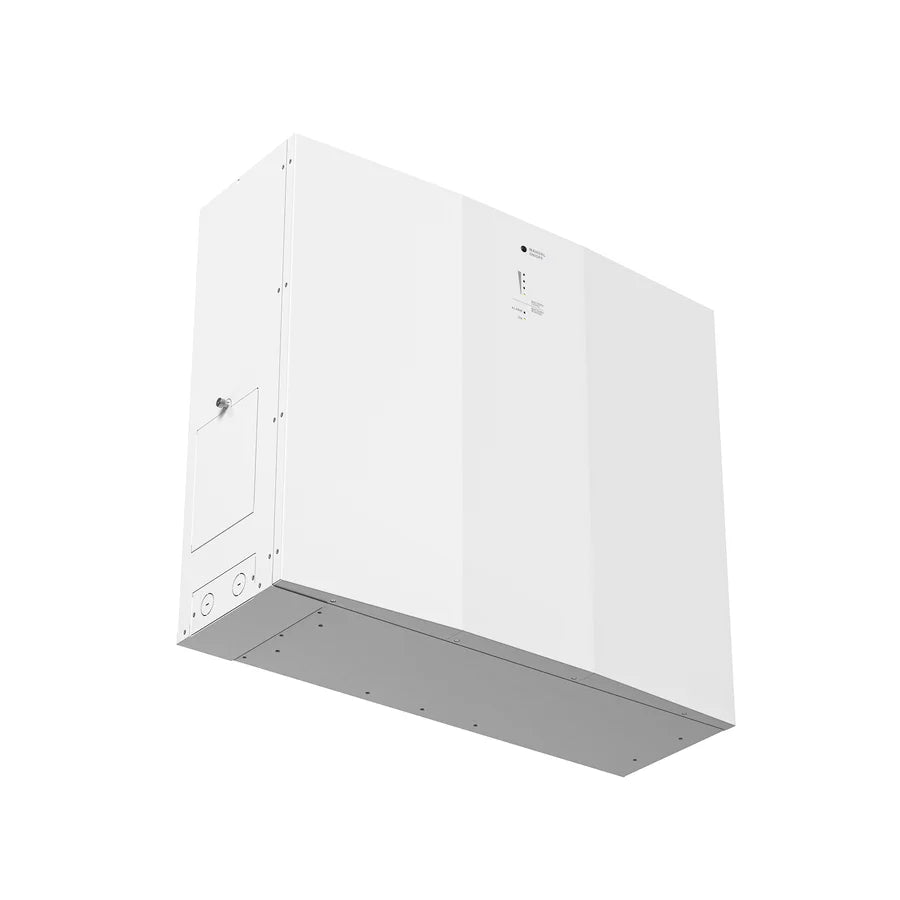

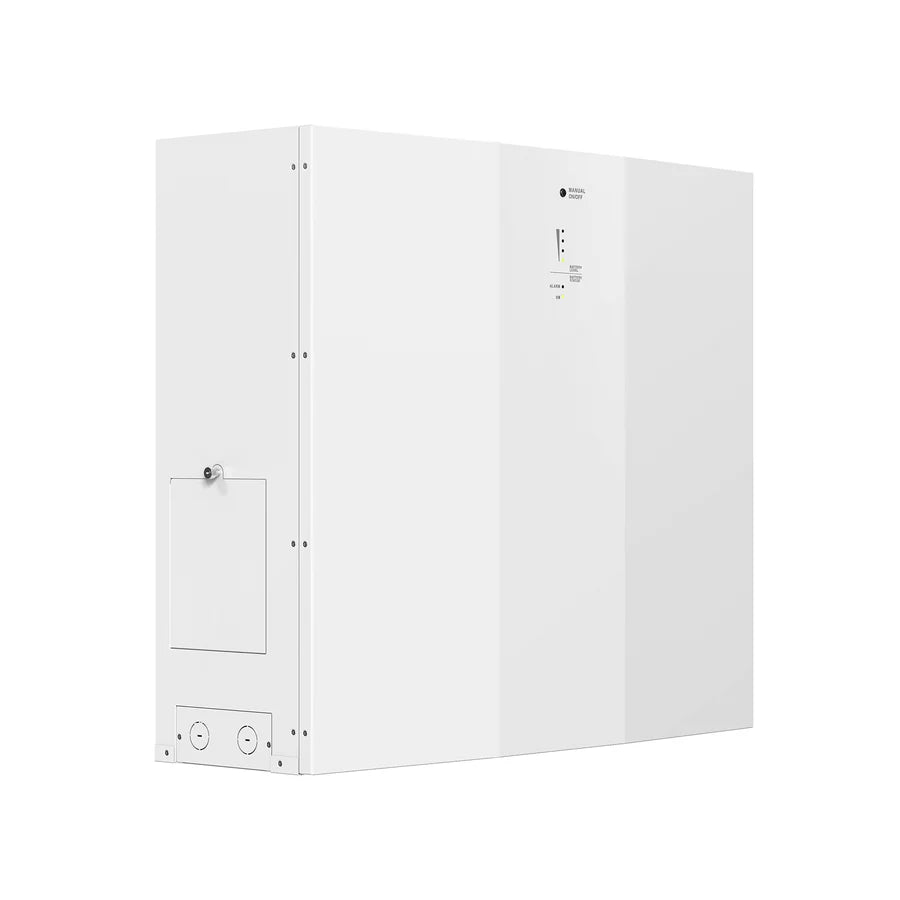

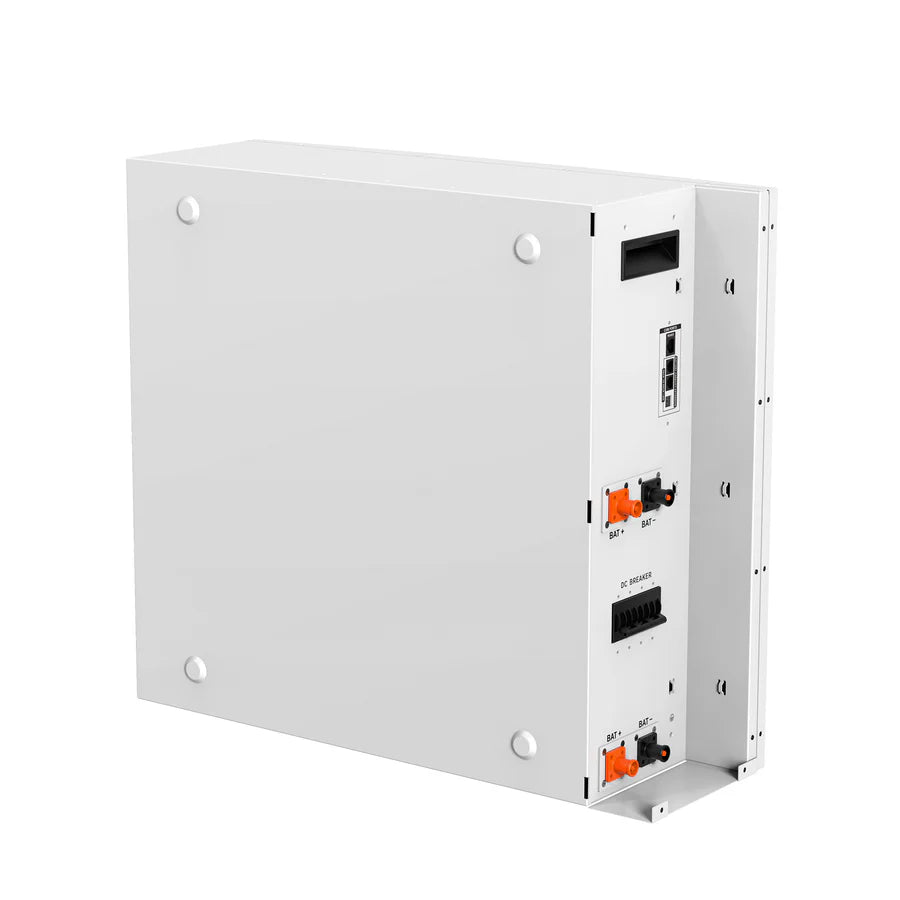

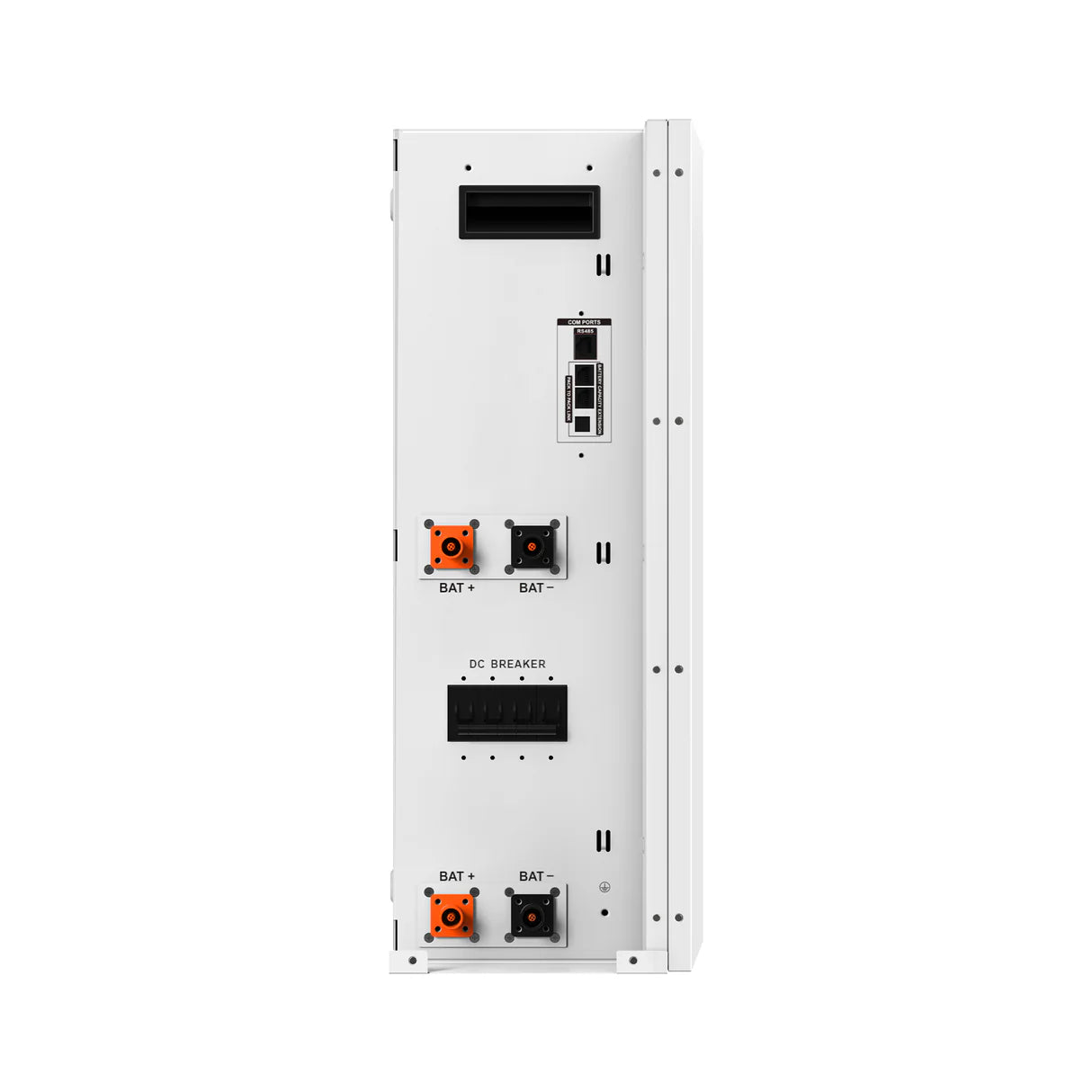

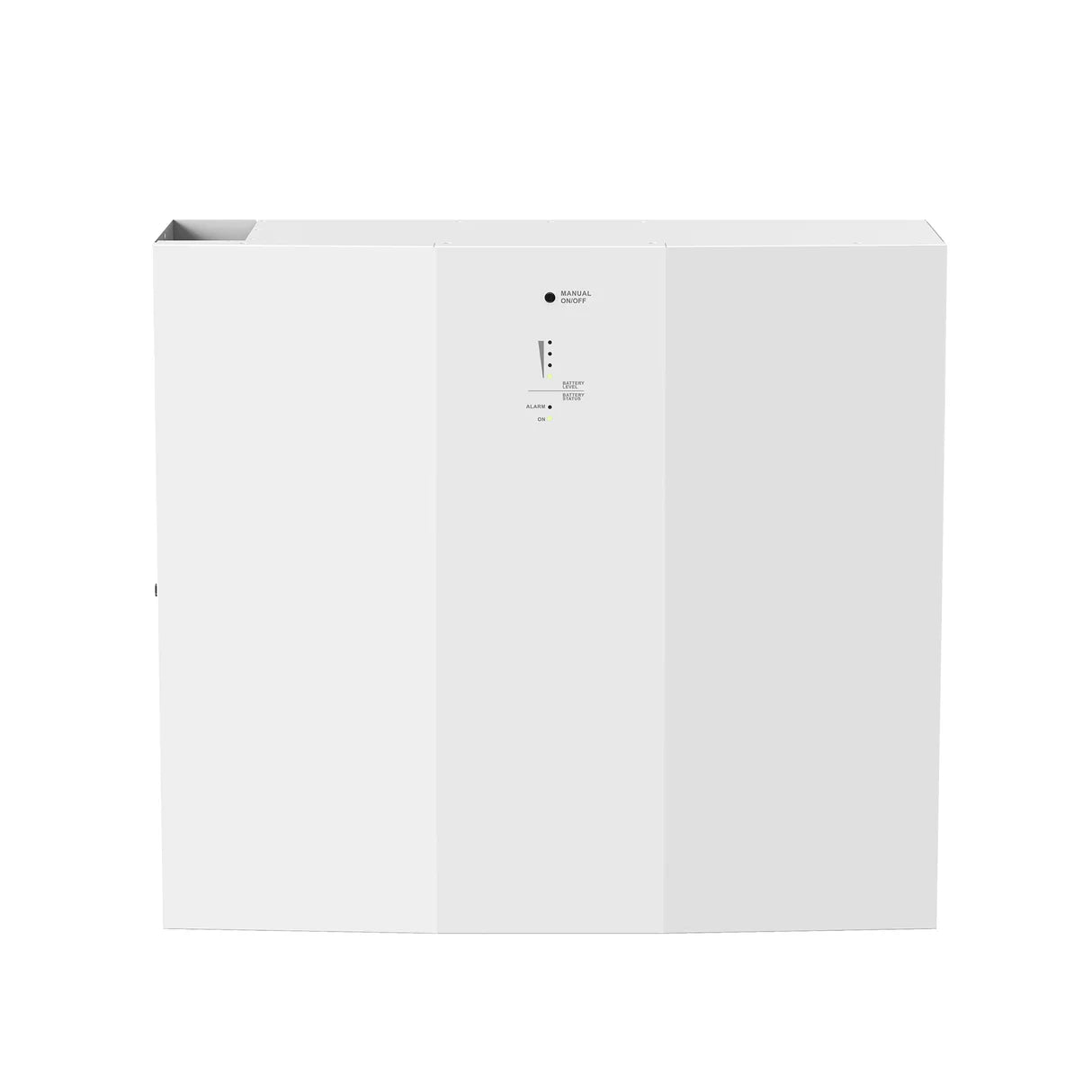

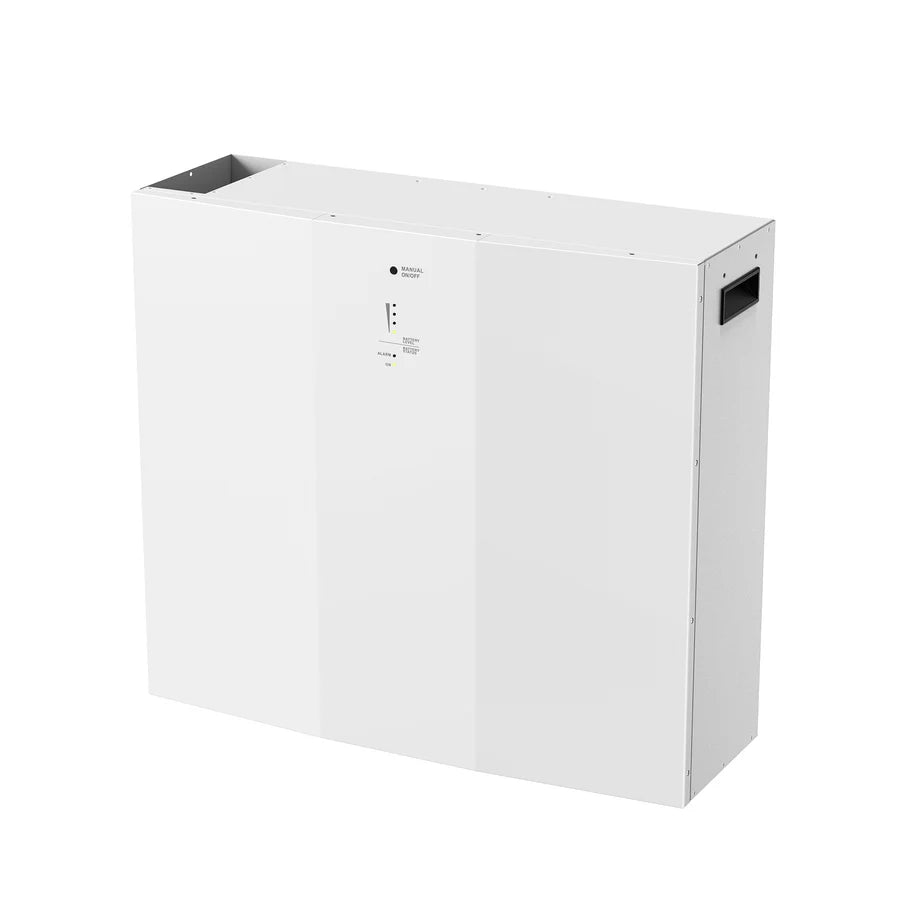

  • BATTERY

    The RICH SOLAR All in One Energy also features a high-capacity battery bank, which allows you to store excess energy generated by the solar panels for use during times when sunlight is not available, such as at night or on cloudy days. This means that you can continue to power your home or business with clean, renewable energy even when the sun is not shining.

Specifications

  • Battery Info

    • Model: RS-A10
    • Maximum PV Input Power: 8000W
    • Rated Output Power: 6500W
    • Maximum Charging Power: 6500W

    PV Input (DC)

    • MPPT Range @ Operating Voltage: 90 ~ 230 VDC
    • Maximum PV Array Open Circuit Voltage: 250 VDC
    • Maximum Solar Charge Current: 120A
    • Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18A

    AC Input

    • Acceptable Input Voltage Range:

      90–140 VAC (For Computers)

      80–140 VAC (For Home Appliances)
    • Maximum AC Input Current: 60A

    Battery Mode Output

    • Nominal Output Voltage: 120 VAC
    • Maximum Conversion Efficiency (DC/AC): 93%

  • Battery

    • Nominal DC Voltage: 48 VDC
    • Maximum Charging Current: 120A
    • Dimension (D × W × H): 8.4" × 24.4" × 19.7"
    • Net Weight: 99 lb
    • Capacity: 5120Wh
    • Nominal Voltage: 51.2VDC
    • Full Charge Voltage (FC): 56V
    • Full Discharge Voltage (FD): 42V
    • Typical Capacity: 100Ah
    • Max Continuous Discharging Current: 120A
    • Max Discharging Current: 192A at 1 min
    • Protection: BMS, Breaker
    • Float Charge Voltage: 52.5V
    • Charge Current: 20A (0.2C)
    • Maximum Charge Current: 50A (0.5C)
    • Standard Charge Method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
    • Inner Resistance: ≤20mΩ

    All In One System Physical

    • System Dimension (D × W × H): 19.7" × 26" × 49.2"
    • Net Weight: 287 lb

    Standard

    • Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B

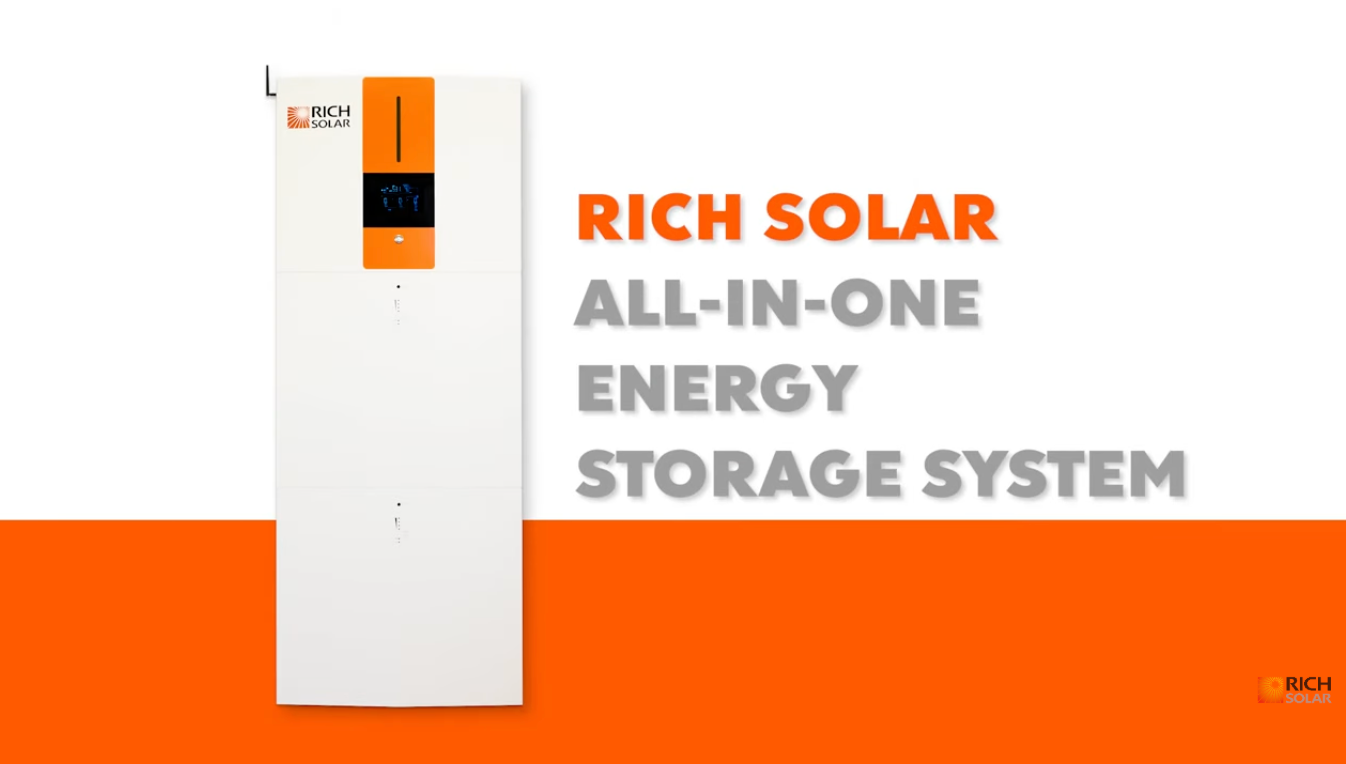

Introducing: Rich Solar's All in One Energy Storage System

Explore More Lithium Batteries

View all

RICH SOLAR Resources

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Warranty

Check out full Warranty page here for more information.

FAQ

Do l need to install an inverter if l only want to charge my boat or Rv battery with a solar panel?

You don’t need an inverter if you’re only charging your battery. However, if you want to use the battery to run different appliances, like a TV or a refrigerator, you need an inverter to convert the DC power to AC power.

Will solar panels work in the winter in my state or province?

Wherever there is sunlight, solar panels will generate electricity. Cooler conditions, like those during the winter, can help improve solar panel performance. Solar panels can still generate electricity in cloudy conditions, just not as efficiently. The panel won't generate any electricity if there is any snow build-up on it, so make sure to keep the panel clear. This goes for any type of obstruction including shade or dirt.

Does my solar panel system require roof penetration?

Solar panels don’t always need a roof penetration for installation. Most times, they can be permanently mounted on the roof using a sealant. Alternatively, they can be installed on the ground.

Can the solar panel drain my battery at night?

If you have a solar charge controller installed in your system, there is no danger of a reverse current draining your battery.

How long will the solar panels last?

The RICH SOLAR MEGA Series solar panels have a performance warranty of 25 years. After 5 years of use, the panels should output more than 95% of the rated power. After 10 years, that output is 90%, and after 25 years, the output should be 80%.

Can the solar module overcharge my battery?

Yes, but only if it’s used without the charge controller, which is why it’s important to always use one when you have a battery.

Can l run my 110V appliances with my solar power system?

Yes, you can run your 110V appliances with your solar power system using an inverter. The inverter connects your solar panel to your battery, converting the DC energy into AC energy, and allowing you to power your appliances.

How to avoid common mistakes in solar panel installation?

Shading: Avoid obstacles that block sunlight. Use shading analysis tools.

Improper Angle: Set panels at a 30–45° tilt facing true south for optimal efficiency.

Wrong Direction: Make sure panels directly face the sun.

Irregular Cleaning: Dirt reduces output—clean panels regularly with soft tools.

Mismatched Equipment: Use compatible panels, batteries, and inverters with matching specs.

Improper Connections: Use high-quality cables and ensure all connections are secure to prevent faults or fire.
