Rich Solar 300 Watt Solar Kit

Name: Rich Solar 300 Watt Solar Kit
Brand: RICH SOLAR
Price: 599.99 USD
Availability: InStock

$599.99 USD

Sale Sold out

California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Specifications & Downloads

Full Specification:

MEGA 100 Solar Panel

Download

BRAVO 40 40 Amp MPPT Solar Charge Controller

Download

User Manual:

BRAVO 40 40 Amp MPPT Solar Charge Controller

Download

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Rich Solar 300 Watt Solar Kit

Features

300W Solar Array: Includes three 100W monocrystalline solar panels, producing approximately 1.1kWh of energy per day under 4 peak sun hours.
12V Solar Charging System: Designed around a 12V solar charging system for compatible battery banks.
40A MPPT Charge Controller: Maximizes solar harvest with up to 99% MPPT tracking efficiency and 98% peak conversion efficiency.
Solar Charging Kit: Includes professionally matched solar panels, an MPPT charge controller, and installation accessories for efficient battery charging.
Versatile Applications: Ideal for RVs, trailers, boats, cabins, and other small off-grid solar charging systems.

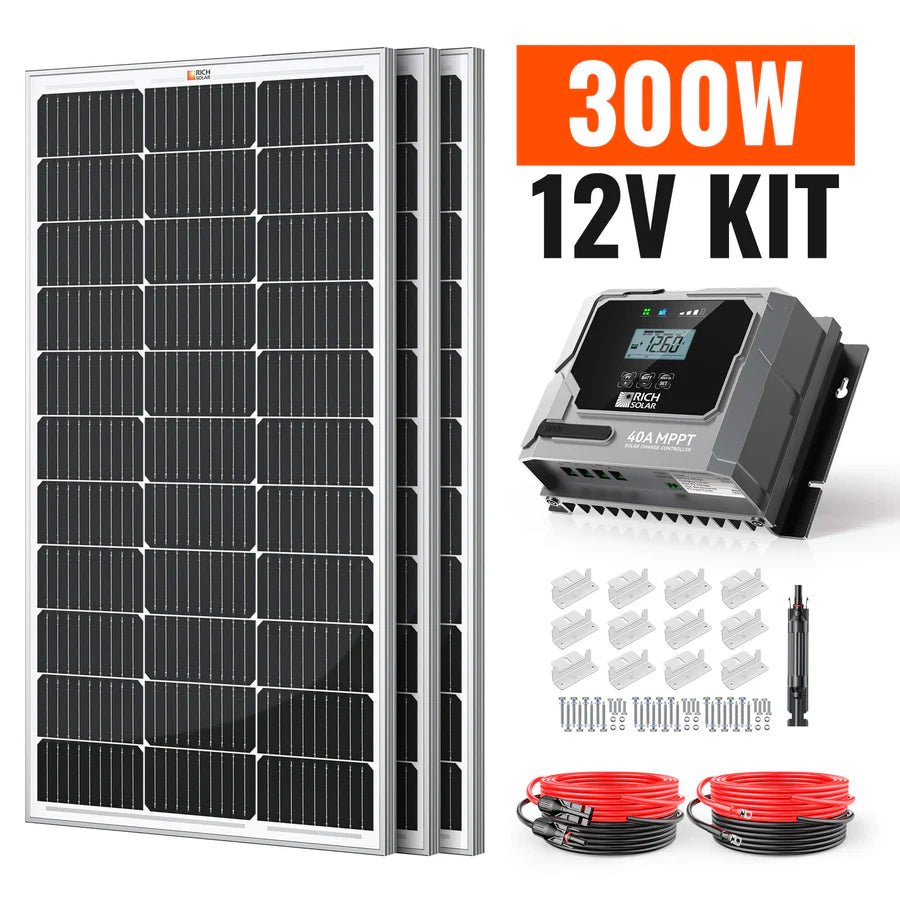

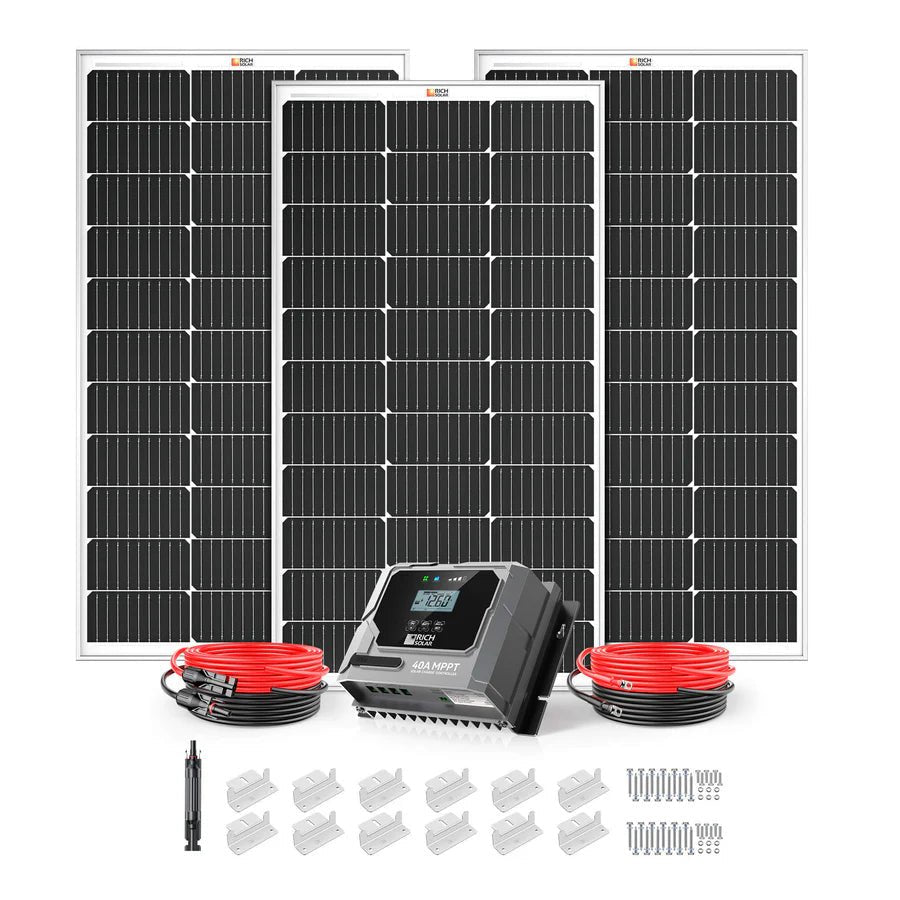

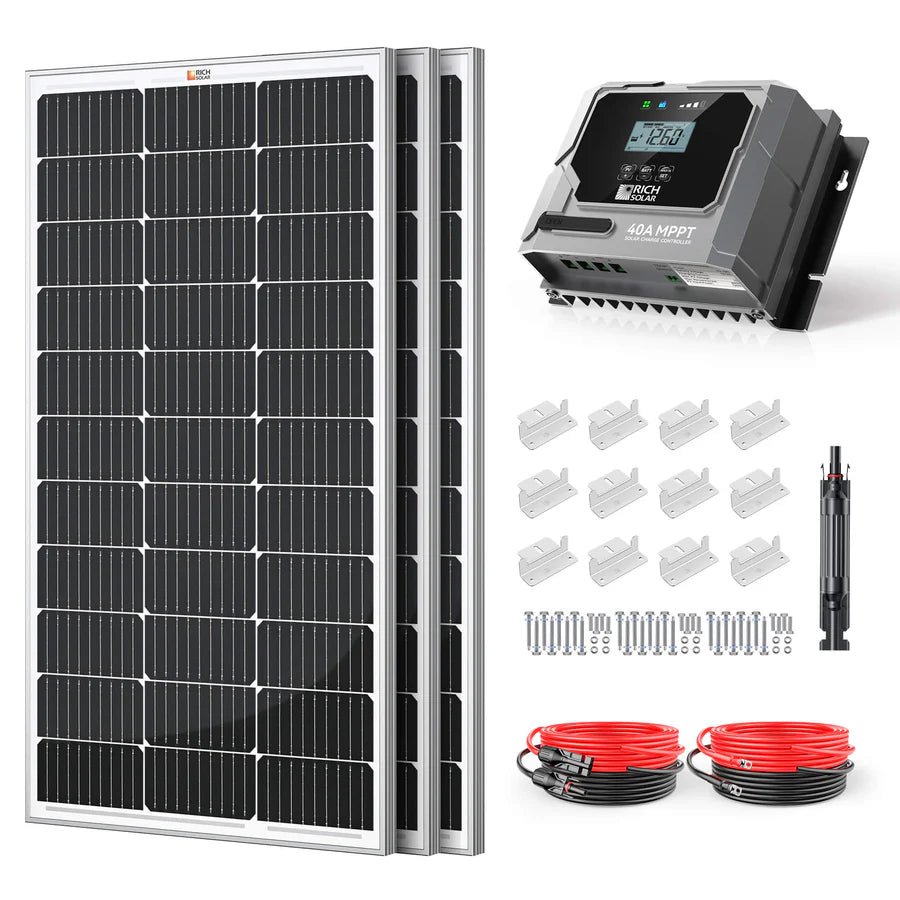

Kit Includes

3 x MEGA 100 12V 100W Solar Panels (RS-M100)
1 x 40A MPPT Charge Controller (RS-MPPT40P)
1 x 20 ft 10 AWG Solar Cable (Red), connects solar panel to controller (RS-20101)
1 x 20 ft 10 AWG Solar Cable (Black), connects solar panel to controller (RS-20101)
1 x 10 ft 8 AWG Battery Cable (Red), connects controller to battery (RS-810)
1 x 10 ft 8 AWG Battery Cable (Black), connects controller to battery (RS-810)
3 x Mounting Z Bracket sets (one set of 4) (RS-ZB4C)
1 x 10A Inline Fuse Holder with Fuse(RS-SC10F)

MEGA 100

100 Watt Solar Panel

The MEGA 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates, the MEGA 100 can handle whatever you throw at it.

No. of Panels: 3 x MEGA 100 Watt Solar Panels
Wattage Per Panel: 100W
Total Wattage of Panels: 300W

Features:

12V off-grid solar panel.
0~+5W guaranteed positive power output.
IP67-rated.
Built with strong tempered glass and aluminum frame.
Certified to withstand challenging environmental conditions.
Excellent low light performance on cloudy days, mornings and evenings.

Installation:

Easy installation and handling for various applications.
Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
Compatible with on-grid and off-grid inverters.

Warranty:

25-year output warranty.
10-year workmanship warranty.

Specifications:

Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 18.6V
Maximum Power Current(Imp): 5.38A
Open Circuit Voltage(Voc): 22.8V
Short Circuit Current(Isc): 5.78A
Maximum System Voltage(Vmax): 1000VDC
Weight: 13.2 lb
Maximum Series Fuse Rating: 15A
Dimensions: 39.0 x 21.3 x 1.2 in

BRAVO 40

40 Amp MPPT Solar Charge Controller

Features:

MPPT
Tracking Efficiency Above 99.5%
Charge Conversion Efficiency as high as 98%
12V/24V DC System Self-Adaptation
Reverse Discharge Protection
Targeted for Accuracy
Overvoltage Protection
Common Negative Connection
Charging Data Storage
Conformal Coating For Inside Board
Designed According to UL1741, EN/IEC 62109 1
In-house Design And Manufacture
Extensive Internal Electronics In-Circuit Protections And Safety Protections
Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

Warranty:

2-Year Warranty

Specifications:

System Nominal Voltage: 12/24V Auto
Max. PV Open Circuit Voltage: 100VDC
Charging Technology: MPPT
Max PV Charging Current: 40A
Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
Net Weight: 1.17kg / 2.58lb
Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in

View full details

Kit Includes:

3 x 100 Watt Monocrystalline Solar Panel (RS-M100)
1 x 40A MPPT Charge Controller (RS-MPPT40P)
1 x 20' #10 Gauge Solar Cable (Red), connects solar panel to controller (RS-20101)
1 x 20' #10 Gauge Solar Cable (Black), connects solar panel to controller (RS-20101)
1 x 10' #8 Gauge Battery Cable (Red), connects controller to battery (RS-810)
1 x 10' #8 Gauge Battery Cable (Black), connects controller to battery (RS-810)
3 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
1 x 10A Inline Fuse Holder with Fuse(RS-SC10F)

MEGA 100 Watt Solar Panel
The MEGA 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates, the MEGA 100 can handle whatever you throw at it.

Features:
- 12V off-grid solar panel.
- 0~+5W guaranteed positive power output.
- IP67-rated.
- Built with strong tempered glass and aluminum frame.
- Certified to withstand challenging environmental conditions.
- Excellent low light performance on cloudy days, mornings and evenings.
Installation:
- Easy installation and handling for various applications.
- Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
- Compatible with on-grid and off-grid inverters.
Warranty:
- 25-year output warranty.
- 10-year workmanship warranty.
Specifications:
- Maximum Power(Pmax): 100W
- Maximum Power Voltage(Vmp): 18.6V
- Maximum Power Current(Imp): 5.38A
- Open Circuit Voltage(Voc): 22.8V
- Short Circuit Current(Isc): 5.78A
- Maximum System Voltage(Vmax): 1000VDC
- Weight: 13.2 lb
- Maximum Series Fuse Rating: 15A
- Dimensions: 39.0 x 21.3 x 1.2 in
- BRAVO 40 Amp MPPT Solar Charge Controller
  Features:
- MPPT
- Tracking Efficiency Above 99.5%
- Charge Conversion Efficiency as high as 98%
- 12V/24V DC System Self-Adaptation
- Reverse Discharge Protection
- Targeted for Accuracy
- Overvoltage Protection
- Common Negative Connection
- Charging Data Storage
- Conformal Coating For Inside Board
- Designed According to UL1741, EN/IEC 62109 1
- In-house Design And Manufacture
- Extensive Internal Electronics In-Circuit Protections And Safety Protections
- Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
- Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections
- Warranty:
- 2-Year Warranty
- Specifications:
- System Nominal Voltage: 12/24V Auto
- Max. PV Open Circuit Voltage: 100VDC
- Charging Technology: MPPT
- Max PV Charging Current: 40A
- Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
- Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
- Housing Case Color: Black / Grey
- IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
- Net Weight: 1.17kg / 2.58lb
- Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
