Rich Solar 300 Watt RV & Camping Solar Kit

Rich Solar 300 Watt RV & Camping Solar Kit

$550.00 USD
$599.99 USD $550.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Shipping & Returns Policy

RICH SOLAR Shipping & Returns Policy

Specifications & Downloads

Full Specification:

 MEGA 100 Solar Panel

Download

 BRAVO 40 40 Amp MPPT Solar Charge Controller

Download

User Manual:

 BRAVO 40 40 Amp MPPT Solar Charge Controller

Download

Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Rich Solar 300 Watt RV & Camping Solar Kit

Our 300W kit contains 3 of our high efficiency 100W Monocrystalline panels with 9 busbars and our 20A MPPT controller. The perfect addition to your collection of solar panels for travel trailers, this kit can be paired with our 200AH 12V Lithium battery. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!

Specs

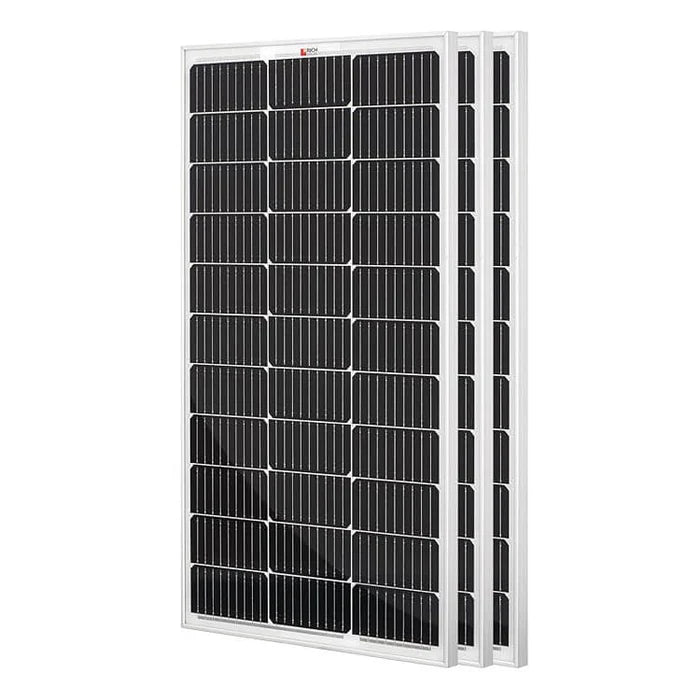

MEGA 100 Watt Solar Panel

The MEGA 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates, the MEGA 100 can handle whatever you throw at it.

  • No. of Panels: 3 x MEGA 100 Watt Solar Panels
  • Wattage Per Panel: 100W
  • Total Wattage of Panels: 300W

Features:

  • 12V off-grid solar panel.
  • 0~+5W guaranteed positive power output.
  • IP67-rated.
  • Built with strong tempered glass and aluminum frame.
  • Certified to withstand challenging environmental conditions.
  • Excellent low light performance on cloudy days, mornings and evenings.

Installation:

  • Easy installation and handling for various applications.
  • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
  • Compatible with on-grid and off-grid inverters.

Warranty:

  • 25-year output warranty.
  • 10-year workmanship warranty.

Specifications:

  • Maximum Power(Pmax): 100W
  • Maximum Power Voltage(Vmp): 18.6V
  • Maximum Power Current(Imp): 5.38A
  • Open Circuit Voltage(Voc): 22.8V
  • Short Circuit Current(Isc): 5.78A
  • Maximum System Voltage(Vmax): 1000VDC
  • Weight: 13.2 lb
  • Maximum Series Fuse Rating: 15A
  • Dimensions: 39.0 x 21.3 x 1.2 in

  • BRAVO 40 Amp MPPT Solar Charge Controller

    Features:

    • MPPT
    • Tracking Efficiency Above 99.5%
    • Charge Conversion Efficiency as high as 98%
    • 12V/24V DC System Self-Adaptation
    • Reverse Discharge Protection
    • Targeted for Accuracy
    • Overvoltage Protection
    • Common Negative Connection
    • Charging Data Storage
    • Conformal Coating For Inside Board
    • Designed According to UL1741, EN/IEC 62109 1
    • In-house Design And Manufacture
    • Extensive Internal Electronics In-Circuit Protections And Safety Protections
    • Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
    • Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

    Warranty:

    • 2-Year Warranty

    Specifications:

    • System Nominal Voltage: 12/24V Auto
    • Max. PV Open Circuit Voltage: 100VDC
    • Charging Technology: MPPT
    • Max PV Charging Current: 40A
    • Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
    • Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
    • Housing Case Color: Black / Grey
    • IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
    • Net Weight: 1.17kg / 2.58lb
    • Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
    View full details

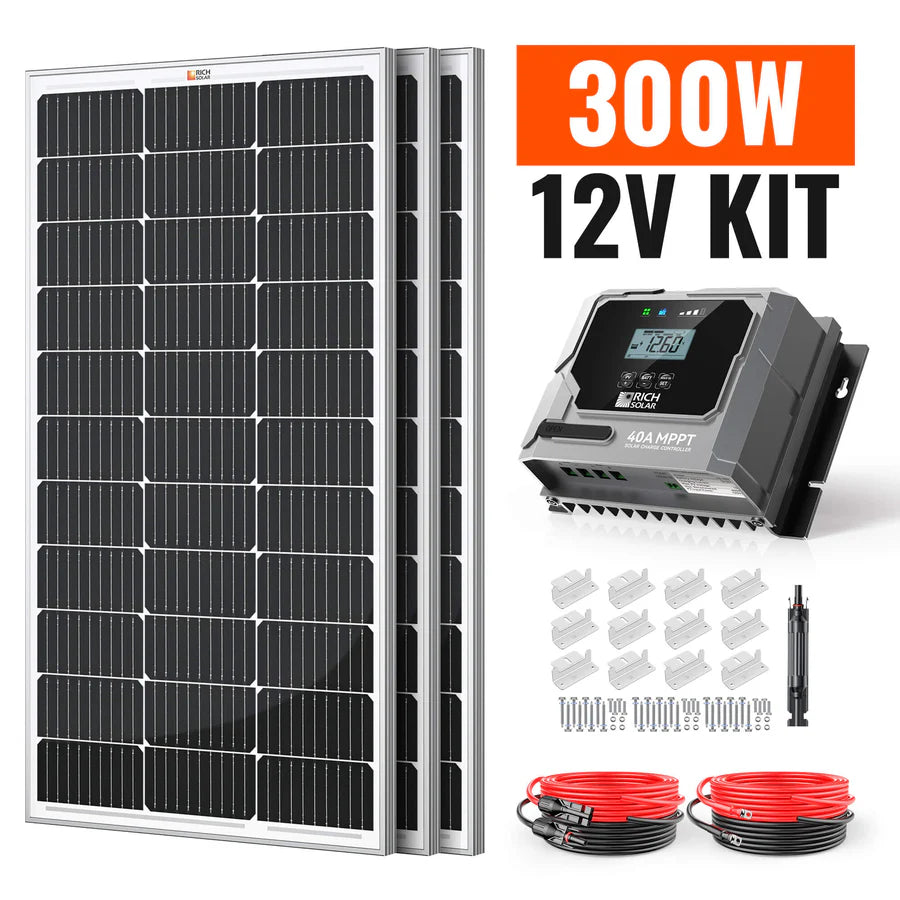

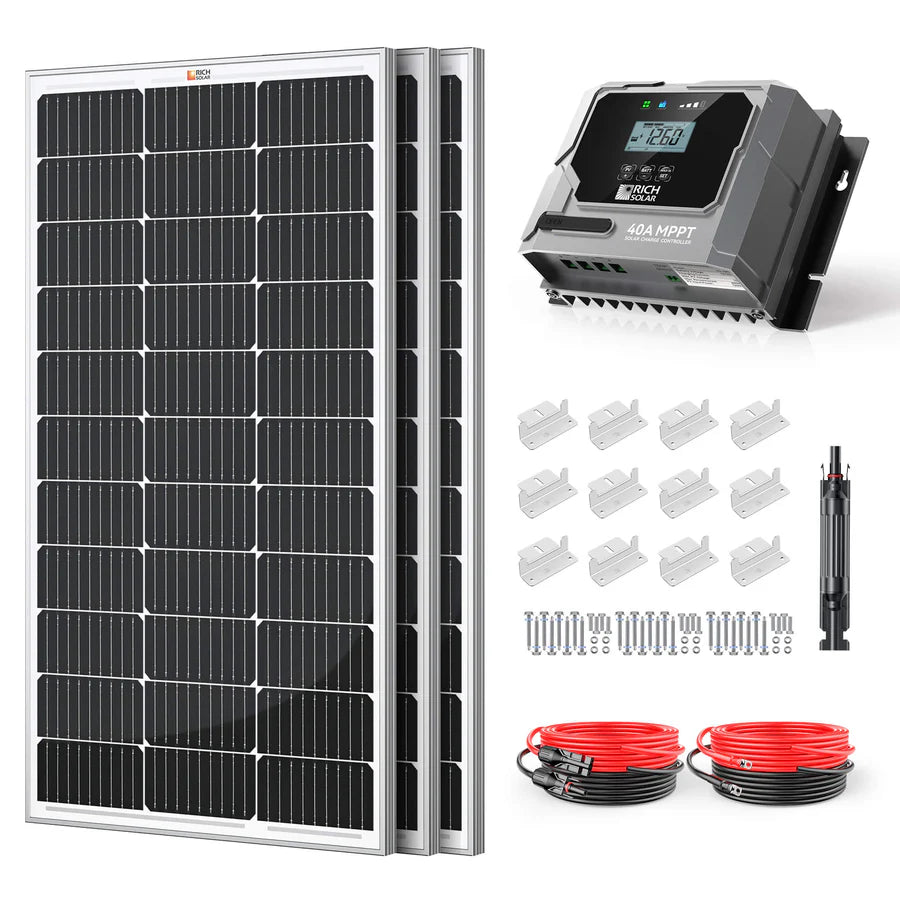

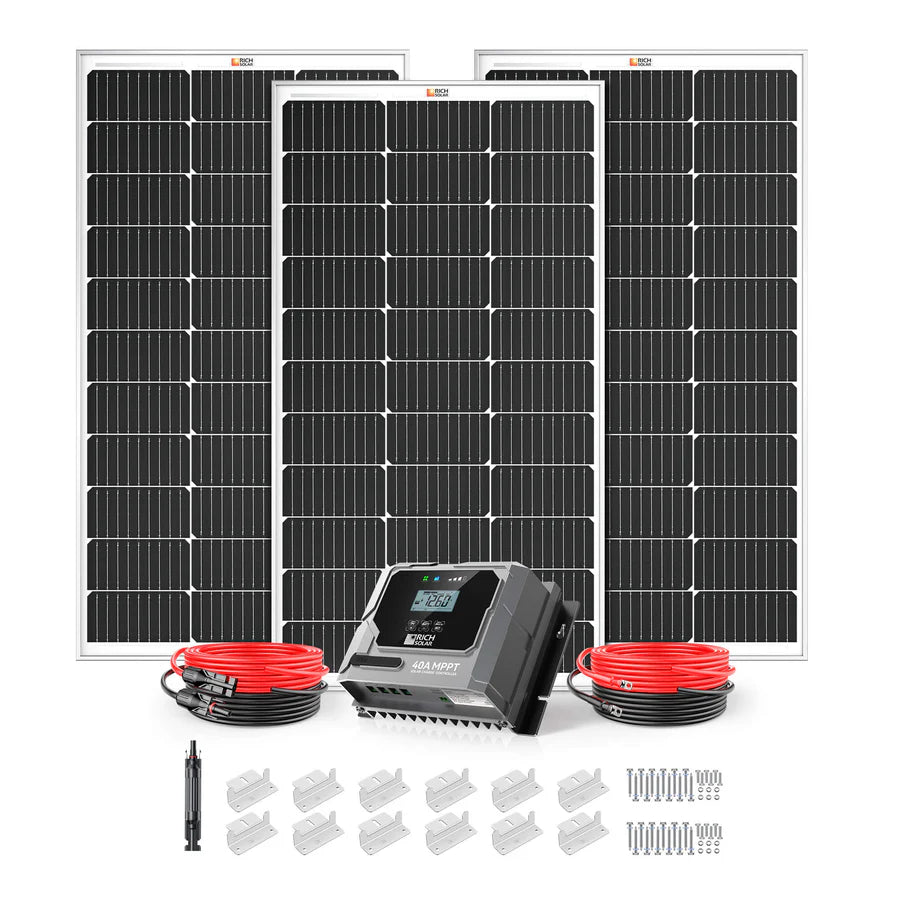

    Kit Includes:

    • 3 x 100 Watt Monocrystalline Solar Panel (RS-M100)
    • 1 x 40A MPPT Charge Controller (RS-MPPT40P)
    • 1 x 20' #10 Gauge Solar Cable (Red), connects solar panel to controller (RS-20101)
    • 1 x 20' #10 Gauge Solar Cable (Black), connects solar panel to controller (RS-20101)
    • 1 x 10' #8 Gauge Battery Cable (Red), connects controller to battery (RS-810)
    • 1 x 10' #8 Gauge Battery Cable (Black), connects controller to battery (RS-810)
    • 3 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
    • 1 x 10A Inline Fuse Holder with Fuse(RS-SC10F)

    • MEGA 100 Watt Solar Panel

      The MEGA 100 is the perfect option for any off-grid application. Ideal for anything from RVs to cabins and built to withstand the toughest climates, the MEGA 100 can handle whatever you throw at it.

      Features:

      • 12V off-grid solar panel.
      • 0~+5W guaranteed positive power output.
      • IP67-rated.
      • Built with strong tempered glass and aluminum frame.
      • Certified to withstand challenging environmental conditions.
      • Excellent low light performance on cloudy days, mornings and evenings.

      Installation:

      • Easy installation and handling for various applications.
      • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
      • Compatible with on-grid and off-grid inverters.

      Warranty:

      • 25-year output warranty.
      • 10-year workmanship warranty.

      Specifications:

      • Maximum Power(Pmax): 100W
      • Maximum Power Voltage(Vmp): 18.6V
      • Maximum Power Current(Imp): 5.38A
      • Open Circuit Voltage(Voc): 22.8V
      • Short Circuit Current(Isc): 5.78A
      • Maximum System Voltage(Vmax): 1000VDC
      • Weight: 13.2 lb
      • Maximum Series Fuse Rating: 15A
      • Dimensions: 39.0 x 21.3 x 1.2 in

      • BRAVO 40 Amp MPPT Solar Charge Controller

        Features:

      • MPPT
      • Tracking Efficiency Above 99.5%
      • Charge Conversion Efficiency as high as 98%
      • 12V/24V DC System Self-Adaptation
      • Reverse Discharge Protection
      • Targeted for Accuracy
      • Overvoltage Protection
      • Common Negative Connection
      • Charging Data Storage
      • Conformal Coating For Inside Board
      • Designed According to UL1741, EN/IEC 62109 1
      • In-house Design And Manufacture
      • Extensive Internal Electronics In-Circuit Protections And Safety Protections
      • Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
      • Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

      • Warranty:

      • 2-Year Warranty

      • Specifications:

      • System Nominal Voltage: 12/24V Auto
      • Max. PV Open Circuit Voltage: 100VDC
      • Charging Technology: MPPT
      • Max PV Charging Current: 40A
      • Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
      • Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
      • Housing Case Color: Black / Grey
      • IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
      • Net Weight: 1.17kg / 2.58lb
      • Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
