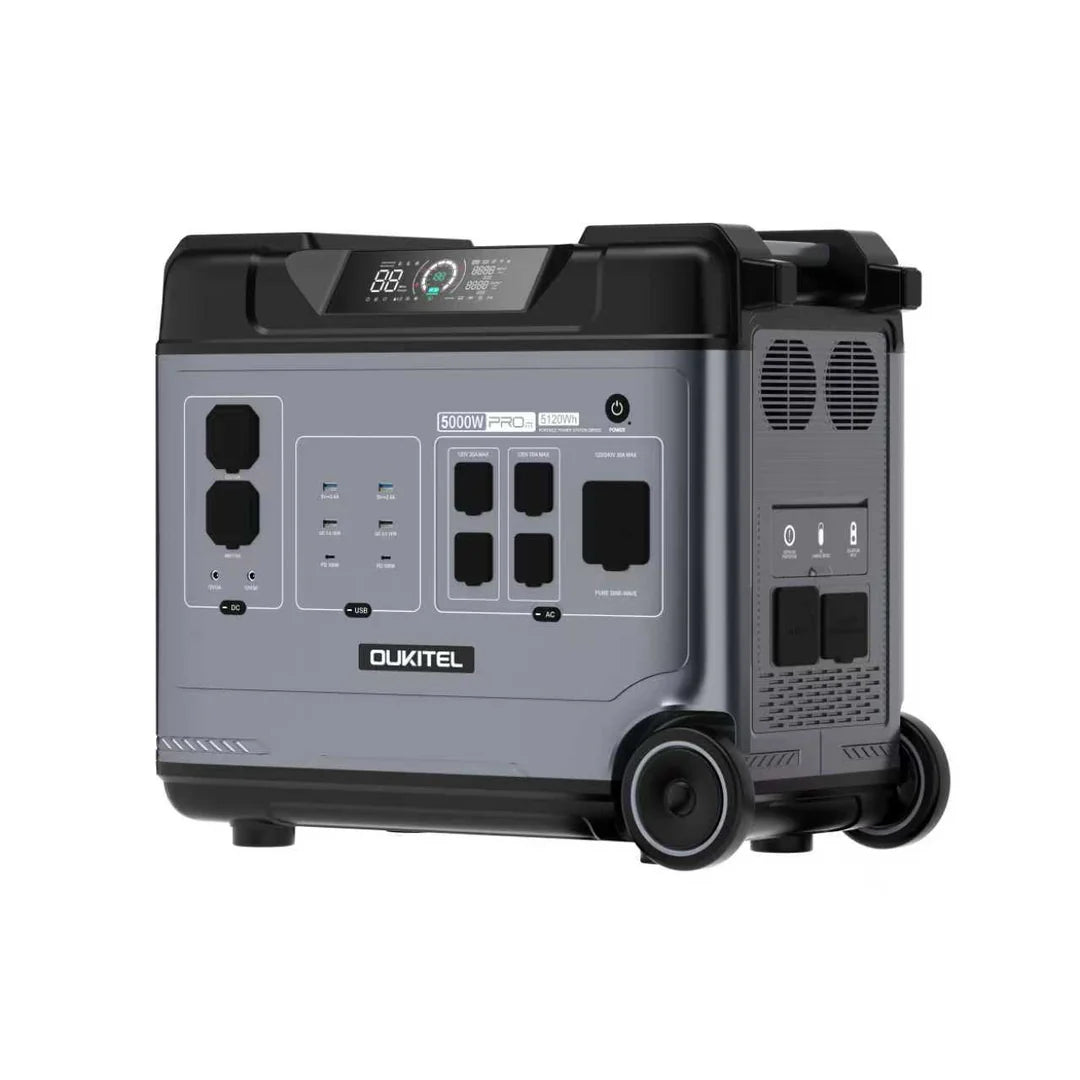

OUKITEL BP5000 Pro Max Specs

Capacity

5120Wh(51.2V 100Ah)

Rated Power

5000W

Surge Power

10000W

UPS Rated Power

1500W(100V)/1800W(120V)/3600W(240V),15A MAX

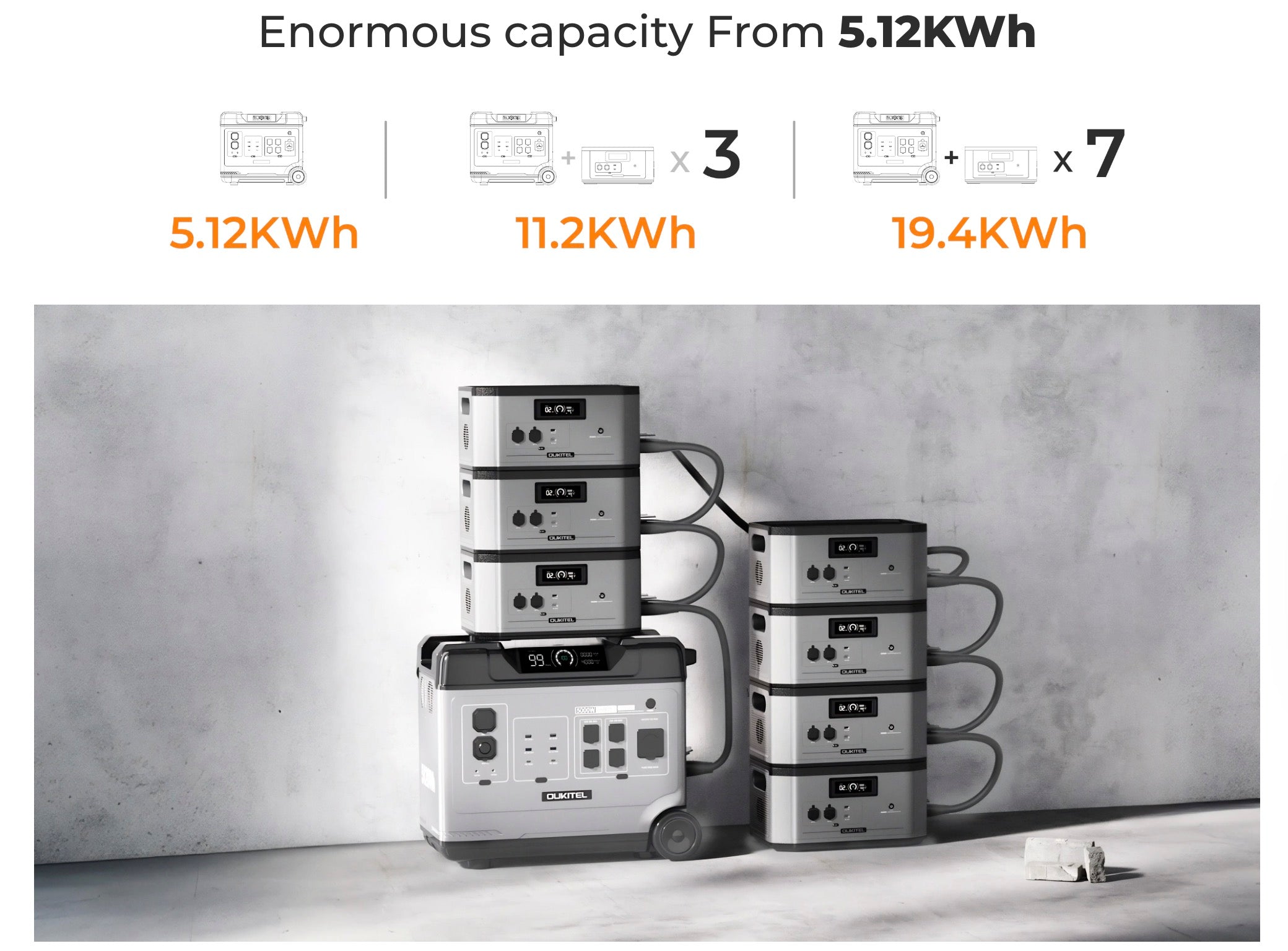

Scalability

Expand Up To 7*B2000

Battery Type

LiFePO4

UPS Start Time

UPS Start Time < 10 ms

Battery Safety Systems

BMS Management

Life Cycles

5000+ Cycles to 80% Original Capacity

AC Output-Area 2

2* Outlets, AC120Vac，20A MAX, 2500W MAX

AC Output- Area 1

2* Outlets, AC120Vac，20A MAX, 2500W MAX

Output Wave

Pure Sine Wave

AC Output-3 Split phase

1* Outlet, AC120Vac/240Vac, 30A MAX;
only 120V, 2500W MAX; only 240V,5000W MAX

USB-QC3.0

2* 18W (5V/3A ; 9V/2A; 12V/1.5A)

USB-A Port

2*12W (5V/2.4A) USB-A

DC Output Ports

2*DC5521(12V/3A, 36W Max each)
1*RV Aviation Port(48V/15A, 720W Max, GX16 2-Pin)
1*Car Charging Port(12V/10A, 120W Max)

USB-C Port

2* PD100W(5V3A;9V3A;12V3A;15V3A;20V5A)

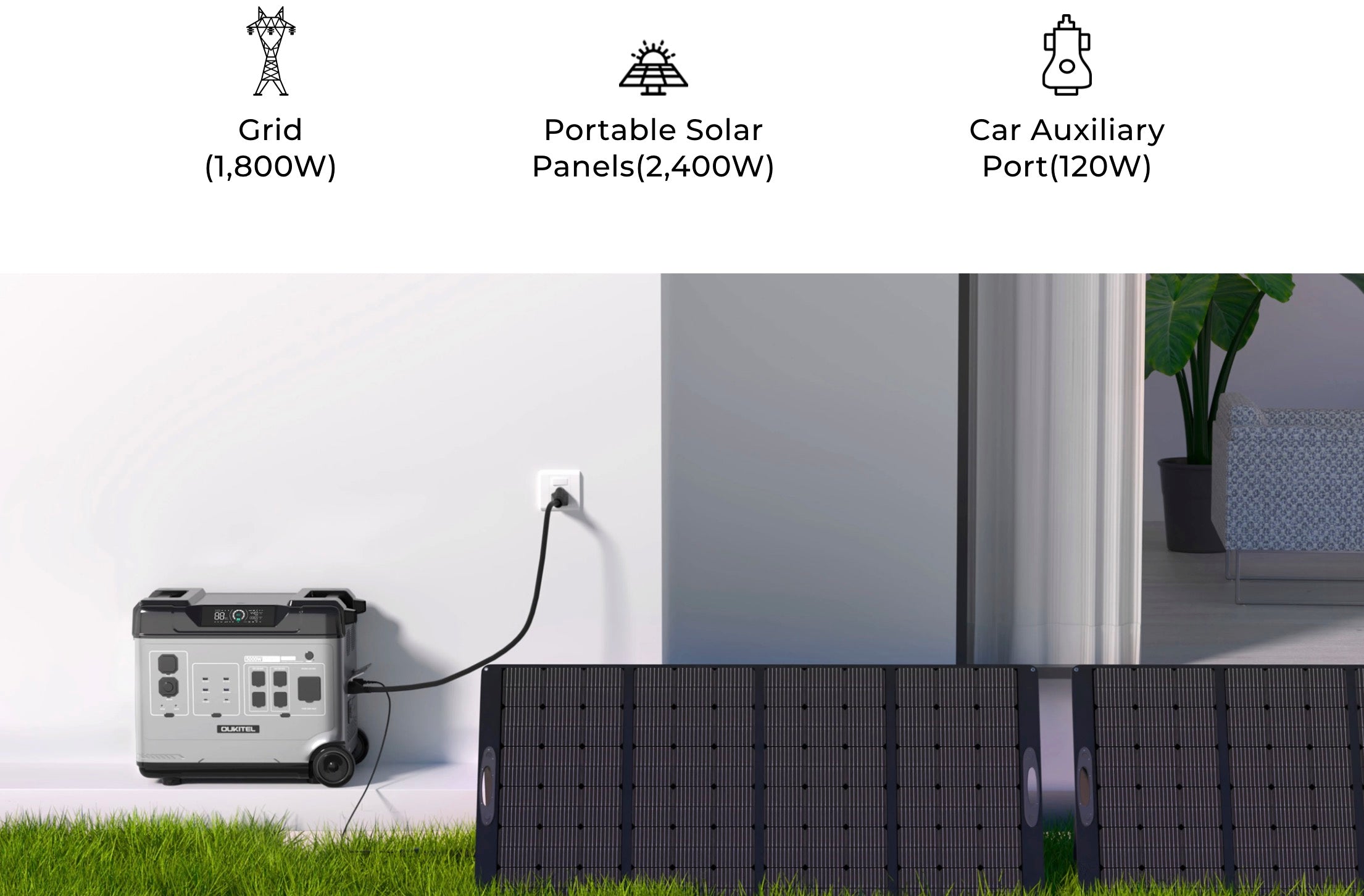

AC + Solar Charging(Max.2800W)

80% - 1 h 25 min

AC Charging(Max.1800W)

80% - 2 hrs 29 min

Solar Charging(Max.1000W)

100% - 4 hrs 30 min

Car Charging

12V/8A,48V/10A

Protection

Rescue & Short-circuit,Over-current, Over-voltage, Low- voltage, Over-load, Over-temperature ,Over-charge

Cooling Strategy

6*Fans

Net Weight

121.25lbs(55kg)

Dimensions (L*W*H mm)

L550*W299*487

Operating Temperature

32℉-104℉/0℃-40℃

Storage Temperature

-4℉-104℉/-10℃-40℃

Certifications

CE,FCC,PSE,UN38.3,EMC,LVD,RoHS,MSDS

Warranty

1+2 Years(Subscribed)

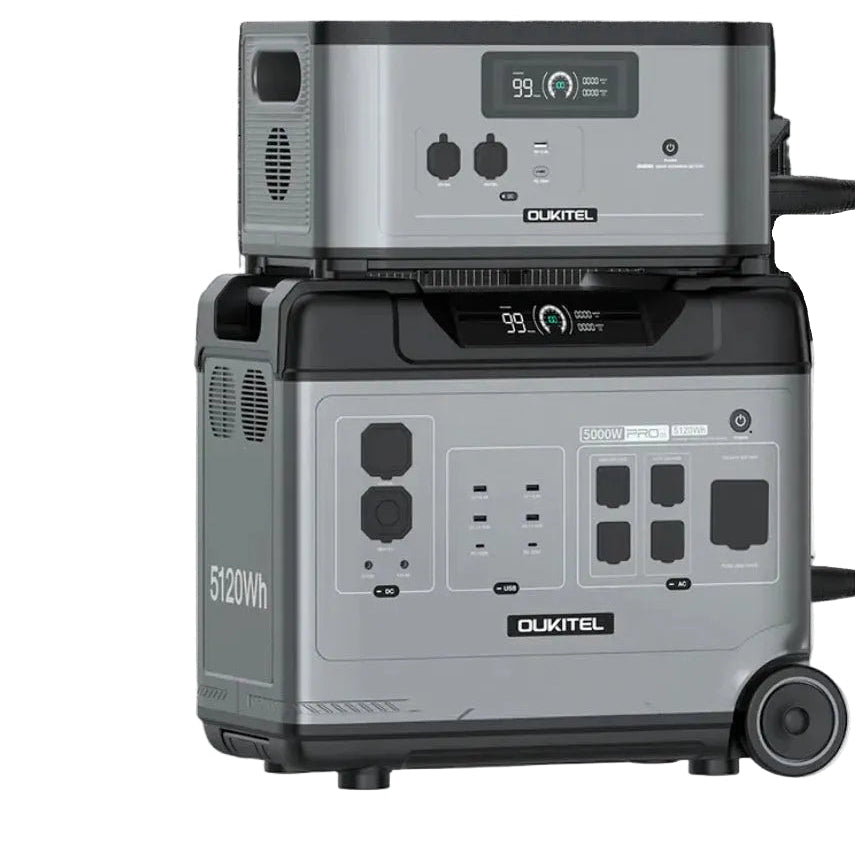

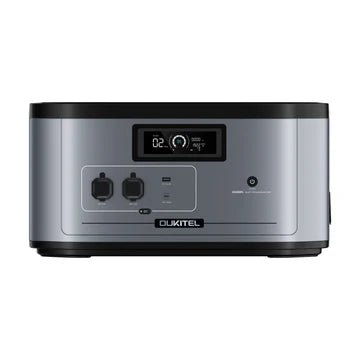

B2000 Expansion Battery Specs

Capacity

2048Wh (51.2V, 40Ah)

Battery Type

LiFePO4(Lithium Iron Phosphate)

Life Cycles

3,500+ Cycles to 80% Original Capacity

Management System

MPPT Controller, BMS, etc

Inverter Type

Pure Sine Wave

USB-C Port

1* PD100W

USB-A Port

1x12W (5V/2.4A) USB-A

12V DC Outlet

1 x 12V/10A (Car Outlet)

AC Input

200W

Solar Input

Max.200W(MPPT), 12-48V/10A, 1*XT60 Port

Car Input

12V/8A, 24V/10A

Net Weight

41lbs(18.6kg)

Dimensions (LxWxH)

18.7x11.65x9.51in (47.4x29.5x24.15cm)

Operating Temperature

32℉-104℉/0℃-40℃

Storage Temperature

14℉-104℉/-10℃-40℃

Certifications

CE,FCC,PSE,UN38.3,EMC,LVD,RoHS,MSDS

Warranty

1+2 Years(Subscribed)
