Capacity: 48V 100Ah (4800Wh)
Cell Chemistry: AGM Sealed Lead Acid
Self-discharge: Recommend to recharge every 4 months
Product details
Nature's Generator Powerhouse Power Addition
• Designed for Powerhouse Systems: This Power Pod expansion battery is specifically engineered to work with Nature’s Generator Powerhouse whole‑home generator, providing seamless compatibility and performance.
• Expand Your Backup Capacity: Each Power Pod add 4800Wh battery capacity, 2000W solar charger and 1000W wind charger to extend your system’s energy storage, keeping lights, appliances, and essential circuits running longer during outages or off‑grid use.

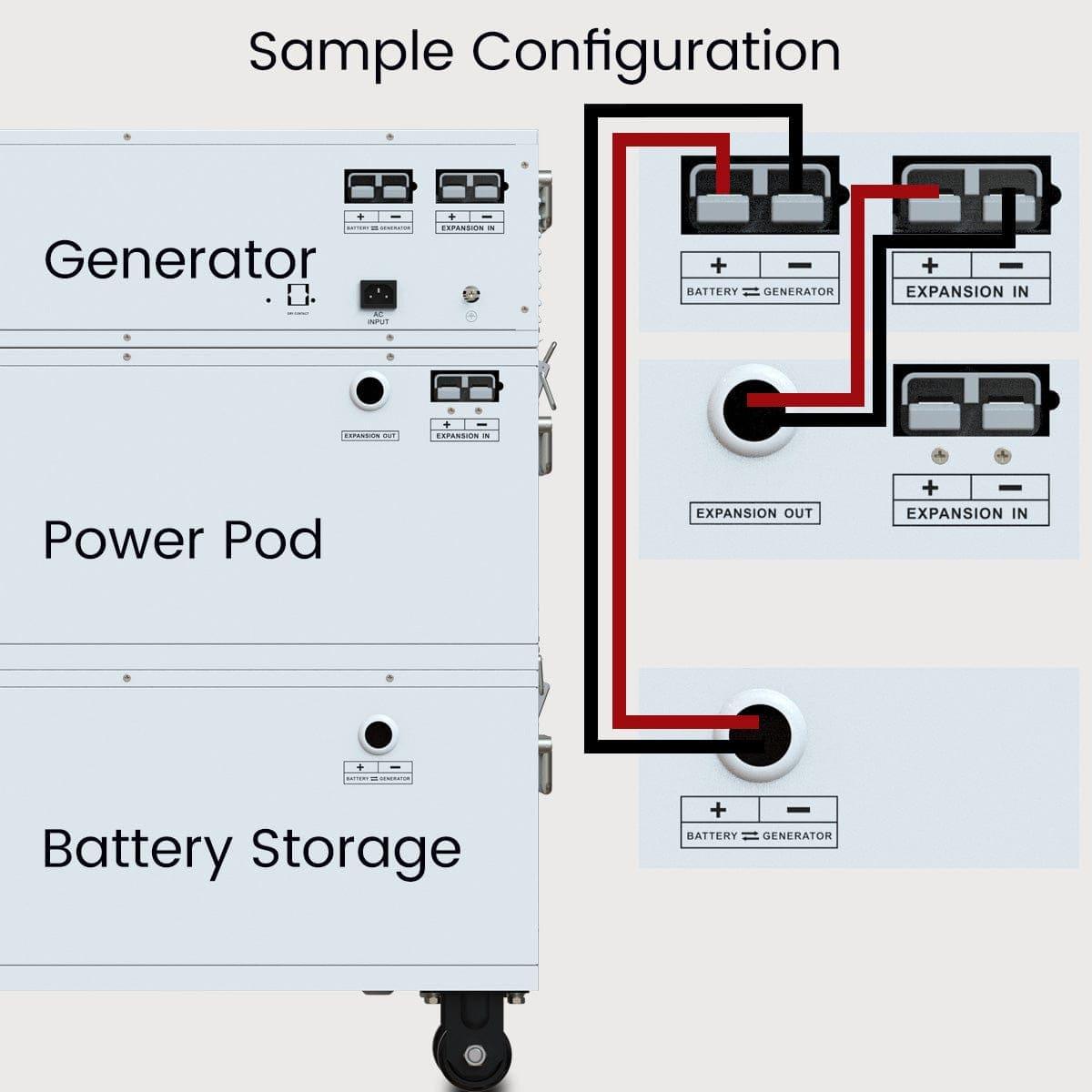

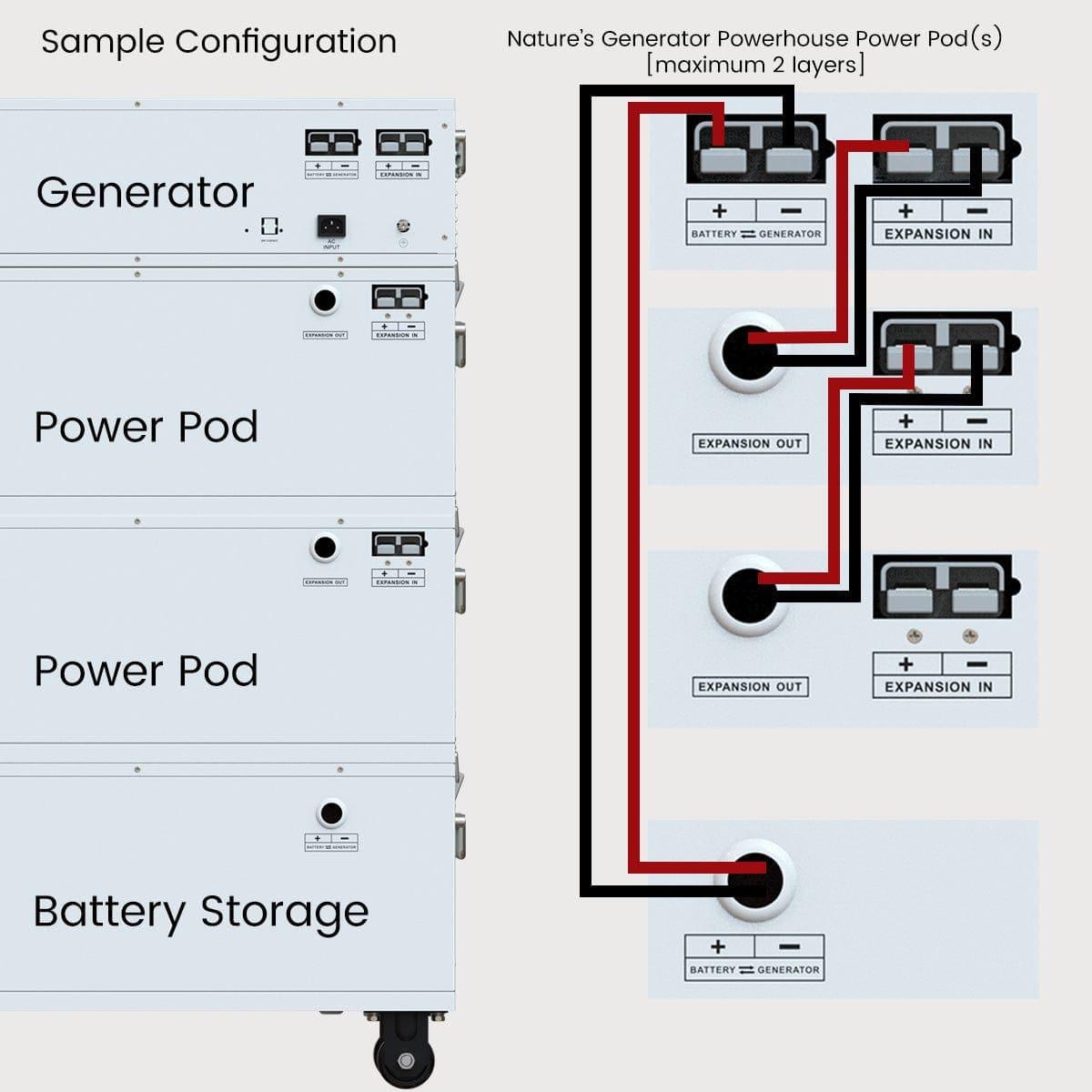

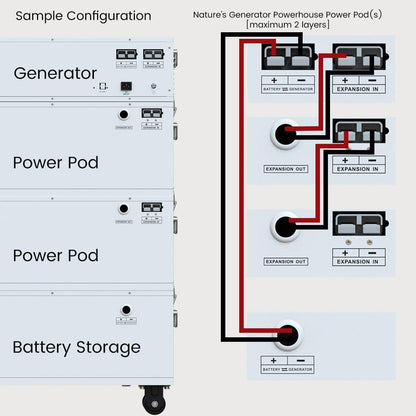

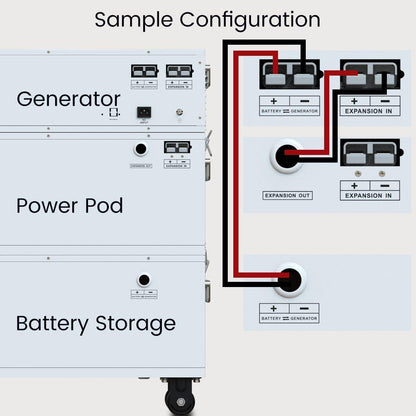

• Easy Plug‑In Installation: Simple connection design makes adding a Power Pod quick and hassle‑free—no complex wiring or professional installation required.
• Smart Protection & Monitoring Ready: Works with your Powerhouse system’s monitoring and management features, ensuring balanced charging and battery health for optimal performance and longevity.

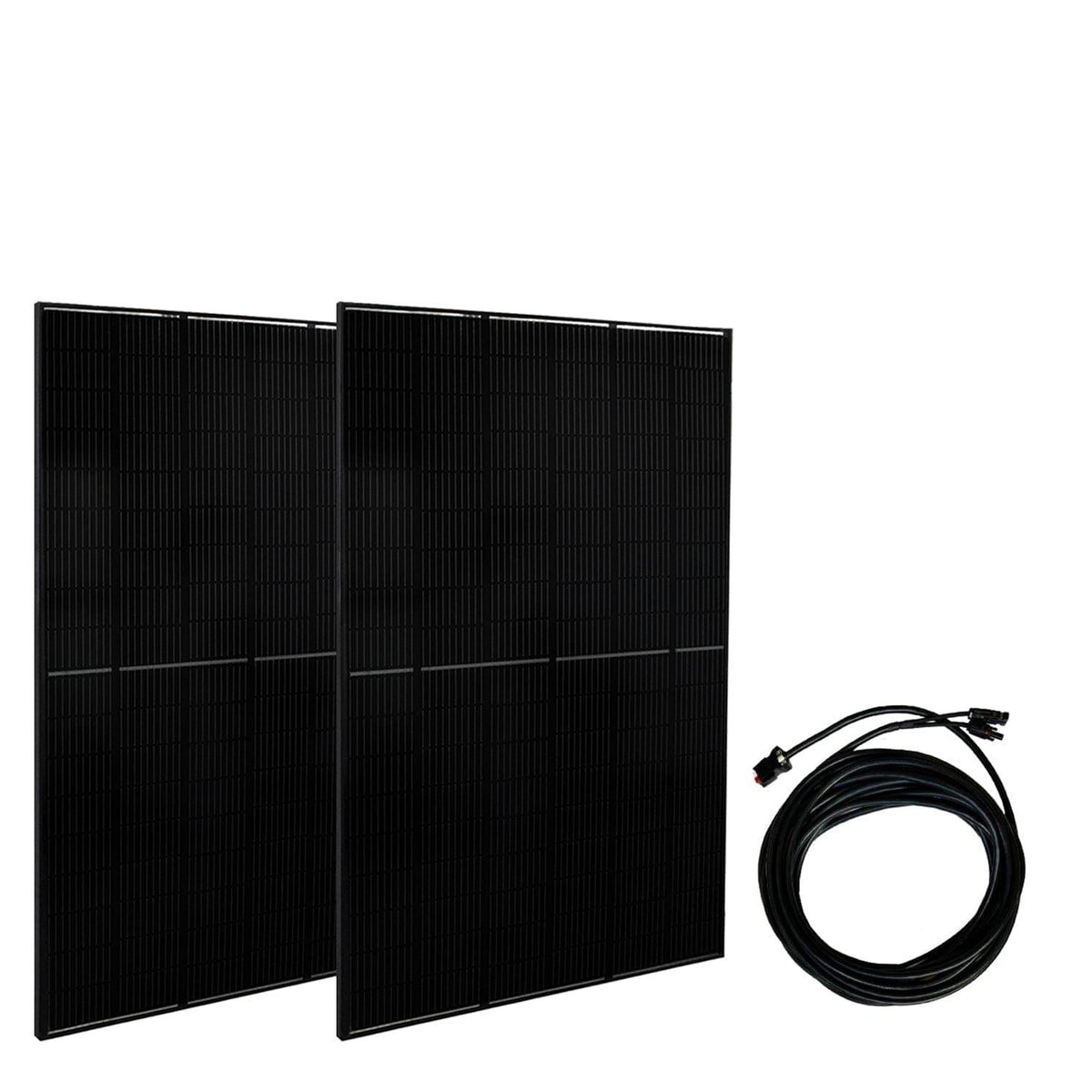

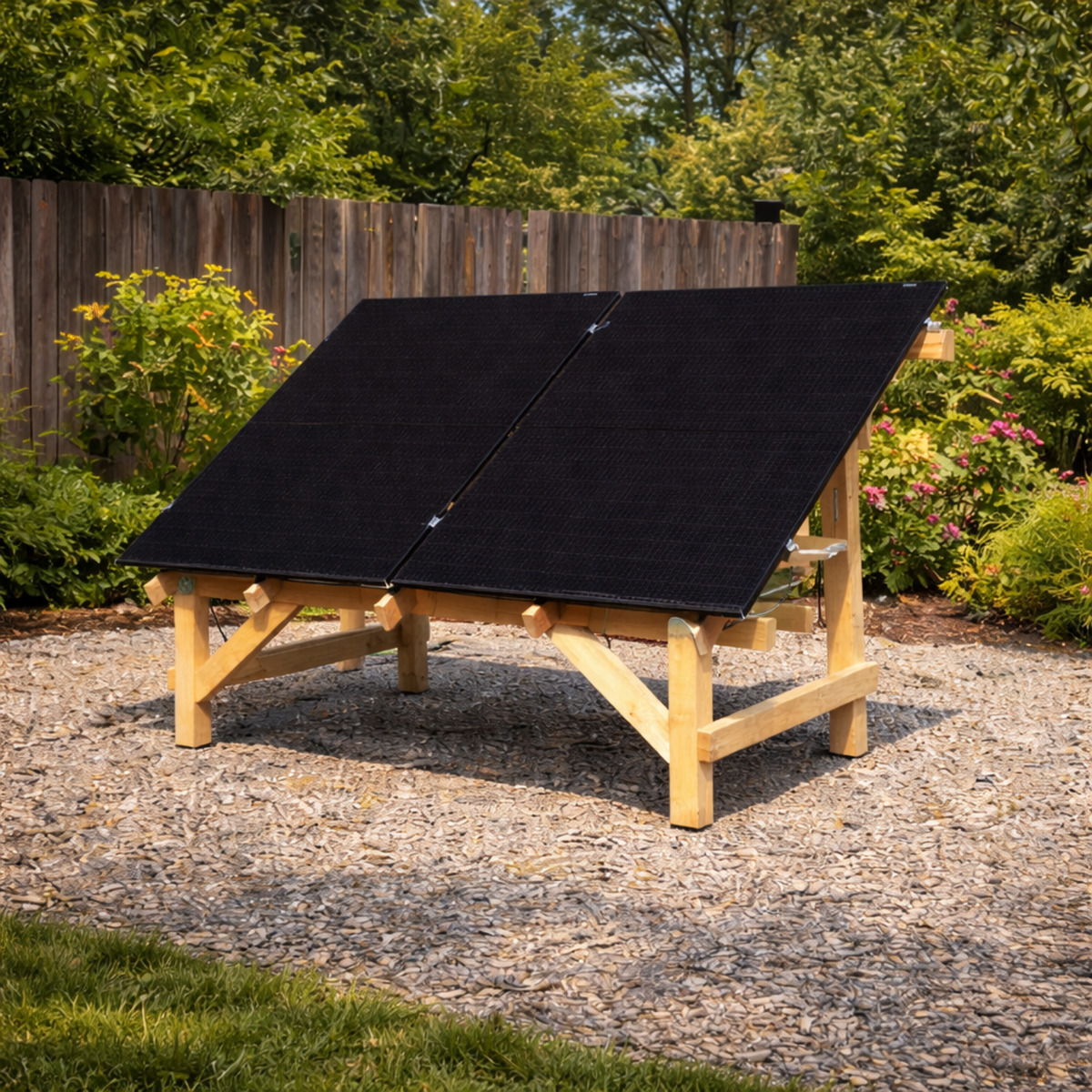

• Includes 2 or 4 High-Output Solar Panels: Each Power Pod bundle comes with 2 or 4 rigid 410 W solar panels, providing renewable energy to help charge your system and maximize off-grid performance.
Tech Specs

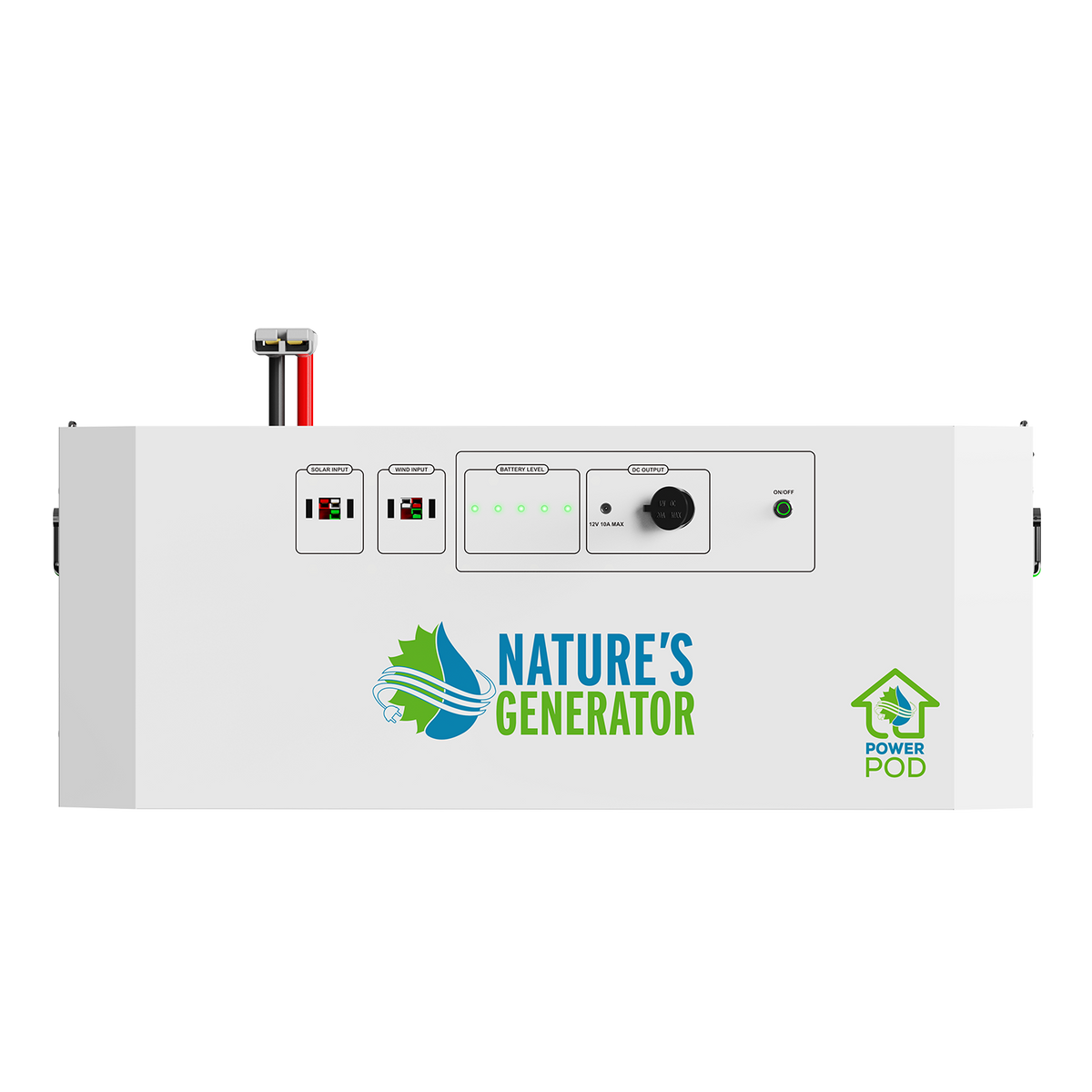

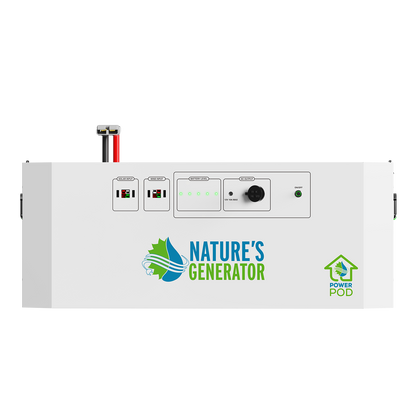

Control Panel Overview
Easily access all power options through the intuitive control panel featuring clearly labeled ports, outlets, and buttons for seamless operation.

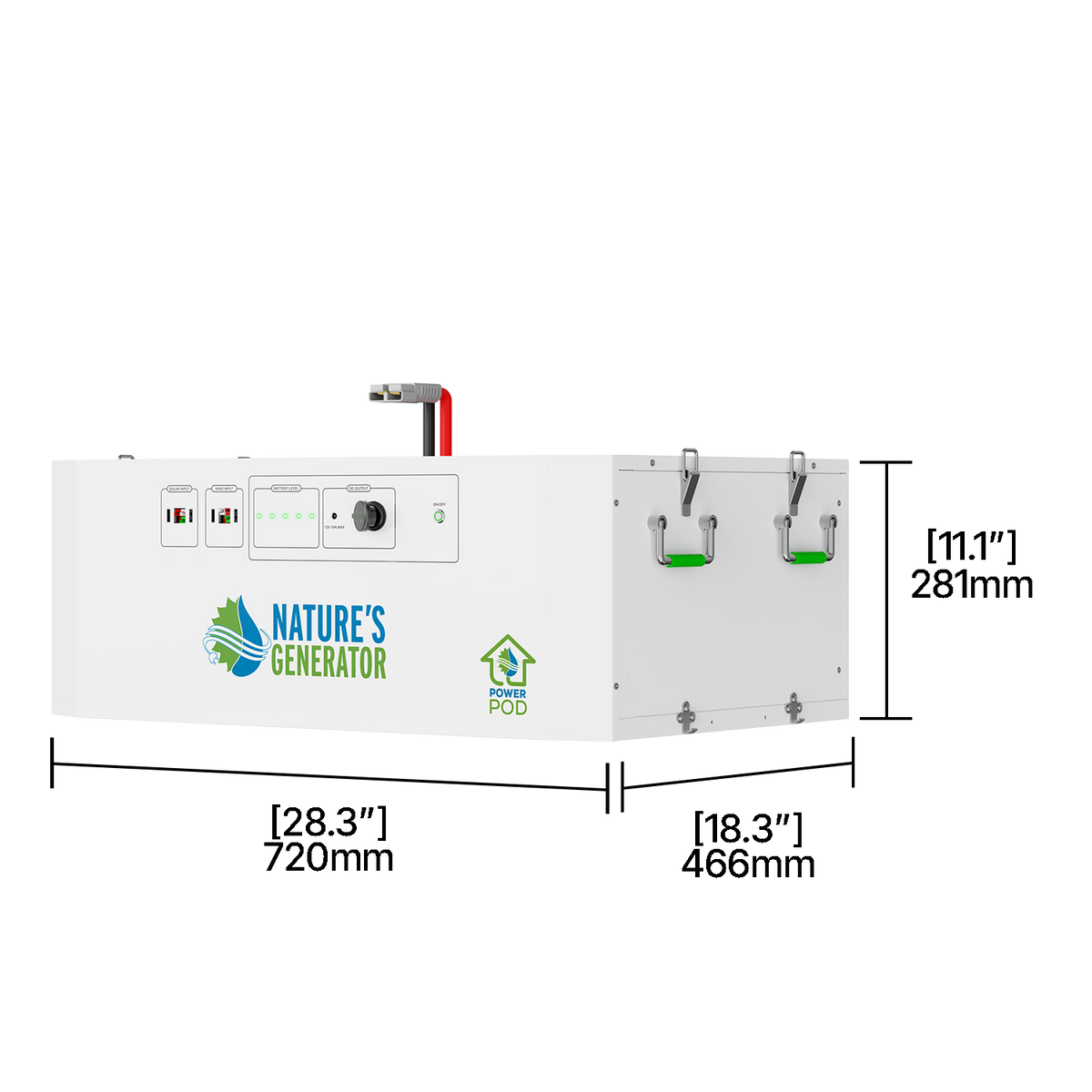

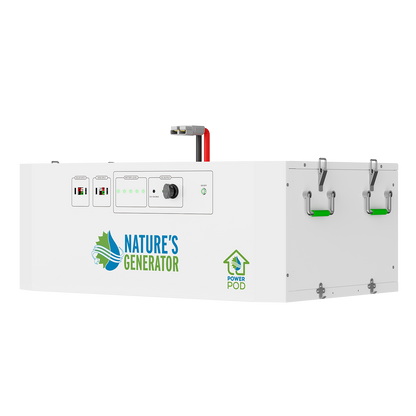

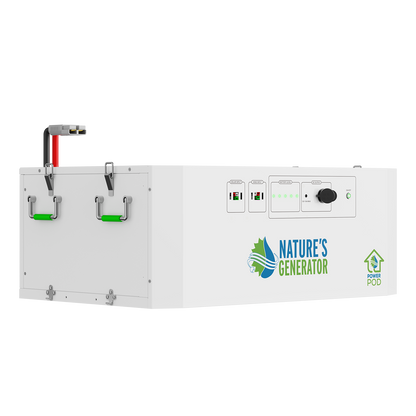

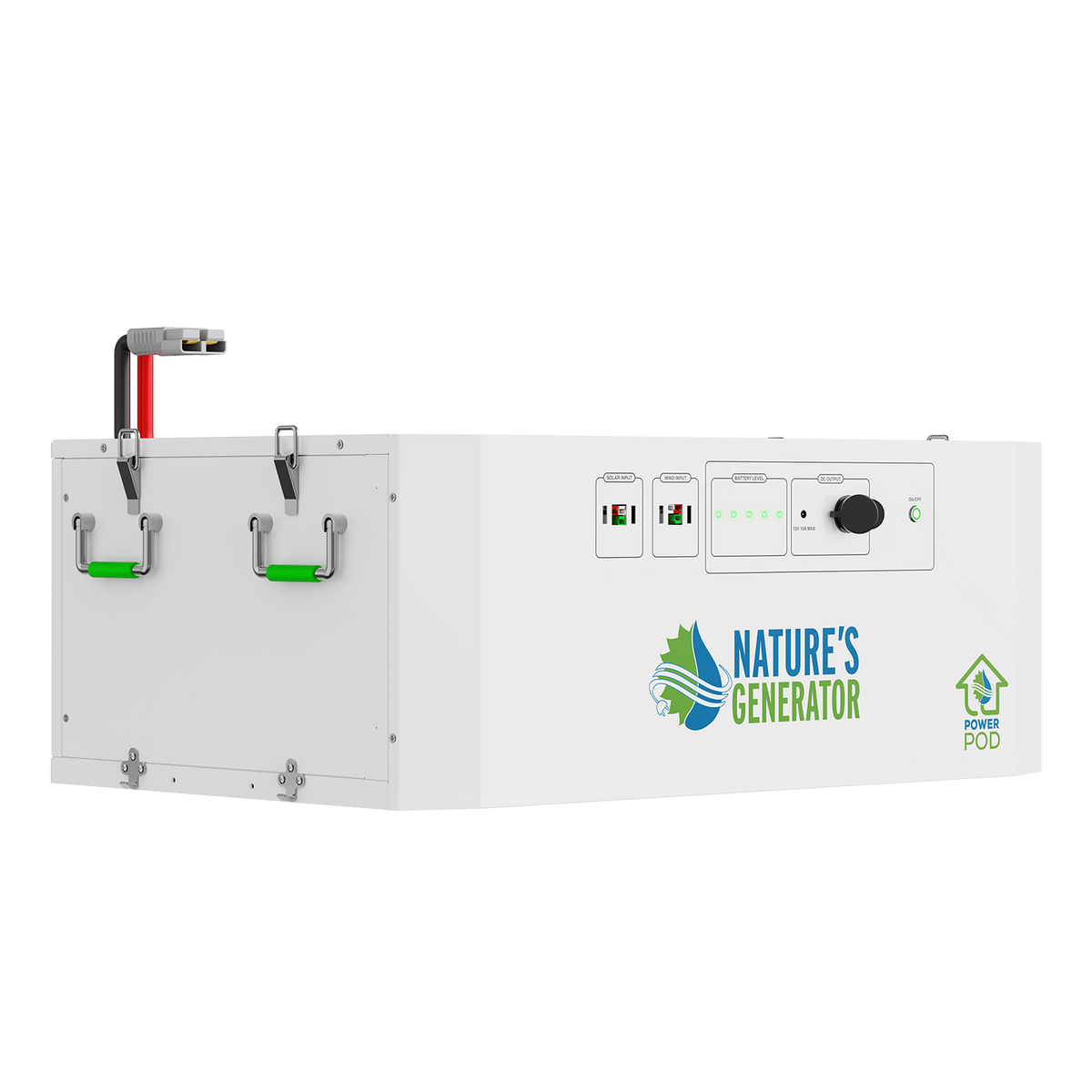

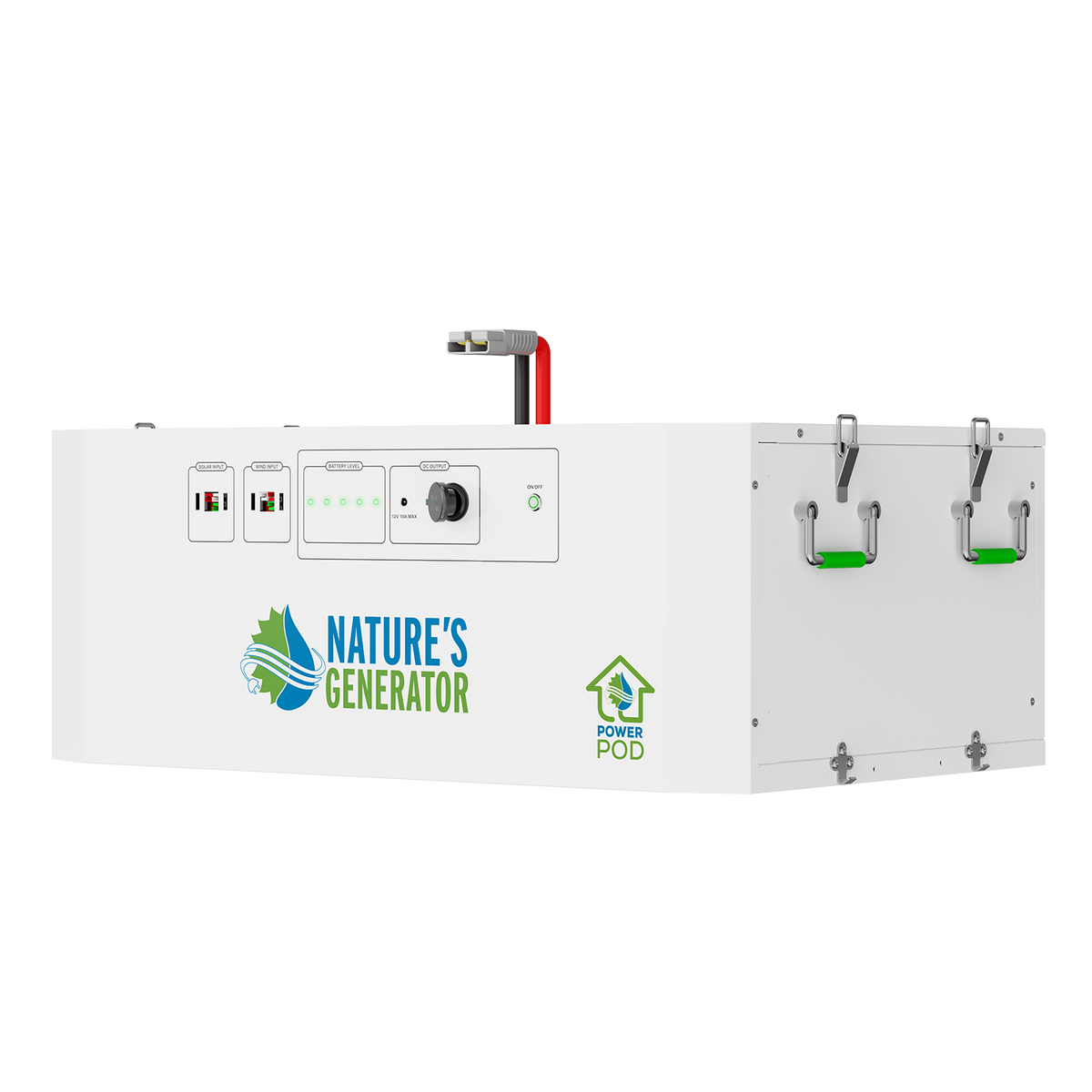

Powerhouse Power Pod
Battery
Charges
Solar Charger: 2000W
Wind Charger: 1000W
Ports:
12V Socket: 10A max
12V Port: 10A max
148V Port: 5A max
12V Port: 10A max
General
Weight: 295 lbs (134 kg)
Operating temperature: 32-104 °F (0-40 °C)
Storage Temperature: 23–111 °F (-5–45 °C)
Dimensions
Powerhouse Power Pod: 28 x 18 x 11 inches (720*466*281 mm)
Powerhouse Power Pod(with wheels): 28 x 18 x 15 inches (720*466*376 mm)
440W Rigid Bifacial Panel
Power Rating
Maximum Power (Pmax): 440W
Maximum Power Voltage (Vmp): 32.30
Maximum Power Current (Imp): 13.63
Open-circuit Voltage (Voc): 38.80
Short-circuit Current (Isc): 14.39
Module Efficiency STC (%): 22.53%
Dimensions & Characteristics: 1722*1134*30mm(67.8*44.6*1.2 inch)
Cell Type: N-Type TOPCon 182×91mm
No.of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy - All Black
Weight: 24.5 kg (54 lbs)
Glass: 2.0 mm+2.0mm, High Transmission, AR Coated Heat Strengthened Glass
Operation Temperature: -40℃~+85℃ (-40°F ~+185°F )
Junction Box: IP68 Rated, connector compatible with MC4
Output Cables: 4 mm² ,350mm (With Connectors)
What's in the Box
Powerhouse Power Pod + 2x 440W Rigid Panel
|
 |
Documents
Nature's Generator Powerhouse Power Pod
440W Rigid Solar Panel Installation Guide
