Output Continuous Power: 3600W
Output Peak Power: 7200W
Output Voltage: 120V Single Phase
Output Frequency: 60Hz
Waveform: Pure Sine Wave
Auto Switch Mode: <10ms
Product details

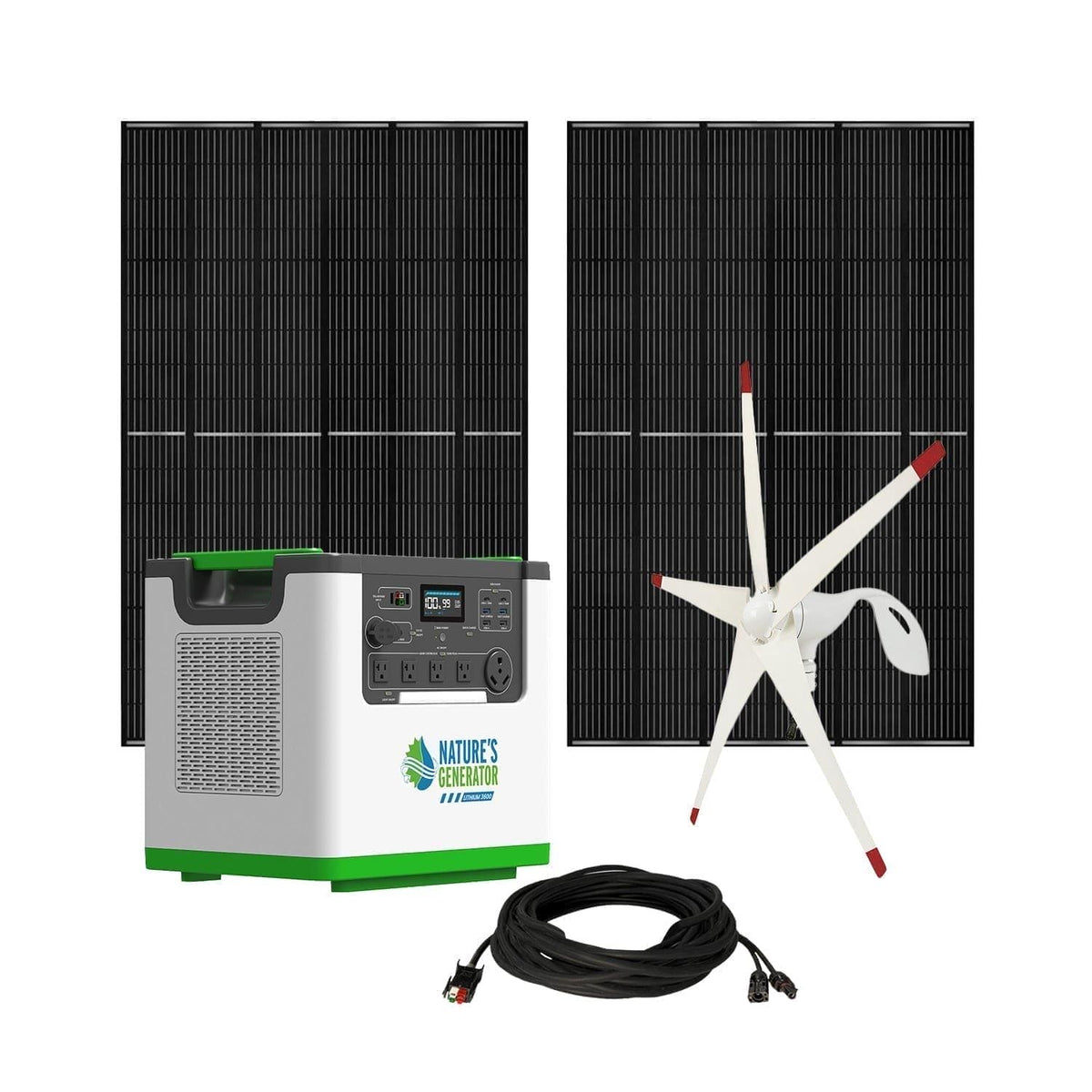

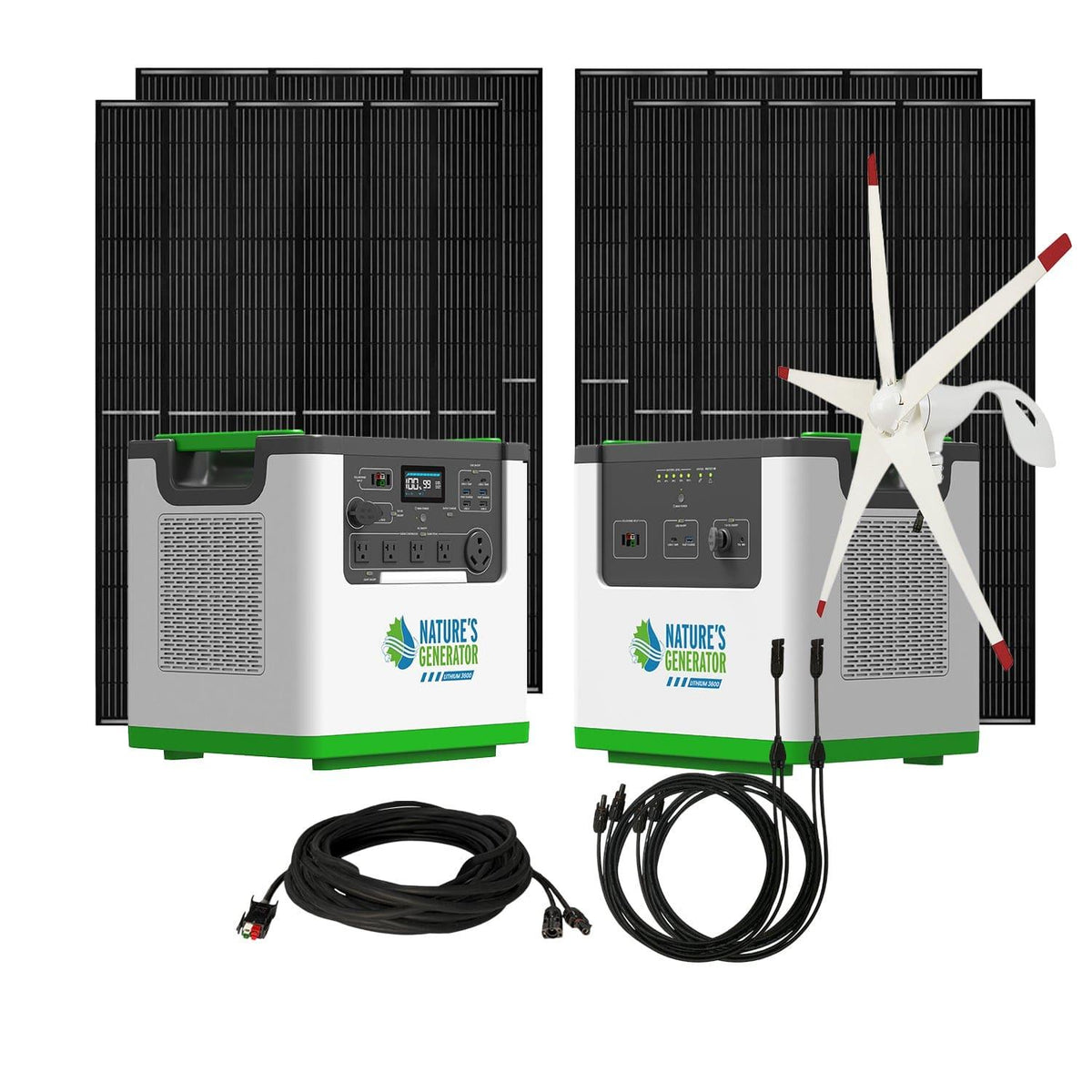

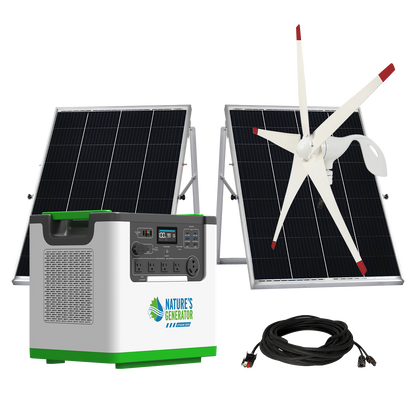

Nature's Generator Lithium 3600 Solar and Wind Generator
• Solar + Wind Charging Included: Bundled solar panels and wind turbine with the Lithium 3600, you harness dual renewable energy sources right out of box. The wind turbine delivers supplemental charging during cloudy days or at night.
• Reliable 3600W Power Output: Provides clean, stable pure sine wave power to run appliances, tools, and essential devices for home backup, off-grid living, RVs, or recreational use.
• Long-Lasting LiFePO₄ Battery: Features a 3072Wh LiFePO₄ battery with Battery Management System (BMS) engineered for enhanced safety, extended lifespan, and dependable, consistent performance.

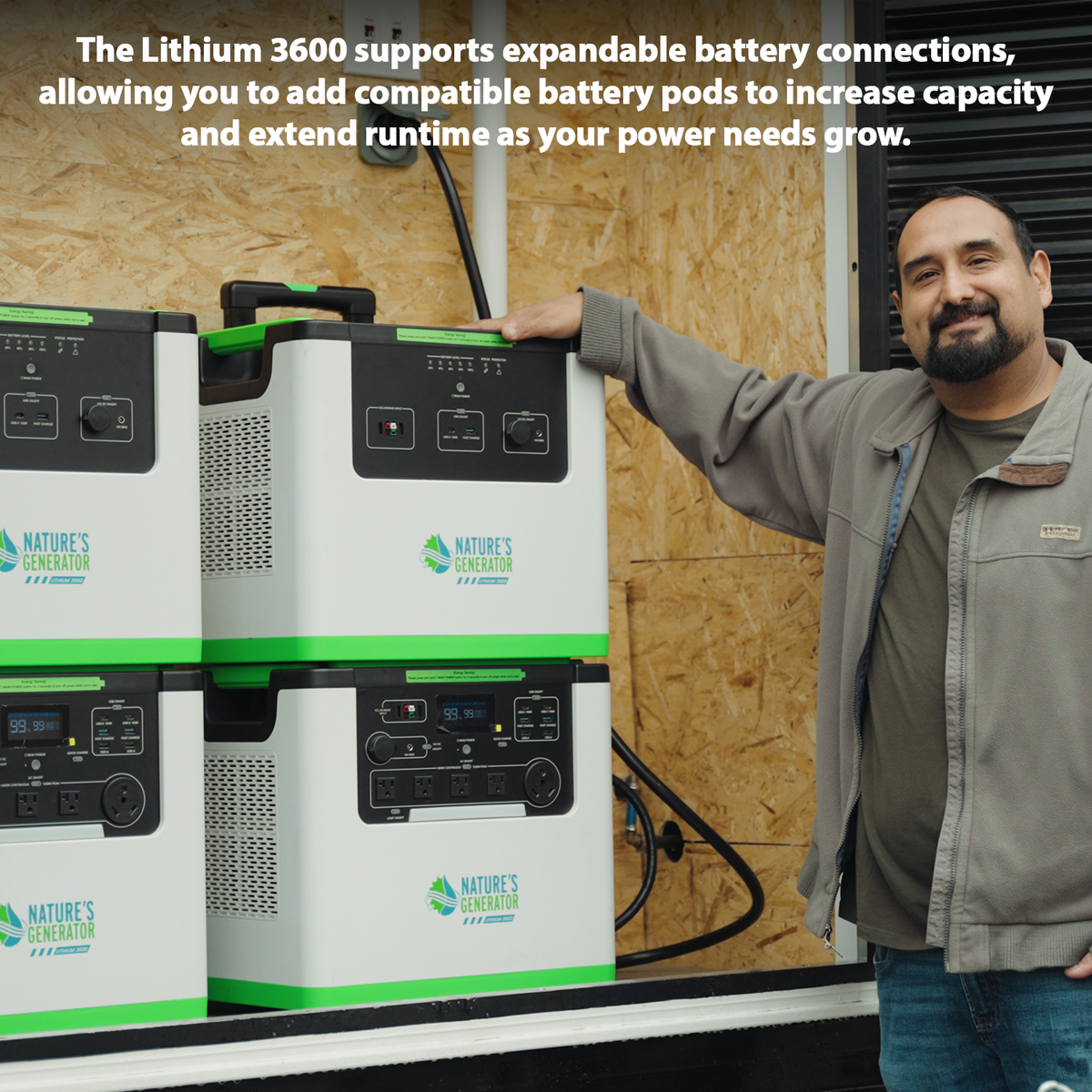

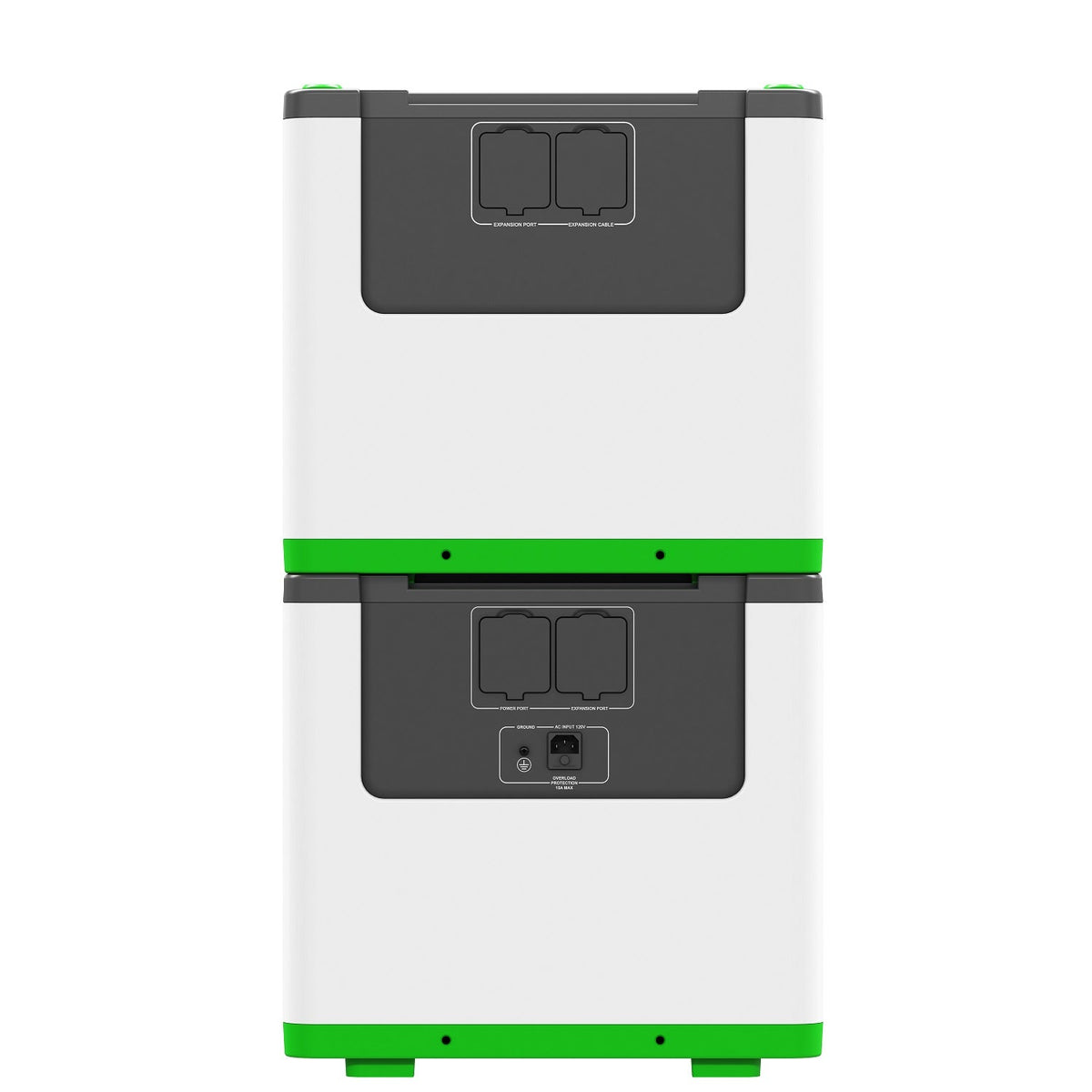

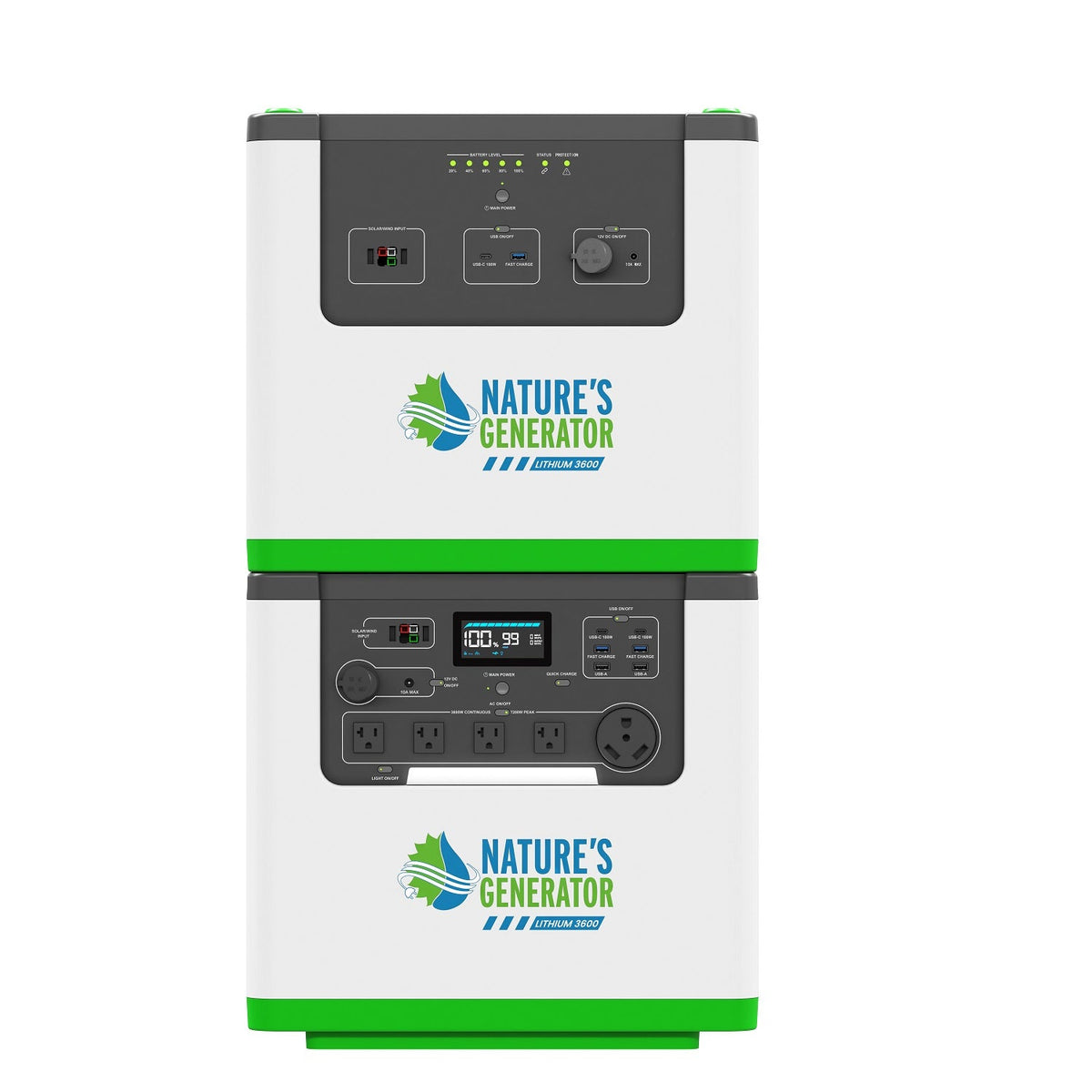

• Expandable & Scalable System: Combine two units for up to 240V 7200 W output, or add Power Pods and solar panels to increase energy capacity and runtime as your power needs grow.
• Fast, Flexible Multi-Source Charging: Recharge through up to 2400W solar, 150W wind, or 3000W AC, giving you versatile and renewable charging options for any environment or situation. 80% charge in about 1 hour to minimize downtime.
• Smart, Quiet & Portable: Intuitive LED display shows real-time status, while the fume-free, low-noise design makes it ideal for home backup, travel, and off-grid use.
• Safety Certified: UL 2743 certified to guarantee dependable and safe operation for whole-home backup and off-grid use
Tech Specs

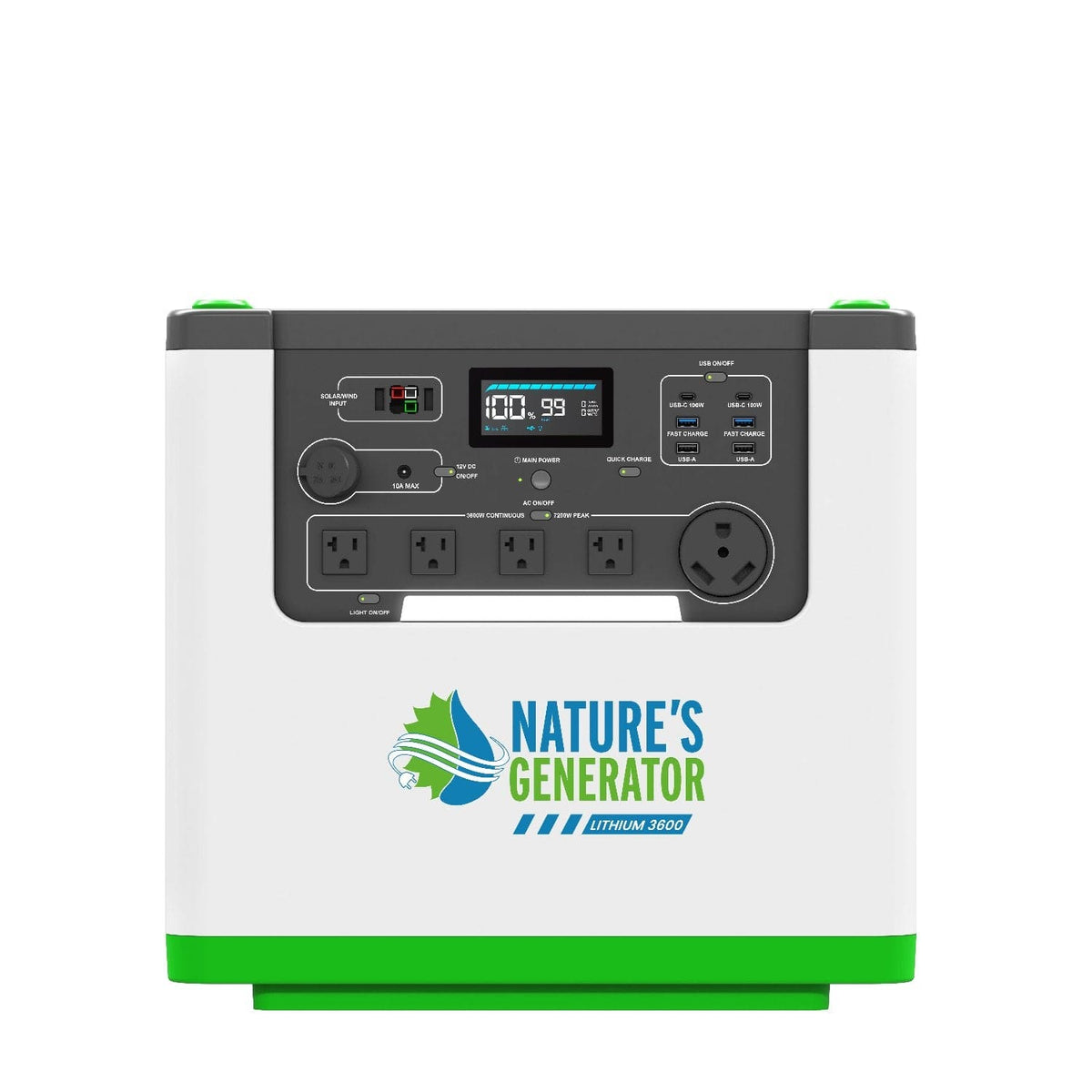

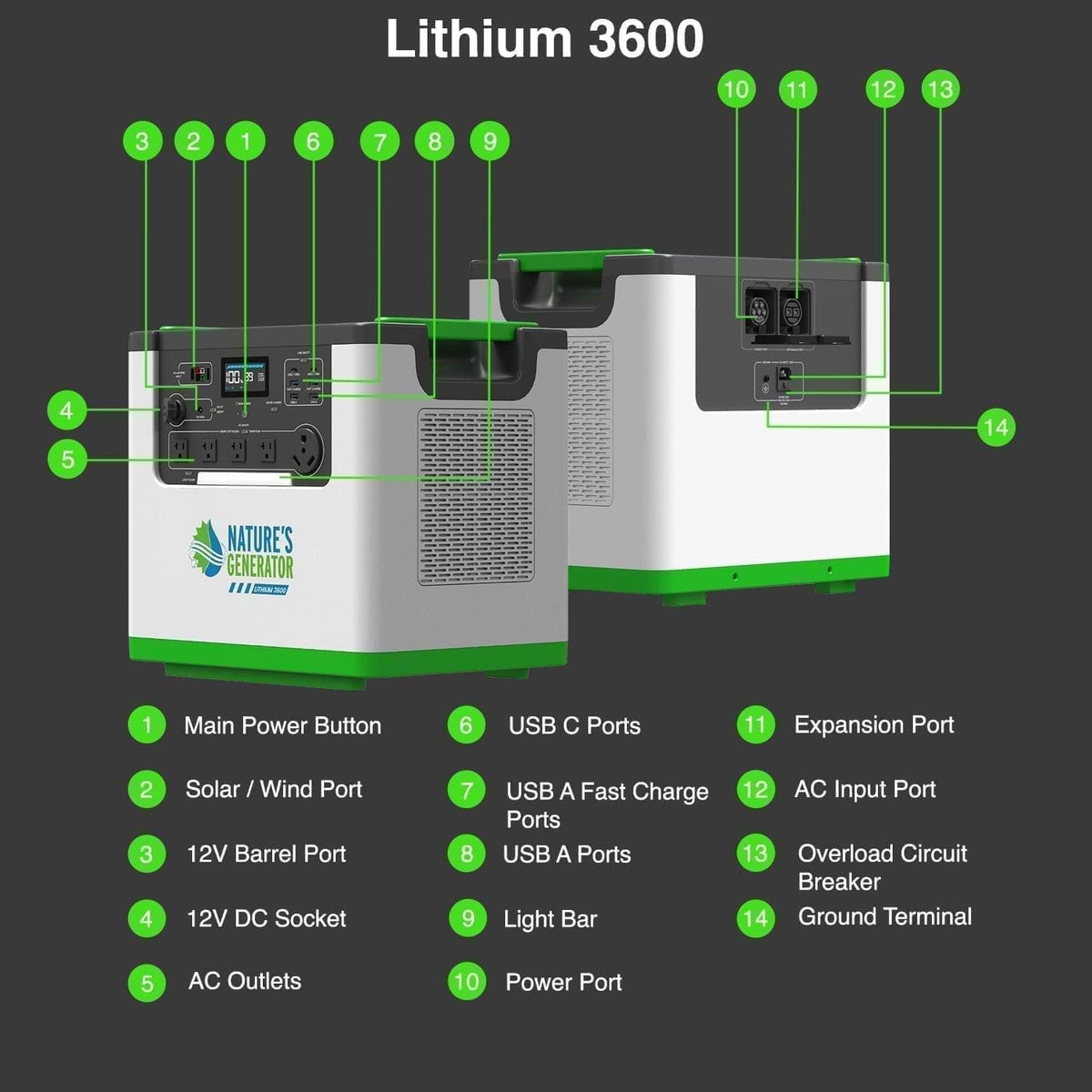

Control Panel Overview
Easily access all power options through the intuitive control panel featuring clearly labeled ports, outlets, and buttons for seamless operation.

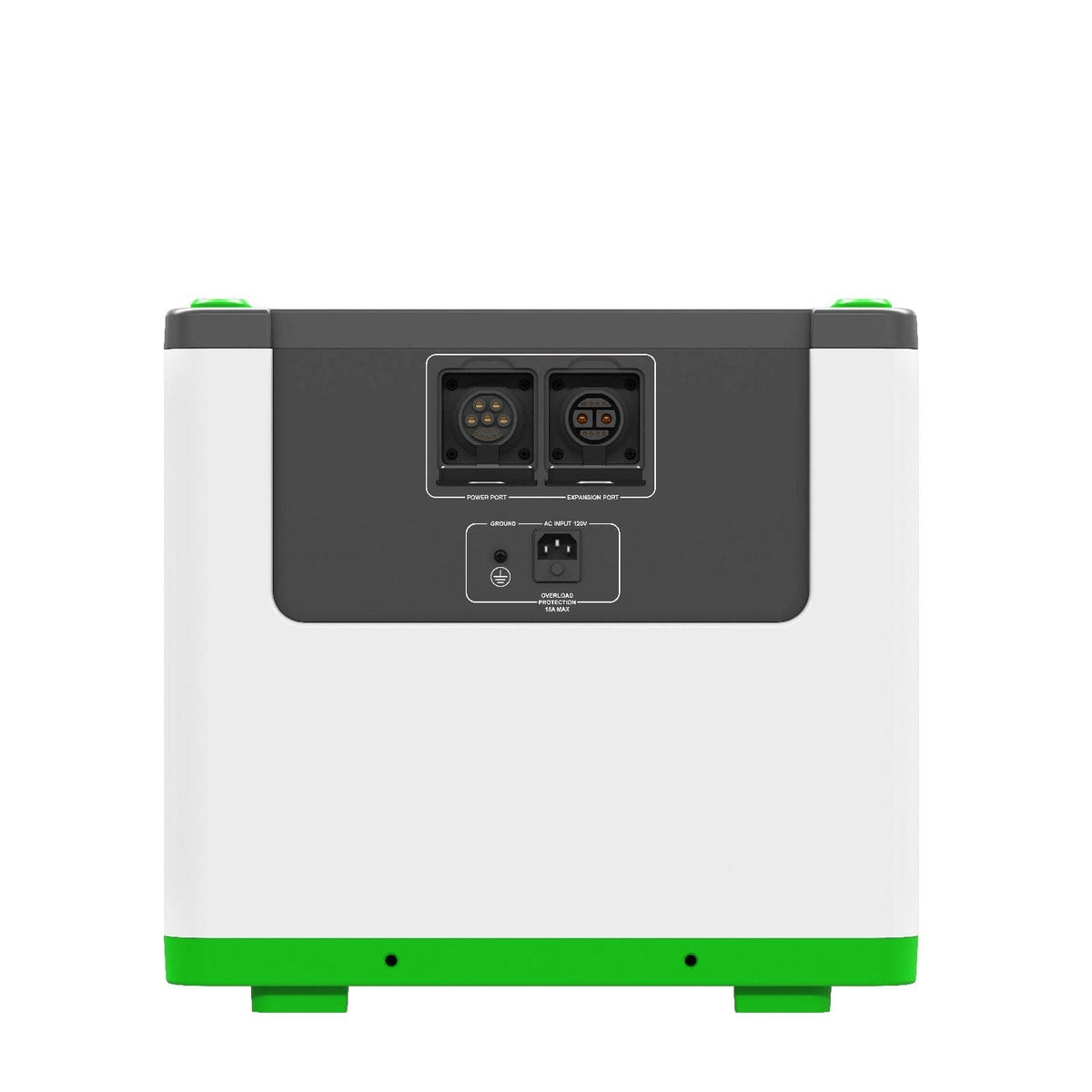

Port and Connection Guide

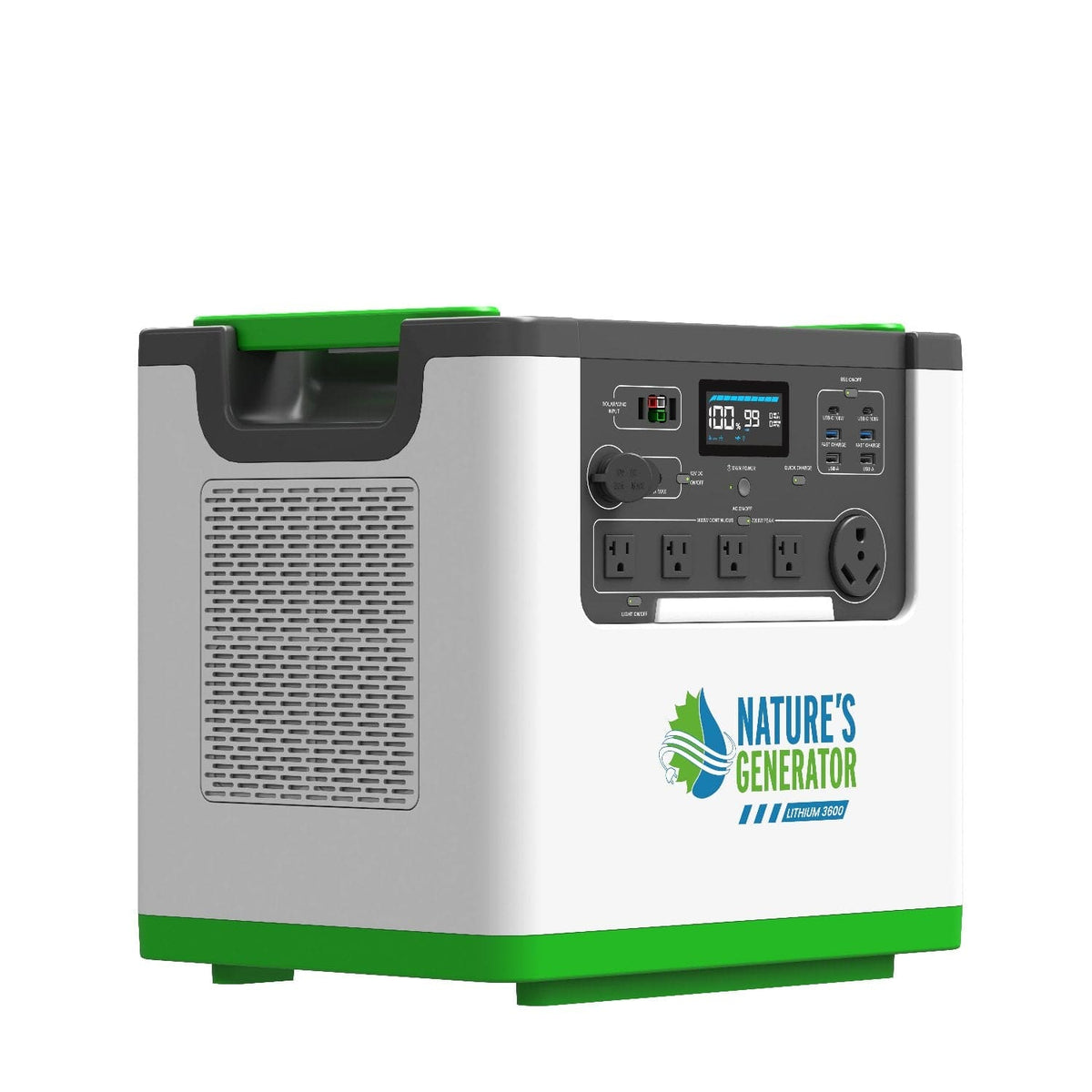

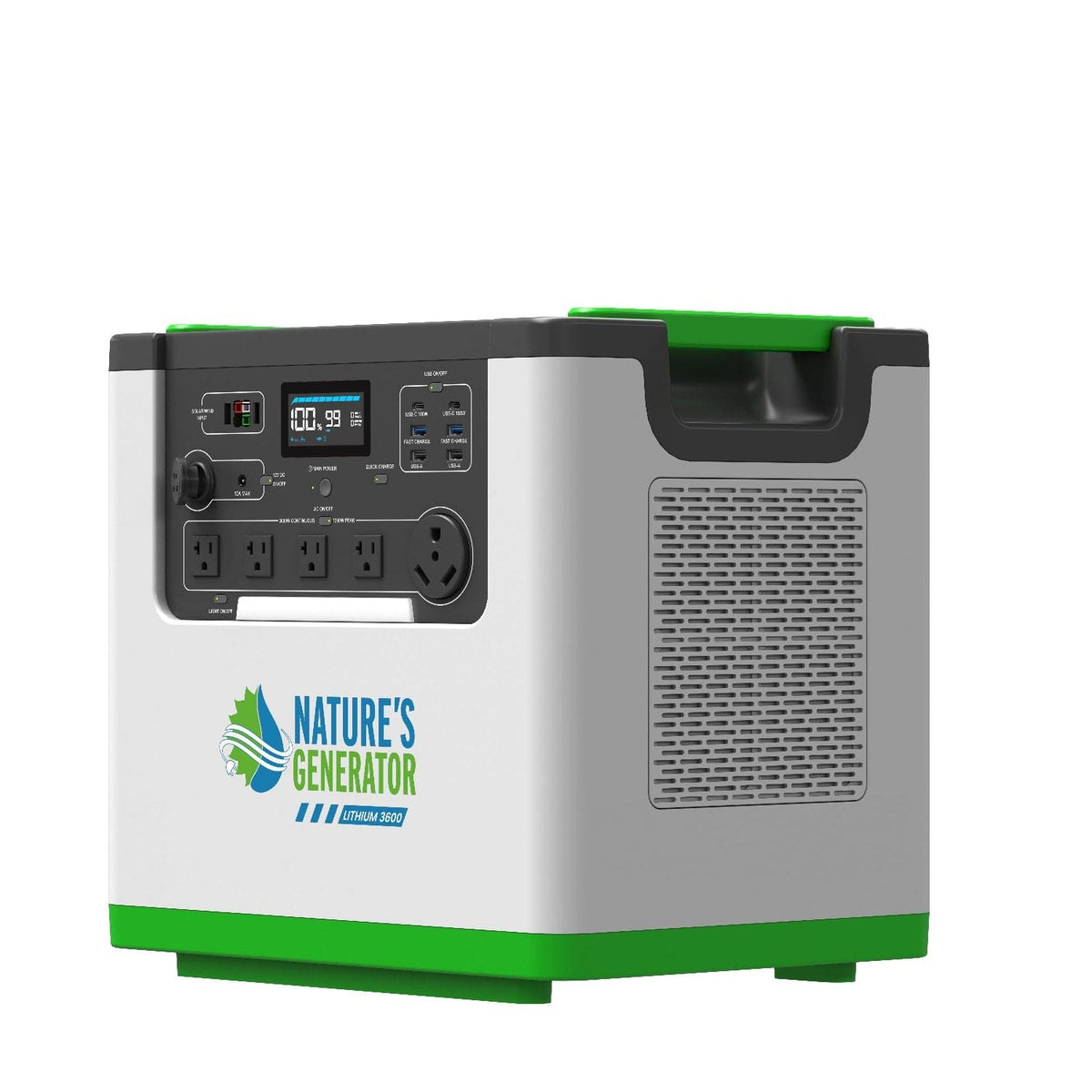

L3600 Power Station
100W Rigid
440W Rigid Bifacial
Technical Overview
L3600 Power Station
Inverter
Battery
Capacity: 51.2V 60Ah (3072Wh)
Expandable Capacity: 18,432Wh(w/ 5x Power Pod)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Self-discharge: Recommend to recharge every 6 months
Life Cycles: >70% after 3000 Cycles
Charges
Solar Charger: 2400W
Wind Charger: 150W (shared port)
AC Charger: 600W, 1800W
Charge mode: MPPT
Ports
AC Outlet:
4x NEMA 5-20R Outlet
1x TT-30R Outlet
USB Port:
2x USB-A Ports - 5V 2.4A 12W per port
2x USB-A Fast Charge Ports - 20V 3A 60W per port
2x USB-C Ports - 20V 5A 100W per port
DC Port:
1x 12V DC Socket - 12V 10A 120W
1x 12V DC Barrel - 12V 10A 120W
1 x Built-in Expansion Port
General
Weight: 97 lbs (44 kg)
Operating temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Discharging Temperature: 14 – 113°F (-10 – 45°C)

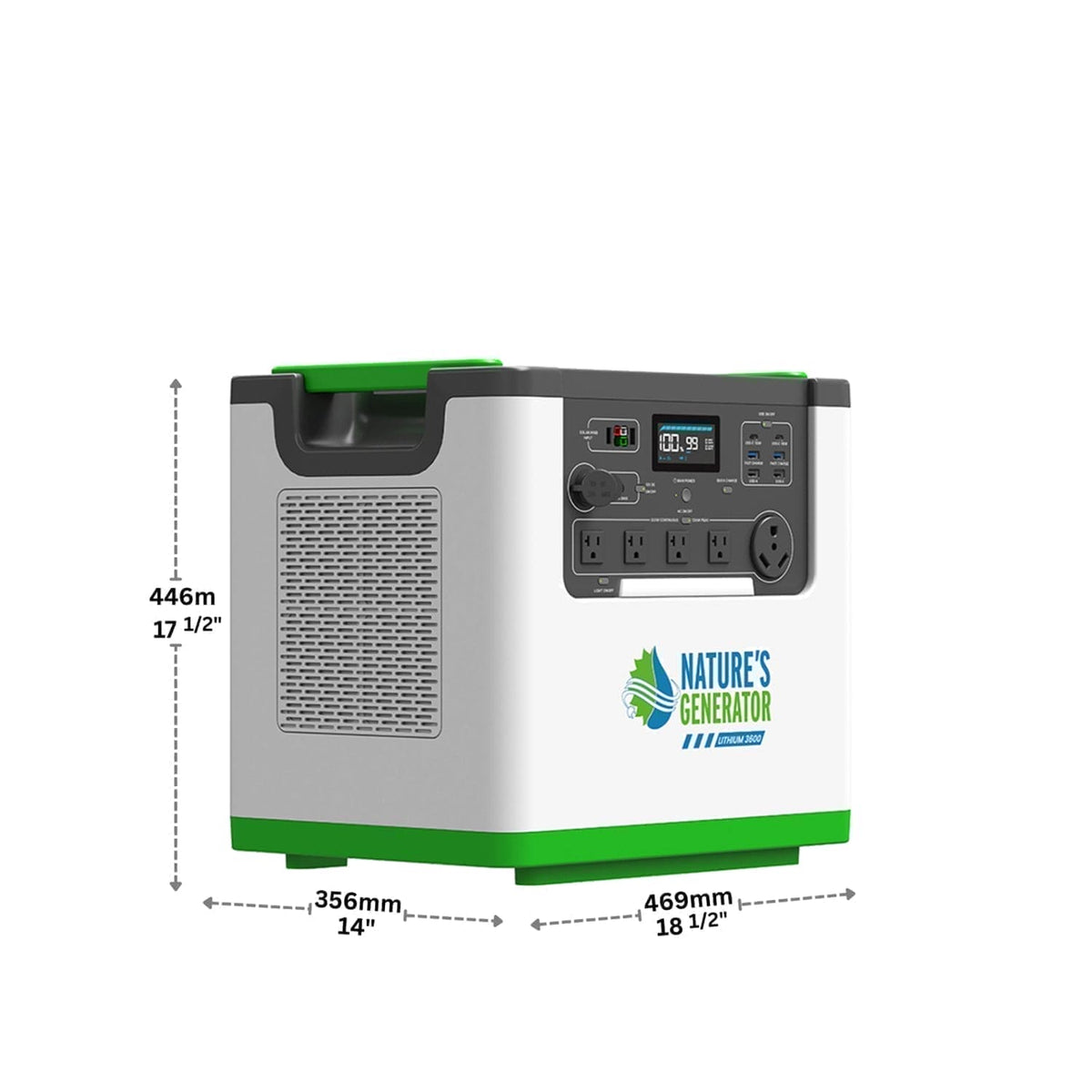

Dimensions: 18.5 x 14.0 x 17.6 inches (469*356*446mm)
Warranty: 1-Y

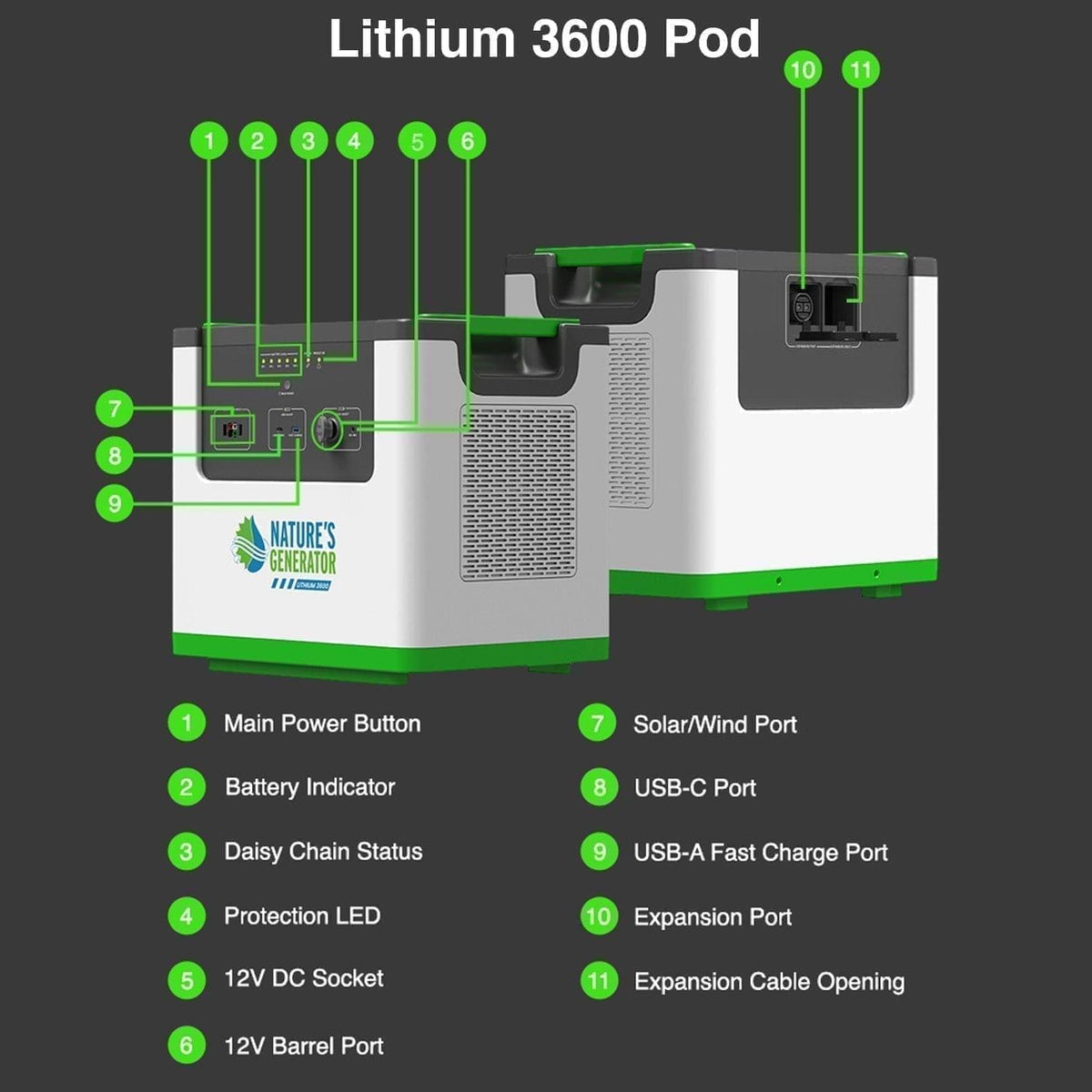

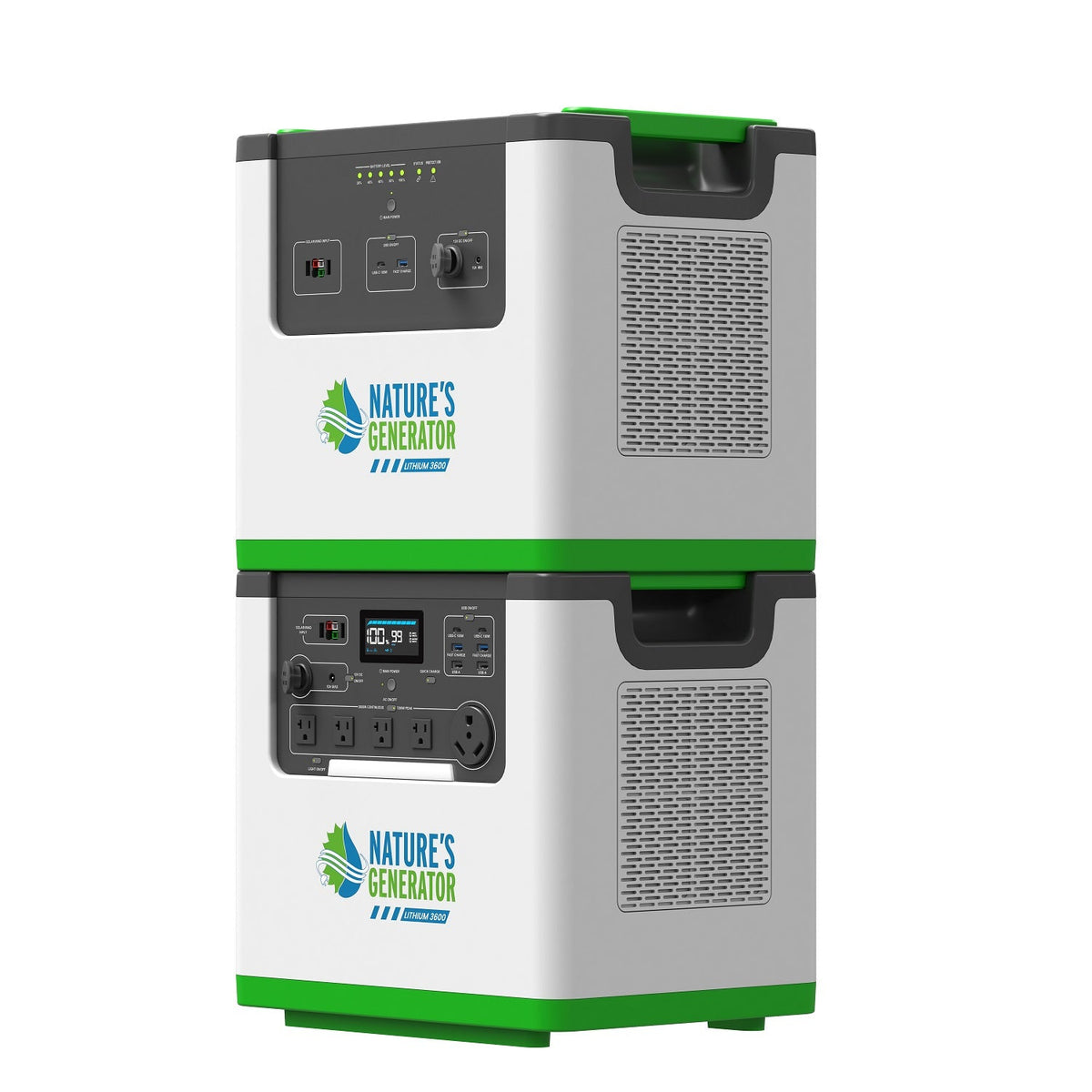

L3600 Power Pod
Battery
Capacity: 51.2V 60Ah (3072Wh)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Self-discharge:: Recommend to recharge every 6 months
Life Cycles: > 3000 cycles
Charges
Solar Charger: 1000W
Wind Charger: 150W (shared port)
Charge mode: MPPT
Battery Level LED light: 5 LED Lights
General
Weight: 84 lbs (38 kg)
Operating temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Discharging Temperature: 14 – 113°F (-10 – 45°C)
Dimensions: 18.5 x 14.0 x 17.6 inches (469*356*446mm)

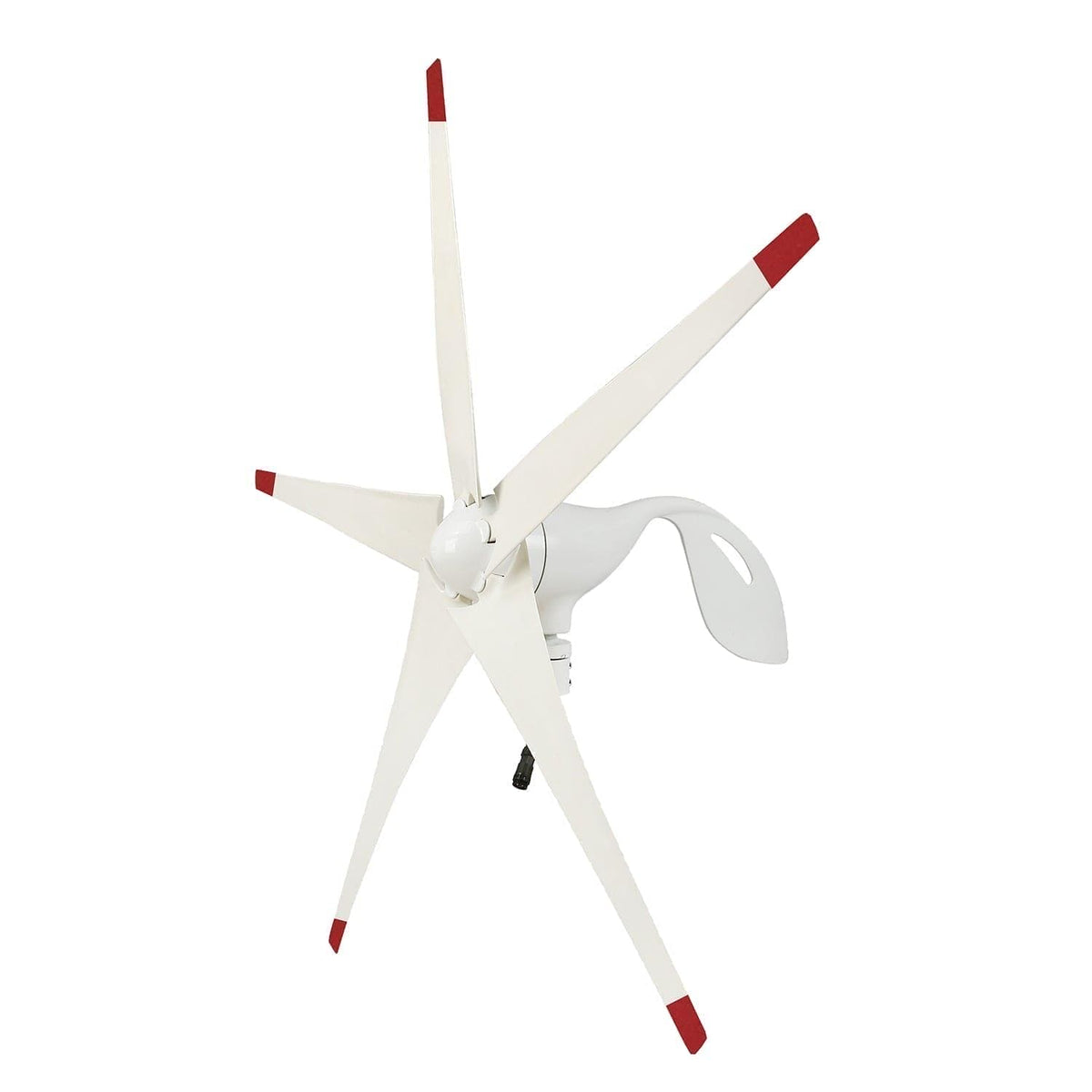

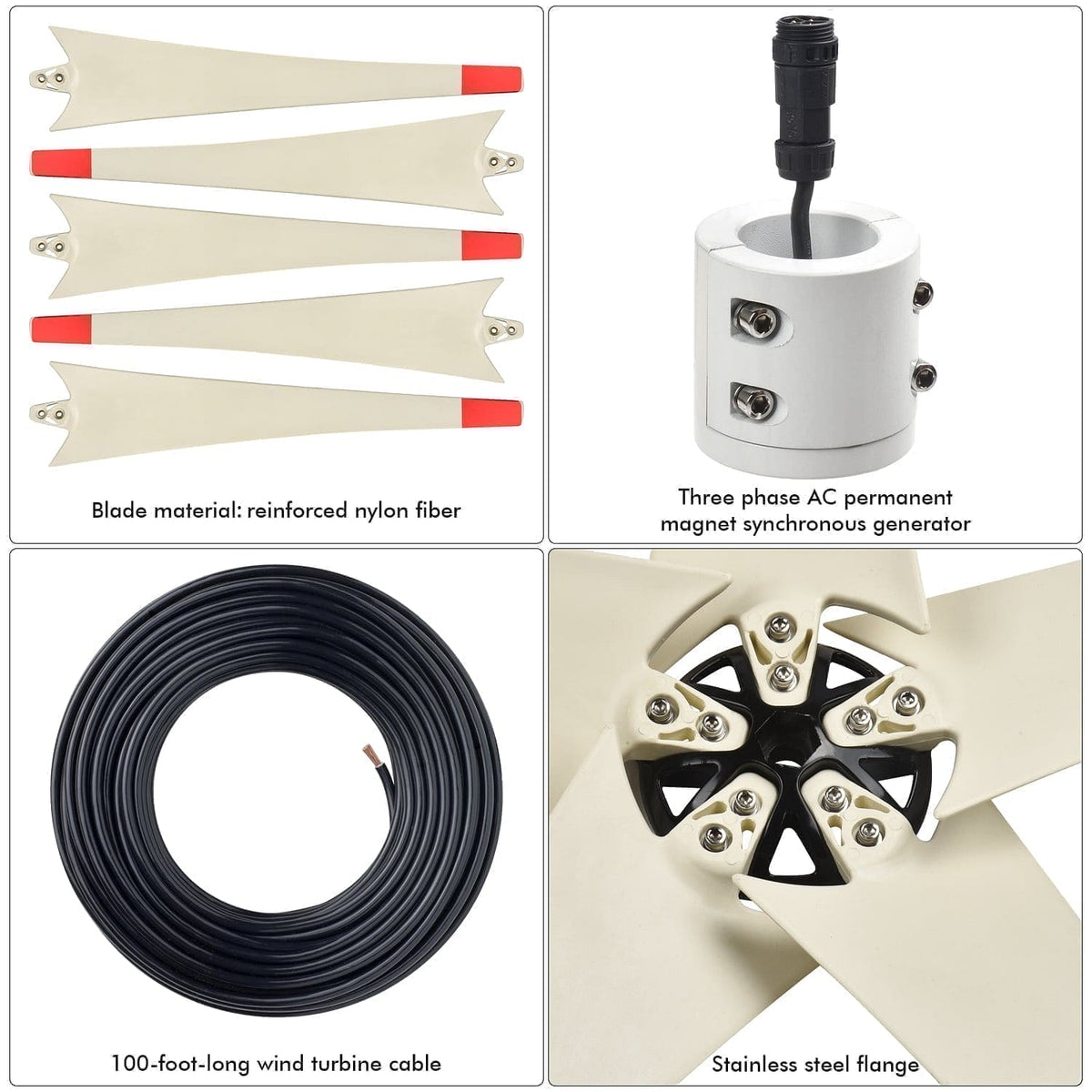

150W Wind Turbine
Inverter
Output Continuous Power: 3600W
Output Peak Power: 7200W
Output Voltage: 120V Single Phase
Output Frequency: 60Hz
Waveform: Pure Sine Wave
Auto Switch Mode: <10ms
Battery
Capacity: 51.2V 60Ah (3072Wh)
Expandable Capacity: 18,432Wh(w/ 5x Power Pod)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Self-discharge: Recommend to recharge every 6 months
Life Cycles: >70% after 3000 Cycles
Charges
Solar Charger: 2400W
Wind Charger: 150W (shared port)
AC Charger: 600W, 1800W
Charge mode: MPPT
Ports
AC Outlet:
4x NEMA 5-20R Outlet
1x TT-30R Outlet
USB Port:
2x USB-A Ports - 5V 2.4A 12W per port
2x USB-A Fast Charge Ports - 20V 3A 60W per port
2x USB-C Ports - 20V 5A 100W per port
DC Port:
1x 12V DC Socket - 12V 10A 120W
1x 12V DC Barrel - 12V 10A 120W
1 x Built-in Expansion Port
General
Weight: 97 lbs (44 kg)
Operating temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Discharging Temperature: 14 – 113°F (-10 – 45°C)
Dimensions: 18.5 x 14.0 x 17.6 inches (469*356*446mm)
Warranty: 1-Year Limited Warranty
Certification

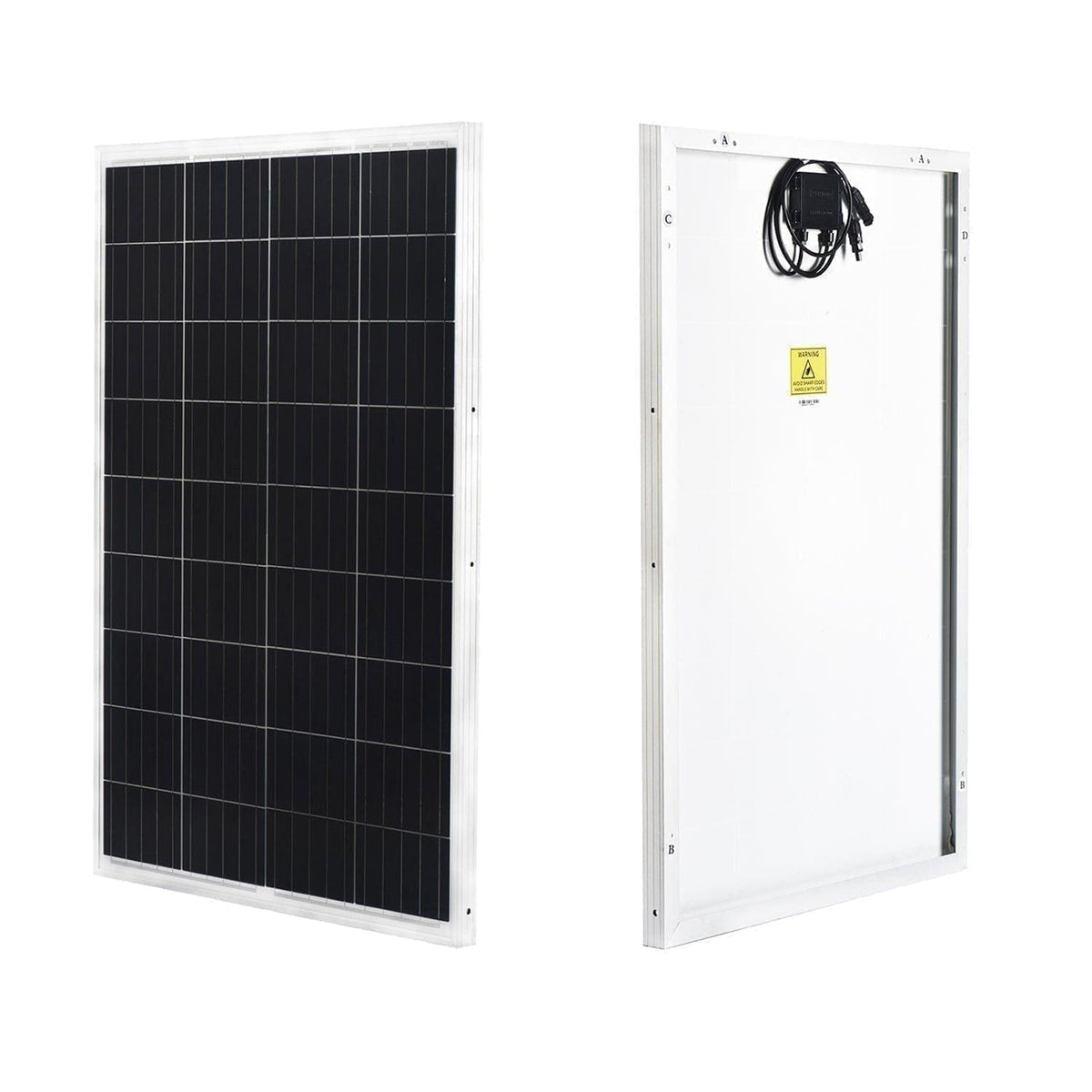

100W Rigid
Power Rating
Max. Power Output Pmax (@STC): 100W
Open Circuit Voltage: 21.7V
Short Circuit Current: 6.03A
Max. Power Voltage: 18.6V
Max. Power Current: 5.38A
Max. Fuse: 10A
Dimensions & Weight
Dimensions: 33.1 x 26.4 x 1.4 inch (840 x 670 x 35 mm)
Weight:
Solar Panel: 13.7 lbs (6.2 kg)
Panel Stand: 2.6 lbs (1.2 kg)
General
Silicon Material: Mono crystalline
Connector: MC4
Cable Length: 3 feet (90 cm)
Cable Size: 12 AWG (4mm²)
Waterproof Level: IP65
Operating Temperature: -4°F to +60 °F (-20°C to +60°C)

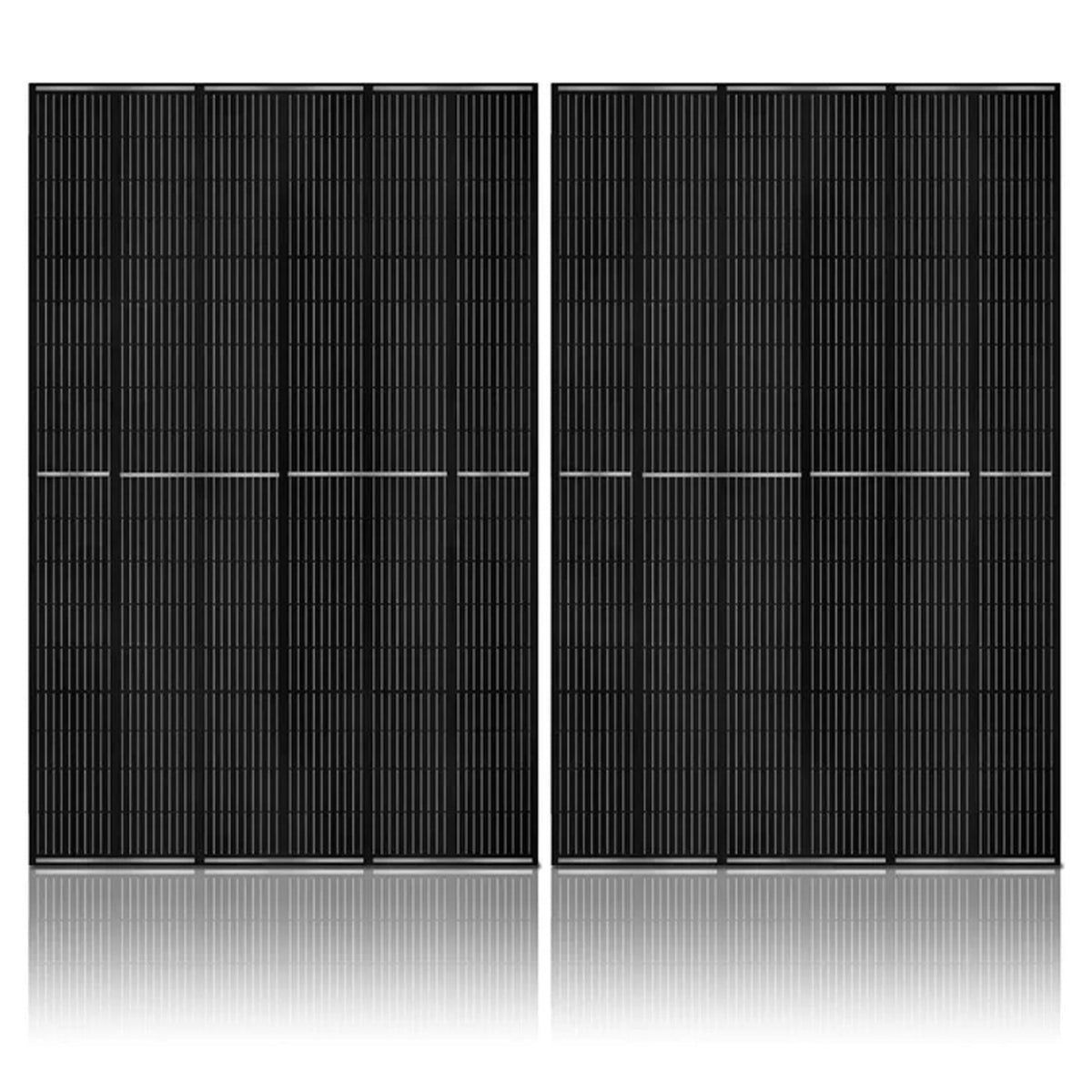

440W Rigid Bifacial Panel
Power Rating
Maximum Power (Pmax): 440W
Maximum Power Voltage (Vmp): 32.30
Maximum Power Current (Imp): 13.63
Open-circuit Voltage (Voc): 38.80
Short-circuit Current (Isc): 14.39
Module Efficiency STC (%): 22.53%
Dimensions & Characteristics: 1722*1134*30mm(67.8*44.6*1.2 inch)
Cell Type: N-Type TOPCon 182×91mm
No.of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy - All Black
Weight: 24.5 kg (54 lbs)
Glass: 2.0 mm+2.0mm, High Transmission, AR Coated Heat Strengthened Glass
Operation Temperature: -40℃~+85℃ (-40°F ~+185°F )
Junction Box: IP68 Rated, connector compatible with MC4
Output Cables: 4 mm² ,350mm (With Connectors)

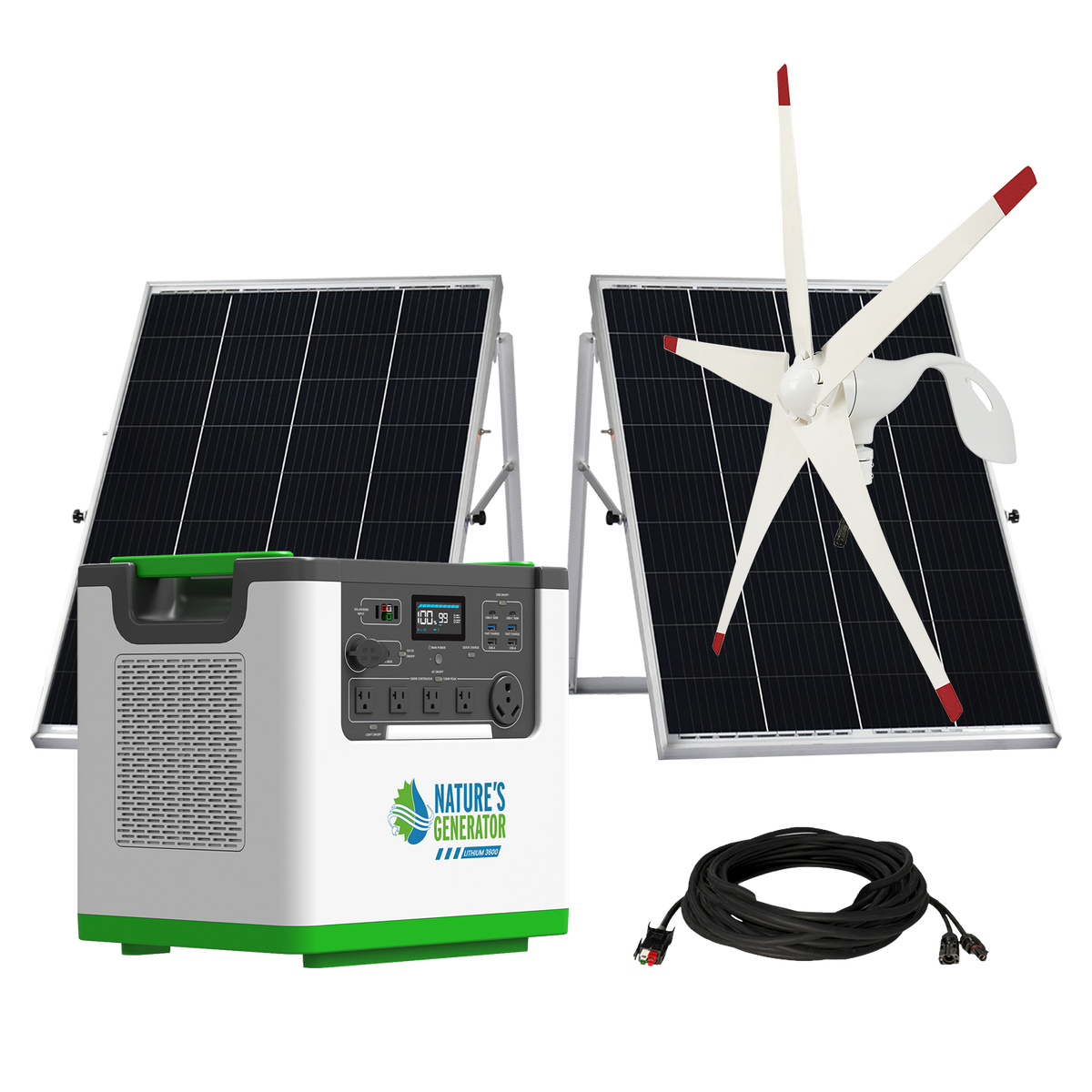

What's In The Box
L3600 + 2x 100W Rigia Panel + 150W Wind Turbine
- 1x L3600 Power Station
- 2x 100W Rigid Panel
- 1x 150W Wind Turbine with Adapter
- 1x 50 ft. Solar Panel Cable
- 1x AC Power Cord
Documents
Certification
L3600 Power Station User Guide
View Manual
L3600 Power Pod User Guide
100W Rigid Panel User Guide
200W Folding Panel User Guide
400W Folding Panel User Guide
150W Wind Turbine User Guide
U.S. & Canada Safety Certified ANSI/CAN/UL 2743
Features
Reliable Home Energy, All Day Long
Solar Charging: 2400W
Wind Charger: 150W
