• Seamless Automatic Power Transfer: Automatically detects utility outages and switches to backup power instantly—no manual action required for continuous, reliable operation.
• High-Capacity & Broad Compatibility(125A Bus Bar): Works with most solar generators, battery backup systems, grid-tie inverters, and gas generators. Supports 120V, 120/240V, and 120/208V systems and is fully compatible with AFCI and GFCI breakers.
• Grid-Tie Inverter Friendly with Parallel Power Path: Creates a parallel power path for grid-tie inverters, allowing them to continue operating during outages and safely deliver power through the ATS to an AC-coupled battery system—maximizing solar utilization even when the grid is down. Connection Instructions (Video)
• Can Remain on Backup Power even after Utility Power Is Restored: The ATS does not have to automatically switch back to normal utility power, allowing continued use of backup power when desired.
• Extensive Circuit Coverage: Rated at 125A with 24 circuit spaces, expandable up to 48 circuits using tandem breakers to accommodate expanding power needs.
• Rugged, Weather-Resistant Enclosure: Built with a NEMA 3R-rated enclosure to protect against rain, dust, and harsh weather, suitable for both indoor and outdoor installations.

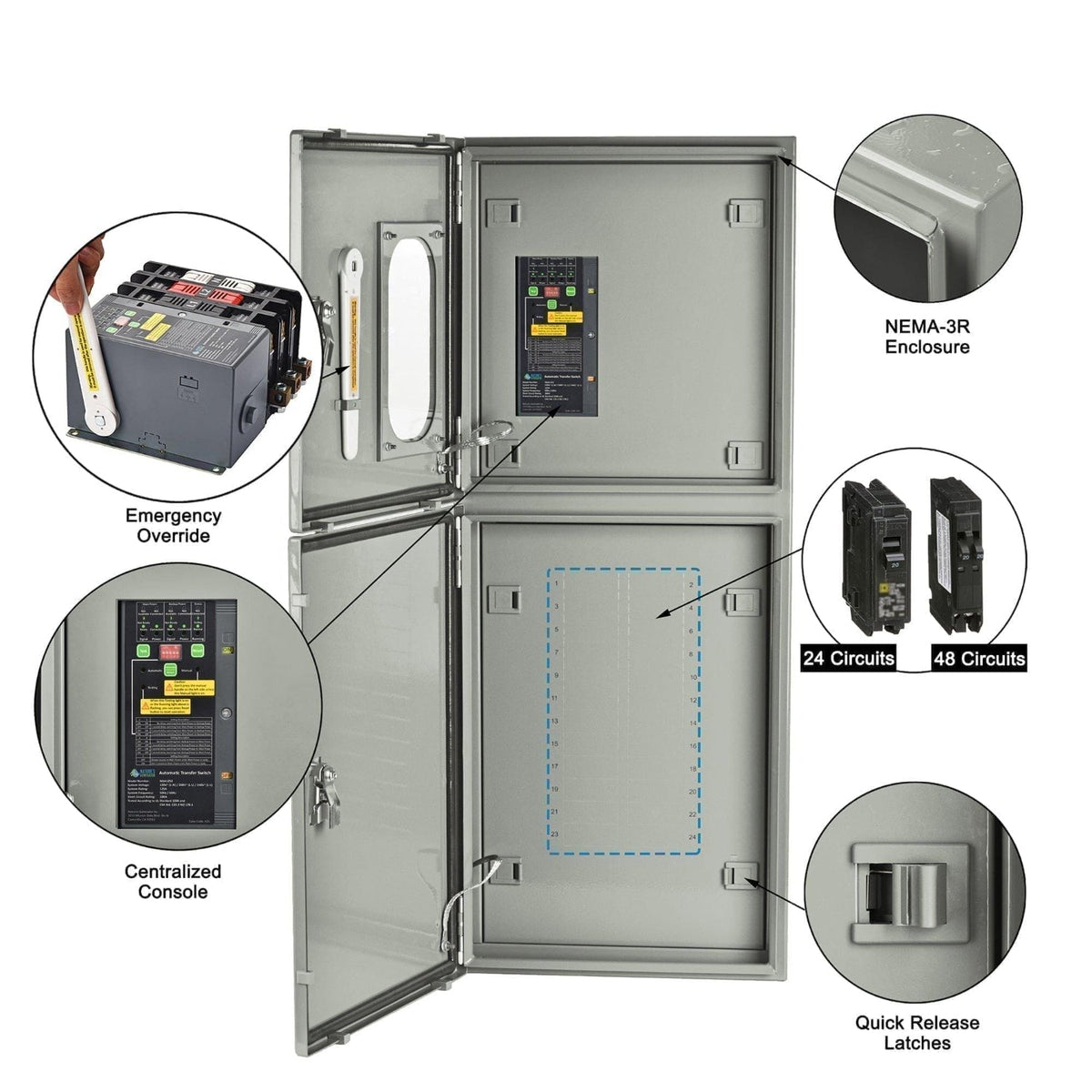

• Advanced Control & Manual Override: Features a centralized control console for managing settings, testing system functionality, and manually overriding power sources for maintenance or user preference.
• Certified for Safety & Code Compliance: Meets rigorous safety and performance standards including UL 1008 and CAN/CSA C22.2 No. 178.1, with documentation showing compliance under ISO/IEC Guide 17067.

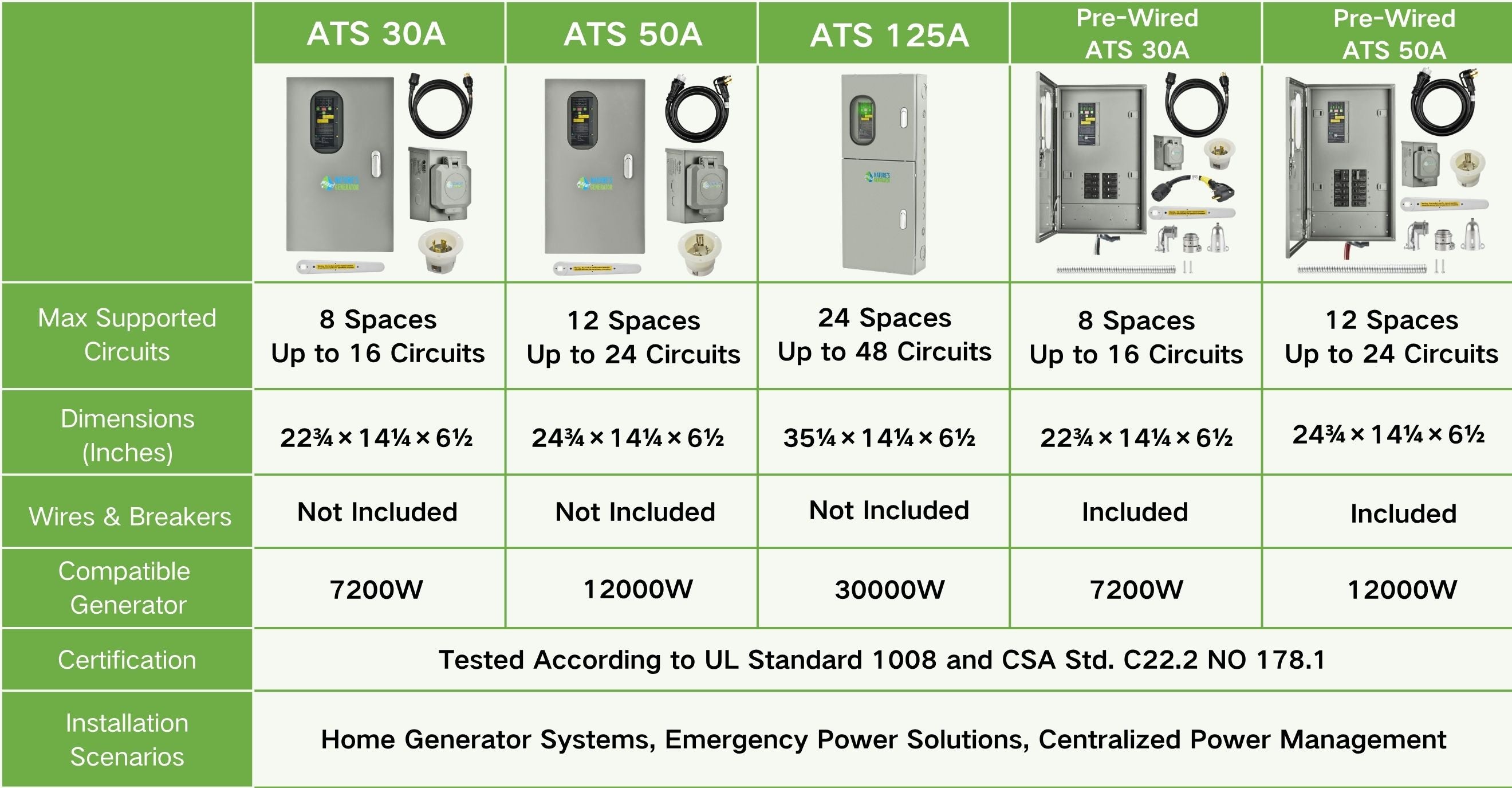

Find the perfect ATS solution for your needs. Compare features and specifications to make a confident, informed decision.
ATS Specifications

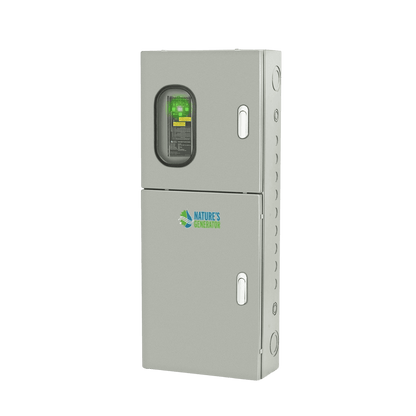

Advanced 125A Transfer Solution
Engineered to support large electrical loads with flexible circuit expansion and organized power control.
Specification
Power Rating: 125A
System Voltage: 120 V~ (L-N) / 208V~ (L-L) / 240V~ (L-L)
Number of Spaces: 24 spaces
Number of Circuits: Expandable to 48 circuits with tandem breakers

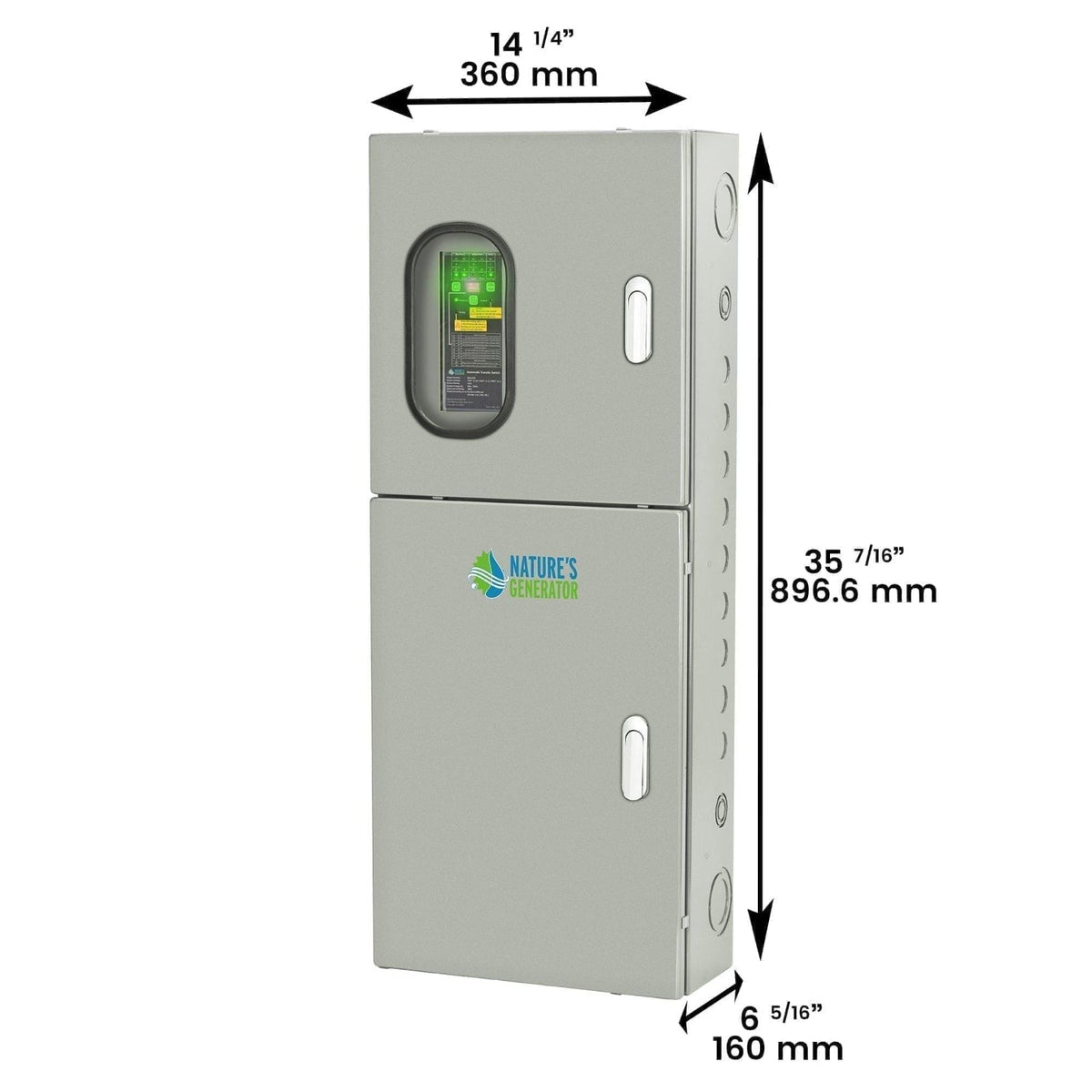

Dimension: 35⁷⁄₁₆*14¼*6⁵⁄₁₆ inches
(900*360*160 mm)
Weight: 58 lbs(26.3 kg)
Warranty: 5-Year Limited Warranty
