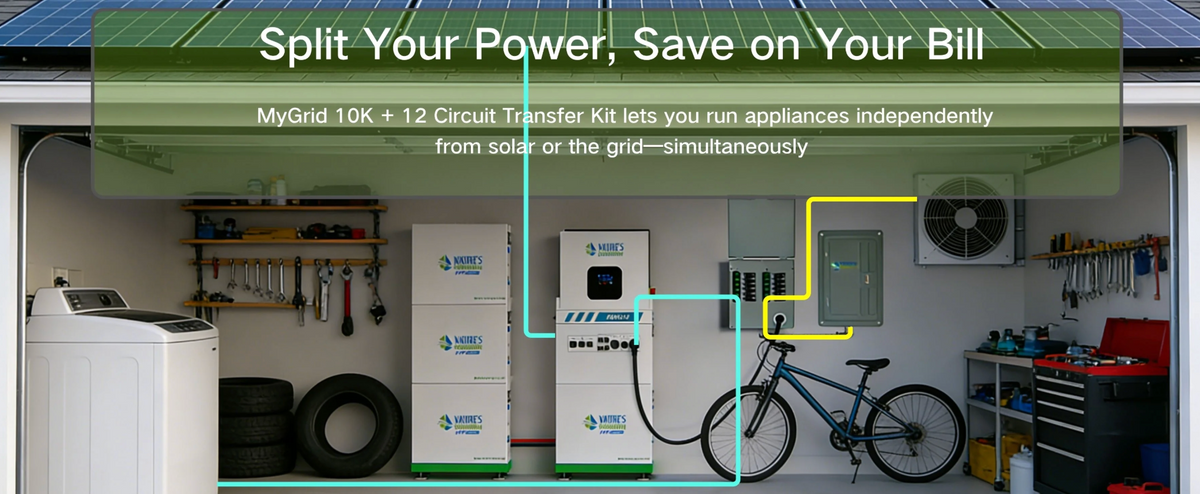

• Reduce Electricity Bills: Store solar or off-peak energy and use it during high-rate periods to lower electricity costs and increase energy independence.
• Powerful Performance: 10,000W output with 10,496Wh LiFePO4 battery, dependable whole-home power for outages or off grid use or uninterrupted power supply.

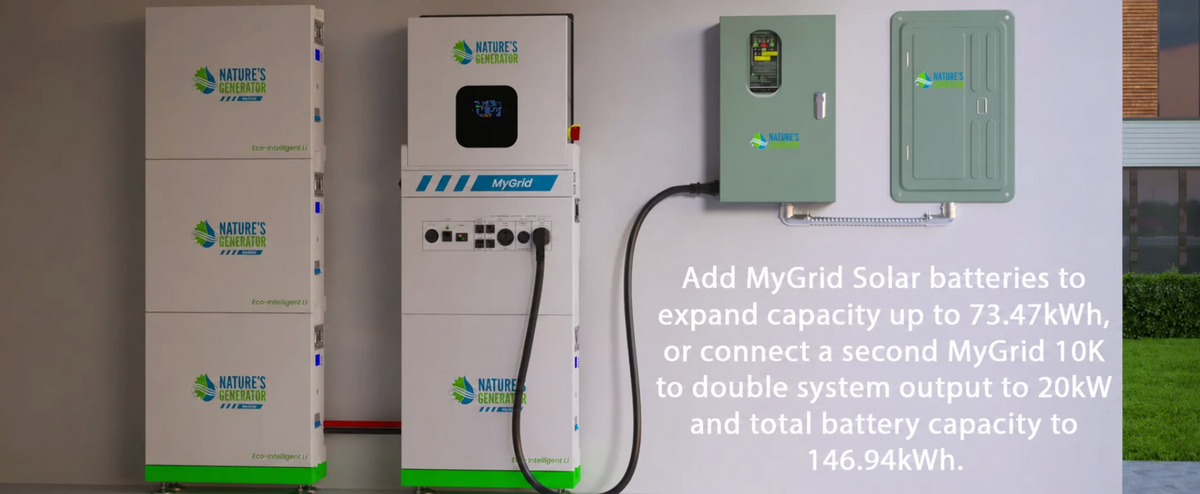

• Highly Expandable: Combine two units for 20,000W output, expand battery capacity to 73,742Wh, and integrate up to 12,000W solar panels or 350W wind turbine as energy needs grow.

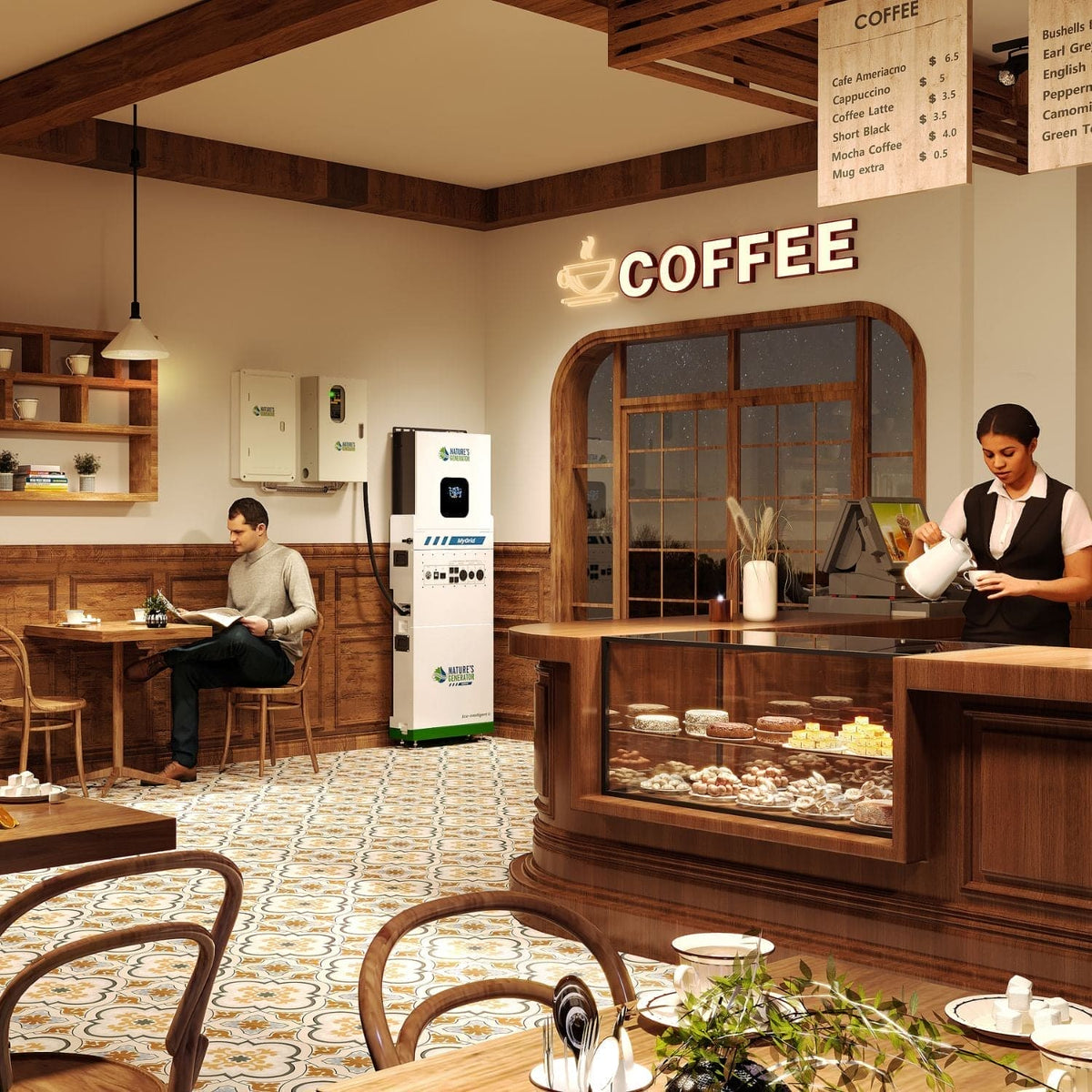

• Dual Voltage Compatibility: Supports 120V, 120/240V and 120/208V charging and discharging, suitable for residential, light commercial and AC coupling applications.
• Fast Recharge Performance: Advanced charging technology enables up to 80% charge in approximately 2 hours, minimizing downtime.
• Smart Battery Protection: Integrated Battery Management System (BMS) monitors, controls, and displays battery status for enhanced safety, performance, and longevity, with an easy-to-read LED display.

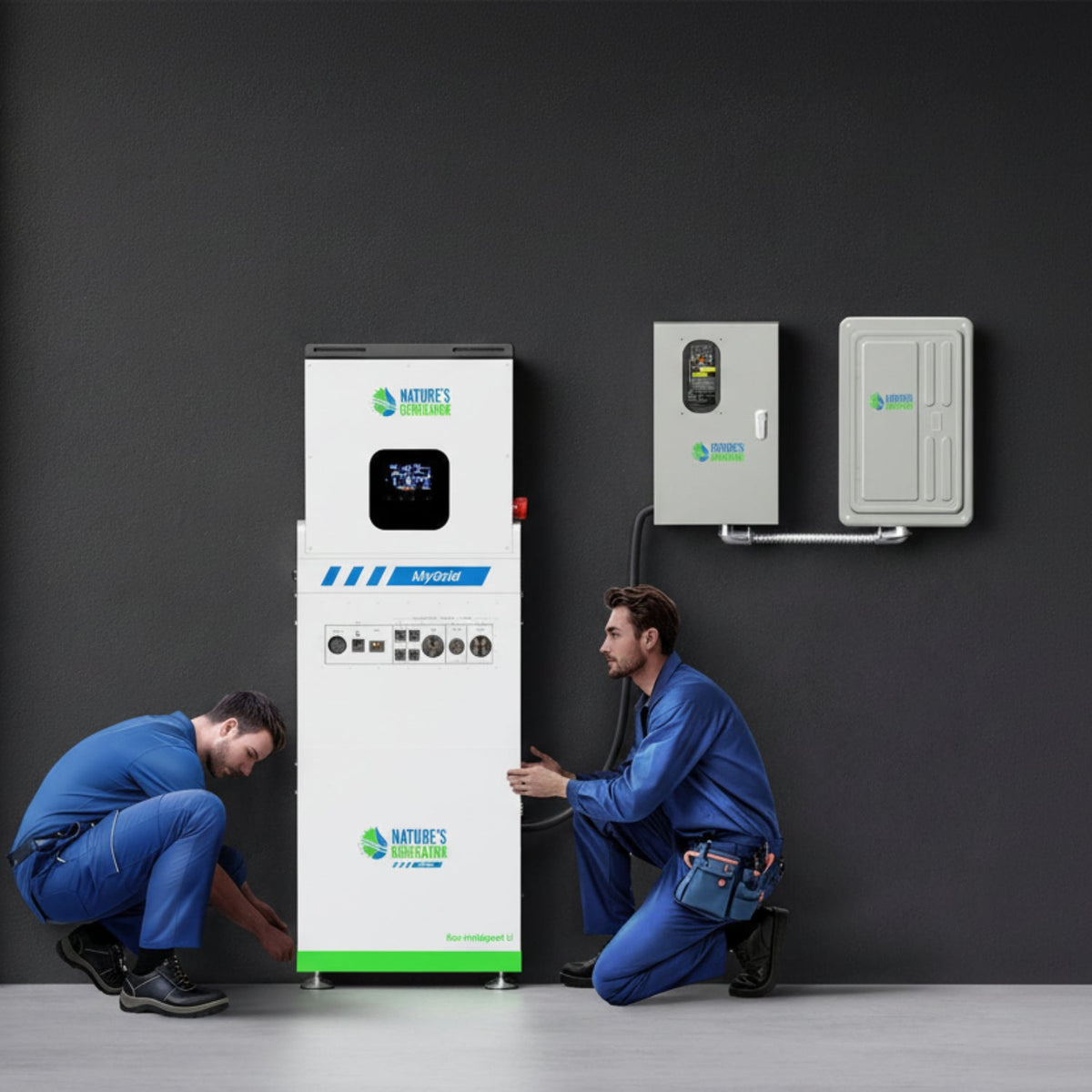

• Fast & Easy Installation: Plug-and-play design ensures quick setup, lower installation cost and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.

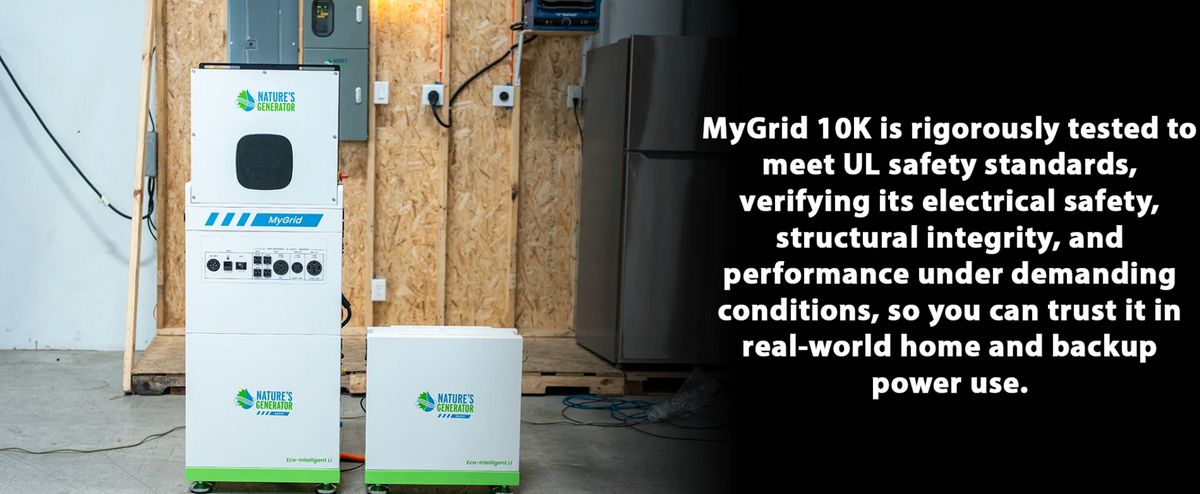

• Safe, Compact & Eco-Friendly: UL 1741 certified for safety and reliability, featuring a compact, space-saving design and support for solar, wind, AC, and generator charging for sustainable energy flexibility.
Inverter
Output Continuous Power: 10,000W
Expandable Continuous Peak Power: 20,000W
Output Peak Power: 20,000W
Expandable Peak Power: 40,000

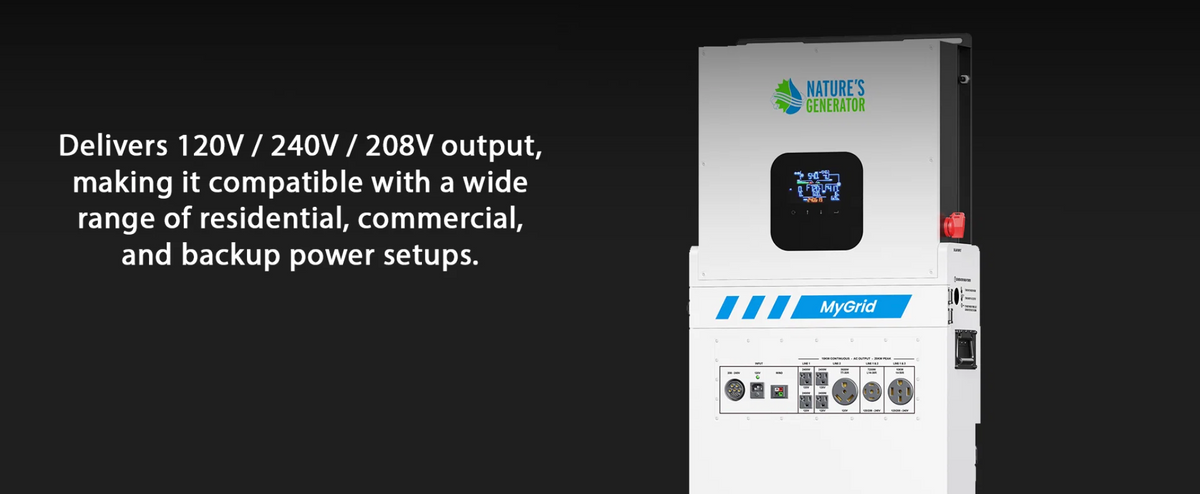

Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
Output Frequency: 60Hz
Output Power Form: Pure Sine Wave
Auto Switching: <20ms
Capacity: 51.2V 205Ah (10496Wh)
Expandable Capacity: 73.4kWh(7x Battery)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle life: >70% after 6000 Cycles
Self Discharge: Recommended recharging every 6 months
120Vac Charger: 1000W

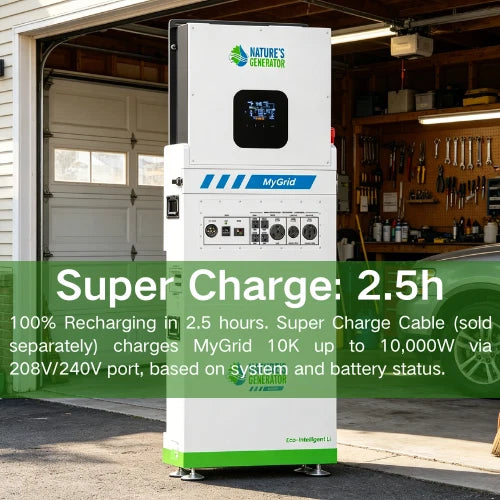

208Vac or 240Vac Charger: 4500W

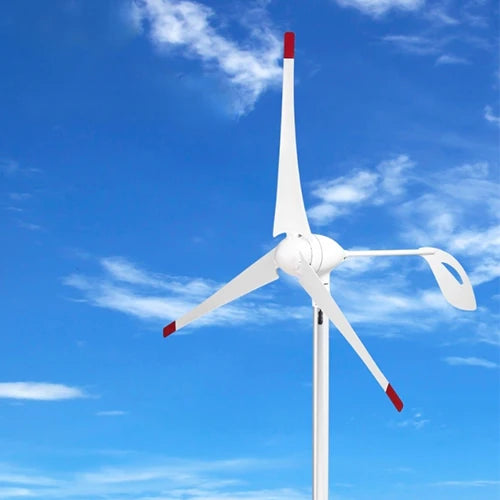

Wind Charger: 350W
Solar Charger: 12,000W 120Vdc-550DVdc
Solar Charge Mode: 2x MPPT
Output Ports::
4x NEMA 5-20R Outlet
1x NEMA TT-30R Outlet
1x NEMA L14-30R Outlet
1x NEMA 14-50R Outlet
1x Expansion Port
Input Ports:
2x Solar Input Ports
1x Wind Input Port

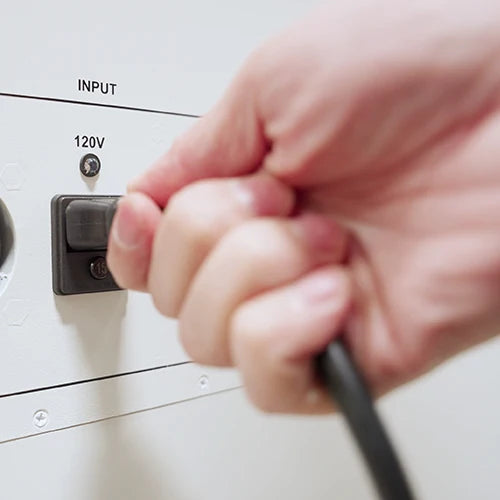

1x 120Vac Input Port

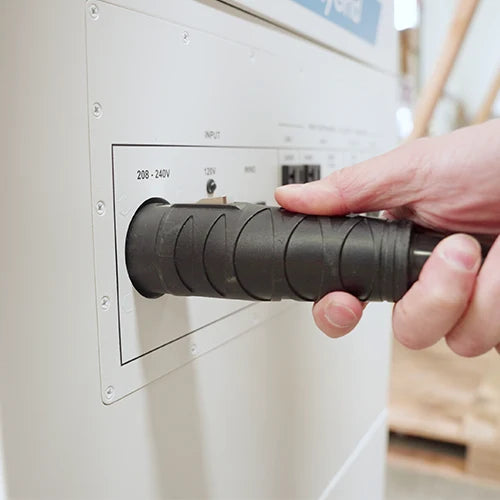

1x 208Vac or 240Vac Input Port
1 x Alt. 208Vac or 240Vac Input Port
Optimal Operating Temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Warranty: 5-Year Limited Warranty
Certification:
U.S. & Canada Safety Certified ANSI/CAN/UL 1741
MyGrid 10K Battery cETLus Certificate

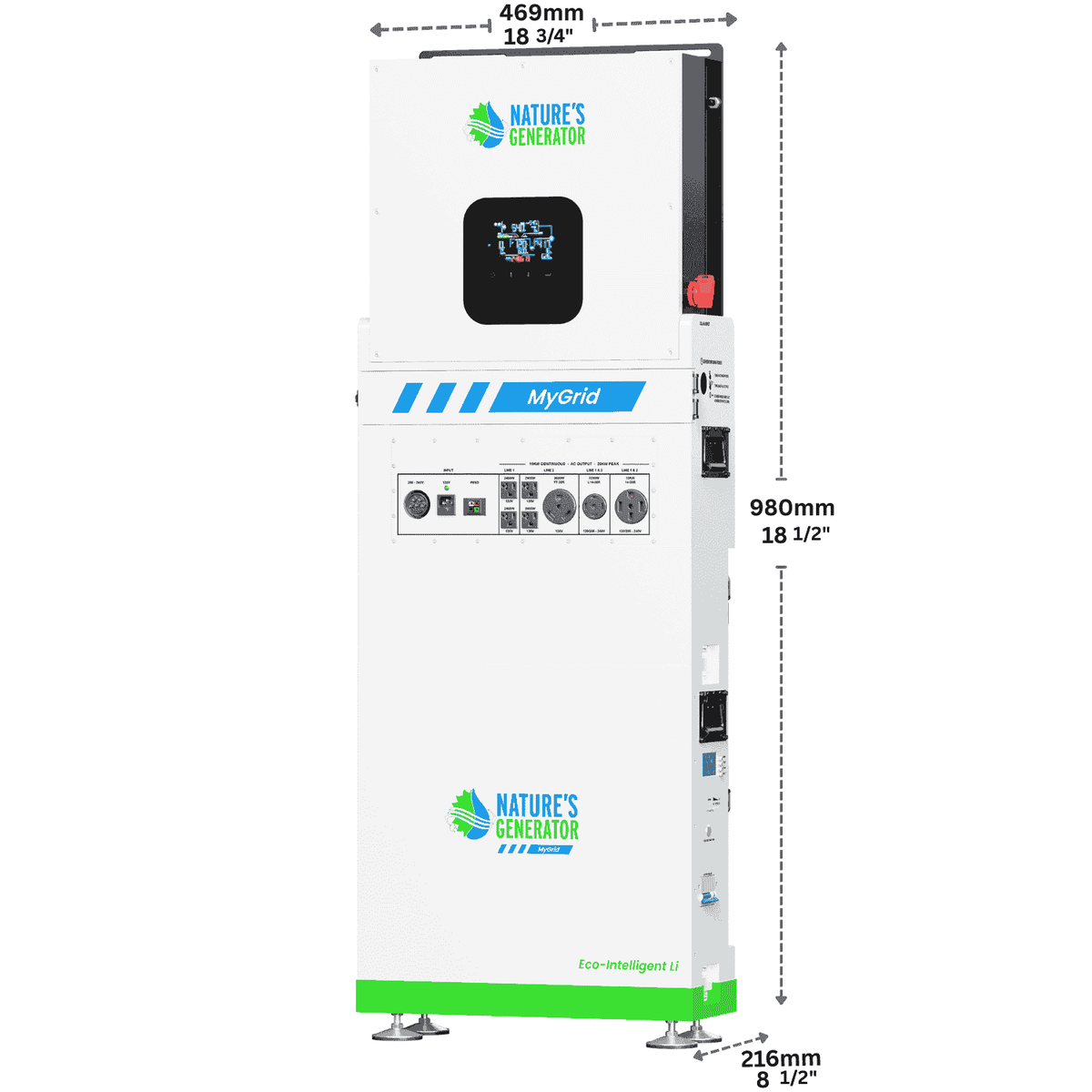

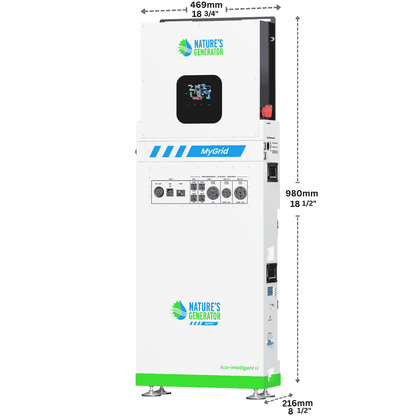

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar
Generator Weight: 152 lbs (69 kg)
Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Battery Weight: 213 lbs (96.6 kg)

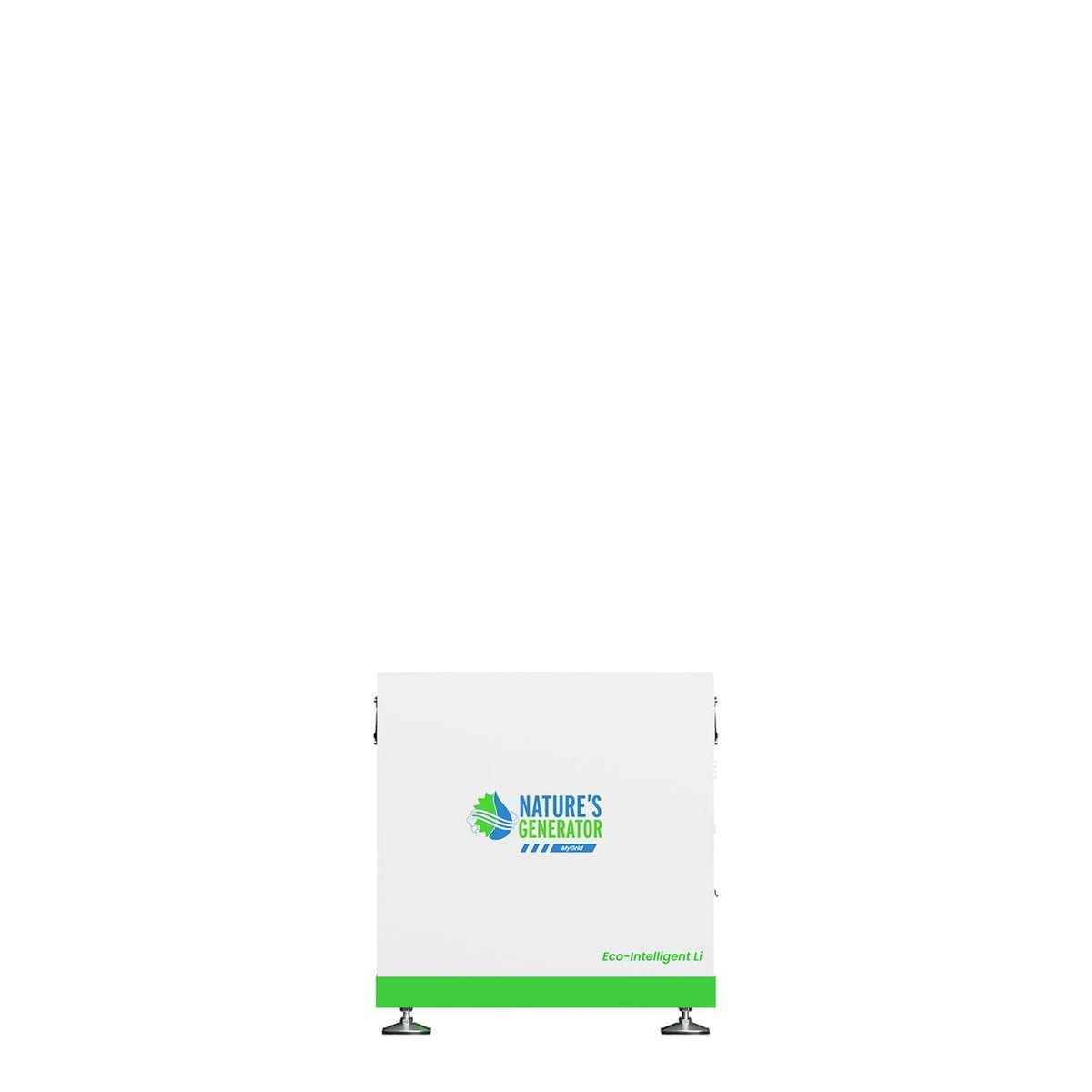

Battery
Capacity: 51.2V 205Ah (10496Wh)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle life: >6000 Cycles
Self Discharge: Recommended recharging every 6 months
Optimal Operating Temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Warranty: 5-Year Limited Warranty
Certification:
Certificate of Compliance - ANSI/CAN/UL 1973
Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Battery Weight: 213 lbs (96.6 kg)
MyGrid 10k Specification Sheet
MyGrid 10K Generator and Battery User Manual
MyGrid 10K Inverter Certificate of Compliance ANSI/CAN/UL 1741
MyGrid 10K Battery cETLus Certificate ANSI/CAN/UL 1973
MyGrid 10K Solar Panel Connection Guide
