• Complete Solar Power Bundle: Includes the MyGrid 10K solar generator with high-efficiency solar panels to capture free clean energy right out of the box.
• Reduce Electricity Bills: Store solar or off-peak energy and use it during high-rate periods to lower electricity costs and increase energy independence.
• Reliable Whole-Home Performance: Delivers 10,000 W continuous output with a 10,496 Wh LiFePO₄ battery, dependable whole-home power for outages or off grid use or uninterrupted power supply.

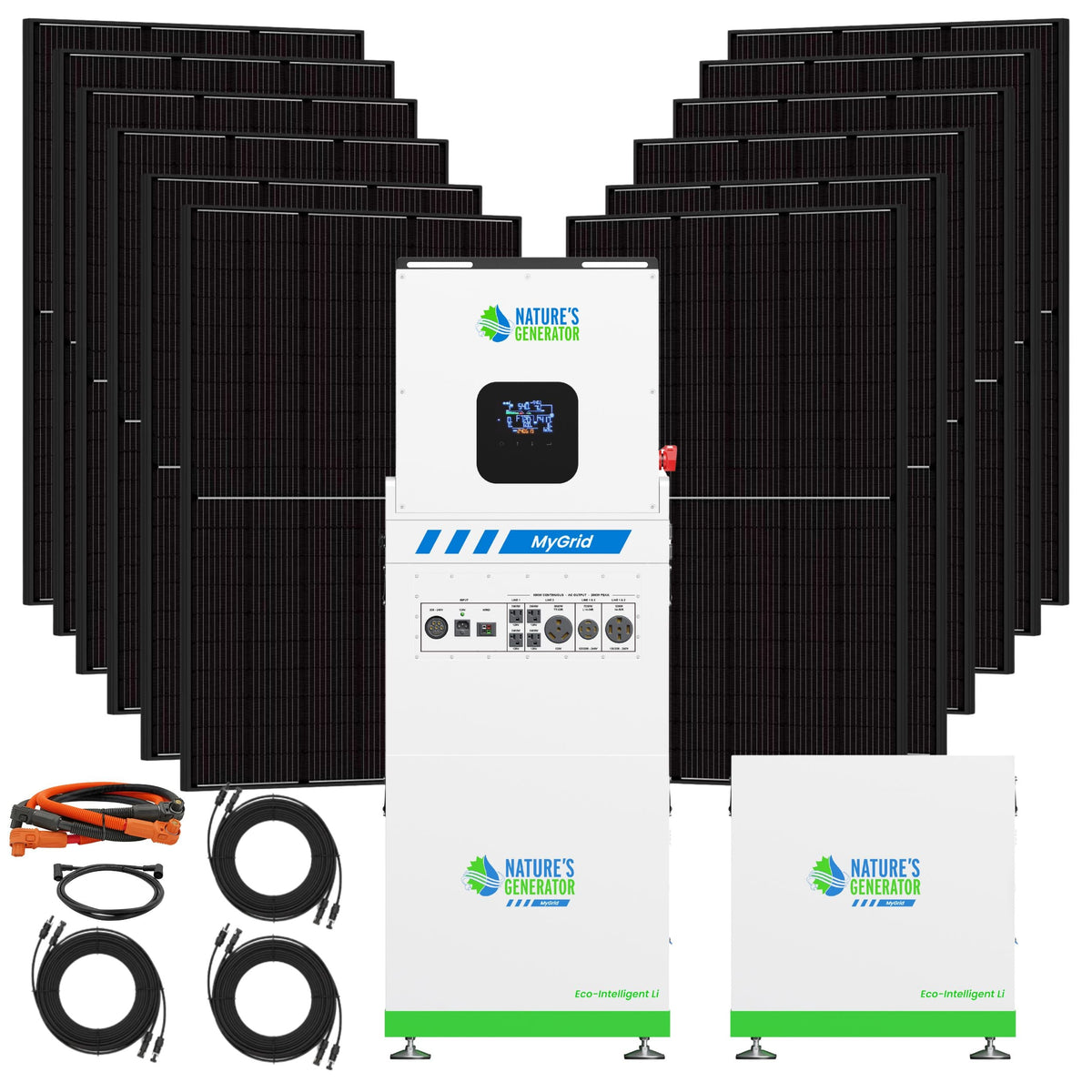

• Expandable for Growing Needs: Combine two units for 20,000W output, expand battery capacity to 73,742Wh, and integrate up to 12,000W solar panels or 350W wind turbine as energy needs grow.

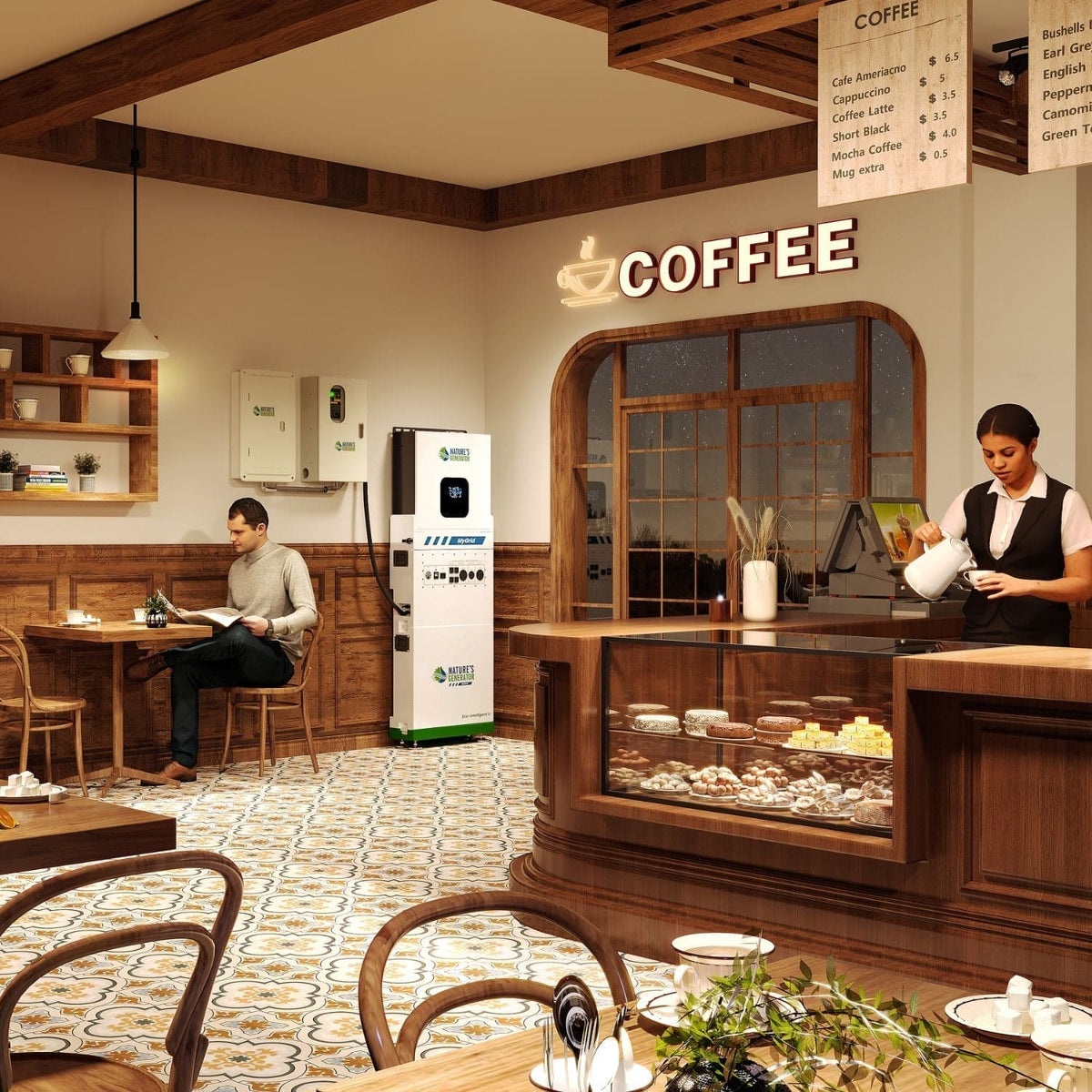

• Dual Voltage Compatibility: Supports 120V, 120/240V and 120/208V charging and discharging, suitable for residential, light commercial and AC coupling applications.
• Fast Recharge Performance: Advanced charging technology enables up to 80% charge in approximately 2 hours, minimizing downtime

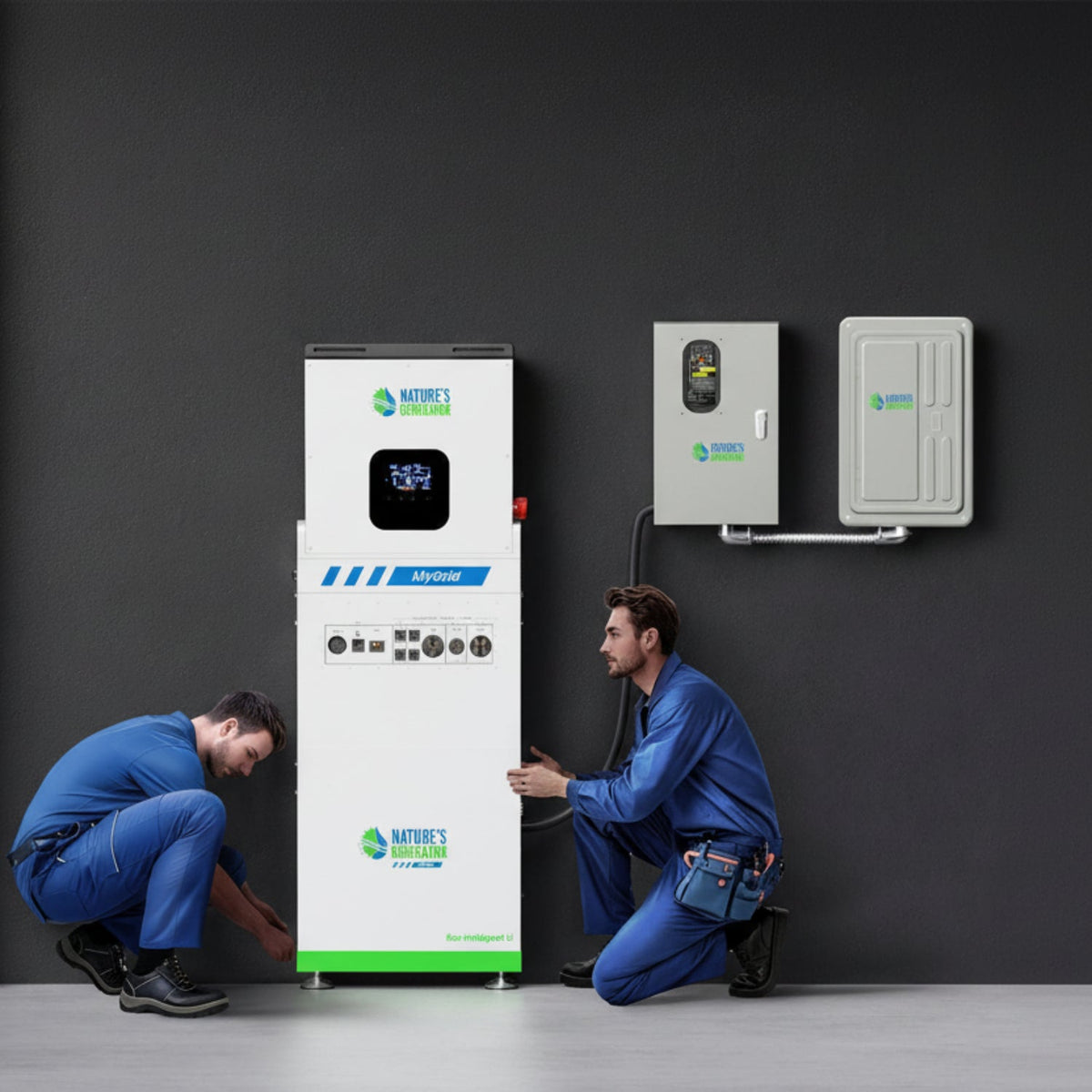

• Fast & Easy Installation: Plug-and-play design ensures quick setup, lower installation cost and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.
• Smart Protection & Compact Safe Design: Integrated Battery Management System (BMS) continuously monitors and protects battery health for long life, while the compact, eco-friendly, and UL 1741 certified system ensures safe, sustainable home energy.
Inverter
Output Continuous Power: 10,000W
Expandable Continuous Peak Power: 20,000W
Output Peak Power: 20,000W
Expandable Peak Power: 40,000
Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
Output Frequency: 60Hz
Output Power Form: Pure Sine Wave
Auto Switching: <20ms
Capacity: 51.2V 205Ah (10496Wh)
Expandable Capacity: 73.4kWh(7x Battery)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle life: >70% after 6000 Cycles
Self Discharge: Recommended recharging every 6 months
120Vac Charger: 1000W
208Vac or 240Vac Charger: 4500W
Wind Charger: 350W
Solar Charger: 12,000W 120Vdc-550DVdc
Solar Charge Mode: 2x MPPT

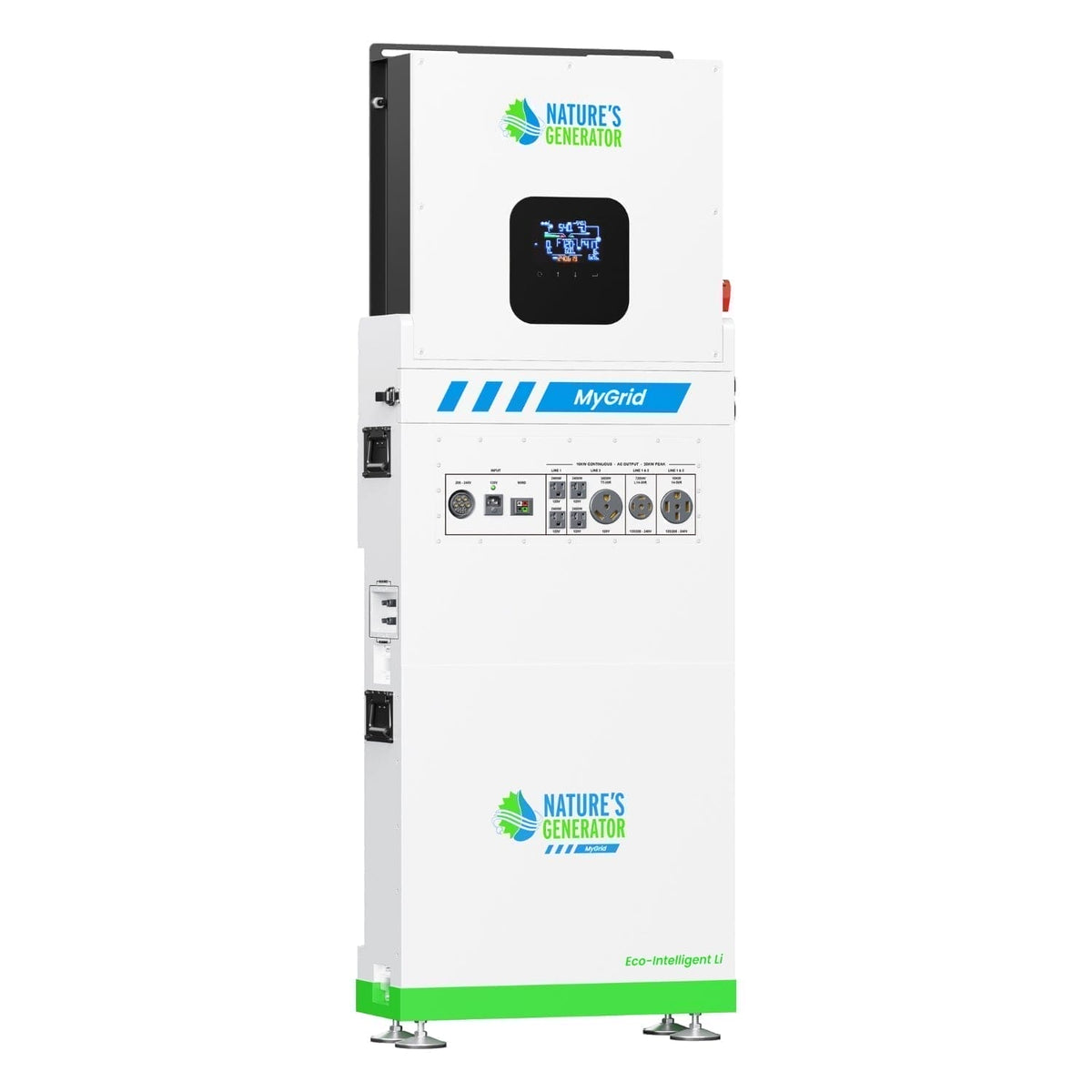

Output Ports::
4x NEMA 5-20R Outlet
1x NEMA TT-30R Outlet
1x NEMA L14-30R Outlet
1x NEMA 14-50R Outlet
1x Expansion Port
Input Ports:
2x Solar Input Ports
1x Wind Input Port
1x 120Vac Input Port
1x 208Vac or 240Vac Input Port
1 x Alt. 208Vac or 240Vac Input Port
Optimal Operating Temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Warranty: 5-Year Limited Warranty
Certification:
U.S. & Canada Safety Certified ANSI/CAN/UL 1741
MyGrid 10K Battery cETLus Certificate

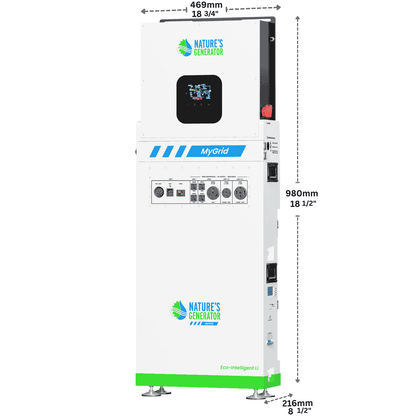

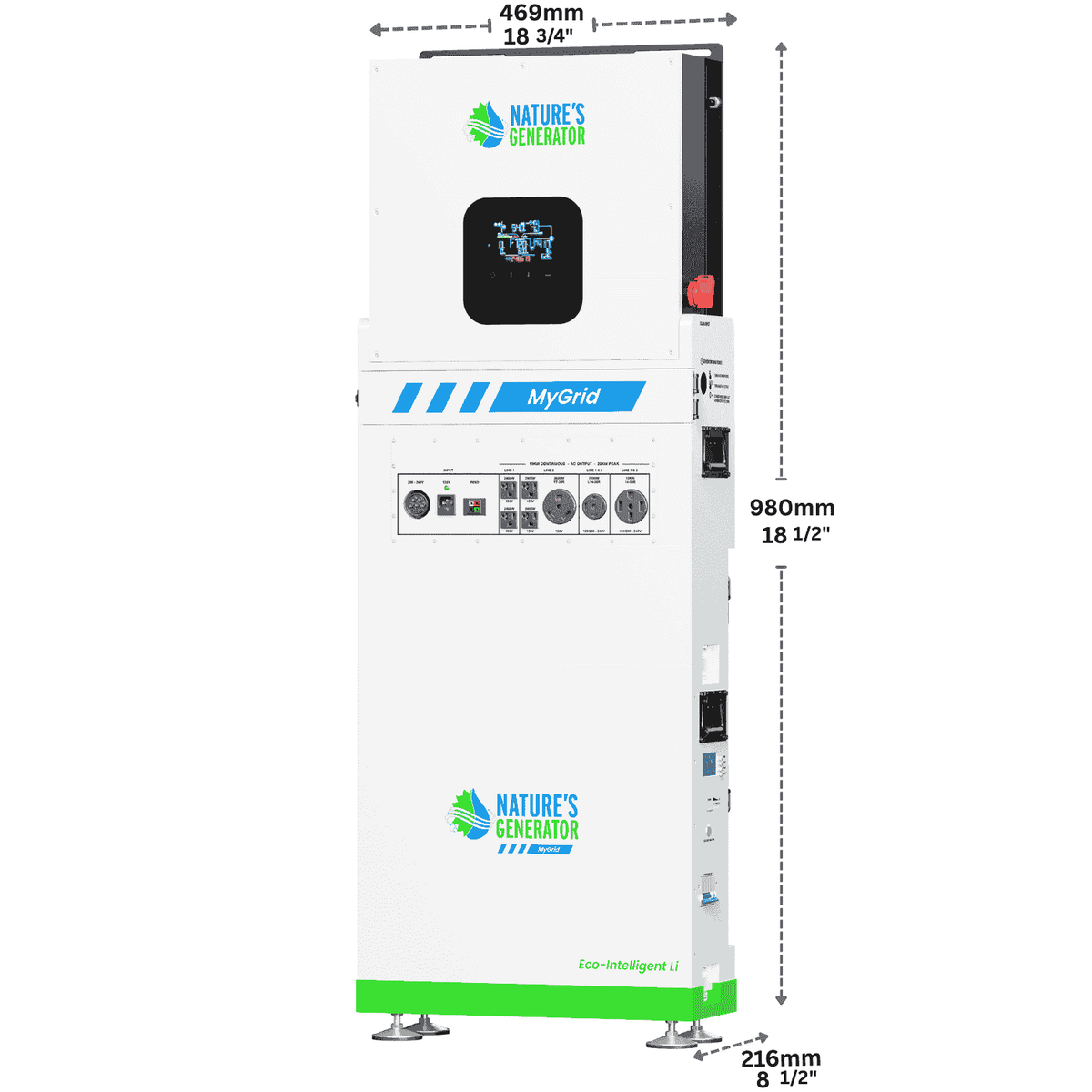

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar
Generator Weight: 152 lbs (69 kg)
Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Battery Weight: 213 lbs (96.6 kg)

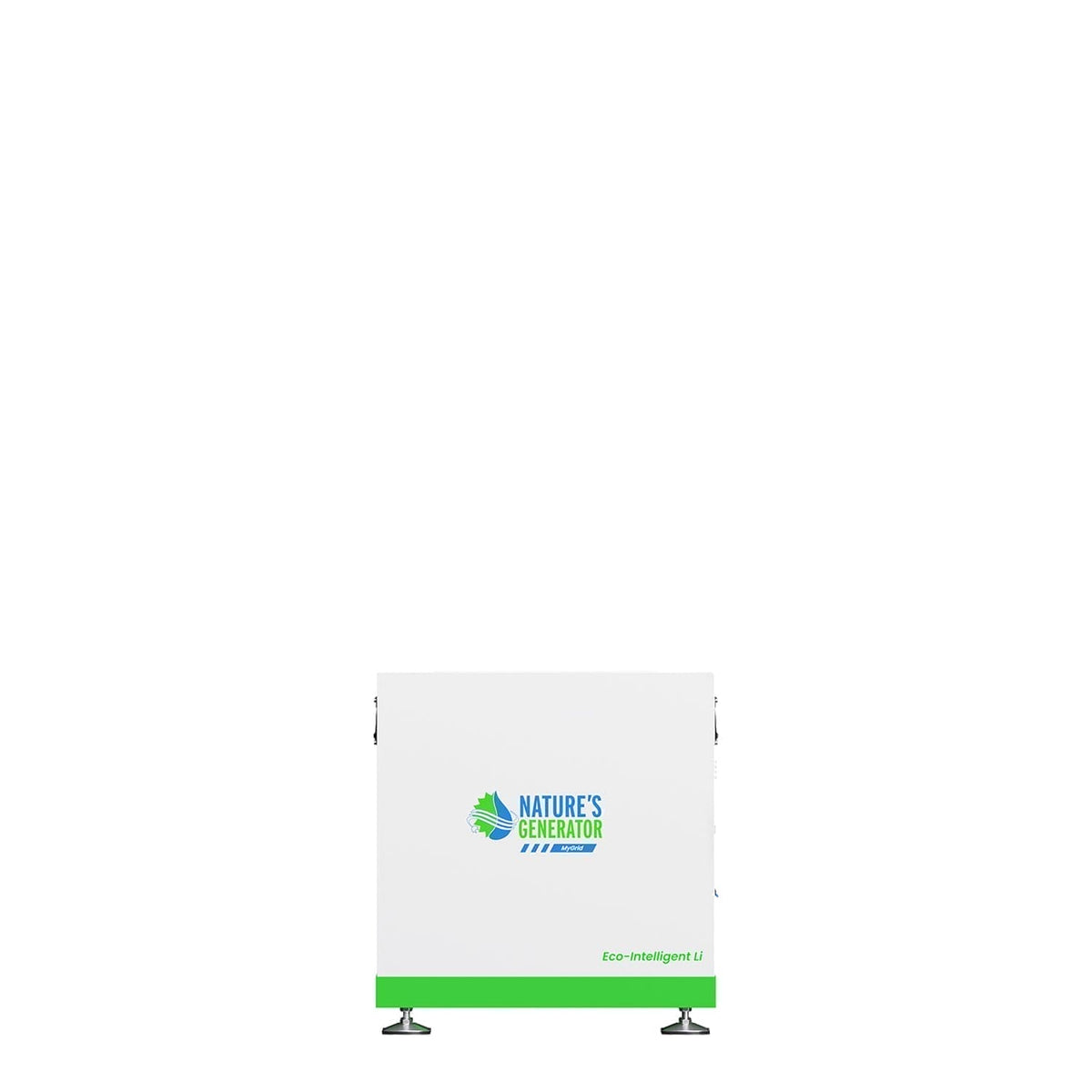

Battery
Capacity: 51.2V 205Ah (10496Wh)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle life: >6000 Cycles
Self Discharge: Recommended recharging every 6 months
Optimal Operating Temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Warranty: 5-Year Limited Warranty
Certification:
Certificate of Compliance - ANSI/CAN/UL 1973
Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Battery Weight: 213 lbs (96.6 kg)

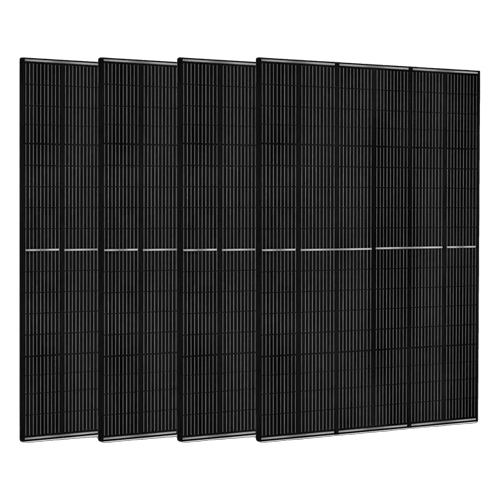

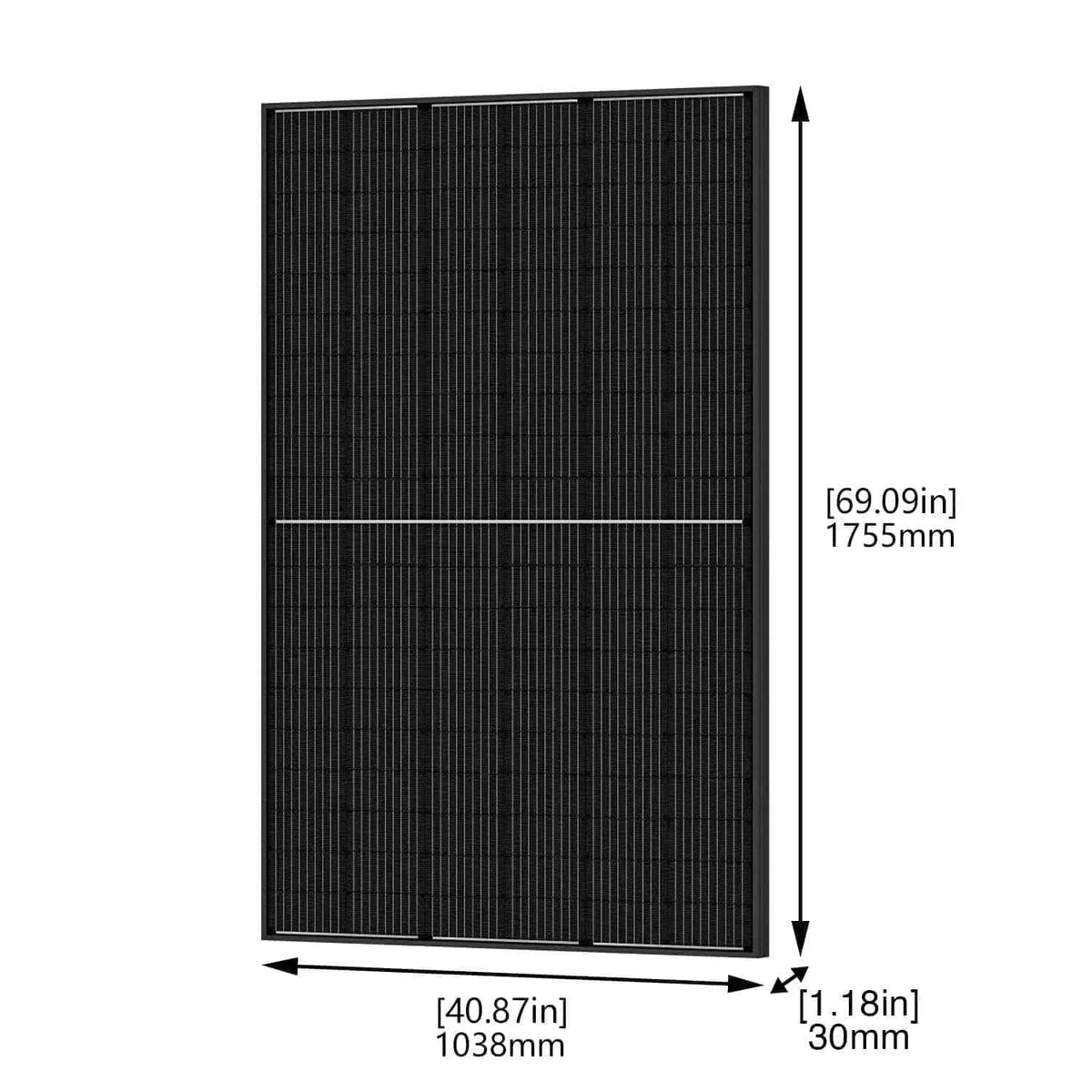

Power Rating
Maximum Power (Pmax): 440W
Maximum Power Voltage (Vmp): 32.30
Maximum Power Current (Imp): 13.63
Open-circuit Voltage (Voc): 38.80
Short-circuit Current (Isc): 14.39
Module Efficiency STC (%): 22.53%
Dimensions & Characteristics: 1722*1134*30mm(67.8*44.6*1.2 inch)
Cell Type: N-Type TOPCon 182×91mm
No.of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy - All Black
Weight: 24.5 kg (54 lbs)
Glass: 2.0 mm+2.0mm, High Transmission, AR Coated Heat Strengthened Glass
Operation Temperature: -40℃~+85℃ (-40°F ~+185°F )
Junction Box: IP68 Rated, connector compatible with MC4
Output Cables: 4 mm² ,350mm (With Connectors)

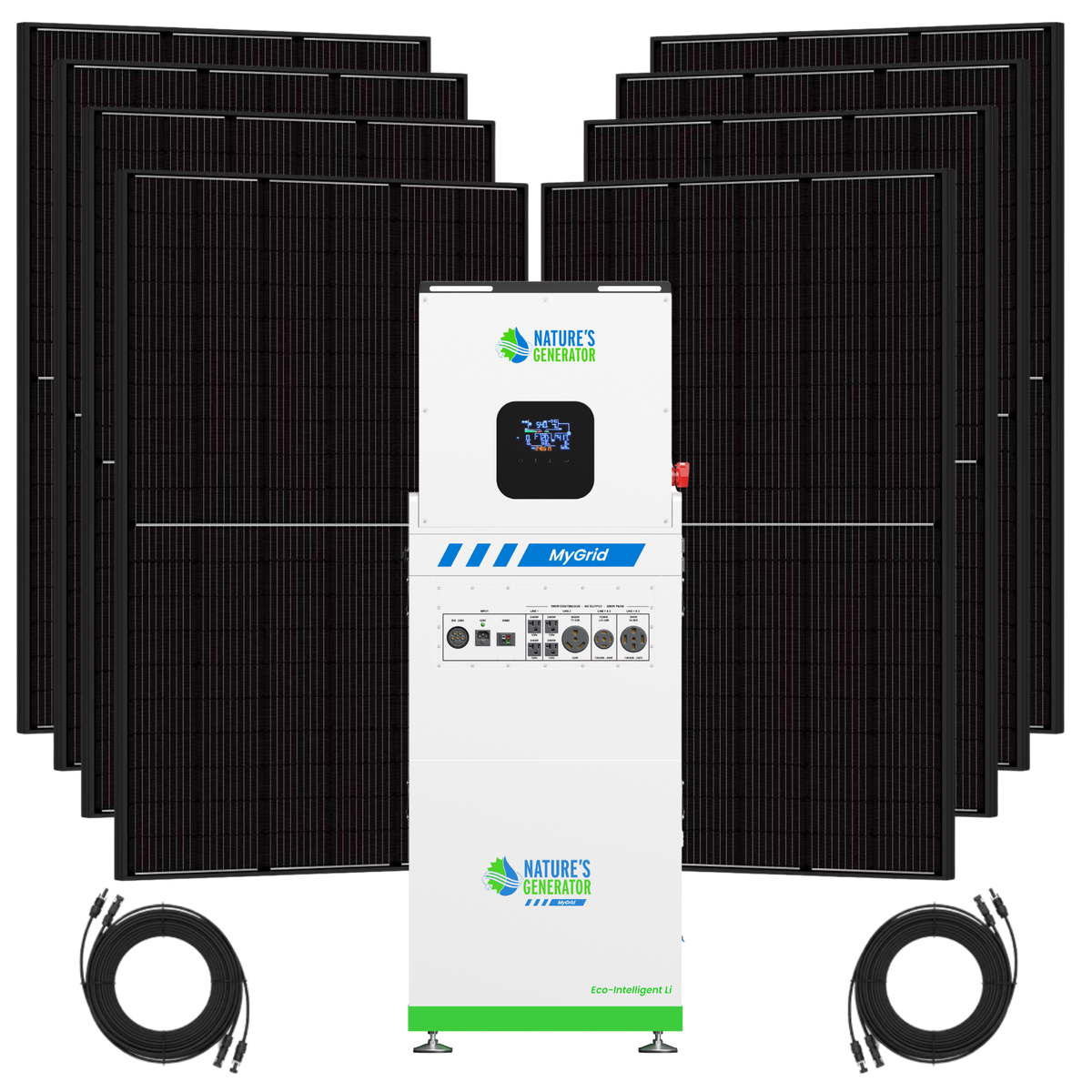

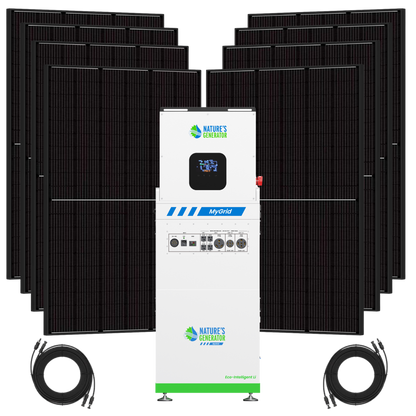

MyGrid 10K Gen 2 + 8* 440W Rigid Bifacial Panel

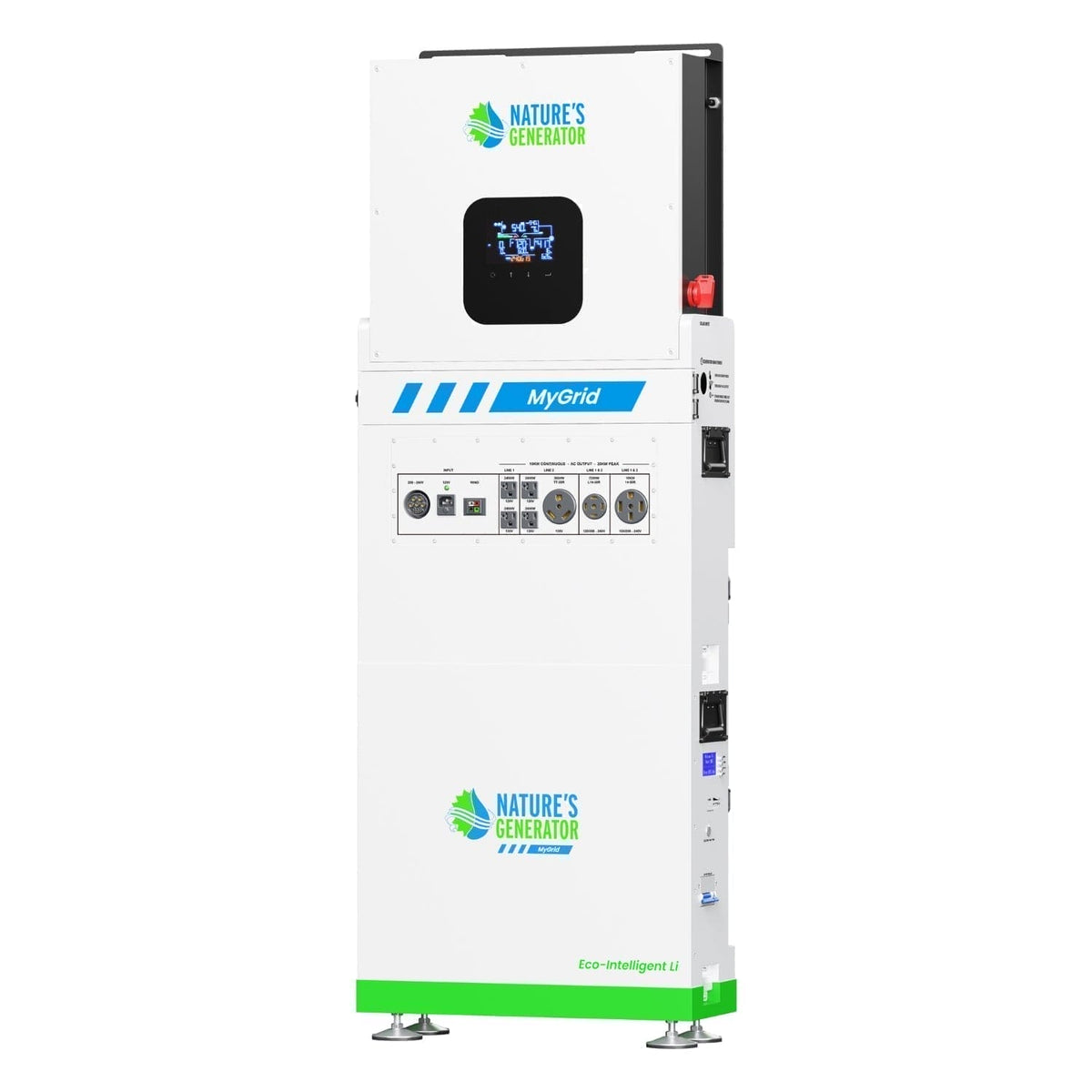

1x MyGrid 10K Gen 2 Generator
1x MyGrid 10K Battery
1x AC Power Cord
1x Battery Cable Set
1x Communication Cable
2x Mygrid 10K Mounting & Security Hardware

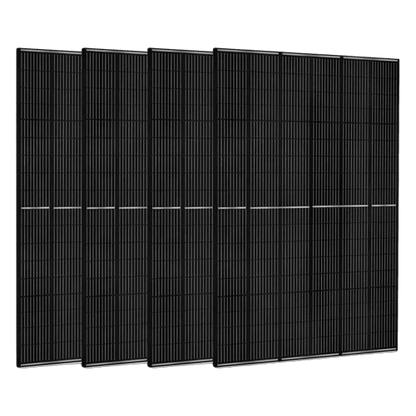

8x 440W Rigid Bifacial Solar Panel
2x50 ft Quick Release Solar Cable
MyGrid 10k Specification Sheet
MyGrid 10K Generator and Battery User Manual
MyGrid 10K Inverter Certificate of Compliance ANSI/CAN/UL 1741
MyGrid 10K Battery cETLus Certificate ANSI/CAN/UL 1973
MyGrid 10K Solar Panel Connection Guide
