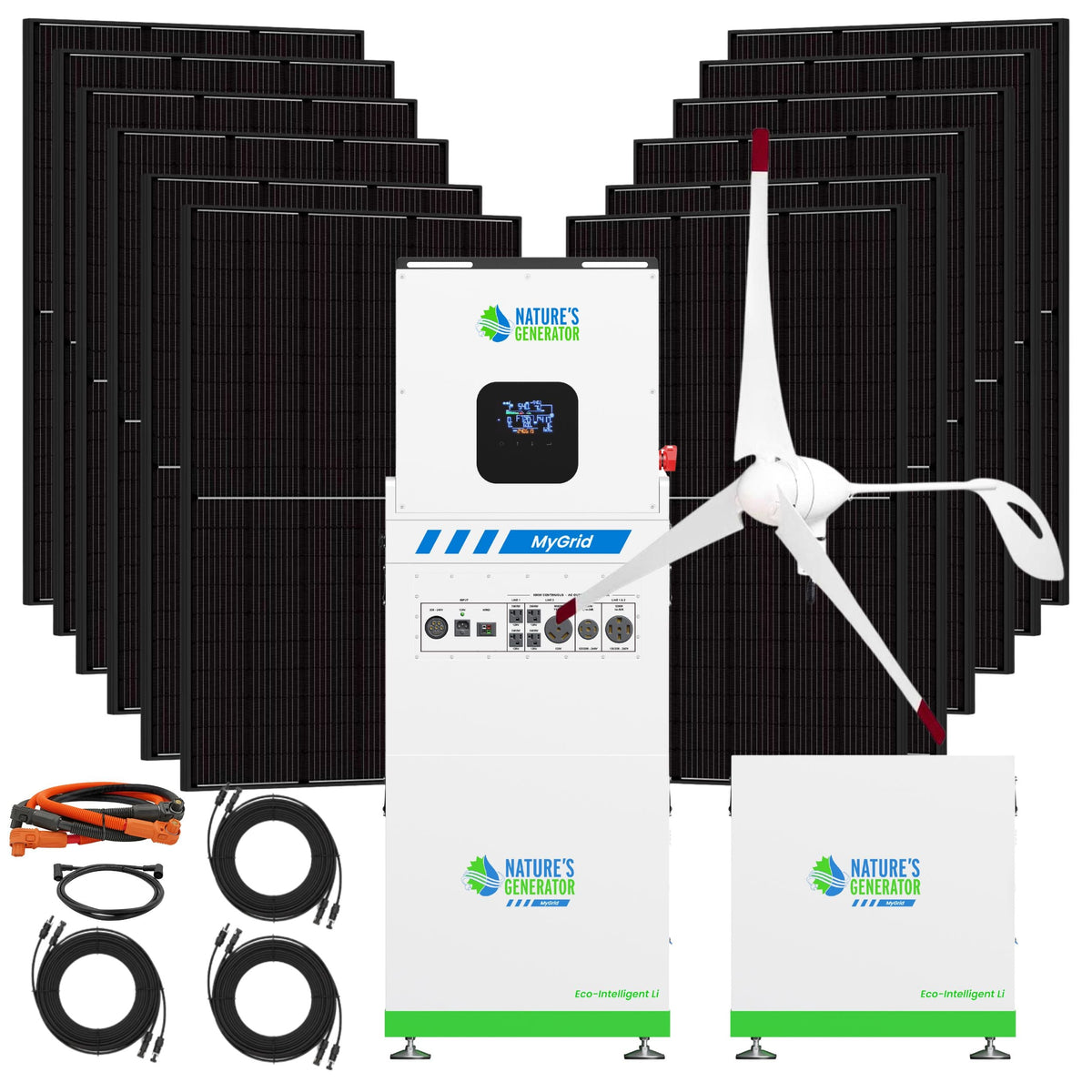

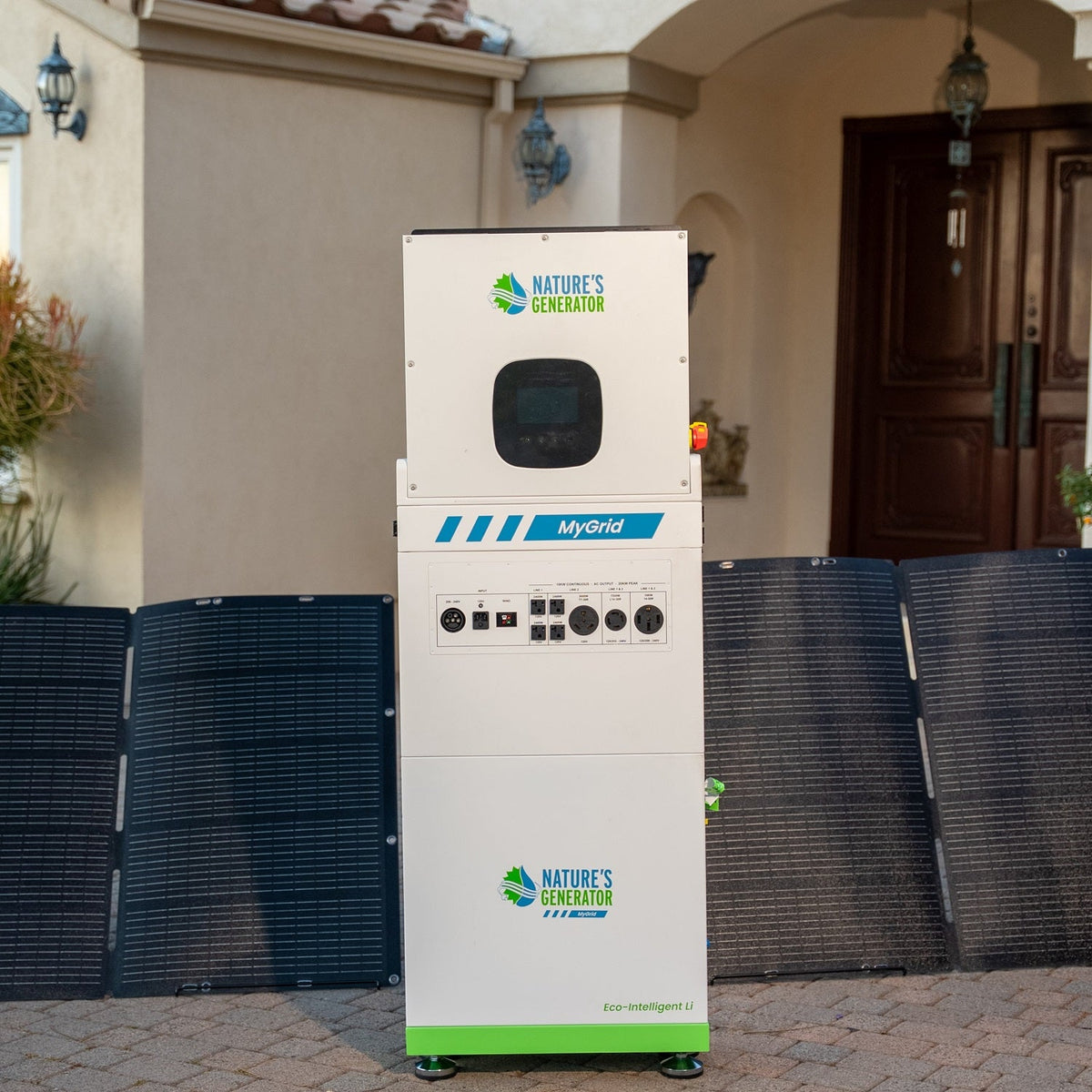

• Complete Solar + Wind Power Bundle: Comes ready with MyGrid 10K whole‑home generator plus solar panels and a 350 W wind turbine, giving you dual renewable charging sources right out of the box. Wind turbine offers supplemental charging during cloudy days or at night.
• Reduce Electricity Bills: Store solar or off-peak energy and use it during high-rate periods to lower electricity costs and increase energy independence.
• Reliable Whole-Home Performance: 10,000 W continuous output with a 10,496 Wh LiFePO₄ battery, dependable whole-home power for outages or off grid use or uninterrupted power supply.
• Expandable for Growing Needs: Combine two units for 20,000W output, expand battery capacity to 73,742Wh, and integrate up to 12,000W solar panels as energy needs grow.

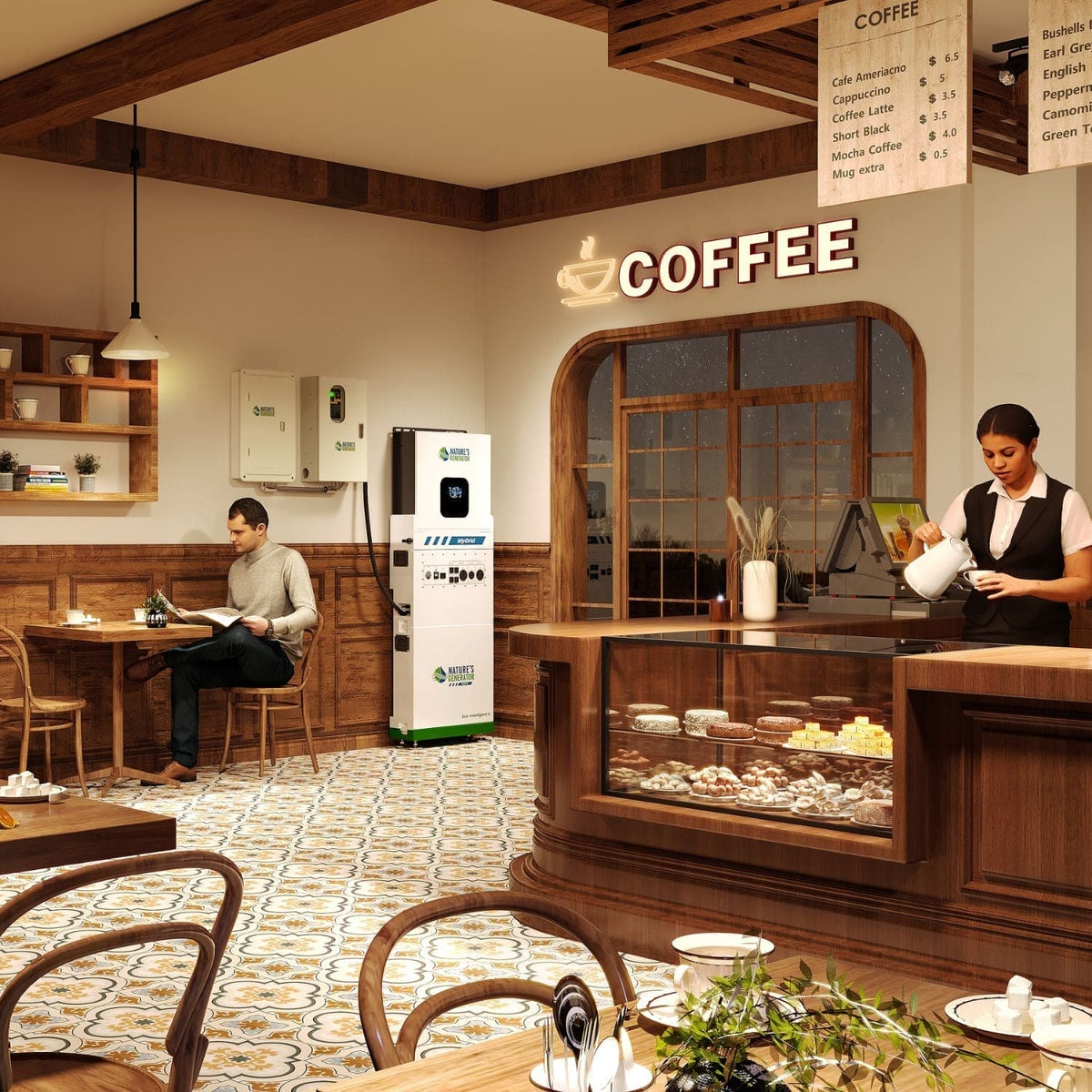

• Dual Voltage Compatibility: Supports 120V, 120/240V and 120/208V charging and discharging, suitable for residential, light commercial and AC coupling applications.
• Fast Recharge Performance: Advanced charging technology enables up to 80% charge in approximately 2 hours, minimizing downtime.
• Fast & Easy Installation: Plug-and-play design ensures quick setup, lower installation cost and hassle-free relocation, providing flexibility for homeowners and renters.
• Smart Protection & Compact Safe Design: Integrated Battery Management System (BMS) continuously monitors and protects battery health for long life, while the compact, eco-friendly, and UL 1741 certified system ensures safe, sustainable home energy.
Inverter
Output Continuous Power: 10,000W
Expandable Continuous Peak Power: 20,000W
Output Peak Power: 20,000W
Expandable Peak Power: 40,000
Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
Output Frequency: 60Hz
Output Power Form: Pure Sine Wave
Auto Switching: <20ms
Capacity: 51.2V 205Ah (10496Wh)
Expandable Capacity: 73.4kWh(7x Battery)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle life: >70% after 6000 Cycles
Self Discharge: Recommended recharging every 6 months
120Vac Charger: 1000W
208Vac or 240Vac Charger: 4500W

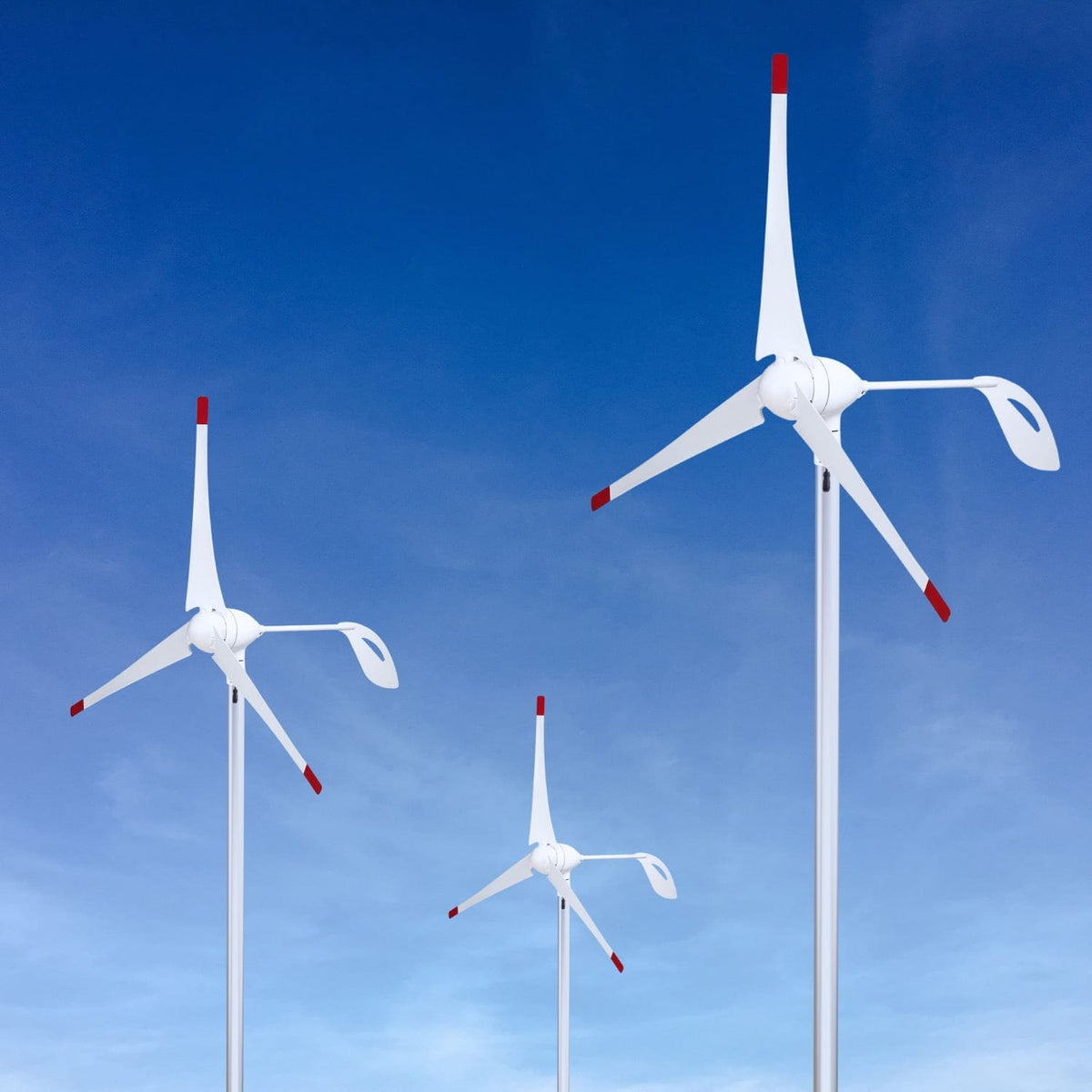

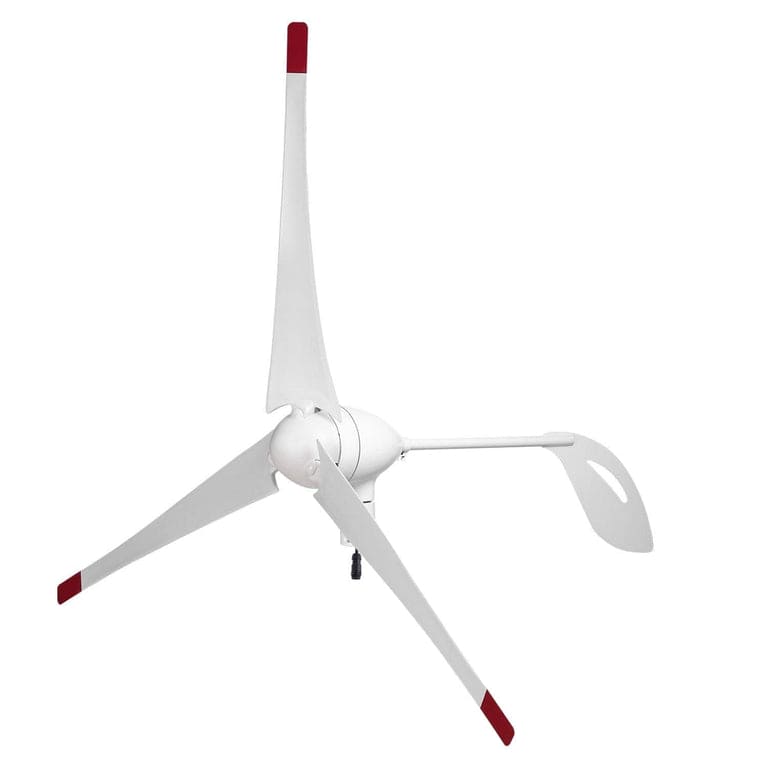

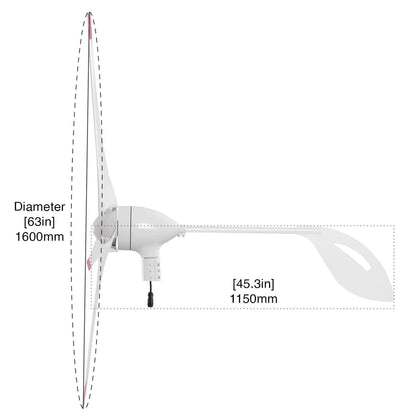

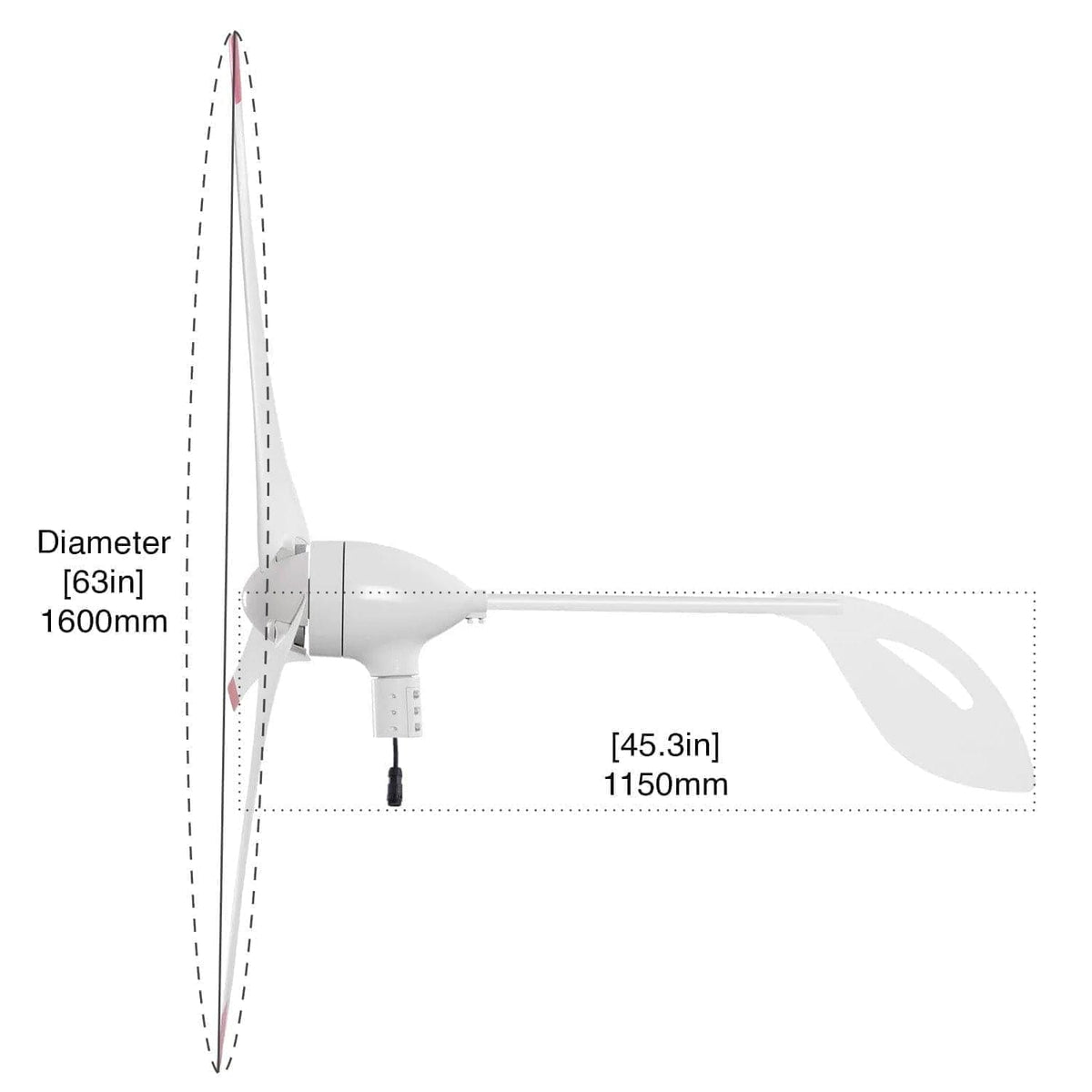

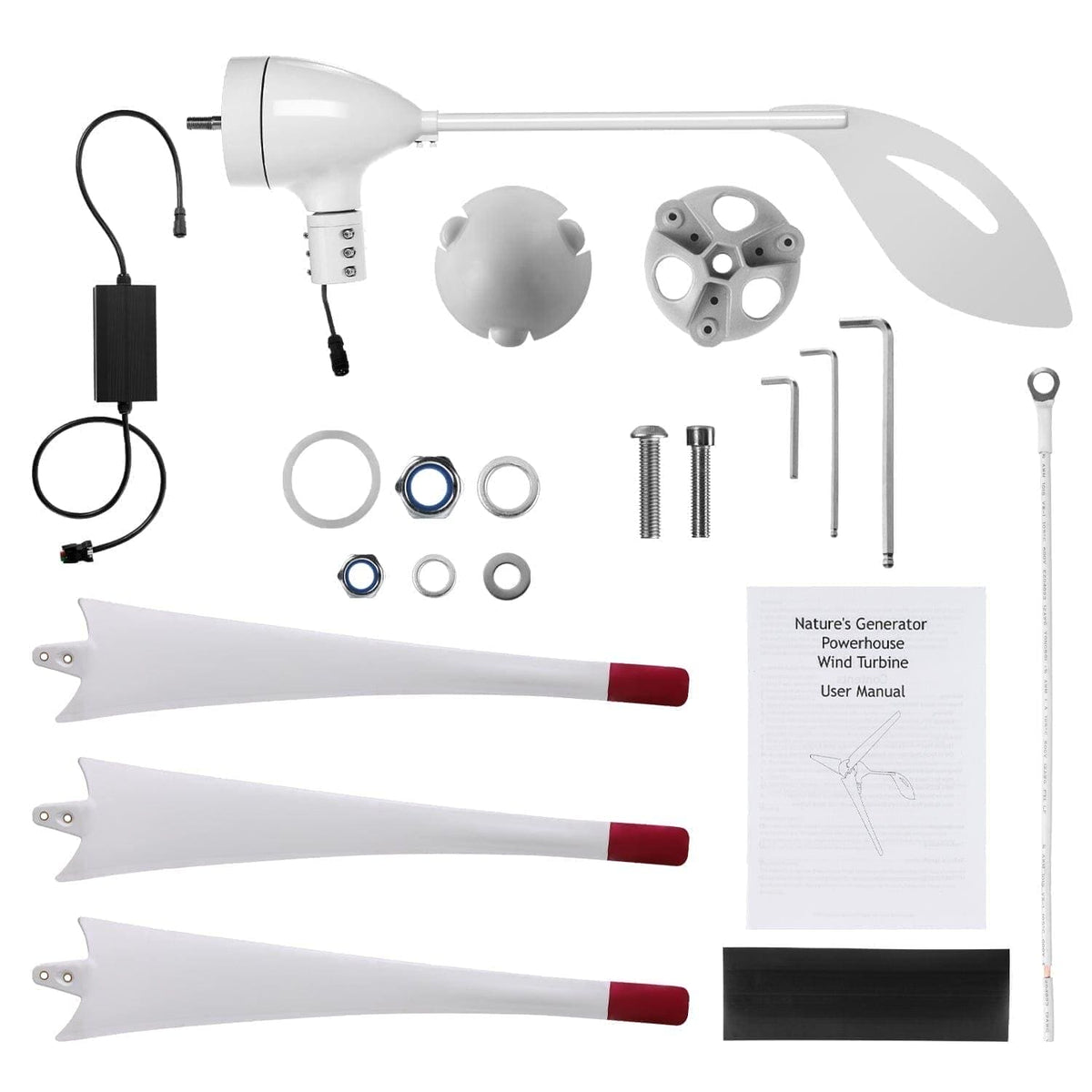

Wind Charger: 350W
Solar Charger: 12,000W 120Vdc-550DVdc
Solar Charge Mode: 2x MPPT
Output Ports::
4x NEMA 5-20R Outlet
1x NEMA TT-30R Outlet
1x NEMA L14-30R Outlet
1x NEMA 14-50R Outlet
1x Expansion Port
Input Ports:
2x Solar Input Ports
1x Wind Input Port
1x 120Vac Input Port
1x 208Vac or 240Vac Input Port
1 x Alt. 208Vac or 240Vac Input Port
Optimal Operating Temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Warranty: 5-Year Limited Warranty
Certification:
U.S. & Canada Safety Certified ANSI/CAN/UL 1741
MyGrid 10K Battery cETLus Certificate

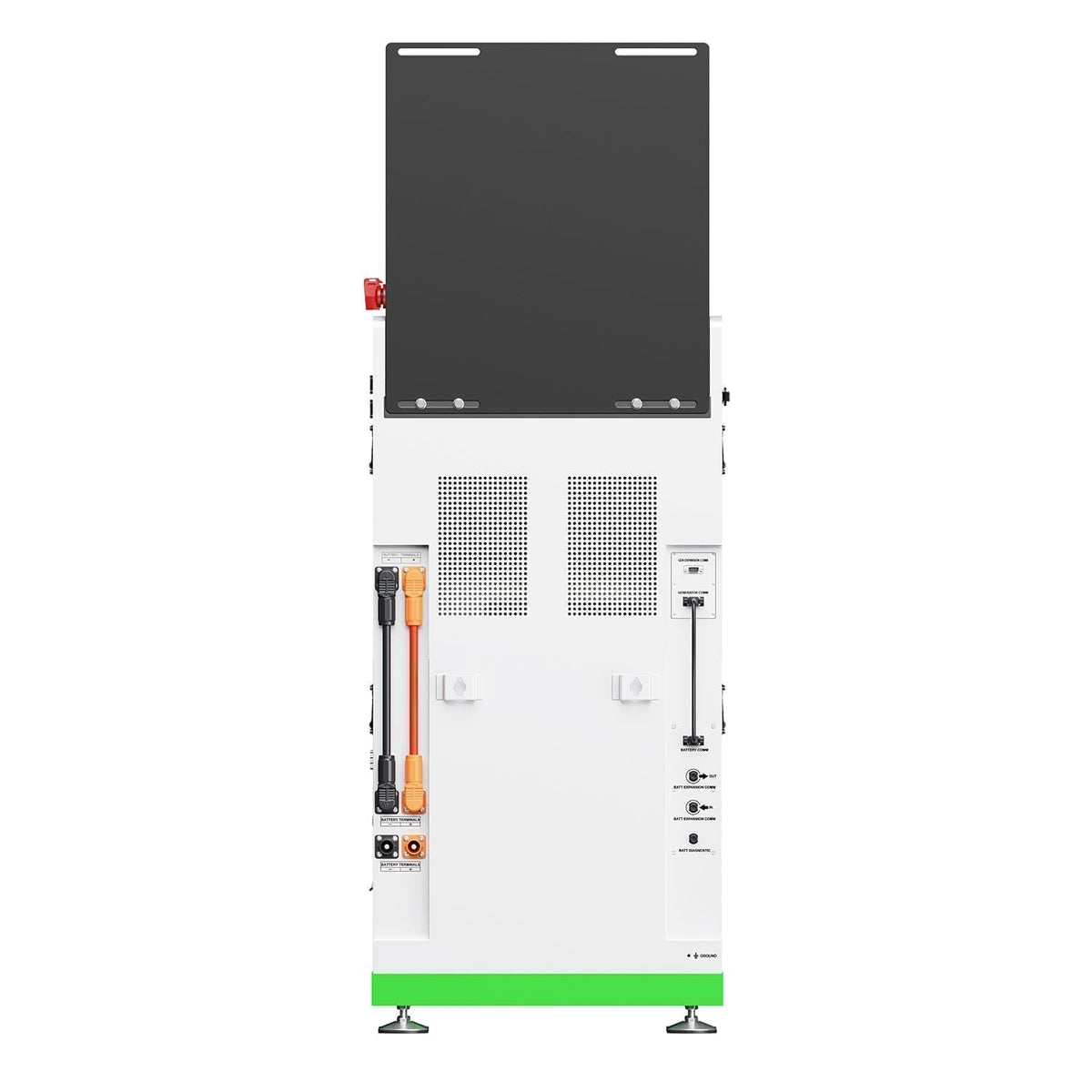

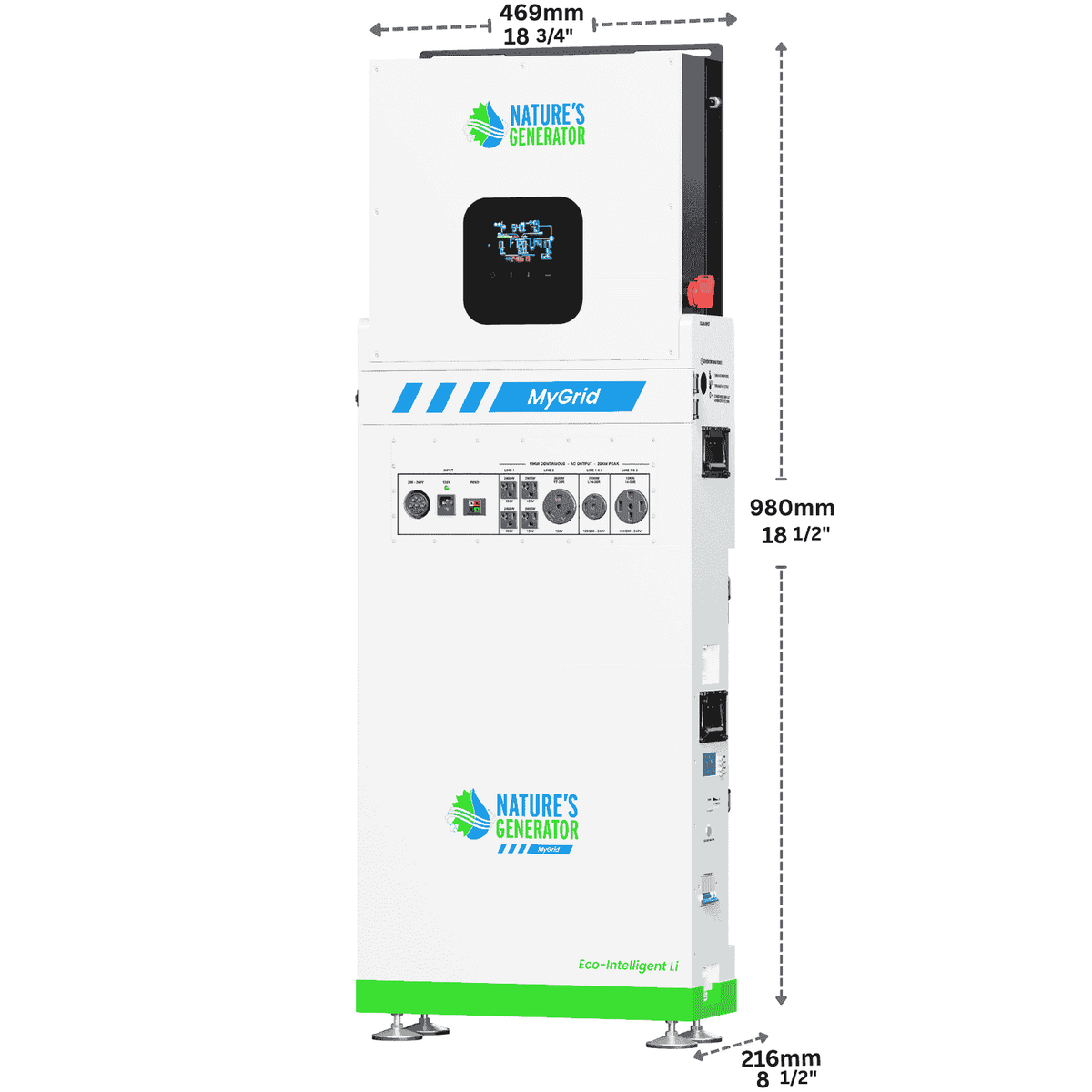

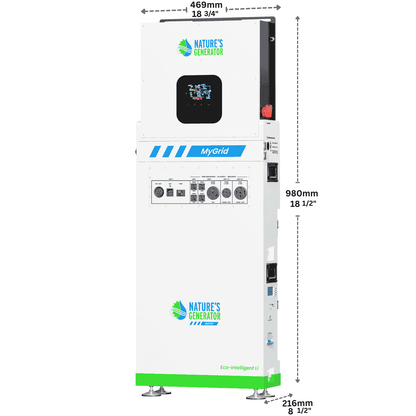

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar
Generator Weight: 152 lbs (69 kg)

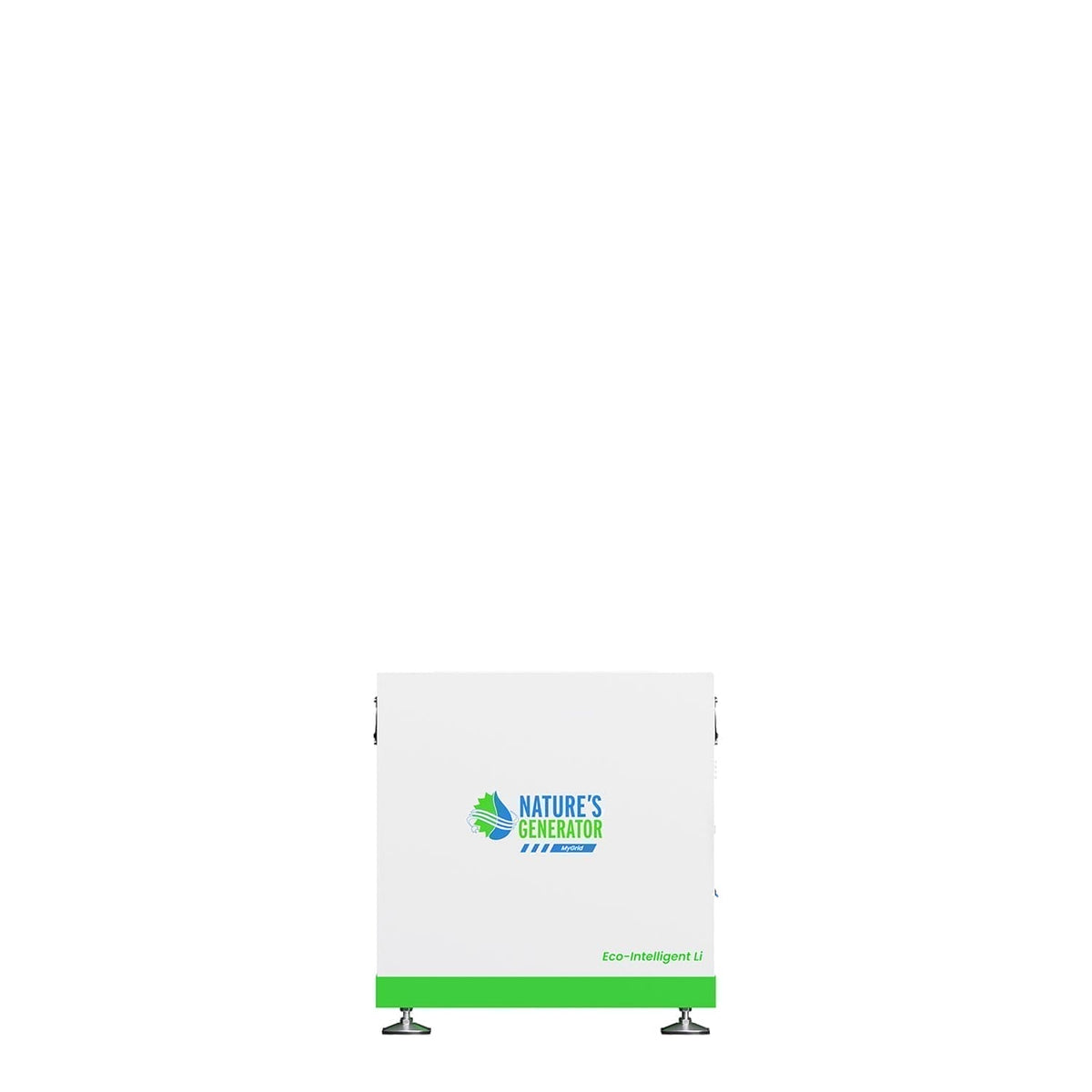

Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Battery Weight: 213 lbs (96.6 kg)
Battery
Capacity: 51.2V 205Ah (10496Wh)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle life: >6000 Cycles
Self Discharge: Recommended recharging every 6 months
Optimal Operating Temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Warranty: 5-Year Limited Warranty
Certification:
Certificate of Compliance - ANSI/CAN/UL 1973
Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Battery Weight: 213 lbs (96.6 kg)

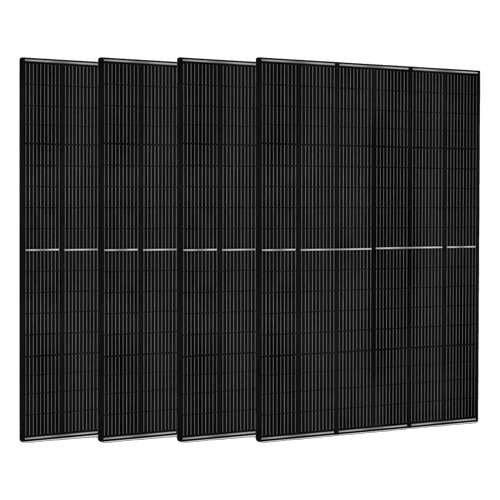

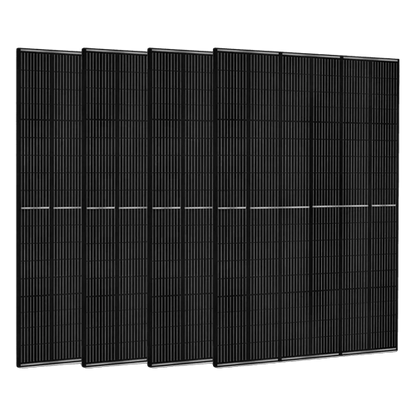

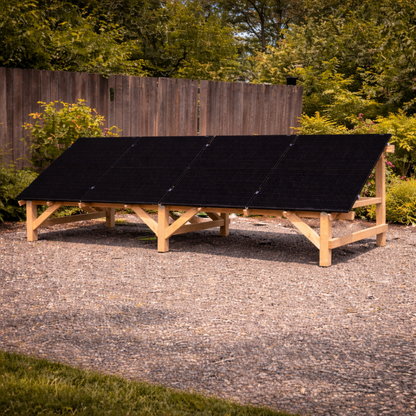

Power Rating
Maximum Power (Pmax): 440W
Maximum Power Voltage (Vmp): 32.30
Maximum Power Current (Imp): 13.63
Open-circuit Voltage (Voc): 38.80
Short-circuit Current (Isc): 14.39
Module Efficiency STC (%): 22.53%
Dimensions & Characteristics: 1722*1134*30mm(67.8*44.6*1.2 inch)
Cell Type: N-Type TOPCon 182×91mm
No.of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy - All Black
Weight: 24.5 kg (54 lbs)
Glass: 2.0 mm+2.0mm, High Transmission, AR Coated Heat Strengthened Glass
Operation Temperature: -40℃~+85℃ (-40°F ~+185°F )
Junction Box: IP68 Rated, connector compatible with MC4
Output Cables: 4 mm² ,350mm (With Connectors)

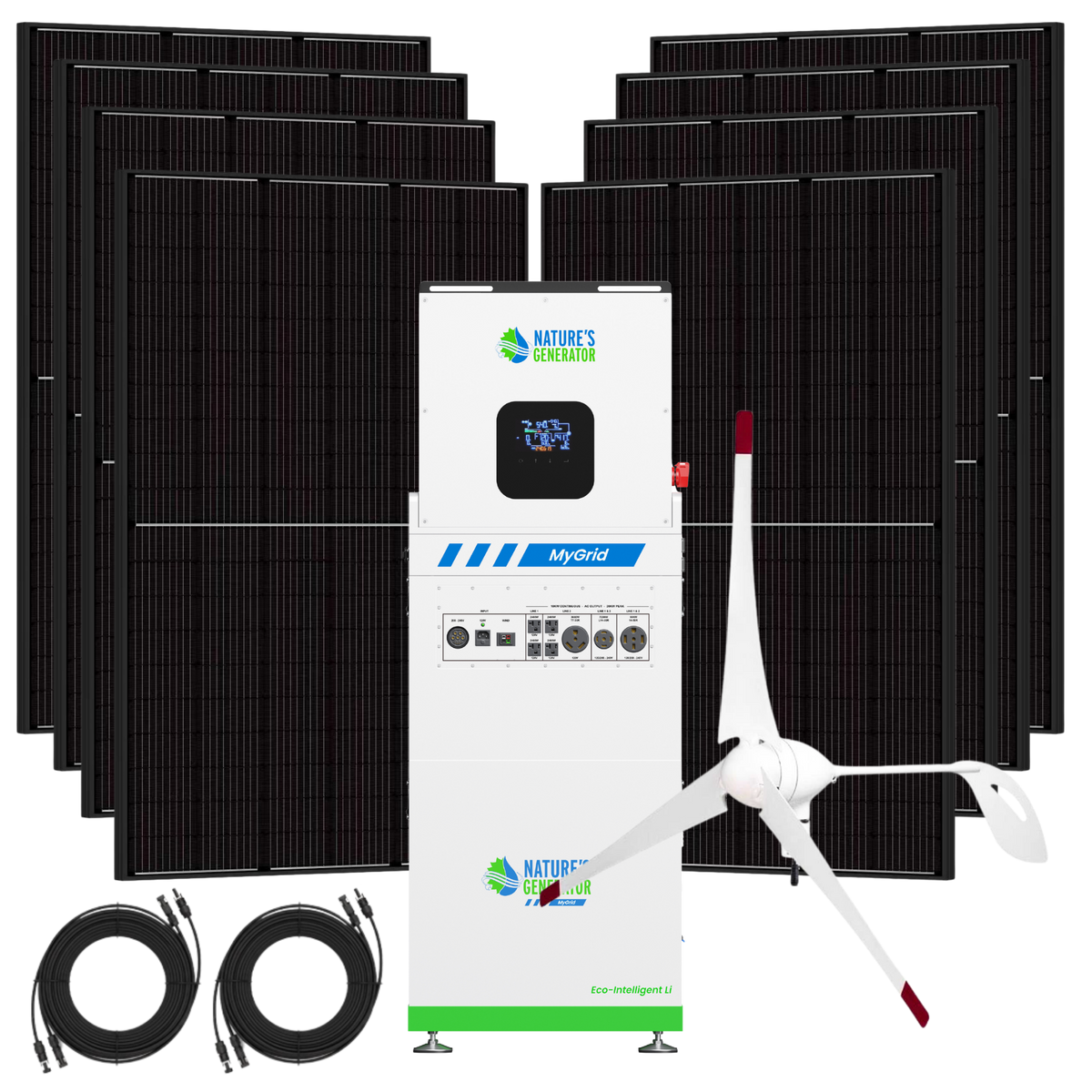

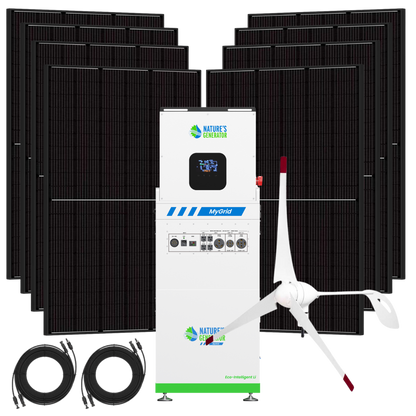

MyGrid 10K Gen 2 + 8* 440W Rigid Bifacial Panel
1x MyGrid 10K Gen 2 Generator
1x MyGrid 10K Battery
1x AC Power Cord
1x Battery Cable Set
1x Communication Cable
2x Mygrid 10K Mounting & Security Hardware
8x 440W Rigid Bifacial Solar Panel
2x50 ft Quick Release Solar Cable
Output Continuous Power: 10,000W
Expandable Continuous Peak Power: 20,000W
Output Peak Power: 20,000W
Expandable Peak Power: 40,000W
Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
Output Frequency: 60Hz
Output Power Form: Pure Sine Wave
Auto Switching: <20ms
Capacity: 51.2V 205Ah (10496Wh)
Expandable Capacity: 73.4kWh(7x Battery)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Cycle life: >70% after 6000 Cycles
Self Discharge: Recommended recharging every 6 months
120Vac Charger: 1000W
208Vac or 240Vac Charger: 4500W
Wind Charger: 350W
Solar Charger: 12,000W 120Vdc-550DVdc
Solar Charge Mode: x2 MPPT
Output Ports:
4x NEMA 5-20R Outlet
1x NEMA TT-30R Outlet
1x NEMA L14-30R Outlet
1x NEMA 14-50R Outlet
1x Expansion Port
Input Ports:
2x Solar Input Ports
1v Wind Input Port
1x 120Vac Input Port
1x 208Vac or 240Vac Input Port
1x Alt. 208Vac or 240Vac Input Port
Optimal Operating Temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Warranty: 5 Years Limited Warranty
MyGrid 10k Specification Sheet
MyGrid 10K Generator and Battery User Manual
MyGrid 10K Inverter Certificate of Compliance ANSI/CAN/UL 1741
MyGrid 10K Battery cETLus Certificate ANSI/CAN/UL 1973
MyGrid 10K Solar Panel Connection Guide
350W Wind Turbine User Guide
