MANGO POWER

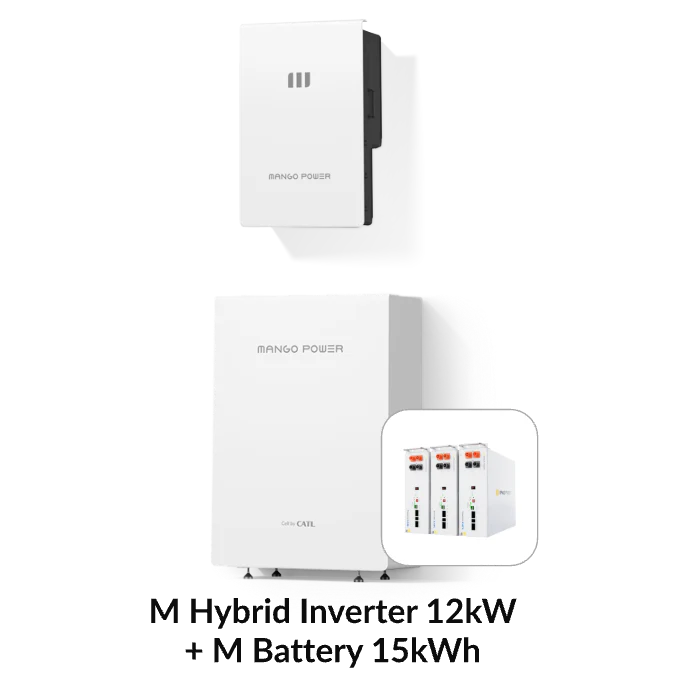

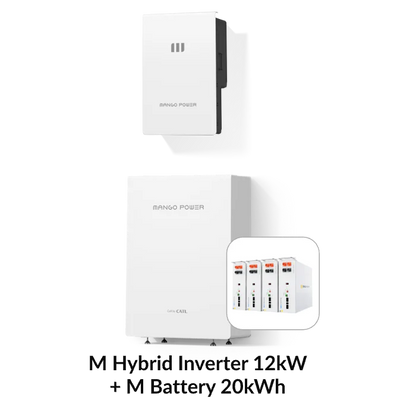

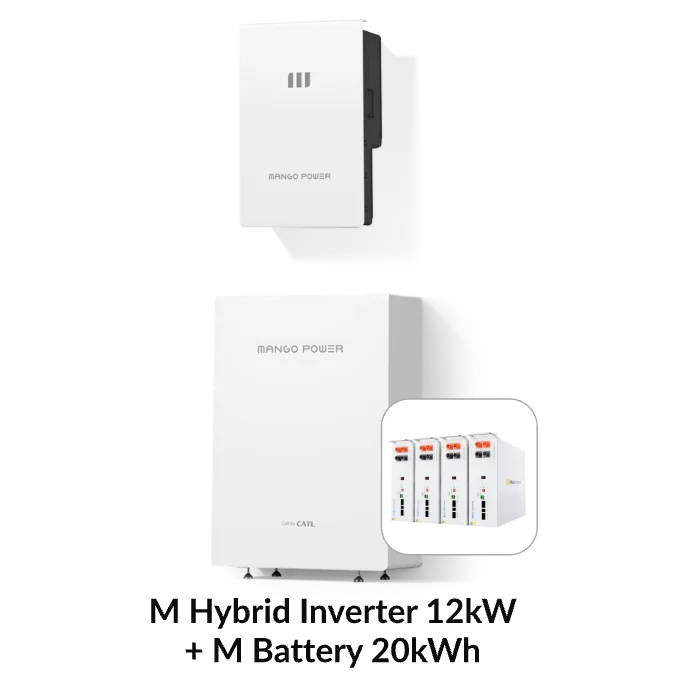

MANGO POWER M Whole-Home Backup Energy System

MANGO POWER M Whole-Home Backup Energy System

Regular price $19,999.00 USD
Regular price Sale price $19,999.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Buying Options
Quantity

Mango Power Shipping, Retrun & Warranty

    MANGO POWER M Whole-Home Backup Energy System

    The Mango Power M is a complete, All-in-One Modular Home Backup Power System, specifically designed with installers in mind. This easy-to-install system, accommodating solar, grid, and generator inputs, is equipped with the world's top CATL LFP batteries. With industry leading 24kW peak and 12kW continuous output, and is scalable from 15kWh to 80kWh. The system can be installed and commissioned in under three hours.

    Specs

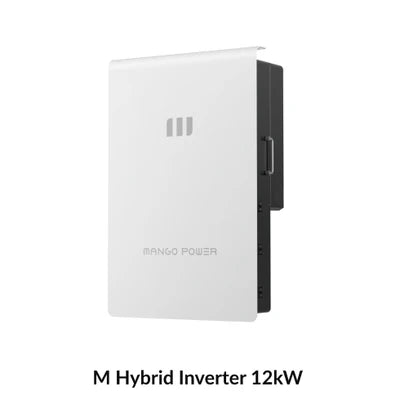

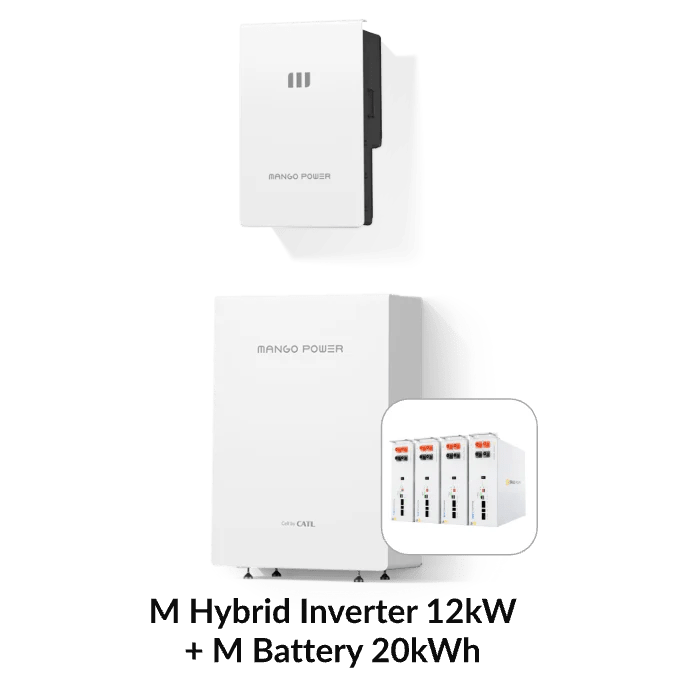

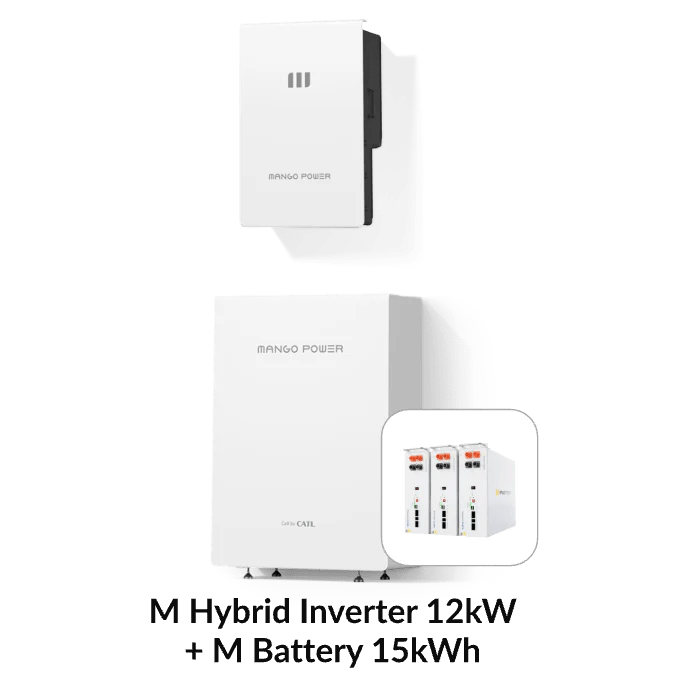

    M Hybrid Inverter 12kW Parameters

    Weight 119.9Ibs (54.4kg)
    Size 20.4x10.5x31.0inches (519*267*787mm



    AC - On-Grid Power Parameters

    Maximum continuous AC output power 12000VA/240V &10400VA/208V
    Peak power 24000VA 500ms
    Grid-tied power factor 0.8leading-0.8lagging adjustable
    Nominal AC output voltage 120V/240V/208V
    Voltage range 180V-270V
    Maximum continuous AC current 50A
    Nominal frequency 60Hz
    Extended frequency range 55-65Hz
    Maximum AC output over current protection 75A
    Max efficiency 97.5%(PV to grid) 94%(battery to grid)
    THDI <3%
    Cooling Low noise Fans



    AC - Backup Output Power Parameters

    Maximum continuous AC output power 12000VA/240V & 10400VA/208V
    Peak power 24000VA 500ms
    Nominal AC output voltage 120V/240V/208V
    Voltage range 180V-270V
    Maximum continuous AC current 50A
    Nominal frequency 60Hz
    Extended frequency range 55-65Hz
    Maximum AC output over current protection 75A
    Max efficiency 97.5%(PV to grid) 94.0%(battery to grid)
    THDV <3%
    Bypass grid switching time <20ms
    Maximum AC output over current 200A



    DC-PV Parameters

    PV modules power 18000W
    MPPT numbers 3 max power point trackers (two strings combined)
    MPPT voltage range 120V-500V
    Full power MPPT voltage range 230V-500V
    Maximum input DC voltage 600V
    Maximum input current 25/15/15A
    Maximum DC input short circuit current 31/19/19A
    MPPT efficiency 99.90%

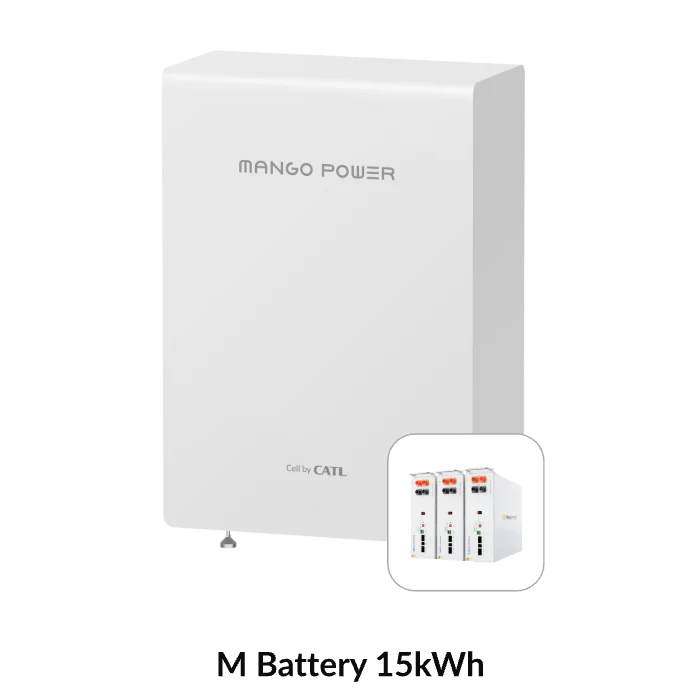

    M Smart Screen

    Battery chemistry World's best LFP battery powered by CATL
    Capacity From 15kWh/300Ah to 20Wh/400Ah with four M Battery packs
    Battery DC voltage range 44V-60V
    Max charging current Super-fast continuous charging speed, up to 1C for battery pack.
    250A for 15000Wh and 20000Wh
    Max discharging current 250A (for at least 3 M Battery packs)
    Roundtrip efficiency 97.00%
    Weight 103.6lbs(47Kg)
    Size 22.9x5.2x15.2 in (581x133x387mm)
    Battery Working Temperature Charging:32°F~140°F (0°C~60°C )
    Discharging: -4°F~140°F (-20°C~60°C)
    Life Span 6000 cycles(@25℃, +0.5C/-0.5C)



    M Cabinet Parameters

    Environmental category/UV expose rating NEMA Type 4X/IP65 outdoor

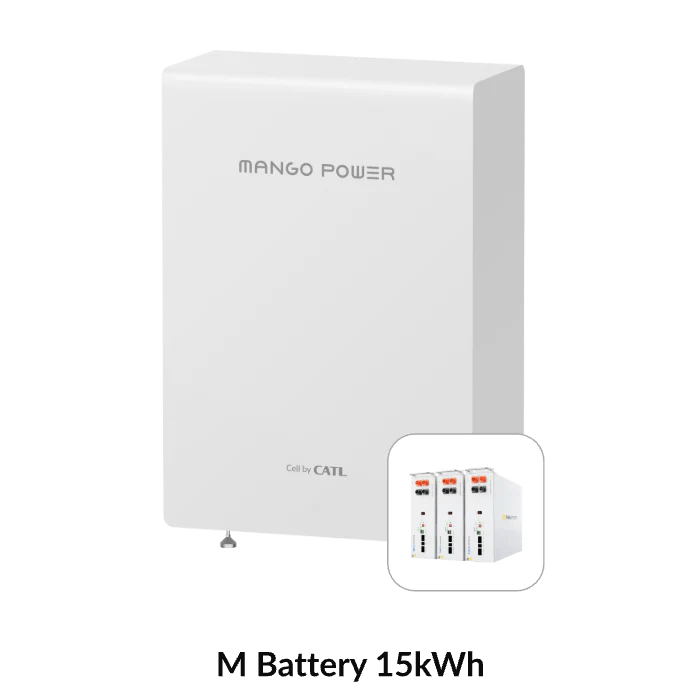

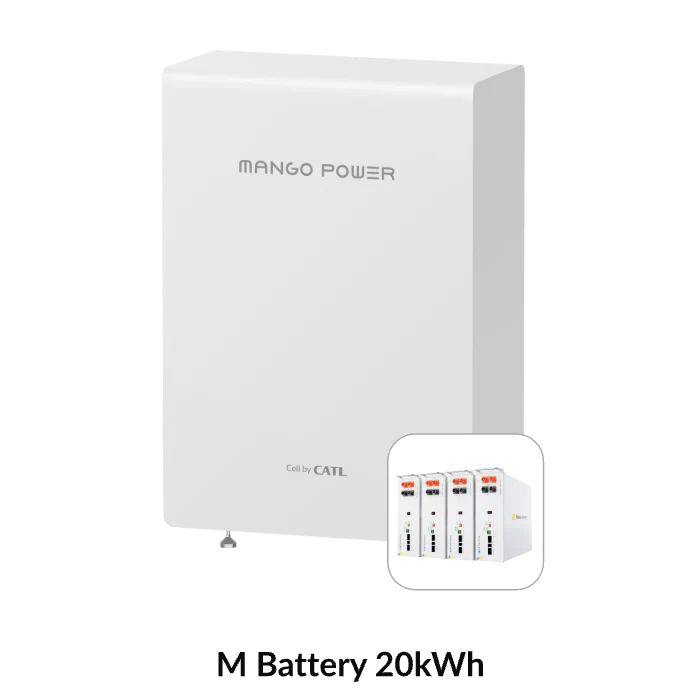

    Capacity From 1~4 M Battery packs
    Weight 114.2lbs (51.8kg)
    Size 31.5x15.4x46.3in (800x390x1182mm)
    Cabinet installation

    M-slide-a-way for easy installation



    Features and Certification

    RSD/AFCI PV rapid shut down integrated
    Integrated disconnection DC switch
    Grid-following Grid-tied
    Grid-forming Micro-grid

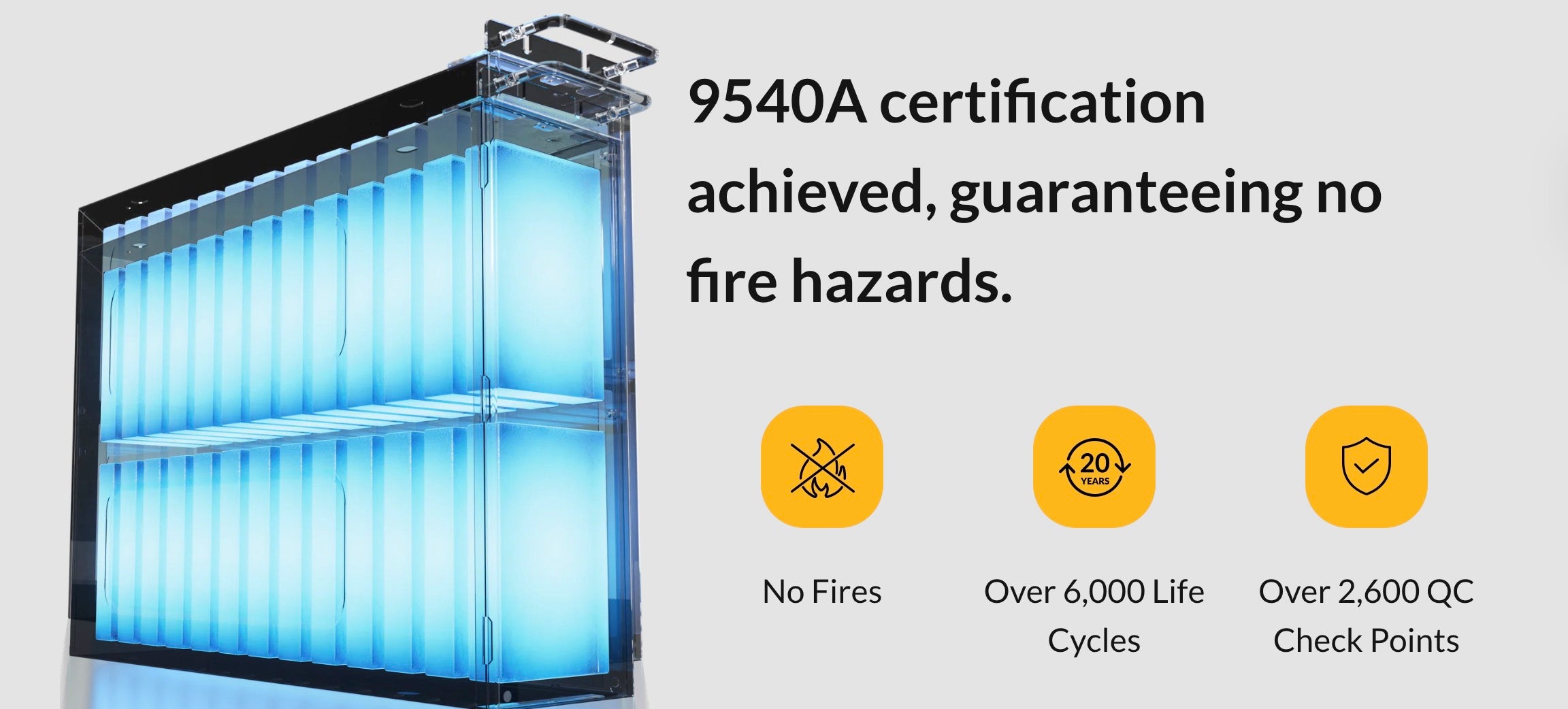

    Certification CA rule21 UL1741/IEEE1547/UL1973/UL1642/UL9540&UL9540A
    Generator Smart control by AGS(Auto Generator Start)10800W for generator ,120V Maximum 90A
    Home backup Whole and partial home backup

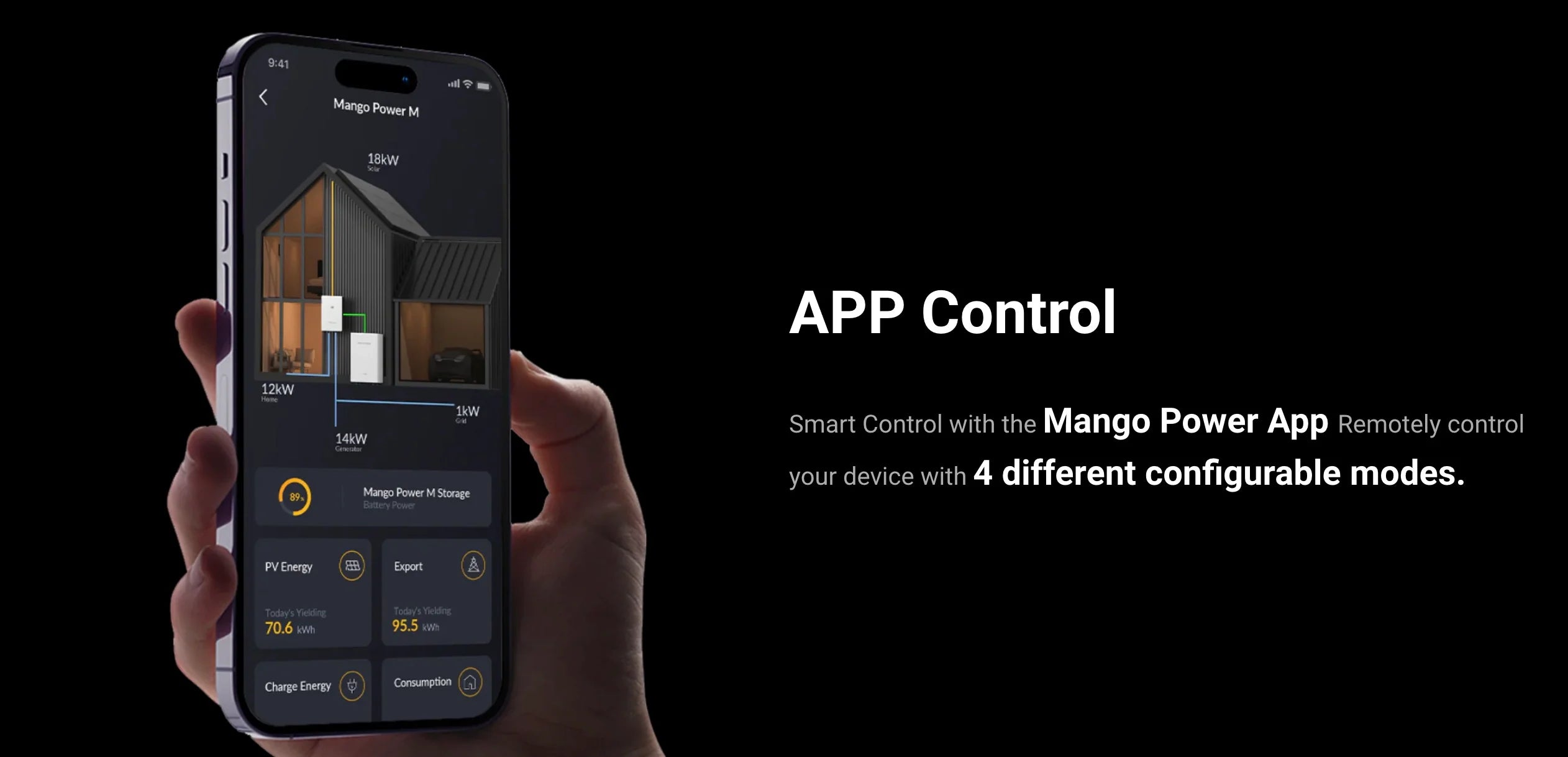

    Smart control MANGO POWER App download from APP Store or Google Play
    System design AC coupled and DC coupled
    Grid type 120V/240V/208V Split-phase L1,L2,N,PE(single phase)
    Inverter Working Temperature -13℉ to 140℉>113℉ derating(-25℃ to 60℃>45℃ derating)
    Size 36.4x23.7x11.9in (925.6*606*301mm) for M Power Hybrid Inverter,
    31.5x15.4x46.3in (800x390x1182mm) for M Cabinet
    Weight 119.9Ibs (54.4kg) for M Power Hybrid Inverter, 103.6lbs (47Kg) for M Battery,
     114.2lbs (51.8kg) for M Cabinet
    Installation Ground placed and slightly wall mounted
    Noise <50dB ( Do not install Power M next to the wall of bedroom)
    Environmental category/UV expose rating NEMA type 4X/IP65 outdoor rated
    Relative humidity 0%-100%(condensing)
    Altitude <2000m
    Warranty The product retains 70% of its available capacity within 6 months
    after the date of manufacture or 10 years after the date of completion of installation and commissioning
    View full details

    How Does Mango Power M Benefit Our Life?

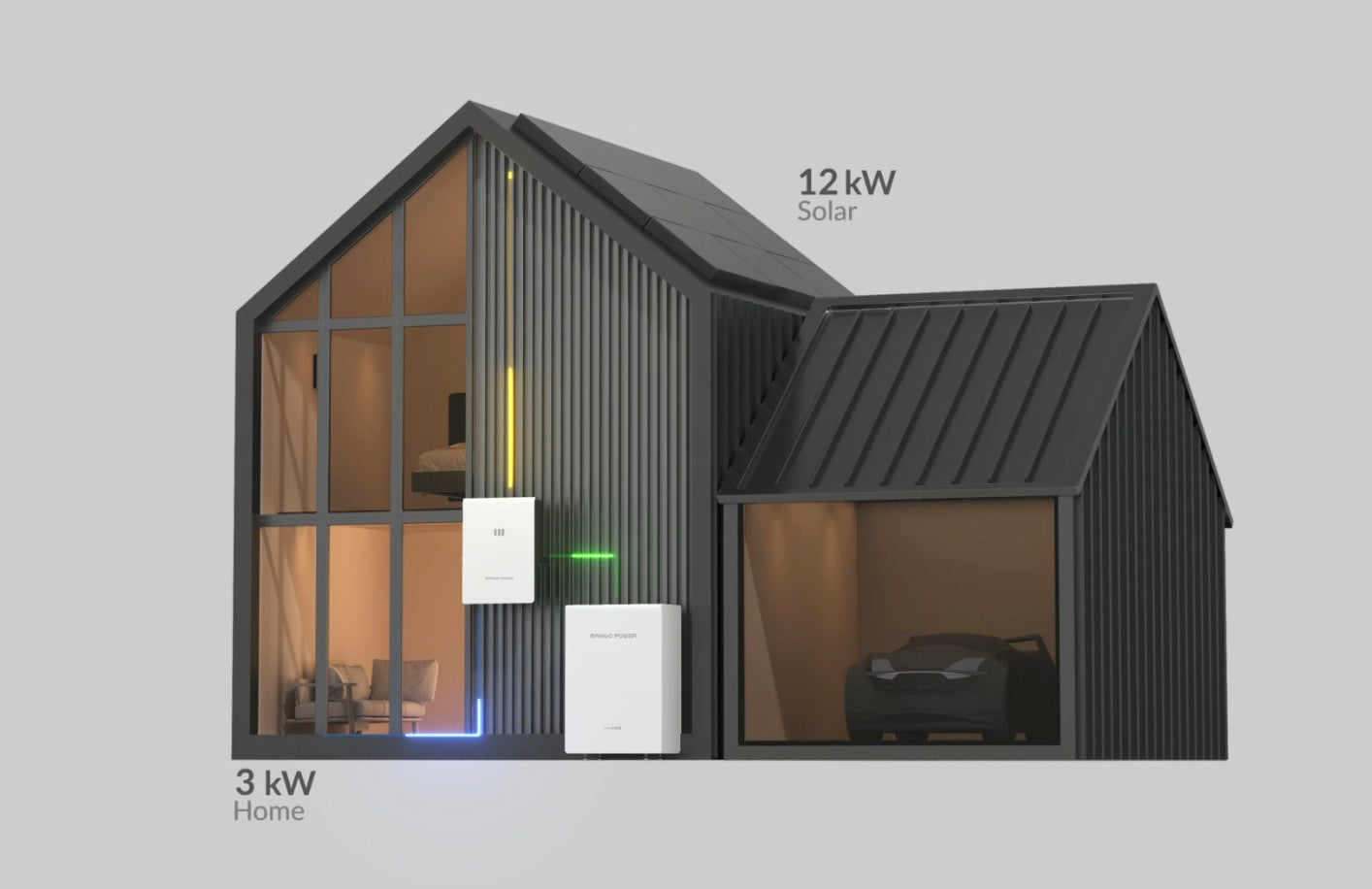

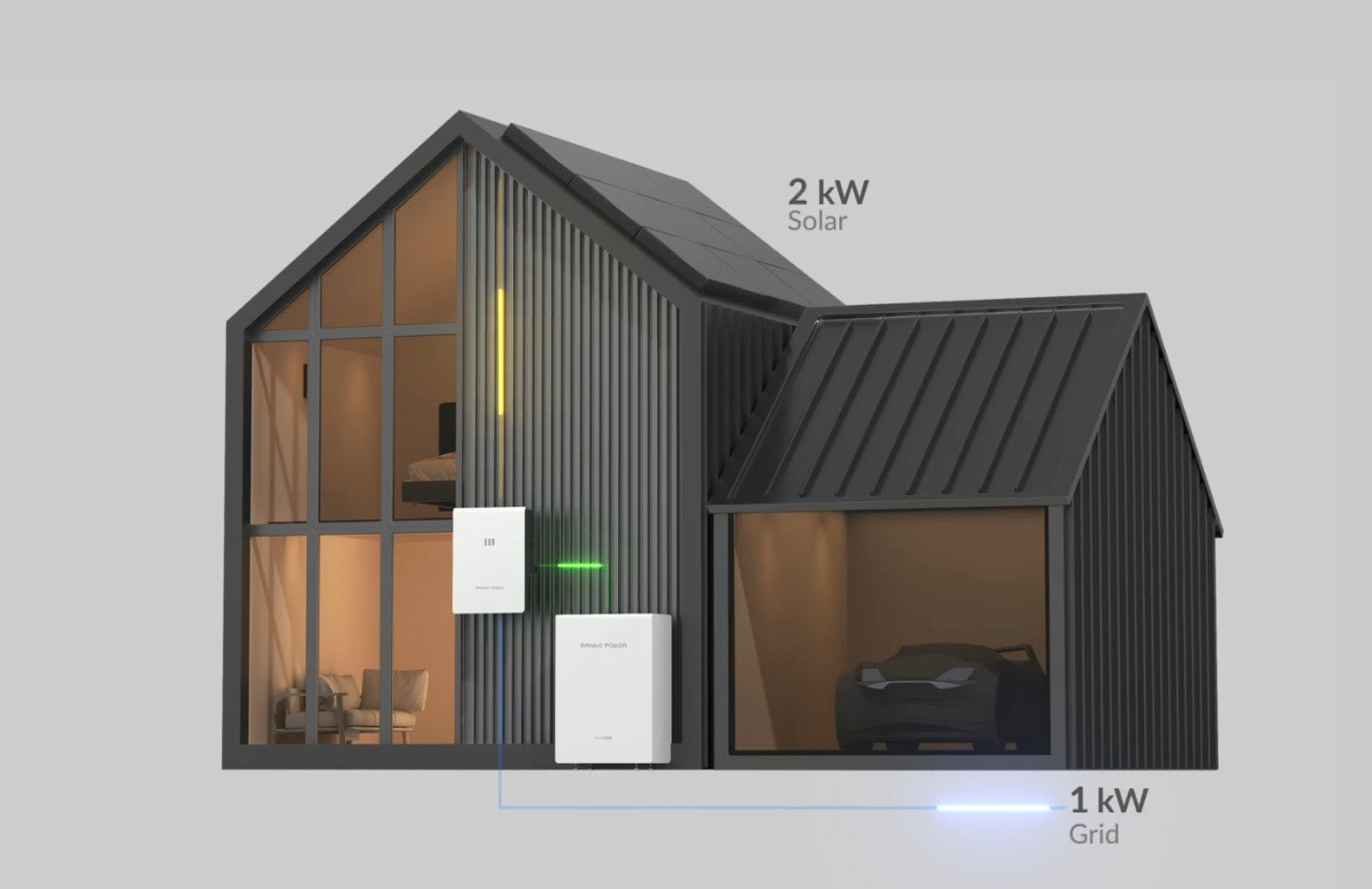

    Energy Storage

    Use the sun's unlimited power to generate and store energy for your entire home. While solar panels typically soak up the sun during the day only, the Mango Power M ensures that energy is continuously being stored in its battery system - even without a sunny sky. This keeps your home's energy stable and consistent.

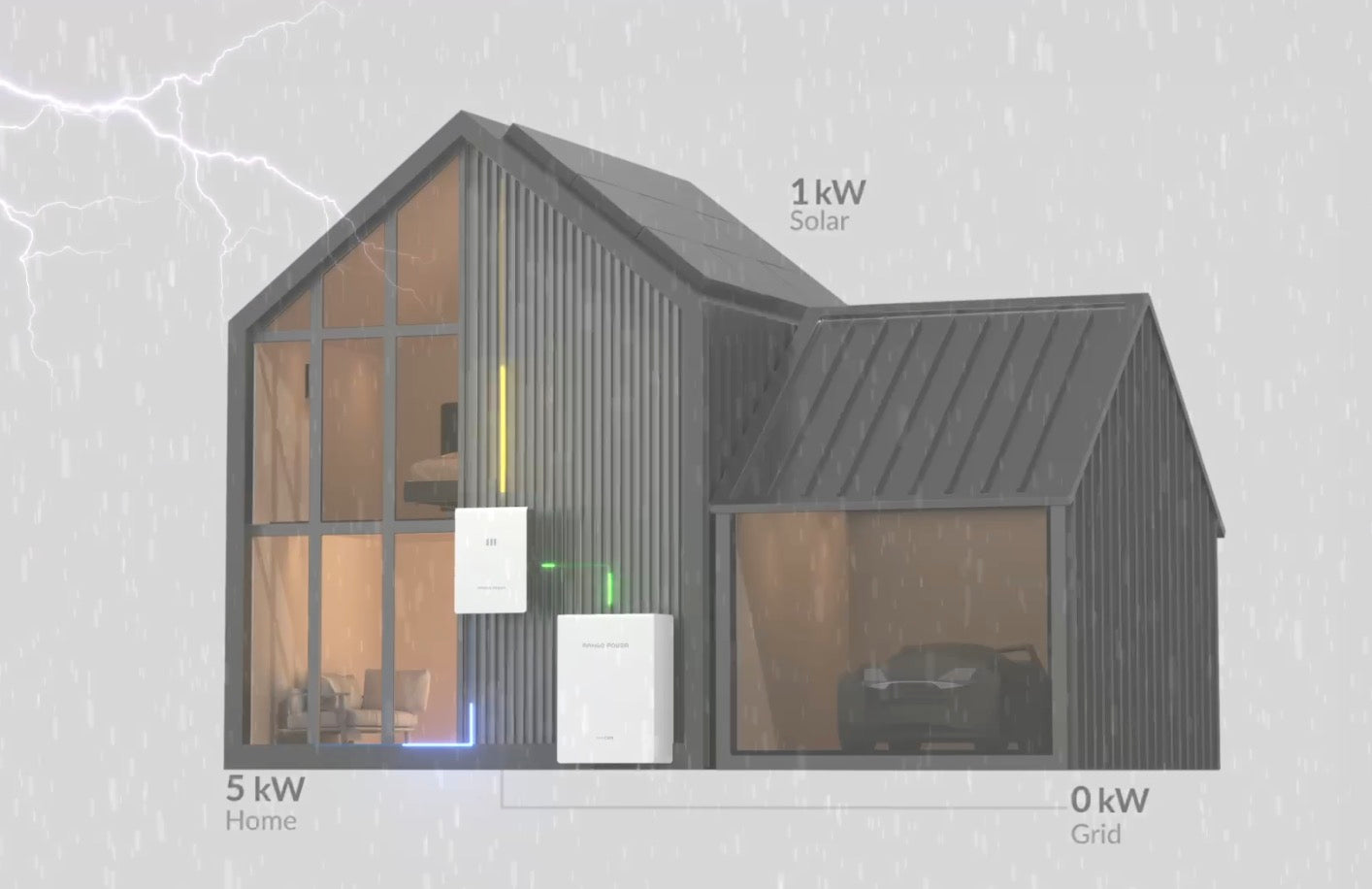

    Providing Power During Outages

    Supply seamless backup power the moment the grid goes down. Throughout stormy weather, power fluctuations, or natural disasters - you can rely on the Mango Power M to keep the lights on in your home.

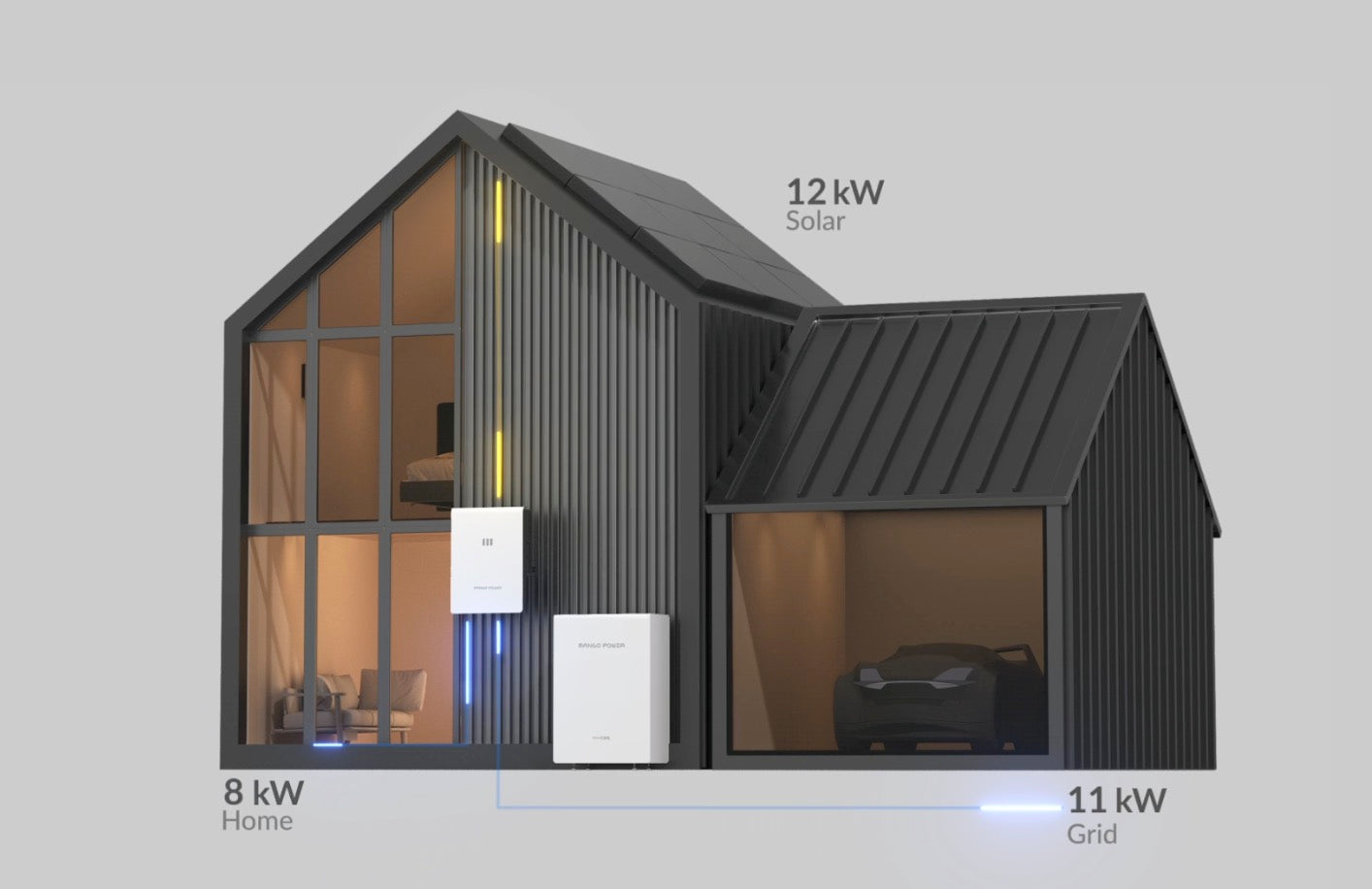

    Sell Electricity to the Grid

    Invest in an energy solution that pays you for the excess power you generate. The Mango Power M will keep storing energy and then send it back into the grid according to the regulations of your local utility provider.

    Time-Based Peak Shaving

    In this mode, your Mango Power M will keep your home's power running when power levels are being reduced during peak periods. This feature can also be adjusted according to your the peak shaving in your area to ensure seamless energy.

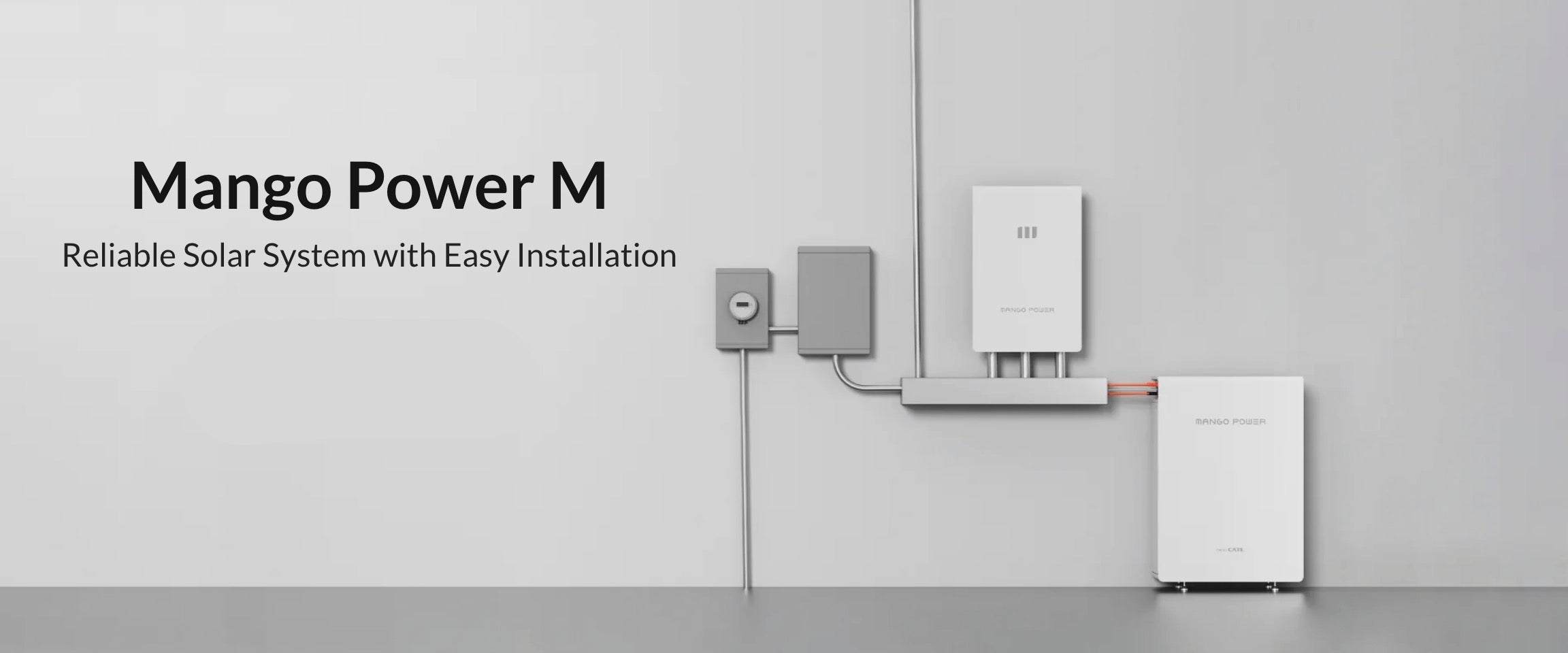

    The Mango Power M is a complete, All-in-One Modular Home Backup Power System, specifically designed with installers in mind. This easy-to-install system, accommodating solar, grid, and generator inputs, is equipped with the world's top CATL LFP batteries. With industry leading 24kW peak and 12kW continuous output, and is scalable from 15kWh to 80kWh. The system can be installed and commissioned in under three hours.

    NEM 3.0 ready

    California residents can use the Mango Power M to take advantage of NEM 3.0. Export power to the grid at the optimal time for maximum economic benefits. Mango Power M can also be installed in a grid-tied, self-consumption configuration, without backup, for a lower upfront investment and faster payback period.

    1 of 2

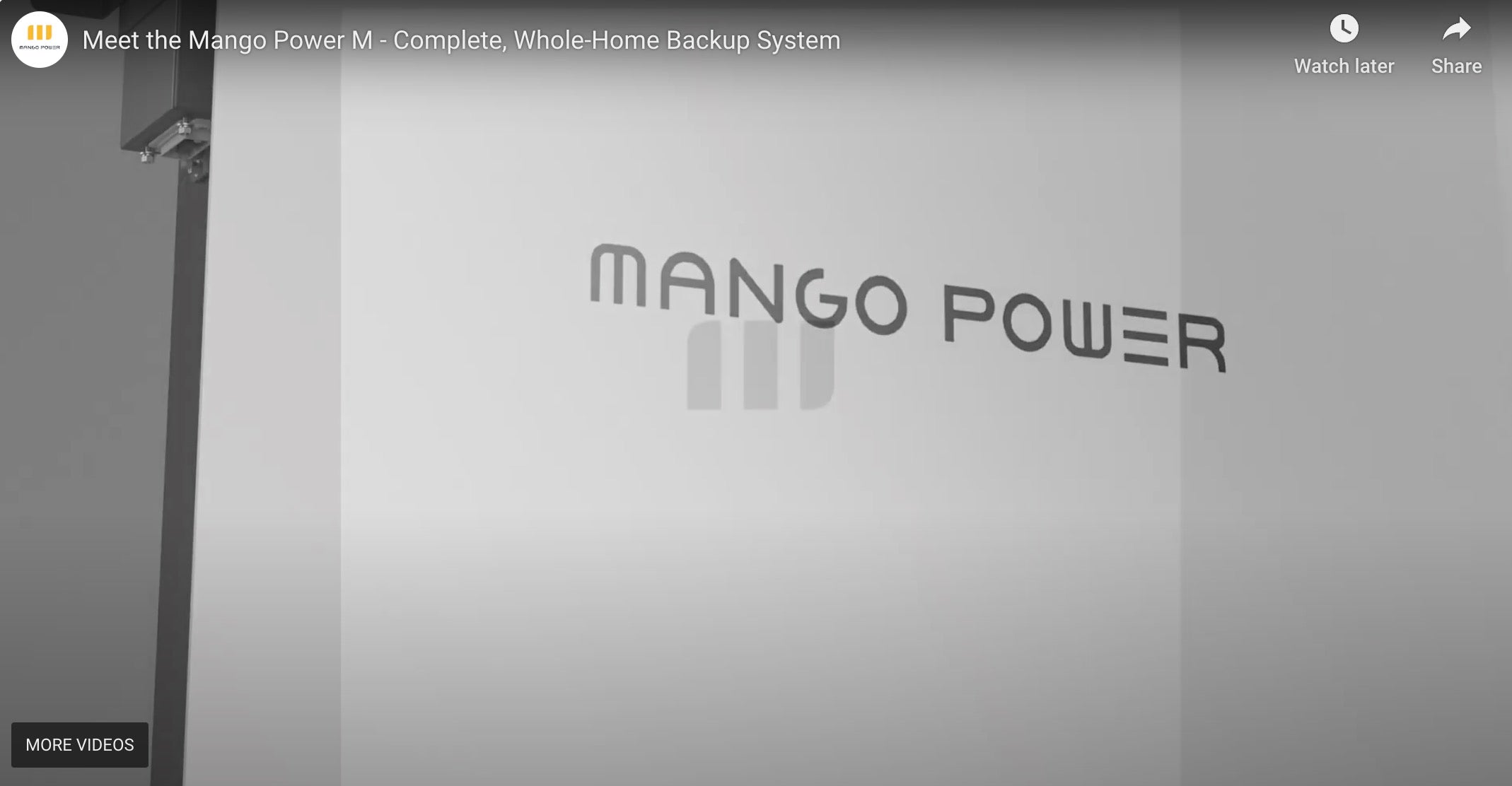

    Meet the Mango Power M - Complete, Whole-Home Backup System

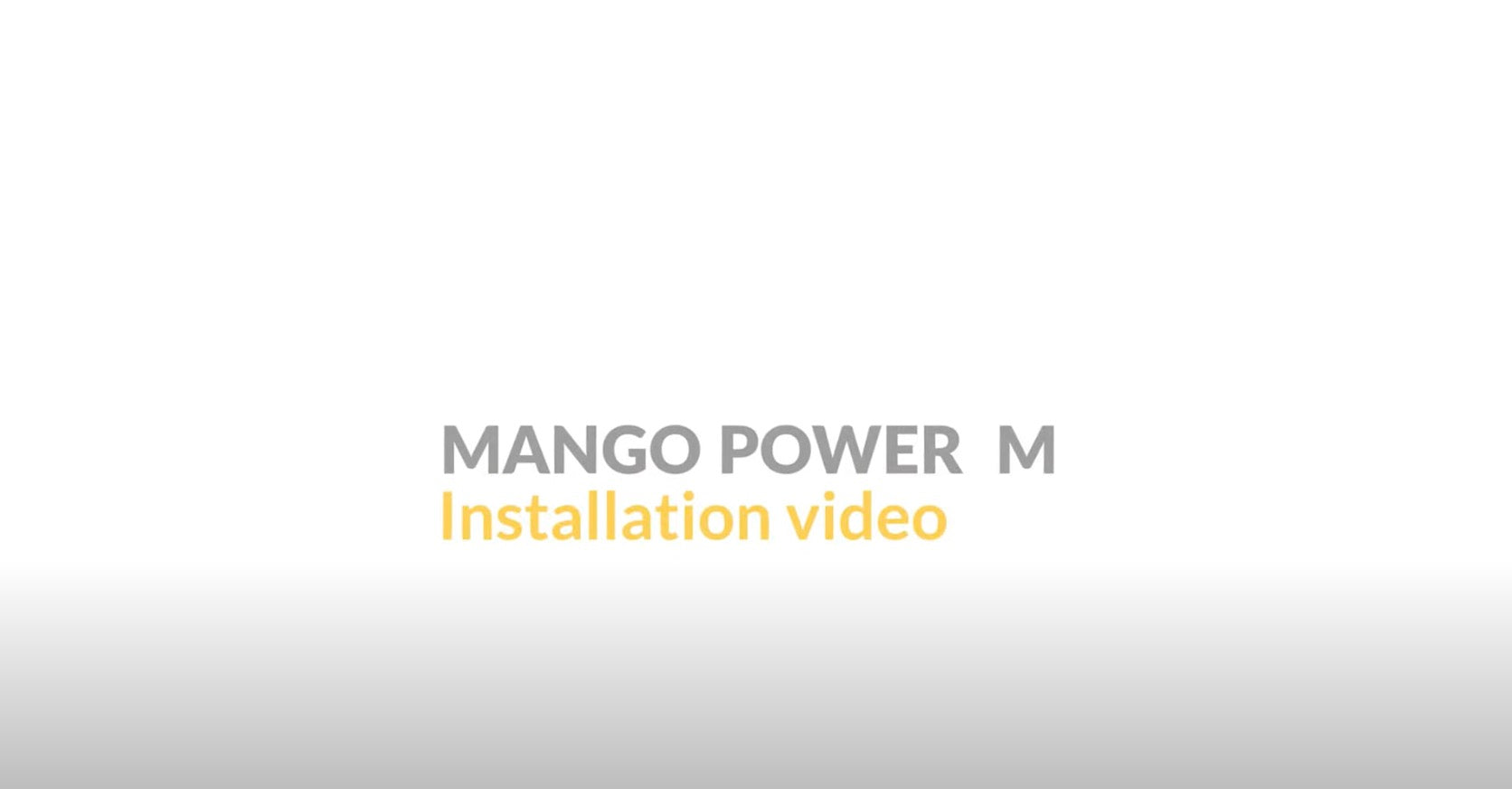

    Mango Power M Complete Installation Guide - Tutorial Video

    Mango Power M Manuals

    Mango Power M inverter User Manual_M Hybrid Inverter 5kW&6kW

    Warranty Card-AU-M Hybrid Inverter 5kW&6kW

    M LFP Battery 280Ah User Manual

    Datasheet M LFP Battery 280Ah

    MSDS-M LFP Battery 280Ah

    MSDS-M LFP Battery 280Ah

    Warranty Card-M LFP Battery 280Ah
