Jackery

Jackery SolarSaga 500 X Solar Panel

Jackery SolarSaga 500 X Solar Panel

Regular price $799.00 USD
Regular price $999.00 USD Sale price $799.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Jackery Shipping,Returns,Refunds & Warranty

Return & Refund Policy

Return Policy

Jackery offers a 30-day return policy,
starting from the date you receive your order, for products purchased directly
from the Jackery website and Jackery’s Amazon Store. Customers who purchased
from retailers or channels other than the Jackery website or Jackery Amazon
store and wish to return their product for a refund should first review the
return and refund policy of the respective retailer. For further questions or
assistance, please contact our customer support team at info@ecopowerit.com and
provide your order details. Products that are custom-configured or branded to
your specifications are not eligible for return.

You can initiate the return by reaching out to our customer support team at info@ecopowerit.com,
and provide your order information and reason for return. Please do not ship
the return items to us without initiating the return.


Returns for Refunds

We are confident that you will love your new Jackery product. However, if you
are unsatisfied for any reason, Jackery offers a 30-day return policy, starting
from the date you receive your order, for products purchased directly from the
Jackery website and Jackery’s Amazon Store. There are a few important things to
keep in mind when returning a Jackery product:

1. Customers who purchased from retailers or channels other than the
Jackery website or Jackery Amazon store and wish to return their product for a
refund should first review the return and refund policy of the respective
retailer. For further questions or assistance, please contact our customer
support team at info@ecopowerit.com and provide your order details.

2. Products that are custom-configured or branded to your specifications
are not eligible for return.

3. To initiate the return, please reach out to our customer support team
at info@ecopowerit.com, and provide your order information and reason for
return. Once your return request is processed, we will provide you with a
Return Merchandise Authorization (RMA) number. When you ship out the return
package, please be sure to write the RMA number clearly on the shipping label
on the outside of the package. Do not write the RMA number on the actual box.
Packages without an RMA number on the return shipping label will not be
accepted by our warehouse.

4. Please ensure that the item you are returning is in its original
condition. For items returned not in their original condition, a restocking fee
will be applied and deducted from the refund amount. Please refer to the fourth
section, titled 'Return/Replacement Shipping Requirements,' for additional
details on the return shipping steps.

5. Jackery will cover the shipping cost for returns for the following
reasons: defect product, delayed shipping, or damaged package. For returns due
to all other reasons, return shipping and handling fees will be deducted from
the refund amount.

6. In order to avoid any trouble caused by the package when you return it,
it is recommended that you keep the original packaging for at least 30 days.

7. Once Jackery receives your item, a refund will be processed within 10
business days. The refund will be processed through your original payment
method. It may take some time before your refund is posted on your bank account
or credit card statement. If you haven't received a refund within this period,
please first check your credit card transaction or bank account again. For
refunds to credit cards, please allow an extra 7-10 business days for a credit
to appear on your credit card statement. Thereafter, please contact your bank
and credit card company to verify whether the refund has been received. If you
have done all these and still have not received our refund, please contact as
at mailto:info@ecopowerit.com

Replacement Policy

Jackery will not be responsible for any lost packages shipped
using a previously used return label.

FedEx, UPS, or USPS may initially accept a package
with a duplicate or previously used return label when dropped off. However, the
package is likely to be stopped and discarded by the carrier during transit.
Tracking may show the package as delivered when, in reality, it was never
actually delivered.

Please ensure to follow the below return shipping
requirements

1. Jackery provides free return shipping
labels for RMA returns—one package per label. Please ensure the correct label
is placed on the corresponding box by referring to the shipping weight printed
on each label. Each shipping label is intended for one-time use on a single
package.

2. Securely package your return items in the
original packaging and shipping box to prevent damage during transportation.

3. Include all parts, accessories, and
documentation in the package.

4. Write the Return Merchandise Authorization
(RMA) number provided to you by us clearly on the shipping label on the outside
of the return package. Do not write the RMA number on the actual box. Packages
without an RMA number on the return shipping label may not be accepted by our
warehouse.

5. Ship the unit within 15 days of receiving
Jackery’s RMA.

6. For Amazon customers, the Amazon
Authorized Return slip with a barcode is not a shipping label. You must contact
Jackery’s customer support team at info @ecopowerit.com to
obtain an RMA number from Jackery, and we will send you a Jackery prepaid
return label.

Extend Your Warranty

Product Registration Form

  • 5 Years Warranty at jackery.com
  • 30-Day Money Back Return
  • 2-5 Business Days Free Shipping

Jackery SolarSaga 500 X Solar Panel

500W High Output

Delivers a full 500W output for faster solar charging and fewer grid cycles — ideal for high-demand power needs.

25% Conversion Efficiency

TOPCon bificacial technology captures direct and reflected light from both sides for high energy yield in real-world conditions.

Extreme Weather Durability

Engineered for −40 °C to 85 °C (-40 °F to 185 °F) and IP68 water/dust protection — built for extreme environments, including winds up to level 10 with M-shaped array and ground stake design.

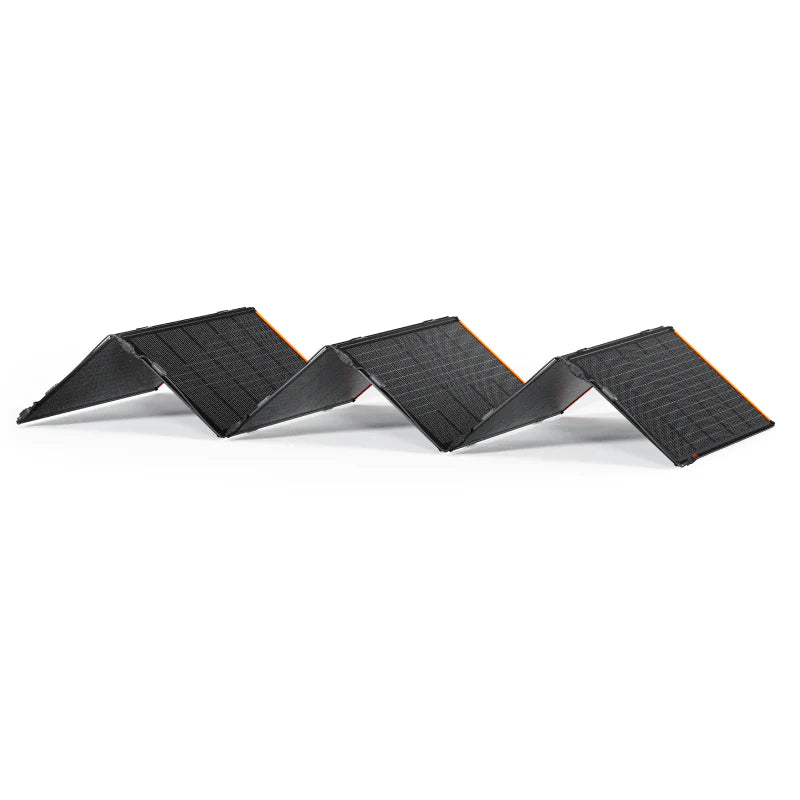

Foldable & DIY-Friendly

Lightweight, foldable design and easy connectors let you install on rooftops, balconies or fields with minimal hassle.

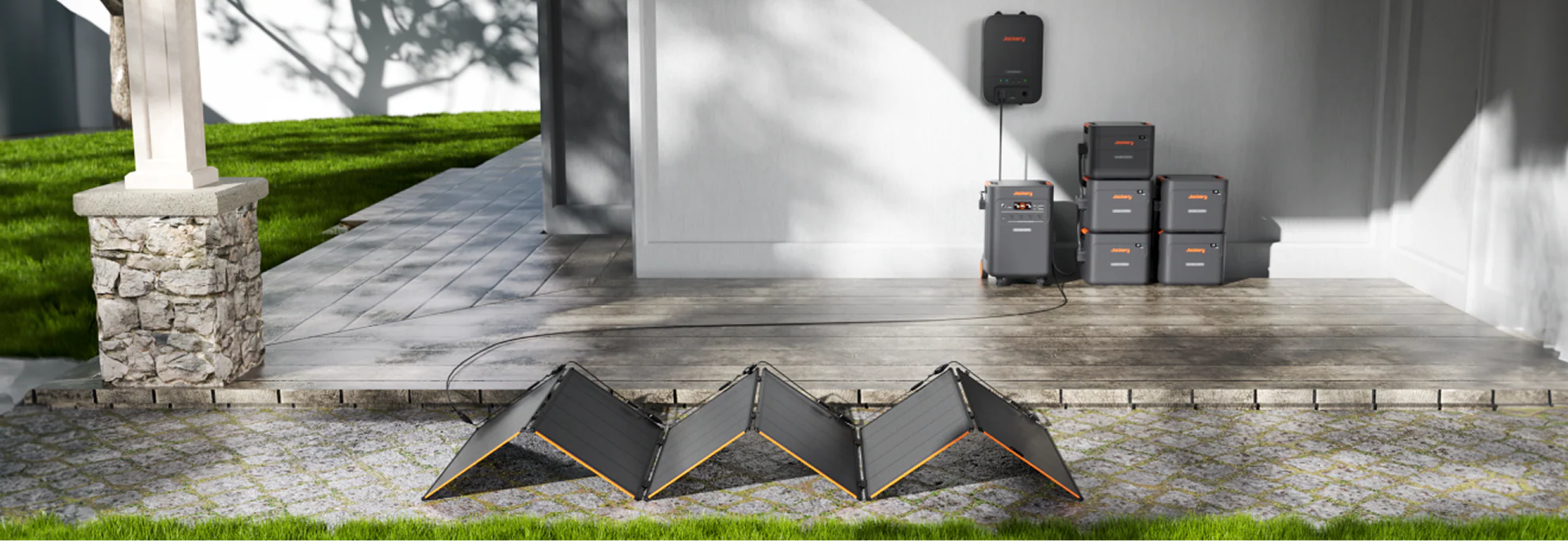

Scalable System Design

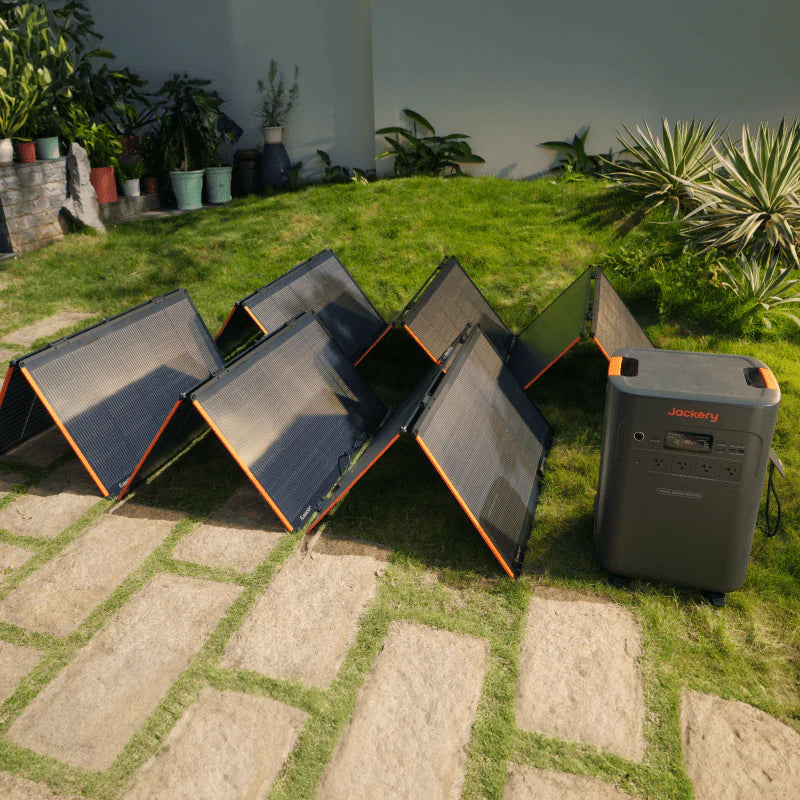

Works solo or connect up to six (6) panels together — compatible with power stations for flexible DIY setups that scale with your needs. To maximize solar panels'power output. Do not connect more than six 85W solar panels in parallel to a single DC8020 input port.

Wide Compatibility

SolarSaga 500X is compatible with the Explorer 5000 Plus, 3000 Pro, 2000 Plus, 1000 Plus, and 1000 2.

Extended Reach

extend the distance between your solar panels and the power station, you can purchase one or multiple 5m DC extension cables and a single DC8020 to DC7909 adapter.

Accessory Ready

To connect the SolarSaga with different Explorer portable power stations or other extension functions, please check the accessories it requires.

Specs

General

Weight: 22.05 Ibs ‡ 2.20 Ibs (10.5 kg‡0.5 kg)

Operating Temperature Range: -40~185°F (-40~85°C)

Protection Class Against Electric Shock: Class I|

Warranty: 5 Years

Waterproof: |P68

Solar

Maximum System Voltage: 600V DC

Maximum Reverse Current: 15A

Bifaciality Coefficient (back/front): Pmax>80%, Voc>97%, Isc>80%

Voltage Temperature Coefficient: -0.26%/°C

Power Temperature Coefficient: -0.32%/°C

STC (1000W/m, 25°C, AM 1.5)

Peak Power (Pmax): 500W=5%

Open Circuit Voltage (VOC): 48.5V+5%

Short Circuit Current (Isc): 13.02A+5%

Power Voltage (Vmp): 41.7V=5%

Power Current (Imp): 12.0A+5%

BNPI (Front 1000W/m, Rear 135W/m, 25°C, AM 1.5)

Peak Power (Pmax): 545W=5%

Power Voltage (Vmp): 42.5V‡5%

Open Circuit Voltage (Voc): 49.2V+5%

Power Current (Imp): 12.84A‡5%

Short Circuit Current (Isc): 13.86A+5%

Dimensions

Folded: Around 39.21 × 20.71 × 3.82 in (996 × 526 x97mm)

Unfolded: Around 98.15 × 39.21 × 11.57 in (2493 × 996 x 294mm)

View full details

What is Solar Panel & How it works

POWER & SAVE MONEY

Harness Sustainable Power

500W high-efficiency TOPCon cells convert sunlight into clean, everyday power.

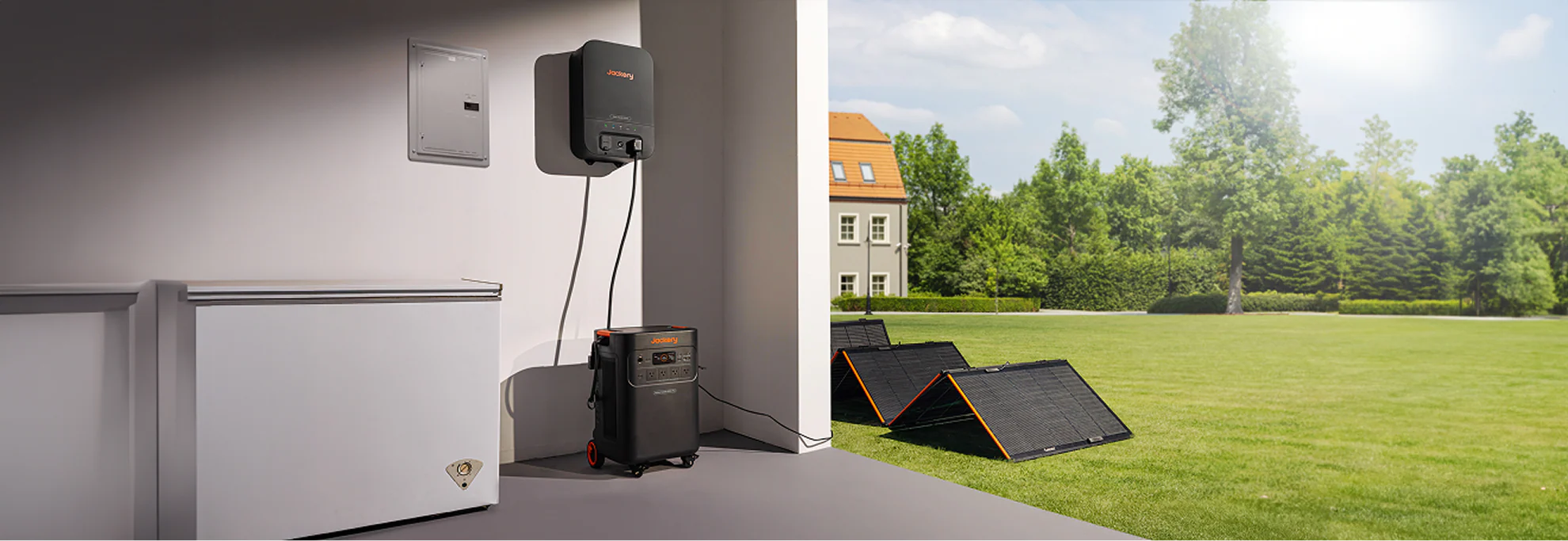

Charge Without the Grid

Keep your power station charged with solar — cutting reliance on the grid and using free sunlight every day.

Save on Energy Costs

Lower utility costs and extend off-grid power by pairing solar panels with storage — delivering quiet, consistent savings.

WHY SOLARSAGA 500 X

PRODUCT DETAILS

User Manual

Explorer SolarSaga 500 X User Manual

Jackery Solar Generator Connection Guide

FAQ

Can the 500 X unit be mounted on a roof?

The SolarSaga 500 cannot be installed on a residential rooftop.However,It may be installed using non-permanent mounting methods (such as straps, brackets, or screws) on structures like balconies, railings, patios, or carports, provided that such installations comply with local regulations.

What is the operating temperature range of the SolarSaga 500 X?

After use, fold the solar panels and store them in the provided storage bag. Ensure the panels are kept in a dry place, avoiding exposure to corrosive substances or physical damage during storage.

How should the SolarSaga 500 X be stored?

The SolarSaga 500 X can be used to charge power stations such as the Jackery Explorer 5000 Plus, 3000 Pro, 2000 Plus, 2000 v2, 1000 Plus, and 1000 v2.

Can the SolarSaga 500 X be left outdoors permanently?

Do not immerse the panels in water. Instead, clean them with a damp cloth. Avoid using corrosive substances or abrasive materials that might scratch the panels.

How do I clean the SolarSaga 500 X panels?While the panels are designed for outdoor use, it is recommended to retract or store them during extreme weather conditions, such as strong winds or hail, to prevent damage.

While the panels are designed for outdoor use, it is recommended to retract or store them during extreme weather conditions, such as strong winds or hail, to prevent damage.

Is the exterior material fireproof?

What is the fire-proof level?It uses the highest 94V-0 fireproof material required by American UL

Why can't the 5000 Plus charge via AC input?

When connected to the STS, the 120V AC input cannot be used to charge the E5000 Plus.

How long can the 5000 Plus power common household appliances?

The runtime of the Jackery 5000 Plus depends on the power consumption of the appliances being used.For example, a 170L household refrigerator (15–520W) can run for approximately 8 hours in freezing mode and up to 110 hours in insulation mode. A compact refrigerator (90W) can operate for about 26 hours.A central air conditioner (2200–3050W) can run for around 2 hours in cooling mode and 1.7 hours in heating mode, while a wall-mounted AC unit (900W) can run for about 4.5 hours.These figures are based on Jackery lab tests and may vary depending on the actual power draw of the appliances and environmental conditions. The data is for reference only.

Can the 5000 Plus be connected to third-party solar panels, generators, or fuel-powered devices?

Yes, the Jackery 5000 Plus can be connected to third-party solar panels or fuel-powered generators, provided they meet the required input interface and connection standards. For safe and efficient operation, please ensure the voltage, current, and connector type are compatible with the Jackery 5000 Plus. Detailed input specifications can be found in the product’s technical parameters.While third-party access is possible, Jackery recommends using official accessories to ensure optimal performance and maintain warranty coverage.

How many functional modes does the Jackery 5000 Plus have?

The Jackery 5000 Plus features five functional modes to improve user convenience and battery performance:

1. Quiet Charging Mode – This mode reduces charging power and slows down the charging speed to significantly lower noise levels. It can be enabled or disabled in the Jackery App.

2. Battery Saving Mode – When activated, this mode limits the available battery capacity to extend the lifespan of the battery cells. It can also be managed through the Jackery App.

3. Energy Saving Mode – Enabled by default, this mode prevents unnecessary battery drain by automatically turning off all outputs after 12 hours when no device is connected or if the connected load is minimal (AC Output ≤ 25W, USB Output ≤ 2W, Car Output ≤ 2W).

4. UPS Mode- Connect the product to a wall outlet with the AC charging cable, then press the AC output button and power your appliances at the same time . The backup UPS function is enabled by default. In the event of a sudden loss of mains power, the device will automatically power up your appliances with the stored power within 20 ms.Please note:① The NEMA L14-30R and NEMA 14-50 outputs cannot be used in Bypass mode when the product is connected to a wall outlet with the AC charging cable.② The system settings will return to backup UPS mode once the product restarts in online UPS mode

5. Charging Mode - supports 4 major charging methods: ① Charging via AC Wall Outlet ② Charging via Smart Transfer Switch ③ Charging via Solar Panels ④Charging via Car Charger. Please note: Fully charge the device before its first use.
