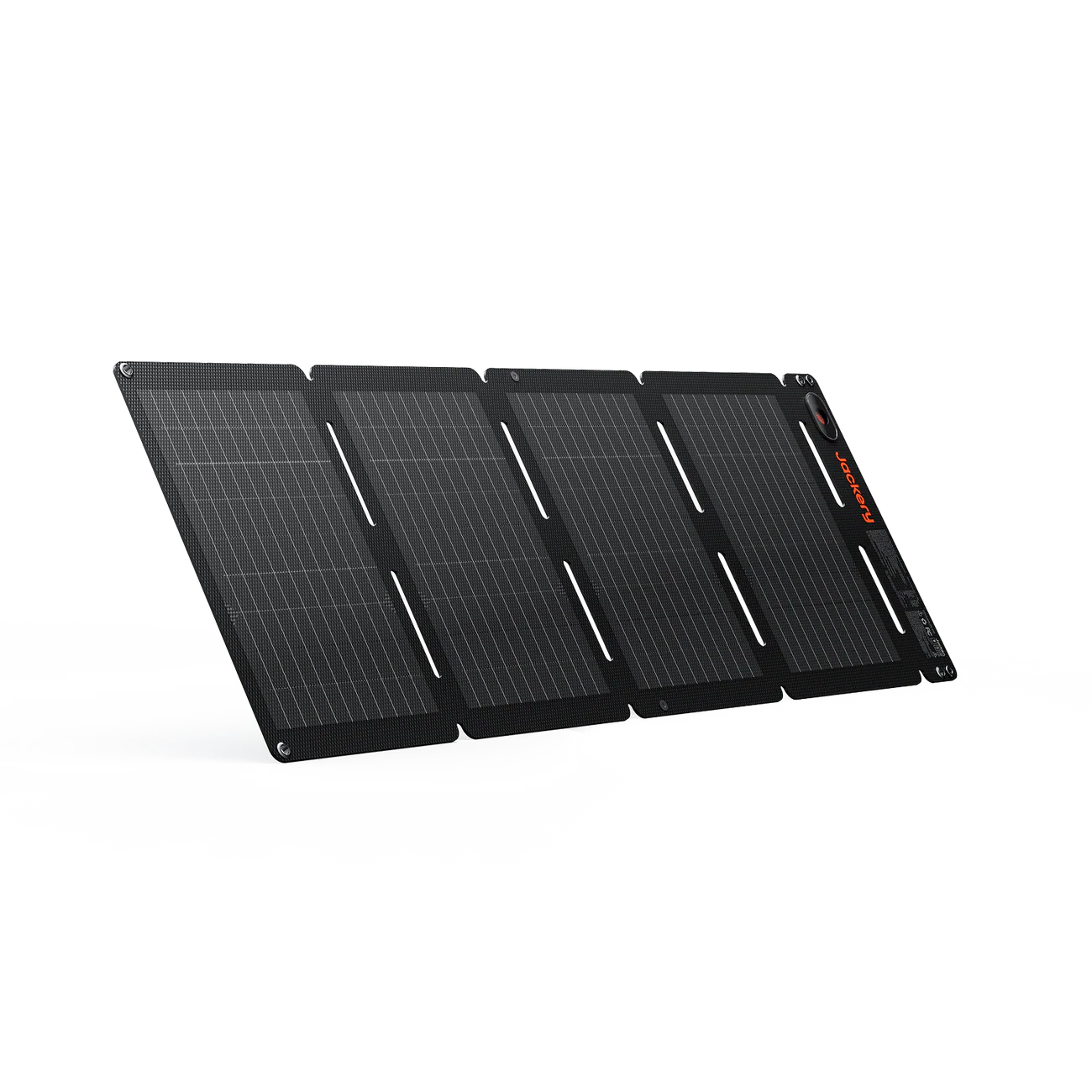

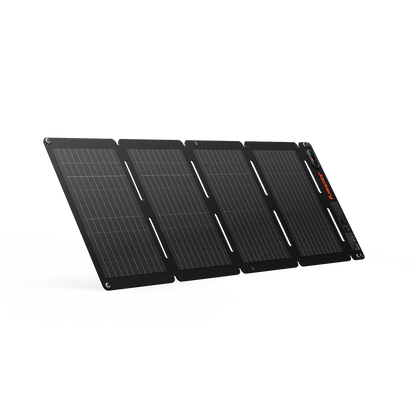

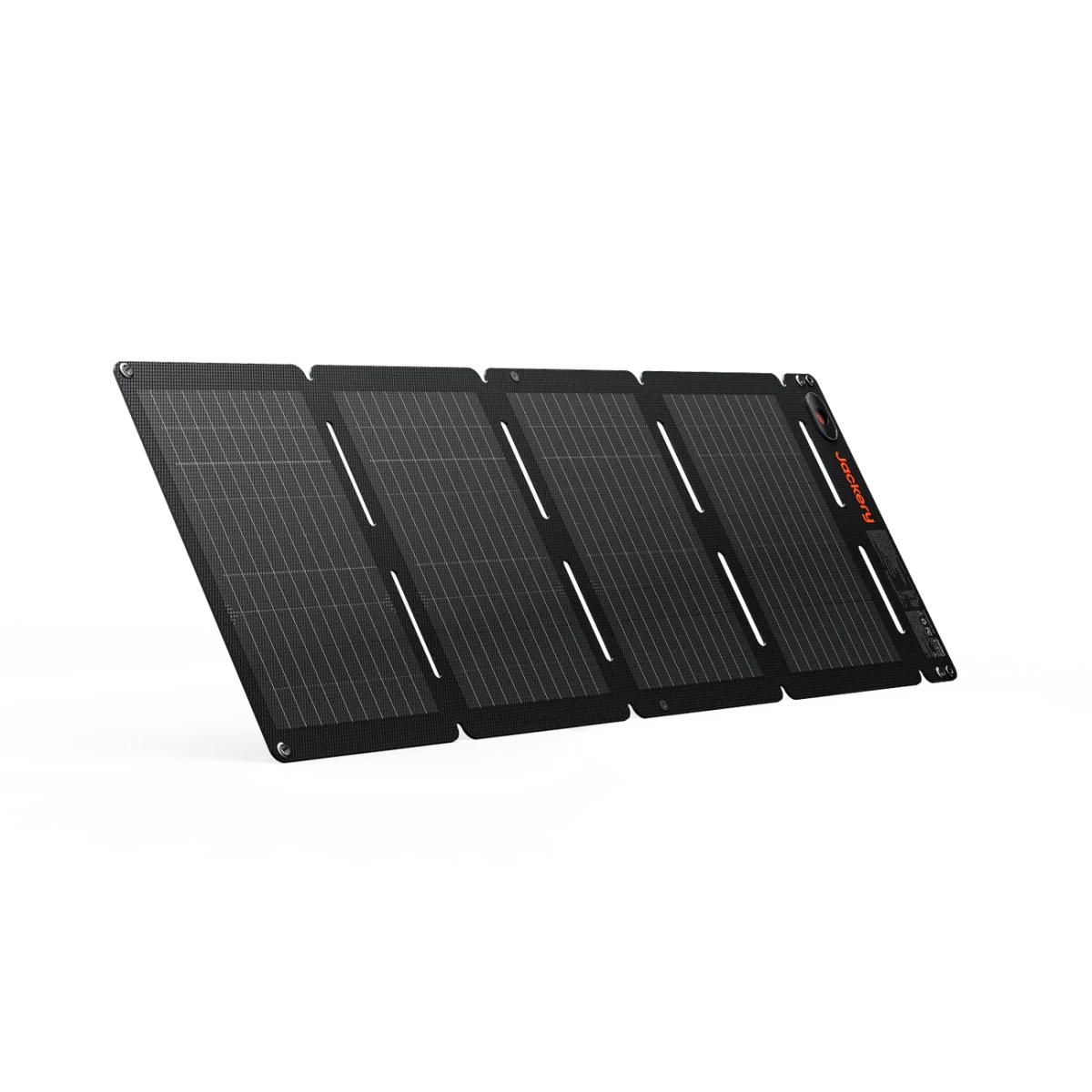

Jackery SolarSaga 40 Air Solar Panel
Ultra-Light 0.9 kg Design | Easy to Carry Anywhere
23% Bifacial Efficiency | More Power in Limited Sunlight
IP68 Waterproof & IEC-Certified | Reliable in Extreme Weather
Four-Corner Mounting System | Hang, Strap, or Attach Anywhere
Dual USB Direct Charging | Phone & Gear Power Anytime

The Jackery SolarSaga 40W Air is a lightweight, portable solar panel with 23% bifacial efficiency, IP68 weatherproof protection, and flexible mounting. With USB-C and USB-A ports, it delivers reliable outdoor and off-grid charging for phones and small devices.
Features Summary

IP68 Weatherproof with 4-Point Mounting

Built for real outdoor conditions, the 40W Air withstands water, dust, and temperatures from –4°F to 149°F. Four mounting holes with carabiners let you strap it to backpacks, tents, or trees for hands-free charging.
Direct USB Charging for Daily Essentials
Built for real outdoor conditions, the 40W Air withstands water, dust, and temperatures from –4°F to 149°F. Four mounting holes with carabiners let you strap it to backpacks, tents, or trees for hands-free charging.

Specs


Ports
USB-A Output:5V⎓2.4A
USB-C Output:5V⎓3A
Solar
Maximum System Voltage:30V
Maximum Reverse Current:6A
Bifaciality Coefficient (back/front):Pmax>65%, Voc>95%, Isc>65%
Voltage Temperature Coefficient:-0.3%/℃
Power Temperature Coefficient:-0.39%/℃
General
Weight:1.98 lb ± 0.44 lb (0.9kg ± 0.2kg)
Protection Class Against Electric Shock:Class Ⅲ
Waterproof:IP68
Operating Temperature Range:-4~149℉ (-20°C~65°C)
Warranty:1+2 Years
STC (1000W/㎡, 25℃, AM 1.5)
Peak Power (Pmax):40W±5%
Open Circuit Voltage (VOC):25V±5%
Short Circuit Current (Isc):2.07A±5%
Power Voltage (Vmp):20.5V±5%
Power Current (Imp):1.96A±5%
BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)
Peak Power (Pmax):44W±5%
Open Circuit Voltage (Voc):25V±5%
Short Circuit Current (Isc):2.3A±5%
Power Voltage (Vmp):20.5V±5%
Power Current (Imp):2.11A±5%
Dimensions

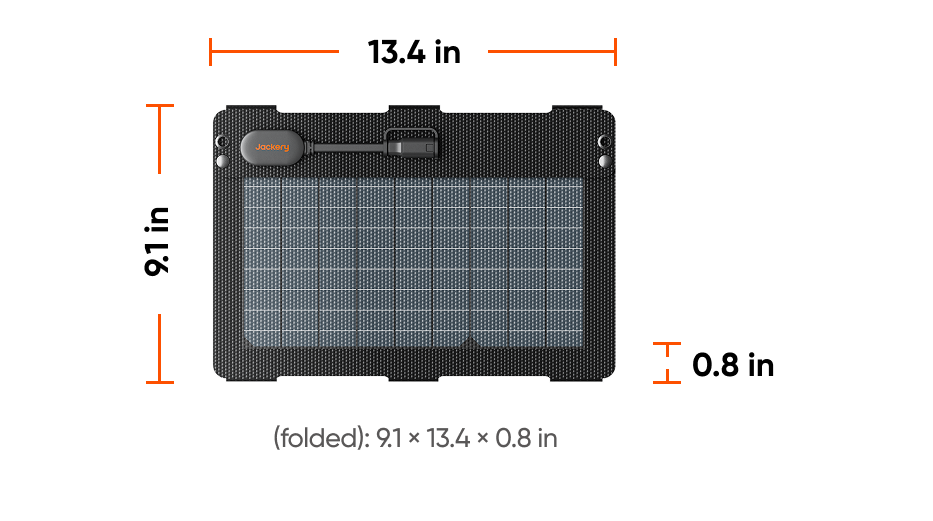

Folded:9.1 × 13.4 × 0.8 in (232 × 339 × 20 mm)

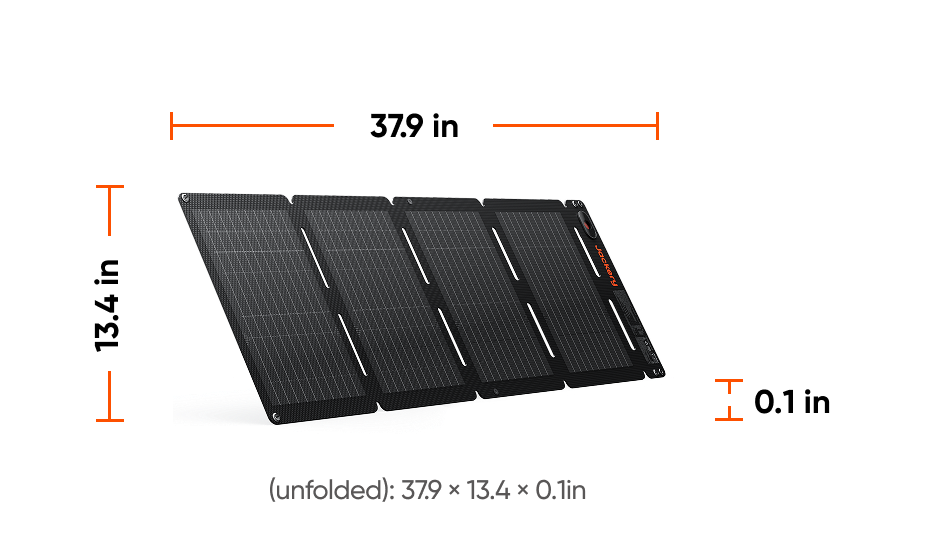

Unfolded:37.9 × 13.4 × 0.1 in (962 × 339 × 2.5 mm)
Jackery SolarSaga 40 Air User Manual
DOWNLOADNote
1. Solar Recharging time varies from different location, temperature, weather etc. The actual time may be different.
2. During solar recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.
3. Avoid contact with corrosive substances during storage, keep away from fire and heat sources. Avoid storing with sharp objects at the same time.
2. During solar recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.
3. Avoid contact with corrosive substances during storage, keep away from fire and heat sources. Avoid storing with sharp objects at the same time.
