HYSOLIS Pathfinder 3kW Off-Grid Inverter + Battery Storage + 440W Solar Panels Kits
The Pathfinder home backup system.
Generate and store your own energy with a reliable home backup system
The Pathfinder home backup system.
Kits Details

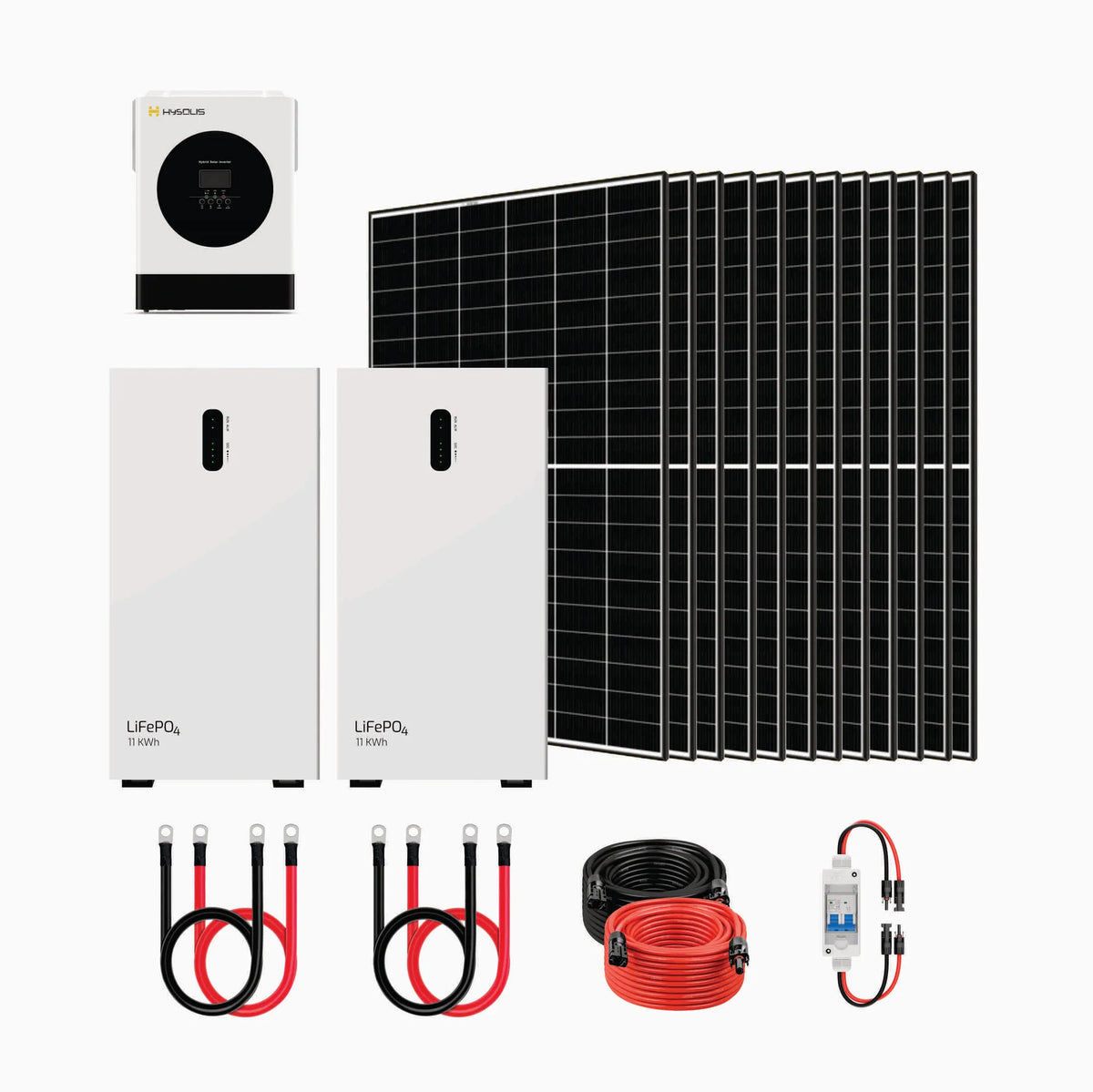

Pathfinder 3kW Off-Grid Inverter + 22.12kWh Battery Storage + 12x440W Solar Panels
Generate and store your own energy with a reliable home backup system featuring 22kWh of battery storage, 4,440W of solar input, and dependable 120V power output. Reduce your reliance on the grid while keeping essential appliances running during outages.
- (1) 3kW Off-Grid Inverter
- (2) 11.06kWh LiFePO4 Batteries
- (12) 435W Solar Panels
- (1) 40ft PV cable with MC4 connectors
- (1) PV Breaker

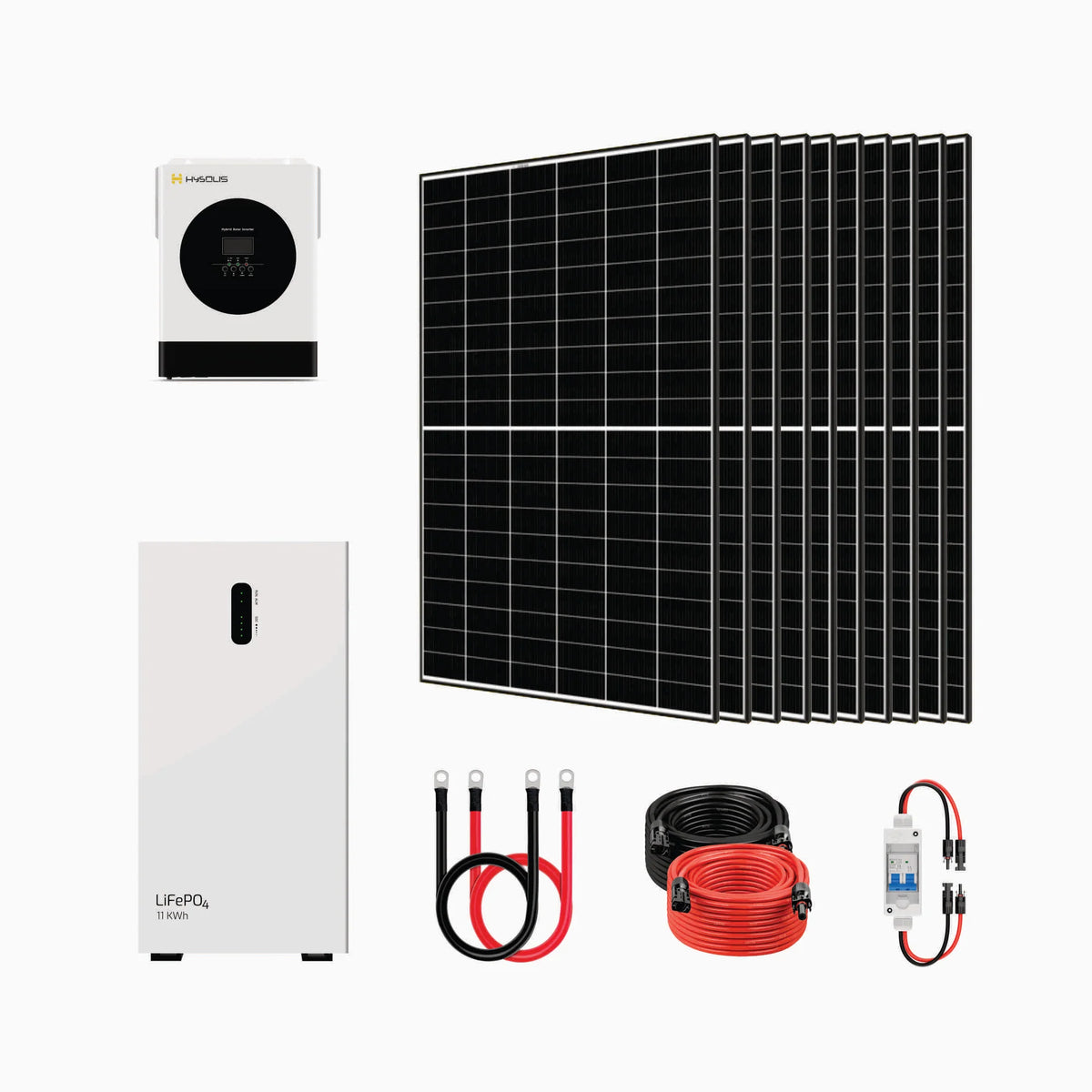

Pathfinder 3kW Off-Grid Inverter + 11.06kWh Battery Storage + 10x440W Solar Panels
Generate and store your own energy with a reliable home backup system featuring 11kWh of battery storage, 4,440W of solar input, and dependable 120V power output. Reduce your reliance on the grid while keeping essential appliances running during outages.
- (1) 3kW Off-Grid Inverter
- (1) 11.06kWh LiFePO4 Battery
- (10) 435W Solar Panels
- (1) 40ft PV cable with MC4 connectors
- (1) PV Breaker

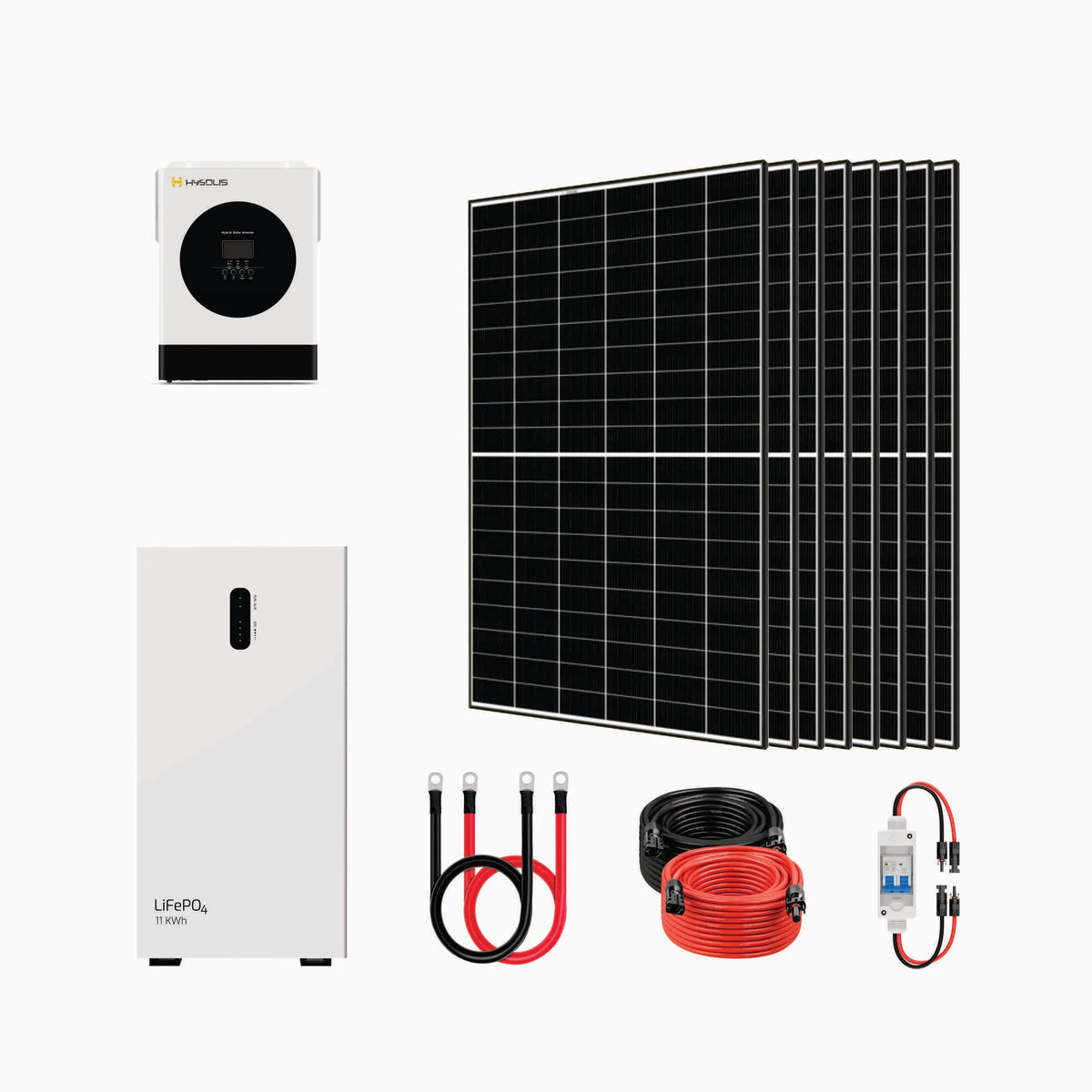

Pathfinder 3kW Off-Grid Inverter + 11.06kWh Battery Storage + 8x440W Solar Panels
Generate and store your own energy with a reliable home backup system featuring 11kWh of battery storage, 4,440W of solar input, and dependable 120V power output. Reduce your reliance on the grid while keeping essential appliances running during outages.
- (1) 3kW Off-Grid Inverter
- (1) 11.06kWh LiFePO4 Battery
- (8) 435W Solar Panels
- (1) 30ft PV cable with MC4 connectors
- (1) PV Breaker
Specification
Battery:
| Model: | HS2161611K-HP |
| Battery Chemistry: | LiFePO4 |
| Cell Type: | Grade A EV Cells |
| Nominal Voltage: | 51.2V |
| Voltage Range: | 45V–57V |
| Capacity: | 216Ah |
| Energy Storage: | 11.06kWh |
| Maximum Charge Current: | 216A |
| Maximum Discharge Current: | 216A |
| Maximum Units in Parallel: | 6 |
| Battery Management System: | 216A Smart BMS |
| Depth of Discharge: | 95% |
| Communications: | CAN / RS485 |
| Protection Rating: | IP20 |
| Charging Temperature: | 14°F to 131°F (-10°C to 55°C) |
| Discharging Temperature: | -4°F to 140°F (-20°C to 60°C) |
| Dimensions: |
40.2" × 20.5" × 9.5" |
| Weight: | 288 lbs |
| Installation: | Indoor Use |
| Assembly: | California, USA |
| Warranty: | 10 Years |
Inverter:
| Model: | HIP3000 |
| AC Input Voltage: |
65V - 140V Frequency 60 Hz or 50 Hz (Auto detection) |
| AC Charger: | 3,000W Solar Charger 4,400W MPPT Input (Manufacturer Warrantied Voc range 70V DC - 500V DC) |
| AC OUTPUT: | Voltage Range 120V AC +/- 5% (Inverter Mode) |
| Output Wave: | Pure Sine Wave |
| Efficiency: | >94%Frequency 60 Hz or 50 Hz +/- 1% (Inverter Mode)Transfer Time<20 ms (Typical load) |
| Warranty: | 2 Years |
Solar Panels:
440WHigh Conversion Efficiency Solar Panels
30-YEAR LINEAR POWER WARRANTY
10-YEAR PRODUCT WORKMANSHIP WARRANTY
