HYSOLIS|Complete 6KW Off-Grid Solar Power Station 120V/240V Split Phase Solar Energy Storage System
HYSOLIS|Complete 6KW Off-Grid Solar Power Station 120V/240V Split Phase Solar Energy Storage System
Couldn't load pickup availability

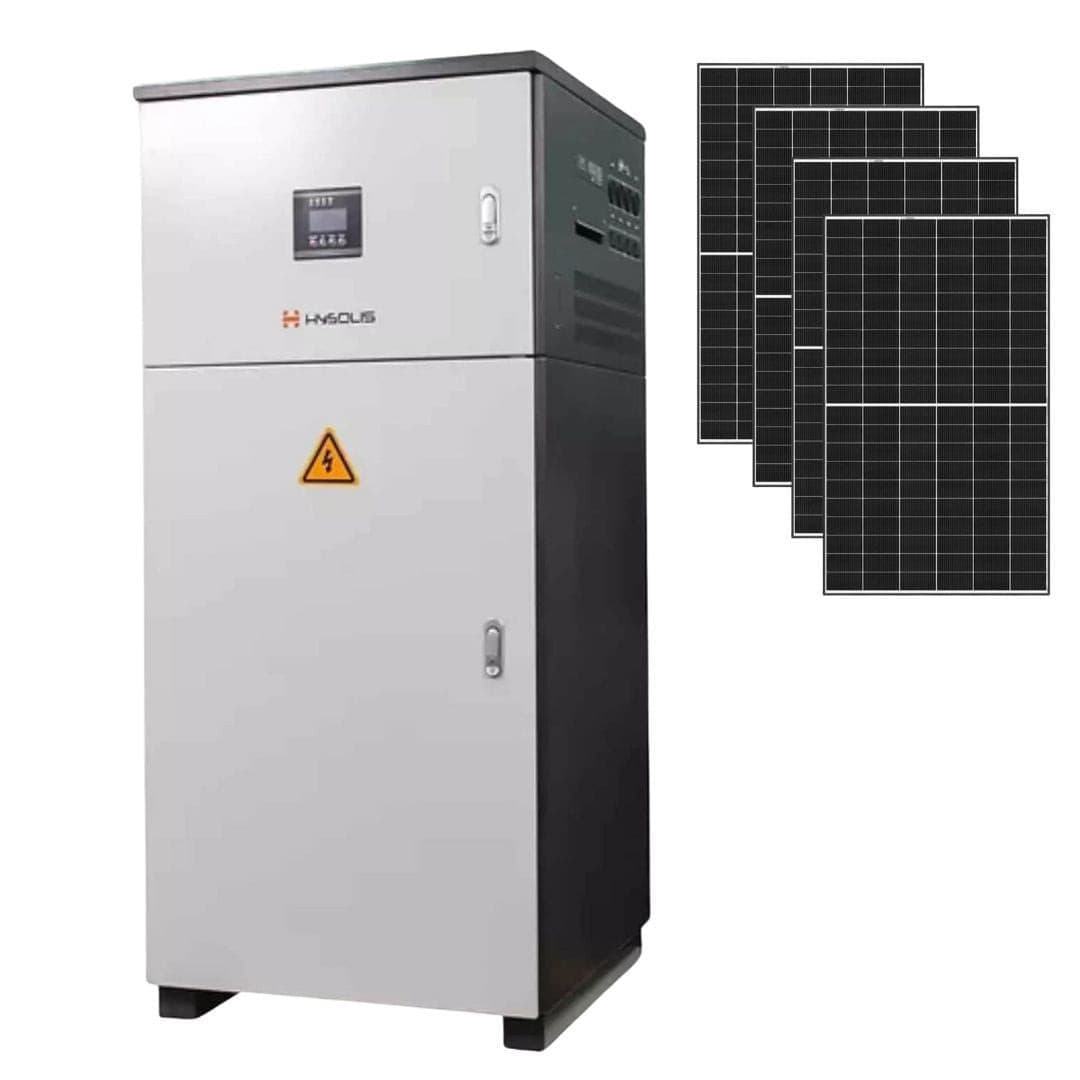

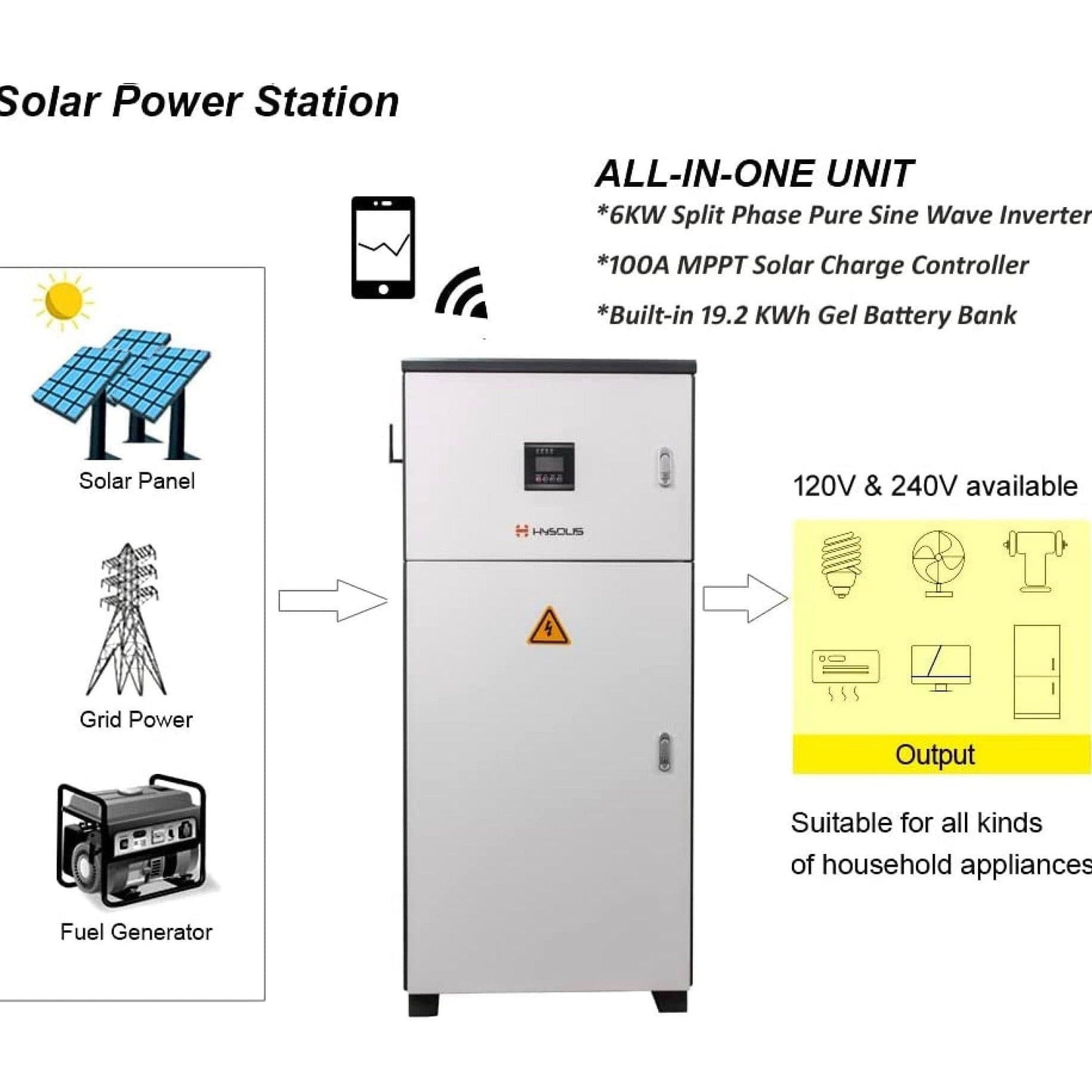

The largest power station. A 6 kW continuous (12 kW peak) pure-sine-wave inverter paired with 19.2 kWh of GEL Batteries. Choose your solar array capacity. Commit to full off-grid freedom
Power your entire home! An All-in-One, Plug-and-Play Solar Power Station with an Inverter, MPPT Solar Charger, AC Charger, Car Charger, Gel Battery Bank, and Comprehensive Protective Features
All Integrated into a free-standing Metal Case
Features:
- Gel Batteries: 7.2 kWh, 14.4 kWh, 19.2 kWh
- LiFePO4 Batteries: 10.5 kWh or 21 kWh
- Expandable Battery: Attach any matching battery. Upgrade Battery Storage Capacity!
- Two inverter options (Waveform is Suitable for sensitive electronics such as medical devices):
- 5 kW Continuous / 8 kW Peak Low-Frequency Split Phase Pure Sine Wave Inverter.
- 6 kW Continuous / 10 kW Peak Low-Frequency Split Phase Pure Sine Wave Inverter.
- 9 Output Ports:
- 4x 120 V AC Wall Plug Outputs
- 4x 240 V AC L6-30R Outlets
- 240V & 120V / 25A Hardwired AC Output
- Hardwired AC Input (240V/35A)
- Two ways to charge: AC Power and Solar Array / Wind Turbine.
- Automatic Transfer Switch. When Grid AC Power is lost, inverter starts in <10 ms (True Uninterruptable Power Supply Feature).
- Smart Fan Control keeps the unit cool, safe, and reliable.
- Truly Plug-and-Play, meaning less hassle for you and more time to focus on what you need to focus on. Don’t worry about the Power Station – it will practically run itself!
- Straightforward interface and informative LCD screen lets you operate the power station with ease.
- Large Form Factor and Heavy Weight makes the SPS6K extremely stable and safe for permanent and semi-permanent installations.
- Comprehensive safety protection system lets you operate the SPS6K without worrying. PV array under-voltage? Appliance short-circuited? Device drawing too much power? Temperature too high? Don’t worry, the unit has you covered. You’ll hear an alarm informing you something’s wrong, and any necessary systems will be shut down.
- Advanced 100A Maximum-Power-Point-Tracking (MPPT) Solar Charger gets the most energy possible out of your solar array .

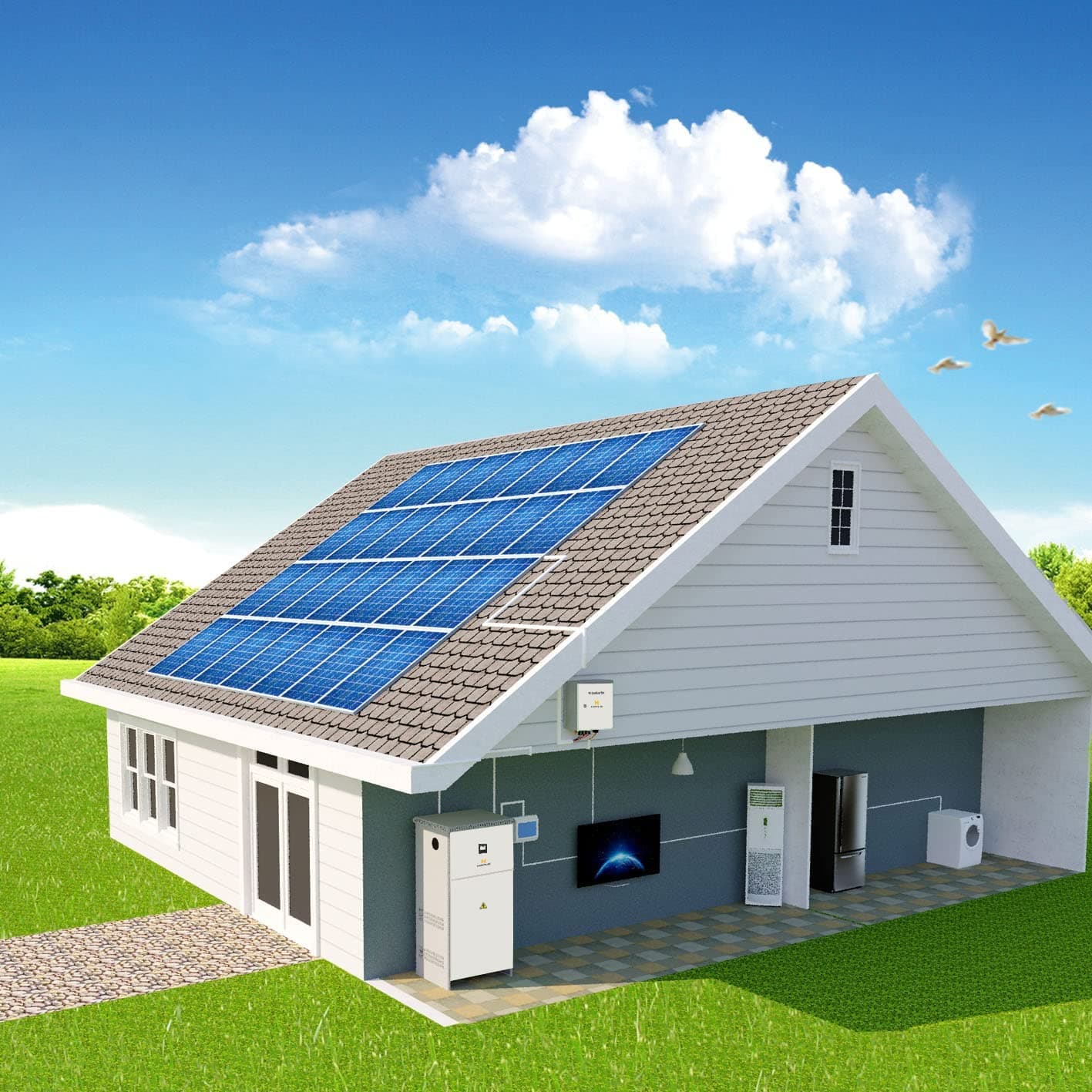

- Ideal for Off-Grid Homes, Solar-Powered Cabins, Full-Size Home Battery Backup, Tiny-House Power, Large RV Power, Commercial Use, Farming/Ranching, Industrial Toolsheds, Defense, Off-Grid Stations, and more!
*Please NOTE: This item is only applicable to orders in the US (except Alaska and the Virgin Islands).

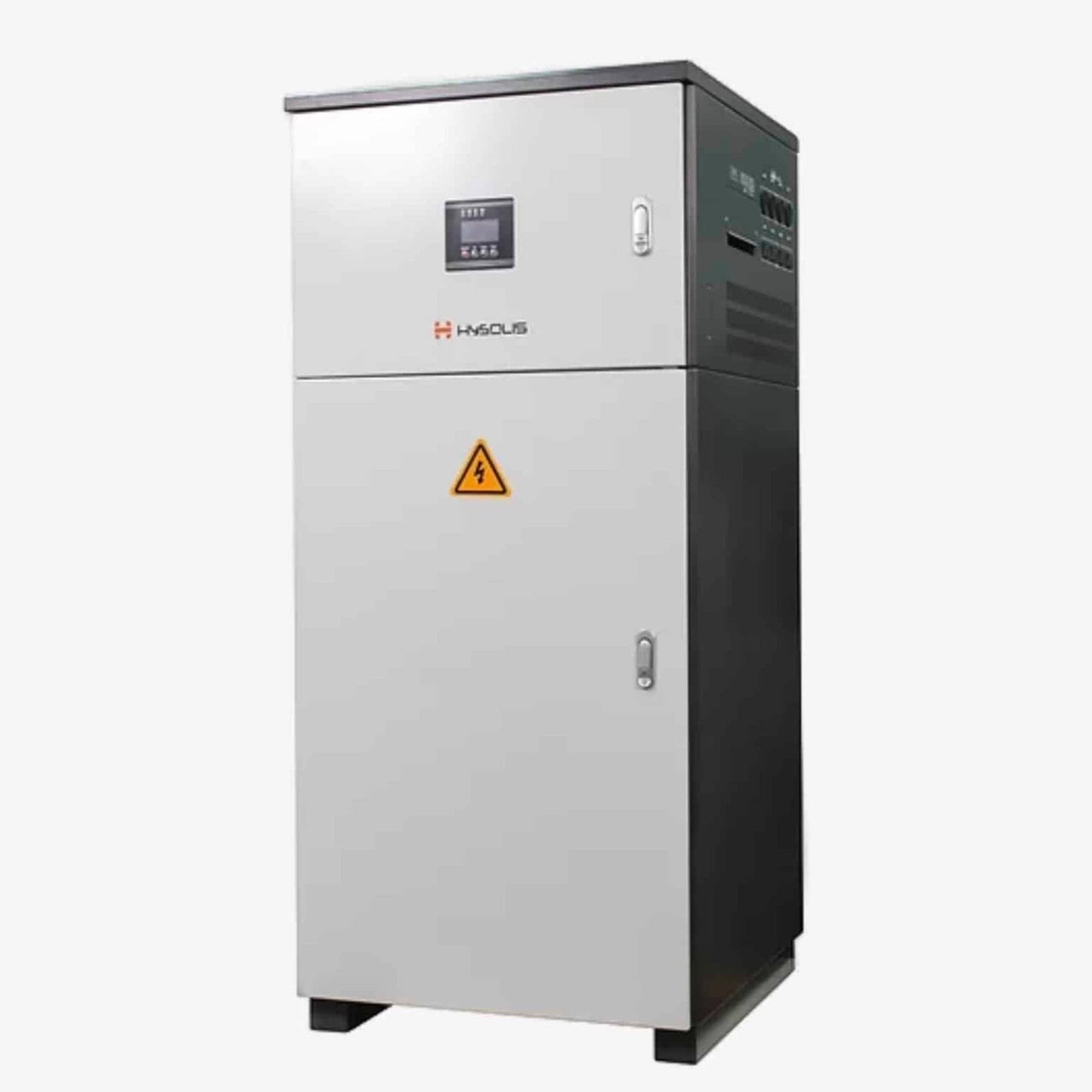

SPS6K 6 kW continuous (12 kW peak) An All-in-One Portable Power Station
Tech Specs
IMPORTANT: GENERAL TECH SPECS GIVEN BELOW FOR SPS5K & SPS6K. BATTERY / INVERTER / SOLAR CHARGING SPECIFICATIONS WILL VARY BASED ON PERSONALIZED CONFIGURATION. INQUIRE FOR YOUR EXACT TECHNICAL SPECIFICATIONS
Tons of Outputs for All the Flexibility You Need
Continuous Output | 240V-6KW or 2x120V-3KW (60Hz) |
Battery Voltage | 48V |
Battery Capacity | 19.2 KWh |

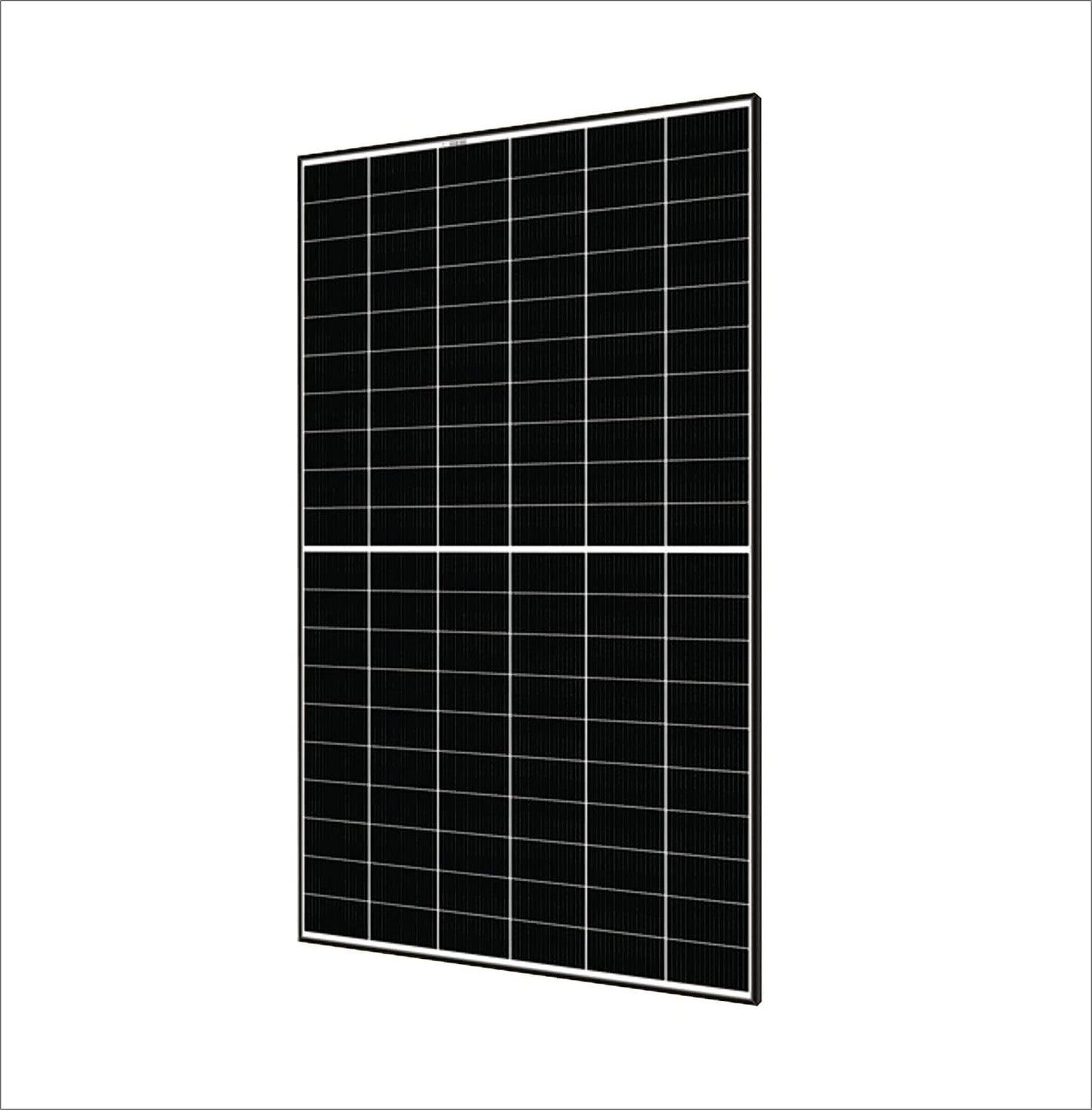

Solar Power | 5550W (370Wx15 pcs) |
Solar Combiner Box | 6-string with protection modules |
Solar Mounting Hardwares | Included |
PV Wire & Connectors | Included |
Inverter Type | Split-Phase Pure Sine Wave |
Solar Charger Type | MPPT |
Solar Charger Rated Current | 48V-100A |
SPS5K (See SPS6K Below)
Model: SPS5K-7200Wh (AGM)
Rated AC Power: 120VAC / 5,000 W Continuous (10,000 W Surge)
Battery Bank
Rated Voltage: 48 V DC
Battery Capacity: 7,200 Wh
Battery Type: Lead-acid (AGM) 12V/150Ah x 4
Inverter Voltage Settings
Over-voltage Protection: 71.6 V DC
Over-Voltage Recovery: 68.0 V DC
Low Voltage Alarm: 45.2 V DC
Low Voltage Protection: 44.0 V DC
AC Input
AC Input Voltage: 100 V AC – 132 V AC
Frequency: 60 Hz or 50 Hz
Charge
Solar Charger: 48 V / 60 A MPPT (Max 3,200 Watts, MPPT Voltage Range 60 V DC – 150 V DC)
AC Charger: Default 1 kW (0 – 1.2 kW Adjustable)
AC Output
Voltage Range: 120 V AC +/- 5% (Inverter Mode)
Frequency: 60 Hz or 50 Hz +/- 1% (Inverter Mode)
Output Wave: Pure Sine Wave
Transfer Time: <10 ms (Typical Load)
Efficiency: >85% (80% Resistive Load)
Protections
– Battery Over-Voltage and Under-Voltage
– Overload
– Short-Circuit
– Over-Temperature and Under-Temperature
Working Temperatures
Operating Ambient Temperature: -20℃ to +50℃
Storage Ambient Temperature: -25℃ to +55℃
Size / Weight
Product Size (L*W*H): 540mm(21.25″)x 390mm(15.35″) x 930mm(36.6″)
Weight: 259kg / 570 lb (Battery included)

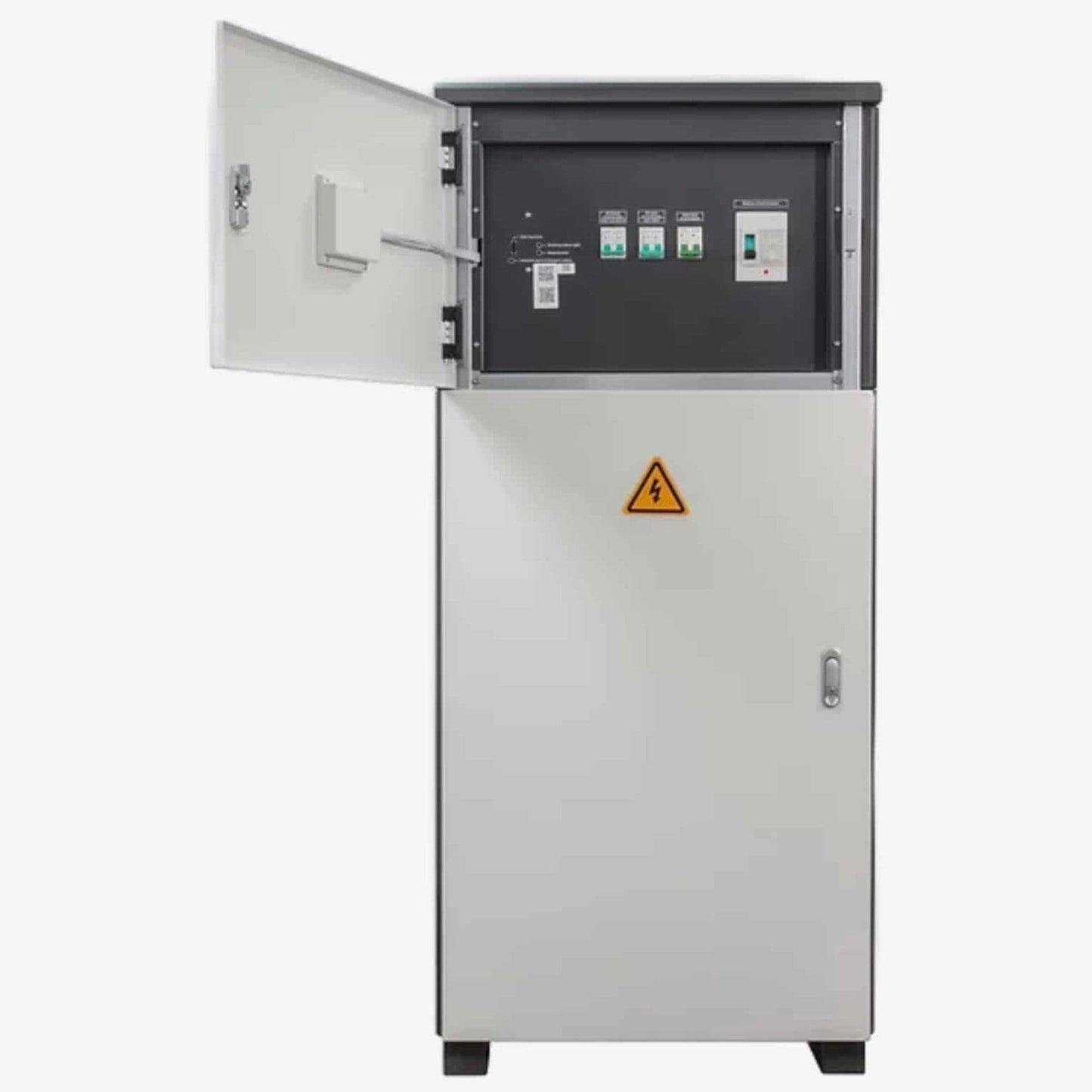

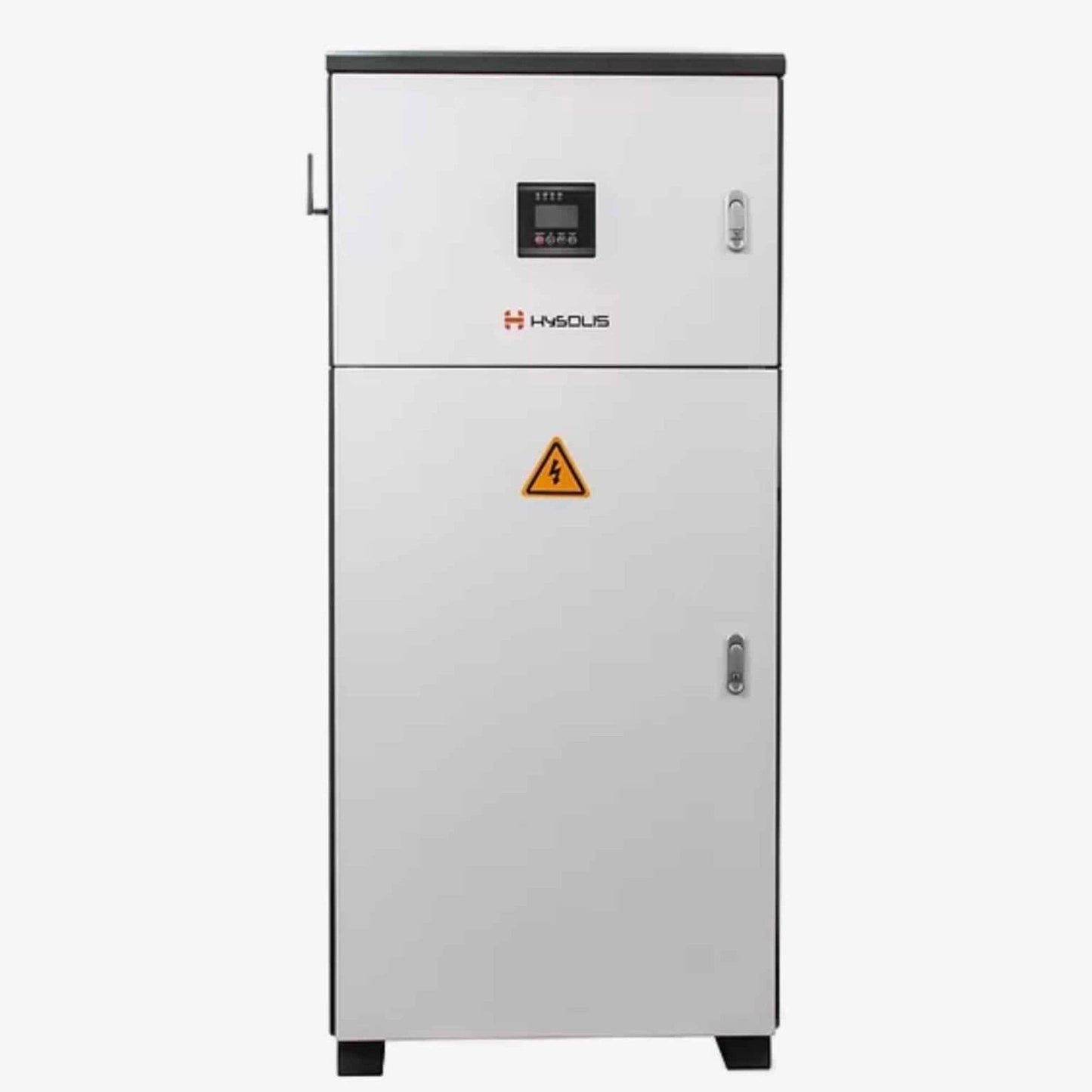

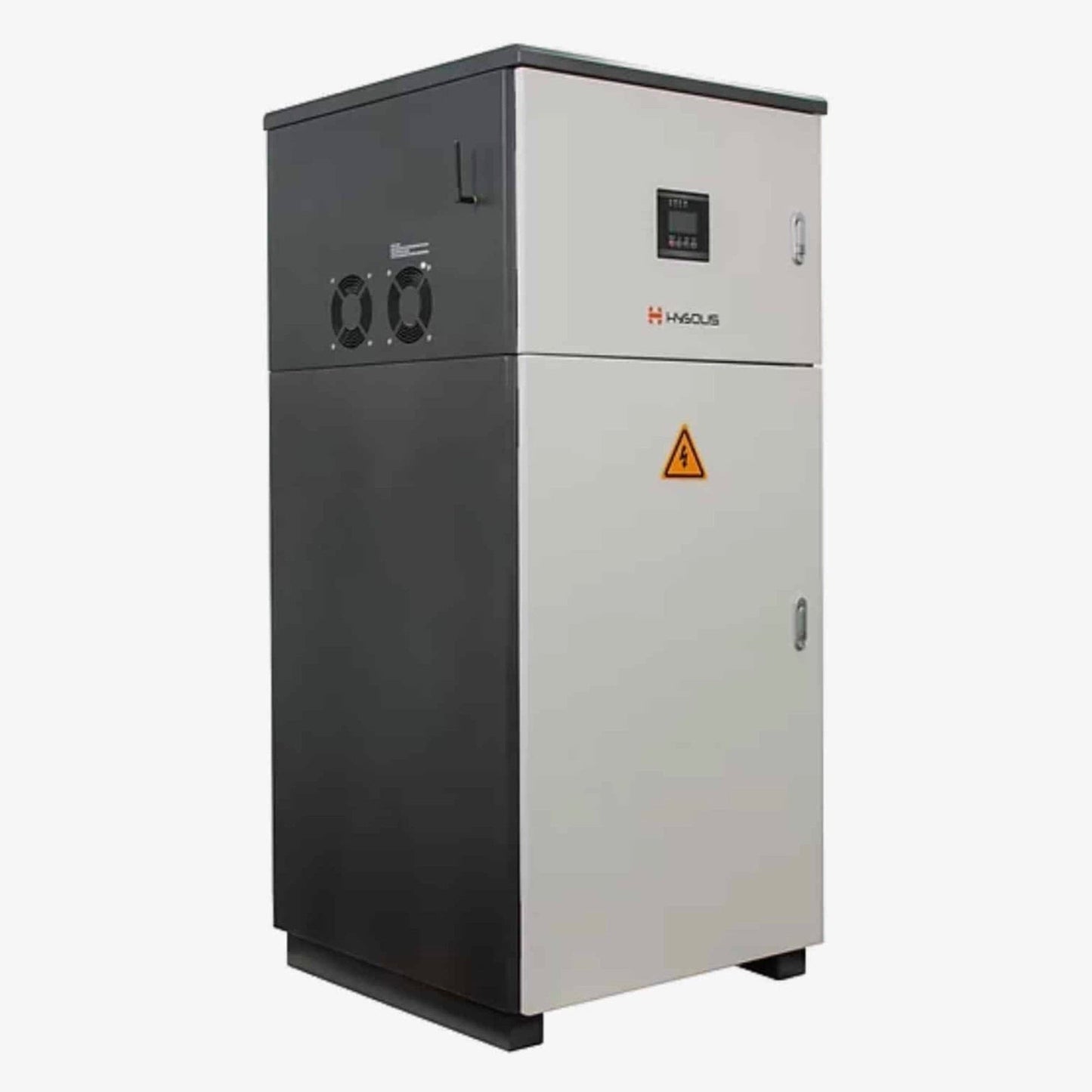

SPS6K

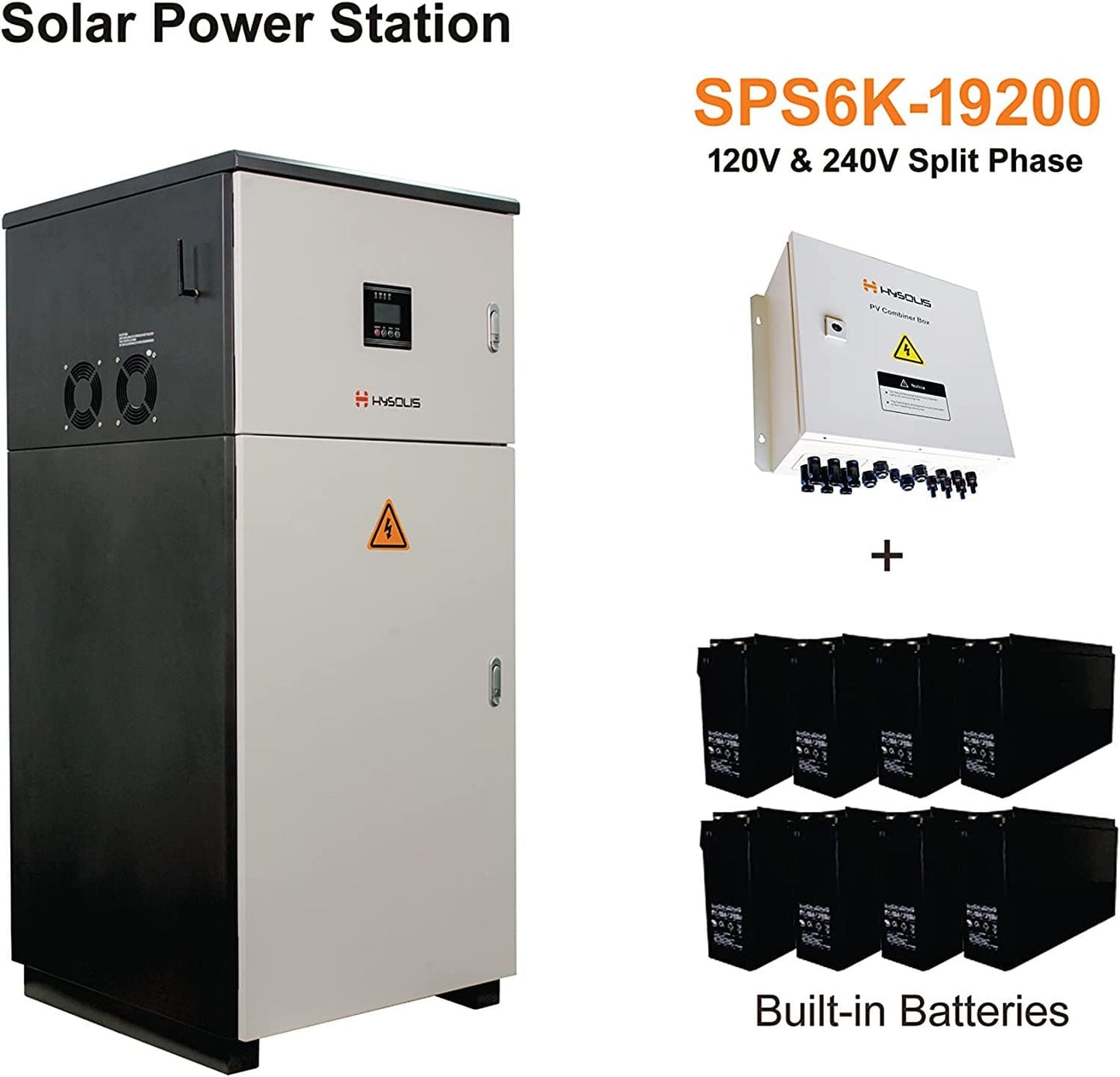

Model: SPS6K-19200Wh (GEL)
Rated AC Power: Split Phase 240VAC / 6,000 W Continuous (10,000 W Surge)
Battery Bank
Rated Voltage: 48 V DC
Battery Capacity: 19,200 Wh
Battery Type: Lead-acid (GEL) 12V/200Ah x 8
Inverter Voltage Settings
Over-voltage Protection: 67.2 V DC
Over-Voltage Recovery: 64.0 V DC
Low Voltage Alarm: 42 V DC
Low Voltage Protection: 41.2 V DC
Low Voltage Recovery: 54V DC
AC Input
AC Input Voltage: 170 V AC – 275 V AC (L1:L2)
Frequency: 60 Hz or 50 Hz
Charge
Solar Charger: 48 V / 100 A MPPT (Max 5,400 Watts, MPPT Voltage Range 60 V DC – 150 V DC)
AC Charger: Default 1 kW (0 – 1.2 kW Adjustable)
AC Output
Split Phase: 240 VAC / 6KW (L1:L2)
Single Phase: 120VAC / 3KW (L1:N or L2:N)
Frequency: 60 Hz or 50 Hz +/- 1%
Output Wave: Pure Sine Wave
Transfer Time: <10 ms (Typical Load)
Efficiency: >85% (80% Resistive Load)
Protections
– Battery Over-Voltage and Under-Voltage
– Overload
– Short-Circuit
– Over-Temperature and Under-Temperature
Working Temperatures
Operating Ambient Temperature: -20℃ to +50℃
Storage Ambient Temperature: -25℃ to +55℃
Cabinet Size / Weight
Product Size (L*W*H): 640mm(25.2″)x 690mm(27.2″) x 140mm(56.7″)
Weight:590kg / 1298 lb (Battery included)

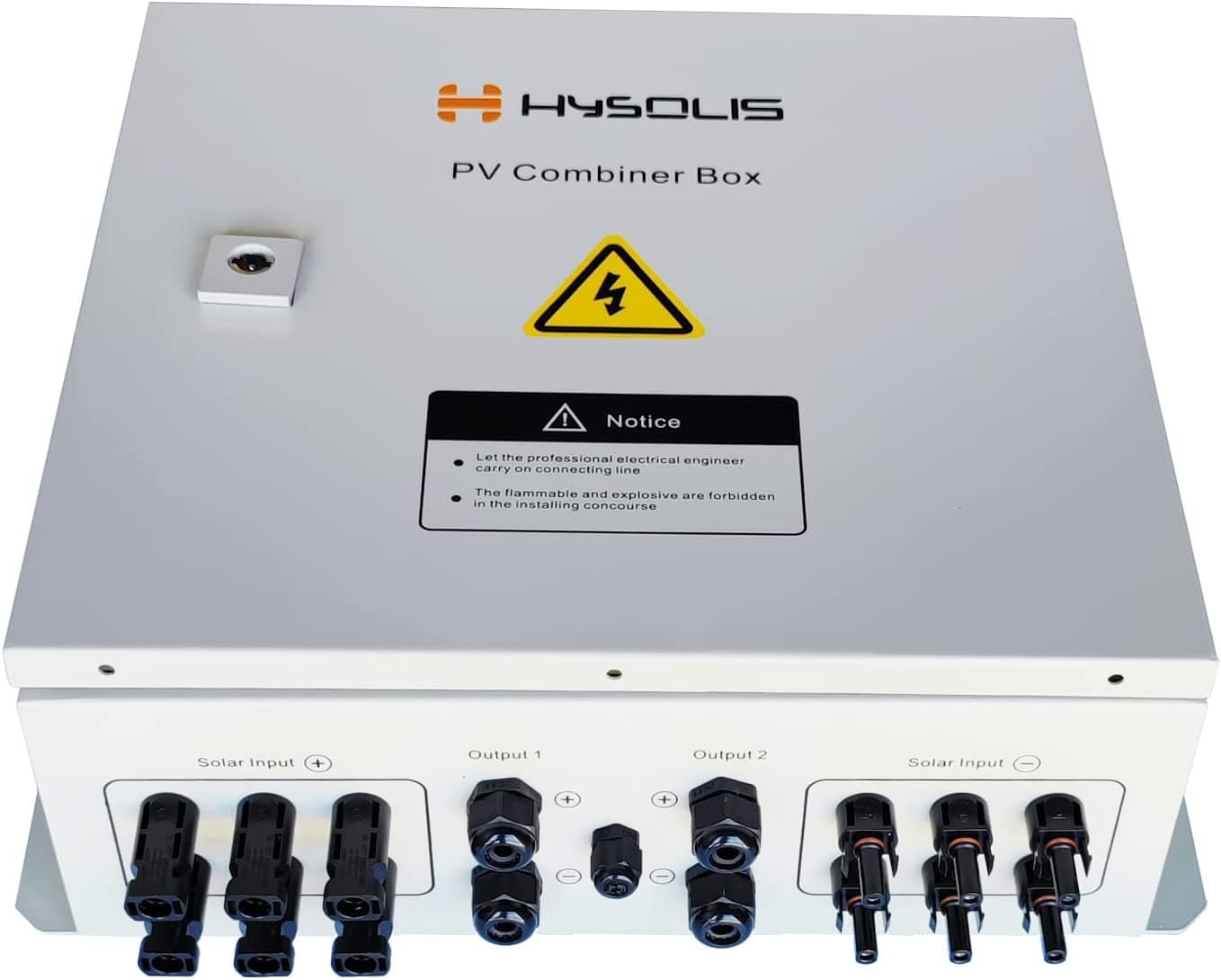

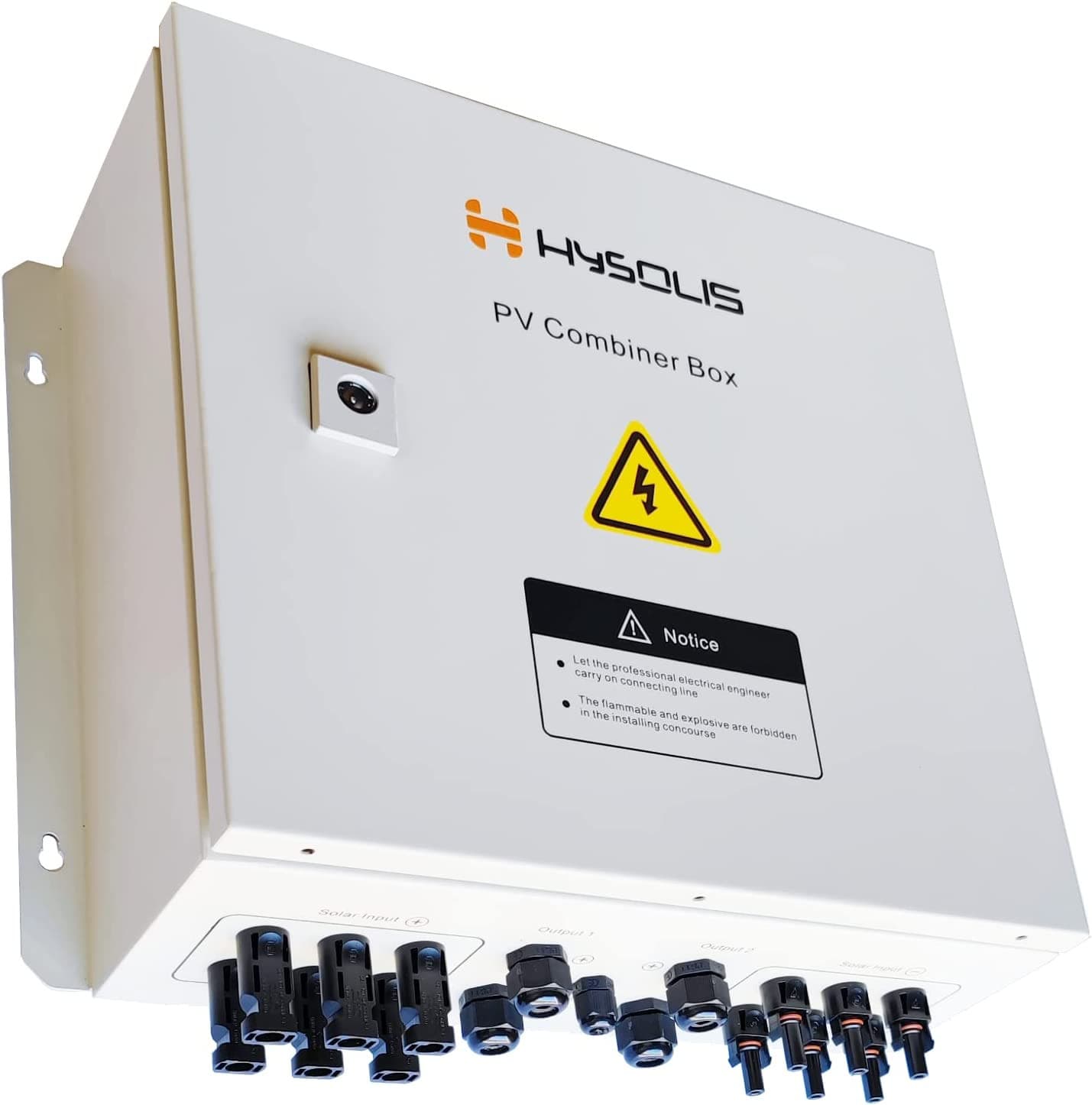

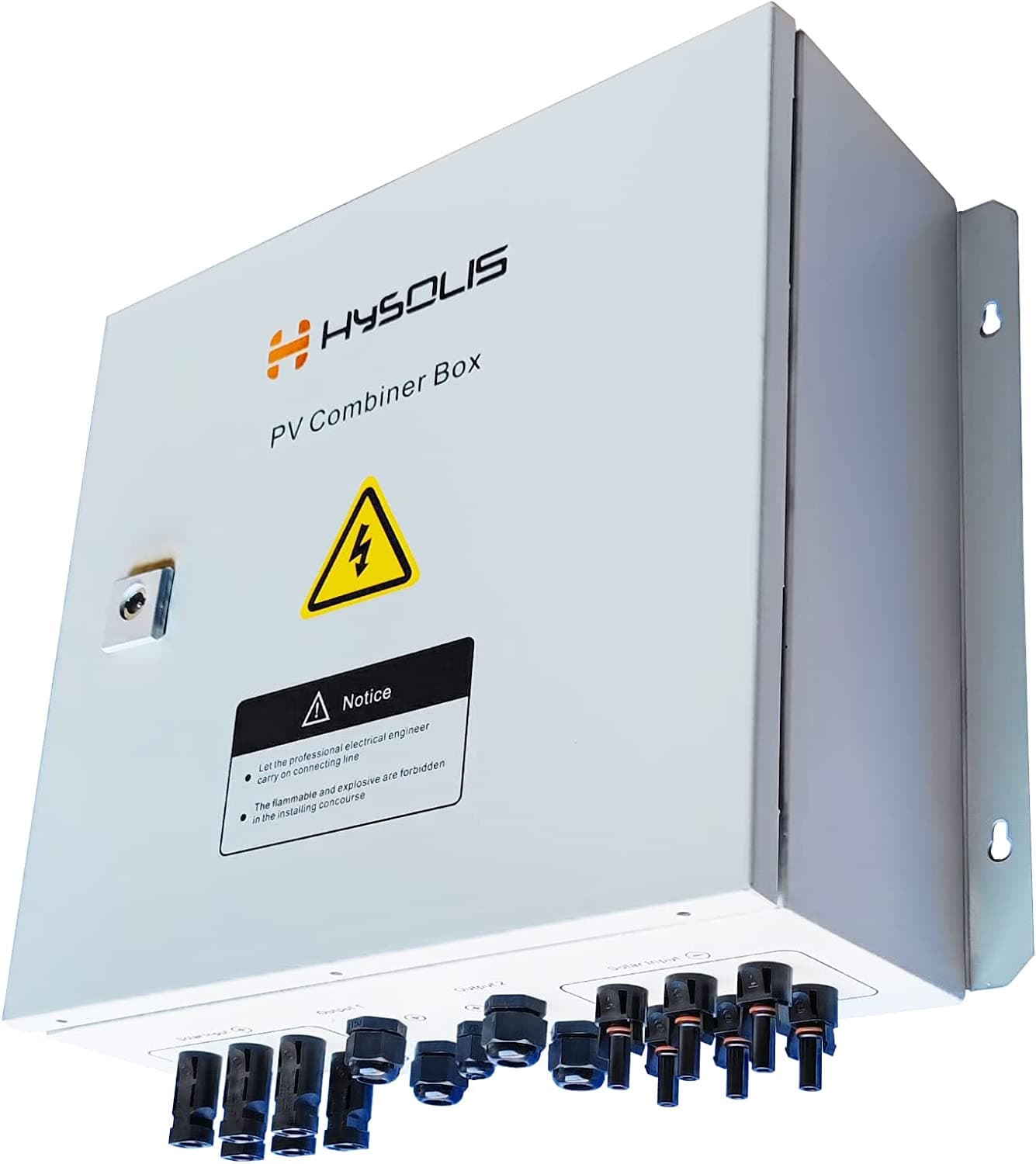

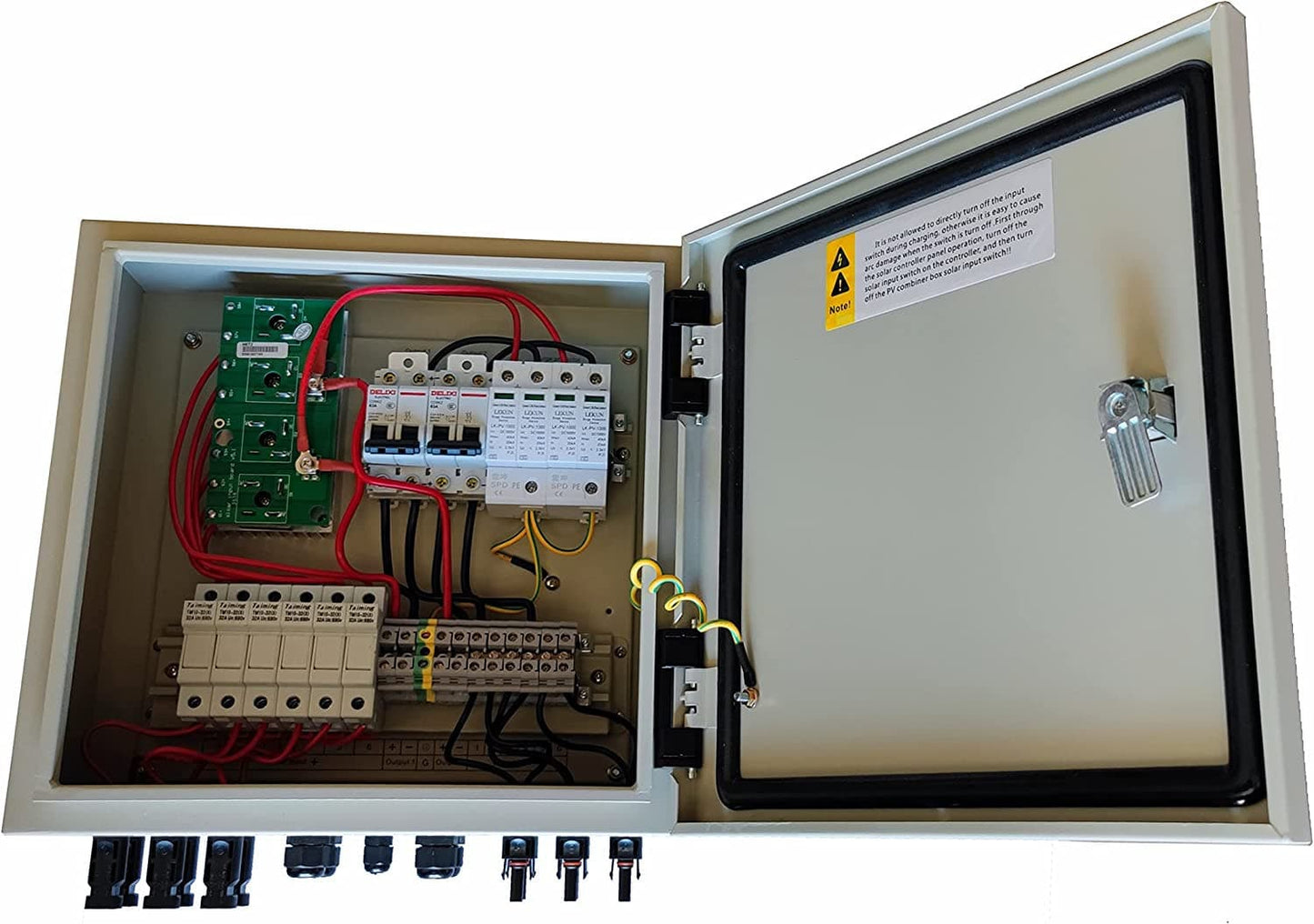

PV Cominber Box:
No. of Strings: 6
Rated voltage: 500V DC
Fuse Rated Current: 16A / String
Protection: Anti-reverse Current, Over Current, Lightning-proof.
What's Included
- SPS5K / SPS6K Power Station
- One 4-String or 6-String PV Combiner box
- User Manual
- Solar Panels (based on selection)
- Cables / Hardware
