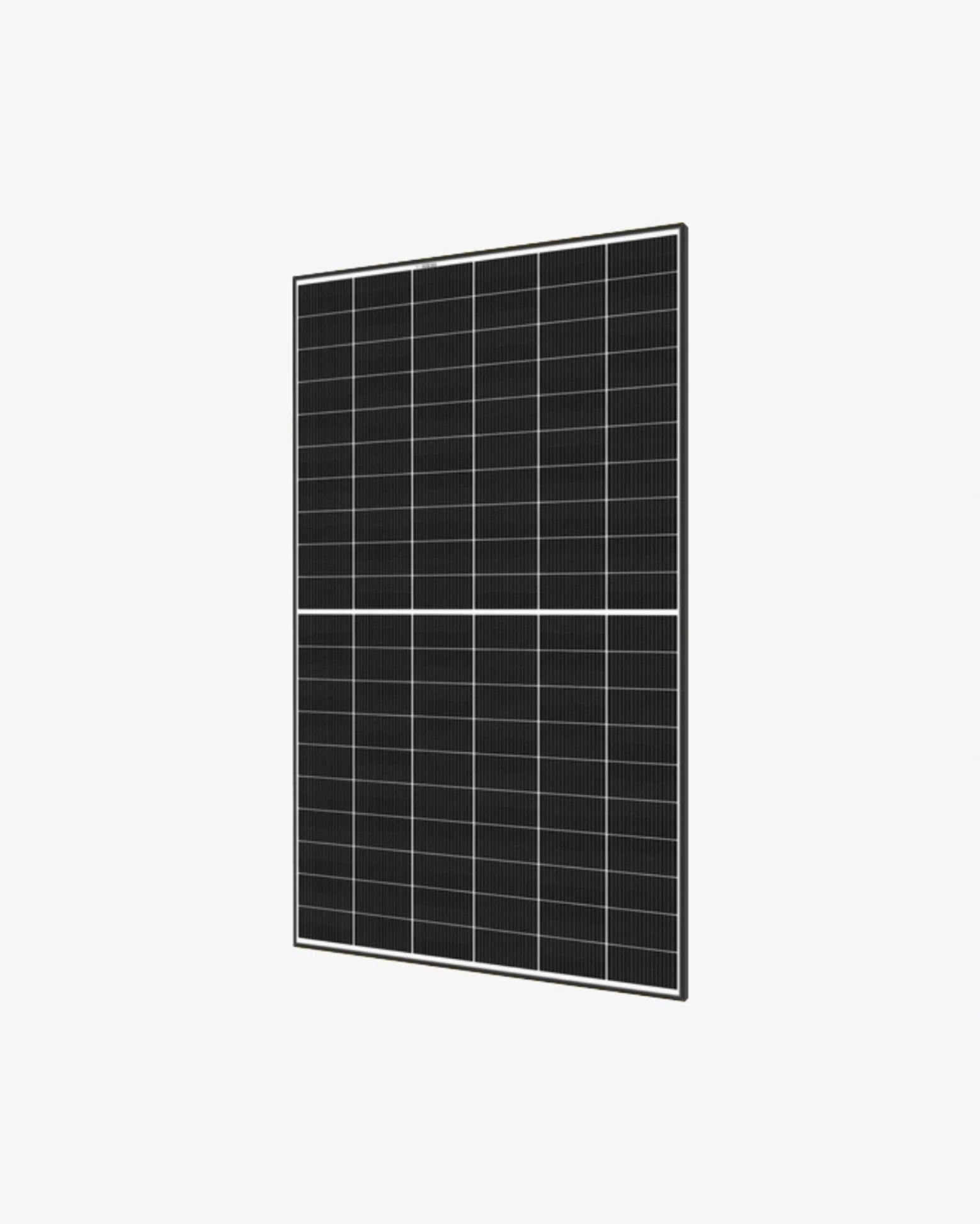

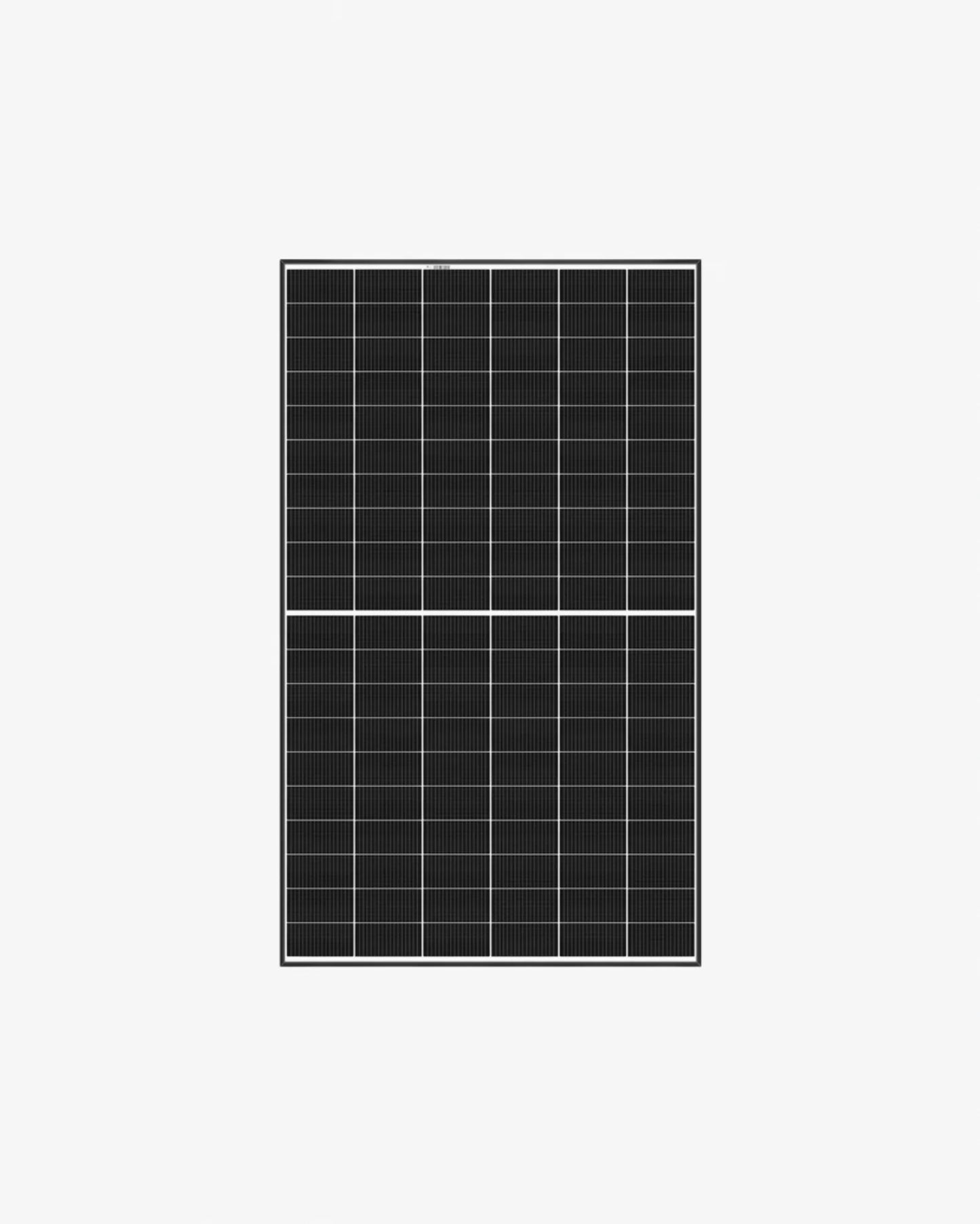

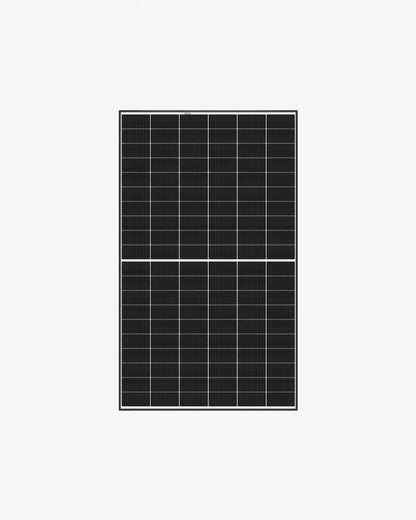

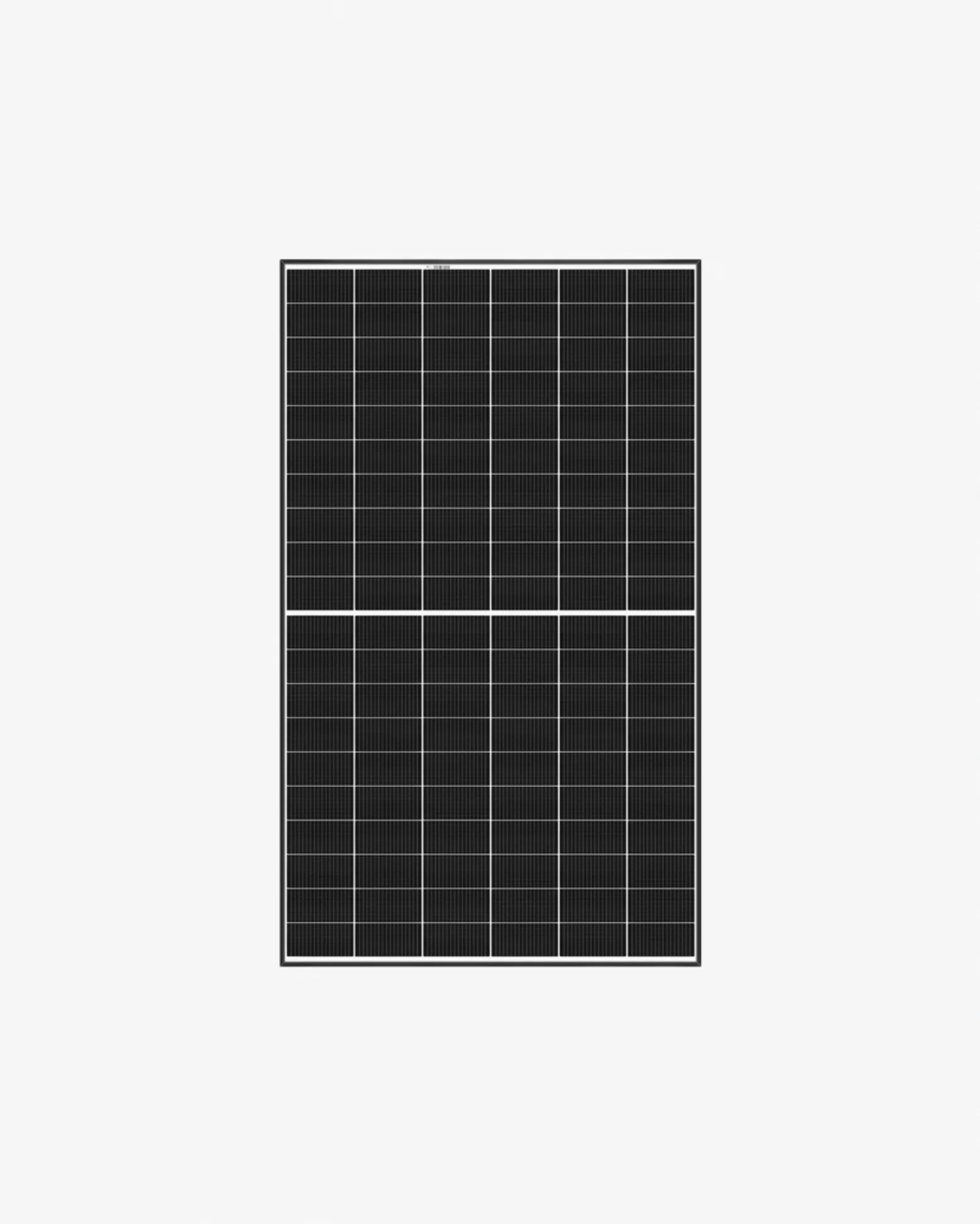

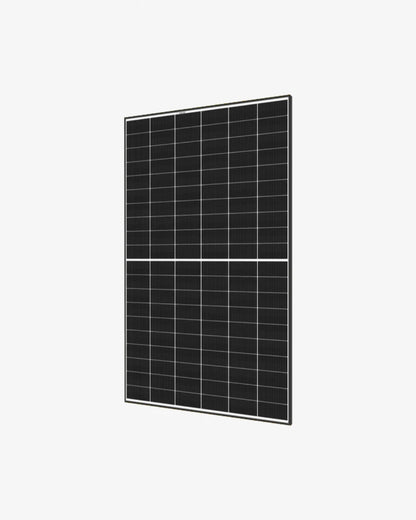

HYSOLIS 425 Watt TopCon Monocrystalline Solar Panel
HYSOLIS 425 Watt TopCon Monocrystalline Solar Panel
Regular price
$195.00 USD
Regular price
$285.00 USD
Sale price
$195.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
HYSOLIS 425 Watt TopCon Monocrystalline Solar Panel
High Conversion Efficiency Mono-crystalline Silicon
TopCon High Conversion Efficiency Mono-crystalline Silicon
Our household-sized panel. Warrantied for 30 years. Cable and MC4 connectors are included on the back of each panel.
- Zero LID
- Module Efficiency up to 22.3%
- SMBB + Half-cell tech, reduce internal current loss, improve module efficiency, minimize micro-crack, impacts, and improve module reliability
- Non-destructive Slicing Tech, reduce micro-crack risk
- Lower temperature coefficient (-0.29%/℃), lower operating temperature, increase the power generation
- Excellent low irradiance performance, higher power output
- Resistant to harsh environments
- Anti PID
- More energy yield, lower BOS and LCOE
- Designed for Outdoor Use. IP68 junction box, high water proof level.
- The panels are framed using heavy-duty anodized aluminum frames providing exceptional panel rigidity
Specs
GENERAL SPECS
| Maximum power (Pmax) | 425W |
| Voltage at Pmax (Vmp) | 32.25V |
| Current at Pmax (Imp) | 13.18A |
| Open-circuit voltage (Voc) | 38.54V |
| Short-circuit current (Isc) | 13.90A |
| Temperature coefficient of Voc | -0.29% / °C |
| Temperature coefficient of Isc | +0.043%/ °C |
| Temperature coefficient of Pmax | -0.330%/ °C |
| Maximum System Voltage | 1500V DC |
| Number of Diodes | 3 |
| Junction box IP rating | IP68 |
| Maximum series fuse rating | 25A |
| Operating temperature | -40°C to 85°C |
| Power tolerance | 0,+5W |
| Standard Test Condition | Irradiance 1kW/sqm, Temperature 25°C, AM=1.5 |
| Cell Type | N type mono-crystalline |
| Number of cells | 108 (6x18) |
| Cable lengh (includs connector) | 1200mm |
| Cable size | 12 AWG |
| Max test mechanical load | 5400 Pa |
| Panel Dimension | 67.8” x 44.6” x 1.2” |
| Shipping Weight | 47.0 lbs (21.3 kg) |
Warranty
30-YEAR LINEAR POWER WARRANTY
15-YEAR PRODUCT WORKMANSHIP WARRANTY
30-day any-reason Returns · FREE 20-year Warranty
