Product details

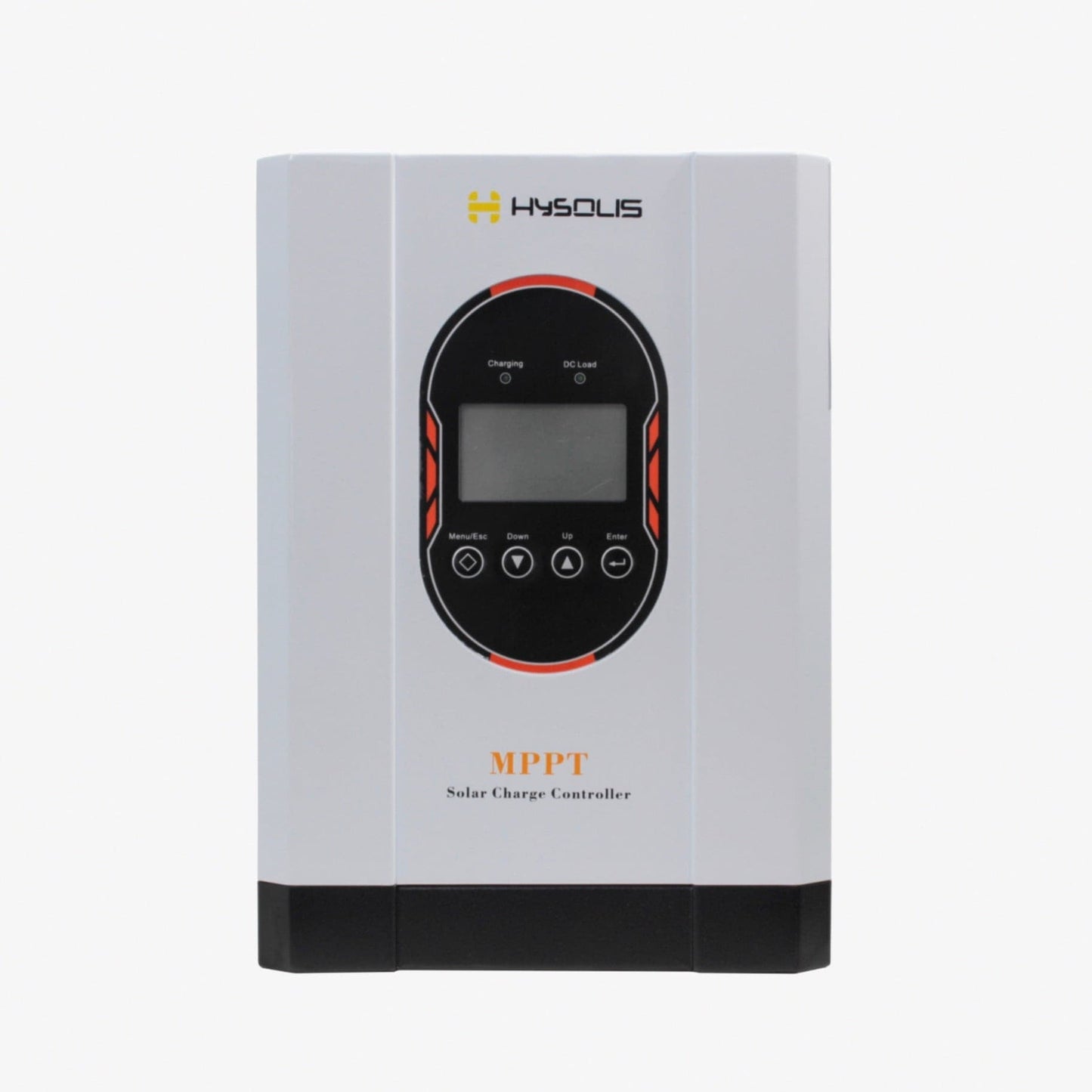

HYSOLIS 30 Amp MPPT Solar Charge Controller
FEATURES
Our 30 Amp MPPT Solar Charge Controller has an efficient MPPT algorithm, MPPT efficiency ≥99.5% and converter efficiency up to 98%.Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+ Time control.
Charge mode: Three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries. 12V / 24V / 36V / 48V battery system voltage automatic recognition. Rs-485 communication protocol.
Tech Specs
Key Specifications:
| Model: | CM-30A |
| Max Charge Current: | 30A |
| System Voltage: | 12V/24V/48V Auto. sensing |
| Max PV Voltage(Voc): | 150Vdc |
| Solar Operating Voltage: | 12V @ 18-150Vdc 24V @ 34-150Vdc 48V @ 65-150Vdc |
| Max PV Input Power: | 12V @ 900W 24V @ 1700W 48V @ 3400W |
| Battery Type: | VRLA/Gel/Liquid/Li-ion |
| Operation Temperature: | -20~+40℃ |
| Net Weight: | 5.5 pounds |
| Gross Weight: | 6.1 pounds |
