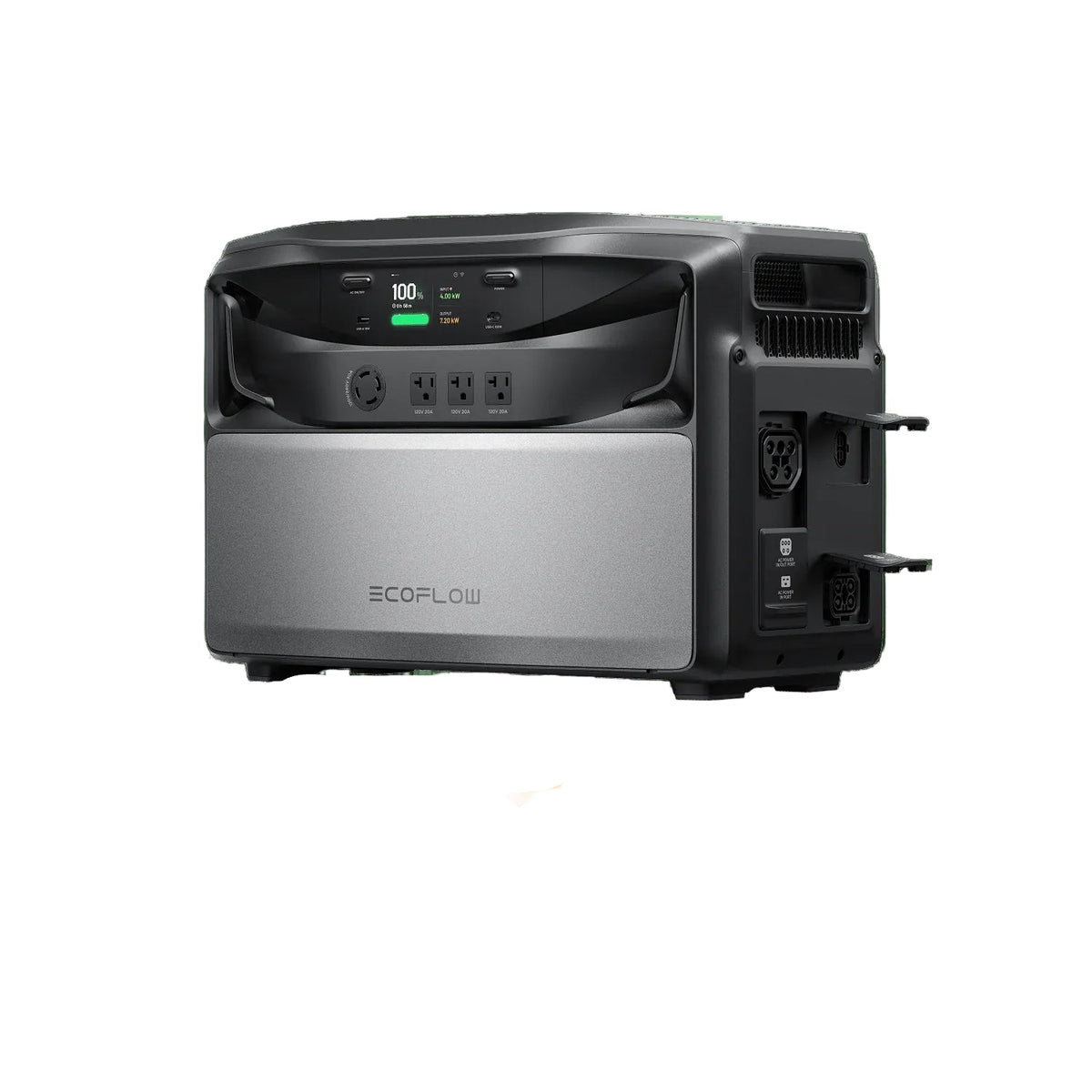

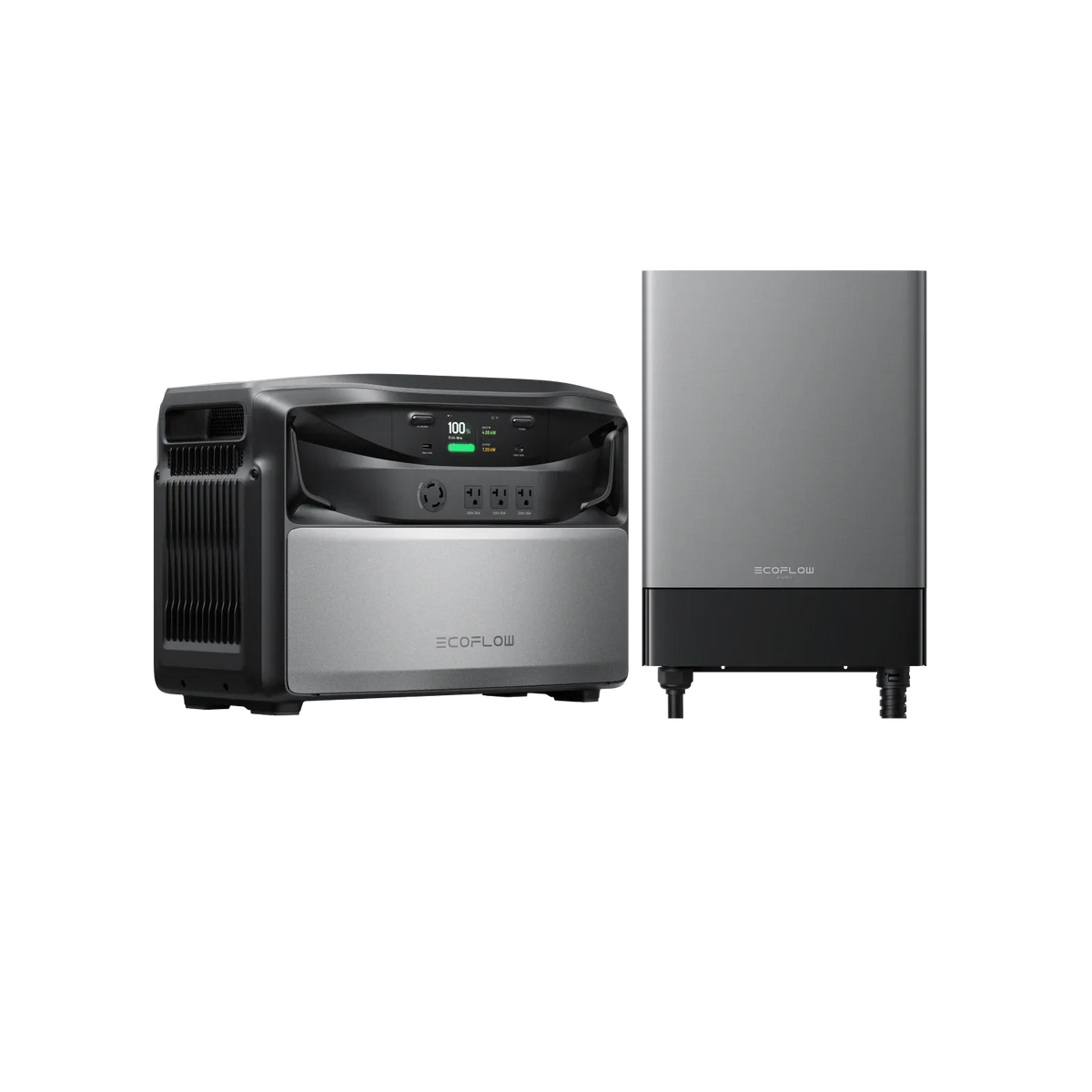

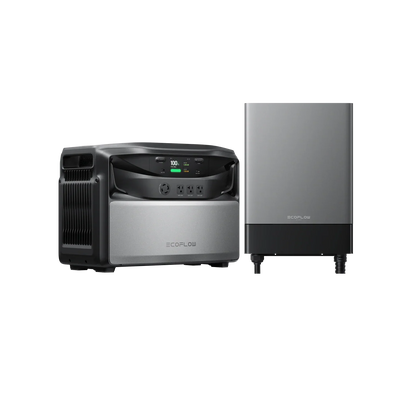

EcoFlow TITAN 5000 Whole Home Power Battery Backup 5-30kWh

EcoFlow TITAN 5000 Whole Home Power Battery Backup 5-30kWh

$3,199.00 USD
$4,099.00 USD $3,199.00 USD
Sale Sold out
California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.
View full details

EcoFlow TITAN 5000 Classic Whole Home Battery Backup 5-30kWh





1. 100% Whole-Home Backup. 7.2kW powers your 3-ton AC, refrigerator, and the rest of your home simultaneously, with no soft starter needed.
2. 100% Whole-Home Savings. Save up to $2,900/year, with ROI in 3 years.
3. Only 30% of Traditional System Cost. Industry-first 200V architecture, custom high-rate LFP cells, and a pre-wired SHP10 help lower costs across the entire lifecycle, including upfront purchase, installation, and long-term use.
4. OASIS 3.0 — Your AI-based Home Energy Manager. Charges off-peak, powers your home during peak hours, and helps lower your electricity bill every day.
5. North America Highest Safety Standards. UL 9540 certified and tested to UL 9540A, with EV-grade LFP cells and 24/7 BMS monitoring.

NOTICE: ⚠️ AC coupling with an existing rooftop solar system requires the Smart Home Panel 10 (SHP10 240V) and a CT sensor.

Specs

EcoFlow TITAN 5000

General

 Dimensions

(W × H × D): 24.5 × 13.2 × 16.9 in (623 × 336 × 428 mm)

Net Weight

 119.0 lb (54 kg)

Warranty

 5 years

Battery

Battery Chemistry

 LFP

Capacity (per unit)

5kWh (5,017.6Wh)

Expandable Capacity

Up to 30kWh (1 unit + 5 Extra Batteries)



AC Output

 Rated Output Voltage & Frequency 120V AC, 60Hz (single-phase)

Rated Output Power

 7,200W

AC Outlets

3 × NEMA 5-20R, 1 × NEMA L14-30R

UPS Switchover

<20 ms with Smart Home Panel 10



DC Output

 USB-C

1 × 60W (5V/9V/12V/15V/20V⎓3A)

USB-A

1 × 18W (5V⎓3A, 9V⎓2A, 12V⎓1.5A)



Input

Max. PV Input



4,000W total, 1 port (40–450V, 16A)

Max. AC Input

7,200W



Energy Management

Connectivity

Wi-Fi & Bluetooth 5.0
Intelligent Management

EcoFlow OASIS 3.0



Environment

Charging Temperature



32°F–113°F / 0°C–45°C

Discharging Temperature

14°F–113°F / -10°C–45°C

Operating Altitude

<9,842 ft (3,000 m)

IP Rating

IP20

EcoFlow TITAN 5kWh Battery

General

Dimensions

(W × H × D):24.4 × 13.3 × 10.1 in (621 × 337 × 256 mm)

Net Weight

 82.7 lb (37.5 kg)

Warranty

 5 years

Battery

Battery Chemistry

LFP (LiFePO₄)

Capacity (per unit)

5kWh (5,017.6Wh)

Expandable Capacity

5 (30kWh total)


Environment

Charging Temperature



32°F–113°F / 0°C–45°C

Discharging Temperature

14°F–113°F / -10°C–45°C

Operating Altitude

<9,842 ft (3,000 m)

IP Rating

IP20


EcoFlow Smart Home Panel 10

General

Dimensions

(W × H × D): 14.2 × 20.3 × 4.0 in (360 × 515 × 102 mm)

Net Weight

 22.49 lb (10.2 kg)

Installation

 Wall-Mounted

Warranty

 5 years


Output

Rated Output Voltage & Frequency

120V / 240V AC, 60 Hz (split-phase)

Switchover Time

 ≤20 ms



Energy Management

Supported Circuits

10
Connectivity

Wi-Fi & Bluetooth 5.0
Intelligent Management

EcoFlow OASIS 3.0
CT Sensor

Built-In (for self-consumption and no-export control)



Environment

Charging Temperature

 14°F–113°F / -10°C–45°C

Storage Temperature

-22°F–158°F / -30°C–70°C

Operating Altitude

<9,842 ft (3,000 m)

IP Rating

IP20
