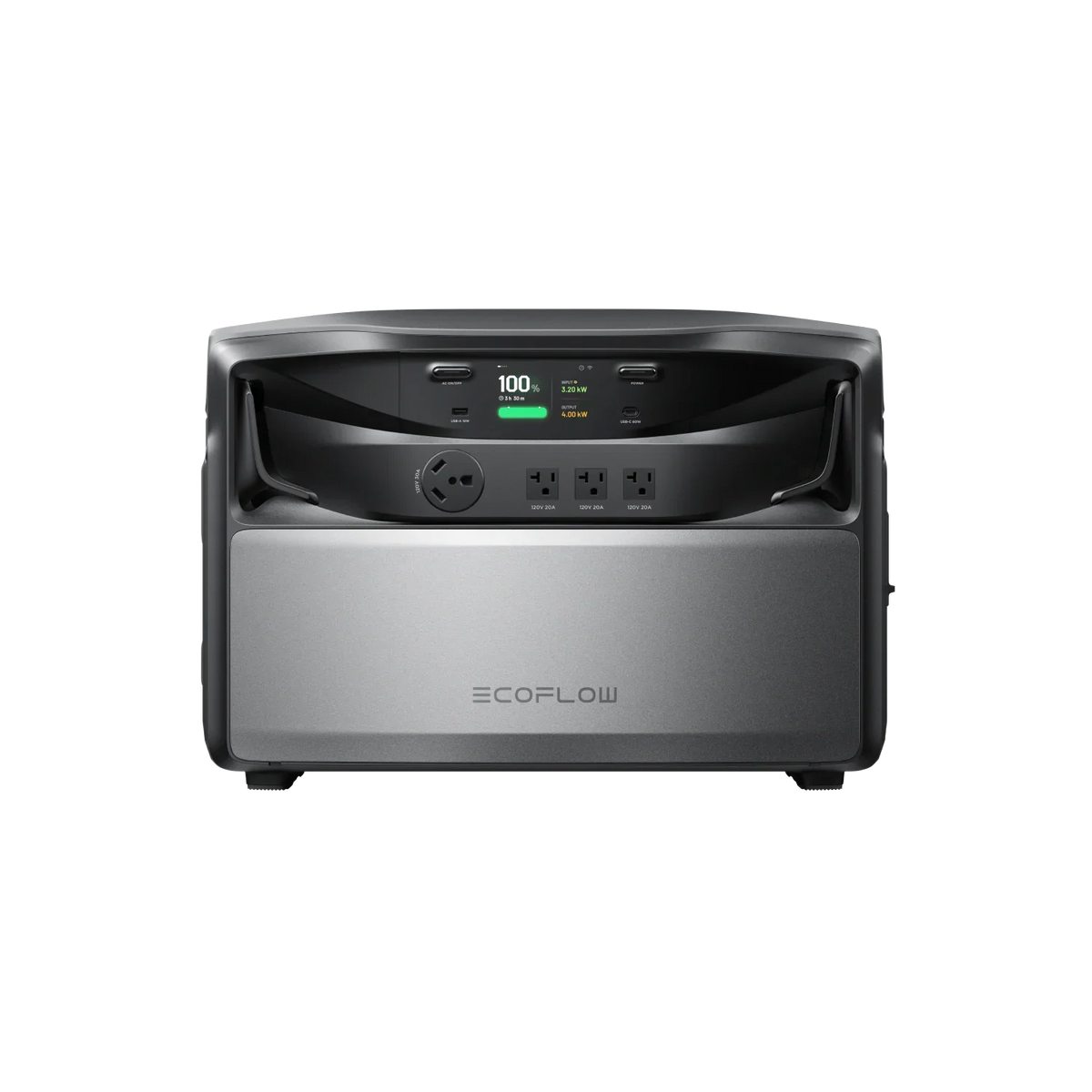

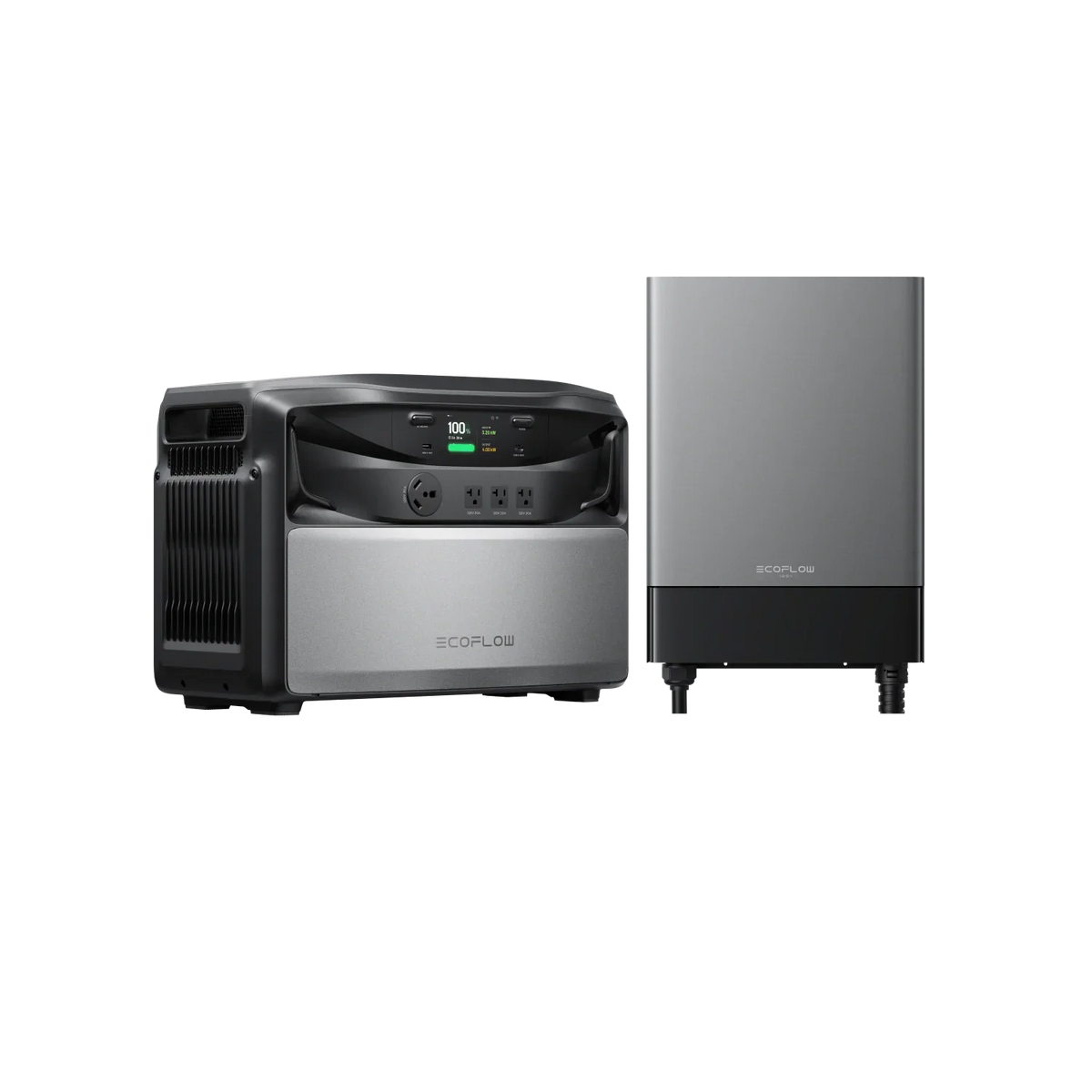

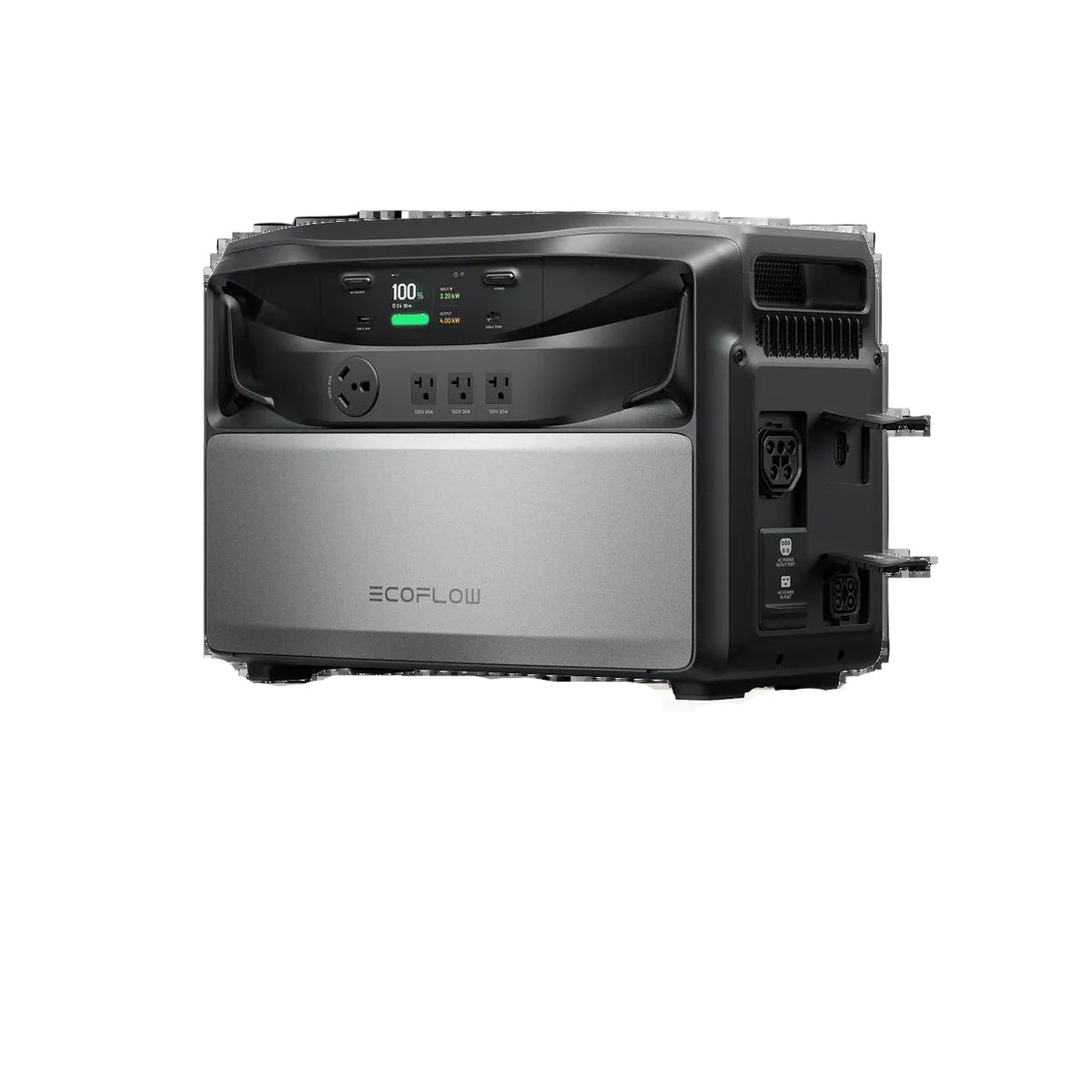

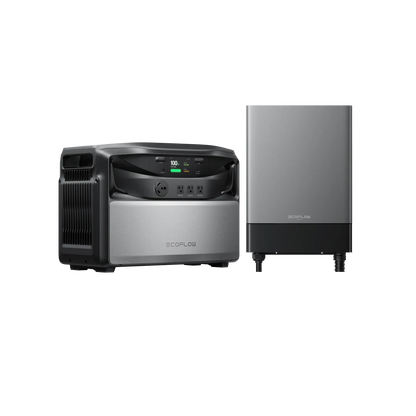

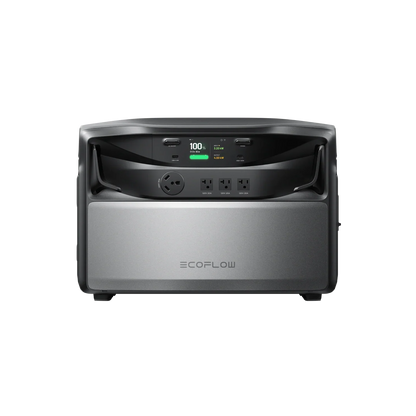

EcoFlow TITAN 5000 Classic Whole Home Battery Backup 5-30kWh

EcoFlow TITAN 5000 Classic Whole Home Battery Backup 5-30kWh

$2,499.00 USD
$3,299.00 USD $2,499.00 USD
Sale Sold out
California sales tax added at checkout. No sales tax charged on orders shipped outside California. Shipping calculated at checkout.
View full details

EcoFlow TITAN 5000 Classic Whole Home Battery Backup 5-30kWh

1. 4,000W Whole-Home Essential Power. Run your fridge, microwave, Wi-Fi, lighting, and CPAP all at once.
2. 5–30kWh Expandable Capacity. Get 1 day to 1 week of essential backup. Add batteries anytime, with no installer needed.
3. <25 dB. Quiet enough for indoor use—quieter than a whisper.
4. ≤20 ms Automatic Switchover. The lights don’t even flicker.
5. OASIS 3.0 — Your AI-based Home Energy Manager. Charges off-peak, powers your home during peak hours, and helps lower your electricity bill every day.
6. North America Highest Safety Standards. UL 9540 certified and tested to UL 9540A, UL 1741 compliant, with EV-grade LFP cells, 24/7 BMS monitoring, and a 5-year warranty.

NOTICE: ⚠️ TITAN 5000 Classic supports 120V output only. For 240V appliances such as central AC and electric water heaters, see TITAN 5000 or TITAN 5000 Plus. Solar panels are sold separately. AC coupling with an existing rooftop solar system requires the Smart Home Panel 10 (SHP10 120V) and a CT sensor.

Specs

General

 Dimensions

(W × H × D): 24.5 × 13.2 × 16.9 in (623 × 336 × 428 mm)

Net Weight

 102.5 lb (46.5 kg)

Warranty

 5 years

Battery

Battery Chemistry

 LFP

Capacity (per unit)

5kWh (5,017.6Wh)

Expandable Capacity

Up to 30kWh (1 unit + 5 Extra Batteries)



AC Output

 Rated Output Voltage & Frequency 120V AC, 60Hz (single-phase)

Rated Output Power

 4,000W

AC Outlets

3 × NEMA 5-20R, 1 × NEMA TT-30R

UPS Switchover

<20 ms with Smart Home Panel 10



DC Output

 USB-C

1 × 60W (5V/9V/12V/15V/20V⎓3A)

USB-A

1 × 18W (5V⎓3A, 9V⎓2A, 12V⎓1.5A)



Input

Max. PV Input



3,200W total, 1 port (30–250V, 16A)

Max. AC Input

4,000W



Energy Management

Connectivity

Wi-Fi & Bluetooth 5.0
Intelligent Management

EcoFlow OASIS 3.0



Environment

Charging Temperature



32°F–113°F / 0°C–45°C

Discharging Temperature

14°F–113°F / -10°C–45°C

Operating Altitude

<9,842 ft (3,000 m)

IP Rating

IP20



EcoFlow TITAN 5kWh Battery

General

Dimensions

(W × H × D):24.4 × 13.3 × 10.1 in (621 × 337 × 256 mm)

Net Weight

 82.7 lb (37.5 kg)

Warranty

 5 years

Battery

Battery Chemistry

LFP (LiFePO₄)

Capacity (per unit)

5kWh (5,017.6Wh)

Expandable Capacity

5 (30kWh total)


Environment

Charging Temperature



32°F–113°F / 0°C–45°C

Discharging Temperature

14°F–113°F / -10°C–45°C

Operating Altitude

<9,842 ft (3,000 m)

IP Rating

IP20


EcoFlow Smart Home Panel 10

General

Dimensions

(W × H × D): 14.2 × 20.3 × 4.0 in (360 × 515 × 102 mm)

Net Weight

 22.49 lb (10.2 kg)

Installation

 Wall-Mounted

Warranty

 5 years


Output

Rated Output Voltage & Frequency

120V / 240V AC, 60 Hz (split-phase)

Switchover Time

 ≤20 ms



Energy Management

Supported Circuits

10
Connectivity

Wi-Fi & Bluetooth 5.0
Intelligent Management

EcoFlow OASIS 3.0
CT Sensor

Built-In (for self-consumption and no-export control)



Environment

Charging Temperature

 14°F–113°F / -10°C–45°C

Storage Temperature

-22°F–158°F / -30°C–70°C

Operating Altitude

<9,842 ft (3,000 m)

IP Rating

IP20



What's in the Box
