EcoFlow

EcoFlow| Power Kits

EcoFlow| Power Kits

Regular price $4,747.00 USD
Regular price Sale price $4,747.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Choose Your Capacity
Choose Your Kit
• 4 Charging methods include up to 4800W solar, 1000W alternator, 3000W shore power, and 1800W Smart Generator input.
• Plug-and-play for simple assembly
• Compact, integrated design, all-in-one inverter hub
• Save space with stackable batteries
• 48V system, a safer, smaller power solution
• Real-time and remote smart controls

EcoFlow| 2kW-15kW Power Kits

EcoFlow Power Kits are the world's first integrated, plug-and-play power solutions designed especially for tiny homes and RVs.

EcoFlow Power Kits

I want power for…

Vans/RVs/Trailers

Customizable Kits for Any Van Size

Whether you’re replacing your van’s electrics or building a system from scratch, Power Kits plug-and-play system allows you to easily modify your hardware to fit your van and power needs.

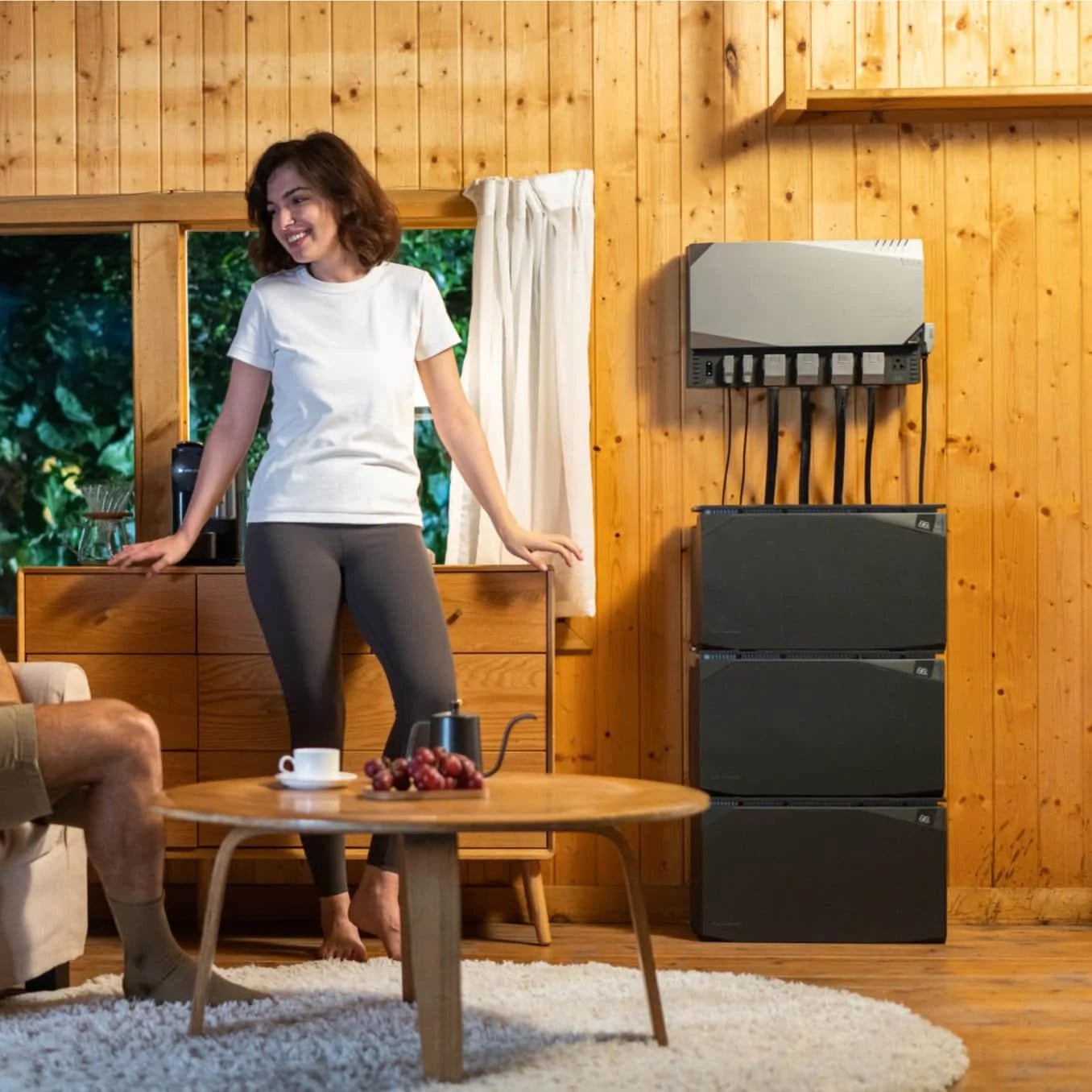

Off-grid Builds

Kits for Any Cabin Size

From tiny home to off-grid cabin, you can adjust your kit to fit any size build.

Find The Battery Stack That Fits Your Power Needs

EcoFlow| 2kW-15kW Power Kits


Powers All Your Essential Appliances

EcoFlow| 2kW-15kW Power Kits

Multiple Ways to Stay Powered

You might live off-grid, but you still rely on power. Get multiple methods of charging using a combination of rigid, flexible, and portable solar panels and our Smart Generator if you’re in a jam.

4 Charging Methods

You might be on the road, but there are plenty of ways to charge, and fast. We’ve designed a new range of rigid and flexible solar panels giving your van a solar input of up to 4800W*. Use your alternator to recharge with 1000W. Spending the night on a campsite? Then take advantage of shore power for an extra 3000W. Caught short? Rely on our Smart Generator for emergency backup.

*Tested using a production model in a closed environment with favorable conditions. Actual results may vary depending on environment, usage, and firmware version.

Watch The Vides

EcoFlow| 2kW-15kW Power Kits

EcoFlow| 2kW-15kW Power Kits

EcoFlow| From 2kW To 15kW Capacity Power Kits

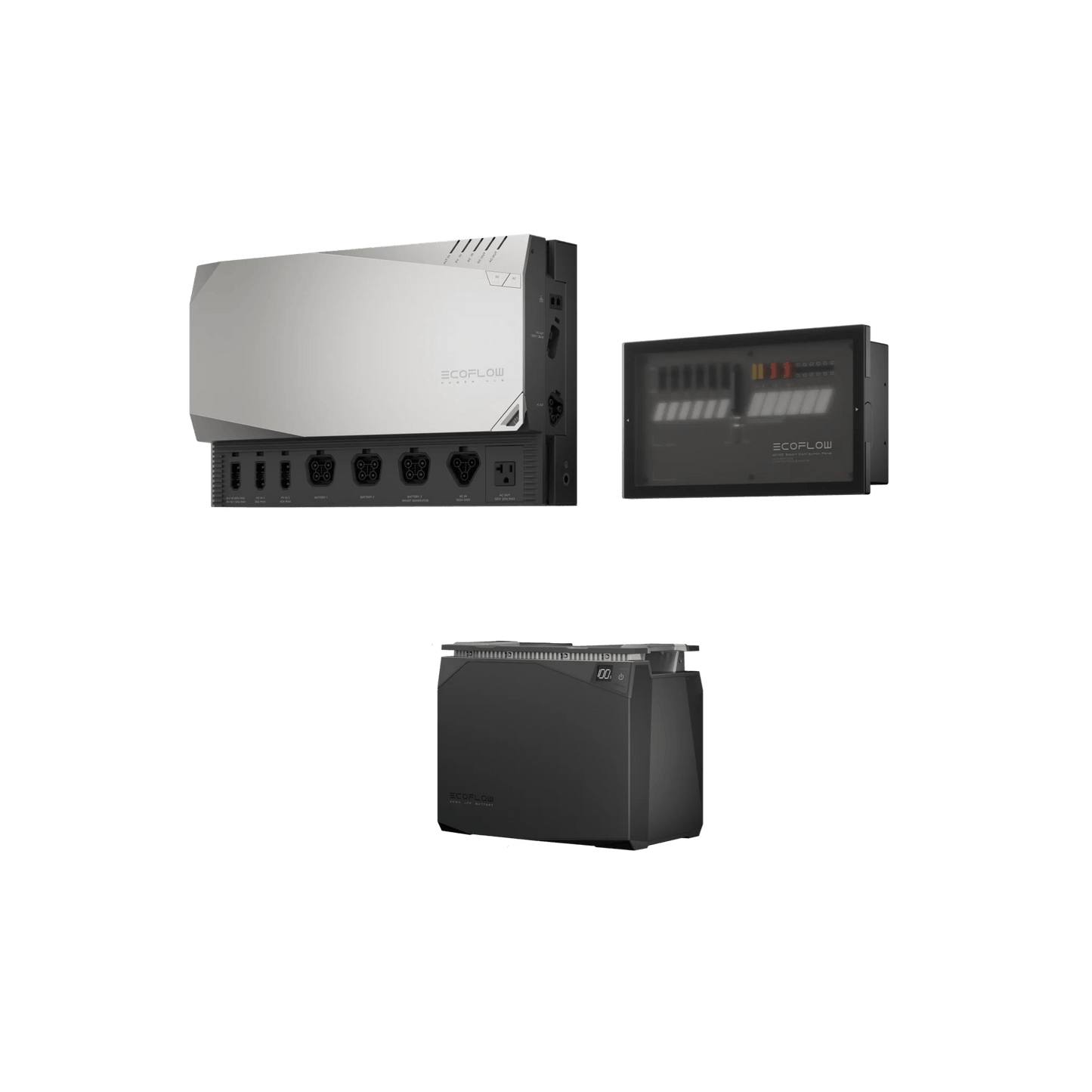

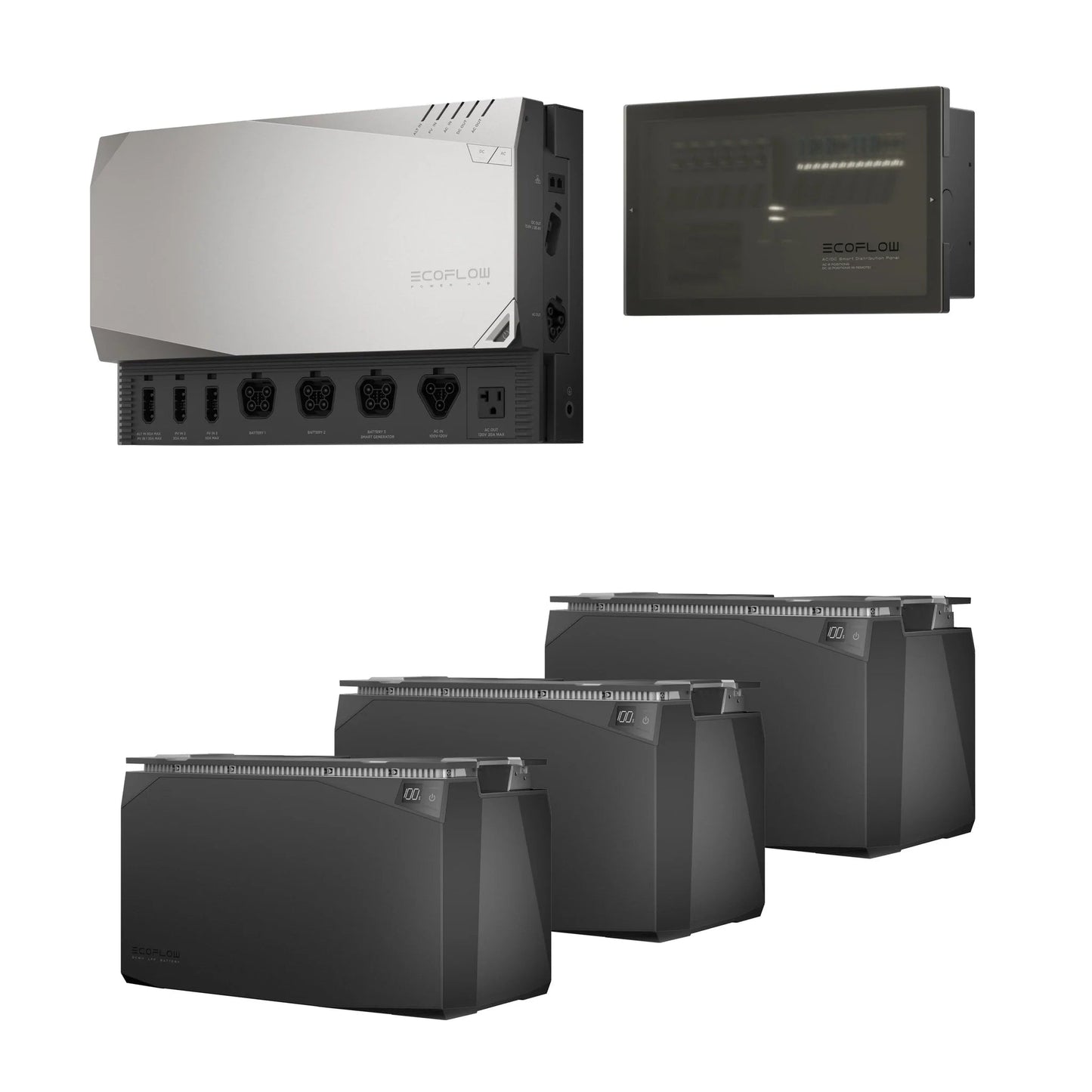

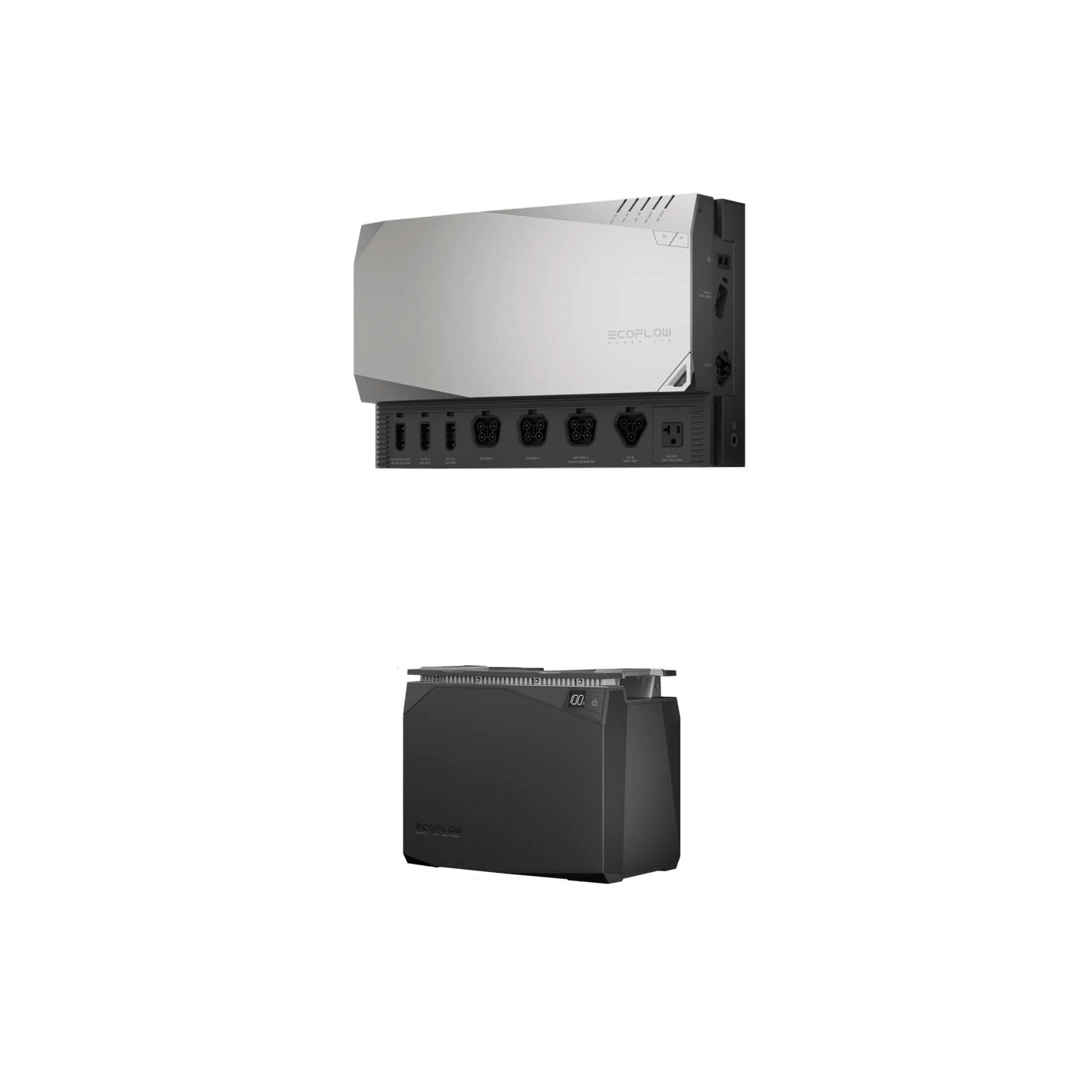

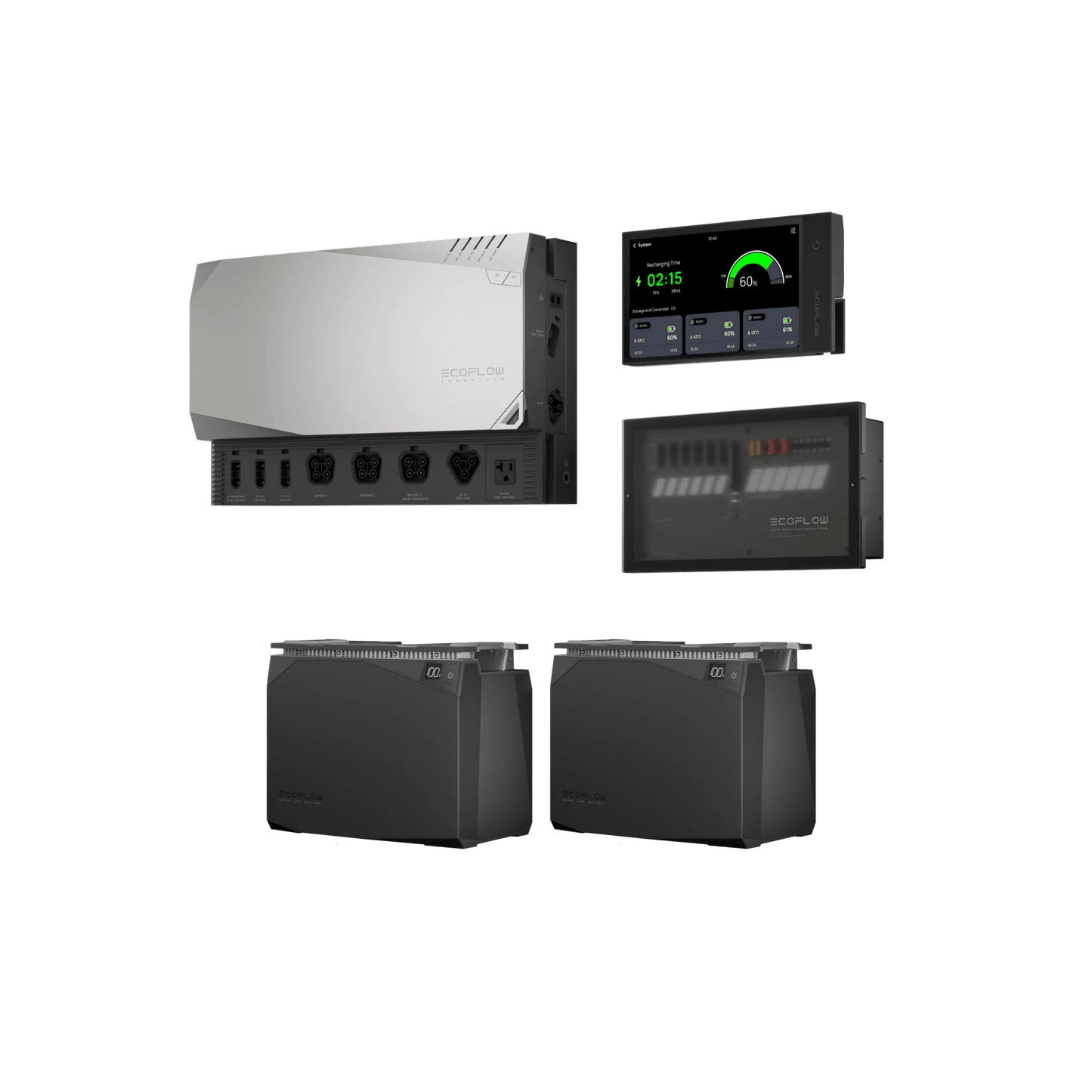

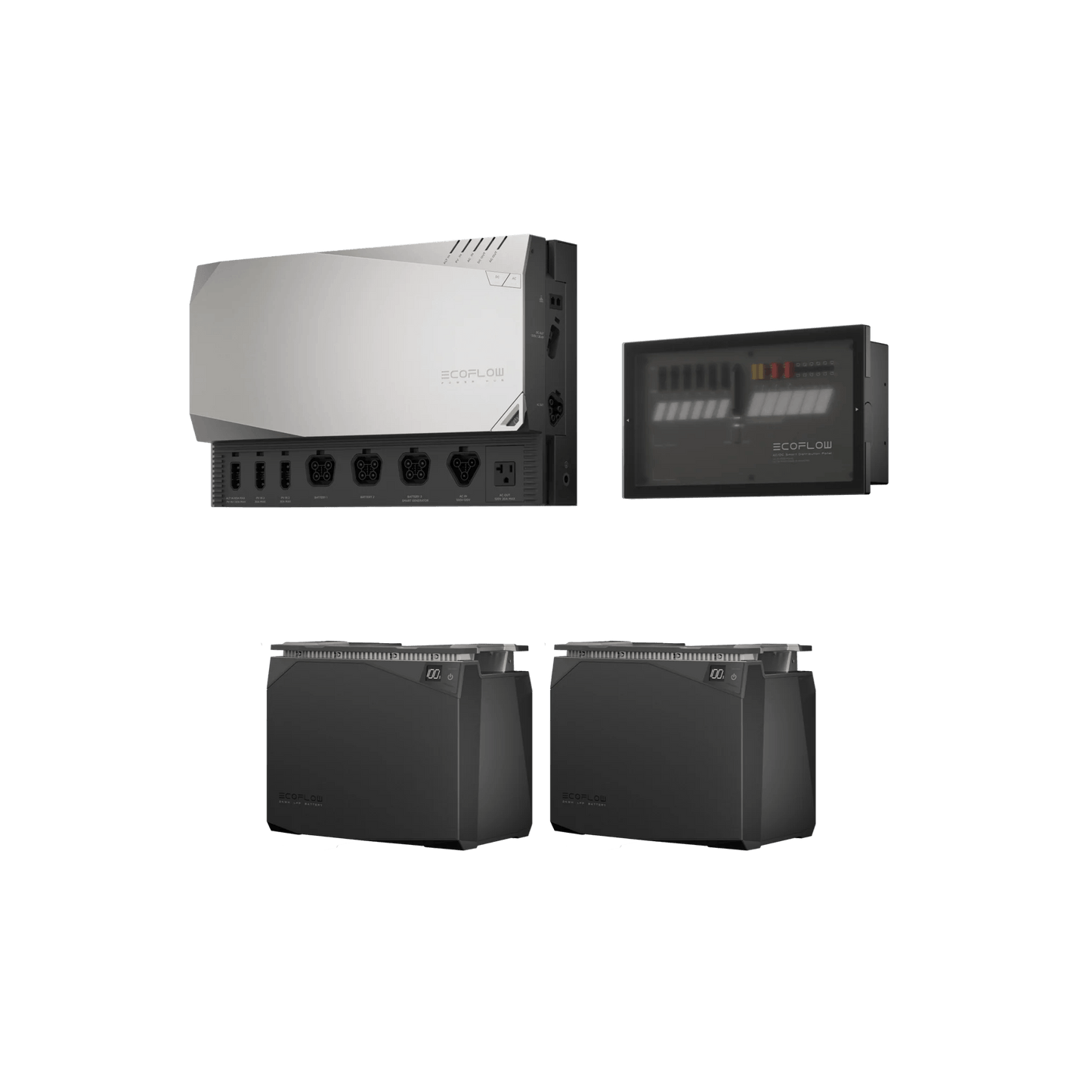

Power Kits Components and Solar Panels

Power Hub

Five Electronic Essentials in One

We combined all the essential 48V components into one Plug-and-Play Power Box. With fewer wires and modules, it's 5 times faster to set up, saves masses of space, and your wallet too.


Power Hub has a 3600W output, and includes two MPPT Solar charge controller, a DC-DC battery charger with MPPT, an inverter charger, and a DC-DC step-down converter. Everything you need to power your tiny home or van.

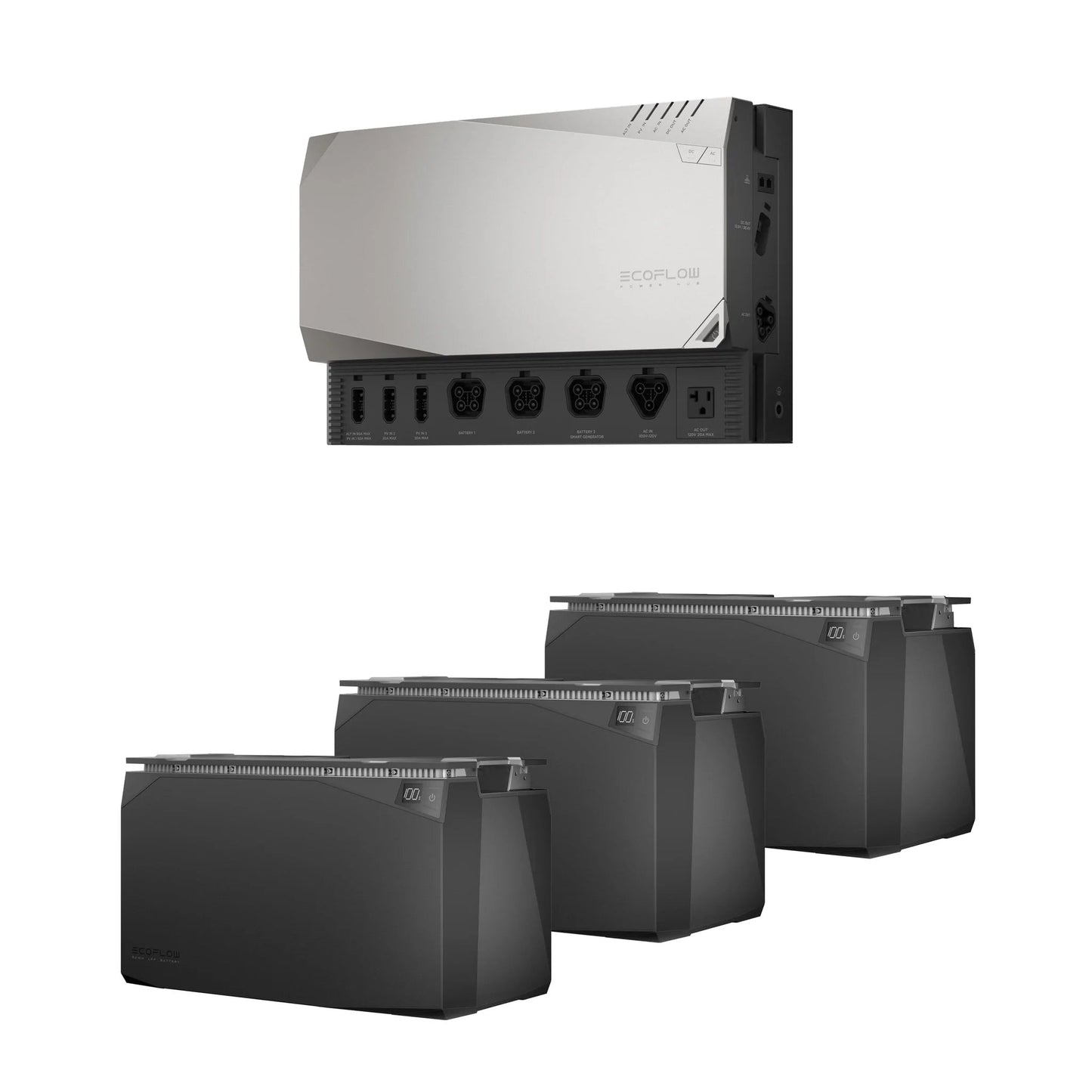

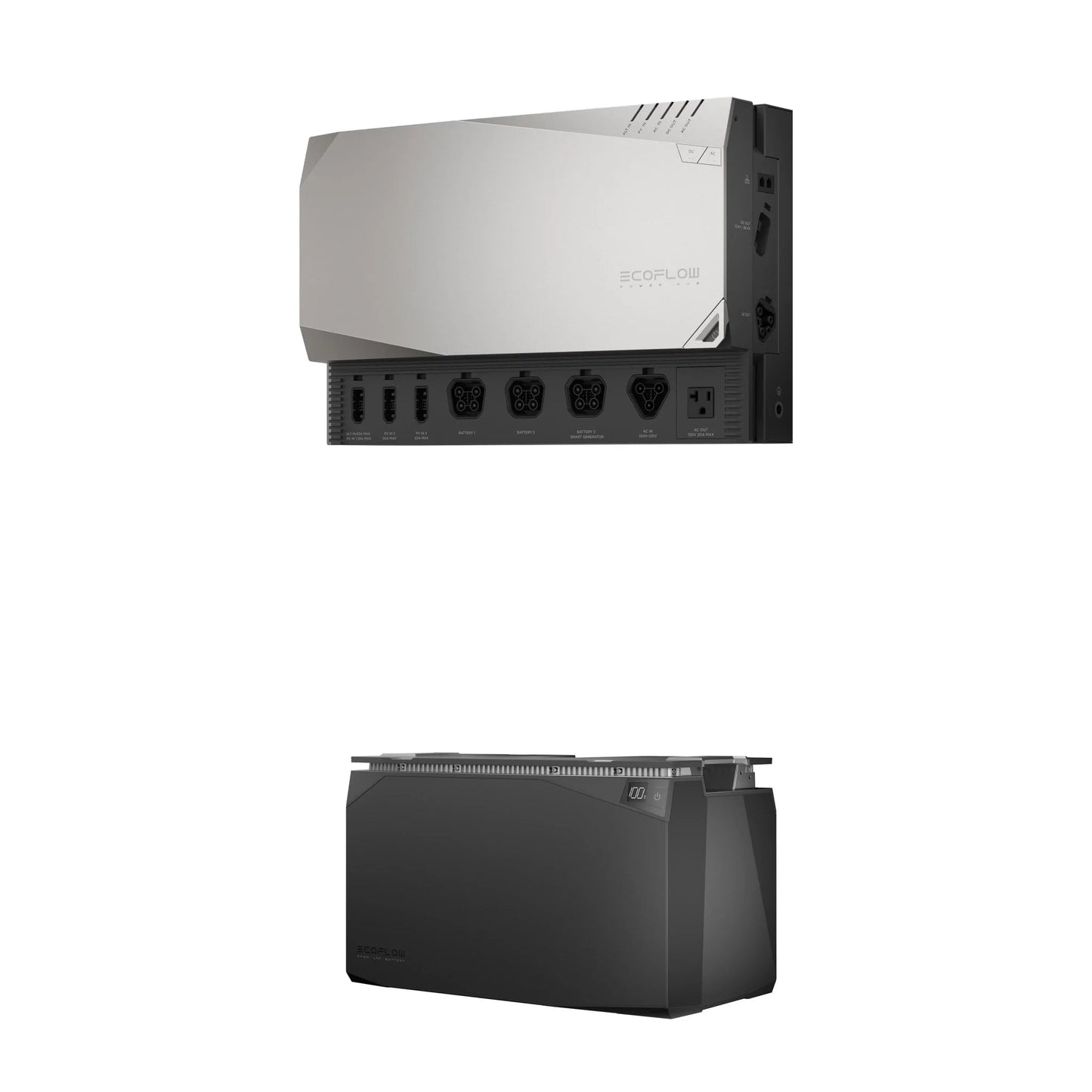

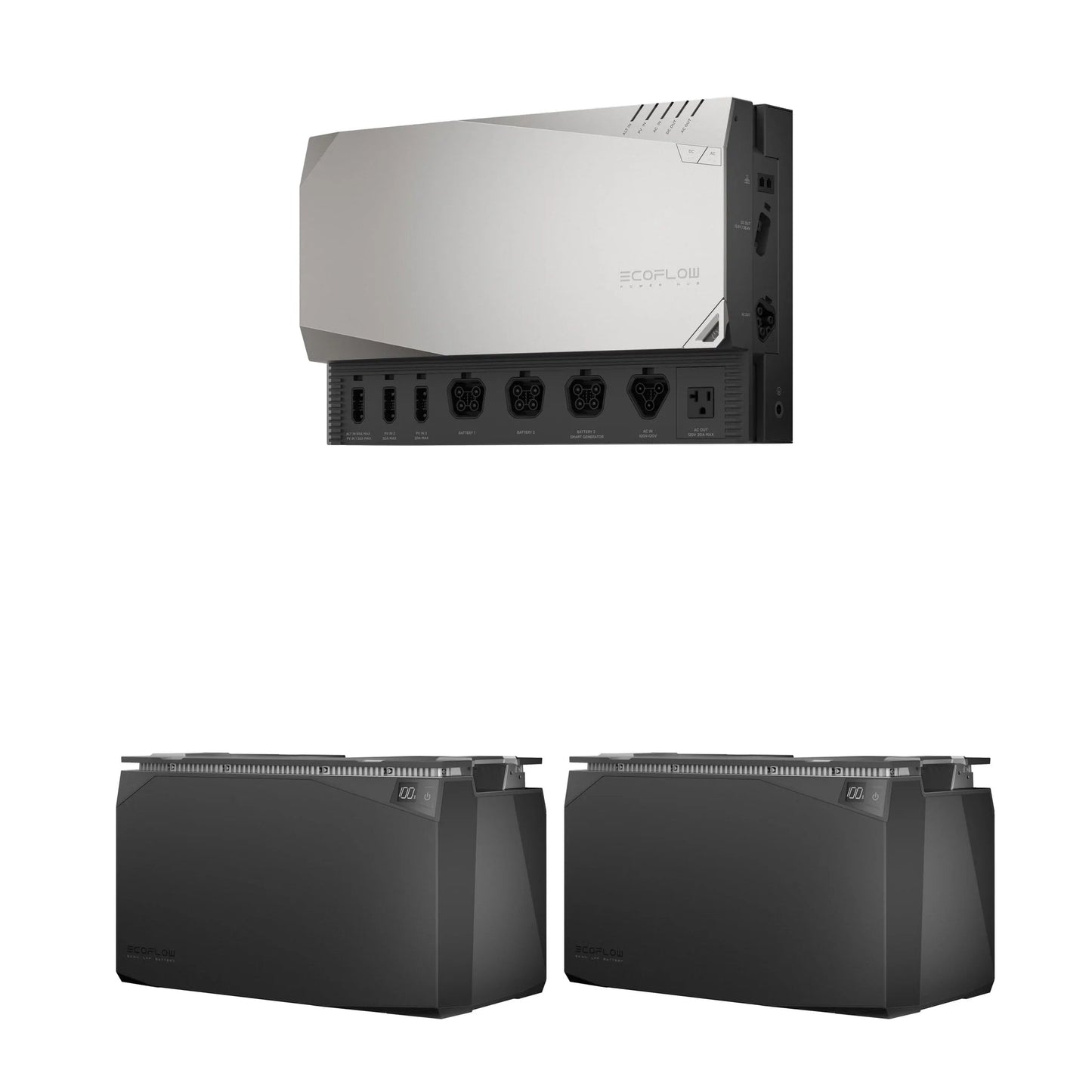

LFP Batteries

Stack & Store Energy

Available in two sizes, both 2 and 5kWh stack up to 3 for a capacity of up to 15kWh. Integrated BMS protects the batteries from operating beyond their capacity by monitoring temperature, voltage, and current, keeping your home and system safe. With built-in auto-heating, you can use the batteries safely in temperatures as low as -4°F.

Solar Panels

Mix & Match Size, Type & Solar Input

Plug in a combination of rigid, flexible, and portable solar panels for an input of 4800W. As well as our existing range of portable panels, we’re adding a 100W flexible and rigid solar panel as well as a 400W rigid option to our Power Kits range.

*Solar panels sold separately.

Check the Solar Panels

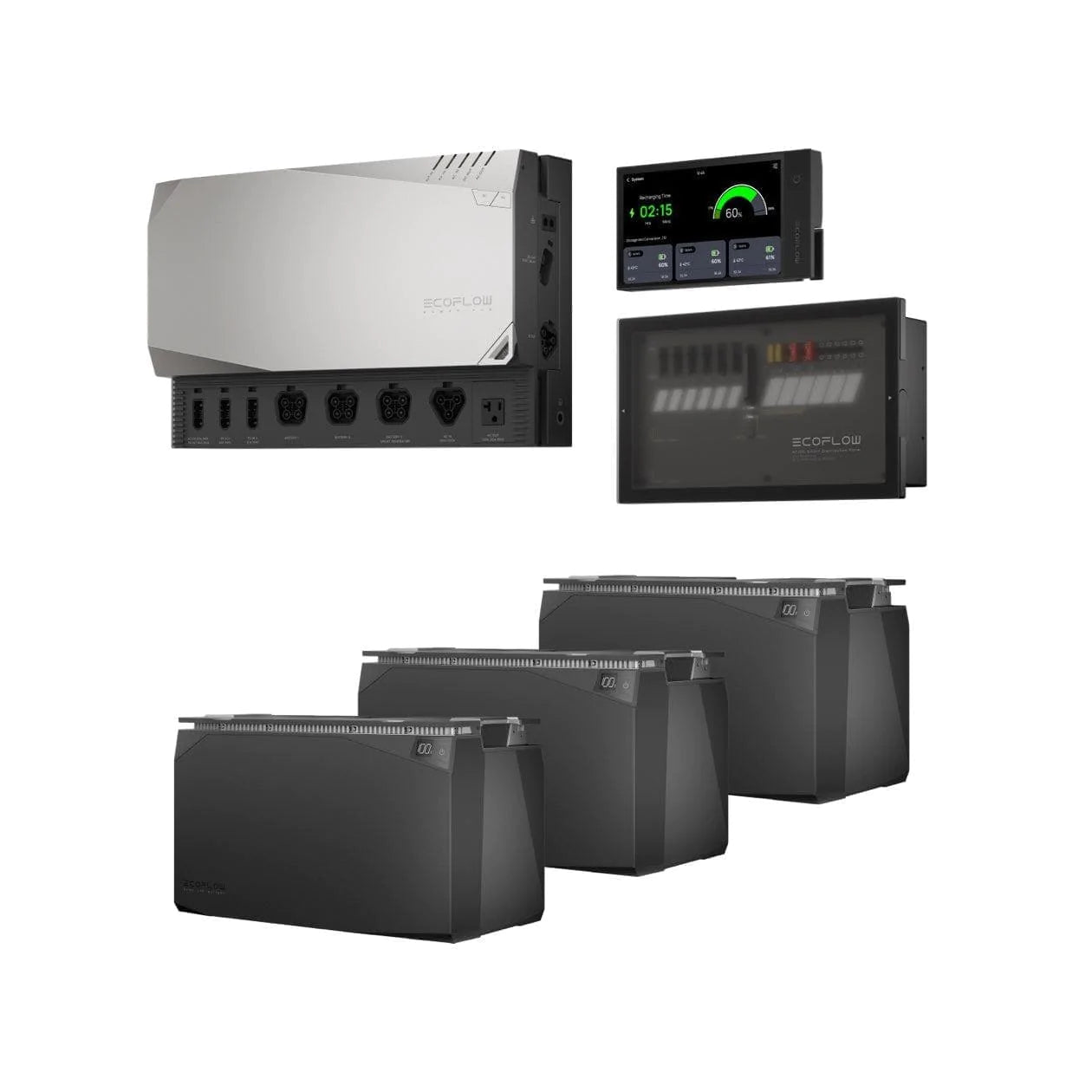

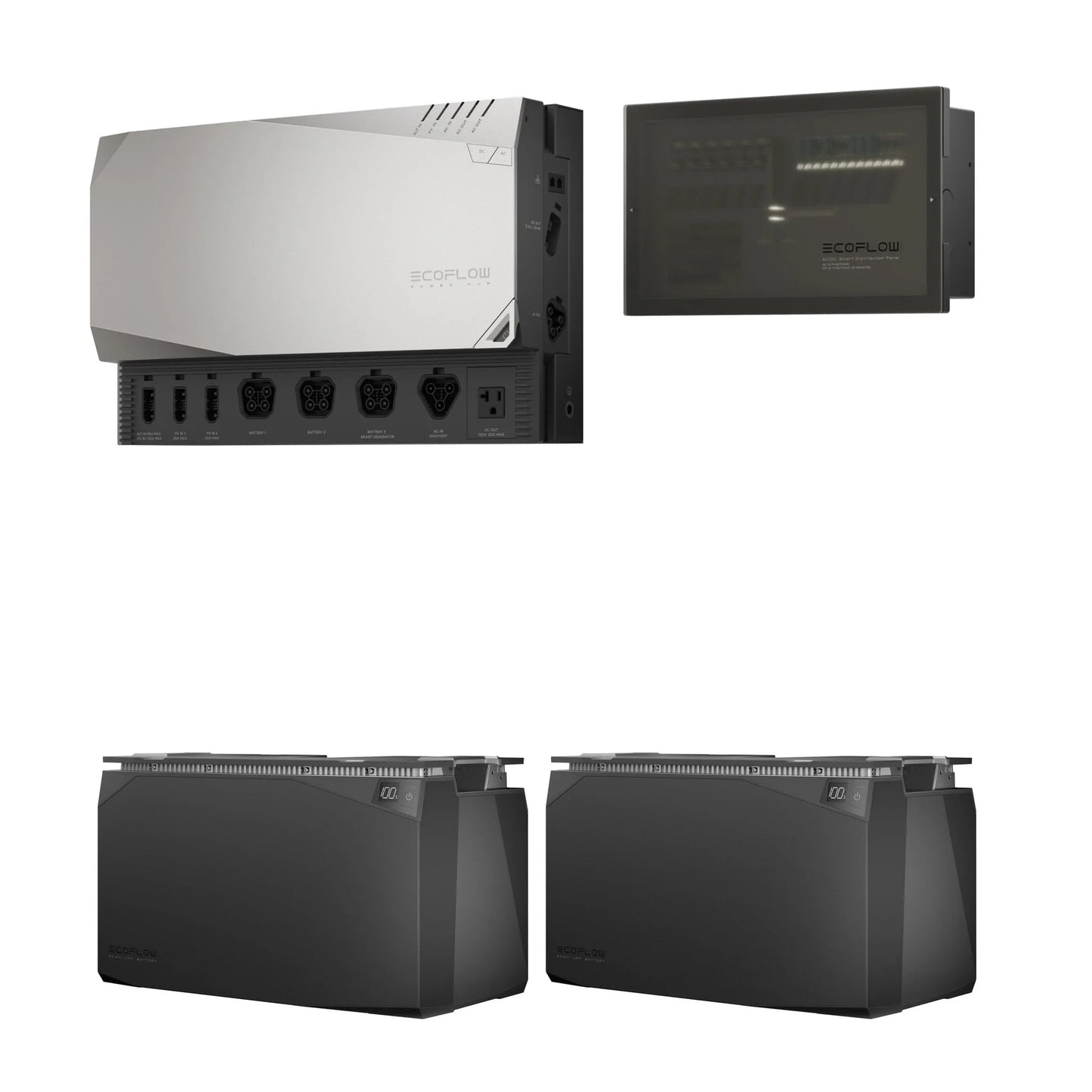

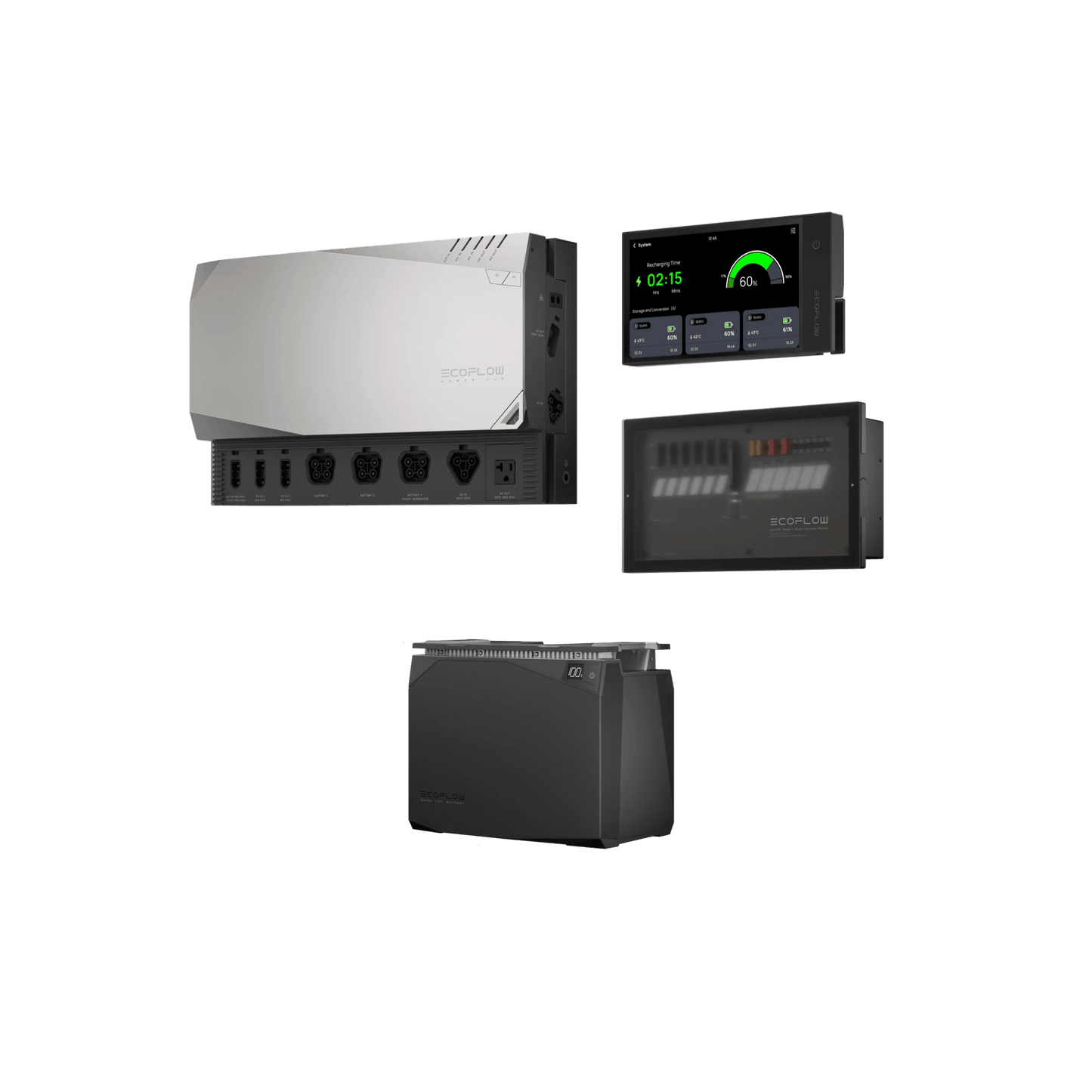

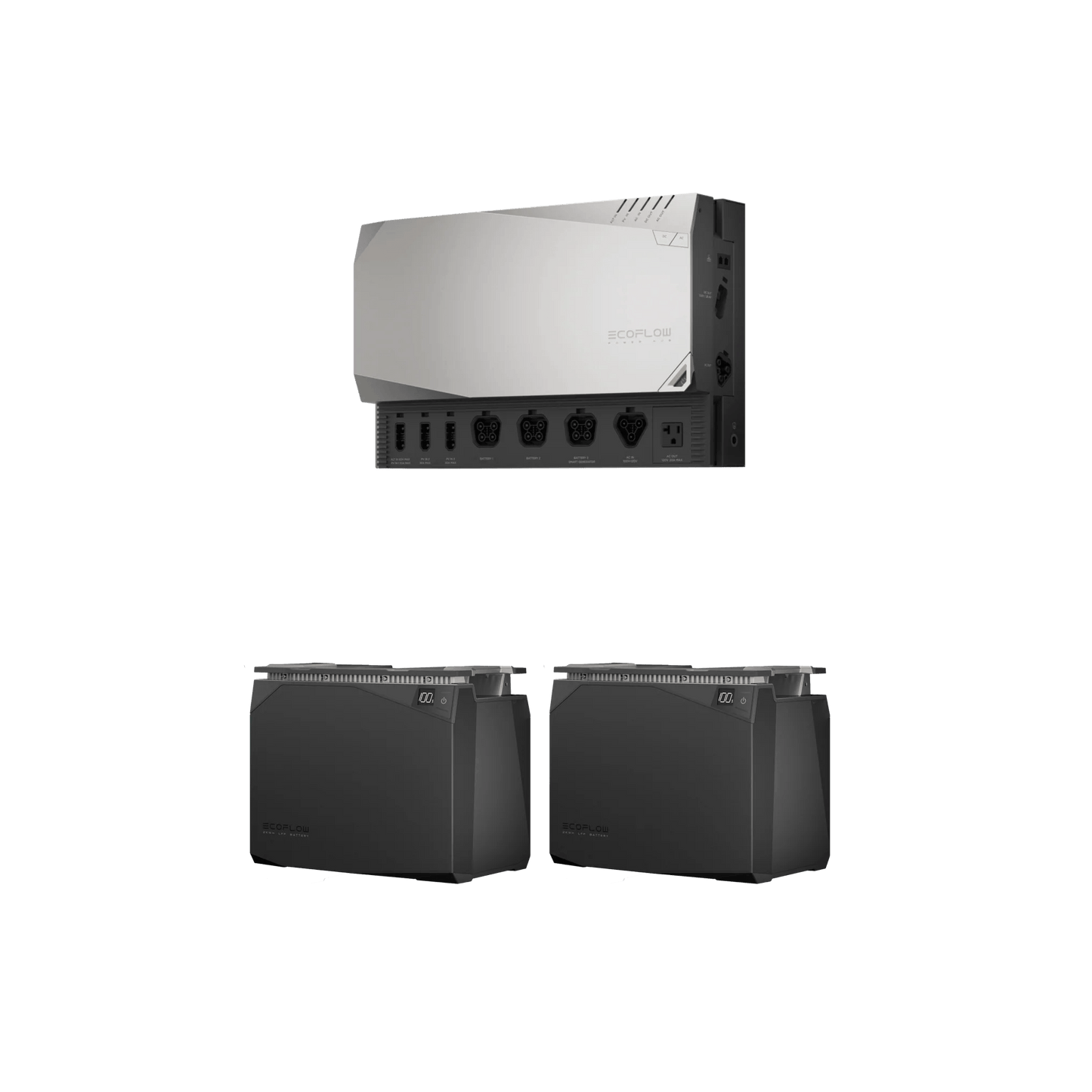

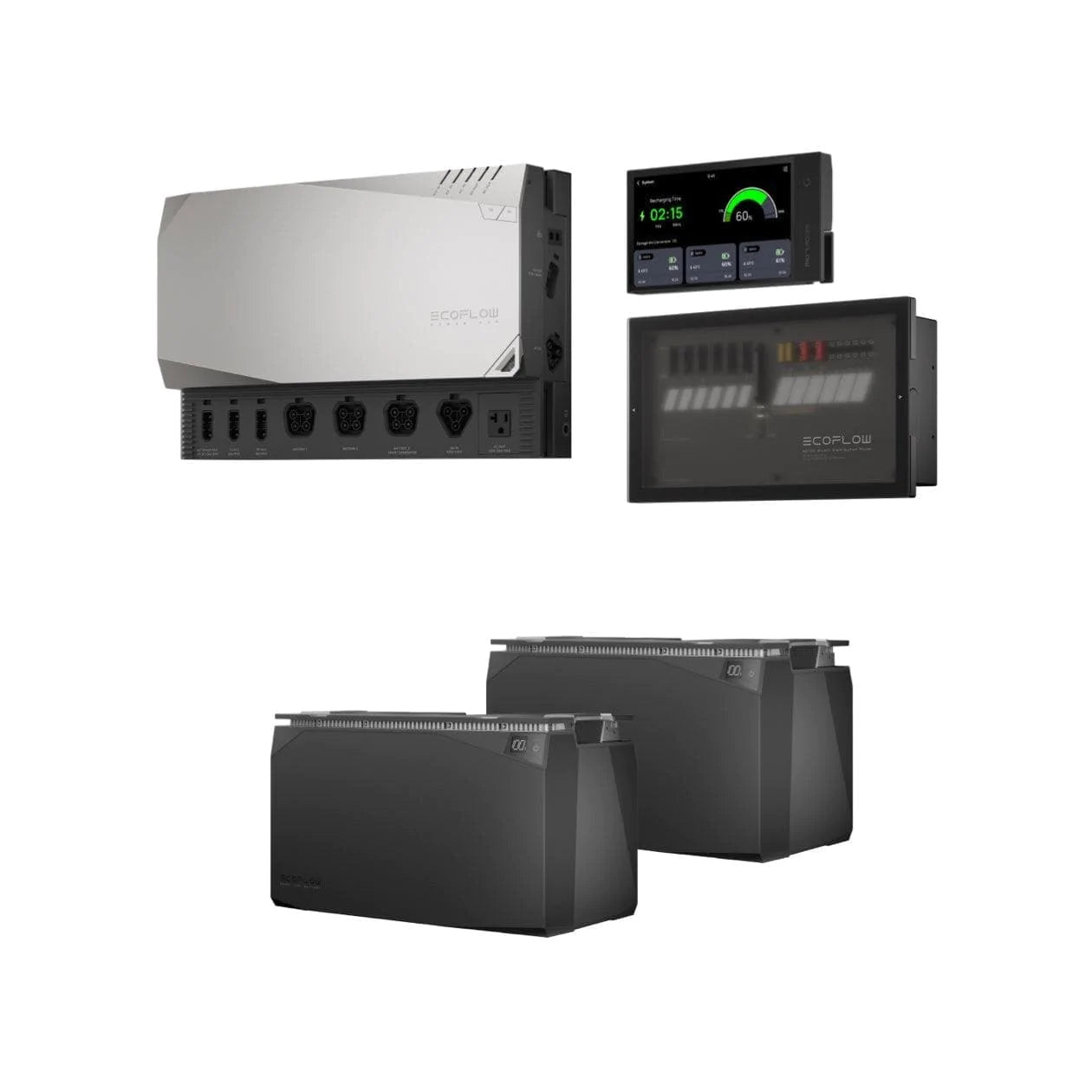

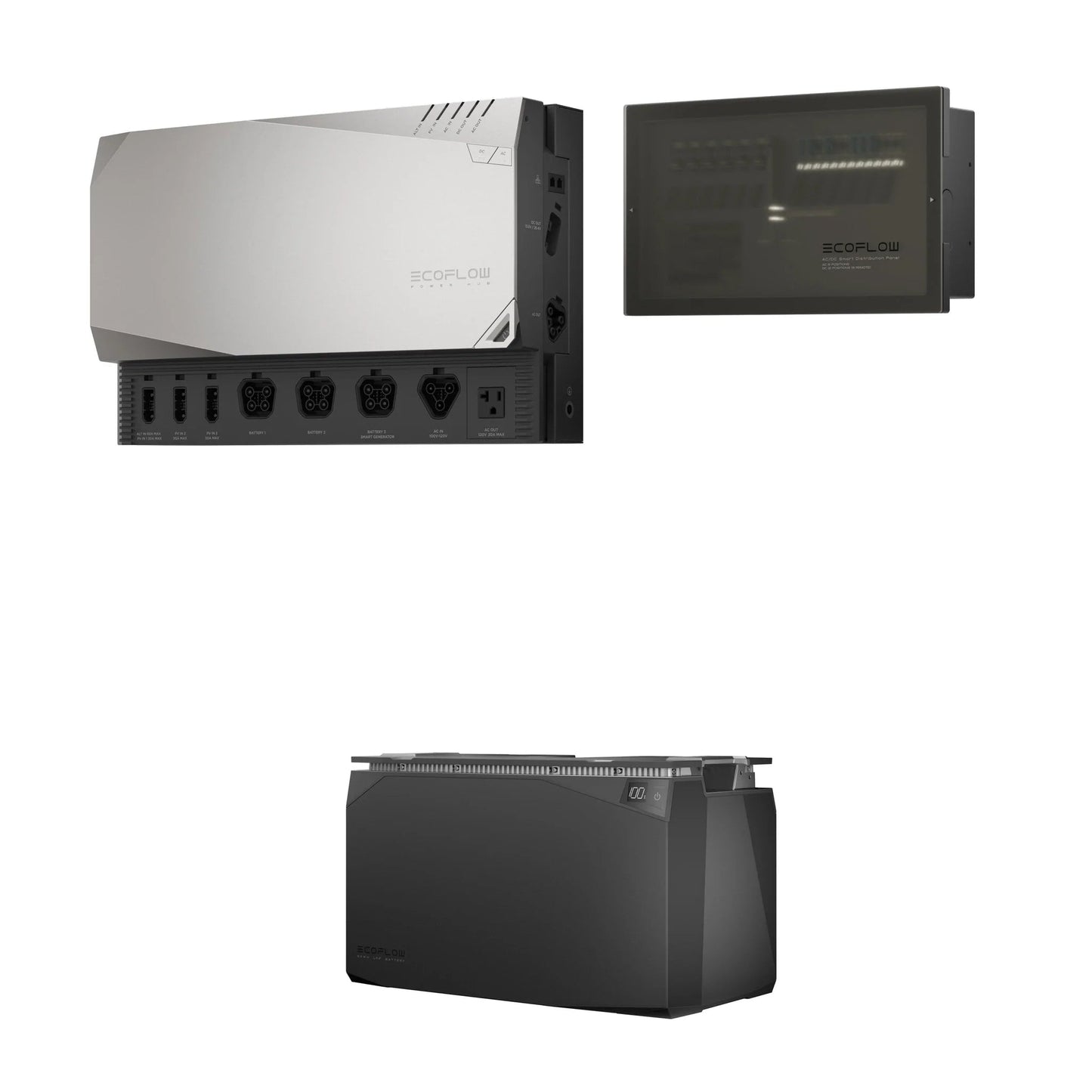

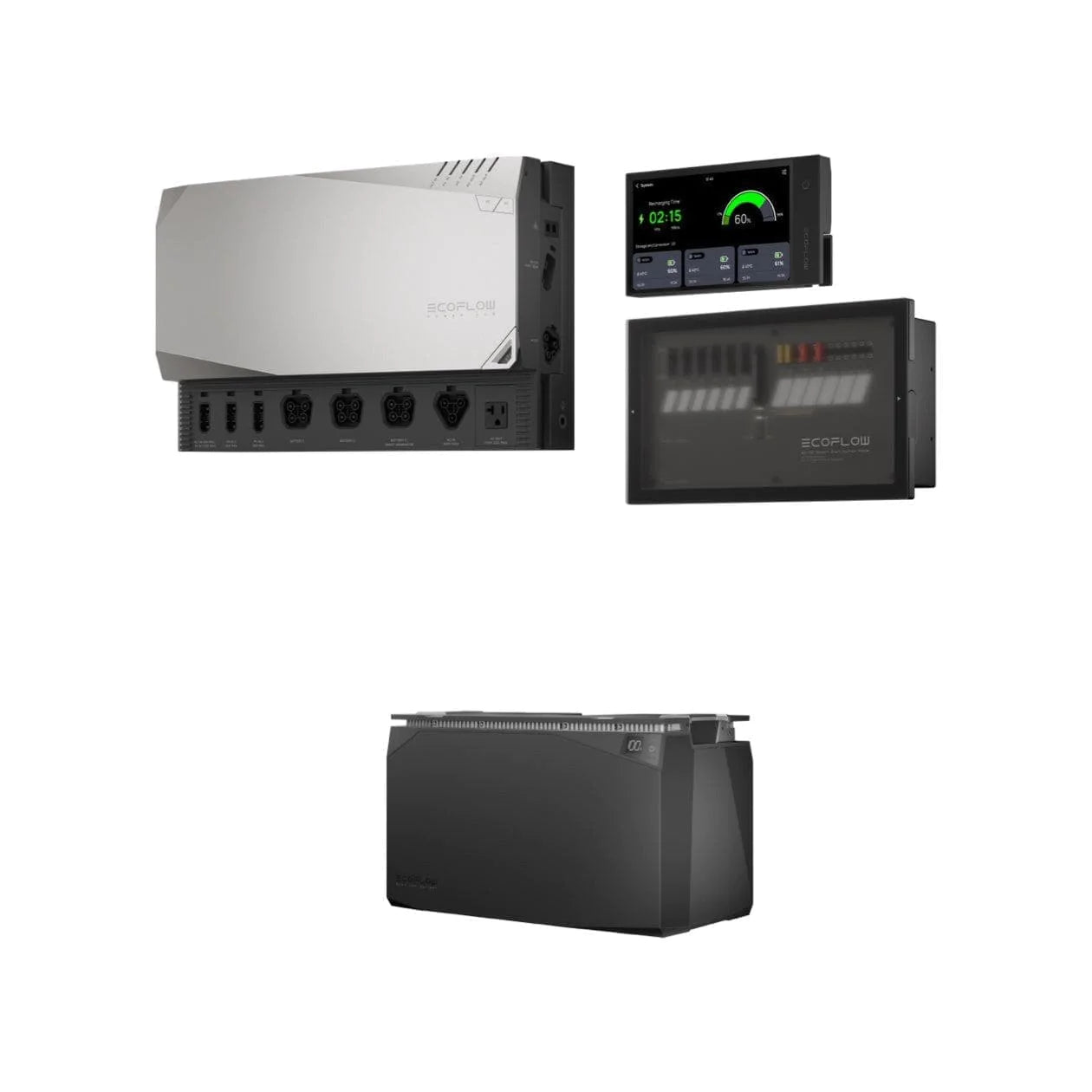

What's included in Power Kits

Tech Specs

Power Hub

EcoFlow| 5kW-15kW Power Kits

Net weight (lbs)

31

Net Weight (kg)

14

Dimension (inch)

11.8 x 18.9 x 5.5 in(Height x Width x Depth)

Dimension (cm)

30 x 48 x 14 cm (Height x Width x Depth)

Tests and Certifications

UL Standard, FCC,ICES

Wi-Fi

Bluetooth

Mobile App

AC Main Output/Frequency

Pure Sine Wave, 3600W (Surge 7200W), 120V, 50Hz/60Hz

DC Main Output

13.6V/70A 1000W Max; 26.4V/60A, 1600W Max

AC Main Input

X-Stream Fast Charging 3000W Max, 30A Max

AC Main Input Voltage/Frequency

100-120V, 50Hz/60Hz

Solar Charging Input

15-150V 30A, 1600W Max

Alternator Charging Input

13V-60V, 60A, 1000W Max

Operating Temperature

-13°F-140°F

Discharge Temperature

-13°F-140°F

Charge Temperature

-13°F-140°F

Storage Temperature

-13°F-140°F

2kWh LFP Battery

EcoFlow| 5kW-15kW Power Kits

Capacity

2048Wh (51.2V, 40Ah)

Cell Chemistry

Lithium Iron Phosphate

Cycle Life

~3000 Cycles up to 80% Capacity

Net weight (lbs)

37

Dimension (inch)

11.2x13.7x7.8in (Height x Width x Depth)

Dimension (cm)

28.4x34.8x19.8cm (Height x Width x Depth)

Net Weight (kg)

16.8

Protection Level

IP54

Tests and Certifications

UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE

Storage Temperature (F)

-4°F–140°F

Storage Temperature C

-20°C–60°C

Operating Temperature (F)

-4°F-122°F

Operating Temperature C

-20℃-60℃

5kWh LFP Battery

EcoFlow| 5kW-15kW Power Kits

Capacity

5120Wh (51.2V, 100Ah)

Cell Chemistry

Lithium Iron Phosphate

Cycle Life

~3500 Cycles up to 80% Capacity

Net weight (lbs)

90

Dimension (inch)

11.8x19.7x10.2in (Height x Width x Depth)

Dimension (cm)

30x50x26cm (Height x Width x Depth)

Net Weight (kg)

41

Protection Level

IP54

Tests and Certifications

UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE

Storage Temperature (F)

-4°F–140°F

Storage Temperature C

-20°C–60°C

Operating Temperature (F)

-4°F-122°F

Operating Temperature C

-20℃-60℃

Power Kit Console

EcoFlow| 5kW-15kW Power Kits

Touch Screen (Diagonal Measurement)

7 Inch (6x3.4in) (Width x Height)

Power Supply Voltage

12 VDC

Operating Temperature C

-20℃-60℃

Operating Temperature (F)

-4°F-140°F

Dimension (inch)

4.5x8x0.9in (Height x Width x Depth)

Dimension (cm)

113.3x204.5x22.35mm (Height x Width x Depth)

Net weight (lbs)

1

Net Weight (kg)

0.45

Tests and Certifications

UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC

AC/DC Smart Distribution Panel

EcoFlow| 5kW-15kW Power Kits

AC Main Input

30A Max. 120V, 3600W

DC Main Input

70A Max

AC Output

6 AC Positions, 20A Max Each

DC Output

12 Fused DC Positions (6 Positions Controllable via Power Kit Console & App)

Operating Temperature C

-25℃-60℃

Operating Temperature (F)

-13°F-140°F

Dimensions

8.3x13.9x3.9in (Height x Width x Depth)

Net Weight(lbs)

5.7lbs

Net Weight (kg)

2.6

Protection Level

IP21

Tests and Certifications

UL Standard, FCC,PSE

400W Rigid Solar Panel

EcoFlow| 2kW-15kW Power Kits

Short Circuit Current

13.79A

Open Circuit Voltage

37.10V

Connector Type

Solar Connector

Efficiency

23%

Cell Type

Monocrystalline

Rated Power

400W

Maximum Operating Voltage

31.00V

Maximum Operating Current

12.90A

Temperature Coefficient of Rated Power

-0.38%/°C

Temperature Coefficient of Open Circuit Voltage

-0.35%/°C

Temperature Coefficient of Short Circuit Current

0.06%/°C

Maximum Fuse Current

25A

Maximum System Voltage

1500V DC (UL)

Dimension (inch)

67.8×44.6×1.38

Net Weight (kg)

21.8kg

Dimension (cm)

172.2×113.4×3.5

Net weight (lbs)

48.1lbs

100W Rigid Solar Panel

EcoFlow| 2kW-15kW Power Kits

Solar Panel Weight

Approx. 6.2 kg(13.7 lbs)

Dimensions

98*58.6*3 cm(38.6*23.1*1.2 in)

Rated Power

100 W(+/-5W)

Open Circuit Voltage

20.3 V

Short Circuit Current

6.3 A

Maximum Operating Voltage

17.1 V

Maximum Operating Current

5.9 A

Temperature Coefficient of Rated Power

-0.39%/°C

Temperature Coefficient of Open Circuit Voltage

-0.33%/°C

Temperature Coefficient of Short Circuit Current

0.06%/°C

Maximum System Voltage

600 VDC(UL)

Maximum Fuse Current

15 A

100W Flexible Panel Specs

EcoFlow Power Kits

Solar Panel Weight

Approx.2.3 kg (5.1lbs)

Dimensions

1055*612*25 mm (41.5*24.1*1.0 in)

Rated Power

100 W(+/-5W)

Open Circuit Voltage

20.3 V

Short Circuit Current

6.3 A

Maximum Operating Voltage

17.1 V

Maximum Operating Current

5.9 A

Temperature Coefficient of Rated Power

-0.39%/°C

Temperature Coefficient of Open Circuit Voltage

-0.33%/°C

Temperature Coefficient of Short Circuit Current

0.06%/°C

Maximum System Voltage

600 VDC(UL)

Maximum Fuse Current

15 A



      View full details

      EcoFlow Power Kit 4 Charging Methods

      FAQ

      Can I use my own non-EcoFlow batteries?

      Power Hub is not compatible with third-party batteries.

      How many DC circuits can the 30A/50A AC/DC Smart Distribution Panel control?

      It can control 16 circuits, max. 30A for F1–F13, and max. 50A for F14–F16

      Can a 30A/50A AC/DC Smart Distribution Panel connect to 120V/240V AC?

      Yes. The input specification is max. 50A, 120/240V, 60 Hz.

      What is purpose of the Power Dock Battery 3-pin port/Multi Connection? row

      1. Connect batteries in parallel
      2. Connect an EcoFlow Smart Generator to recharge the system
      3. Connect an EcoFlow Delta Pro Smart Extra Battery/Delta 2 Max Smart Extra Battery

      What does Power Dock do?

      1. Three batteries connected in parallel can be connected to a Power Dock connected to one port of Power Hub.
      2. There are two DC outputs that can power 48V appliances. The specification is 40–60V⎓55A and the app or Power Kit Console can be used for control and data monitoring.
      3. Connect an external manual switch to disconnect the 48V DC connection between the battery and Power Hub.

      Does Power Hub have GFCI protection?

      The user can connect an external GFCI protector if required. The internal GFCI function of Power Hub 5kVA is always on and no special operation is needed to enable GFCI protection.

      What is the temperature range for normal operation of Power Kits?

      Optimal operating temperature: 20°C–40°C
      Optimal recharge temperature: -25°C to 60°C. Recharging starts to derate above 40°C.
      Optimal discharge temperature: -25°C to 60°C. Discharging starts to derate above 40°C.

      Power Kits update precautions

      Use Power Kit Console for synchronous updating of Power Hub and Power Kit Console. If you use the app to update, Power Kit Console cannot be updated, so we recommend using Power Kit Console to update.

      Power Hub installation precautions in a confined space

      Be sure to install a cooling fan when installing Power Hub in an enclosed space, so as not to compromise the performance and service life of Power Hub.

      Power Hub installation precautions

      Drill holes before installing the upper and lower brackets. Ensure that no metal filings or dust get in the device, as these can cause short circuits.

      Collapsible rowPurpose of power grid priority

      This prevents a poor-quality power grid from affecting appliances when power grid quality is variable. Turning off grid power priority puts it in inverter priority mode, safeguarding output power quality.

      X-Fusion (Power Assist)

      When in bypass mode (when you recharge and discharge simultaneously, the device automatically enters bypass mode), the X-Fusion feature ensures that all AC output sockets supply optimal power and current.

      Can Power Kits be used as UPS?

      No. UPSs have a transfer time of 0–20 ms. Power Kits currently take 30 ms and can only serve as EPS.

      Can the EcoFlow App monitor and control recharging?

      Use the EcoFlow App to monitor energy use, recharging input and to adjust settings, error alarms, etc. Console can also be used to monitor and control Power Kits.

      How does Power Hub detect vehicle motion?

      Power Kits can utilize a vibration sensor to ensure recharging only occurs when the vehicle is in motion in order to safeguard the vehicle battery.
      Default voltage protection is set to 13V (or 26V/52V depending on the battery specification of the alternator). Turn off the idle recharge switch once the vehicle ignition is off if you wish to maintain the vehicle battery close to 14V.

      Priority of the three recharging modes (PV, ALT and AC)

      PV>AC>ALT>Smart Generator. Lower priority sources for recharging automatically stop working when the recharging power exceeds what the battery needs to recharge.

      Battery heating

      Manual discharge heating function: Manually discharge and heat the battery via the Console or app when the battery temperature <0°C and SOC>50%. When the battery SOC ≤ 30% or the battery temperature is higher than 10°C, the battery discharge heating is automatically switched off.
      Automatic recharge heating function: Automatic heating on recharge
      In order to extend the battery life and maintain optimal performance, it will continuously heat the battery up to the optimal operating temperature automatically (BP2000 — 18°C, BP5000 — 23°C) when there is sufficient input power (>250W is needed to heat a battery). The battery charge heating is automatically switched off when power is insufficient for heating so as to prioritize recharging.

      What is the maximum DC output of the Power Hub battery port?

      40–57.6V⎓55A

      What is Power Hub's maximum bypass current?

      50A

      What is Power Hub's maximum recharging power?

      ALT1 & PV1: 4000W
      ALT2/3 & PV2/3: 1600W
      AC: 4000W
      The maximum recharging power for the device as a whole is 11kW
